Continuous grout mixing and pumping system for foundation treatment

2021-11-23 17:22:52

Continuous grout mixing and pumping system for foundation treatment
Lead Equipment Co., Ltd. is a continuous grout mixing and pumping system manufacturer. We have grout mixing and pumping system with different tank sizes, pump capacities, pressures and powers. For example, the volume of the mixer is from 100L to 800L, the volume of the agitator is from 150L to 3000L, and the output range is from 50L/min to 300L/min.

Continuous grout mixing and pumping system for foundation treatment


Application of continuous grout mixing and pumping system:
The continuous grout mixing and pumping system could be used for mixing construction materials and pumping bentonite slurry in tunnel excavation projects, foundation treatment, municipal, highway, railway, hydropower, construction, mining and other construction site for grouting.
1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts;
2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting;
3. Construction - pavement under sealing, slab jacking and slab raising;
4. Marine - underwater foundations, piers, breakers, shoreline foundations;
5. Mining - tunnel lining, contact grouting, shaft waterproofing;
6. Utilities - encasement, waterproofing, slope line grouting;
7. Geotechnical engineering- deep well casing, monitor wells, well sealing and abandonment.


Continuous grout mixing and pumping system for foundation treatment

LGP400/700/ 80/100DPI-D grout mixing and pumping system for foundation treatment is mainly used to prepare bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.

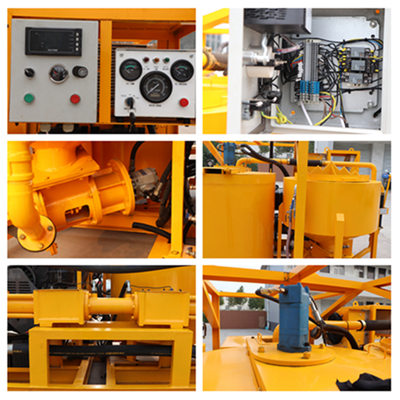

LGP400/700/ 80/100DPI-D is a diesel double cylinders piston pump grout mixing and pumping system. It is combination of mixer, agitator and grout pump in one base frame. And it is equipped with a high shear high speed grout mixer, the mixer volume is 400L, agitator volume is 700L. When working at low voltage, its working pressure is 4Mpa, its output is 80L/min; When working at high voltage, its pump working pressure is 10Mpa, its output is 40L/min.

Continuous grout mixing and pumping system for foundation treatment


1. Grouting pressure and displacement is adjustable.
2. Air cooling and water cooling for the hydraulic.
3. Easy to operate and maintain.
4. Up to 5mm particle size.
5. The oil thermometer can automatically control the cooling fan to work within the normal temperature range. If the temperature is too high, the machine will automatically stop working.
6. Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse and not easily leaking compared with the double acting piston pump.
7. It is full hydraulic drive, and equipped with three cylinders air cooling diesel engine.
8. The function switch between mixer and pulping machine is realized by using squeeze switch.

Continuous grout mixing and pumping system for foundation treatment


Contact us for
continuous grout mixing and pumping system price:
If you are interested in our grout mixing and pumping system, we will recommend a suitable grout mixing and pumping system for you. Please help us to confirm the following points:
1. What kind of grouting project would you use the grout equipment?
2. What is the pressure and flow rate do you need?
3. How about the water and cement ratio, does any sand in?
You can send your demands to our email, email address: sales@leadcrete.com.
