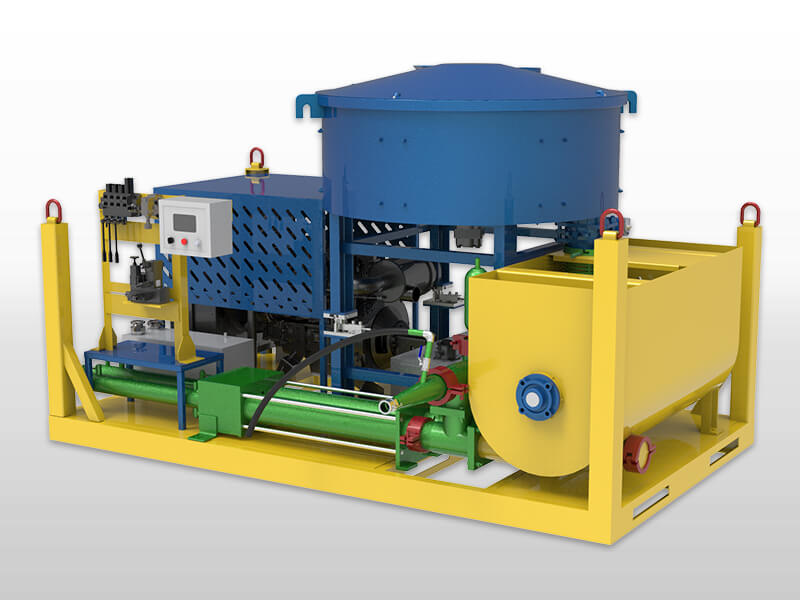

LSLC-10/D Self levelling screed mixer pump

  • Model: LSLC-10/D
  • Diesel Engine Power: 52-54KW
  • Forced Mixer Capacity: 800L
  • Forced Mixer Speed: 70rpm
  • Agitator Capacity: 700L
  • Grout Pump Flow@Pressure: 11m3/h@7Mpa

  • self levelling screed mixer pump

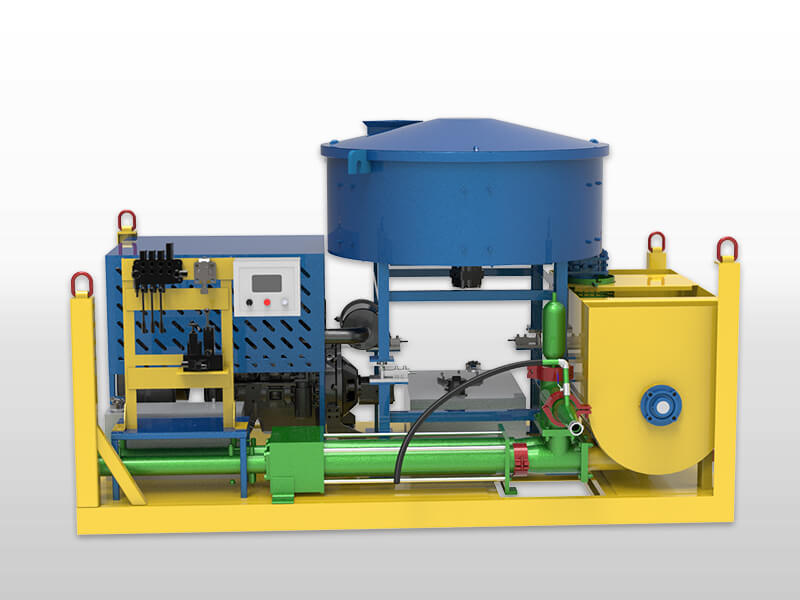

  • Self levelling screed mixing conveying machine

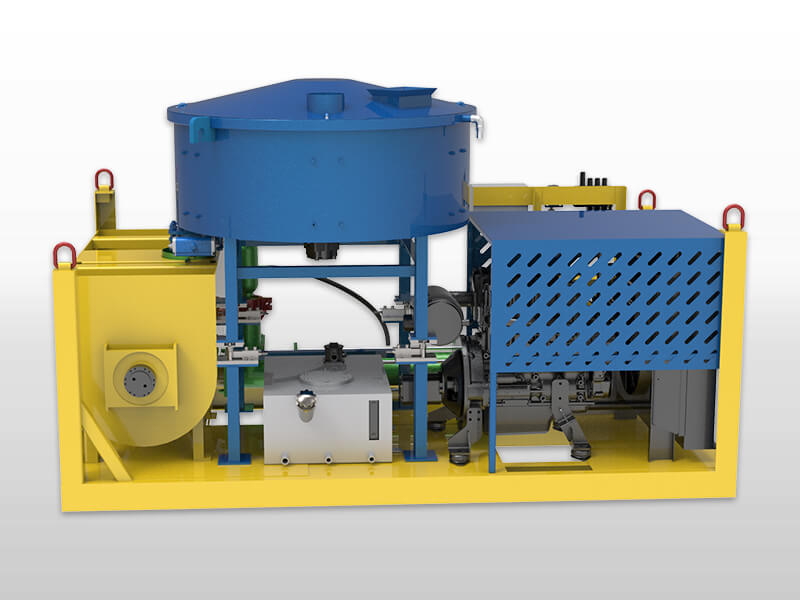

  • Self levelling screed mixing pumping machine

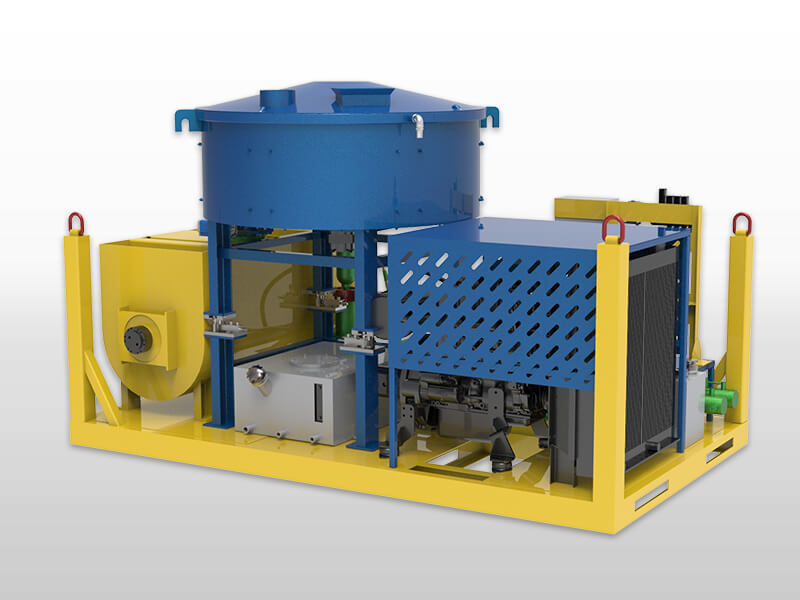

  • self-levelling screed pump

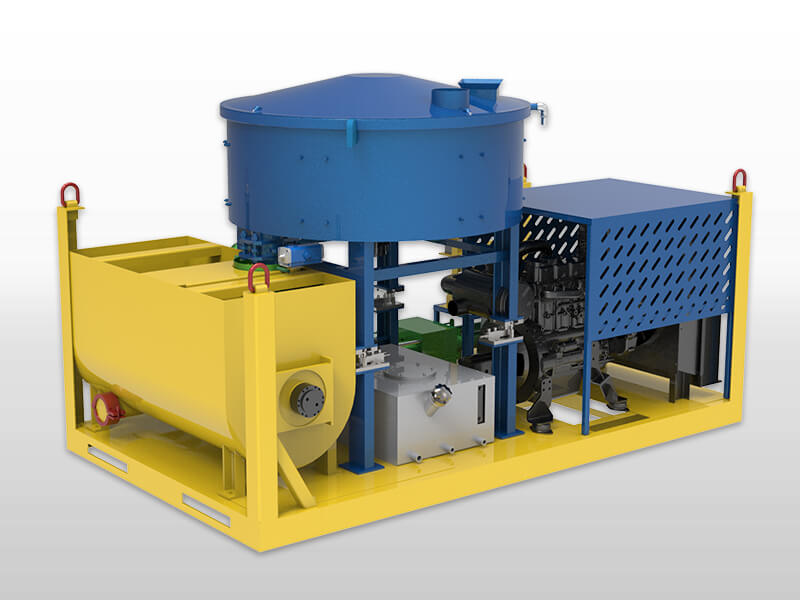

  • self levelling floor screed pump

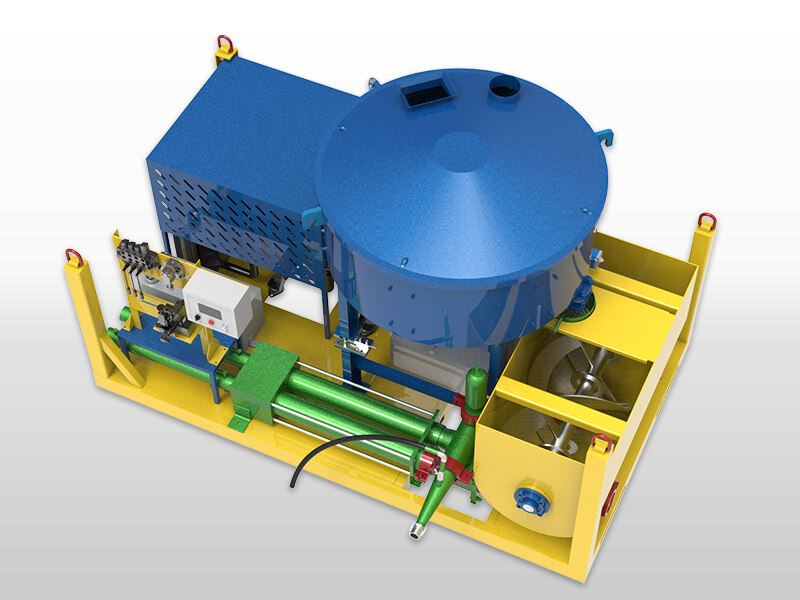

  • Self-levelling floor screed pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Plaster Machine
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
hydraulic pump station
Customized Service

Phone/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
  Description:

LSLC-10/D Self levelling screed mixer pump represents a highly specialized equipment system that seamlessly integrates automatic ingredient batching, intensive mixing, and accurate material discharging functions. It is primarily tailored for the preparation of diverse self-leveling mortars, including but not limited to gypsum-based and cement-based variants.

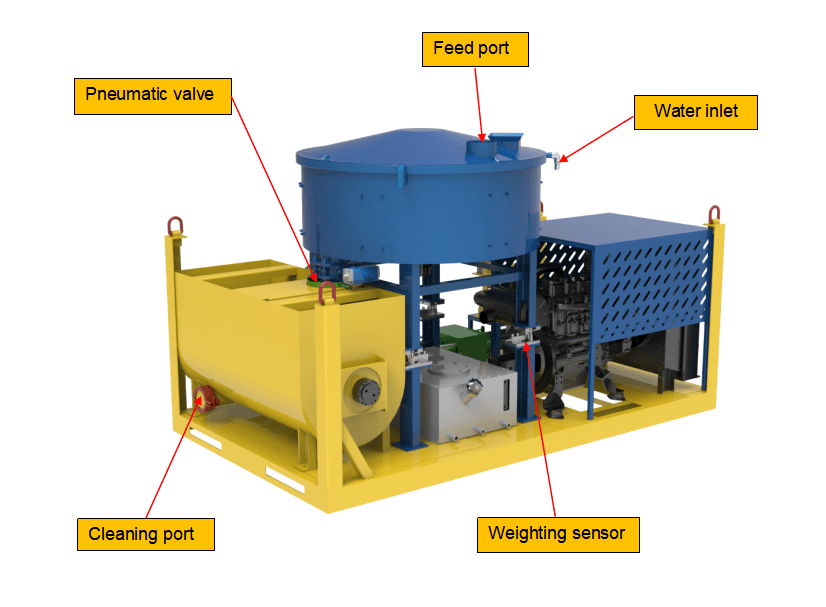

diesel floor screed mixing and converying machine

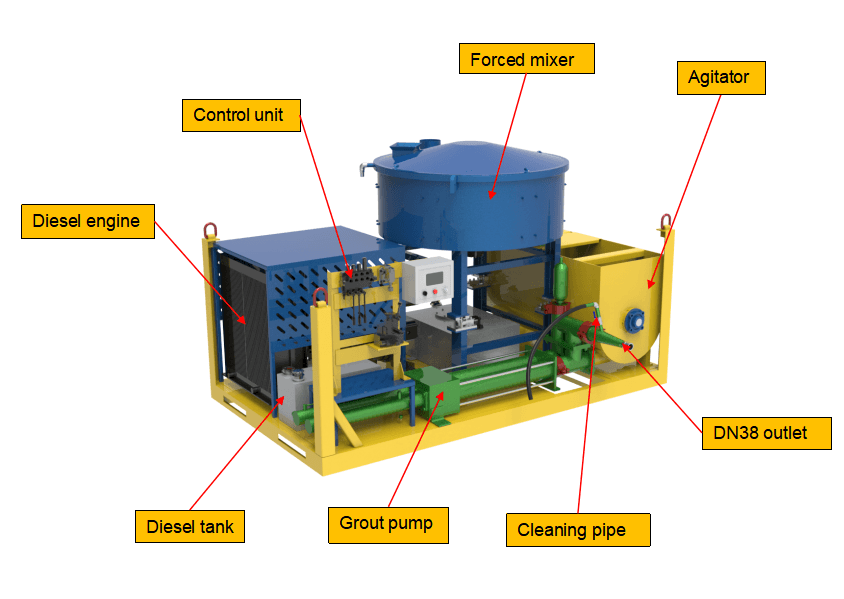

floor screed mixer with pump

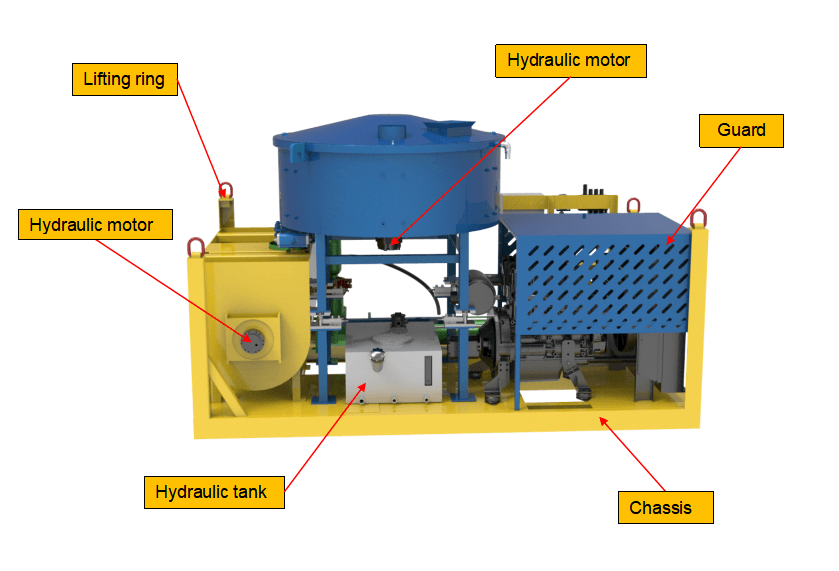

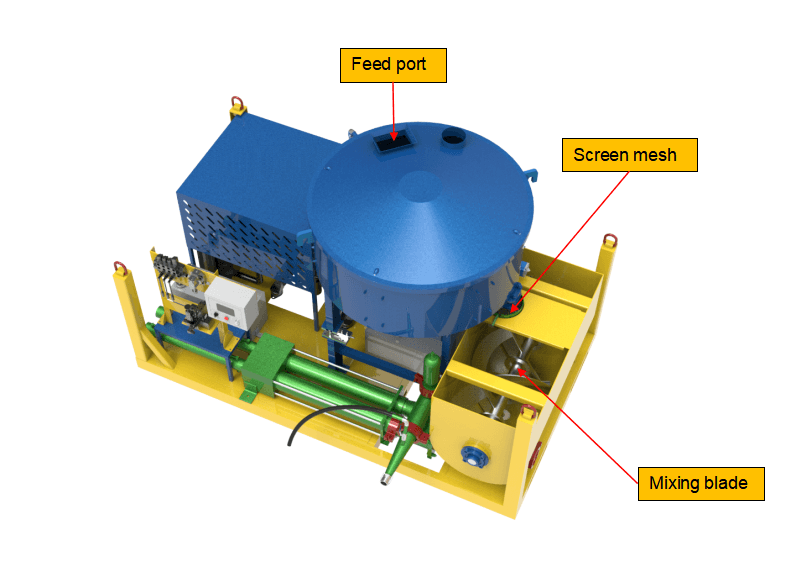

self-levelling screed pump details



self-levelling screed pumping mixing machine


The diesel-driven model comes with a self-contained diesel engine, eliminating its reliance on the mains power supply. This characteristic renders it exceptionally well-suited for off-grid construction environments, such as field projects and remote building sites.

 Application:

LSLC-10/D Self levelling screed mixer pump is characterized by a compact structural design, which facilitates convenient mobility and straightforward operation. Moreover, it offers the flexibility to be configured in accordance with the scale of construction projects. It finds extensive application across a diverse range of building flooring scenarios, effectively addressing the requirements of both small-scale home decoration endeavors and large-scale batch processing operations at construction sites. Powered by a robust diesel engine, it guarantees efficient, stable, and eco-friendly mortar mixing performance.

floor screed conveyor application


 Features:

1. Flexible Power Supply: The diesel - powered unit is outfitted with an integrated diesel engine, enabling it to function independently of the mains electricity grid. This ensures uninterrupted normal operation, even in remote and off - grid construction locations.
2. Compact Structure & Easy Transportation: Its all - in - one design results in a small spatial footprint. There is no need for disassembly during transportation; it can be conveniently carried by regular trucks or pickups. This facilitates rapid relocation to job sites and immediate start - up of operations upon arrival.
3. Stable Mixing Quality: It employs forced mixing technology to achieve a thorough blend of powder and water, effectively preventing agglomeration and segregation. With precise proportioning (with an error of no more than ±1%), it effectively ensures the fluidity of self - leveling mortar and minimizes common floor defects such as hollowing, cracking, and dusting.
4. Labor - Saving & High Efficiency: The entire process, encompassing feeding, mixing, and discharging, can be operated by a single individual. This significantly reduces labor requirements and physical exertion.
5. Eco - friendly & Clean: The closed mixing and discharge design effectively controls dust emissions, maintaining a clean construction site and ensuring compliance with environmental regulations. The minimal residue and ease of cleaning lead to reduced material waste and lower construction costs.
6. Strong Compatibility: It is compatible with gypsum - based, cement - based, and floor - heating backfill mortars without the need to change core components, thus flexibly meeting a variety of construction requirements.
■Product Details

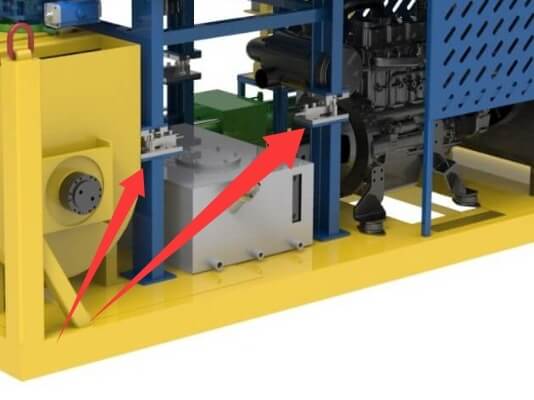

Weighting sensor

Weighting sensor

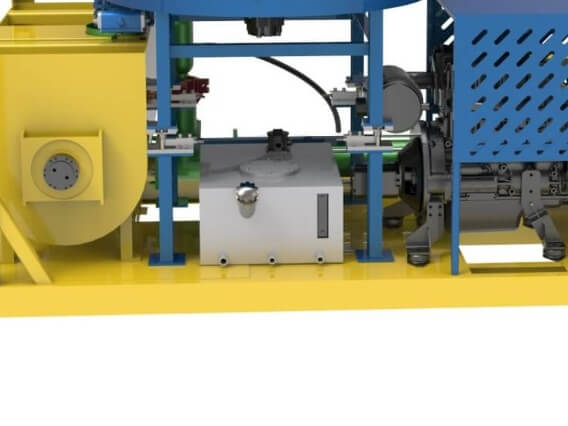

Hydraulic tank

Hydraulic tank

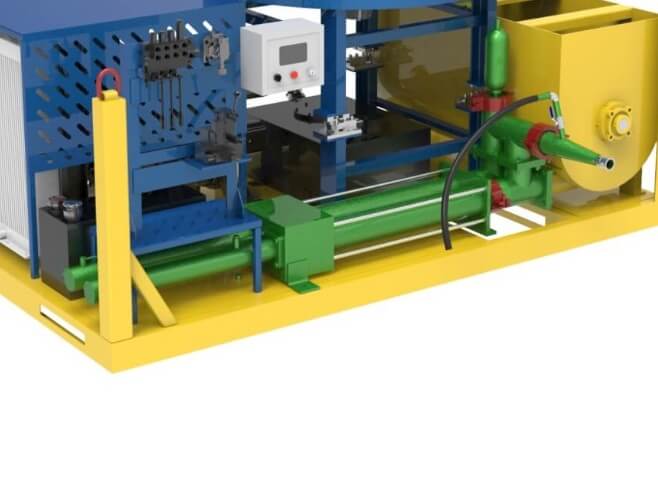

Grout pump

Grout pump

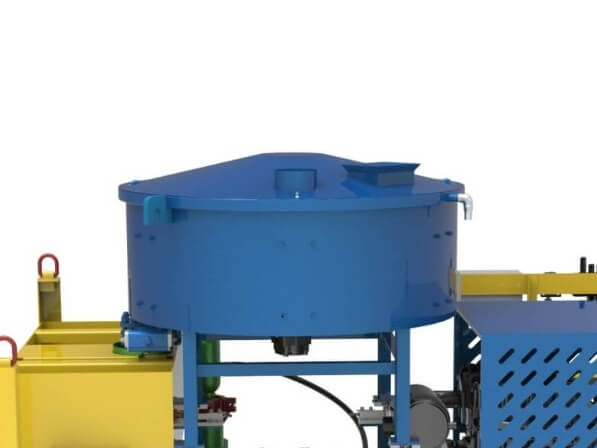

Forced mixer

Forced mixer

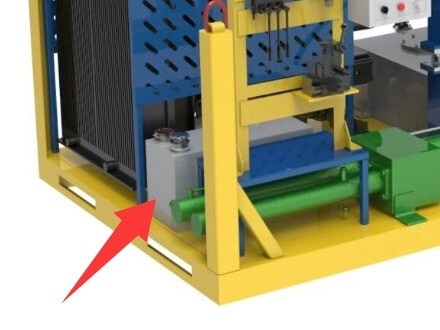

Diesel tank

Diesel tank

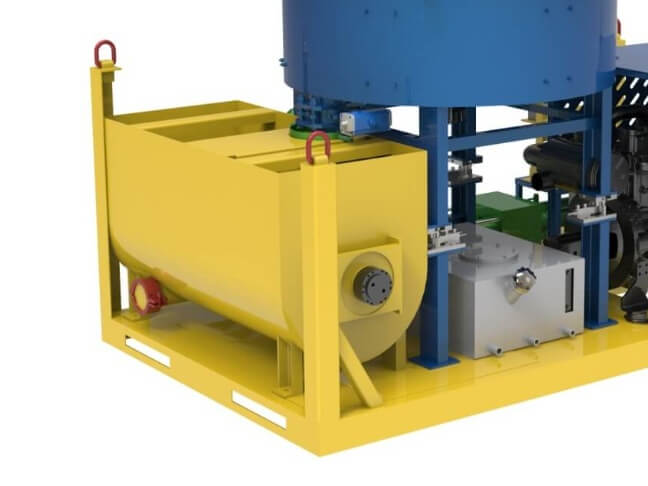

Agitator

Agitator

■Technical Parameters

Name

Data

Model

LSLC-10/D

Diesel engine

Power

52-54KW

Forced Mixer

Capacity

800L

Speed

70rpm

Agitator

Capacity

700L

Speed

35rpm

Grout Pump

Cylinder Bore Diameter

120mm

Stroke

850mm

Flow@Pressure

11m3/h@7Mpa

Outlet Diameter

DN38

Dimension

3050×1750×1862mm

Weight

2900Kg

We can also customize the screed mixer pump according to your needs.

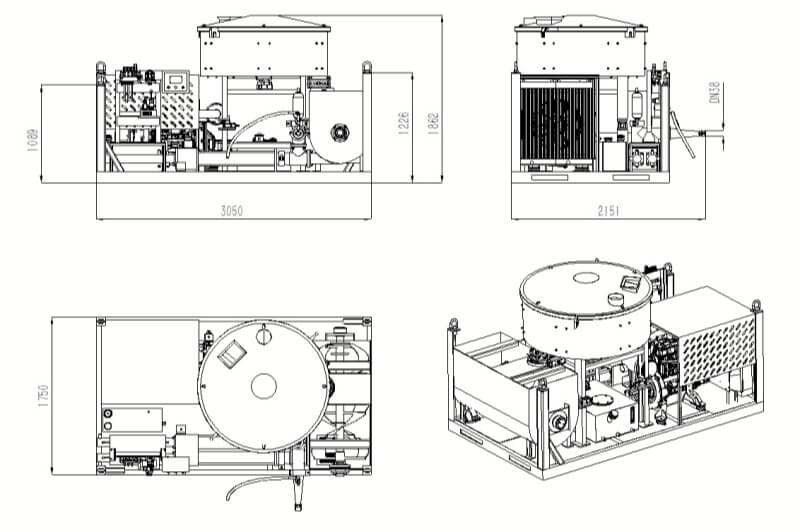

Design dimensions of screed mixer pump
