LGP25/15 Small Type Gasoline Engine Grout Pump

  • Output Capacity: 25L/min
  • Working Pressure: 15bar
  • Piston Diameter: 110mm
  • Piston Stroke: 42mm
  • Cycle: 90/time
  • Gasoline Engine Power: 4.8Kw

  • small type grout pump
  • gasoline grout pump
  • gasoline engine grout pump
  • small type gasoline engine grout pump
  • small type grout pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description:

The LGP25/15 is small type gasoline engine grout pump. The piston is driven by the gasoline engine
to produce reciprocating motion, and the cement slurry is sucked into the air chamber by the suction
valve, and discharged through the pump cylinder. It has a wide range of applications, can be grouted
various low-viscosity slurry materials with good fluidity, such as cement slurry and chemical slurry.


Application:

LGP25/15 small type gasoline engine grout pump is mainly used for bridges, houses small areas of
seepage prevention, leakage prevention, plugging and repair; tunnels, mines, highways and other
area without electric power supply etc.


Features:

1. Small size, light weight, easy to move gasoline grout pump;

2. Gasoline engine grout pump, don’t need electric supply;

3. Small type grout pump has simple structure, durable;

4. Grouting cement slurry and chemical slurry.


■Product Details

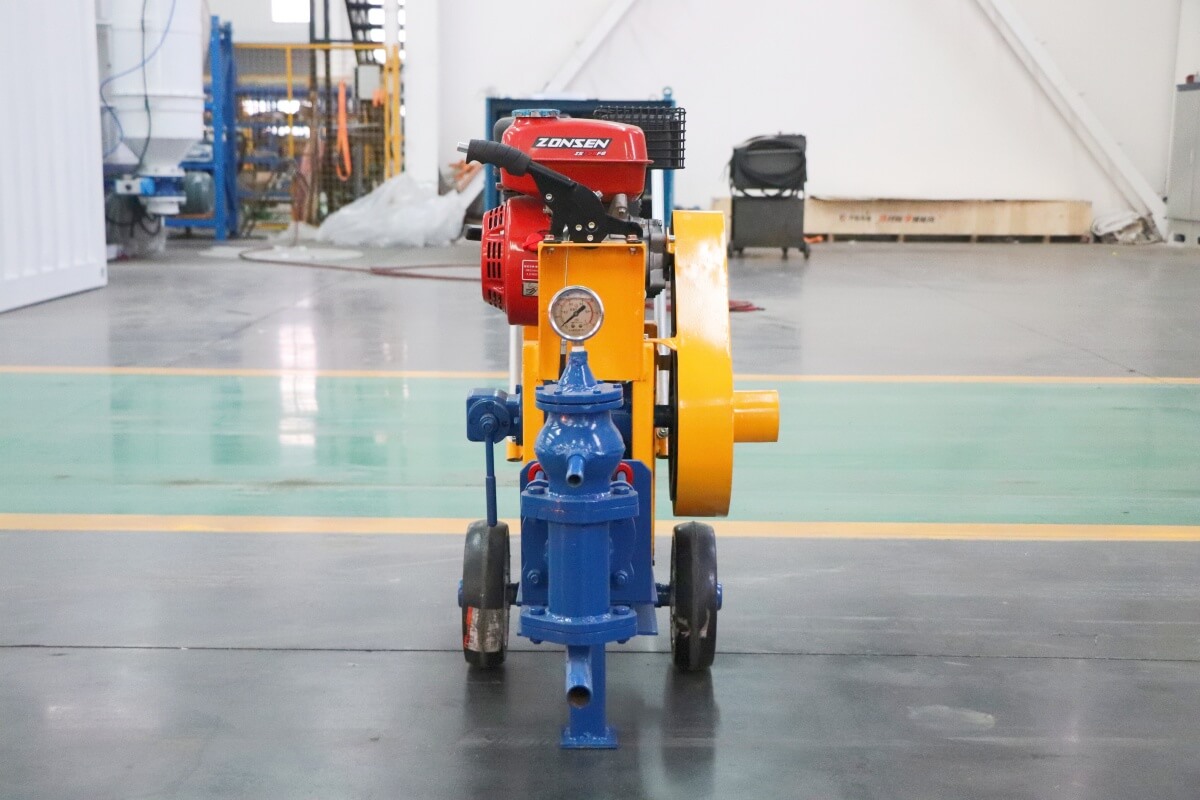

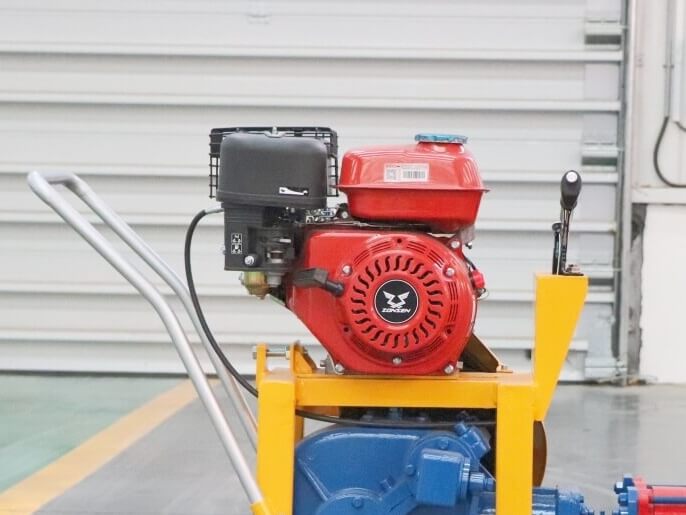

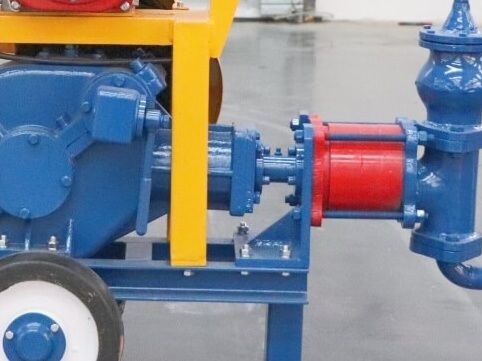

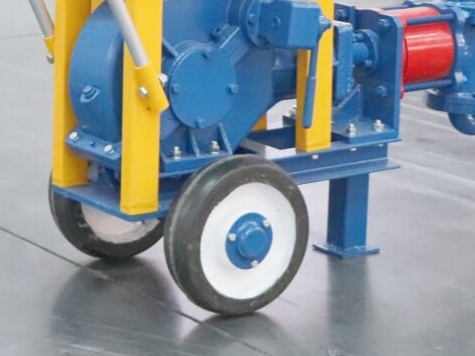

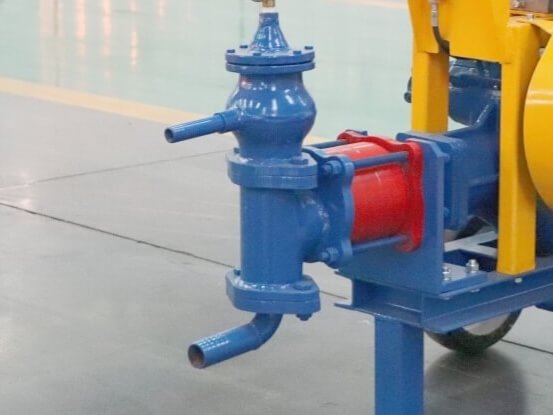

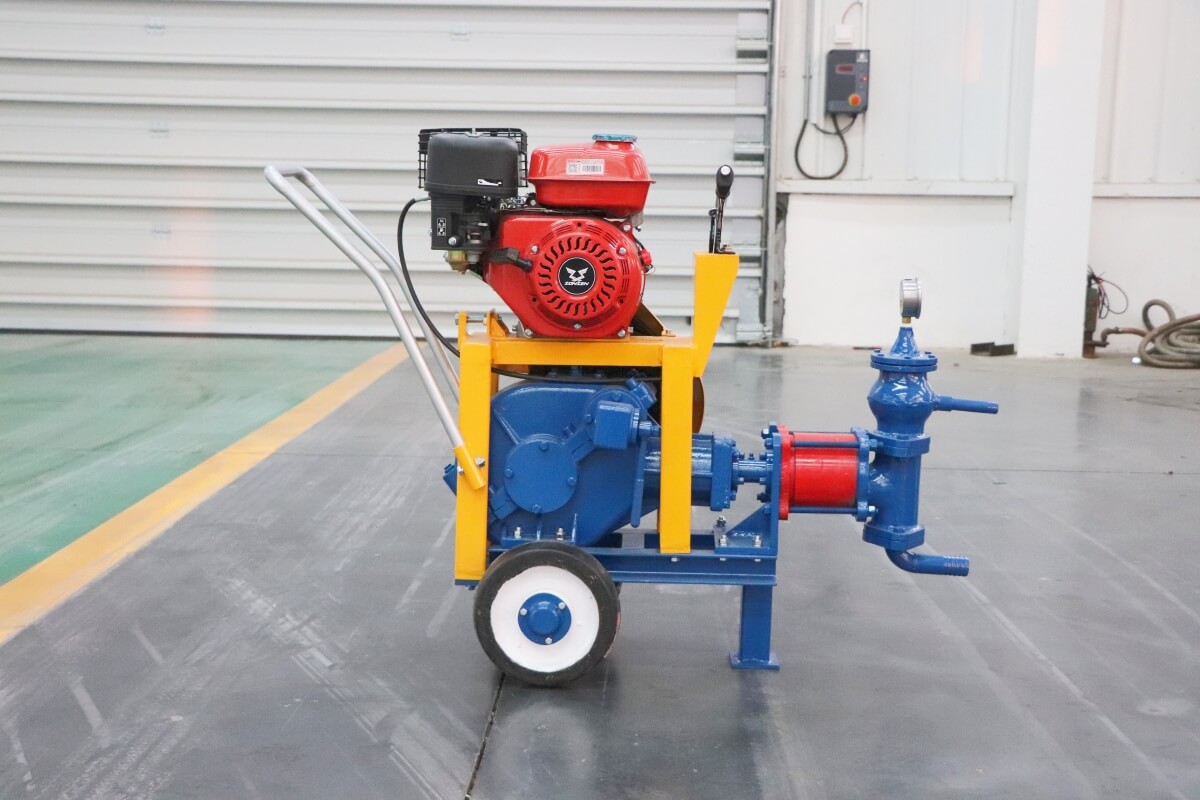

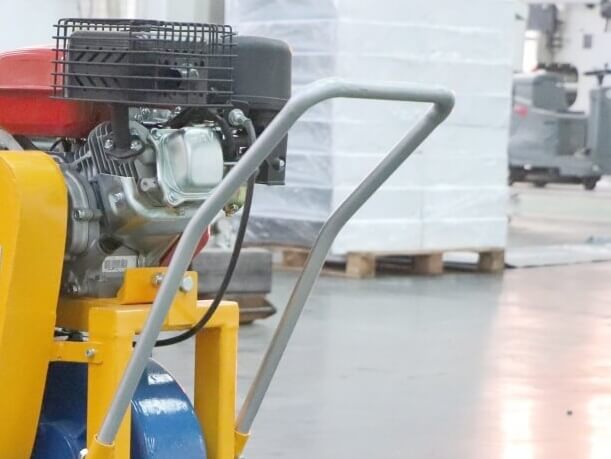

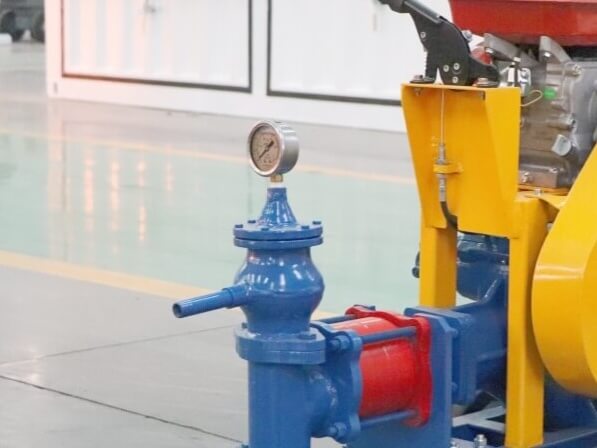

small light weight grout pump construction and dimension

Small light weight grout pump construction and dimension

small size grout pump construction and dimension

Small size grout pump construction and dimension

small type gasoline engine grout pump construction and dimension

Small type gasoline engine grout pump construction and dimension

■Technical Parameters

Technical Data:


Model LGP25/15 gasoline engine small grout pump
Output Capacity 25L/min
Working Pressure 15bar
Piston Diameter 110mm
Piston Stroke 42mm
Cycle 90/time
Gasoline Engine Power 4.8Kw
Outlet Diameter 25/32mm
Inlet Diameter 19/25mm
Weight 120Kg
Dimension 1135x525x890mm
