LM1000 Foam Concrete Making Machine

  • Model: LM1000
  • Max.Output: 5m3/h
  • Material input volume: 1000L
  • Mixing speed : 6-8min/batch
  • Mixer motor power: 1.5kw
  • Max. Particle Size of Aggregates: 8mm

  • foam cement block making machine
  • CLC block making machine
  • lightweight foam concrete block making machine
  • lightweight concrete block making machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LM1000 Foam Concrete Making Machine is formed by put cement and water into a slurry mixing and then mix them in a certain proportion, press them into transmission pipelines through hydraulic cylinder; According to a certain proportion foam mixed with water and then mixed with compressed air by the high-pressure pump; In the pipeline it form the high-density foam and meticulous, at last form the foam cement with the slurry in the pipeline. And the foam concrete slurry could be used for cast-in-situ wall, tunnel filling, foundation pit filling, platform backfilling, making blocks etc


 Application:

1. Thermal flooring;
2. Garden and rockeries;
3. Foam concrete block;
4. Sewers and Drains filling;
5. Thermal insulation roofing;
6. Horizontal floor heightening;
7. Platform filling and mending;
8. Cellar, basement and arch filling;
9. External wall thermal insulation;
10. Playground and track construction;
11. Water tank and fuel tank building;
12. Sound insulation and fire protection walls;
13. Sound insulation layer, tunnel lining filling;
14. Upstanding beam foundation ditches filling;
15. Foamed concrete precasting ,hollow wallboard casting.


 Features:

1. Foam cement making machine could mixing variable materials, such as cement, fly ash, sand pulp, sand stone, perlite, and slag etc;
2. Variable speed mixing and internal structure alteration make its installation easy and mixing frequency high, it saves energy;
3. CLC foam concrete making machine is specially mixing blades, mixing the material toughly, storage in its bottom is less than 10mm, no material left on the four walls internal the mixing drum.

■Product Details
Foam generator

Foam generator

Foam generator test

Foam generator test

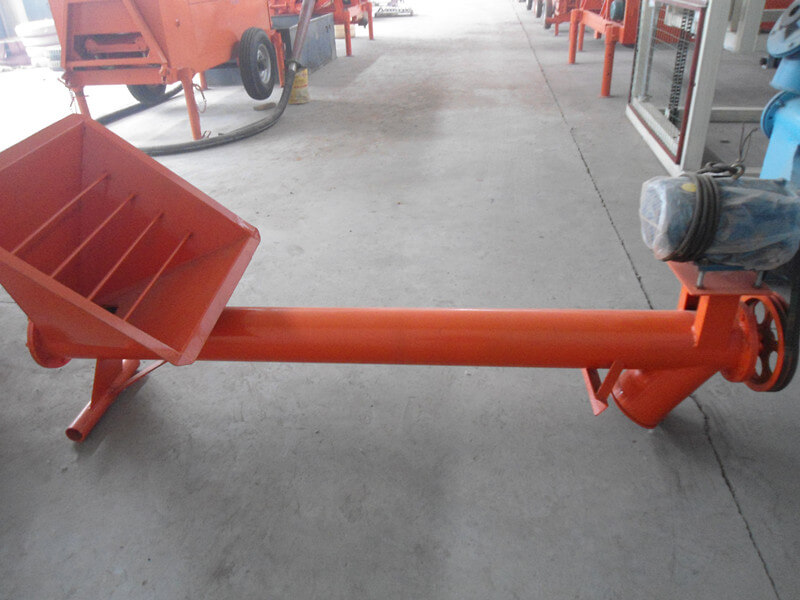

feeding hopper of foam concrete machine

Feeding hopper of foam concrete machine

■Technical Parameters
Model LM1000 Foam Concrete Making Machine
Max.Output 5m3/h
Material input volume 1000L
Mixing speed  6-8min/batch
Mixer motor power 1.5kw
Max. Particle Size of Aggregates 8mm
