■Introduction

► Description:

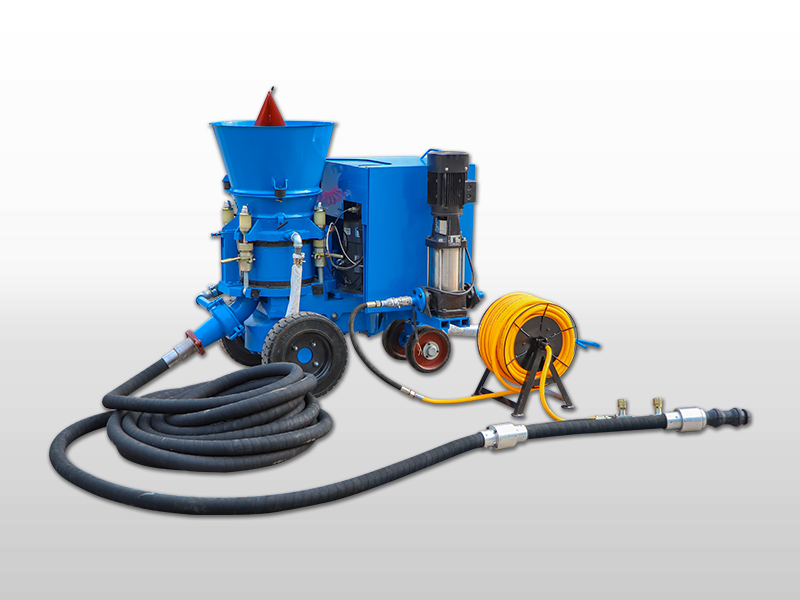

LZ-3ER/S steel plant castable shotcrete machine is specifically designed for Refractory Dry-mix shotcrete applications, as well as for concrete shotcrete application.

With this LZ-3ER/S steel plant castable shotcrete machine, you can get low dust and high performance spraying flow in nozzle.

$Refractory Shotcrete Machine$

Compared with our market popular LZ-3ER refractory gunning machine, This LZ-3ER/S steel plant castable shotcrete machine is a new version.

LZ-3ER/S steel plant castable shotcrete machine equipped with PLC+VFD+Air Pressure Sensor, can Automatically to clean delivery line blockage; Sector rotor body replace the circle hole rotor body; Combination of gunning machine and high pressure water pump; Add automatic lubricator to the rubber seal plate.

► Application:

LZ-3ER/S steel plant castable gunning machine can be used for maintenance and repair of refractory furnace lining, refractory installation in follow application field: Steel and iron industries, Iron making industry, Power generation industry, Ceramics industry, Cement industry, Metals and mining industry.

steel plant castable shotcrete machine

► Features:

1. Automatically to clean delivery line blockage; PLC+VFD+Air Pressure Sensor.

2. Sector hole to replace the circle hole in the rotor to improve the volume of the rotor and to decrease friction area, then with the same output, the rotor speed will be lower to improve the work life of rubber sealing plate and keep the motor power lower.

3. The combination of gunning machine and high pressure water pump, it is easy to move.

4. Add automatic lubricator to the rubber seal plate to make the work life of wear parts longer and make the motor power lower.

steel plant castable shotcrete machine

■Product Details

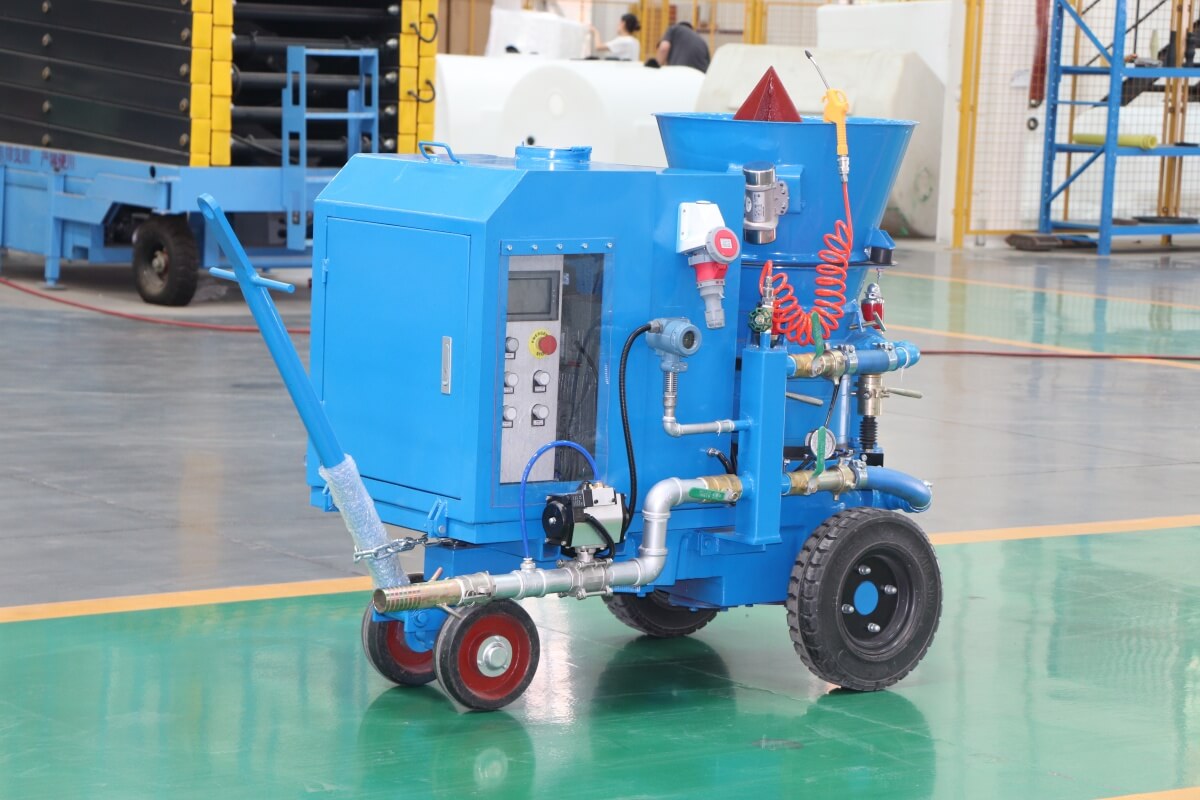

PLC integrated machine control

Pneumatic master valve switch

Intelligent anti-clogging pipe system

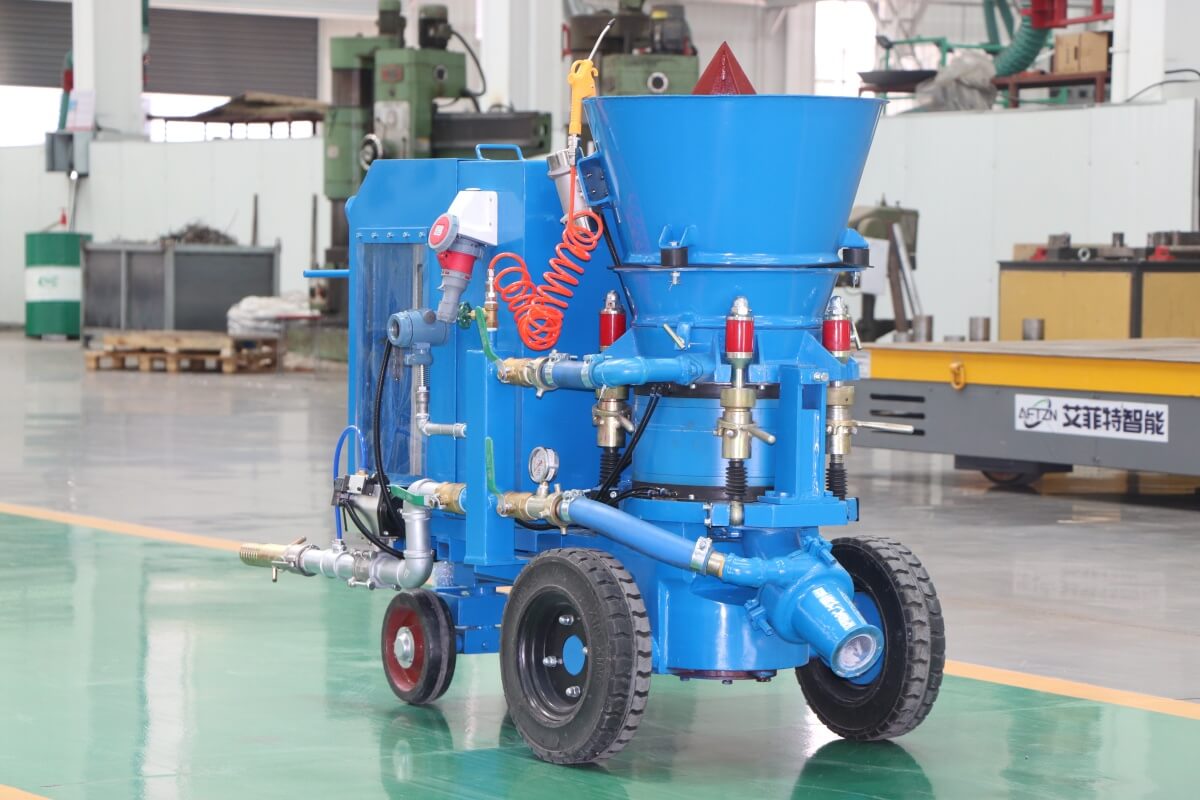

Sector rotor body

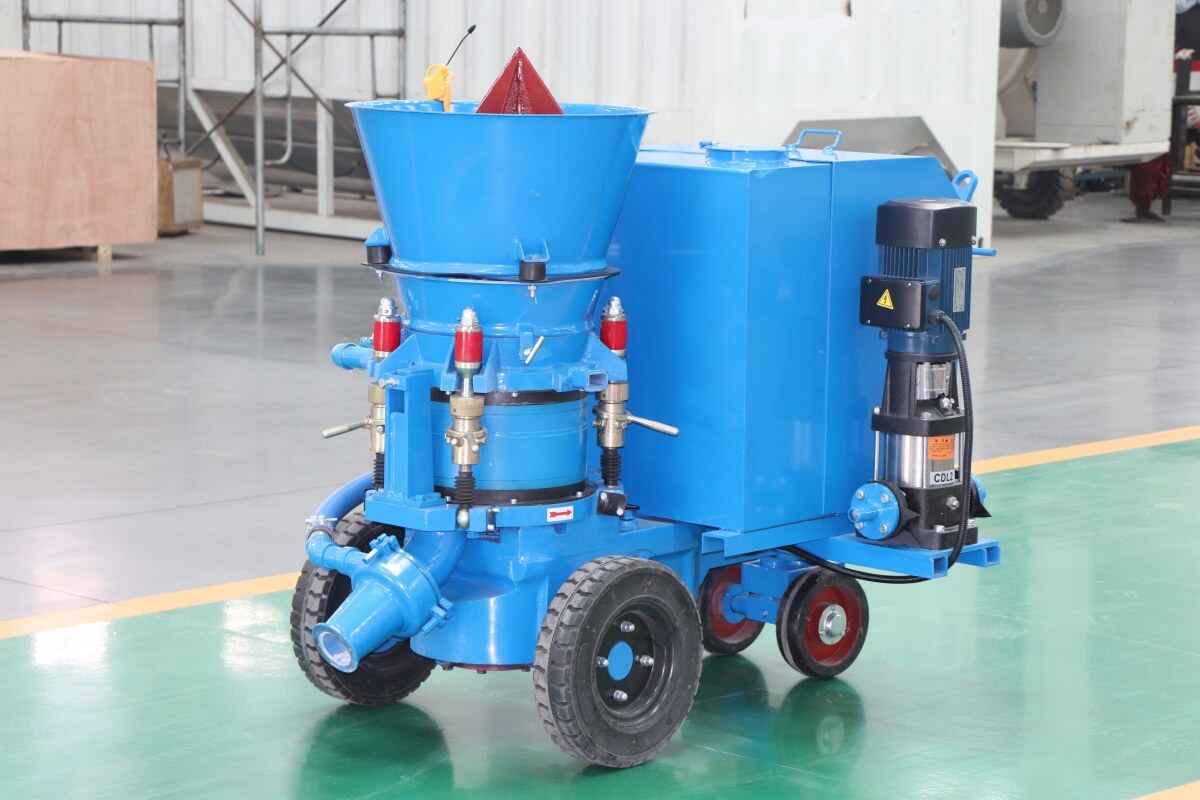

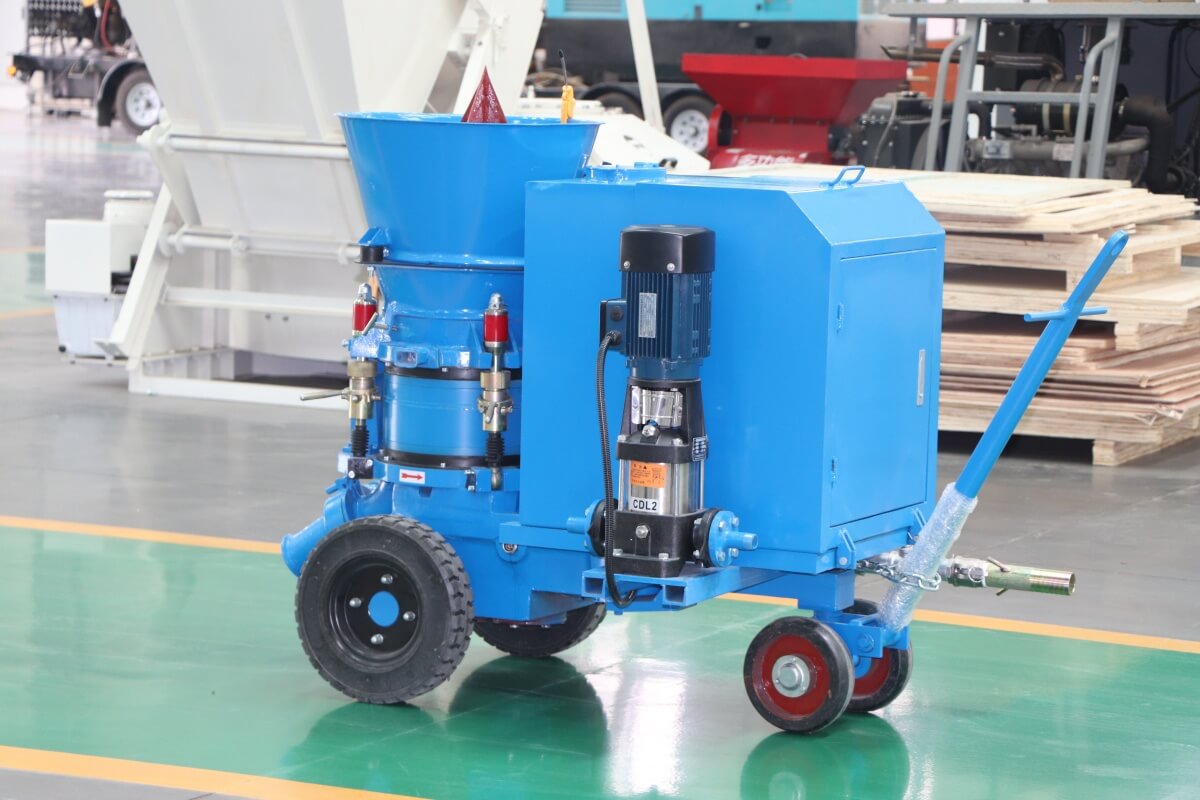

Integrated water pump installation

Automatic lubrication pump

■Technical Parameters

Rotor Volume		6.3L
Rotor Speed		4-8r/min
Max. Output		1.5-3m3/h
Max. Horizontal Conveying Distance		200m
Max. Aggregate Size		Φ10mm
Conveying Hose Inner Diameter		38/ 32mm
Operating Air Pressure		0.2-0.4MPa (29-58PSI)
Air Consumption		6-7m3/min (215-250CFM)
Material Charging Height		1.1m
Rotor Motor	Power	4kW
	Voltage	3 phase, 380V, 50Hz
Water Pump	Output	26L/min
	Pumping Head	70m
	Motor	1.5kw
Automatic lubrication	Volume	2L
	Power	24V, 50w
Overall Dimension(L×W×H)		1600×1000×1300mm
Weight		665kg
