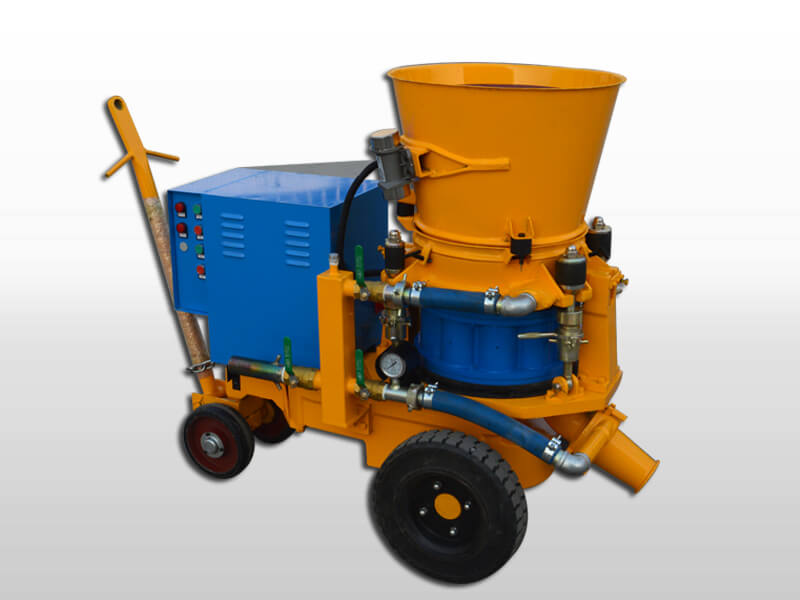

LZ-5ER refractory shotcrete machine

  • Rated Output: 1-5m3/h(2-10ton/h)
  • Max. Horizontal Conveying Distance: 100m
  • Max. Aggregate Size: Φ15mm
  • Conveying Hose Inner Diameter: 51mm
  • Operating air Pressure: 0.2-0.4MPa(29-58PSI)
  • Air Consumption: 8~9m3/min(285-325CFM)

  • gunning machine for spraying refractory materials
  • refractory gunning machine

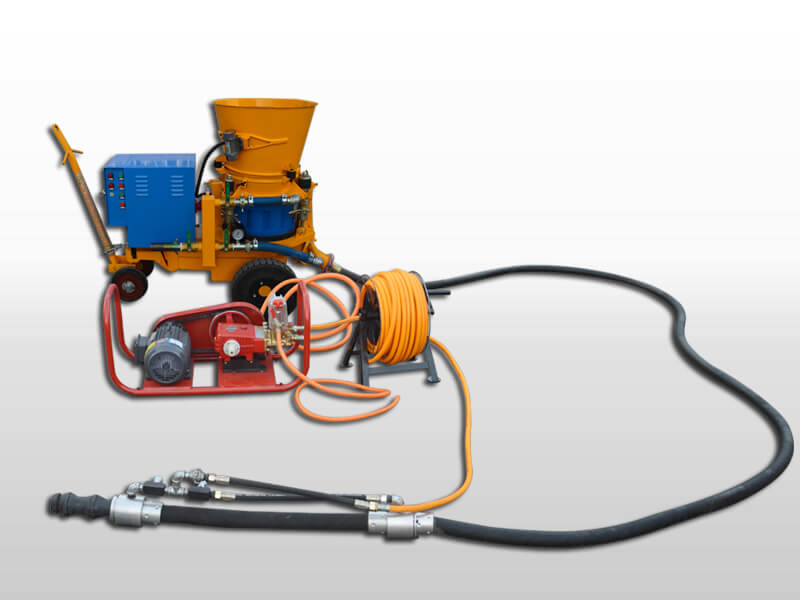

  • refractory shotcrete machine for for lining kilns, boilers, furnaces
  • refractory gunite machine
  • refractory castable gunning machine
  • refractory dry gunning machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:
LZ-5ER Refractory Shotcrete Machine is specifically designed for Refractory Dry-mix shotcrete applications. With this LZ-5ER refractory castable gunning machine you can get low dust and high performance spraying flow in nozzle.  LZ-5ER shotcrete machine for spraying refractory material is as well as for concrete shotcrete application.

 Application:
LZ-5ER Refractory Gunite Machine can be used for refractory spraying applications, as well as for concrete shotcrete application.

 Features:
♦ Clean dust gun;
♦ Heavy-duty solid wheels;
♦ Coulping and clamp;
 Collect dust bag;
 Light weight nozzle;
♦ Blast rubber hose;
 Bag cutter and flat hopper with vibrator;
 LZ-5ER Refractory Shotcrete Machine has variable Output with variable-frequency drive.

■Product Details
Electric Vibrator

Electric Vibrator

High Hopper with Vibrator

High Hopper with Vibrator

ABB variable-frequency drive

ABB variable-frequency drive

Spraying Effect

Spraying Effect

Pre-dampening Shotcrete Nozzle

Pre-dampening Shotcrete Nozzle

High Pressure Water Pump

High Pressure Water Pump

■Technical Parameters
Rated Output 1-5m3/h(2-10ton/h)
Max. Horizontal Conveying Distance 100m
Max. Aggregate Size Φ15mm
Conveying Hose Inner Diameter 51mm
Operating air Pressure 0.2-0.4MPa(29-58PSI)
Air Consumption 8~9m3/min(285-325CFM)
Electric motor     5.5kw
Voltage 3 phase, 380V, 50Hz
Material Charging Height 1.1m
Rotor Speed 0-13.2r/min
Overall Dimension(L×W×H) 1.32×0.75×1.2m
Weight 720kg
