LZ-6DR/RD Refractory gunning machine with diesel engine

  • Model: Maximum output
  • LZ-6DR/RD: 6m³/hr
  • Hopper capacity: 80L
  • Max. aggregate size: 10mm
  • Feed bowl pocket number: 16
  • Hose ID: 38mm

  • refractory gunning machine with diesel motor
  • refractory gunning machine with diesel power
  • refractory gunning machine with diesel engine
  • diesel engine refractory gunning machine
  • diesel driven refractory gunning machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
Description:
The LZ-6DR/RD Refractory Gunning Machine with a diesel engine ensures a consistent material flow, promoting uniform hydration and delivering a remarkably smooth spraying experience.

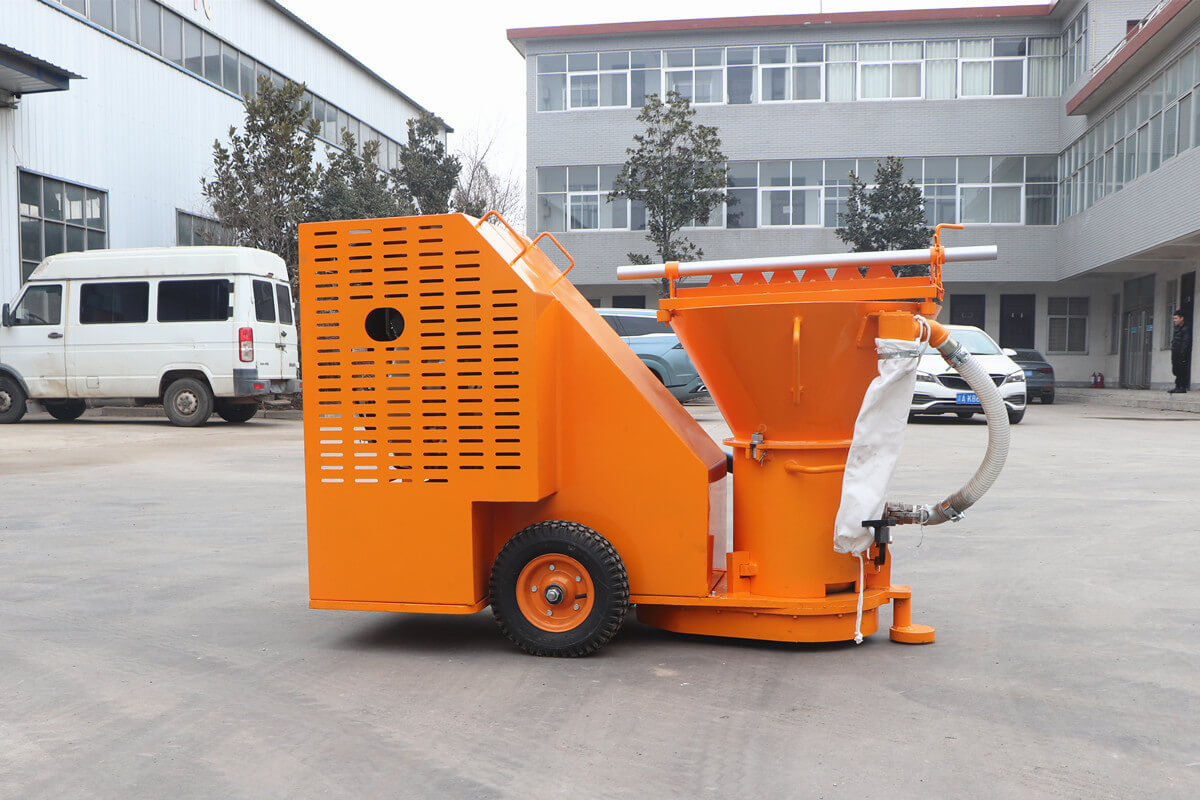

compact structure refractory gunning machine


The machine's adjustable material output allows for an increase in quantity without compromising the application's quality. Despite its compact design, the LZ-6DR/RD Refractory Gunning Machine is capable of efficiently spraying through 38mm inner diameter conveying hoses. It finds extensive applications in refractory spraying and installation projects.

refractory gunning machine with diesel engine manufacturer


refractory gunning machine with diesel motor exporter


Powered by a diesel engine, the LZ-6DR/RD rotates the machine's material feed bowl. To convey material from the feed bowl to the nozzle, an air compressor is essential.


 Application:
LZ-6DR/RD Refractory Gunning Machine with a diesel engine has a wide range of applications:

refractory gunning machine with diesel power factory


small dry mix refractory gunning machine


Refractory Spraying:
The machine is designed for applying refractory materials onto surfaces, providing protection and insulation.

Structural Concrete Repair: It can be used for repairing concrete structures by applying suitable materials to restore or enhance their integrity.

Slope Stabilization: The machine can be employed to stabilize slopes by applying materials that enhance the stability and prevent erosion.

Tunnels and Mine Support: Used in tunnel construction and mining operations to support and reinforce the structures.

Pools and Spas: Applied in the construction or maintenance of pools and spas, possibly for coating or repair purposes.

Retaining and Fire Walls: Used for the construction and repair of walls, especially those designed for retaining soil or providing fire protection.

Dams and Reservoirs: The machine may play a role in the construction, repair, or maintenance of dams and reservoirs by applying necessary materials.

Sand and Gravel Backfill: Utilized in backfilling operations where sand and gravel are applied to fill voids or support structures.


Refractory gunning machine working test effect:

Refractory gunning machine working effect

 Features:

1. Driven by 8.2KW diesel engine;
2. Bag breaker included;
3. Continuous feed hopper;
4. Pressure gauges, pressure visible;
5. Double-blade materials agitator;
6. Easy to operate and maintain;
7. Rubber plates can be quickly replaced;
8. Compact and easy to move.

diesel engine refractory gunning machine supplier


diesel driven refractory gunning machine price


8.2KW diesel engine refractory gunning machine


Nozzle assy features:
1. Compact and simple structure;
2. Low rebound, low dust;
3. Aluminum connectors, lightweight, and more user-friendly.

gunning machine nozzle assy

spraying nozzle assy of refractory gunning machine

■Product Details
Discharge pipe

Discharge pipe

Speed controller

Speed controller

8.2KW diesel engine

8.2KW diesel engine

Surplus air outlet

Surplus air outlet

Bag breaker

Bag breaker

Pressure gauges

Pressure gauges

■Technical Parameters

Model

LZ-6DR/RD Refractory gunning machine with diesel engine

Maximum output

6m³/hr

Hopper capacity

80L

Max. aggregate size

10mm

Feed bowl pocket number

16

Hose ID

38mm

Diesel engine power

8.2KW

Cooling

Air

Diesel tank capacity

6L

Dimension

1600×800×980mm

Weight

420Kg


Maximum theoretical performance is shown above. Actual performance will vary depending on slump, mix design and delivery line diameter. Specifications are subject to change without prior notice.

new design refractory gunning machine


1.5-9m3h  refractory gunning machine


LZ-6DR/RD Refractory gunning machine with diesel engine in our factory:

China dry mix refractory gunning machine


diesel engine refractory gunning machine with high pressure water pump


diesel power gunite machine


Refractory gunning machine with diesel engine from China


refractory gunning machine with water pump


Operating Principle of LZ-6DR/RD refractory gunning machine with diesel engine:
1. Dry material is introduced into the hopper and directed into the pockets of the rotary feed wheel located below.
2. The rotary feed wheel, powered by a robust oil bath gear drive, revolves the mixture beneath the conveying air inlet and material outlet.
3. Upon the introduction of compressed air, the mixture is expelled from the feed wheel pockets and travels through the outlet, entering the hoses.
4. The dry mix material is then transported in suspension through the hoses to the nozzle, where water is introduced, facilitating the mixing of water and dry material.

working principle of refractory gunning machine
