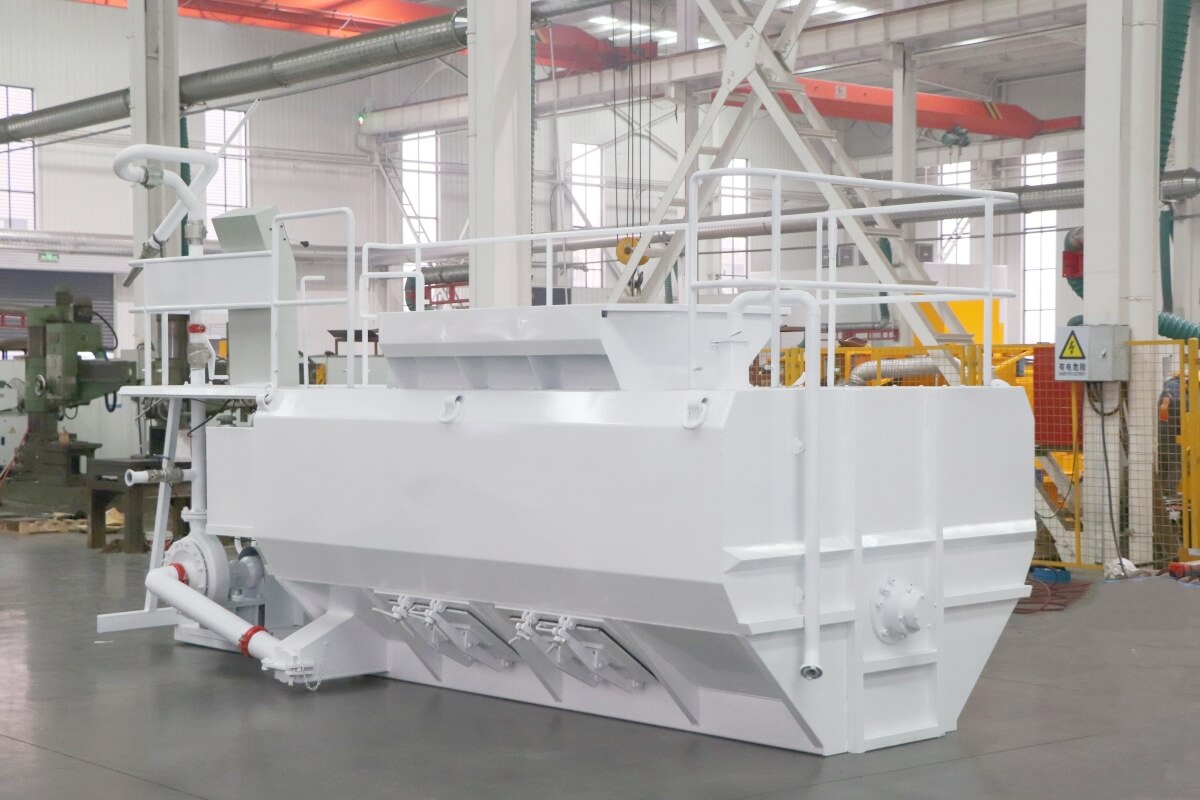

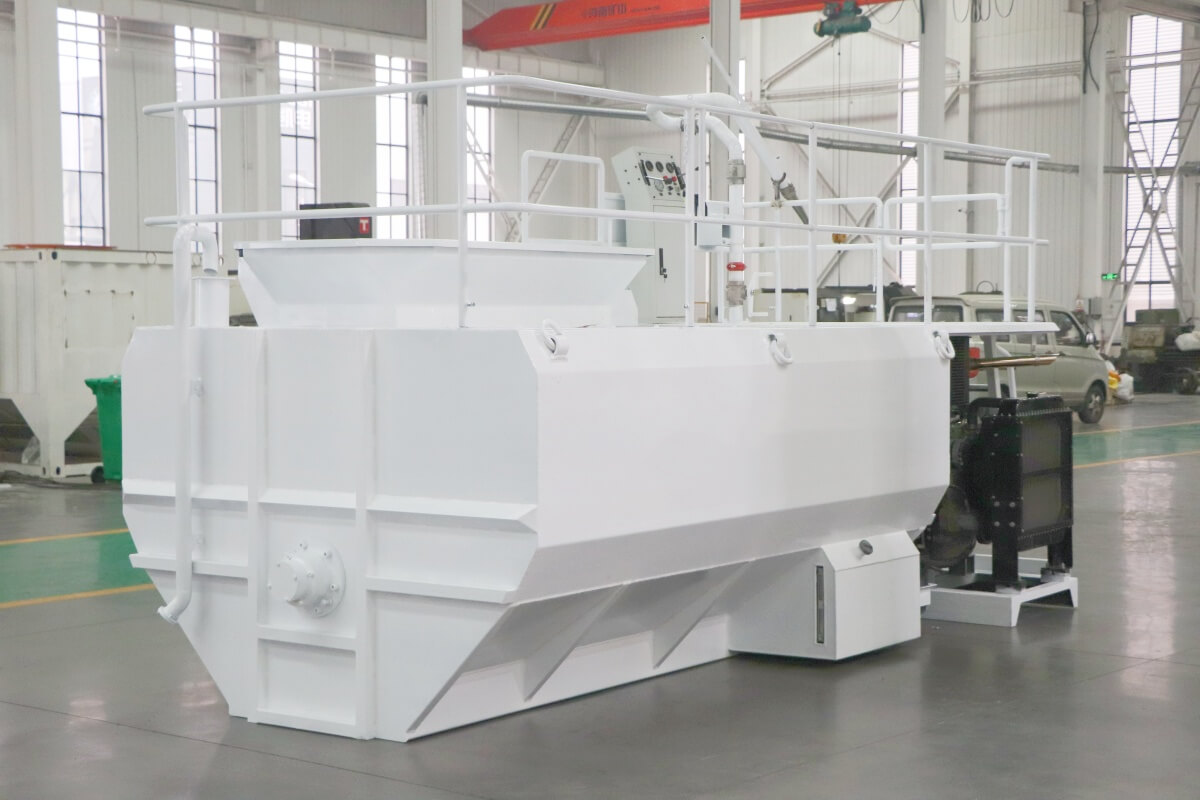

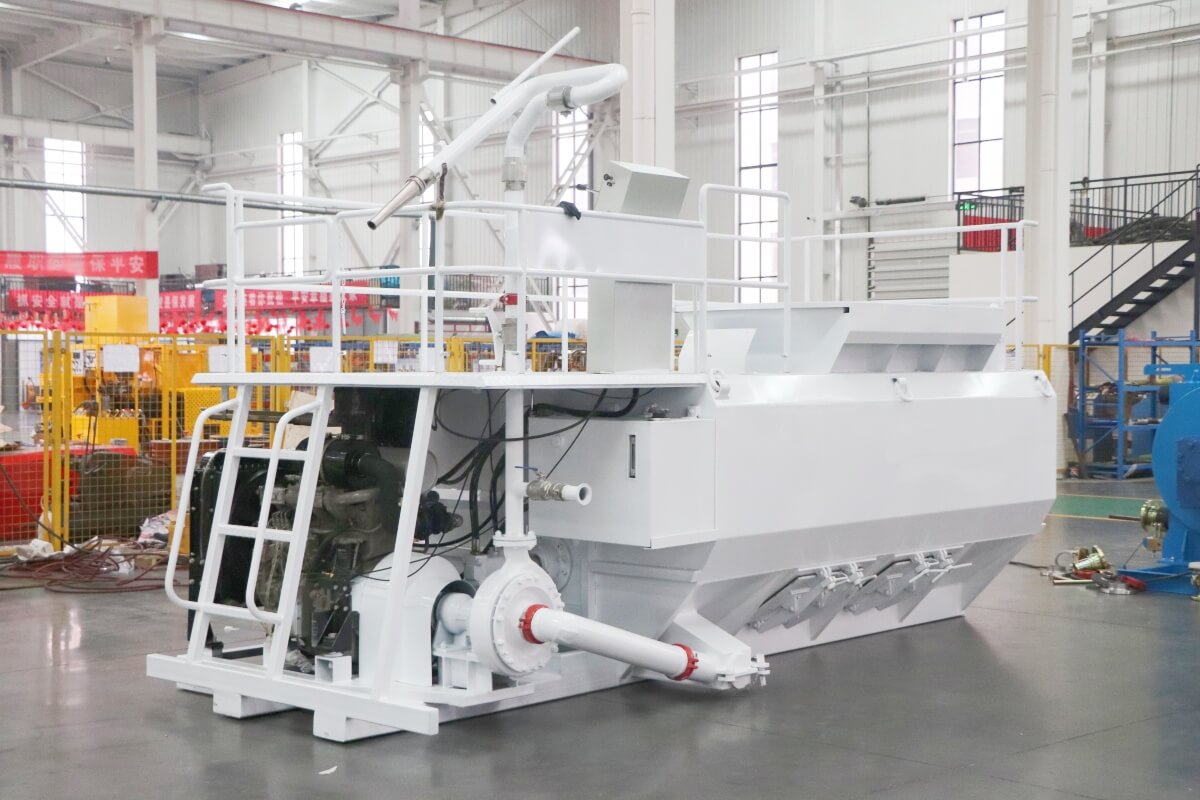

ZYP series hydroseeder

  • Model:ZYP-2

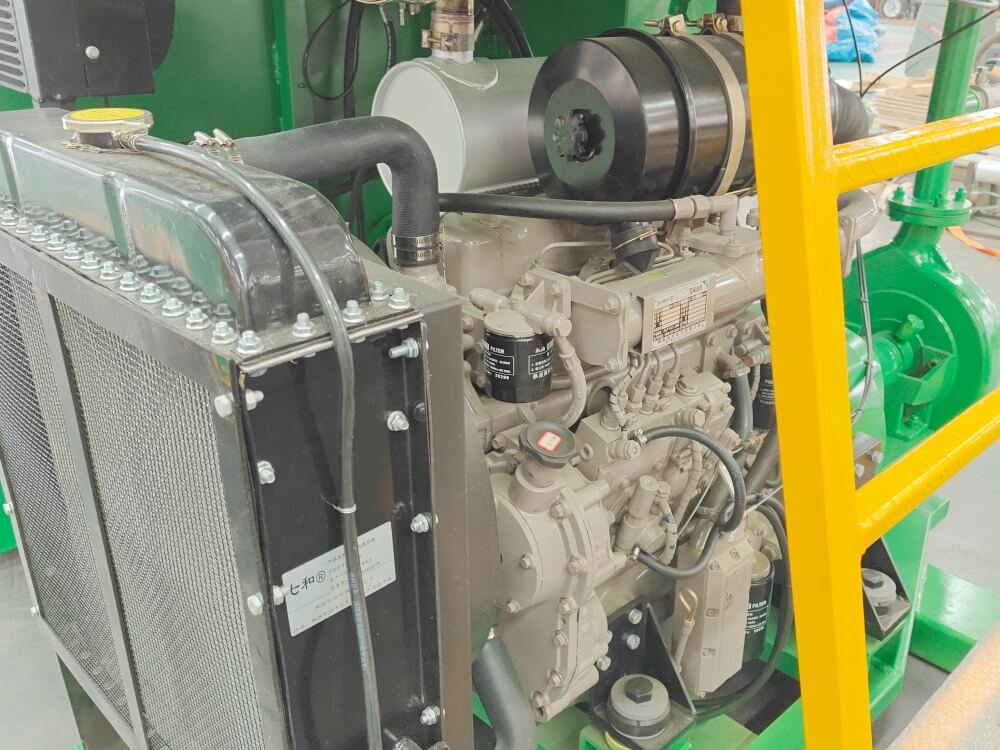

  • Diesel engine:20kw

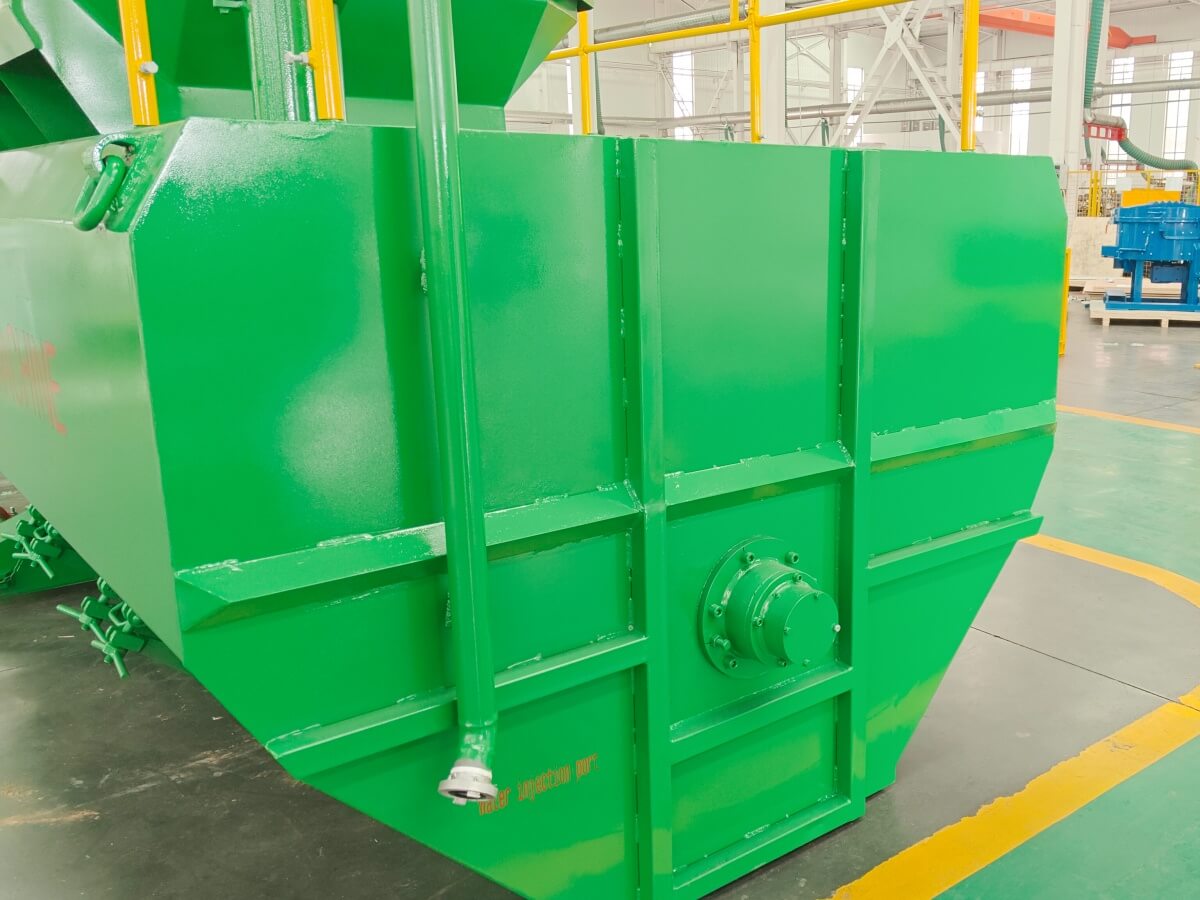

  • Tank capacity:2m3
  • Spraying areas per tank:200-500㎡
  • Direct spraying distance:horizontal20-30m;vertical10-20m
  • Spraying distance with hose:horizontal20-60m;vertical20-30m

  • slope green machines
  • hydro seeding machine
  • hydro mulching equipment
Shotcrete Machine
Grouting Equipment
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Concrete Pump
hydraulic pump station
Foam Concrete Machine

TEL

86-371-63902781

skype:

shotcreter

Email

sales@leadcrete.com

FAX

86-371-63902781

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

ZYP series hydroseeder is small size, convenient to move, it is suitable for low slope green project. It
is widely used in riverbank, highway, railway low slope and wasteland, lawn, fruity garden, farmland,etc.
where need to spray grass seeds.According to the actual construction of the diesel power replaced the
motor power, and installation of the wheels, either reduce the cost of the machine and easy machine in
unsuitable vehicles moving in and out of place, but also easy handling gantry crane installation
according to customer requirements.The hydroseeder is suitable for mixture which include grass
seeds, soil, grass fiber.The hydroseeder install a horizontal spiral conveying and mixing system, can
make mixture uniformity to improve the seeds germination rate and growth rate.


 Application:
According to the actual construction of the diesel power replaced the motor power, and installation of
the wheels, either reduce the cost of the machine and easy machine in unsuitable vehicles moving in
and out of place, but also easy handling gantry crane installation according to customer requirements.


 Features:
1. The hydroseeder is suitable for mixture which include grass seeds, soil, grass fiber.

2. ZYP series hydroseeder is small size, convenient to move, it is suitable for low slope green project.
It is widely used in riverbank, highway, railway low slope and wasteland, lawn, fruity garden, farmland,
etc. where need to spray grass seeds.


3. According to the actual construction of the diesel power replaced the motor power, and installation
of the wheels, either reduce the cost of the machine and easy machine in unsuitable vehicles moving
in and out of place, but also easy handling gantry crane installation according to customer requirements.


4. The hydroseeder install a horizontal spiral conveying and mixing system, can make mixture
uniformity to improve the seeds germination rate and growth rate.
■Product Details

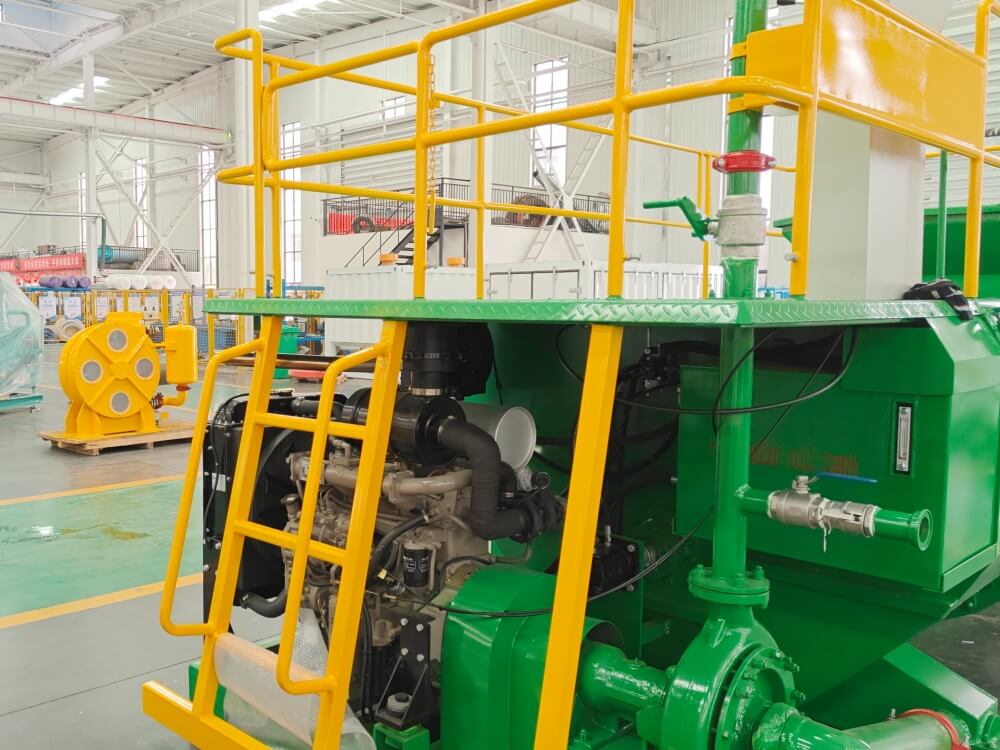

hydro mulching equipment

hydro seeding machine

golf course green machine

golf course green machine application

golf course green machine application

golf course green machine application

■Technical Parameters
Technical Data:

Model
ZYP-1 ZYP-2
Diesel engine 13kw 20kw
Tank capacity 1 m3 2 m3
Spraying areas per tank 80-240 200-500
Direct spraying distance horizontal10-25m;vertical5-20m horizontal20-30m;vertical10-20m
Spraying distance with hose horizontal20-50m;vertical20-30m horizontal20-60m;vertical20-30m
Weight 600kg 1000kg
Dimension 1500×1300×1300mm 2500×1500×1400mm
