LZ-3A 1.5~3m3/h air motor dry mix gunite machine

  • Output Capacity: 1.5~3m3/h
  • Suitable Mix Ratio(Cement/Sand): ≤1:3~5
  • Max. Aggregate size: 10mm
  • Conveying Pressure: 0.2~0.4Mpa(29-58PSI)
  • Conveying Hose ID: 38mm
  • Air Consumption for conveying material: 5~6m3/min(180-215CFM)

  • air motor gunite machine for sale
  • dry mix gunite machine 1.5~3m3/h gunite machine
  • dry mix gunite machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LZ-31.5~3m3/h air motor dry mix gunite machine is small-sized shotcrete machine for the dry
spraying process.


dry mix gunite machine for sale


The
air motor dry mix gunite machine adopts a dry spraying process, the first operator needs to stir
dry cement, sand, and stones, and then pour dry mixed material into the shotcrete machine hopper.
Even though the dry mix shotcrete machine has a dial material device, usually it isn’t used for mixing
materials, only dial material into a rubber chamber. When will add water in spraying concrete? Let
us tell you. Add water to the nozzle. When dry materials are conveyed to the nozzle by compressed
air, add water to the nozzle. Dry materials and water well mixed sprayed on the working surface.


dry spraying process concrete spraying machine


 Application:

LZ-3A air motor gunite machine can be used as well for small jobs, such as:
1. Shotcrete is used for lining kilns, boilers and furnaces to spray refractory materials;
2. Build pools, hot springs and water features;
3. Tunnel construction;
4. Refractory spraying;
5. Shotcrete is used to stabilize slopes and hillsides
6. Concrete wall construction;
7. Construction of underground parking garage;
8. Mine supports (sprayed concrete walls and ceilings);
9. Spray waterproofing membrane and concrete repair material;
10. Parking lot maintenance and concrete building maintenance;
11. Soil nails, soil conservation and retaining Walls
12. Rock beautification;

air motor gunite machine cases


 Features:

1. Dry mix gunite machine don’t need electric power supply, it is suitable for remote working site;
2. TMH5.5D four-cylinder piston air motor, more powerful;
3. Electric motor and diesel engine drive
dry mix gunite machine for option;
4. 1.5~3m3/h air motor dry mix gunite machine has steady flow of materials, variable output capacity.

■Product Details
Air motor gunite machine for sale

air motor gunite machine for sale

1.5~3m3/h air motor dry mix gunite machine for sale

1.5~3m3/h air motor dry mix gunite machine for sale

1.5~3m3/h gunite machine for sale

1.5~3m3/h gunite machine for sale

Heavy-duty solid wheels

Heavy-duty solid wheels

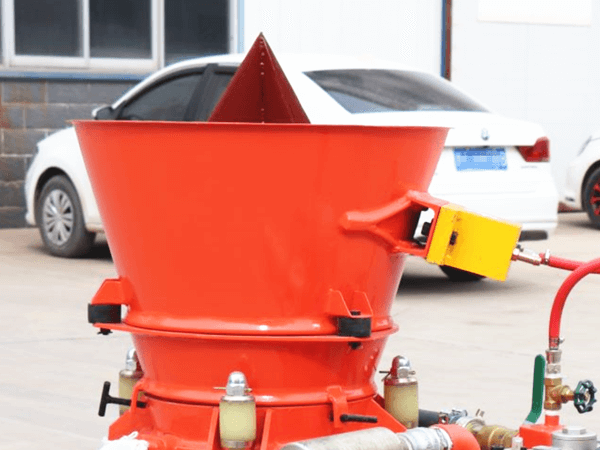

Bag cutter and high hopper with vibrator

Bag cutter and high hopper with vibrator

Air motor for option

Air motor for option

■Technical Parameters
Model LZ-3A 1.5~3m3/h air motor dry mix gunite machine
Output Capacity 1.5~3m3/h
Suitable Mix Ratio(Cement/Sand) ≤1:3~5
Max. Aggregate Size 10mm
Conveying Pressure 0.2~0.4Mpa (29-58PSI)
Conveying Hose ID 38mm
Air Consumption for Conveying Material 5~6m3/min(180-215CFM)
Air Motor Type TMH5.5D
Air Motor Air Pressure 0.5MPa(71PSI)
Air Motor Air Consumption 6.5m3/min(230CFM)
Conveying Distance 60m (Vertical)
Conveying Distance 200m (Horizontal)
Material Charging Height 0.9m
Rotor Speed 14r/min
Weight 430Kg
Overall Dimension 1130×540×1020m
Note: Electric motor and diesel engine dry mix gunite machine for option.
1.5~3m3/h electric motor dry mix gunite machine 1.5~3m3/h diesel engine dry mix gunite machine

1.5~3m3/h electric motor dry mix gunite machine

1.5~3m3/h diesel engine dry mix gunite machine


Full range of shotcrete machines for sale:

gunite machine for sale.
