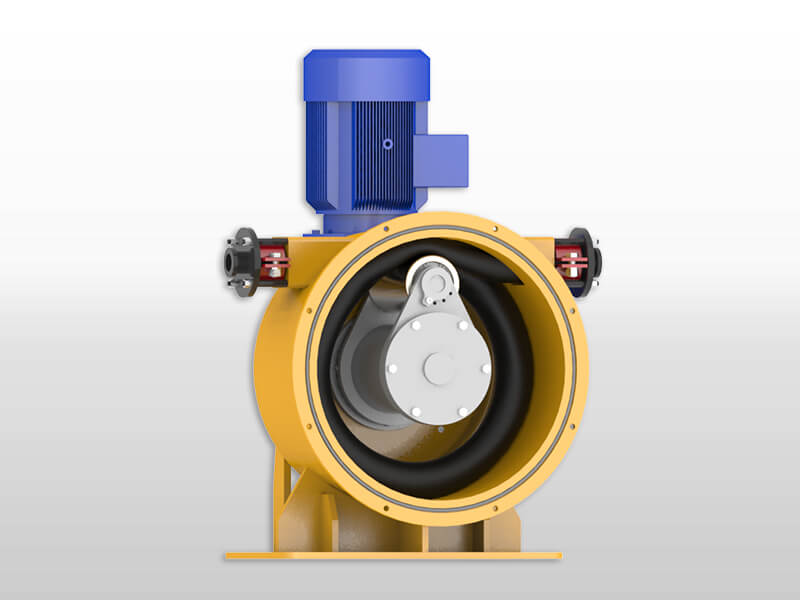

LH32-330SR Single roller peristaltic hose pump

  • Output: 1200L/h
  • Working Pressure: 10bar
  • Squeeze hose ID: 32mm
  • Rotate Speed: 30rpm
  • Motor Power: 3Kw, IP55
  • Voltage: 380V, 50HZ, 3phase, customized

  • single roller peristaltic hose pump for sale
  • single roller hose pump
  • single roller peristaltic pump
  • single roller hose pump for sale
  • single roller peristaltic pump for sale
  • single roller peristaltic hose pump manufacturer
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description:

LH32-330SR Single roller peristaltic hose pump is different with foreign press shoe structure, single roller design reduce number of hose squeezing, extend the hose service life. Usually single circulation flow is larger than conventional press shoe design.
Based on different characteristic pumping materials, Leadcrete hose pump could provide NR, NBR and EPDM different materials squeeze hose.

Working p
rinciple of single roller peristaltic hose pump:

When the rotor unit drives single roller to rotate, hose is squeezed and deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through output under rollers’ push, finally forms pressure conveying of slurries.

We can provide you with customized hose pumps.


customized single roller hose pump


 Application:

Compared with other type pump, LH32-330SR Single roller peristaltic hose pump have many wide application fields. Such as:

★ Construction.

★ Water and waste treatment.

★ Papermarking.

★ Mining.

★ Ceramic and glass.

★ Food and beverage.

★ Textile mill.


 Features:

 LH32-330SR Single roller peristaltic hose pump can delivers even the most difficult materials;

 No valve, no seal;

 Simple structure, easy maintenance;

 Only hose contact with pumping materials;

 Reversibility, convenient for emptying the pipeline or clearing blockages;

 Single roller reduce number of hose squeezing, extend the hose service life;

 Single circulation flow is larger than conventional press shoe design.

■Product Details

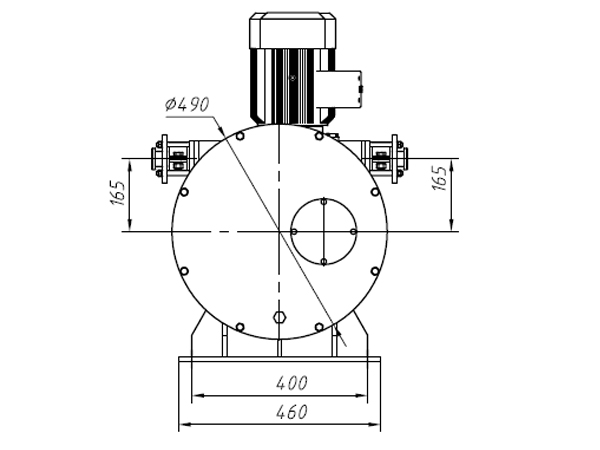

Single roller peristaltic hose pump design details

Single roller peristaltic hose pump design

single roller peristaltic pump design details

single roller peristaltic pump design details

single roller hose pump design details

single roller hose pump design details

Single Roller Hose Pump with hydraulic motor

Single roller hose pump with hydraulic motor

Hydraulic motor single roller hose pump

Hydraulic motor single roller hose pump

Hydraulic motor peristaltic hose pump

Hydraulic motor peristaltic hose pump

■Technical Parameters
Single roller peristaltic hose pump with electric motor:

Model LH32-330SR
single roller hose pump manfacturer peristaltic hose pump for sale
Output 1200L/h
Working Pressure 10bar
Squeeze hose ID 32mm
Rotate Speed 30rpm
Motor Power 3Kw, IP55
Voltage 380V, 50HZ, 3phase, customized
Dimension 580x550x790mm


Single roller peristaltic hose pump with hydraulic motor:

Model LH32-330SR

hydraulic motor hose pump

hydraulic drive hose pump
hydraulic motor peristaltic hose pump single roller hose pump with hydraulic motor
Output 1900L/h
Working Pressure 10bar
Squeeze Hose ID 32mm
Rotate Speed 30rpm
Motor Power 3Kw, IP55
Voltage 380V, 50HZ, 3phase, customized
Dimension 580x550x790mm
Optional: Hydraulic Drive LM1-320 motor. Required Hydraulic power: 12L/min@13MPa
