LMA20 Full automatic 20m3/H container type grout mixer plant with cement silo

  • Mixer Volume:1000L
  • Mixer Flow:1200L/min
  • Mixer max. output:20m³/h
  • Mixer Power:15Kw
  • Agitator Volume:1100L
  • Agitator Speed:25r/min

  • full automatic container grout mixer plant
  • grout mixer plant with cement silo
  • Grout Mixer Plant
  • container type grout mixer plant
  • Automatic Dry Mix Mortar Plant
  • container type grout mixer plant
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
  Description:

HCS17B Horizontal Cement Silo is designed based on 20ft container size. It can be stored in standard container directly. Ir can save shipping cost and more container silos can be stacked together to work.

Automatic Dry Mortar mixing plant



Dry Mix Mortar Plant


LMA20 Full automatic 20m3/H container type grout mixer plant is making reference to, was mainly conceived in order to obtain, through a high turbulence mixing of water and cement powder, a cement mixture (cement grout), or by using water and bentonite powder, a bentonite sully for plastic muds. Also the preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid components (for every screw conveyor).

Dry Mortar Production Line



Grout Mortar Mixer Plant


The cement mixture or the bentonite sully is then transferred to the other units, according with the type of foreseen geotechnical machines.

Mini Grout Batching Plant



Slurry Batching Plant


Container type grout mixer plant can be work under container silo. 20ft and 40ft container silo both are provided.

automatic container grout mixer plant



cement grout mixer in container



 Application:

1. Micro tunneling.

2. Bentonite lubrication.
3. Pipe jacking.

grouting mixer station



Injection Slurry Batching Plant



jet grouting mixer


 Features:

HCS17B cement silo:
1. OLI-WOLONG Vibrator

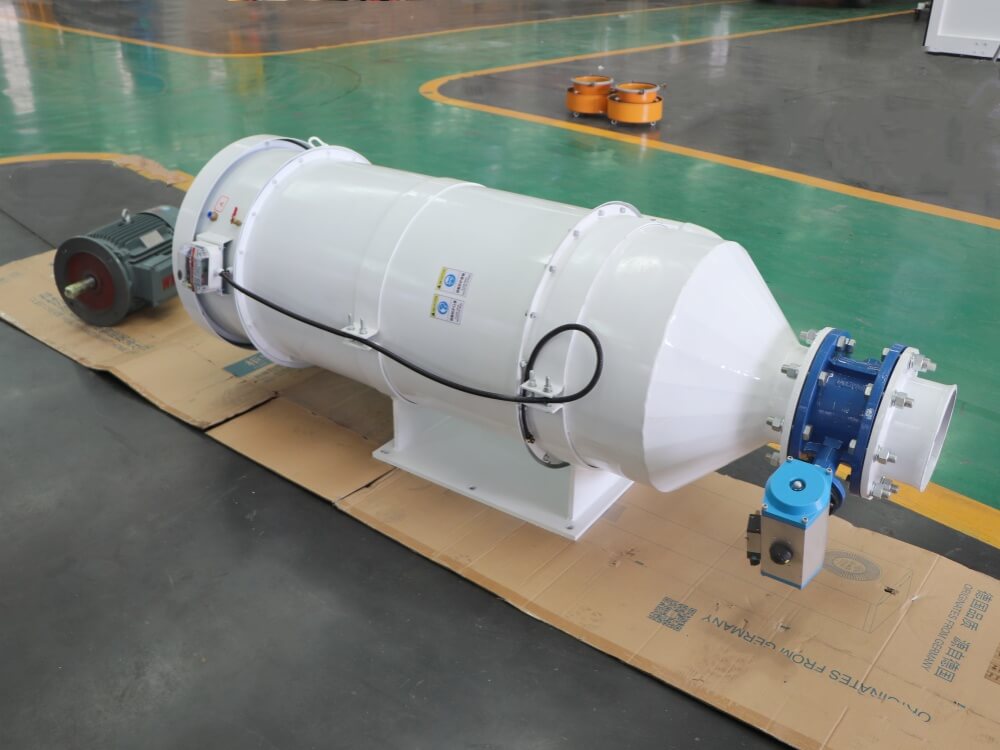

2. Dust collector
3. Upper recalling dipstick and lower recalling dipstick
4. Pressure relief valve

automatic grout mixing plant



big capacity Grout Mixer in container



cement silo



Silo


Slurry Mixer Plant



Tecniwell grout mixer



grout mixer plant factory


LMA20 container type grout mixer plant:
1. Two modes of operation: fully automatic mode and manual mode.
2. Up to 5mm particle size.
3. Cement can be added by cement silo or screw feeder automatically.
4. Mixture, cycling pump and agitator have automatic cleaning function.
5. Main pipeline valves are all pneumatic valves.
6. High-speed colloidal grout mixer with agitator.
7. This type grout mixer plant can be placed directly in the 20ft cabinet.
8. It is easy to operate and maintain.
9. LMA20 automatic mixing plant is equipped with some ceiling lamps, for illuminating the different working areas.
10. The preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid components.

■Product Details
Agitator

Agitator

Air Supply

Air Supply

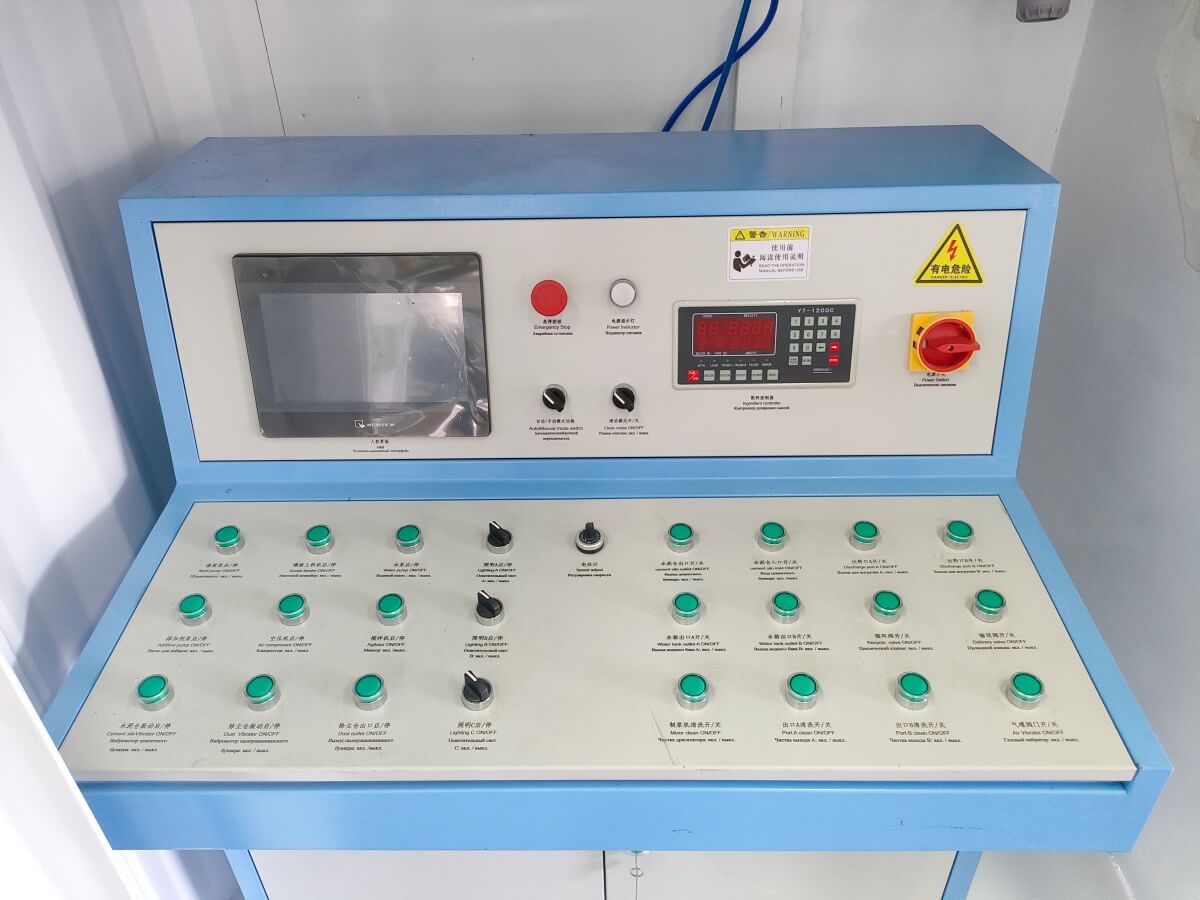

Control Cabinet

Control Cabinet

Cycling Pump

Cycling Pump

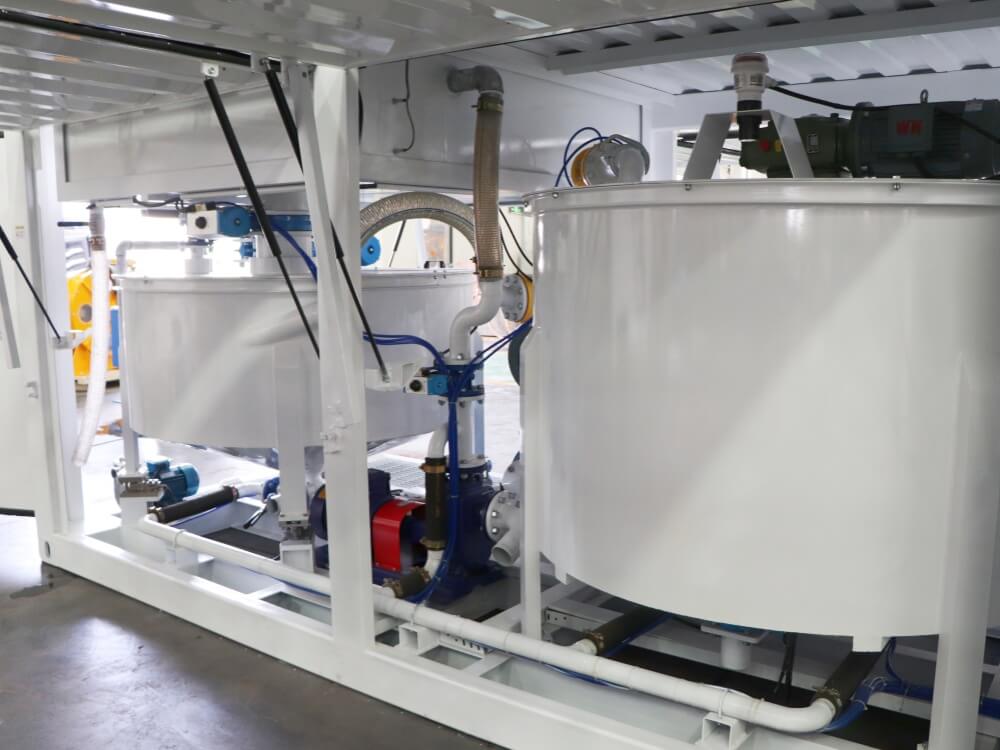

Mixer

Mixer

Water Tank

Water Tank

■Technical Parameters
LMA20 Full automatic 20m3/H container type grout mixer plant with cement silo specification:
1. HCS17B cement silo and LMA20 automatic mixing plant Can be placed directly in the 40ft cabinet.
2. Two modes of operation: fully automatic mode and manual mode.
3. The preparing of ternary or quaternary compound mixing is possible, with either one or two liquid components and one solid component.
4. Automatic cleaning system.

HCS17B Cement Silo
Volume 17m³ Conveying 40t/h
Inlet Dia. 100mm Outlet Dia. 273mm
Power 18.5Kw Power supply 380V,50Hz
LMA20 Cement Bentonite Mixing Plant
Mixer Agitator
Volume 1000L Volume 1100L
Flow 1200L/min Speed 25r/min
Max. output 20m³/h Level sensor Damped rotation controller
Power 15Kw Power 3.0Kw
Air supply system Water supply system
Flow 300L/min Water tank volume 750L
Pressure 0.8MPa Flow@lift 9.03L/s@27.5m
Power 3.0Kw Power 3.0Kw
Power supply 380V, 50Hz

Note:
1. All data are tested with water.
2. We can customize grout mixer plant according to your requirements.
