LCP15H-D Hose type concrete pump for pumping concrete

  • Rated output: 15m3/h
  • Rated pressure: 2.5MPa
  • Rotate Speed: 37rpm
  • Squeeze Hose ID: 75mm
  • Diesel engine power: 30Kw
  • Max. Aggregate size: <15mm

  • hose type concrete pump
  • hose concrete pump
  • hose type concrete pump
  • hose type concrete pump for pumping concrete
  • hose pump for pumping concrete
  • hose type concrete pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

  Description:
LCP15H-D Hose type concrete pump for pumping concrete was designed based on the squeeze hose pump, the concrete squeeze pump uses high pressure, wear resisting extruded tubes. Hose type concrete pump is more widely used for pumping foam concrete, lightweight form concrete, mortar and refractory materials. As per clients’ demand, we can customize different output and pressure of hose type concrete pump.

Factory display pictures of LCP15H-D Hose type concrete pump:

concrete hose pump for sale

hose type concrete pump for sale

hose type concrete pump manufacturer

peristaltic hose pump shipment


 Application:

LCP15H-D Hose pump for pumping concrete has more advantages than other pumps, such as high self priming, no sealing and valves, no damage during dry operation, and only need to replace pipes. LCP15H-D Hose type concrete pumps are widely used in construction, pharmaceuticals, textile factories, dye manufacturing, water treatment, paper making, mining, ceramics, breweries, beverages, and TBM projects.

hose type concrete pump application


 Features:
1. Installation of frequency control, stepless output.
2. Imported special concrete squeeze tubes, pressure, wear, long life.
3. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.
4. Clean on the line, sample, convenient.
5. Compact size, hopper, extrusion pumps, power sources combined in a base frame.
6. Reversible work, facilitate the removal of plugging failure.

■Product Details
details of squeeze hose pump with hopper

Details of squeeze hose pump with hopper

details of squeeze hose pump

Details of squeeze hose pump

Diesel engine

Diesel engine

hopper

Hopper

sieve

Sieve

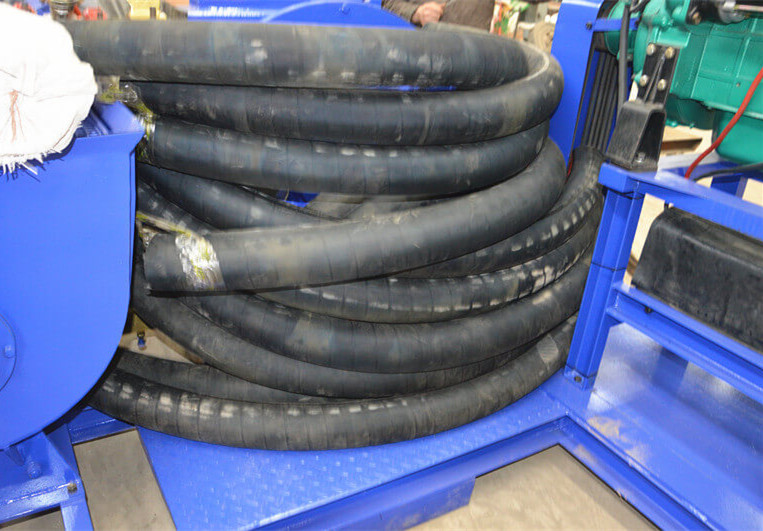

Squeeze hose

Squeeze hose

■Technical Parameters
LCP15H-D Hose Type Concrete Pump

Description

parameter
Squeeze Pump LH76-610
Hose ID 75mm
Rotate Speed 37rpm
Output 15m3/h
Pressure 2.5Mpa
Max. Aggregate size <15mm
Concrete Slump 15-23cm
Hopper Capacity 350L
Stirring speed 37rpm
Diesel engine power 30KW
Overall Dimension 2400x2100x1800mm
Weight 2300kg
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar

LCP15H-E Hose Type Concrete Pump


Description

parameter
Squeeze Pump LH76-610
Hose ID 75mm
Speed 37rpm
Output 15m3/h
Pressure 2.5Mpa
Max. Aggregate size <15mm
Concrete Slump 15-23cm
Hopper Capacity 350L
Stirring speed 37rpm
Reducer Model NR137
Voltage 22KW  50HZ  IP55  3~380V
Overall Dimension 2400x1300x1200mm
Weight 1560kg
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar
