■Introduction

► Description:

LDS2000E electric shotcrete pump runs by a highly reliable direct drive planetary gearbox and hydraulic power pack. This sturdy workhorse is made better with the added improvement of a direct drive to the carousel.

► Application:

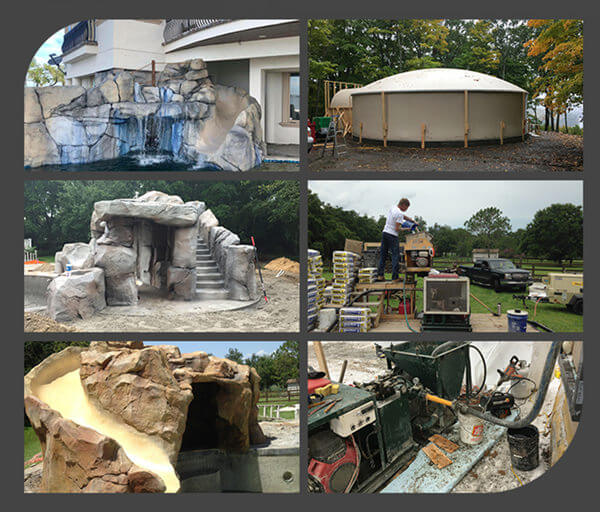

LDS2000E electric shotcrete pump can be used for building dome, swimming pool etc, and pumping and spraying normal concrete, mortar, plaster and cellular light concrete.

► Features:

1. Planetary gearbox and highly reliable direct drive;
2. Easy to move with wheels;
3. Easily operating on work site;
4. Infinite speed variation;
5. Power, compact and reliable.

■Product Details

Directional valve

Electric control box

Pump outlet

Hopper mixing directional valve

Hopper mixing blade

Hopper vibrating screen

■Technical Parameters

LDS2000E Electric Shotcrete Pump
Item	Description
Drive Type	Electric motor
Working Pressure	2.5Mpa (Trelleborg hose)
Output	4-8m3/h
Max. Aggregate Size	10mm
Squeeze Hose ID	50mm
Conveying Hose ID	50mm
Squeeze Pump Model	LH50-680
Power	7.5kw, electric motor
Hopper Volume	240 Liter
Requested Air Compressor	6m3/min, 0.6 Mpa Pressure
Vertical Conveying Distance	30m (Trelleborg hose)
Horizontal Conveying Distance	80m (Trelleborg hose)

Note: the diesel engine or gasoline engine is for optional.
