LH100-915B large working pressure peristaltic pump

  • Output: 32m3/h
  • Max. Pressure: 2.5Mpa
  • Squeeze Hose ID: 100mm
  • Revolution Speed: 32rpm
  • Max. Aggregate Size: 20mm
  • Max. Suction Lift: 5m

  • large working pressure peristaltic pump
  • high pressure squeeze hose pump
  • high pressure squeeze concrete hose pump
  • high pressure peristaltic concrete pump
  • peristaltic concrete pump
  • large peristaltic pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

  Description:

Hose pump consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.

 Application:
LH100-915B super high pressure hose pump adopts special process squeeze hose, working pressure could be up to 26bar.


 Features:

★No Seals, No valves

★Self-priming

★Only tube to replace

★Dry-running without damage

★Reversible

★No contact between product and mechanical parts

★Able to pump products with solid parts inside

★Easy maintenance, low-cost, short down time.

■Product Details

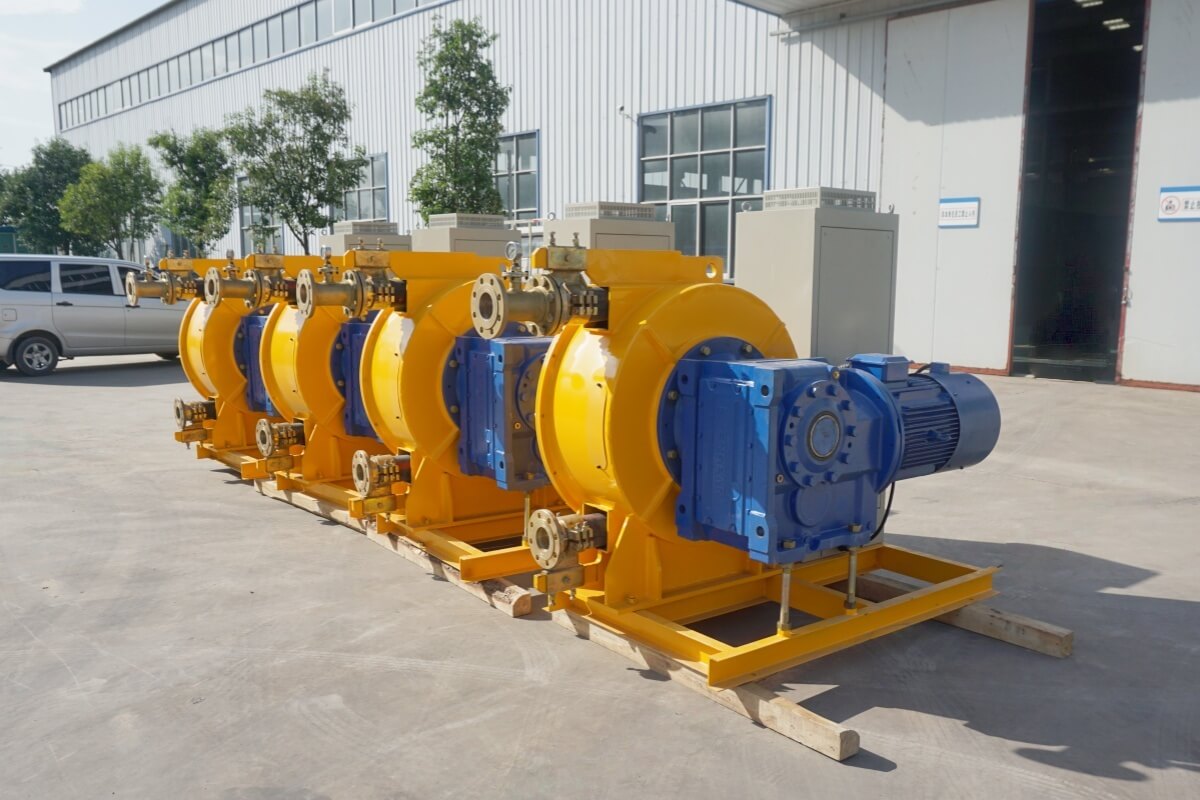

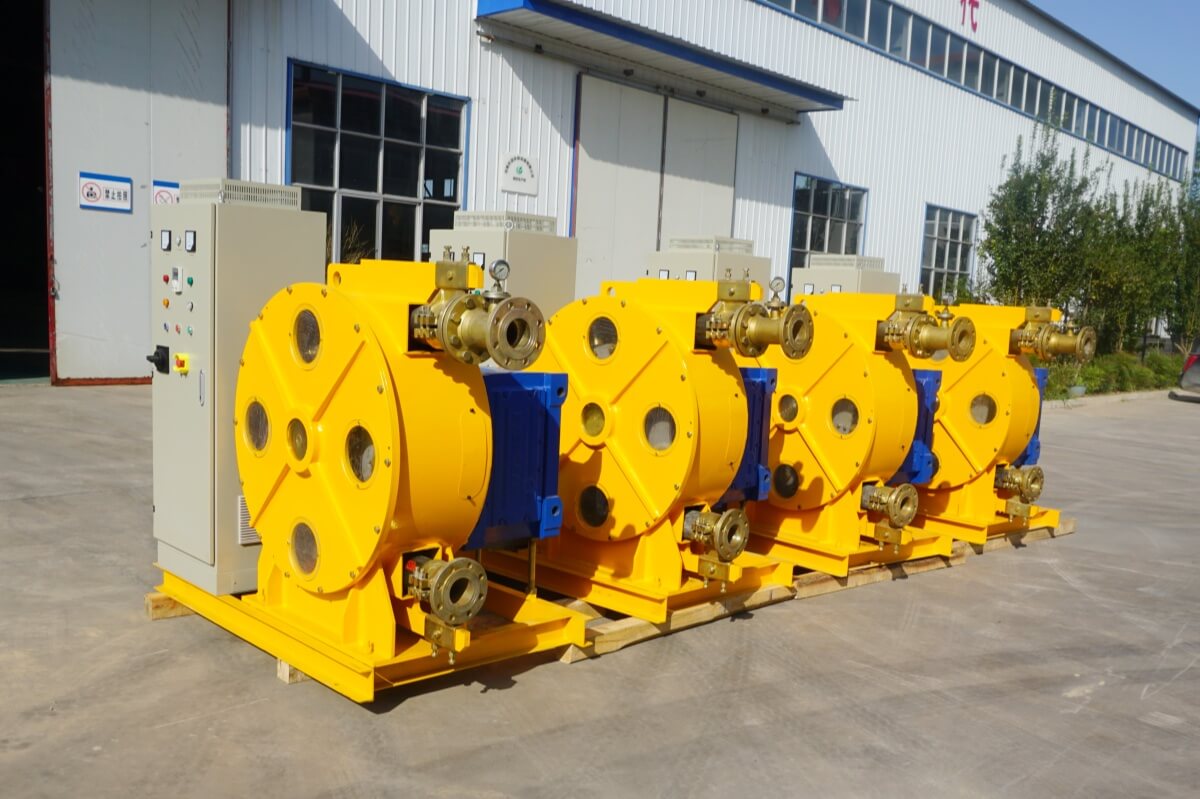

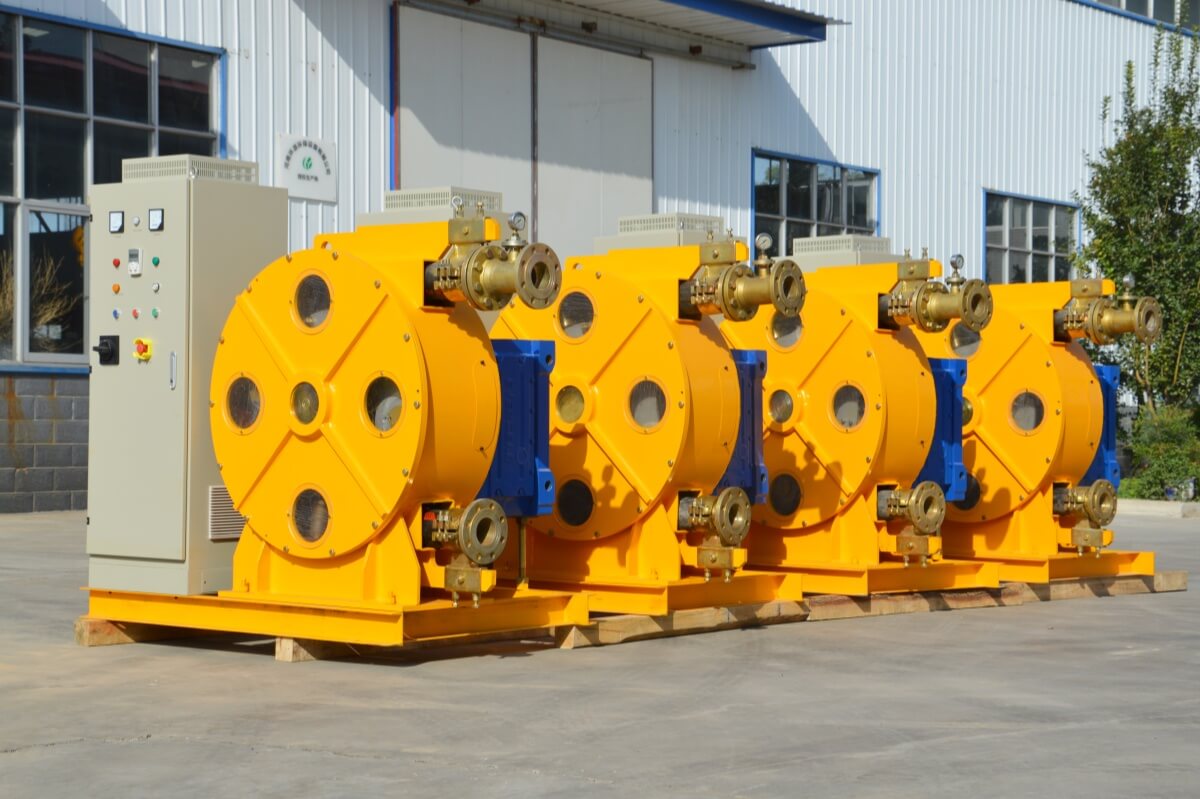

Industrial Peristaltic Pump

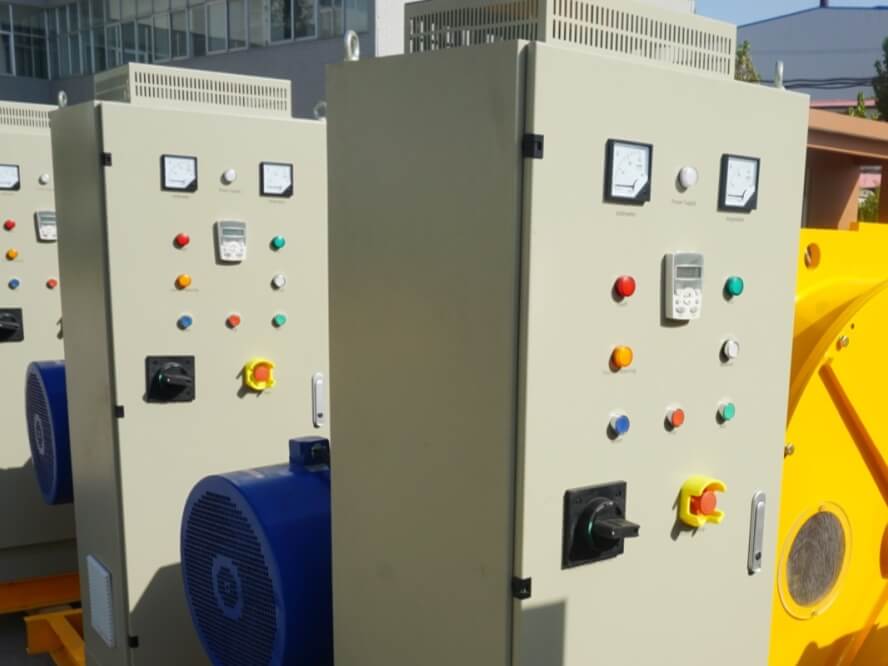

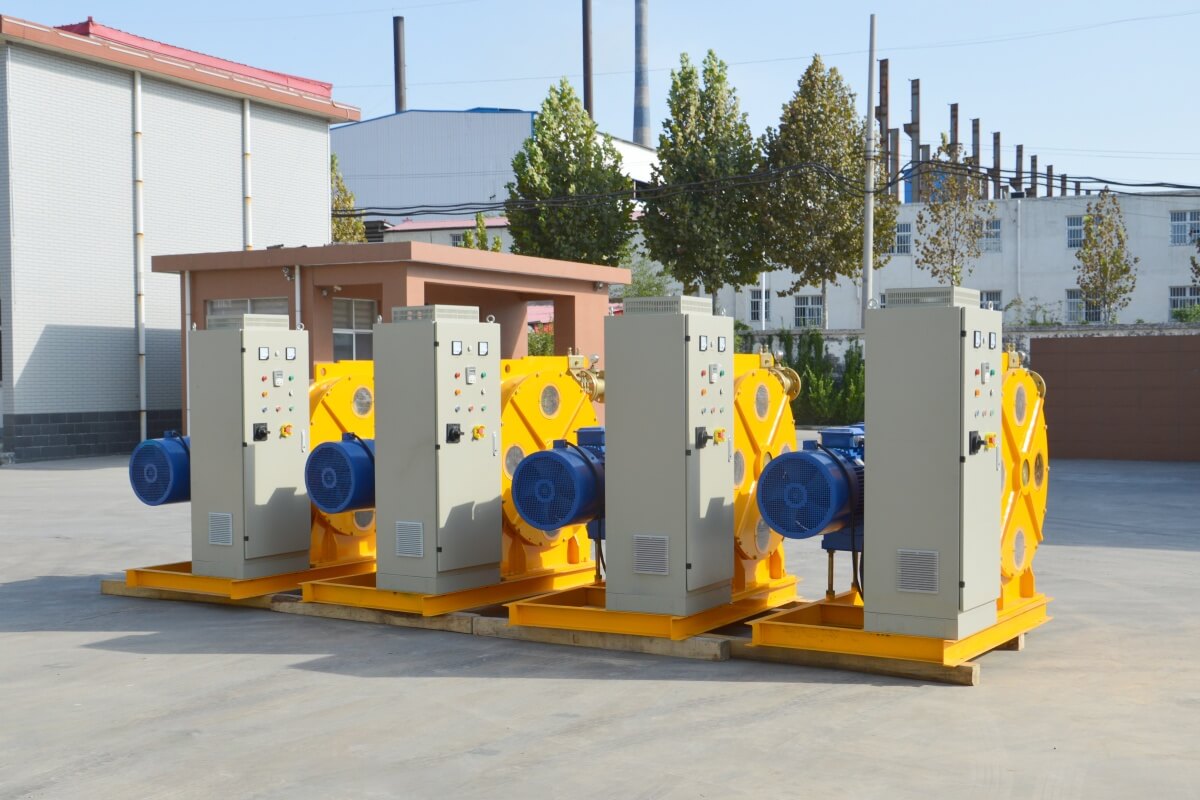

Nice quality electric control box

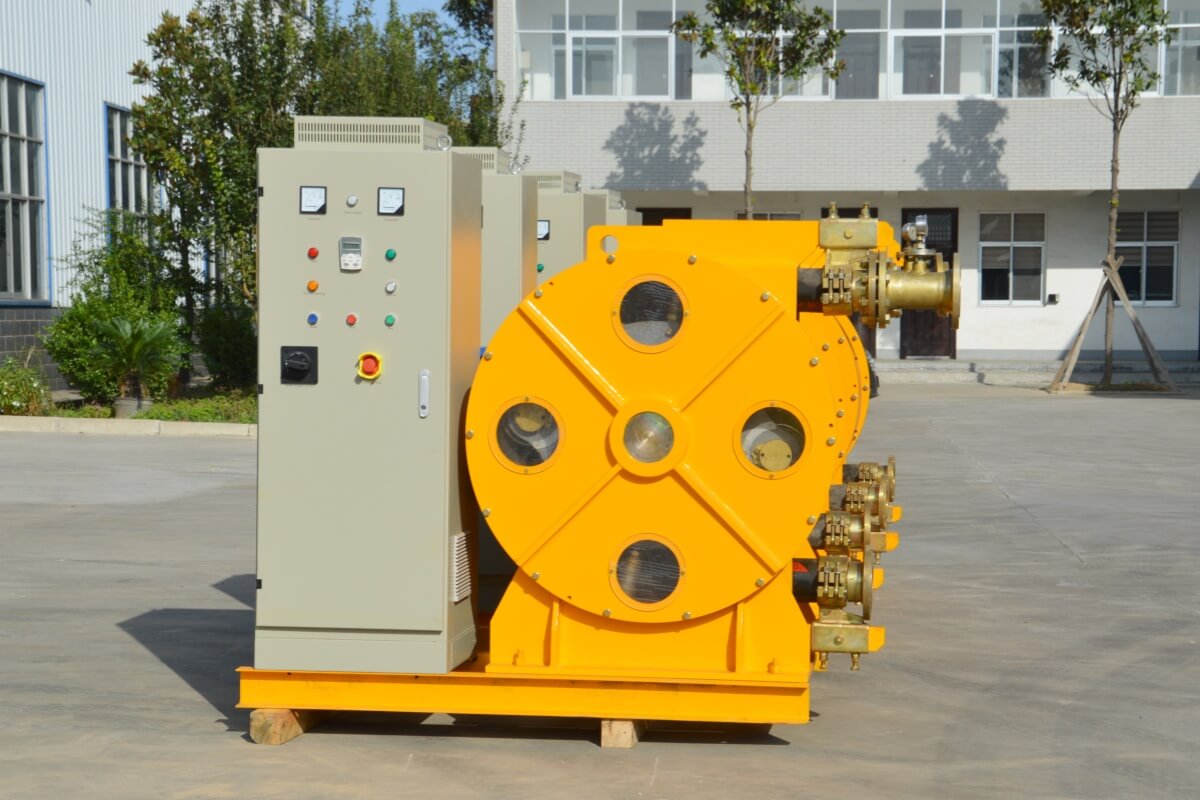

high pressure Peristaltic Pump

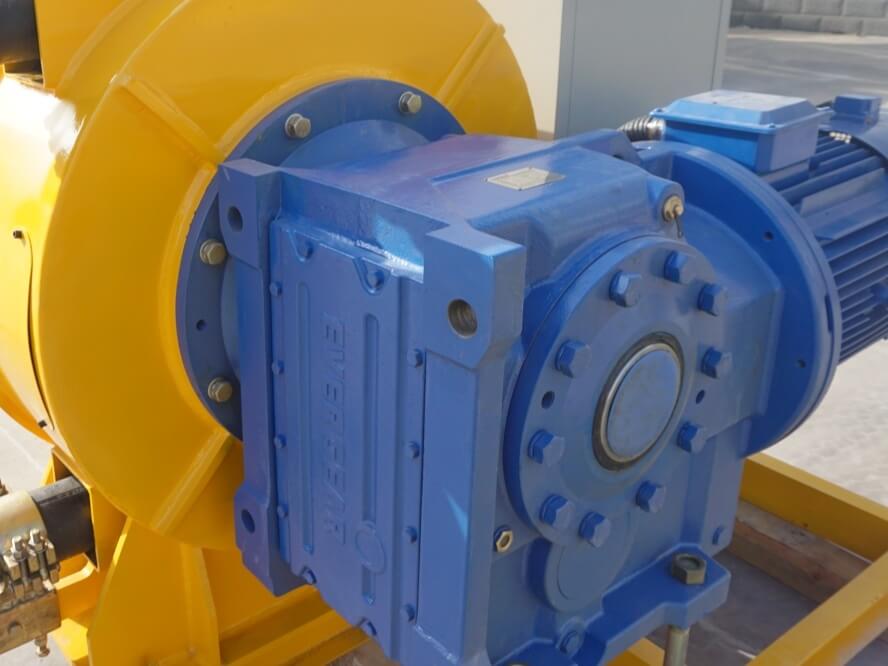

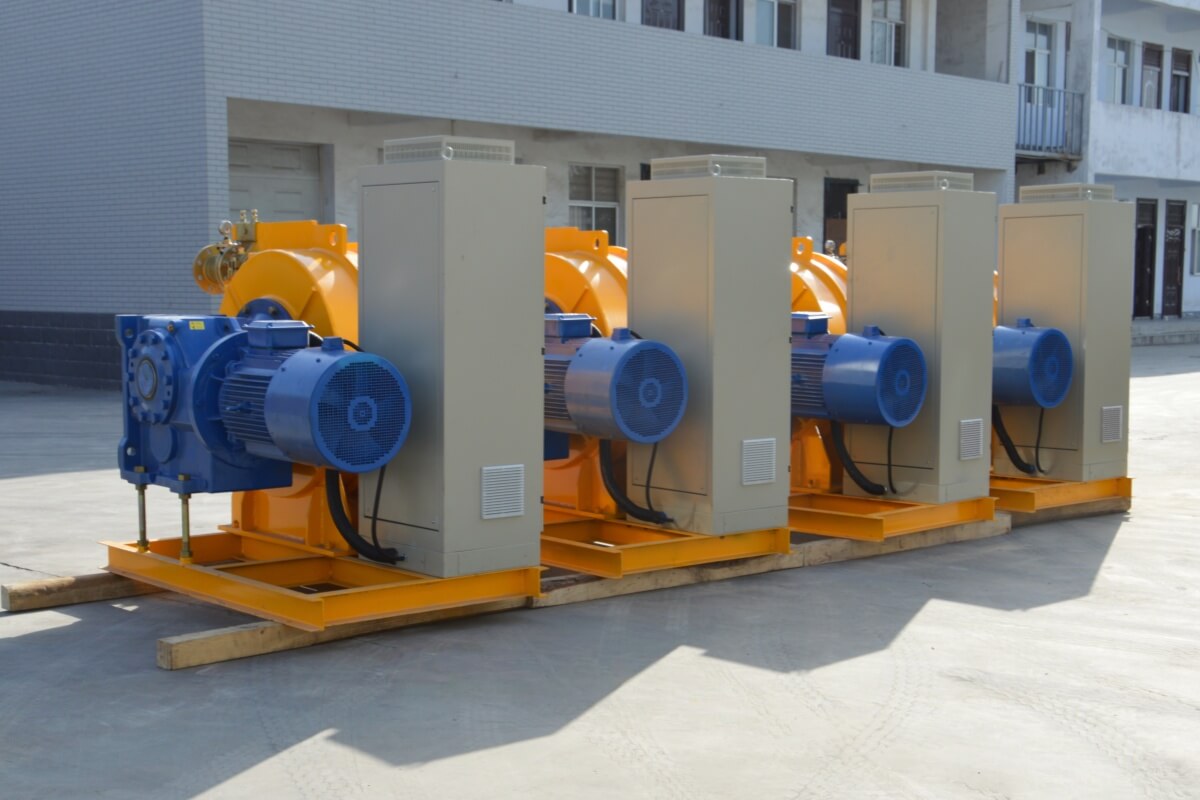

Helical Bevel Gear Units for Reducer

■Technical Parameters

Output

32m3/h
Max. Pressure 2.5Mpa
Squeeze Hose ID 100mm
Revolution Speed 32rpm
Max. Aggregate Size 20mm
Max. Suction Lift 5m
Motor Power 45 kw
Weight 1750kg
