LZ-9 Dry-mix Concrete Spraying Machine

  • Output Capacity: 9(m3/h)
  • Electric Motor: 7.5(KW)
  • Max. Horizontal Conveying Distance: 200(m)
  • Suitable Mix Ratio: ≤1:4~5
  • Max. Aggregate Size: Dia.20 (mm)
  • Conveying Hose Inner Diameter: Dia.64 mm

  • portable shotcrete machine
  • gunite shotcrete machine
  • Shotcrete Machines
  • dry-mix shotcrete machine
  • dry shotcrete machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LZ-9 Dry-mix Concrete Spraying Machine is large-sized shotcrete machine for the spraying process.
LZ-9 is available in following versions:
• Basic: electric drive can be combined with tyre chassis.
• Extended (optional): Air motor drive or diesel drive combined with skid or rail-wheel.

 Application:

LZ-9 Dry-mix Concrete Spraying Machine can be used for large-section tunnel building, mine, etc.

 Features:

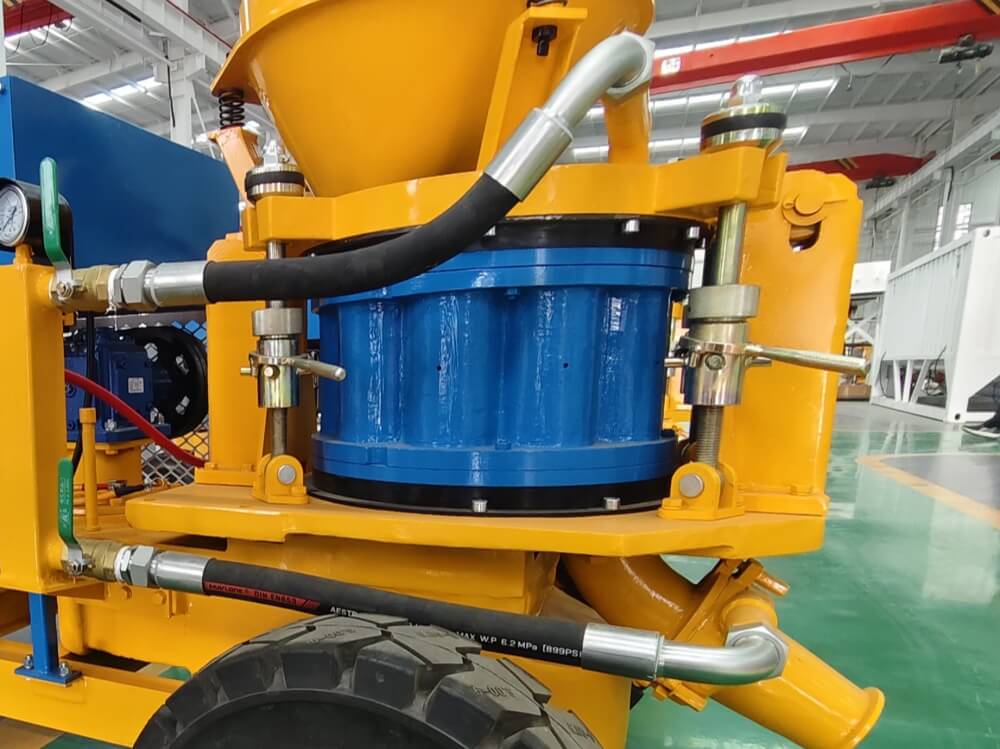

♦ Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
♦ Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.
♦ Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
♦ Partifularly used for dry, damp mix and steel(polymer)fiber reinforced shotcrete.
■Product Details

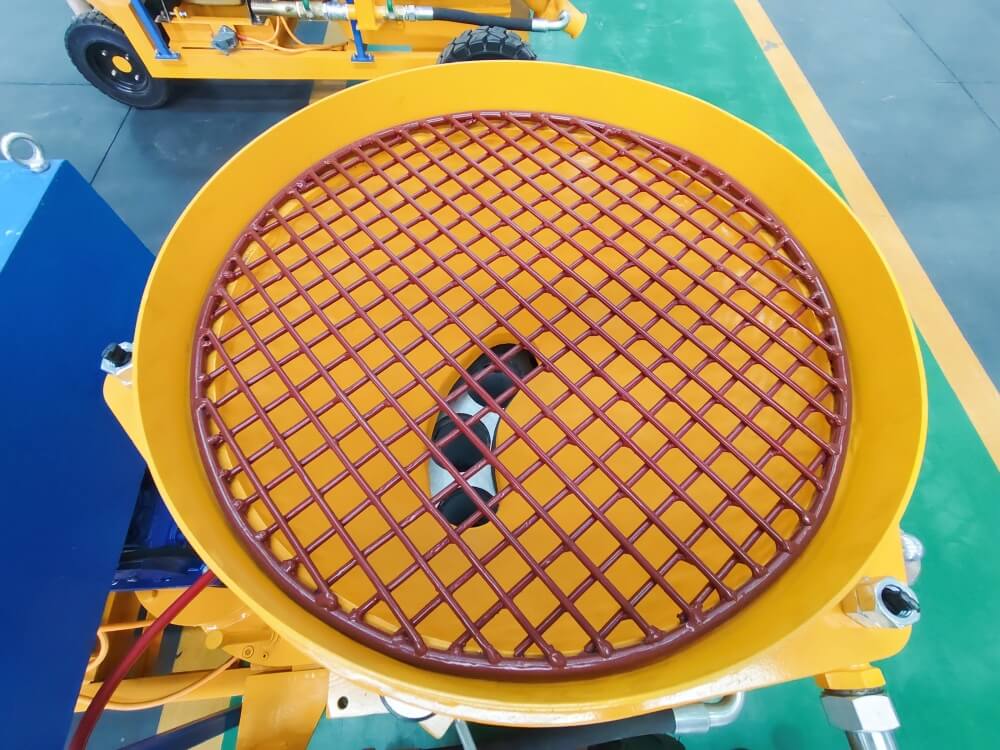

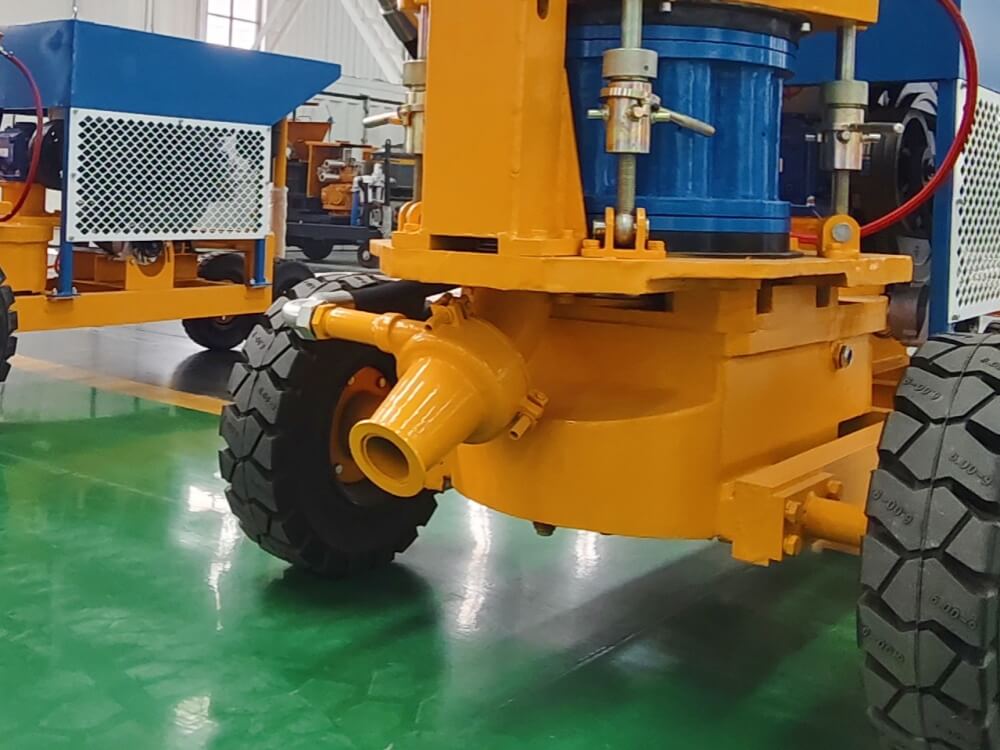

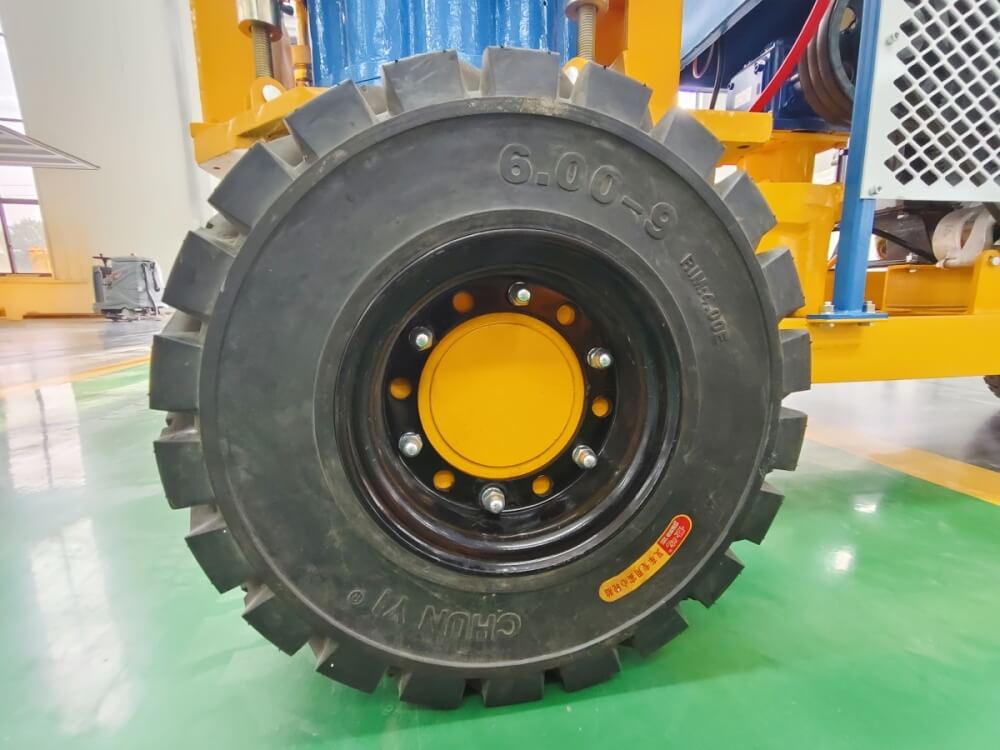

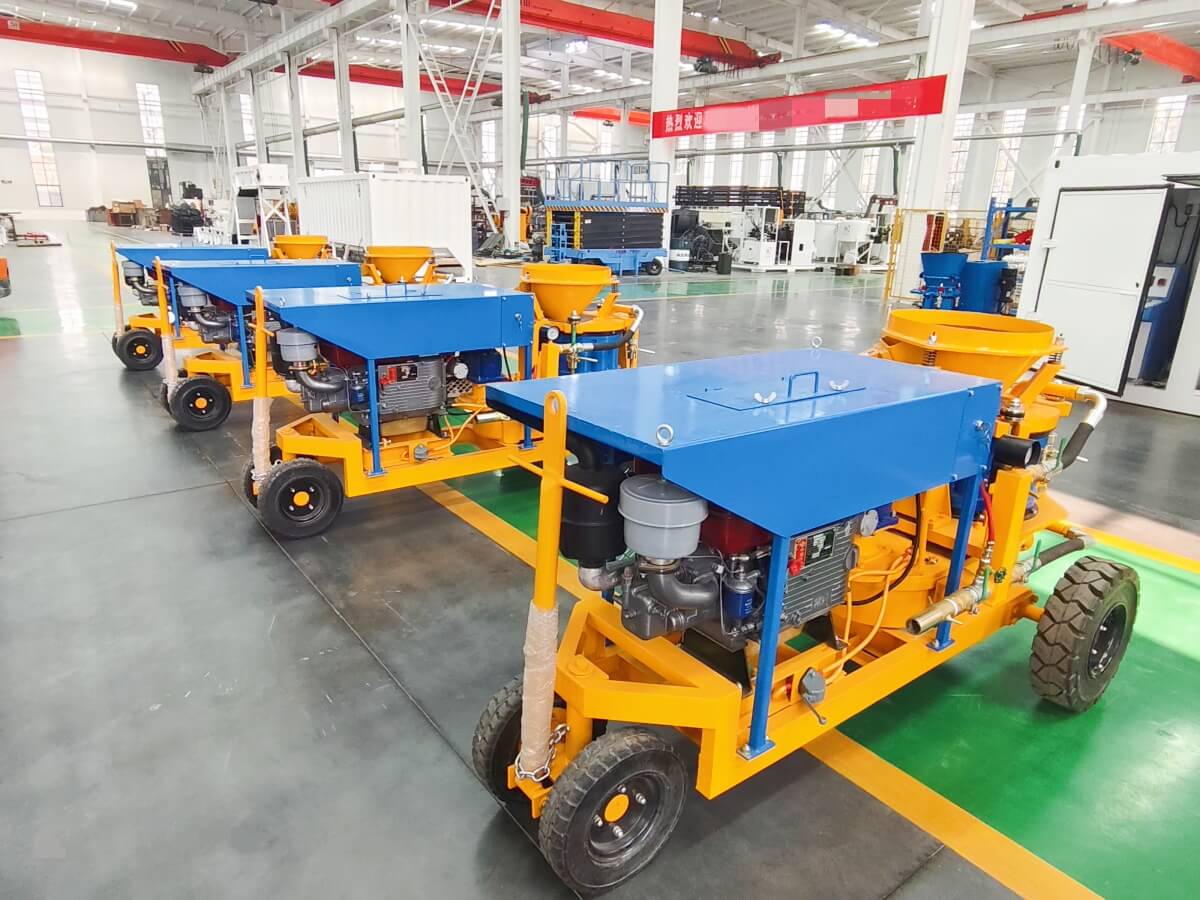

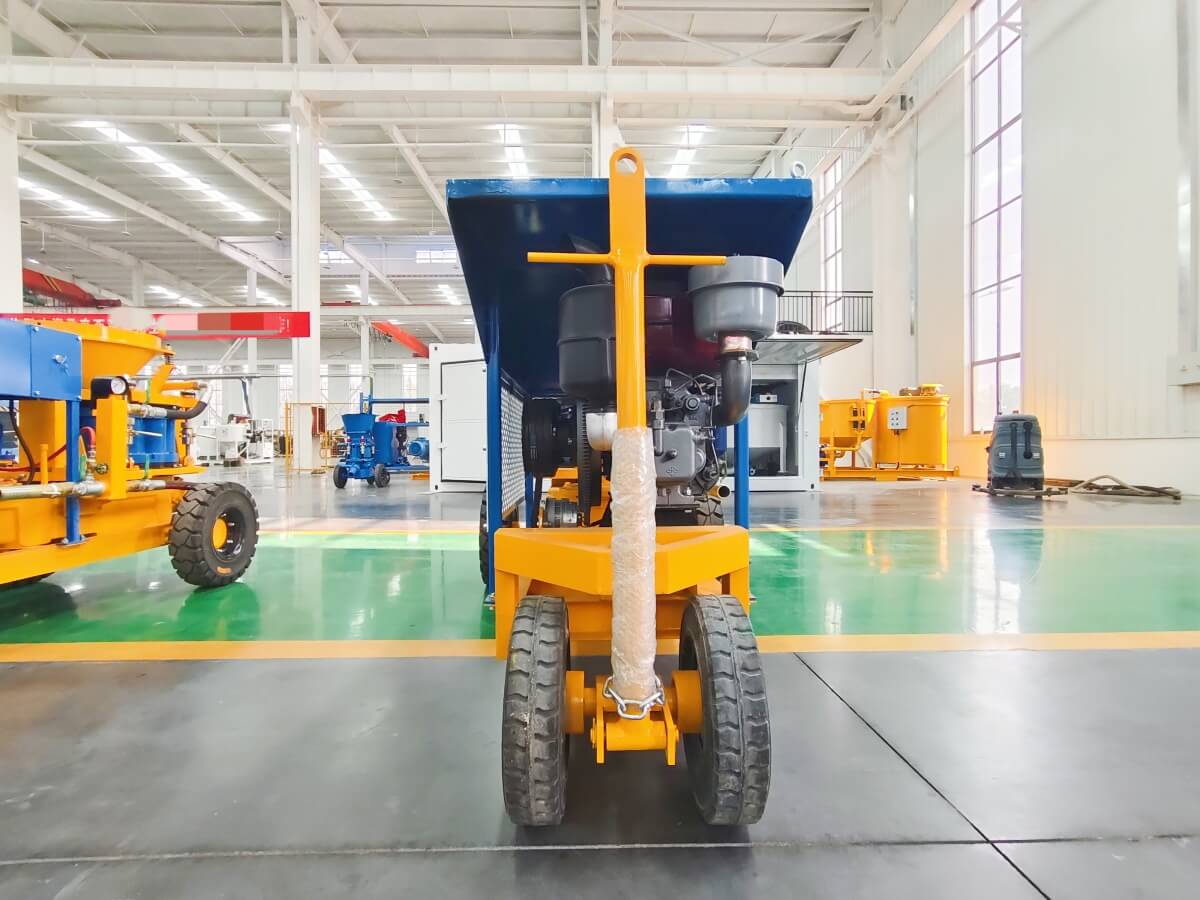

Dry-mix Concrete Spraying Machine LZ-9D

Dry-mix Concrete Spraying Machine LZ-9D

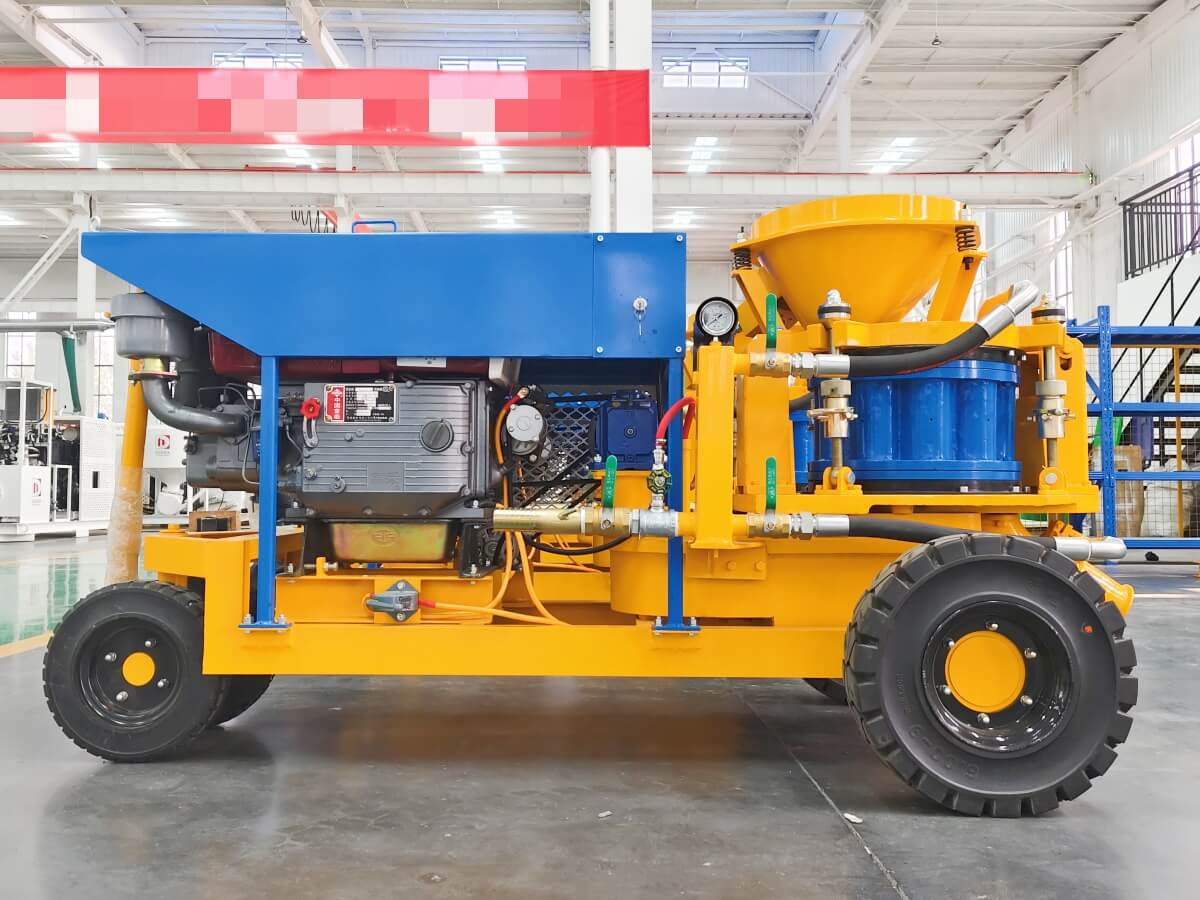

Dry-Mix Shotcrete Machine LZ-9

Dry-mix Concrete Spraying Machine LZ-9

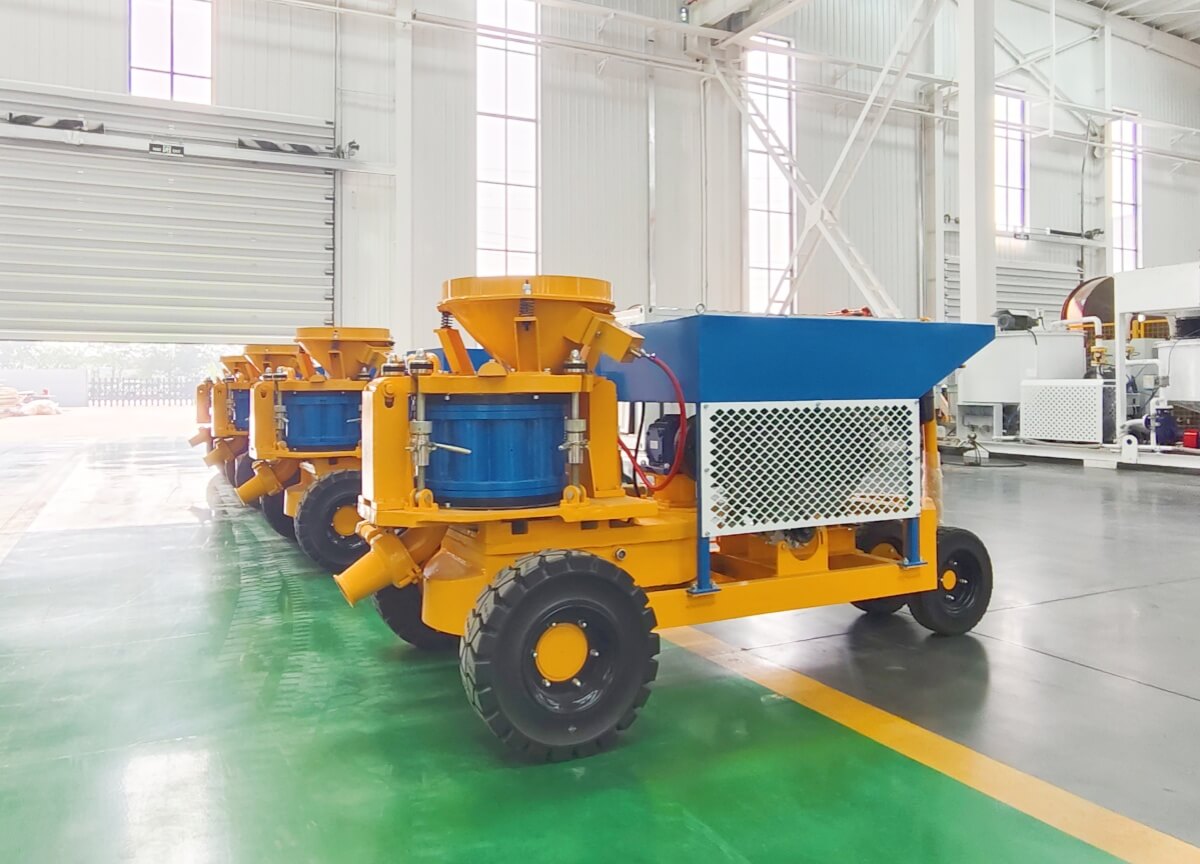

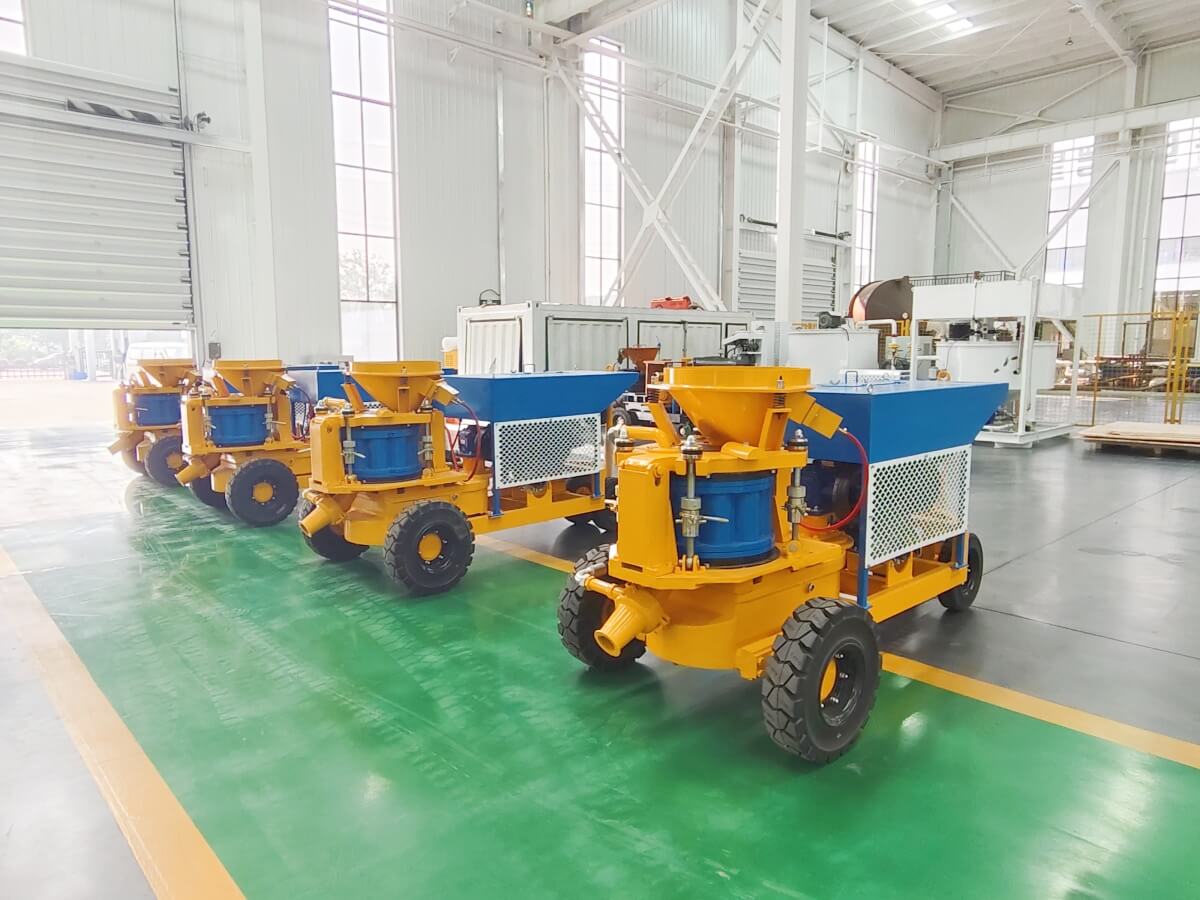

Dry-Mix Shotcrete Machine LZ-9E

Dry-mix Concrete Spraying Machine LZ-9E

■Technical Parameters
ICONElectric drive:

Output Capacity 9m3 /h
Max. Horizontal Conveying Distance 200m
Suitable Mix Ratio(Cement/Sand) ≤1:4~5
Max. Aggregate Size Dia.20 mm
Conveying Hose Inner Diameter Dia.64 mm
Conveying Pressure 0.2-0.4MPa(29-58PSI)
Air Consumption 10~12m3/min(357-430CFM)
Material Charging Height 1.1m
Rotor Speed 11r/min
Electric Motor 7.5kW,Y132M-4,IP55
Vibrator Electric Motor 0.15kW,XVM-A1.5-2
Available Voltage 220V,380V, 440V,660V 50Hz/60Hz
Overall Dimension(length×width×height) 1.65×0.9×1.25m
Net Weight 900kg


ICONAir motor drive:

Output Capacity 5-9m3 /h
Max. Horizontal Conveying Distance 200m
Suitable Mix Ratio(Cement/Sand) ≤1:4~5
Max. Aggregate Size Dia.20 mm
Conveying Hose Inner Diameter Dia.64 mm
Conveying Pressure 0.2-0.4MPa(29-58PSI)
Air Consumption for conveying material 10~12m3/min(357-430CFM)
Material Charging Height 1.1m
Rotor Speed 6-11r/min
Air Motor TMH8A
Air pressure for air motor 0.5Mpa
Air consumption for air motor 10 m3 /min/357CFM
Vibrator OR100,oil
Overall Dimension(length×width×height) 1.65×0.9×1.25m
Net Weight 900kg


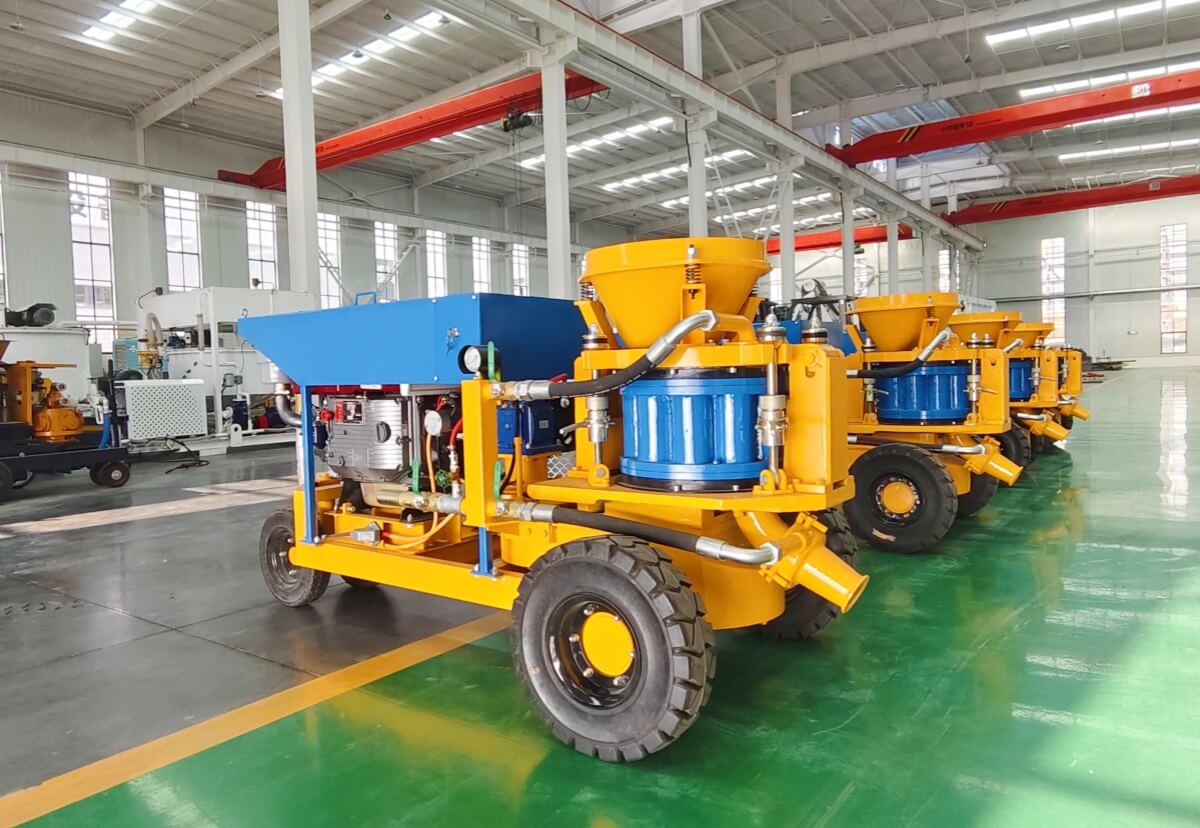

ICONDiesel drive:

Output Capacity 6-9m3 /h
Max. Horizontal Conveying Distance 200m
Suitable Mix Ratio(Cement/Sand) ≤1:4~5
Max. Aggregate Size Dia.20 mm
Conveying Hose Inner Diameter Dia.64 mm
Conveying Pressure 0.2-0.4MPa(29-58PSI)
Air Consumption 10~12m3/min(357-430CFM)
Material Charging Height 1.1m
Rotor Speed 7.5-11r/min

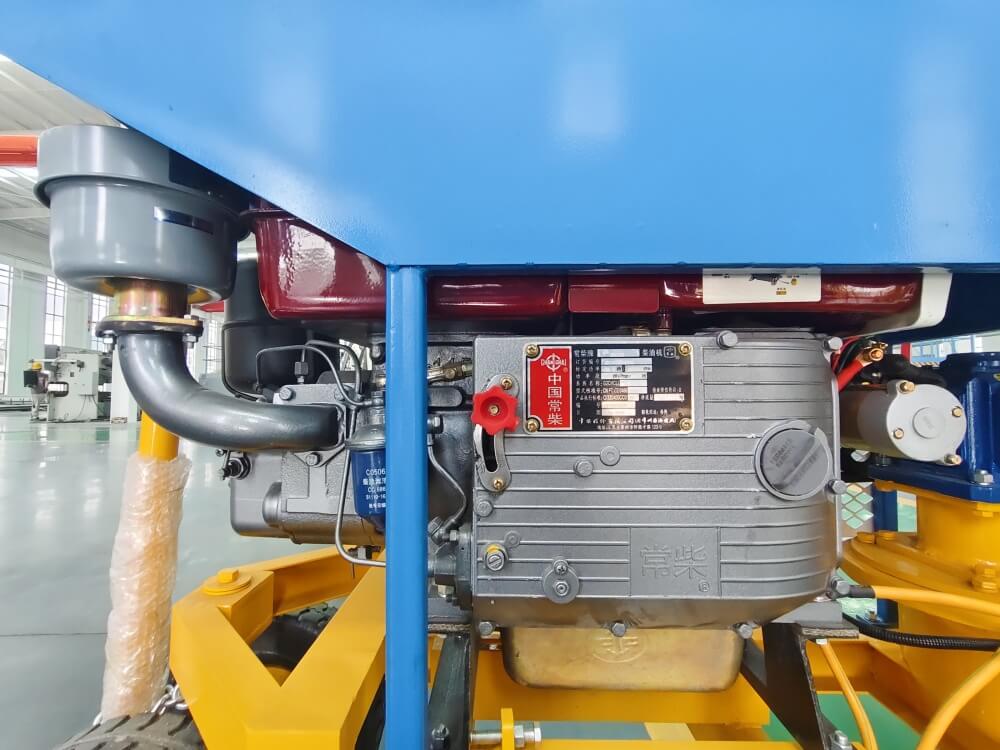

Diesel Engine 20hp,2200rpm, Radiator Cooling
Diesel Engine Starting Electric start
Clutch Type in Diesel Engine Automatic Clutch
Air Vibrator OR100,Oli
Overall Dimension(length×width×height) 2.66×1.11×1.50m
Net Weight 950kg
