LWP160/45-E High pressure cleaning water pump

  • Model: LWP160/45-E
  • Power: 18.5KW
  • Pump speed: 645r/min
  • Output: 160L/min@45bar
  • Dimension: 1340×750×1150mm
  • Weight: 355Kg

  • high pressure cleaning water pump
  • high pressure water pump
  • cooling and cleaning drill pipes water pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

The LWP160/45-E High Pressure Cleaning Water Pump serves the primary purpose of cooling and cleansing drill pipes. Its fundamental operation involves the conversion of regular water into high-pressure, low-flow water using a high-pressure water pump. This pressurized water is then transported through the high-pressure pipeline to the high-pressure nozzle with a specific energy level. These nozzles can transform high-pressure, low-flow water into low-pressure, high-flow jets.

High Pressure Cleaning Water Pump Structure Diagram

High Pressure Water Pump Structure Diagram

The mechanism works such that when the impact force of the high-pressure water jet surpasses the adhesion between surface dirt and the object, it effectively dislodges and washes away the dirt, achieving the objective of surface cleaning.

High pressure cleaning water pump exporter


 Application:

LWP160/45-E High pressure cleaning water pump is mainly used for cooling and cleaning drill pipes.

High pressure cleaning water pump manufacturer


High pressure cleaning water pump in our China factory


 Features:

1. Compact structure.

2. Simple operation and easy maintenance.

3. Equipped with safety valve.

4. Less spare parts ensure low maintenance costs.

5. Multiple discharge port diameters are available.

6. Flameproof electric cabinet, protection grade IP56.

7. With CE, and ISO certification.

High pressure cleaning water pump price



High pressure cleaning water pump supplier

■Product Details

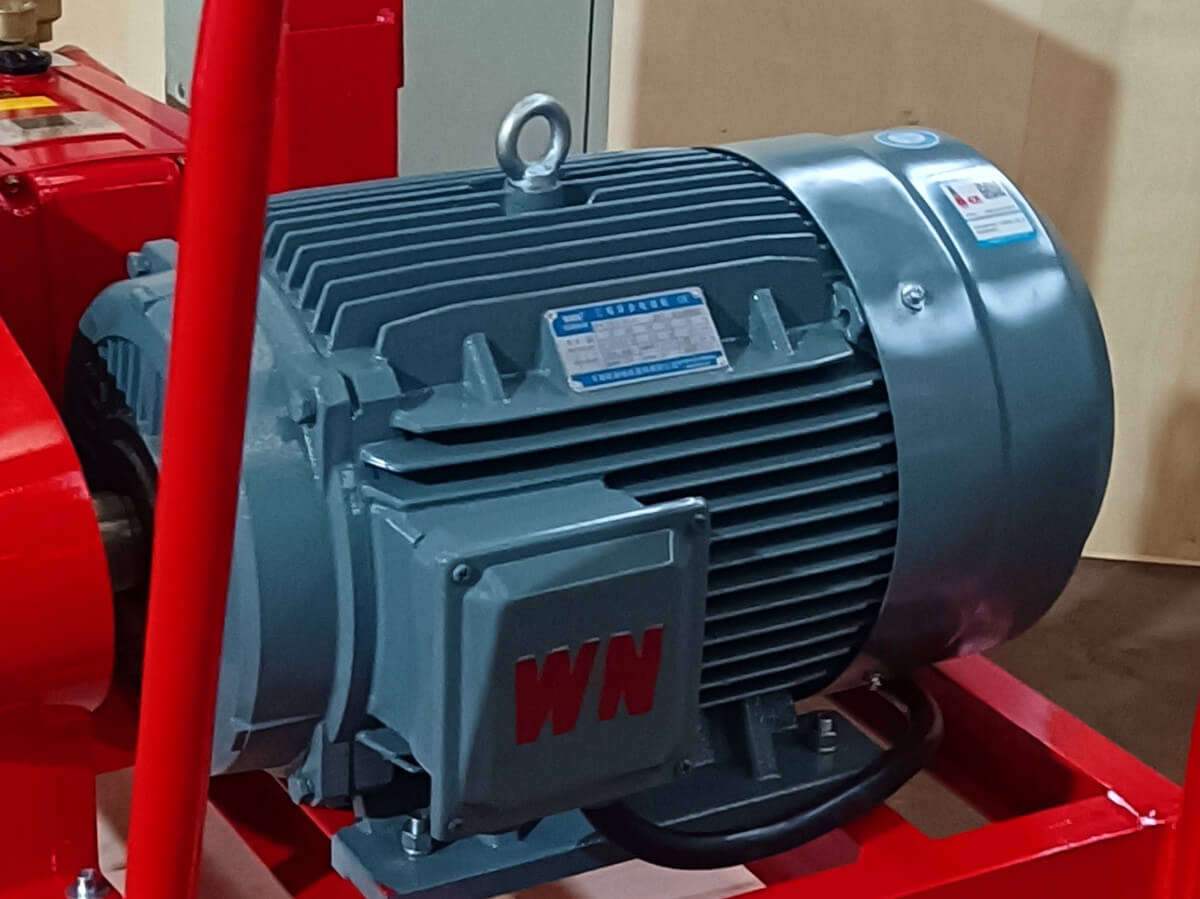

18.5KW motor

18.5KW motor

Accumulator

Accumulator

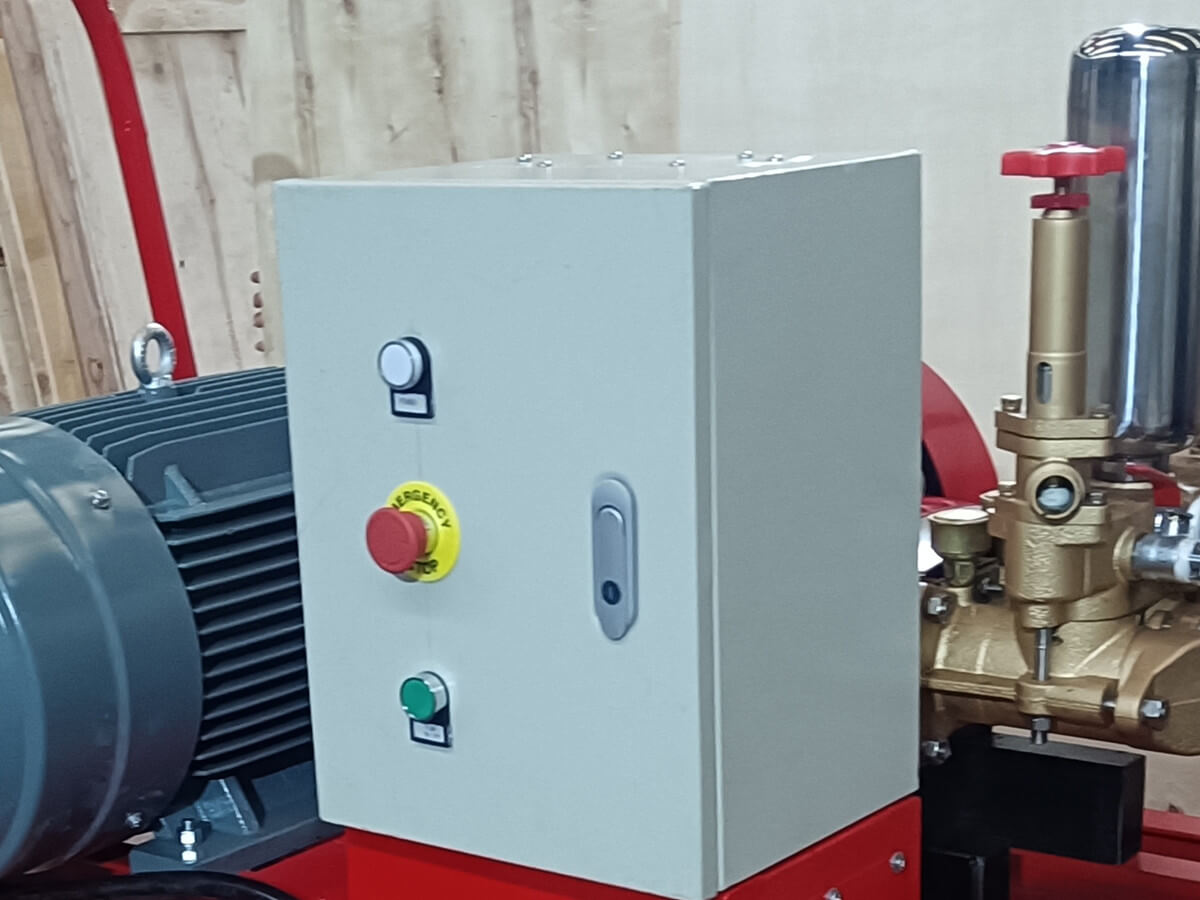

Electrical control box

Electrical control box

lifting ring

Lifting ring

Universal wheel

Universal wheel

Water pump

Water pump

■Technical Parameters

Name

Data

Model

LWP160/45-E water pump

Power

18.5KW

Pump speed

645 r/min

Output

160L/min@45bar

Suction port diameter

DN65

Discharge port diameter

DN20, DN25

Power supply

AC three-phase 380V, 50Hz

Dimension

1340×750×1150mm

Weight

355Kg

Note: We can customize according to your requirements.
