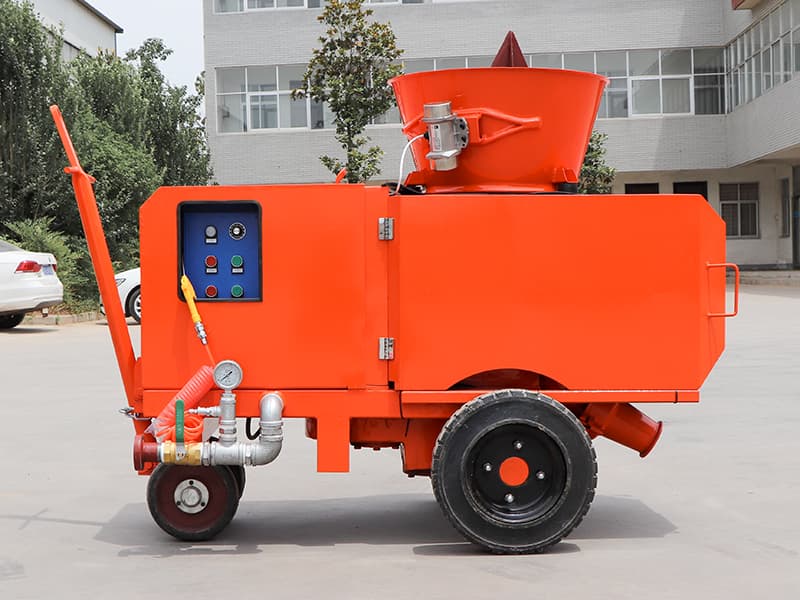

LZ-1.5ER Refractory dry gunning machine for refractory installation

  • Model: LZ-1.5ER
  • Output Capacity: 0.7~3m3/h
  • Max. Aggregate size: 10mm
  • Conveying Pressure: 0.2~0.4Mpa (29-58PSI)
  • Conveying Hose ID: 32/38mm
  • Air Consumption for conveying material: 5~6m3/min(180-215CFM)

  • refractory gunning machine for refractory installation
  • dry gunning machine for refractory installation
  • gunning machine for refractory installation
  • refractories installation equipment
  • refractory dry gunning machine for hot repair
  • refractories gunning machine for the cement Industry
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LZ-1.5ER Refractory dry gunning machine for refractory installation is specially designed for spraying
refractory materials, as well as for concrete shotcrete application.

dry mix refractory gunning machine


Compared with ordinary dry-mix shotcrete machine, it has outstanding features such as low rebound,
low dust, reduced water addition, and improved refractory compactness and strength, which can
effectively reduce refractory waste. This is very important to the end user, as we all know that the
price of refractory castables is higher than that of ordinary concrete, and saving refractory castables
means saving production costs.


Leadcrete Equipment as a castable refractory gunning machine supplier and manufacturer has
developed seven different output refractory dry gunning machines, include LZ-1.5ER, LZ-3ER,
LZ-3ER/S, LZ-5ER, LZ-9ER, LZ-3AR, LZ-5AR.



LZ-1.5ER Electric motor refractory gunning machine:


dry gunning machine supplier


Refractory dry gunning machine for sale



LZ-3ER dry gunning machine for refractory:

dry gunning machine for refractory


LZ-3ER/S dry mix refractory gunning machine:


dry mix refractory gunning machine


LZ-5ER gunning machine for refractory installation:

gunning machine for refractory installation


LZ-9ER refractories installation equipment:

refractories installation equipment


LZ-3AR air motor refractory dry mix gunning machine:

air motor refractory dry mix gunning machine


LZ-5AR air motor full pneumatic refractory gunning machine:

air motor full pneumatic refractory gunning machine


Every model refractory dry gunning machine  has been equipped with an ABB frequency converter,
a high-pressure water pump, and a new type of pre-dampenning nozzle.

ABB frequency converter could adjust the motor speed and control the output, on the other hand,
could avoid clogging the hose due to excessive output when starting.

refractory dry gunning machine equipped with an ABB frequency converter


A high-pressure water pump could provide high-pressure water for gunning machine, then go through
the water ring hole atomization, which could make water and refractory castable materials fully mixed
with refractory pre-wet.

high-pressure water pump


In a new type of pre-dampening nozzle, there is two needle valve to control two water line. The
operator could adjust the needle valve to precise control of water amount, if so, greatly reduces
operator proficiency requirements.
With this LZ-1.5ER, you can get low dust and high performance
spraying flow in nozzle.



pre-dampening nozzle


Pre-dampening nozzle assy with two water supply ways:

Pre-dampening nozzle assy

1. Low rebound, low dust;

2. Reduce additive water amount;

3. Improve refractory compactness and strength.


 Application:

LZ-1.5ER Refractory dry gunning machine for refractory installation can be used for the maintenance
and repair of refractory linings, as well as for the installation of refractory materials in the following
fields of application: steel industry, iron industry, power generation industry, ceramic industry, cement
industry, metal, and mining industry.


refractory dry gunning machine for repairing of refractory linings


We have exported our r
efractory dry gunning machine to India, Indonesia, Malaysia, Thailand,
Vietnam, Egypt, Saudi Arabia, South Africa, Pakistan, etc, receiving better feedback from our
customers.

Now we could provide electric motor and air motor refractory gunning machine for customers option.
For some working site is remote, inconvenient to get electric power, air motor drive refractory gunite
machine will be a good choice for customers.

Electric power refractory gunite machine: LZ-1.5ER, LZ-3ER, LZ-3ER/S, LZ-5ER, LZ-9ER

Air motor drive refractory gunite machine: LZ-3AR, LZ-5AR


We have updated our refractory gunning machine after customer feedback, single hopper refractory
gunning machine could effectively reduce material leakage in the use. An electric vibrate motor has
much more exciting force than an air vibrating motor.



 Features:

★ Bag cutter and high hopper with vibrator.

refractory gunning with high hopper with vibrator


★ Variable output with ABB variable-frequency drive.

ABB variable-frequency drive


★ Lightweight nozzle for refractory materials and castable.

Light weight Nozzle for refractory gunning machine


★ Rotor system could change different size rotor body, achieve different output capacity from 0.7m3/h
to 3m3/h.


Rotor system refractory gunning machine


★ Mobile portable refractory gunning machine is a straight chamber rotor type refractory gunning machine.

straight chamber rotor gunning machine


★ Portable refractory gunning machine is equipped with collect dust system, environmentally friendly.

 gunning machine equipped with collect dust system


★ Coupling and clamps are optional as below.

Coupling and clamps



★ Premium grade blast hose used as conveying hose.

refractory gunning machine conveying hose


★ Heavy-duty solid wheels, easy to move in harsh.

Heavy-duty solid wheels

■Product Details
ABB variable frequency drive

ABB variable frequency drive

high pressure water pump

High pressure water pump

electric control box

Electric control box

Heavy duty solid wheels

Heavy duty solid wheels

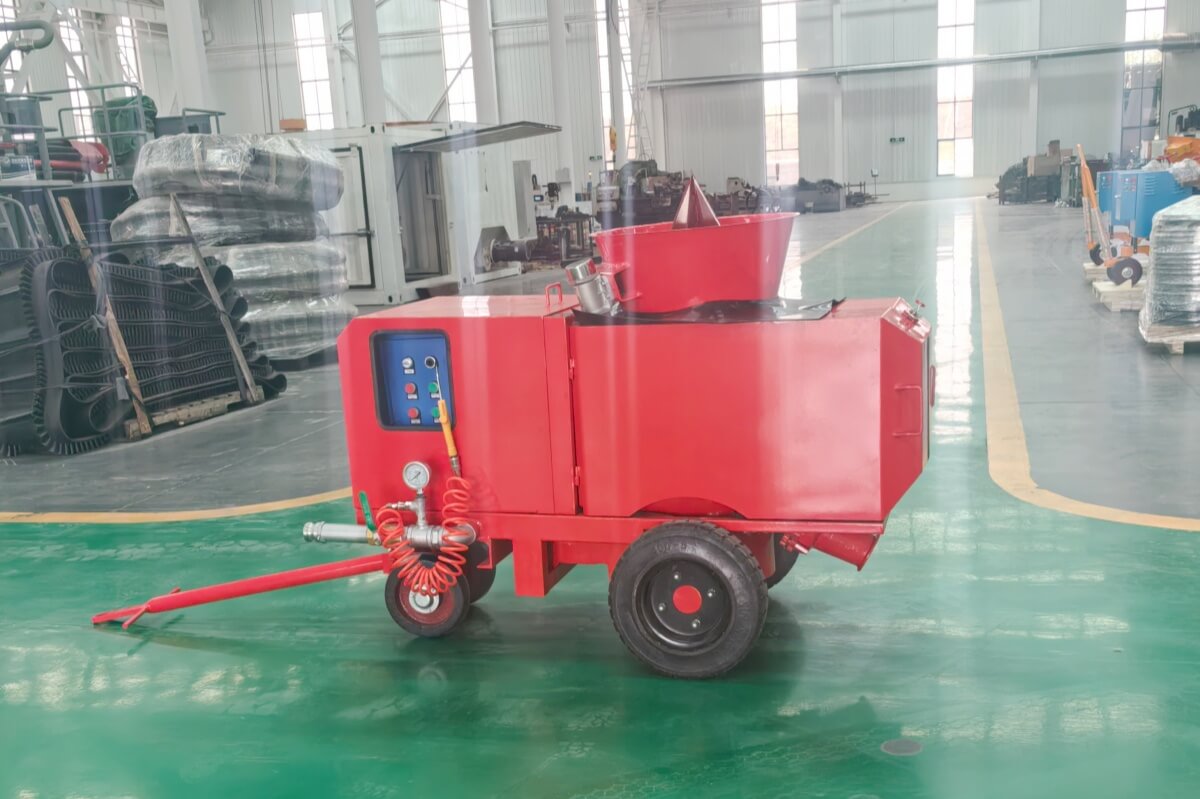

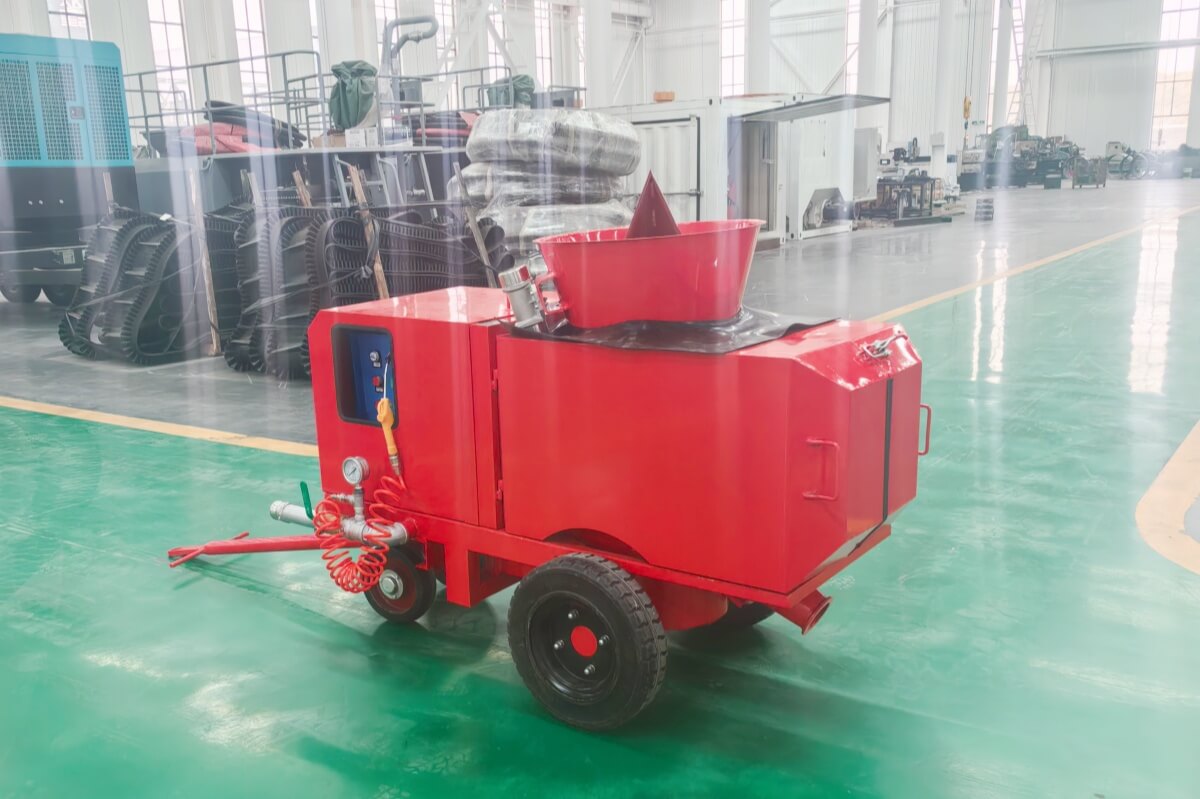

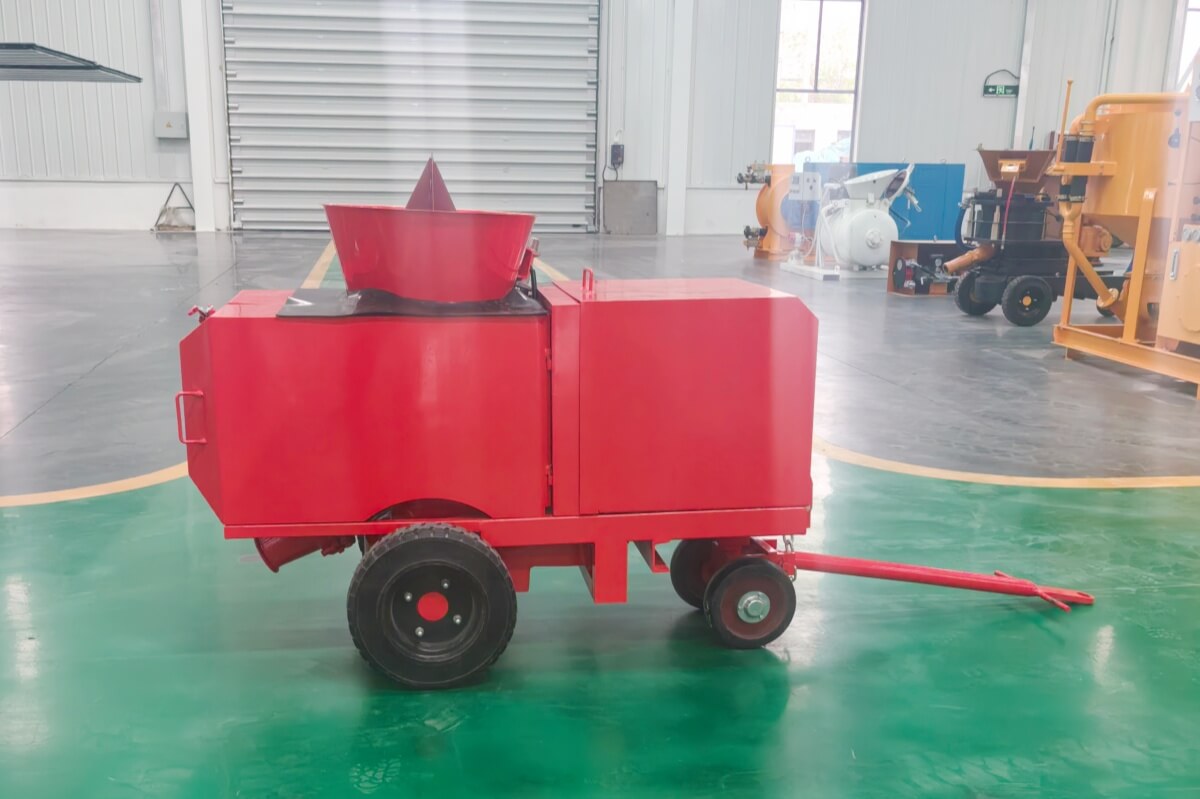

refractory gunning machine

Refractory dry gunning machine details

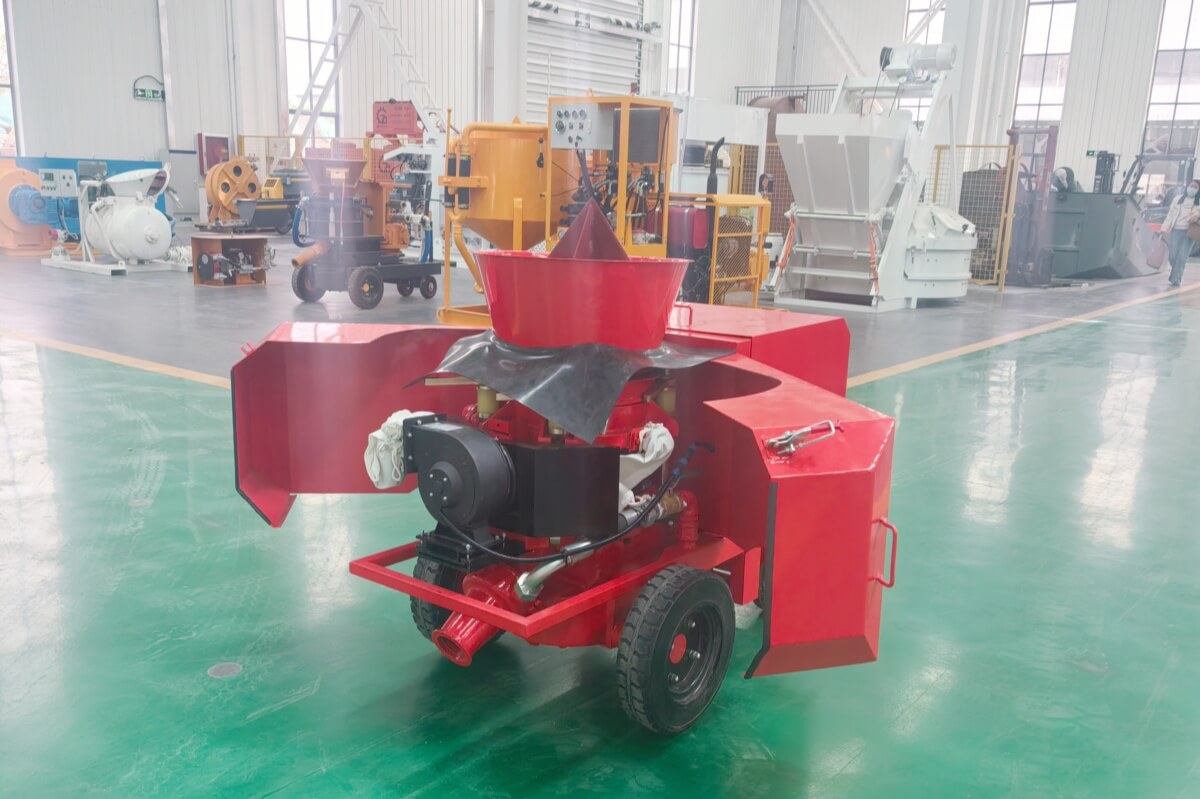

refractory gunning machine details

Dry gunning machine details

■Technical Parameters

Technical Data:

Model LZ-1.5ER electric motor refractory dry gunning machine
Output Capacity 0.7~3m3/h
Max. Aggregate size 10mm
Conveying Pressure 0.2~0.4Mpa (29-58PSI)
Conveying Hose ID 32/38mm
Air Consumption for conveying material 5~6m3/min(180-215CFM)
Motor Power 4Kw
Conveying Distance 60m (Vertical)
Conveying Distance 200m (Horizontal)
Material Charging Height 1.16m
Rotor Speed 7r/min, continuous spraying
Weight 660Kg
Overall Dimension 1600×840×1300mm
Note: Air motor full pneumatic refractory dry gunning machine for refractory installation for option.
