■Introduction

► Description:

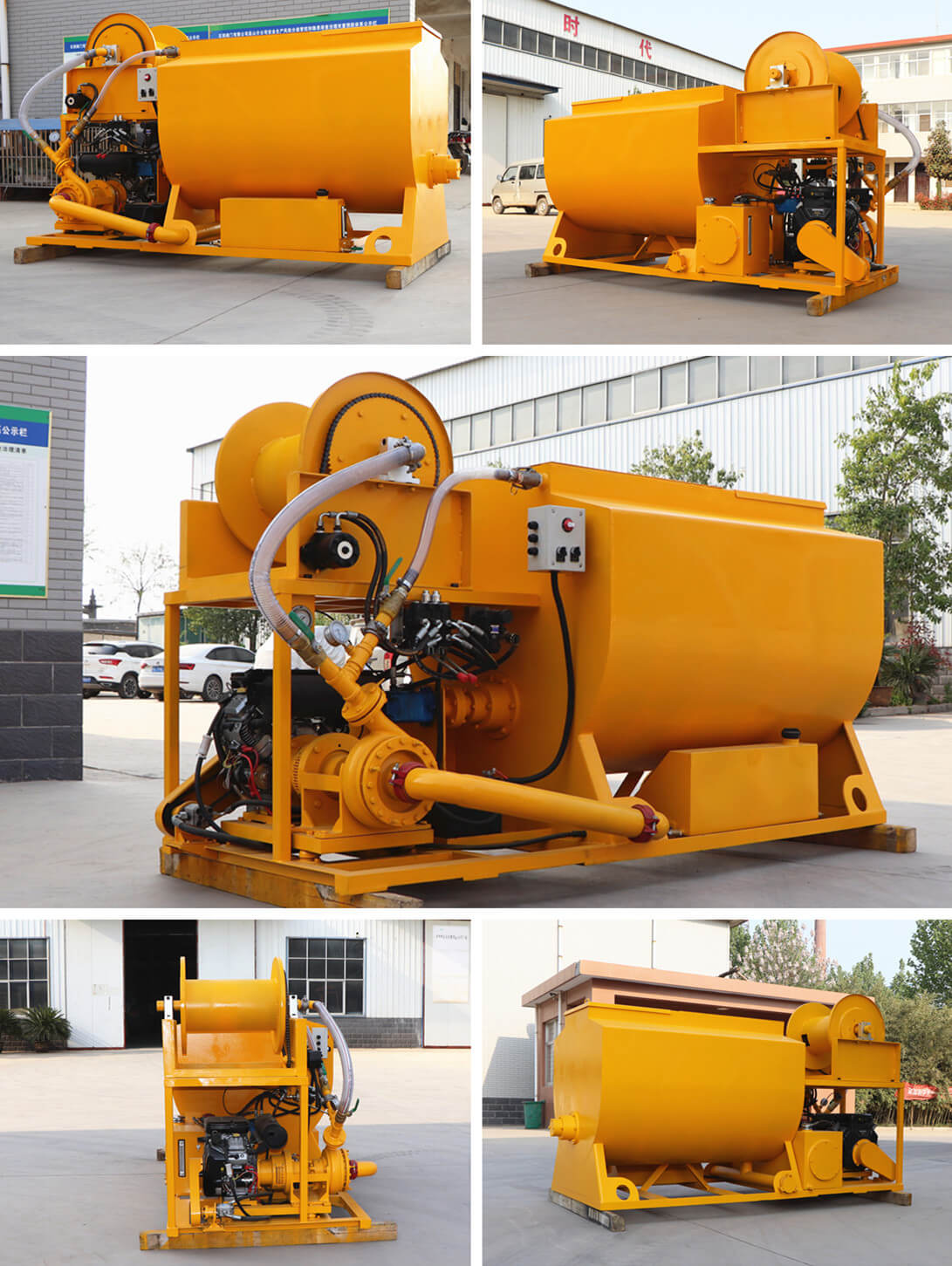

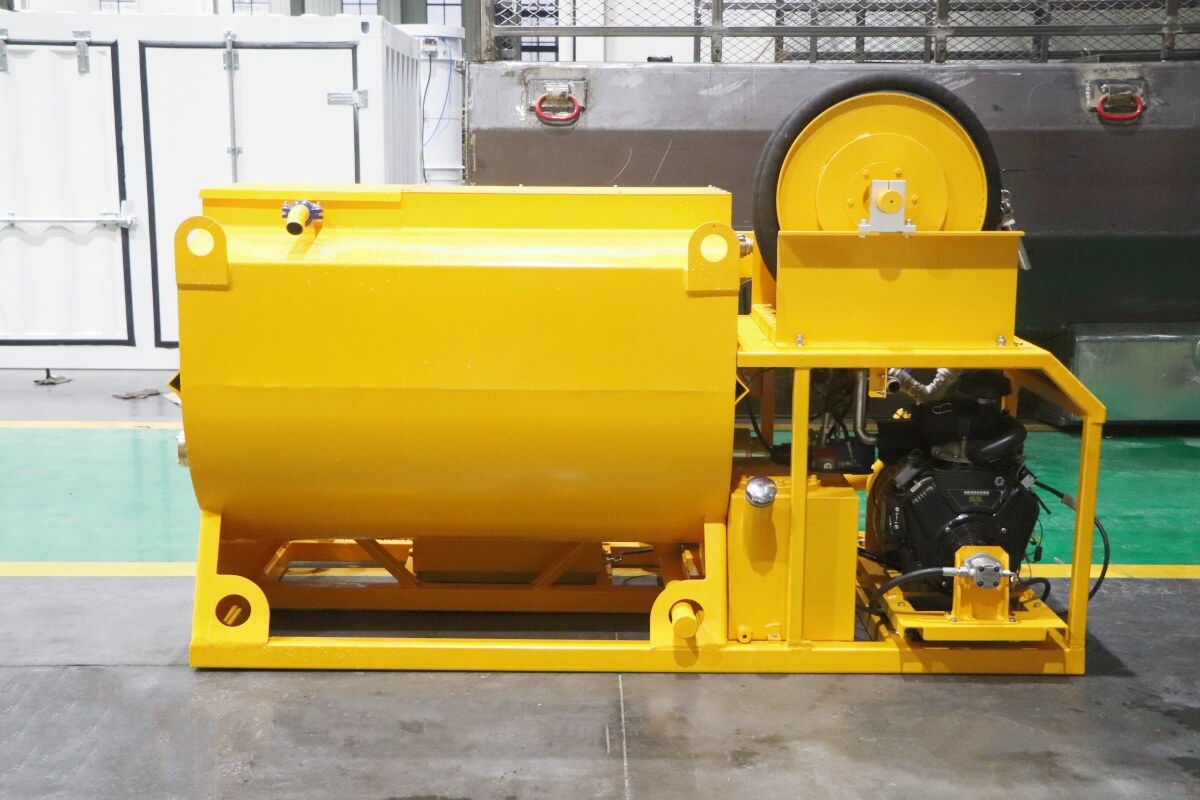

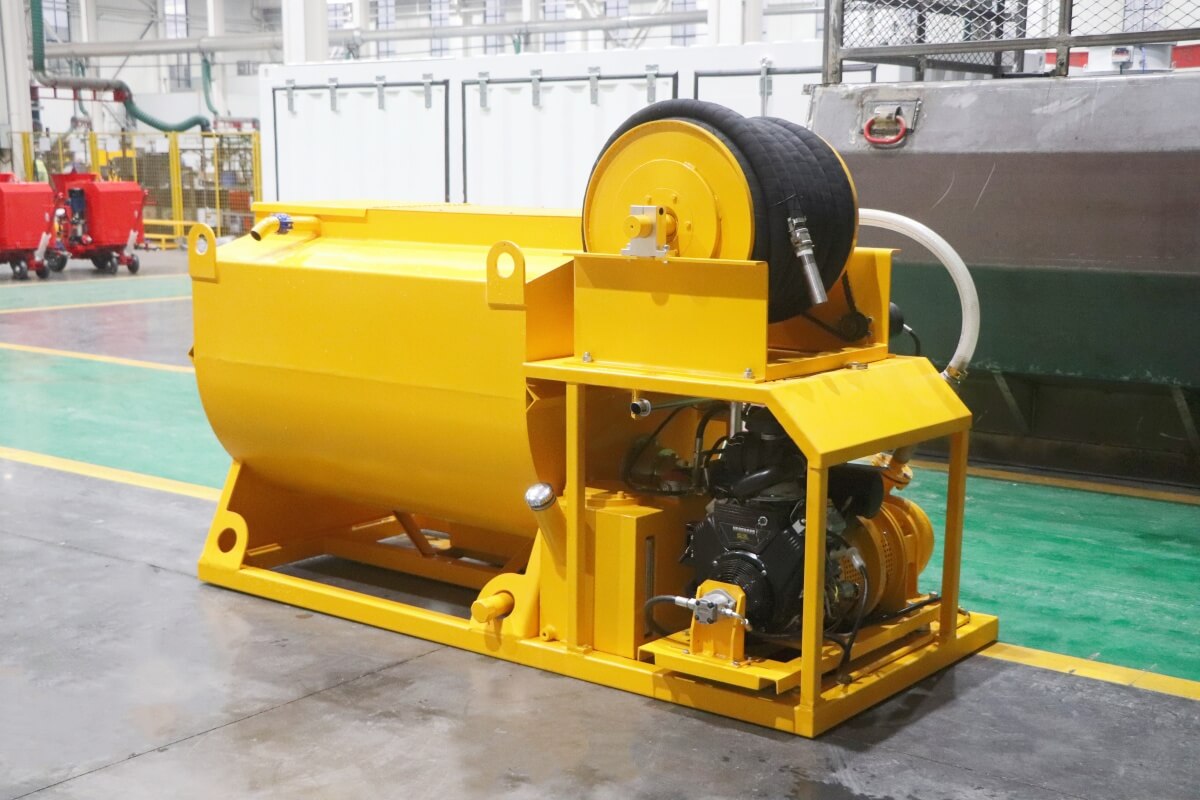

LHS0117 1200L 320gallon small capacity portable hydroseeder is one ideal entry-level machine loaded with features that come standard with every unit, it is a new small capacity wide applicability, simple operation and maintenance hydroseeder.

The small-capacity portable hydroseeder is designed for lawn seeding, landscaping, small slope greening and localized erosion control projects. Its compact structure and flexible mobile design make it easy to transport between construction sites and operate in narrow or limited working areas.

The portable hydroseeder machine mixes water, grass seed, fiber mulch, fertilizer, tackifier and soil additives into a uniform slurry. Its efficient agitation and pumping system delivers stable material spraying through a spray gun or discharge hose, helping contractors establish vegetation quickly and evenly.

Tank capacity of LHS0117 is 1.2m3 1200L 317Gallon, LHS0117 hydroseeder uses 17kw Briggs & Stratton air cooled gasoline engine. It is equipped with a specially designed centrifugal pump(Centrifugal pump:3''x1.5'' (7.5X3.75cm),15m³/h@5bar, 19mm solid clearance) to handle the thickest slurries. The small capacity portable hydroseeders are mainly distinguished by the engine power and the volume of the tank to distinguish the models. We can provide customized services according to your requirements, the scope of customization includes tank capacity, engine, tank material, wheels, hose reel, ladder, etc.

► Application:
LHS0117 small portable hydroseeder is mainly used for smaller hydroseeding projects such as professional quality seeding, fiber mulching and much more. This portable hydroseeding machine is suitable for residential lawns, parks, sports fields, roadside slopes, small embankments, gardens and construction site restoration. Tank capacity, power source, mobile chassis, hose length and spraying system can be customized according to project requirements.

smaller hydroseeding projects

LHS0117 small capacity portable hydroseeder goes everywhere you need it to go: residences, cemeteries, golf courses, sports fields, office and apartment complexes, parks, and more.

► Features:
1. Durable, 1200L (320gallon) capacity steel tank;

2. 17kw Briggs & Stratton gasoline engine, air cooled;

3. Especially designed centrifugal pump: 3''x1.5'', capacity15m/h, it handles the thickest of slurries with ease;

4. With hydraulic or electric hose reel with a 30m rubber hose;

5. Hydraulically-driven and reversible mechanical agitator, agitator with helical paddle orientation and liquid recirculation;

6. Spraying distance of up to 26m from the cannon;

7. Reliable mechanics for long life and easy maintenance;

8. Simple control for a one-man operation that is both economical and profitable.

small capacity portable hydroseeder manufacturer

► Service:

Pre-sales service

1. Any consultation will be replied to within 24 hours.

2. Supply item design, and process design.

3. Help you to choose the fit small capacity portable hydroseeder.

4. Making the hydroseeder according to your requirement.

After-sale service

1. Training on how to install the hydroseeding machine, training how to use the machine.

2. warranty for 1 year.

delivery of hydroseeder

■Product Details

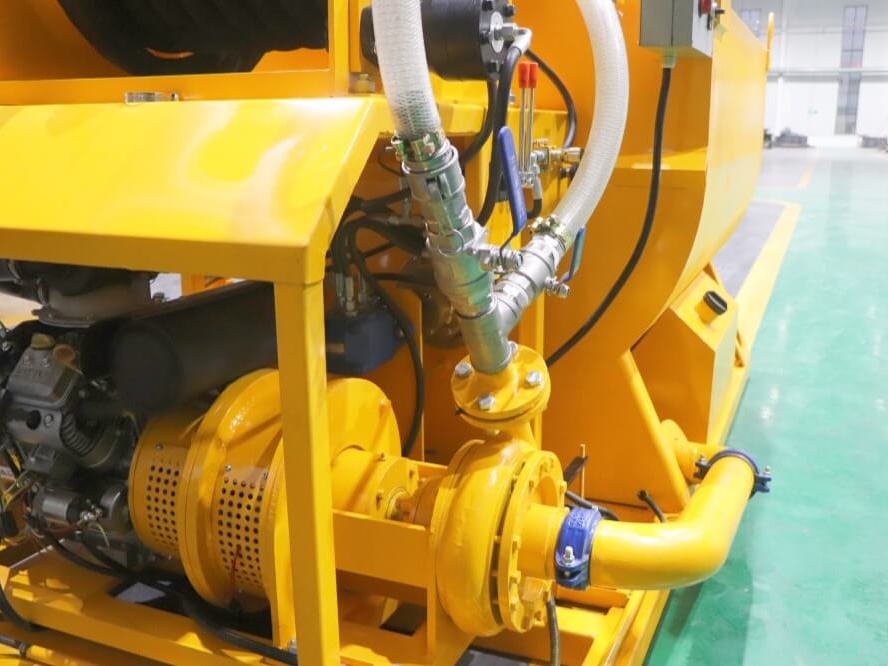

Centrifugal pump

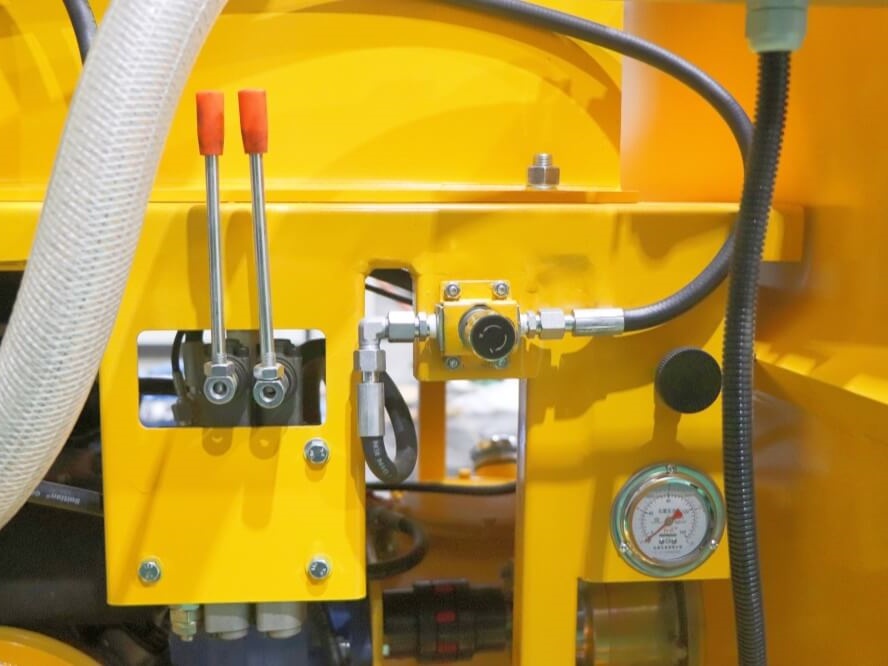

Operation valve

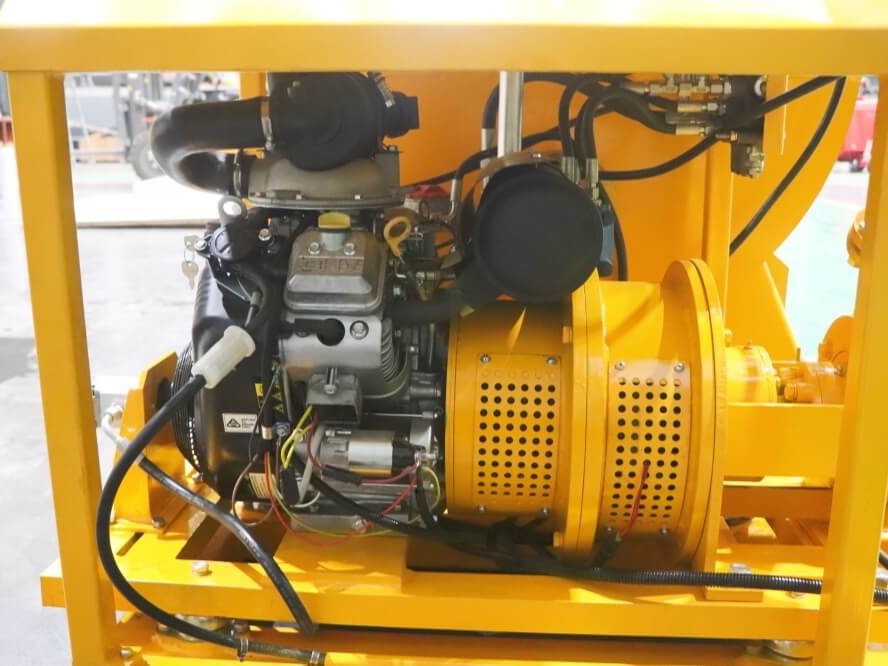

Gasoline engine

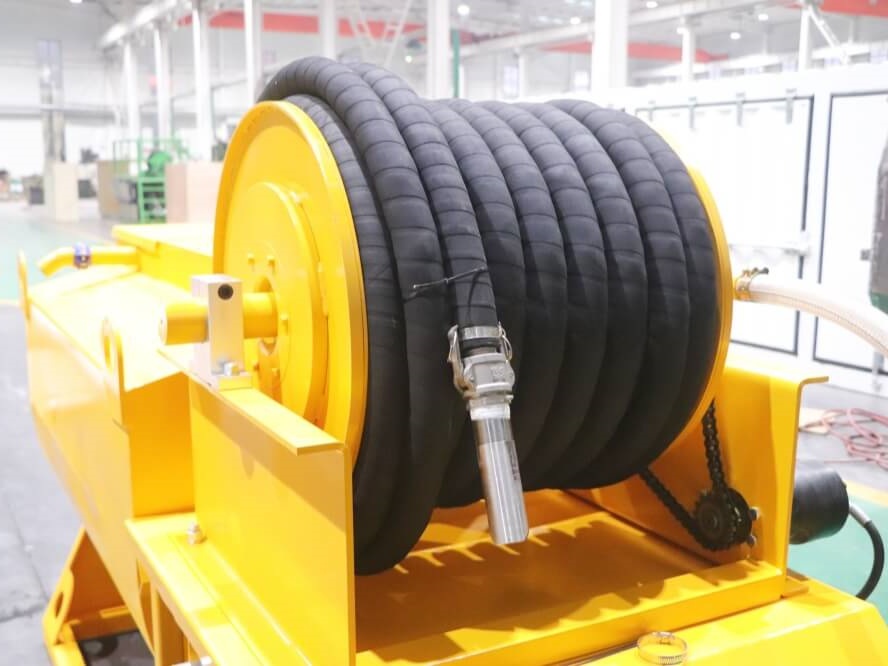

Hydraulic hose reel

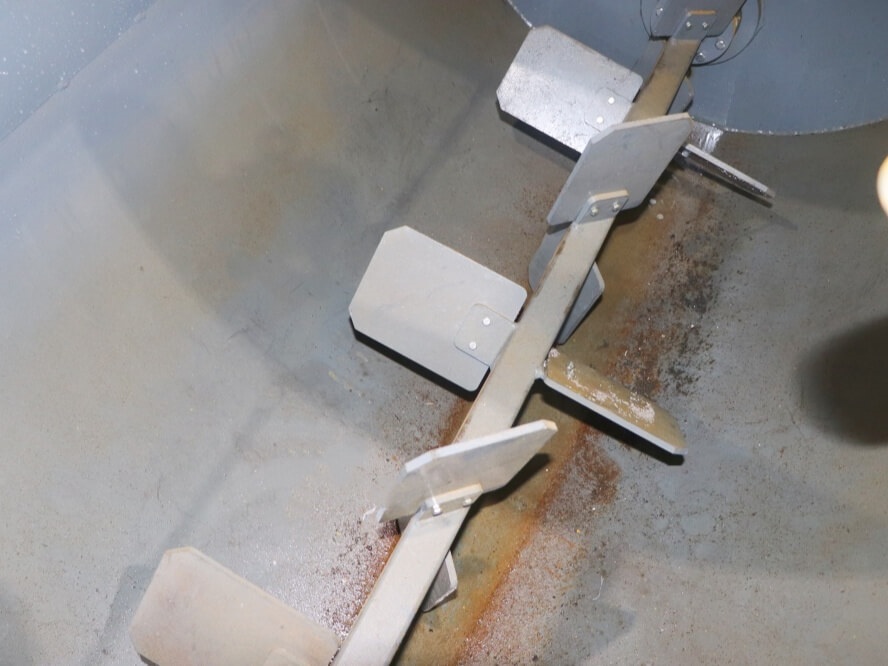

Mechanical agitator

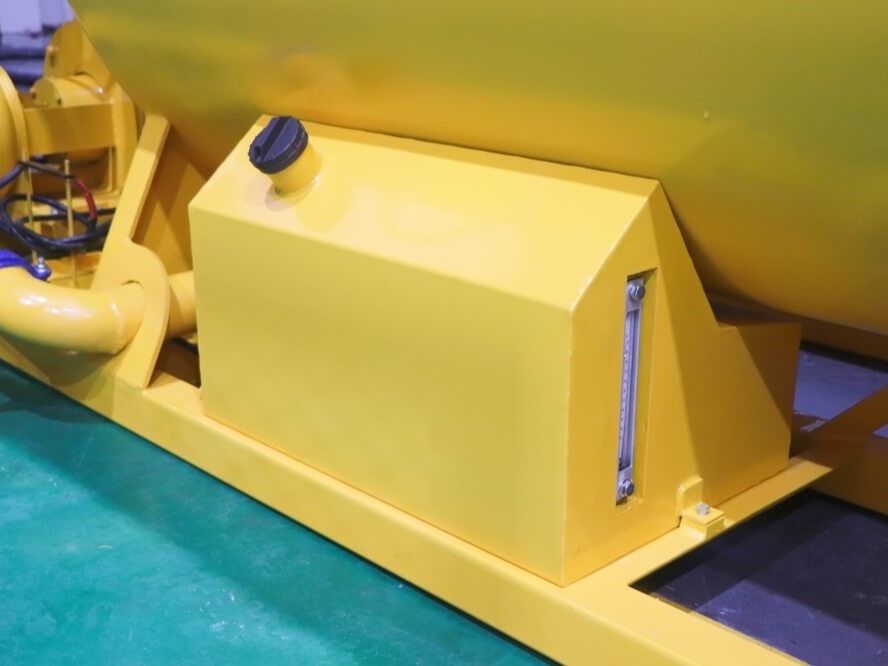

Hydraulic oi tank

■Technical Parameters

Model	LHS0117 small capacity portable hydroseeder
Power	17kw Briggs & Stratton gasoline engine, air cooled
Tank size	Liquid capacity: 1200L(317Gallon) Working capacity: 1000L(264Gallon)
Pump	Centrifugal pump:3''x1.5'' (7.5X3.75cm), 15m³/h@5bar, 19mm solid clearance
Agitation	Mechanical agitator with helical paddle orientation and liquid recirculation
Rotating speed of mixer shaft	0-110rpm
Maximum horizontal conveying distance	26m
Spraying guns type	Hose gun
Height of fence	1100mm
Dimensions	2600x1340x1515mm
Weight	1320kg
Options	Stainless steel material for whole unit Hose Reel with hose Remote control unit Trailer

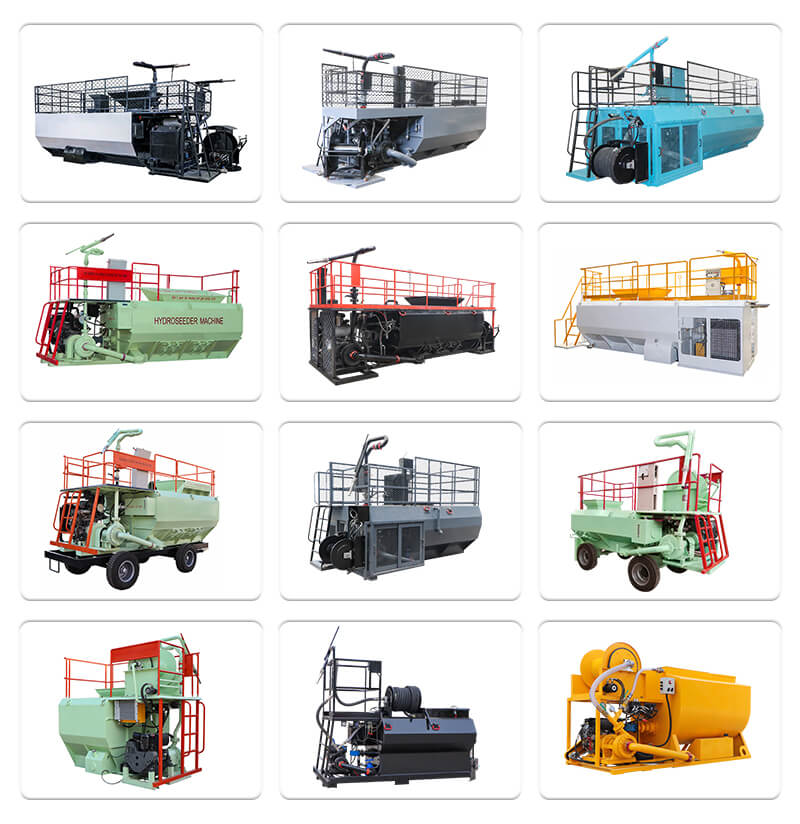

More related hydroseeders:
