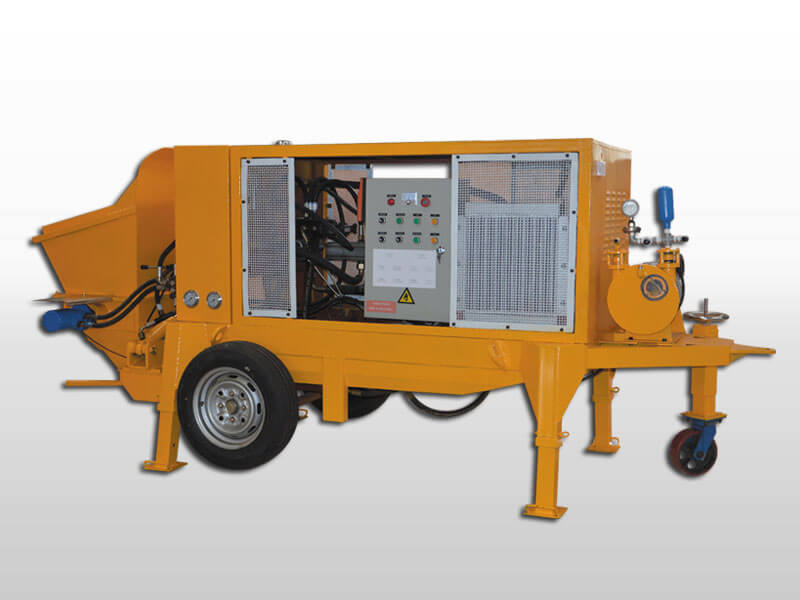

LPS-7A Wet Gunite Machine

  • output:5-8m3/h
  • Max. pressure:8MPa
  • Distribution valve type:S valve
  • Stroke x cylinder ID:550×120mm
  • Hopper volume:210L
  • Power:22Kw

  • wet gunite machine
  • air motor wet gunite machine
  • air wet gunite machine
  • wet concrete spaying machine
  • wet mix concrete spraying machine
Shotcrete Machine
Refractory Gunite/Mixer
Concrete Pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Foam Concrete Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LPS-7A wet gunite machine use hydraulic pumping S valve structure, two oil cylinders reciprocating motion alternately to pump concrete from conveying pipe to nozzle, Add compress air to wet gunite machine outlet and add A percentage of the accelerator at nozzle, concrete slurry be sprayed to
surface directly.

LPS-7A wet gunning machineoutput could be adjusted continuously: main oil pump is variable displacement plunger pump, spraying volume could be adjusted freely. Accelerating adding quantity could be adjusted continuously: according to concrete spraying volume adjust step-less.  Leadcrete equipped self-lubrication system for the wet gunite machine to automatic lubrication for main sealing parts, thus could lengthen wearing parts working life greatly.


 Application:

LPS-7A wet gunite machine used for wet concrete spraying in mine, tunnel, culvert, metro,
hydropower engineering, underground construction, slope protection etc. or for filling, grouting
pumping concrete mortar etc.


 Features:
1. Pneumatic wet gunite machine uses S valve reversing, good sealing performance, longer working
life;

2. Wet Gunite Machine is equipped floating wearing ring on S valve, could self-compensating wearing;
3. High outlet pressure, could meet the demands of concrete pumping for high building;
4. Hydraulic system adopt air-cooler, easy operate, don’t need water;
5. Pneumatic wet gunite machine with reverse function, reduce pipe plugged;
6. Wet gunning machine main oil pump is variable displacement plunger pump, spraying volume could
be adjusted freely;

7. PLC control, With wireless remote control, easy to operate;
8. Air wet gunite machine is with guide pulley,  easy to move, location;
9. Accelerating adding quantity could be adjusted continuously;
10. This wet concrete spaying machine Equipped self-lubrication system to automatic lubrication for
main sealing parts, lengthen wearing
parts working life.

■Product Details
Additive pump stepless speed handle

Additive pump stepless speed handle

Auto-lubrication pump

Auto-lubrication pump

High pressure clamp

High pressure clamp

PLC control

PLC control

Shotcrete spray nozzle

Shotcrete spray nozzle

wireless remote control

wireless remote control

■Technical Parameters

Technical Data:

LPS-7A wet shotcrete machine
Item spec unit Remarks
output 5-8 m3/h
Max. pressure 8 MPa
Distribution valve type S valve   With accumulator
Stroke x cylinder ID 550×120 mm
Hopper volume 210 L With mixer and vibrator
Power 22 Kw
rotation 1450 r/min
Main oil pump 30-50 cc/Rev constant power control, Manual variable
Hydraulic oil tank volume 160 L
Air pressure 0.7 Mpa shotcrete
Air consumption 6 m3/min shotcrete
Acceptable max. aggregate size 20 mm
Suitable concrete slump 8-15 cm
Accelerate flow 70-320 L/min LH15-200
Dimension 3500x1360x1530 mm
Weight 1515 Kg
