LMA2X300/1000 Container type cement grout mixer

  • Model: LMA2X300/1000
  • NO. 1 Mixer Capacity: 300L
  • NO. 2 Mixer Capacity: 300L
  • Agitator Capacity: 1000L
  • W/C ratio: 0.5~1
  • Dimension: 5700×2170×2160mm

  • container-type cement grout mixer
  • container grout mixer
  • container cement mixer
  • cement grout mixer in a container
  • 20Gp container size grout mixer
  • grouting mixer uinit container based
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
   Description:

LMA2X300/1000 is a container-type cement grout mixer, which houses two high-speed cement mixers with a capacity of 300L and an agitator with a capacity of 1000L. A high-speed eddy current mixer ensures fast and even mixing, water and cement are quickly mixed into a uniform slurry. The entire machine is installed in a container, the structure is compact, and the transportation is very convenient. Under the harsh work conditions in the wild, the container can protect the machine and bring a better experience.

1000L cement grout agitator



Container type grout mixer details



Container type grout mixing machine for sale



integrated 2 cement grout mixers



 Application:

LMA2X300/1000 Container type cement grout mixer is used for making cement bentonite slurry, etc., which is applied to surface/underground construction, such as highway, railway, hydropower, construction, mining, etc.

Container type cement grout mixer manufacturer

containter grout mxier and agitator for Dam Site Grouting


Container type cement grout mixer supplier


 Features:

1. High speed vortex mixer ensures mix quickly and evenly.

2. Simple operation and easy maintenance.

3. The proportion of materials in the formula can be adjusted freely.

4. Less spare parts ensure low maintenance costs.

5. Compact structure.

6. Convenient transportation.

■Product Details

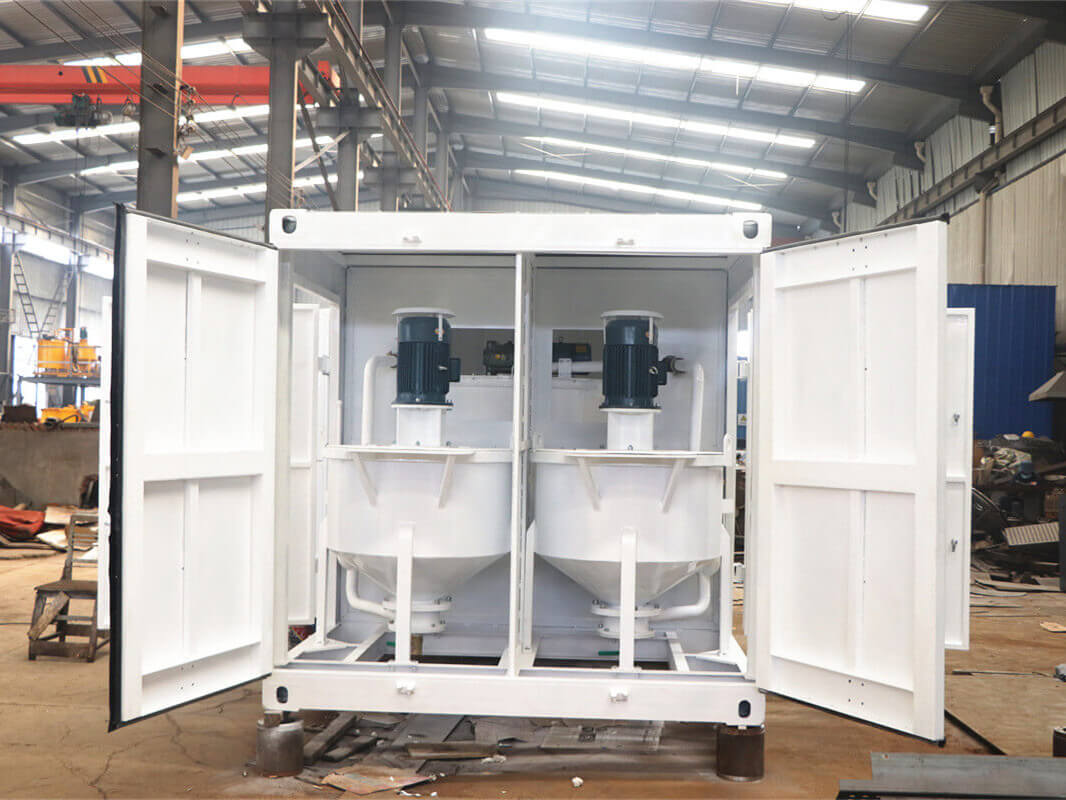

two 300L grout mixers

Two 300L grout mixers

outlet of the 1000L grout agitator

Outlet of the 1000L grout agitator

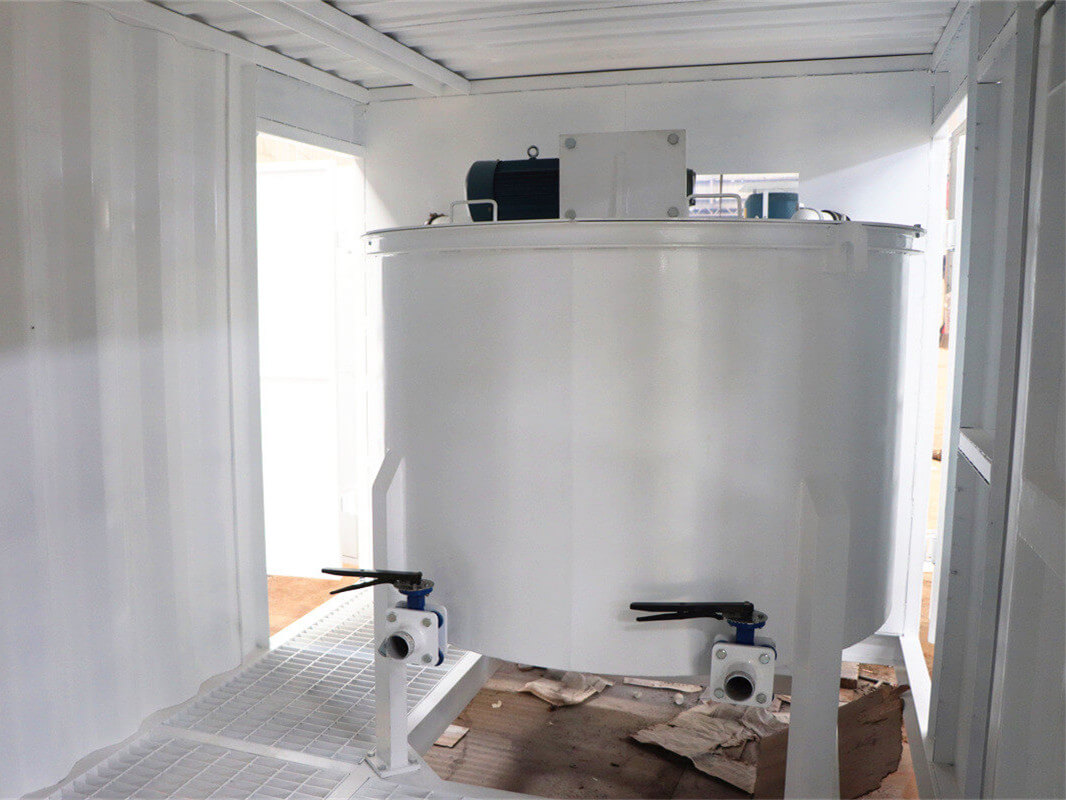

inner of container grout agitator

Inner of container grout agitator

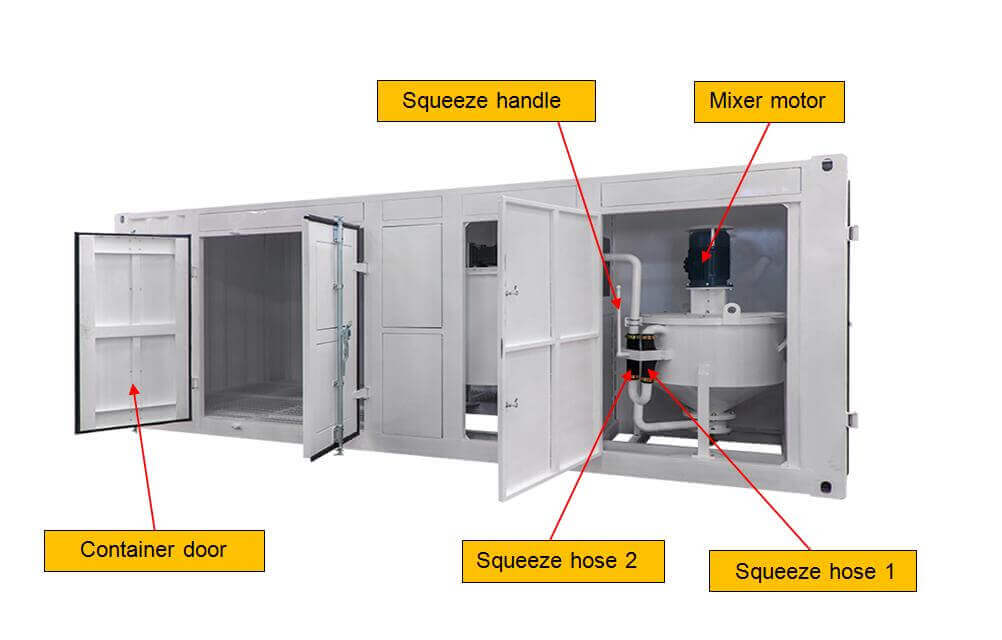

grout mixer with agitator in one container

Grout mixer with agitator in one container

ontainer type grout mixer with agitator

Container type grout mixer with agitator

300L cement grout mixer

300L cement grout mixer

■Technical Parameters

Name

Data

Model

LMA2X300/1000 Container type cement grout mixer

NO. 1 Mixer

Capacity

300L

W/C ratio

0.5~1

Rate Rev.

1450 rpm

Power

7.5Kw

NO. 2 Mixer

Capacity

300L

W/C ratio

0.5~1

Rate Rev.

1450 rpm

Power

7.5Kw

Agitator

Capacity

1000L

Rate Rev.

36 rpm

Power

3Kw

Power requirements

Voltage 3 Phase 380V, 60Hz

Dimension

5700×2170×2160mm

Weight

3250Kg

We can also customize container type cement grout mixers according to your needs.


High speed high shear cement grout mixers
