LGP400/700/80DPL-E Compact grout plant for mining

  • Compact grout plant model: LGP400/700/80DPL-E
  • Dimensions: 2350*2100*1830mm
  • Weight: 1530kg
  • Mixer Capacity: 400L
  • Agitator Capacity: 700L
  • Pump Output/Pressure: Low pressure: 0-80L/min, 0-25bar High pressure: 0-58L/min, 0-40bar

  • compact grout plant for sale
  • compact grout plant
  • compact mining grout plant
  • grout plant for mining
  • mining grout plant
  • compact grout plant for mining
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description:
LGP400/700/80DPL-E Compact grout plant is advanced grout mixing and pumping systems, it is a combination of grout mixer, grout agitator and grout pump in one base frame. Our compact grout plant can be customized for virtually any application. High speed vortex mixer ensures mix cement slurry quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry is delivered to the agitator tank. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. What's more, the double-cylinder pump together with the pressure-holding system is used, so that the pump automatically stops and maintains the very little pressure impulse (1-4bar with 50bar grouting pressure) to ensure that the grouting hole is completely filled.

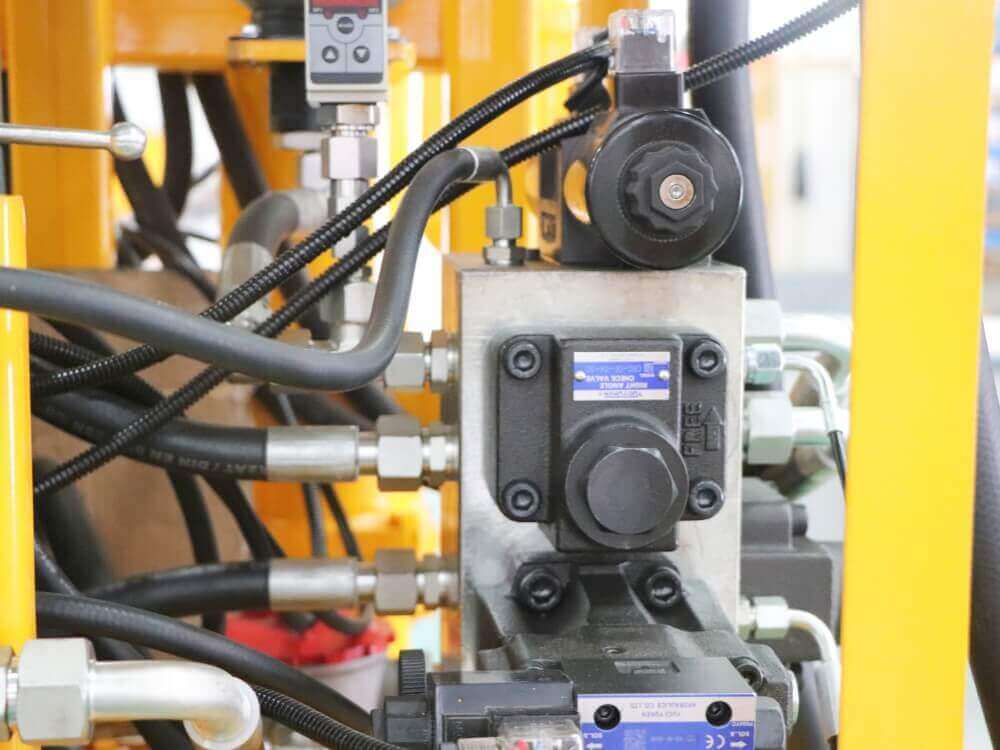

The compact grout plant for mining is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Low pressure: 0-80L/min, 0-25bar; High pressure: 0-58L/min, 0-40bar.

Compact grout plant for backfill

 Application:
LGP400/700/80DPL-E Compact grout plant can be customized for virtually any application. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction. And compact grout plant produces high outputs while maintaining a low carbon footprint.

Compact grout plant for mining application


LGP400/700/80DPL-E grout plant for mining can weigh 1530Kg, whose mixer tank volume is 400L, agitator tank volume is 700L, grouting pressure and displacement is adjustable. Low pressure: 0-80L/min, 0-25bar, high pressure: 0-58L/min, 0-40bar.
Mining cement grout plant is especially suitable for backfilling geothermal, sealing wall masses or other filling materials large projects.


 Features:

1. Double plunger pump.
2. High-speed colloidal grout mixer.
3. Up to 5mm particle size.

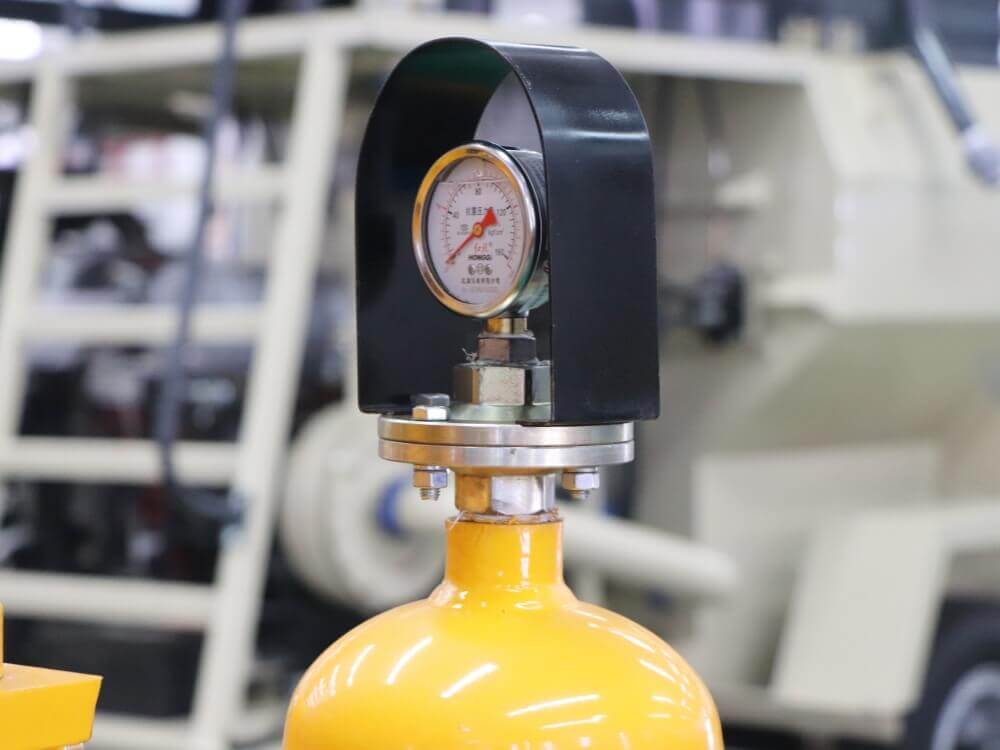

4. Pressure holding system.
5. Low flow pressure surge system.

6. Compact grout plant for sale is with the liquid level of the mixer tank.

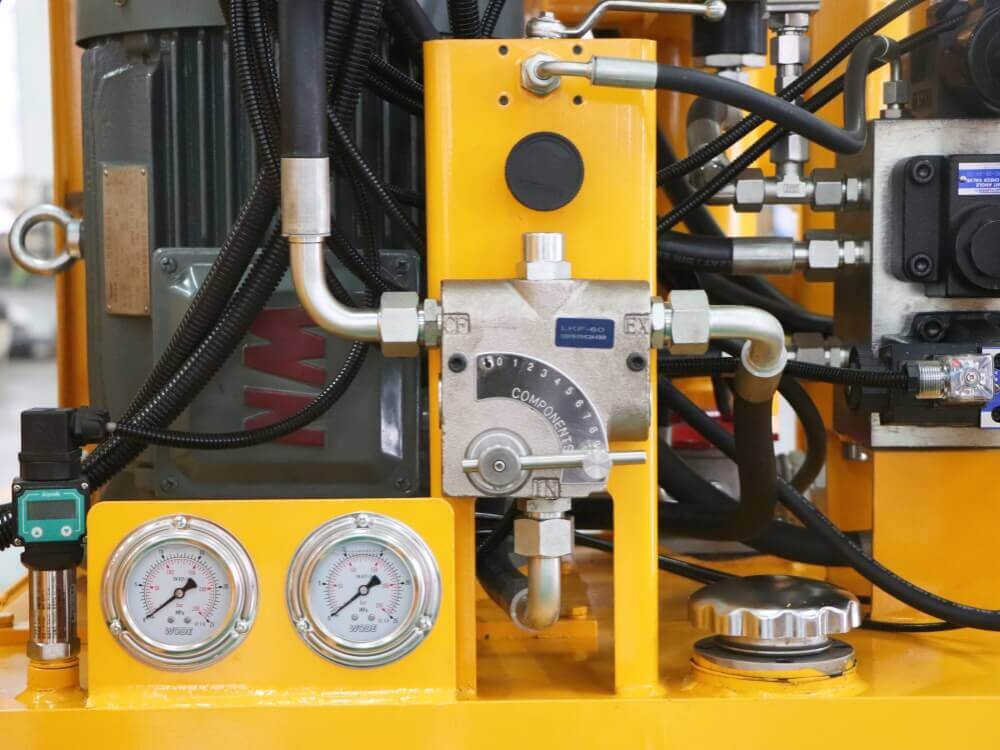

7. Hydraulic drive (safely releasing pressure when pumping block).
8. Hydraulic system with high temperature warning and protection system.

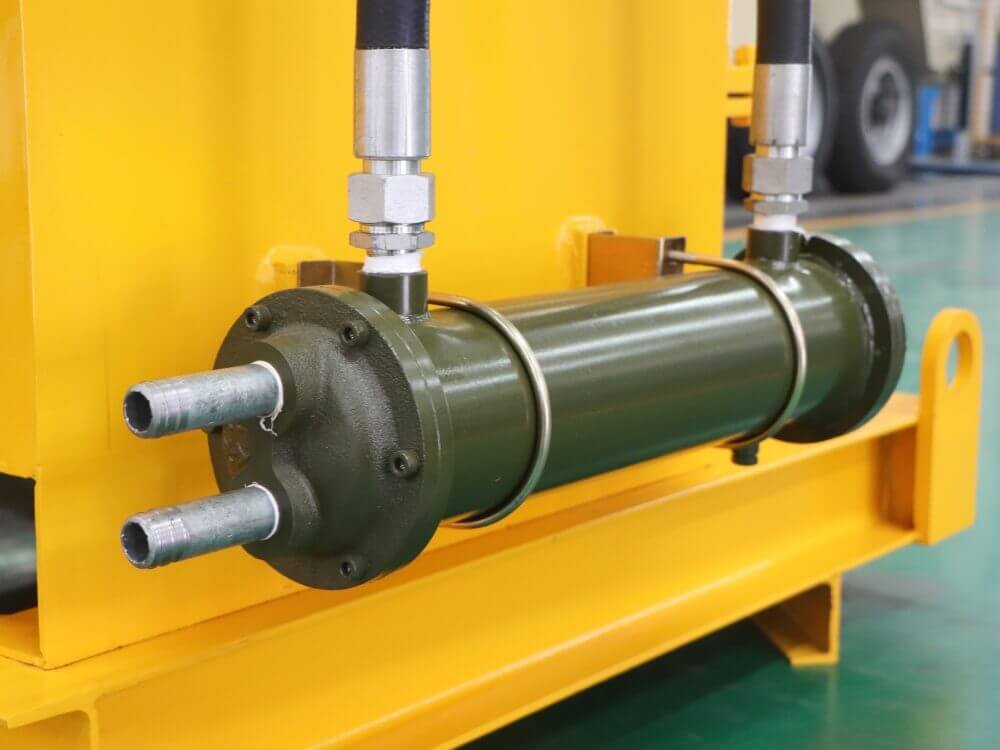

9. Air cooler and water cooler (suitable for working in tropical and sub-hot areas).

10. Vertical type pump with compact size,
it is easy to operate. It also takes up a small space.

■Product Details

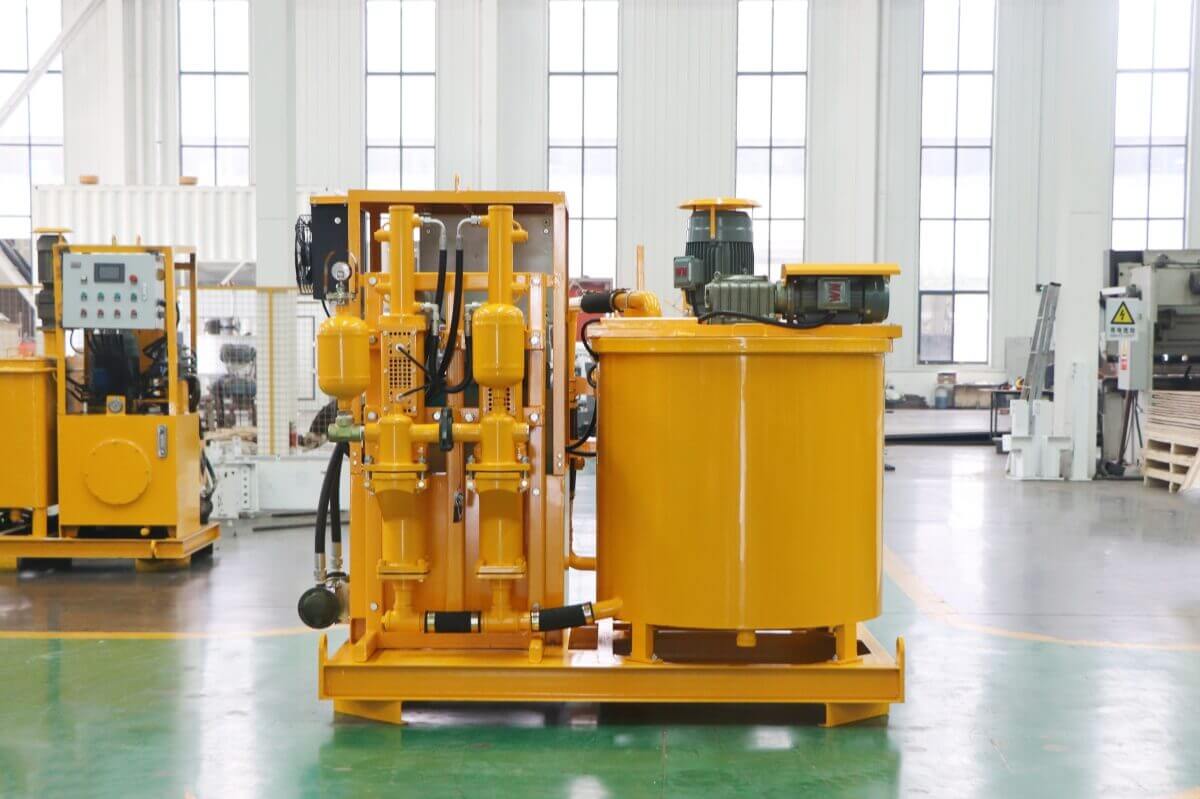

compact grout pump with mixer

Compact grout pump with mixer

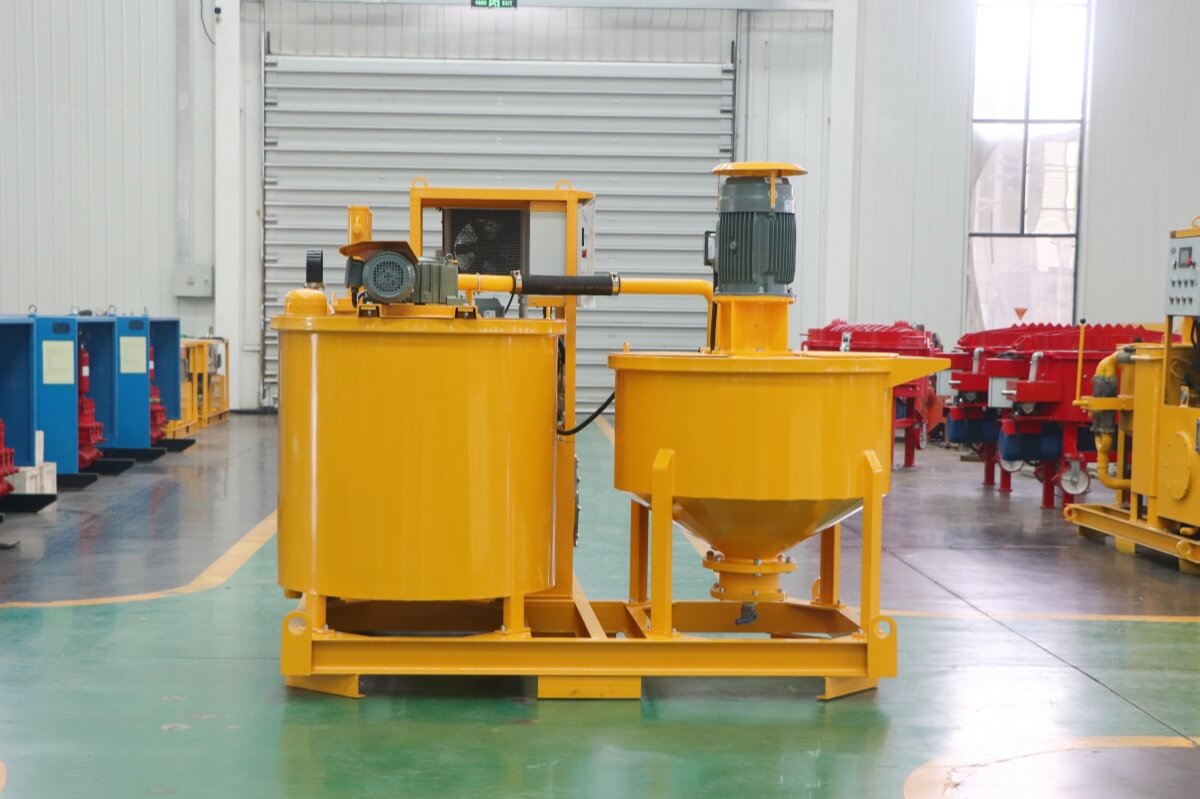

compact grout mixer with pump

Compact grout mixer with pump

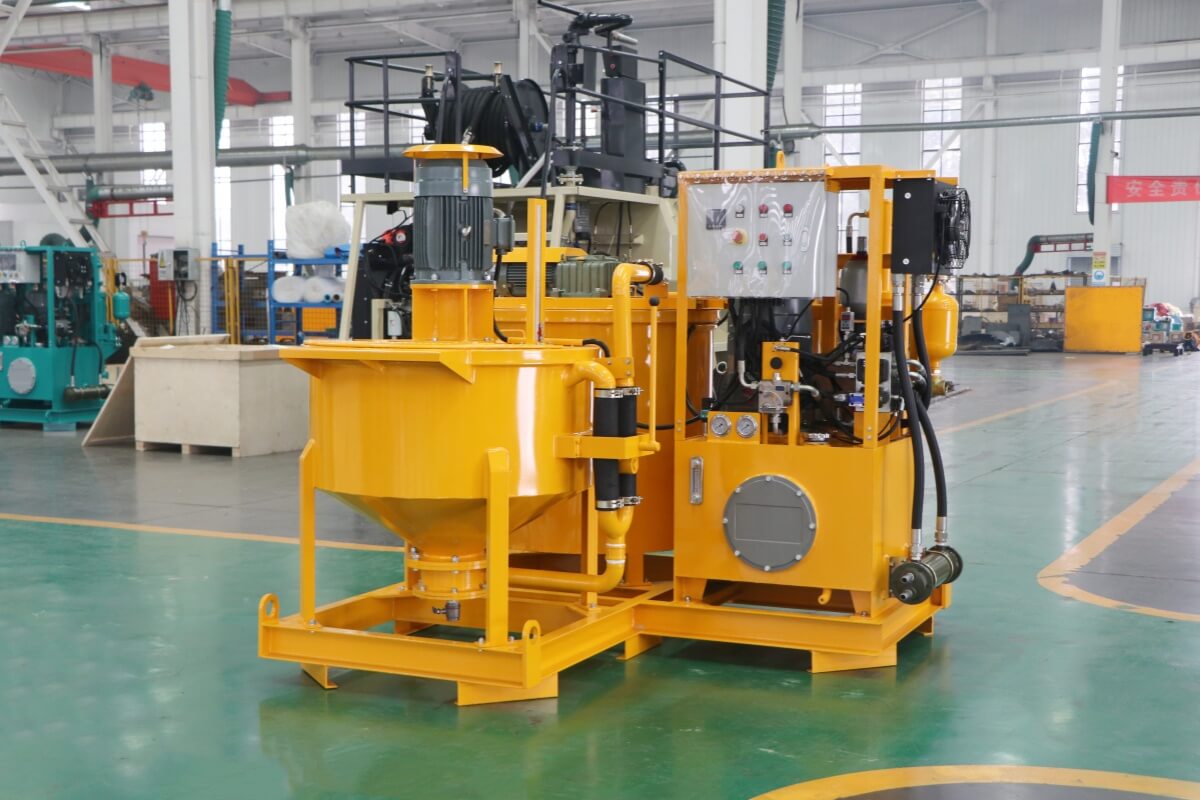

compact grout plant details

Compact grout plant details

electric grout plant manufacturer

Electric grout plant manufacturer

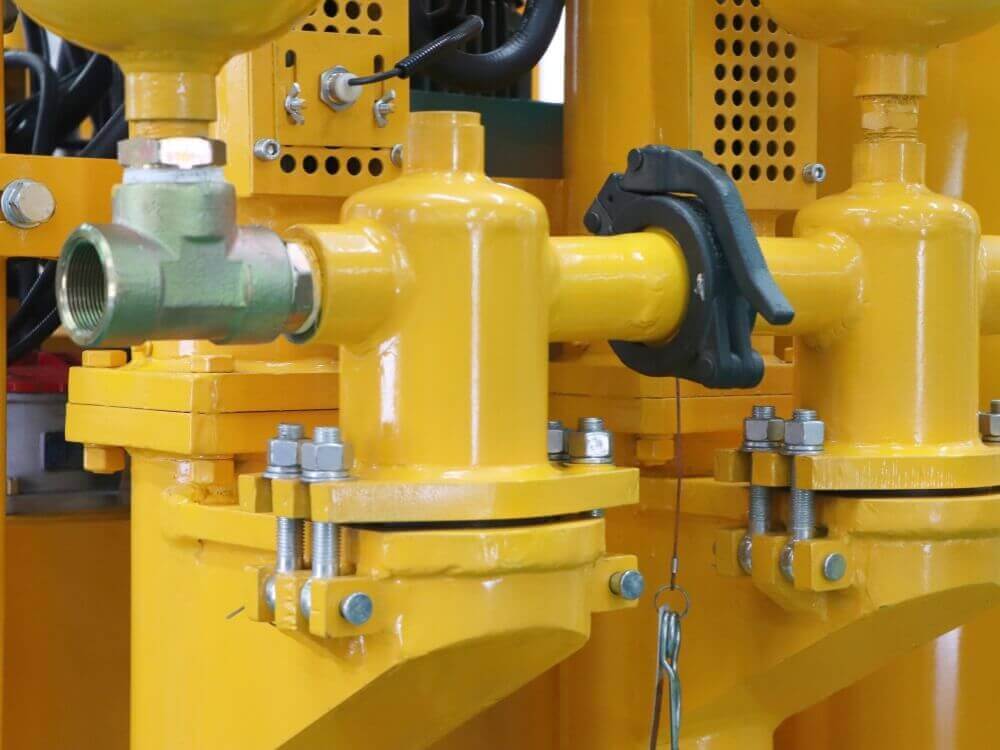

dual plunger grout plant

Dual plunger grout plant

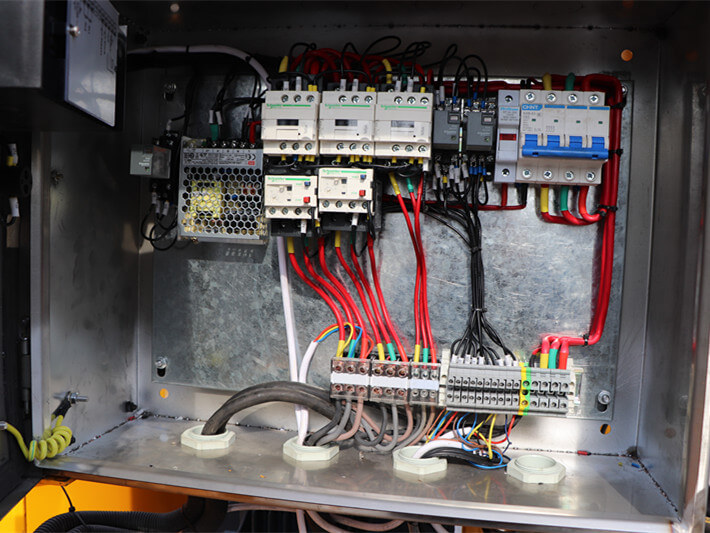

electric compact grout plant

Electric compact grout plant

■Technical Parameters

Description

Data

Compact grout plant for mining model

LGP400/700/80DPL-E Compact grout plant for mining

Dimensions

2350*2100*1830mm

Weight

1530kg

Mixer

Capacity

400L

Recycling discharge

 1100L/min

Suitable water/cement ratio

≥0.5:1

Motor power

7.5Kw

Rated Rev.

1450rpm

Agitator

Capacity

700L

Motor model

1.5Kw

Rated Rev.

36rpm

Pump(vertical compact hydraulic grout pump)

Output/pressure

Low pressure: 0-80L/min, 0-25bar

High pressure: 0-58L/min, 0-40bar

Power

11Kw

We could also customize compact grout plant for mining according to your demands.
