ADDRESS ■Introduction
► Description:

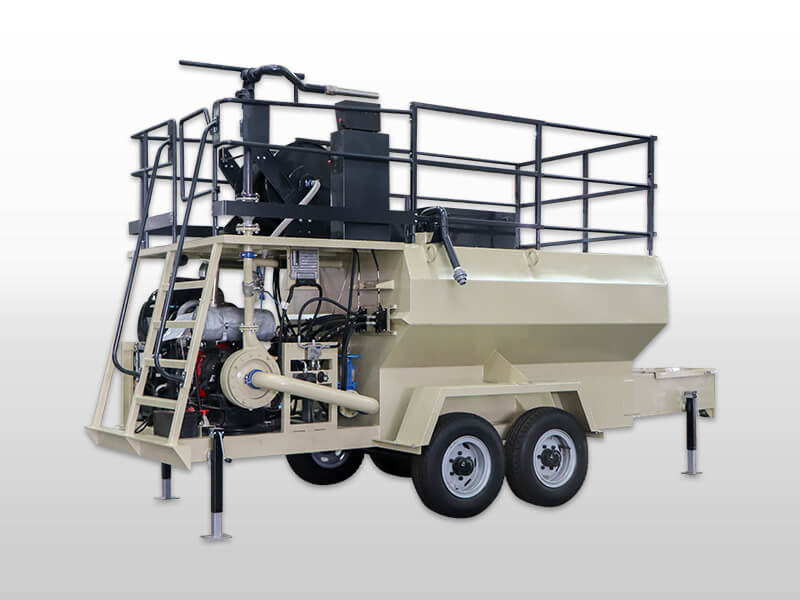

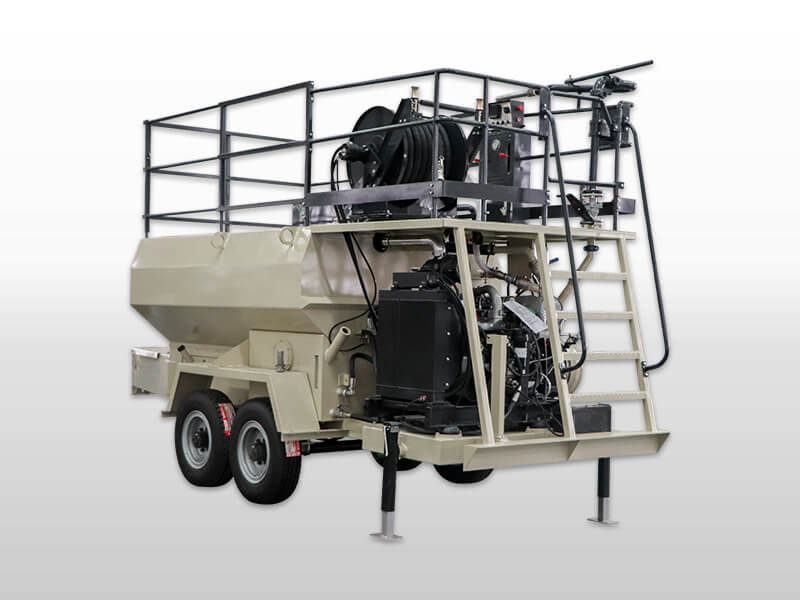

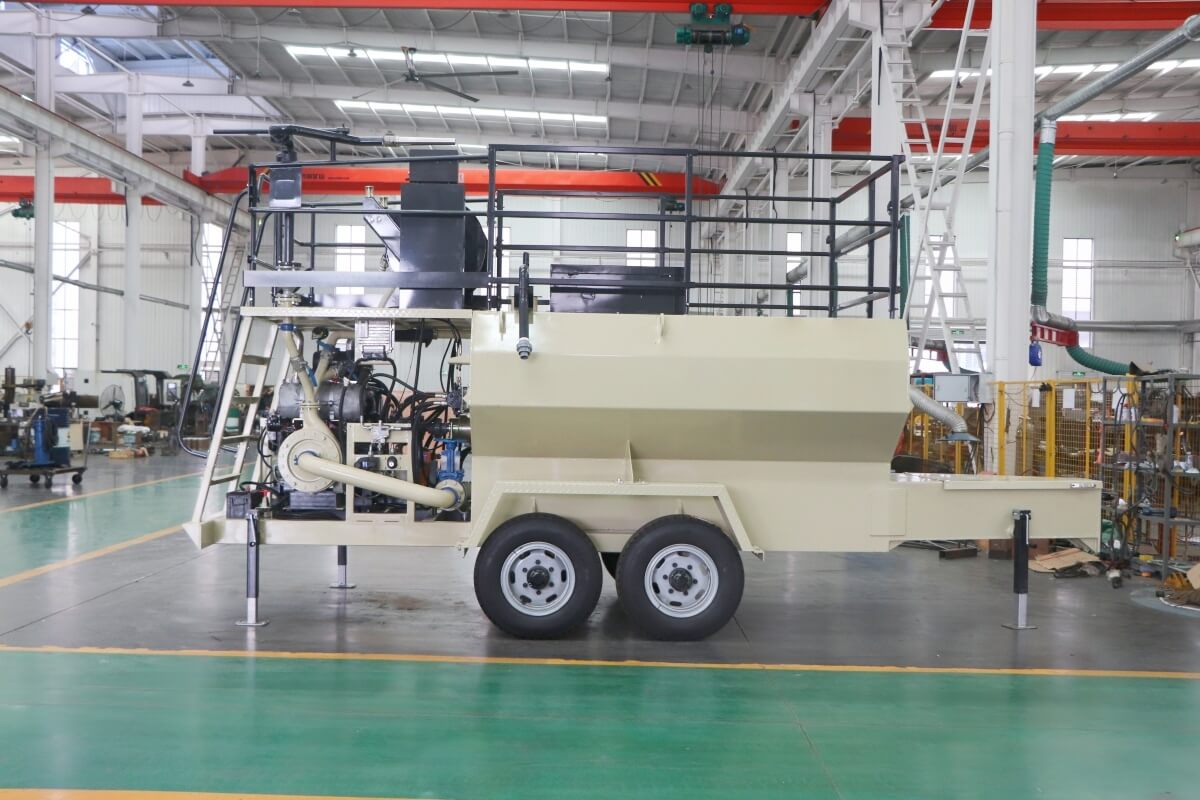

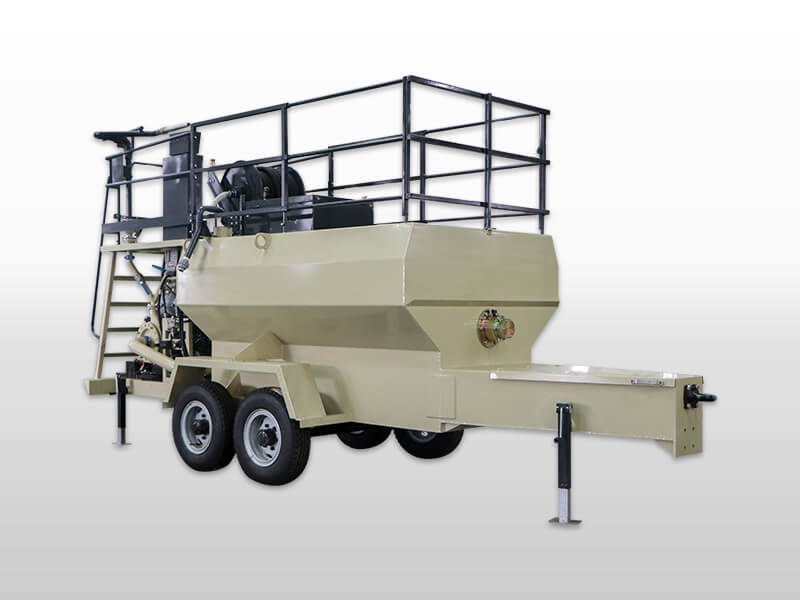

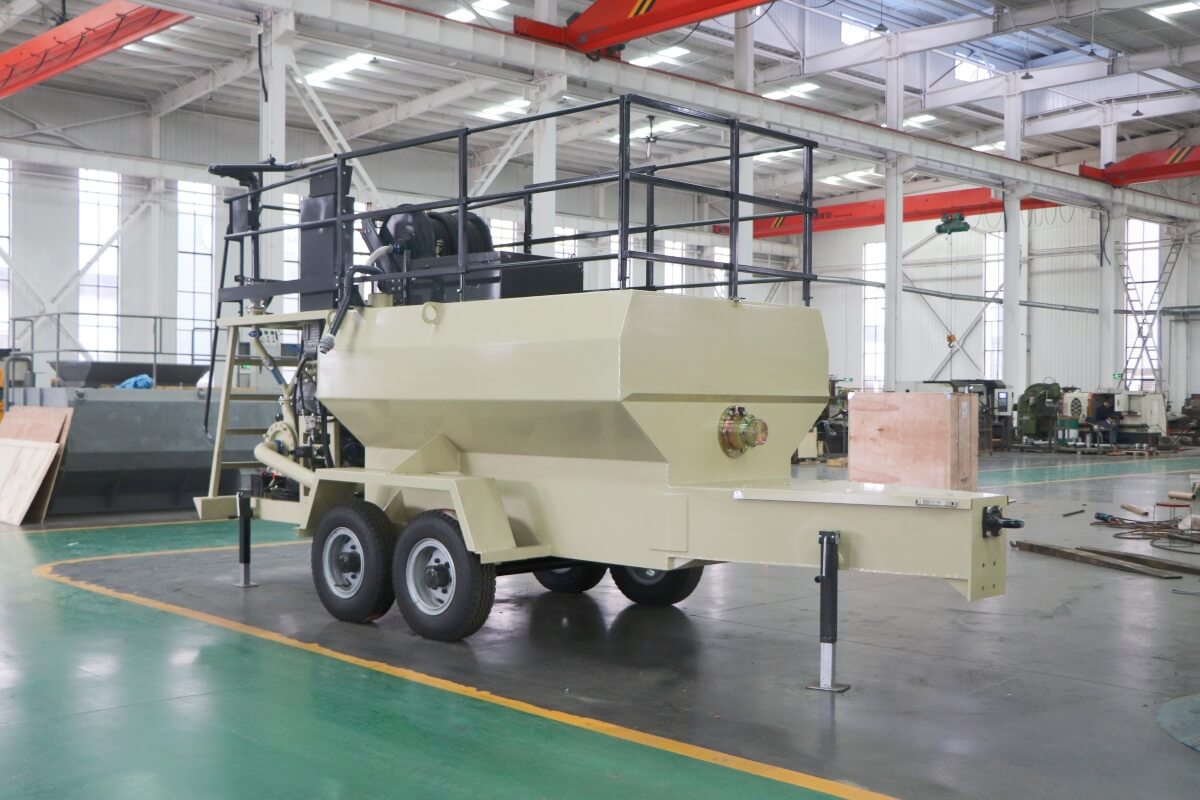

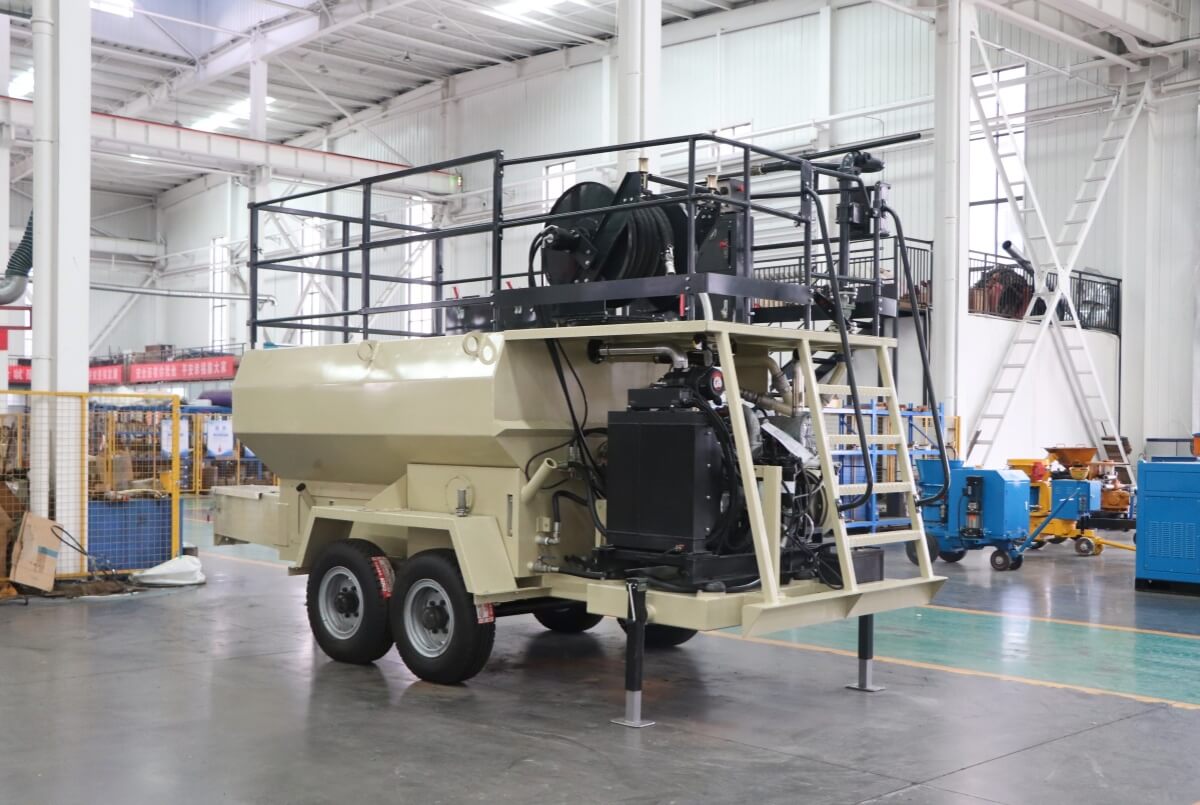

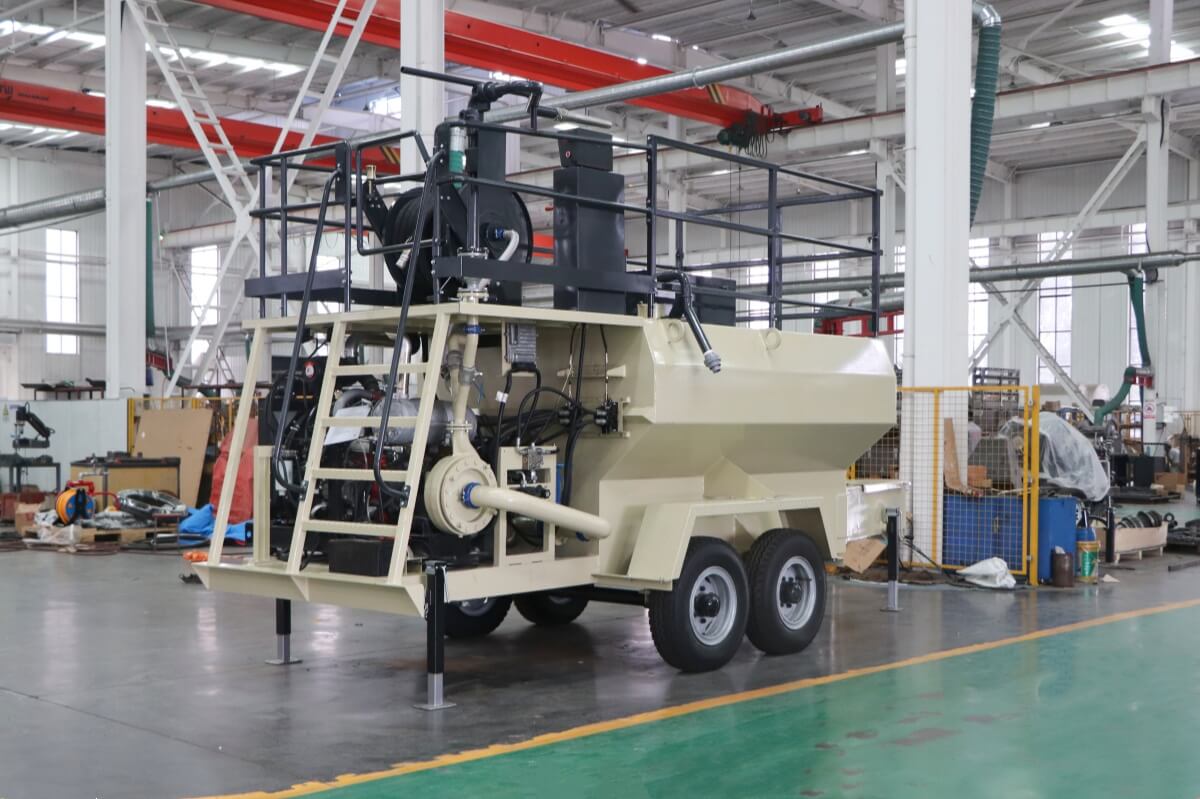

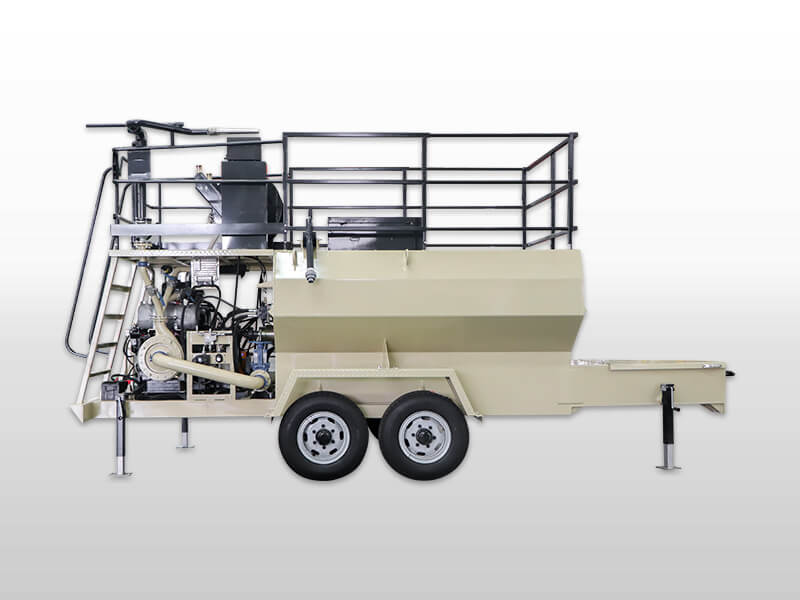

The LHS0454 commercial trailer mounted hydroseeder is designed for mixing and spraying demanding hydroseeding materials, including thick, heavy slurries. Combining mechanical paddle agitation with slurry recirculation, it supports thorough material blending and controlled application. The paddle system accepts full mulch bales without prior breakup, simplifying loading and helping prepare dense mixtures efficiently.
A 72 HP Cummins diesel engine powers the unit. Its centrifugal slurry pump uses an in-line common-shaft clutch drive, eliminating drive belts, hydraulic pump-drive components and costly maintenance couplings. The pump and piping system support tower-gun spray distances of up to 164 feet, depending on slurry composition and operating conditions.
The heavy-duty agitator is driven by a variable-speed, reversible hydraulic motor, allowing operators to adjust the mixing action to suit the material. Independent agitator and pump drives enable slurry preparation without operating the pump, reducing unnecessary pump running time and providing flexibility during mixing and spraying.
Smooth tank contours encourage continuous slurry circulation and help limit material accumulation. Working together with the paddle agitator, the tank design supports a uniform mixture throughout discharge.
With its towable configuration and flexible mixing controls, the LHS0454 commercial trailer mounted hydroseeder is suited to landscaping, roadside revegetation and disturbed-land restoration projects where suitable vehicle access is available.
► Application:

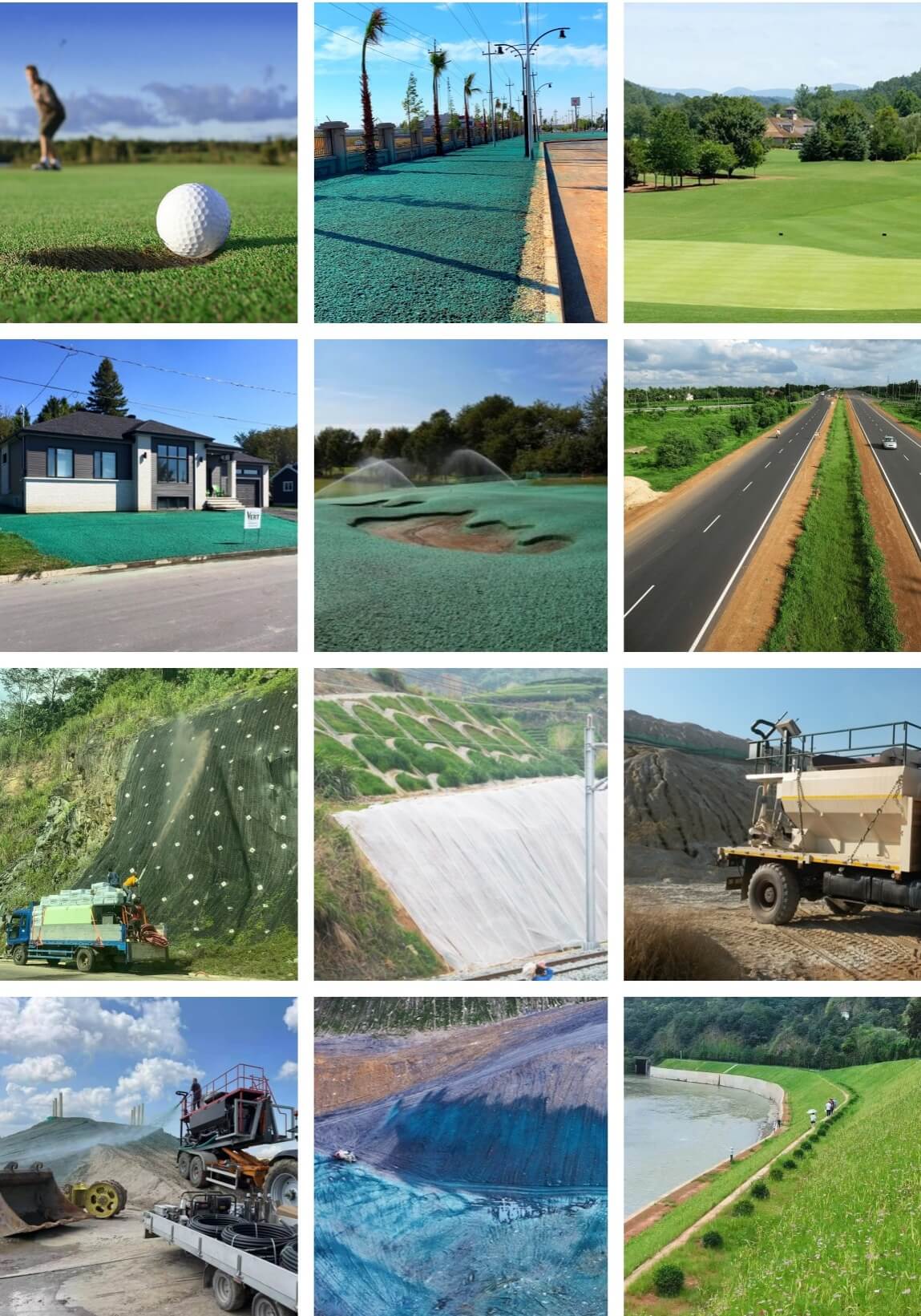

The LHS0454 commercial trailer mounted hydroseeder supports seeding, mulching and fertilizer application for landscaping and land restoration projects. Tower-gun and hose-reel delivery options allow operators to work across open ground and areas requiring closer application.
1. Commercial and Residential Landscaping
Establishing grass around office complexes, industrial parks, housing developments and apartment communities by applying seed, mulch and fertilizer over prepared soil.
2. Highway and Roadside Revegetation
Seeding roadside verges and accessible embankments after construction or maintenance. The hose reel provides application flexibility where tower-gun access is limited.
3. Slope Stabilization and Erosion Control
Applying suitable seed and mulch mixtures to help establish vegetation on exposed slopes. Additional erosion control measures may be needed where runoff, slope gradient or soil conditions require them.
4. Construction Site Rehabilitation
Restoring vegetation on disturbed ground around completed buildings, drainage works and utility corridors.
5. Mine Reclamation and Land Restoration
Applying revegetation mixtures to prepared reclamation areas, with seed species and soil amendments selected to match the site’s soil conditions and restoration objectives.
6. Parks and Recreational Grounds
Seeding new green spaces or renovating prepared areas of damaged turf in parks and public recreation grounds.
7. Hydromulching and Seedbed Protection
Distributing compatible fiber mulch over prepared seedbeds to help retain surface moisture and protect exposed soil during early vegetation establishment.
Application suitability depends on material compatibility, site access, ground preparation and the project’s maintenance and irrigation plan.
► Features:

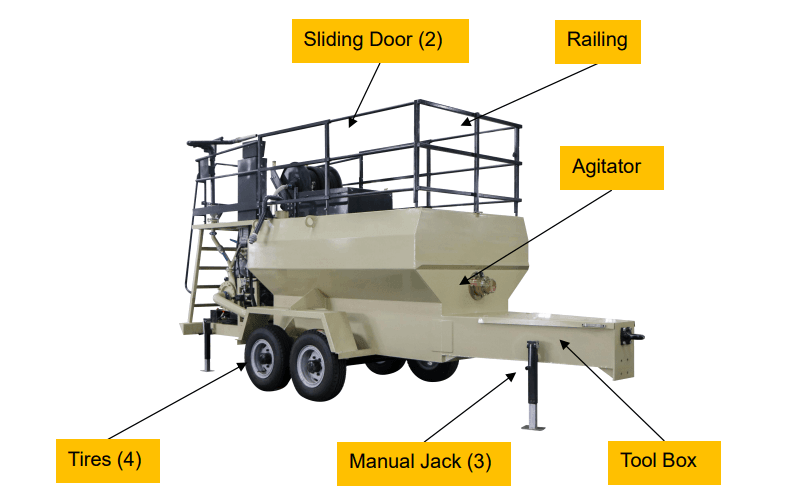

1. Steel Tank for Smooth Slurry Circulation
The steel tank features smooth internal contours that encourage slurry movement during mixing and discharge. Its shape supports consistent material circulation and simplifies cleaning between loads.
2. 72 HP Cummins Diesel Power Unit
A 72 HP Cummins diesel engine with electric start powers the slurry pump and hydraulic system. Pneumatic clutch control allows operators to engage or disengage the centrifugal pump as required during operation.
3. Variable-Speed Hydraulic Paddle Agitation
The heavy-duty paddle agitator uses a reversible, variable-speed hydraulic motor to adjust mixing action for different slurry consistencies. A substantial steel frame supports the paddle assembly, while mechanical agitation rapidly incorporates seed, mulch and other compatible materials. Independent agitator and pump drives allow mixing without running the slurry pump.
4. 4″ × 2″ Centrifugal Slurry Pump with Recirculation
The centrifugal slurry pump supplies three circuits: the discharge boom, internal recirculation line and DN32 hose reel. Recirculation complements paddle agitation to maintain a well-blended mixture. Pneumatic clutch engagement provides control over pump operation, while serviceable wear components simplify routine maintenance and replacement.
5. Tower-Gun and Hose-Reel Application Options
The discharge boom provides spraying access across open work areas, while the hose reel accommodates up to 50 metres of hose for closer placement around planting areas and site obstacles. Quick-coupling spray fittings allow convenient connection, removal and servicing.

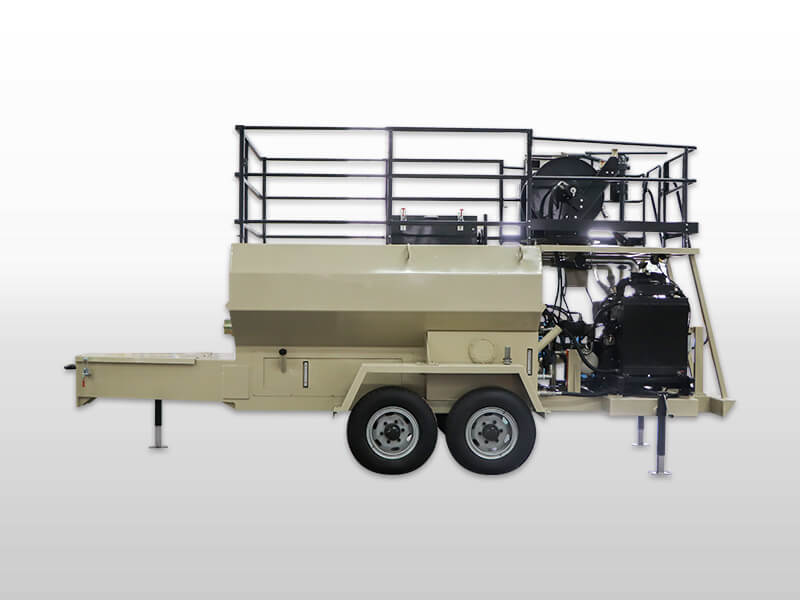

6. Trailer Configuration for Site Relocation
Independent torsion suspension axles and heavy-duty wheels with highway-rated tyres support the towable hydroseeder during relocation. A large loading hatch positioned at the front of the unit provides convenient access for adding hydroseeding materials.
7. Local and Remote Operating Controls
Hydraulic and electrical control systems manage the equipment’s operating functions. Local and remote control modes provide flexibility when preparing slurry and carrying out application work.
Together, these features make the LHS0454 commercial trailer mounted hydroseeder a practical choice for landscaping contractors, roadside revegetation and erosion control seeding projects.

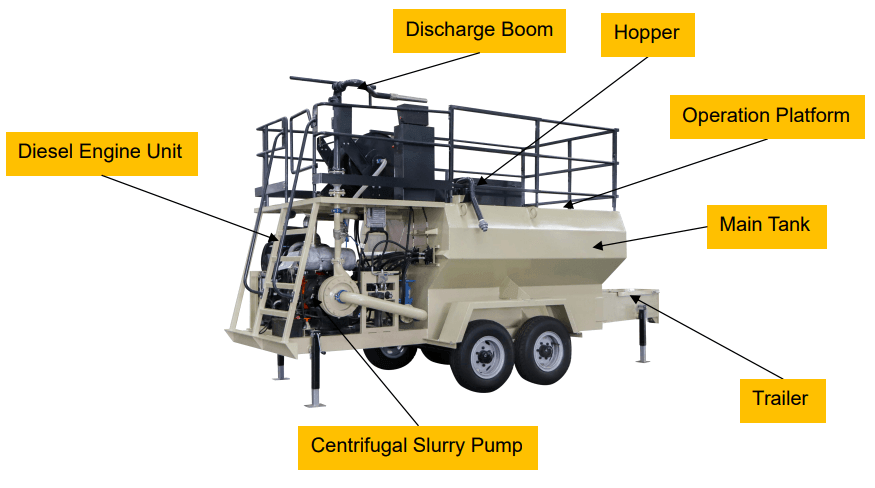

■Product Details

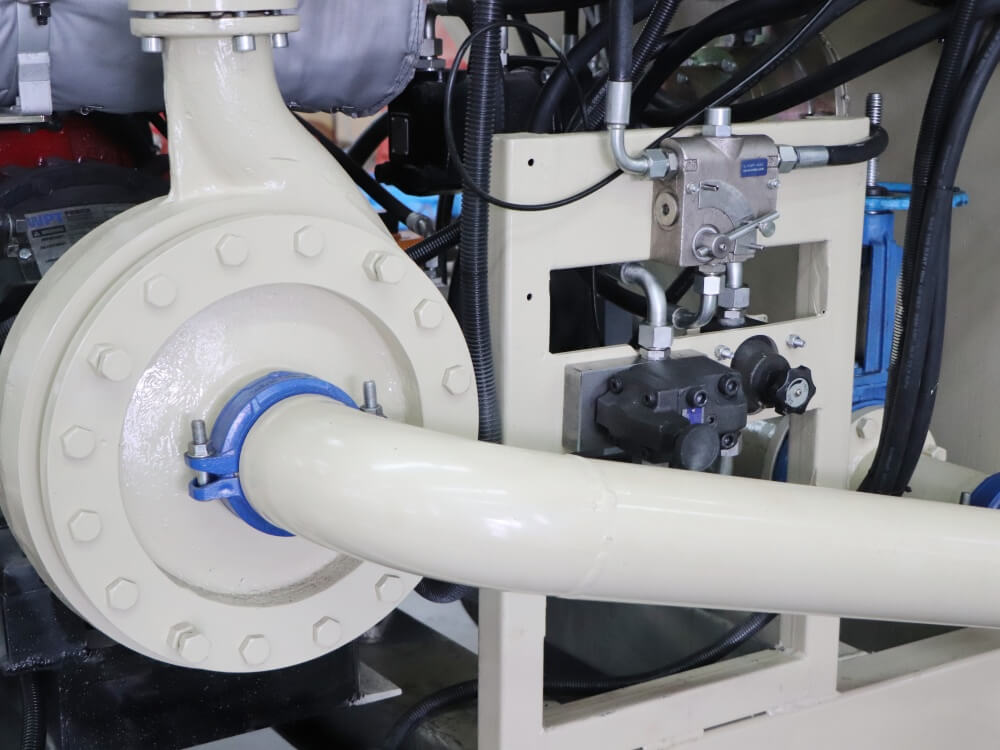

Centrifugal Slurry Pump

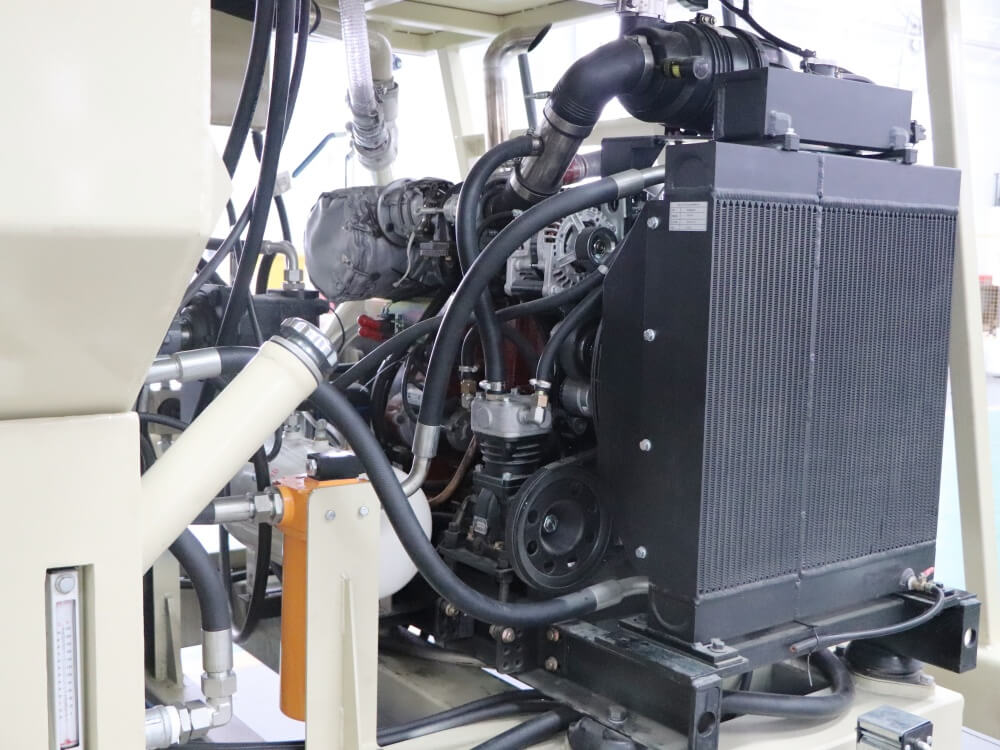

Diesel Engine Unit

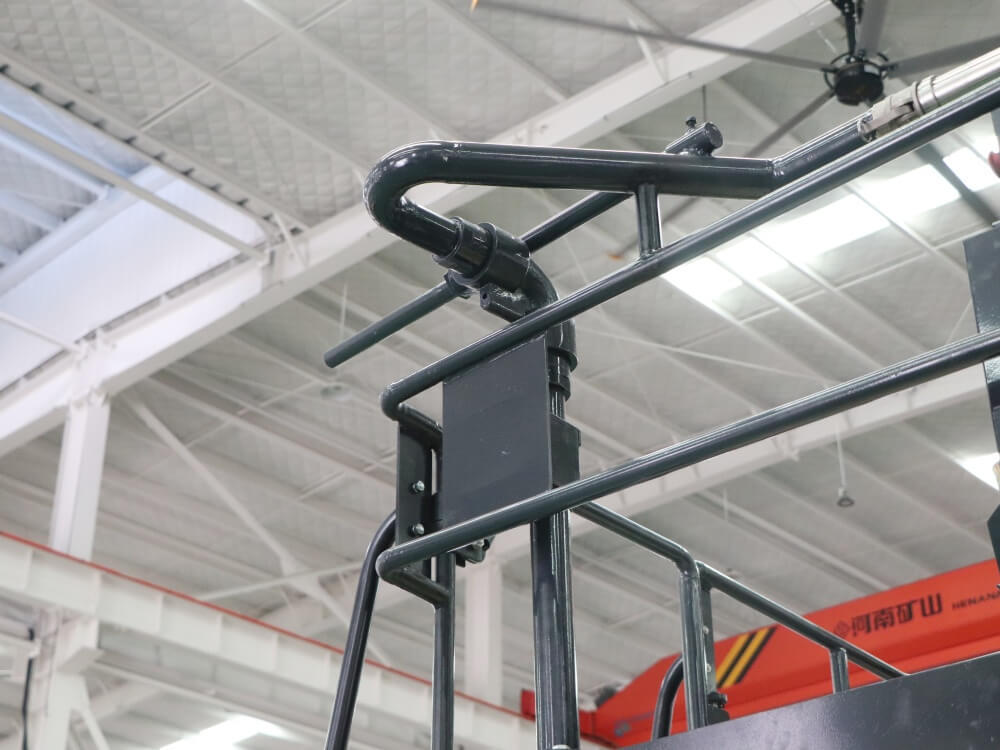

Discharge Boom

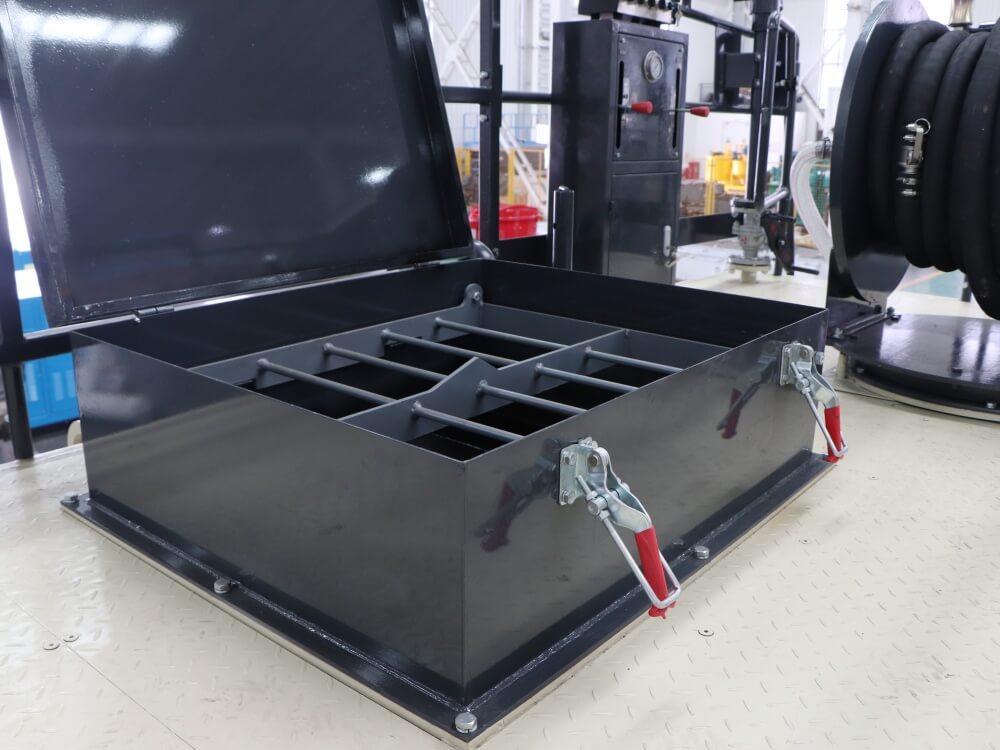

Hopper

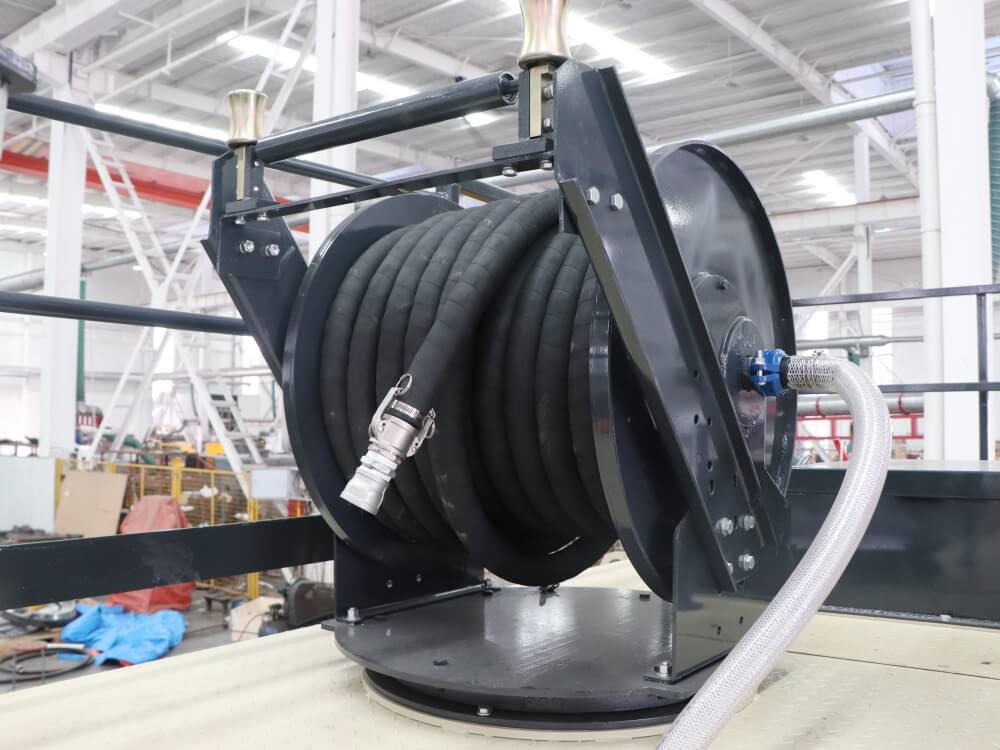

Hose Reel

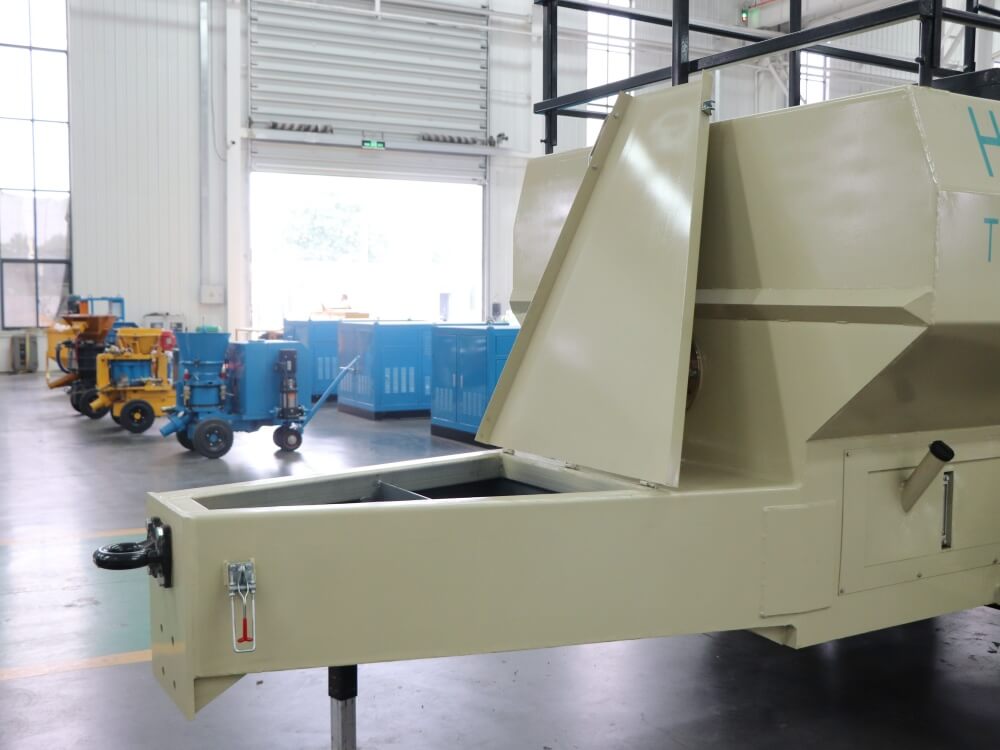

Trailer
■Technical Parameters
|
Power |
Diesel Cummins, 72HP(54Kw)@2400r/min) |
|
Engine Safety System |
Low oil pressure, high temperature shutoff |
|
Tank Size |
1240 gal (4,693 L) liquid capacity |
|
Fuel Tank Capacity |
26.42 gal (100 L) |
|
Pump Centrifugal |
4 in. x 2 in. (100 mm x 50 mm) |
|
Pump Drive |
Direct drive with over center clutch; Pump drive is independent of agitator operation |
|
Agitation |
Mechanical paddle agitation and liquid recirculation |
|
Agitator Drive |
Reversible, variable speed hydraulic motor drive |
|
Discharge Distance |
Up to 164 feet (50m) from end of discharge boom |
|
Nozzles |
Narrow fan(1) , Wide fan(1) , Long distance(2) |
|
Empty Weight① |
9,567 lbs. (4,340 kg) |
|
Working Weight① |
21,272 lbs. (9,650 kg) |
|
Note: |
|
