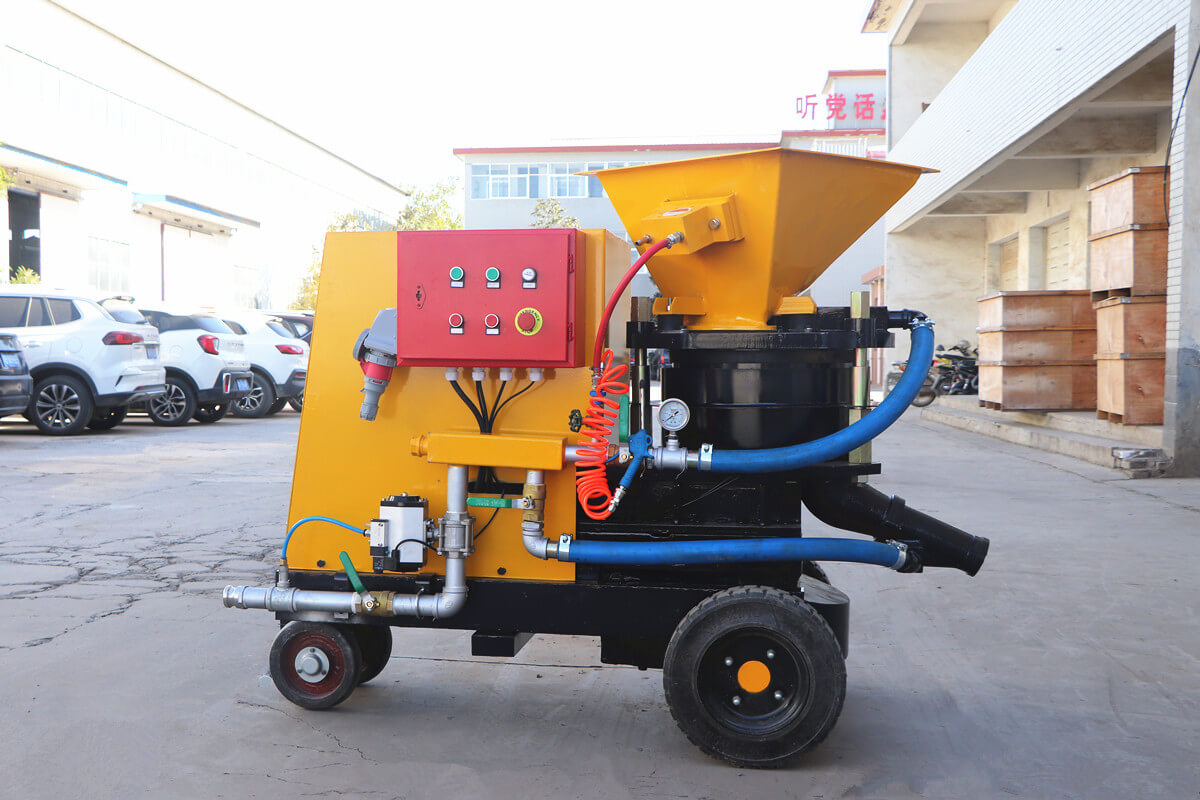

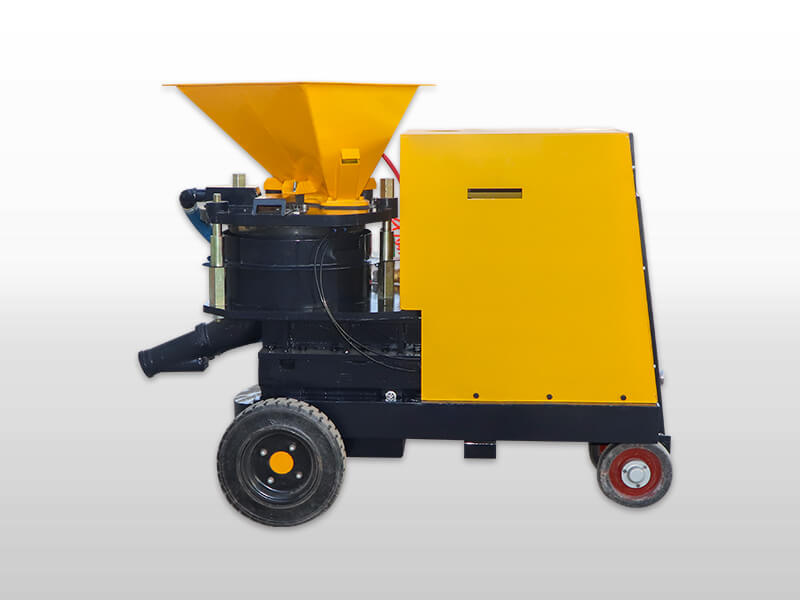

LSZ-10S/E Wet and dry concrete spraying and conveying machine

  • Machine type: Power supply
  • LSZ-10S/E: AC380V 50Hz three-phase
  • Motor power : 7.5kw
  • Air consumption : 10 m3/min
  • Working pressure : 0.2Mpa
  • Rotor speed: 12.3rpm

  • concrete spraying and conveying machine
  • wet and dry concrete conveying machine
  • wet and dry concrete spraying and conveying machine
  • wet and dry concrete spraying machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
  Description:

The LSZ-10S/E Wet and Dry Concrete Spraying and Conveying Machine is a versatile rotor-type apparatus designed for both wet and dry spraying as well as conveying operations. It excels in handling various materials such as concrete, mortar, refractory substances, sand, pea gravel, and crushed stone.

dry and wet mix concrete spraying and conveying machine  structure

dry and wet mix concrete spraying and conveying machine structure

In comparison to traditional shotcrete machines, the LSZ-10S/E stands out for its lightweight and compact design. Additionally, it incorporates a rubber sealing plate lubrication system, effectively mitigating wear on the rubber plates. This feature results in an extended service life and enhanced sealing effectiveness.


concrete spraying and conveying machine for sale


wet and dry concrete conveying machine for sale







concrete spraying and conveying machine details

electric motor dry and mix concrete spraying and conveying machine

The main structure of LSZ-10S/E Wet and dry concrete spraying and conveying machine:

main structure of concrete spraying and conveying machine





1

Modify clamp

2

Rotor

3

Upper rubber plate

4

Hopper seat

5

Lower rubber plate

6

Clamp


 Application:

The LSZ-10S/E Wet and Dry Concrete Spraying and Conveying Machine is versatile and well-suited for a variety of applications, including concrete repair, slope stabilization, excavation support, and mining operations.

wet and dry concrete conveying machine made in China


wet and dry concrete conveying machine manufacturer and supplier



concrete spraying and conveying machine  cases

 Features:

1. Theoretical displacement is adjustable to accommodate specific requirements.

2. Effectively overcomes challenges posed by extended or elevated conveying distances, particularly with dry mix applications.

3. Minimizes dust generation during operation.

4. Features an automatic lubrication system, enhancing the longevity of the rubber plate.

5. Well-suited for applications such as concrete repair, slope stabilization, excavation support, and mining.

6. Boasts a lightweight and compact machine design for increased maneuverability and ease of use.

wet and dry concrete spraying and conveying machine for sale


wet and dry concrete spraying machine for sale

■Product Details
Air inlet

Air inlet

Cleaning tools

Cleaning tools

Electrical control box

Electrical control box

Outlet

Outlet

Rotor cover

Rotor cover

Vibrating hopper

Vibrating hopper

■Technical Parameters

Name

Data

Machine type

LSZ-10S/E

Power supply

AC380V 50Hz three-phase

Motor power

7.5kw

Air consumption

10 m3/min

Working  pressure

0.2Mpa

Rotor speed

12.3rpm

Rotor size

14.5 liters

Theoretical  output①

10m3/h

Recommended hose size

D64mm

Max. aggregate size

20mm

Max. conveying distance horizontal/vertical

Dry: 200m/100m

Wet: 40m/15m

Dimensions

Length

1950mm

Height

1375mm

Width

856mm

Weight

1000Kg

① Based on a theoretical filling level of 100%. Prior to use or processing, always consult the current product data sheet of the products used.


Dimension:

Dimension of dry and wet concrete spraying and conveying machine
