► Application:

1. Steelwork and Coating Preparation

Supplies compatible abrasive blasting equipment for preparing structural steel, storage tank exteriors, and machinery surfaces before coating. Nozzle size and required air quality determine the final system configuration.

2. Quarry and Civil Engineering Drilling

Provides compressed air for compatible pneumatic rock drills used in quarry operations, excavation, and foundation work. The compressor should be selected against the drill’s specified air consumption and operating pressure.

3. Slope Protection and Concrete Rehabilitation

Supports compatible dry-mix shotcrete and gunite machines used in slope protection, retaining structure repairs, and localized concrete rehabilitation. Machine output and conveying distance influence air demand.

4. Industrial Refractory Maintenance

Serves as an air source for compatible refractory gunning equipment during furnace and kiln lining repairs, particularly where a separate outdoor compressor is required.

5. Roadwork and Concrete Removal

Powers pneumatic breakers and chipping tools for pavement removal, trench preparation, and concrete demolition. Multiple-tool operation requires a check of total air consumption.

6. Temporary Site Air Distribution

Can feed a suitably sized air distribution system serving several work positions. Hose diameter, line length, simultaneous demand, and pressure at the point of use should be considered when planning the layout.

► Features:

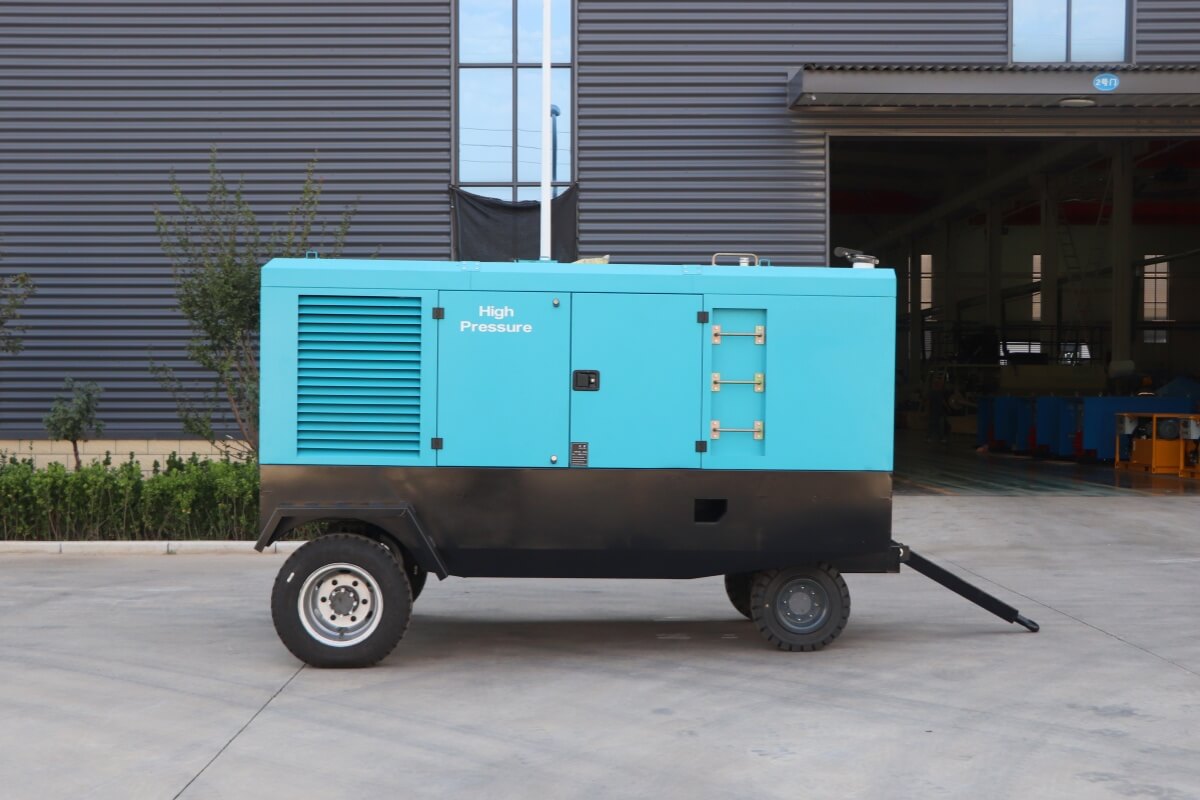

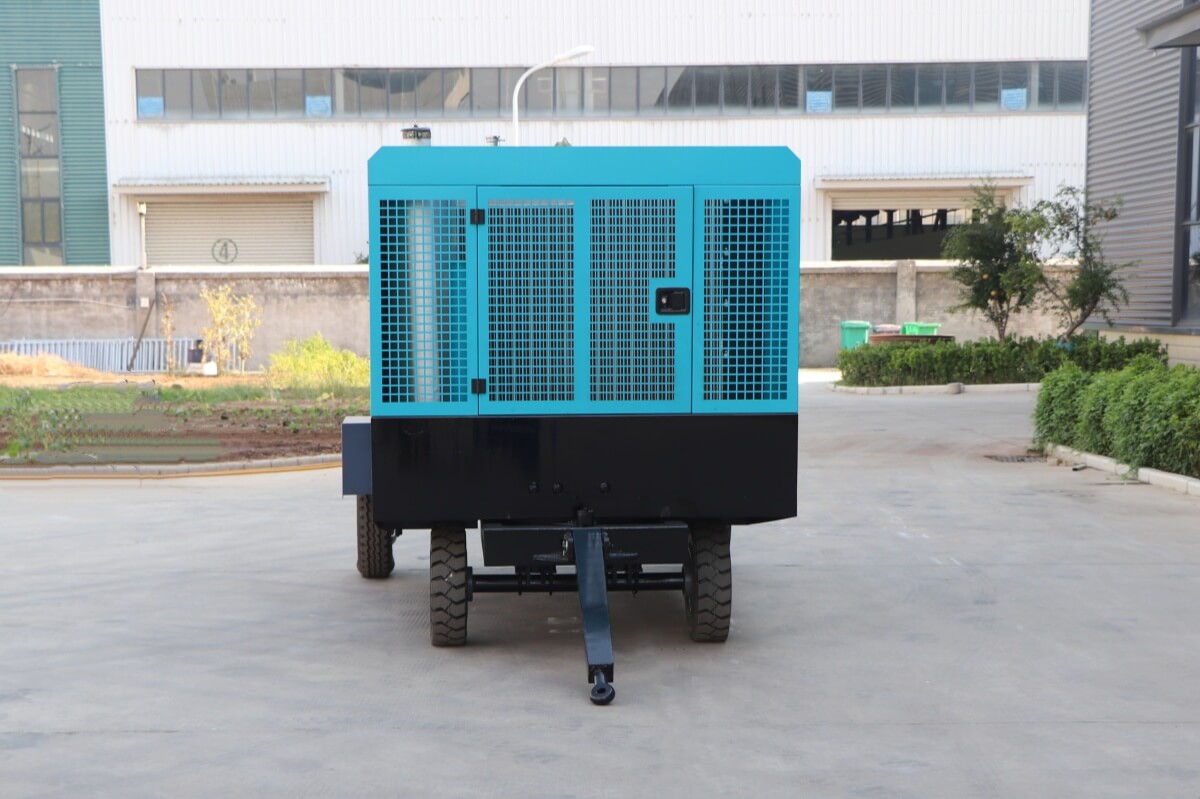

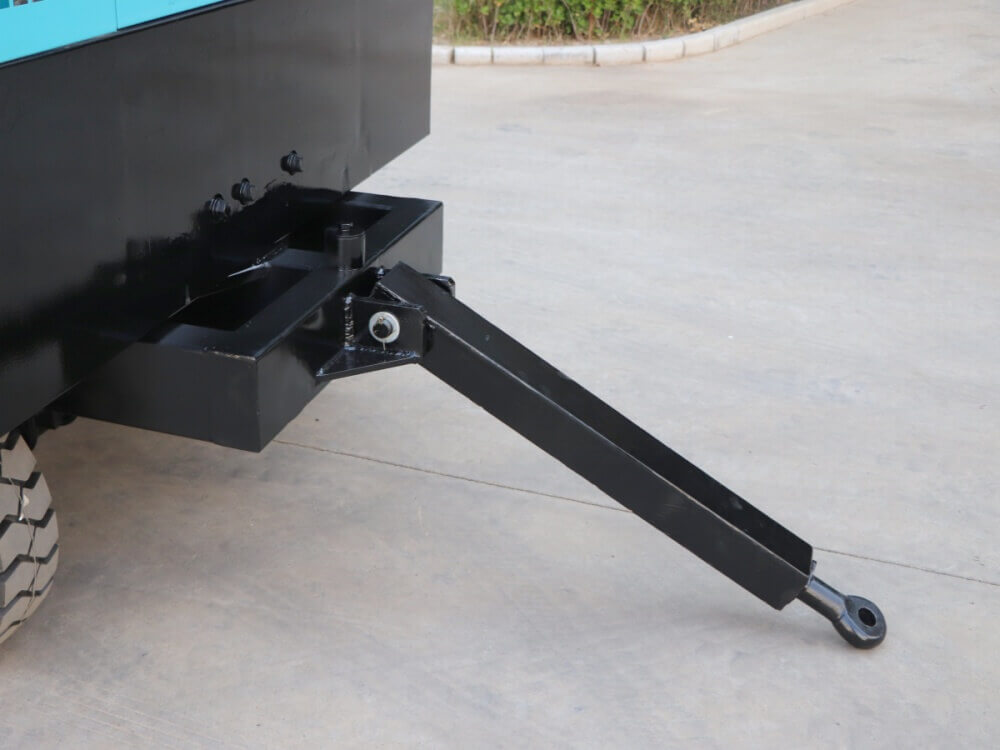

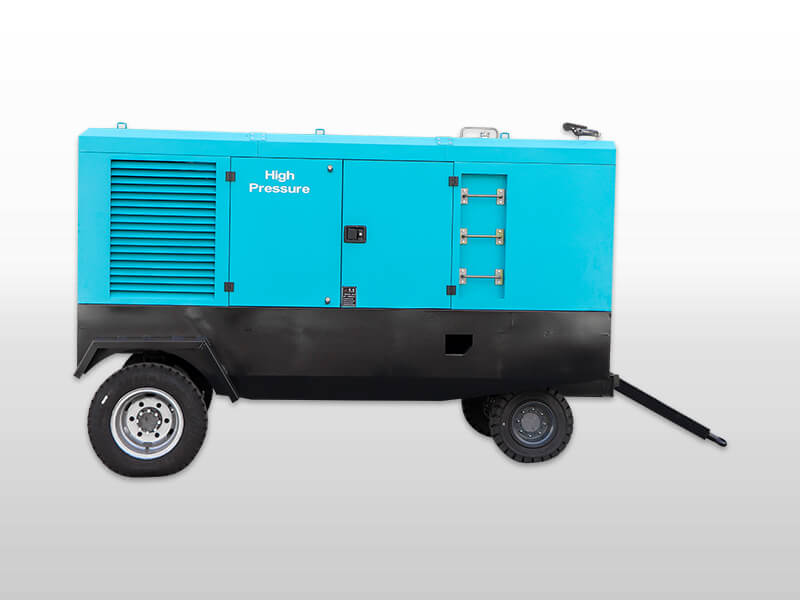

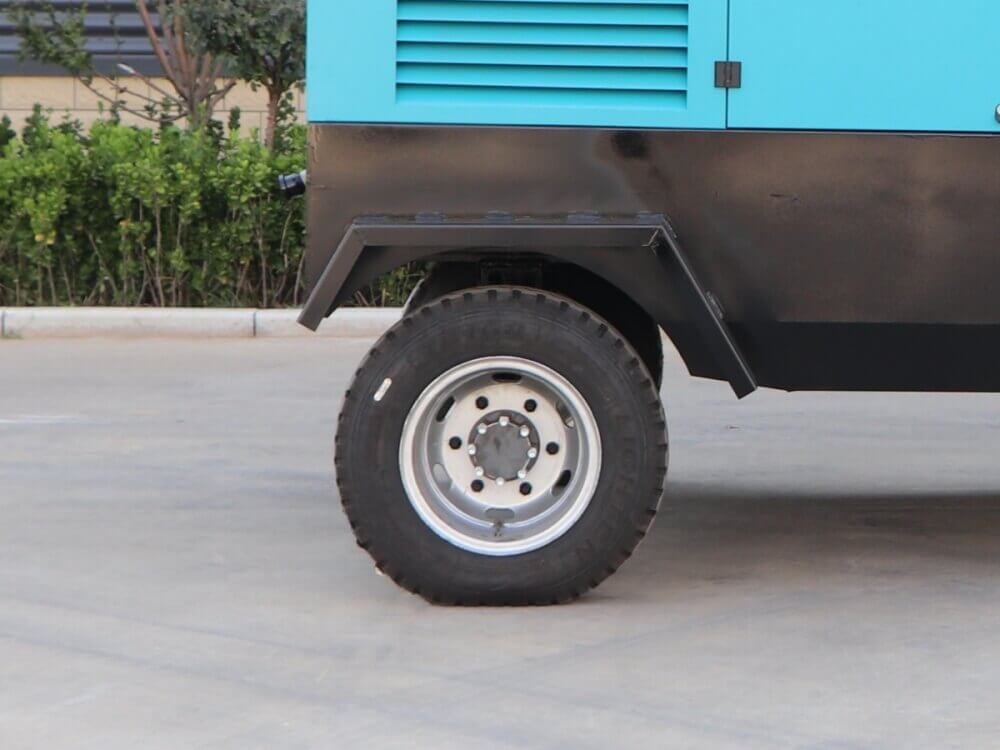

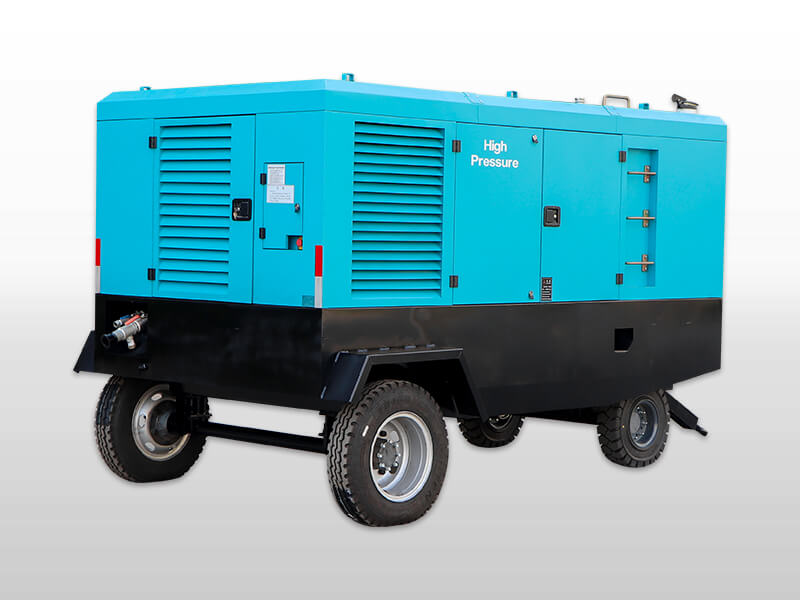

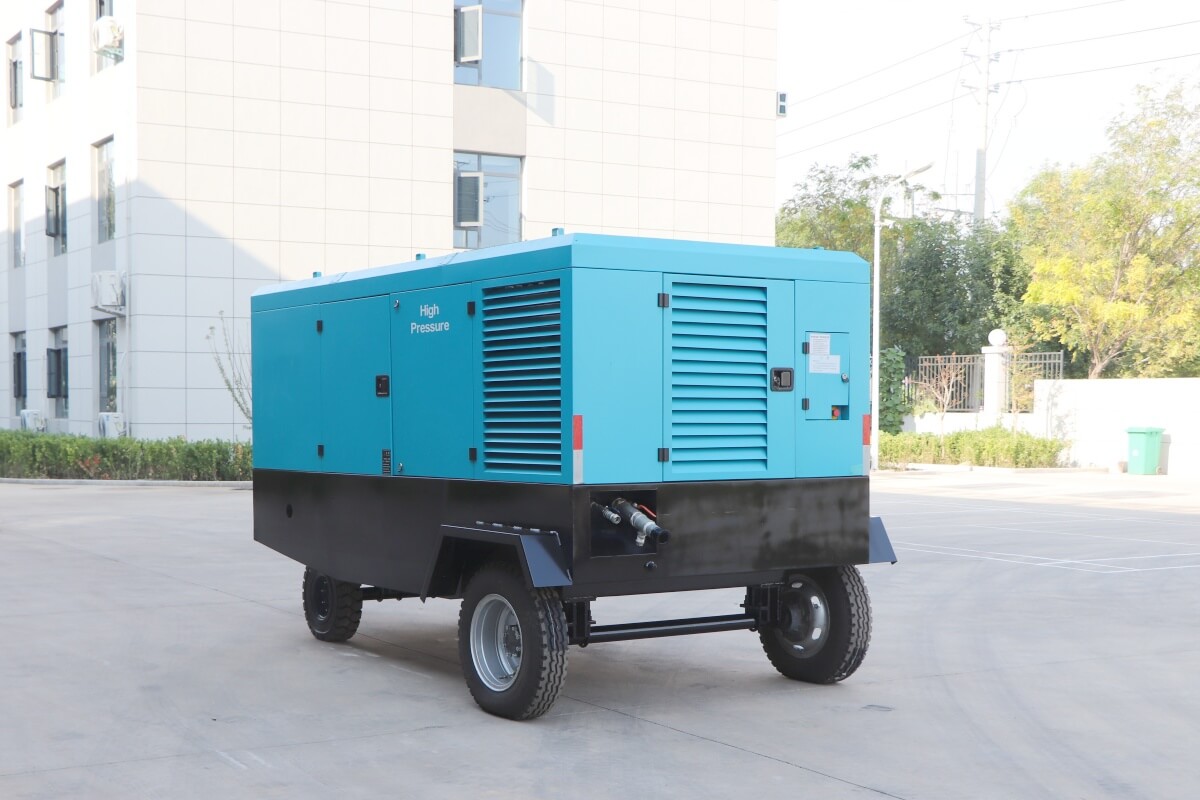

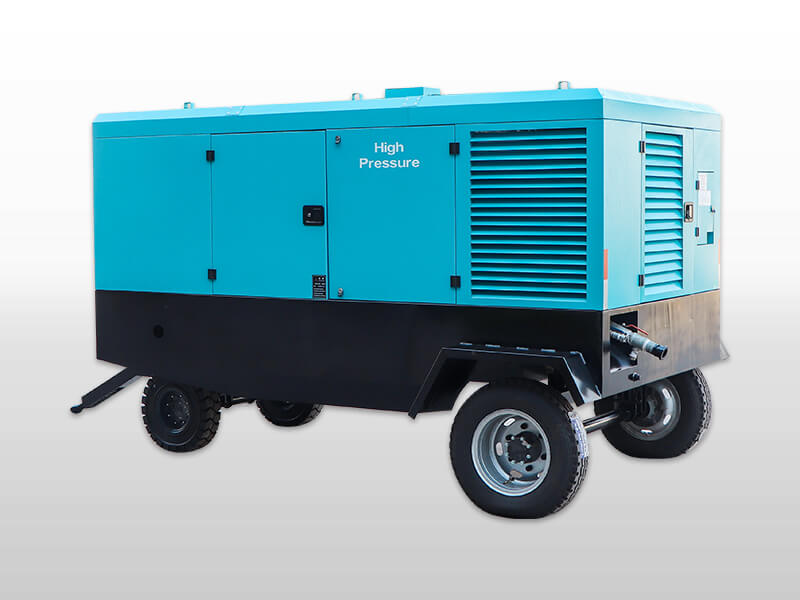

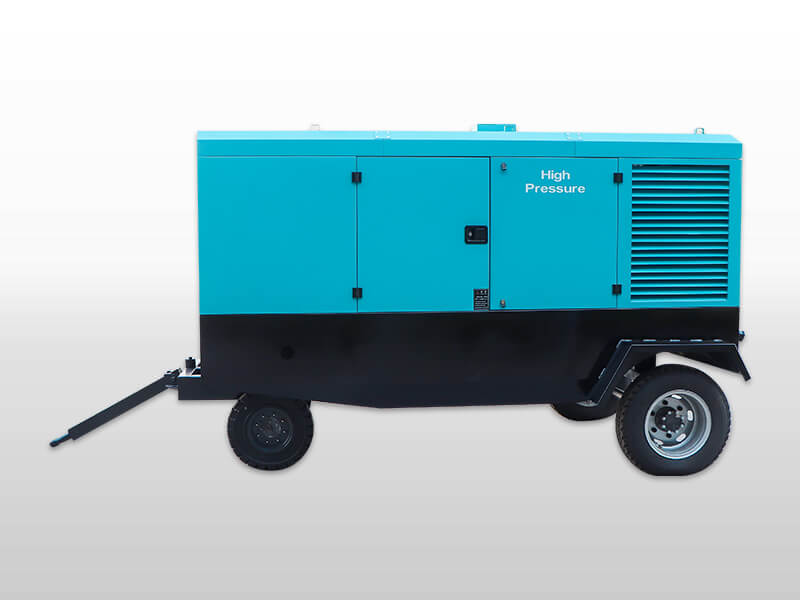

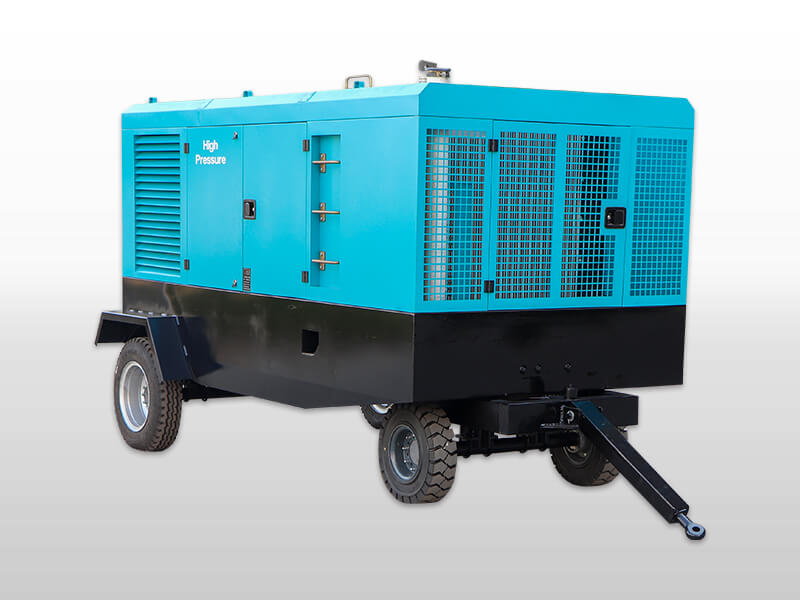

1. Air Supply Where Work Takes Place: The towable chassis allows the compressor to follow changes in the work area, helping operators position the air source closer to connected equipment.

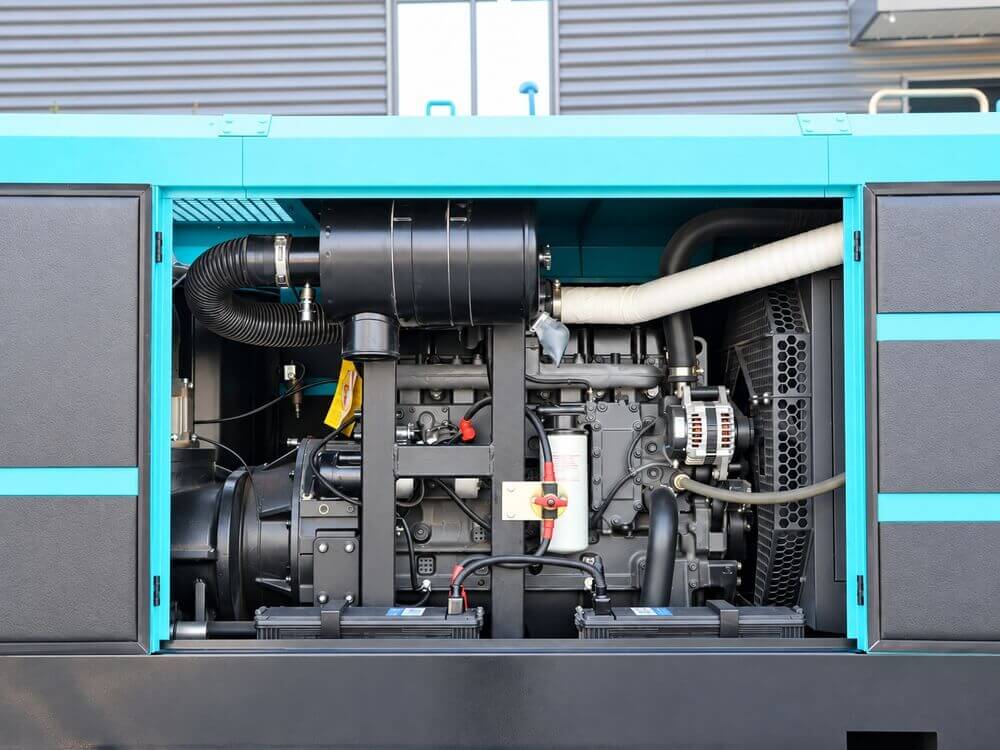

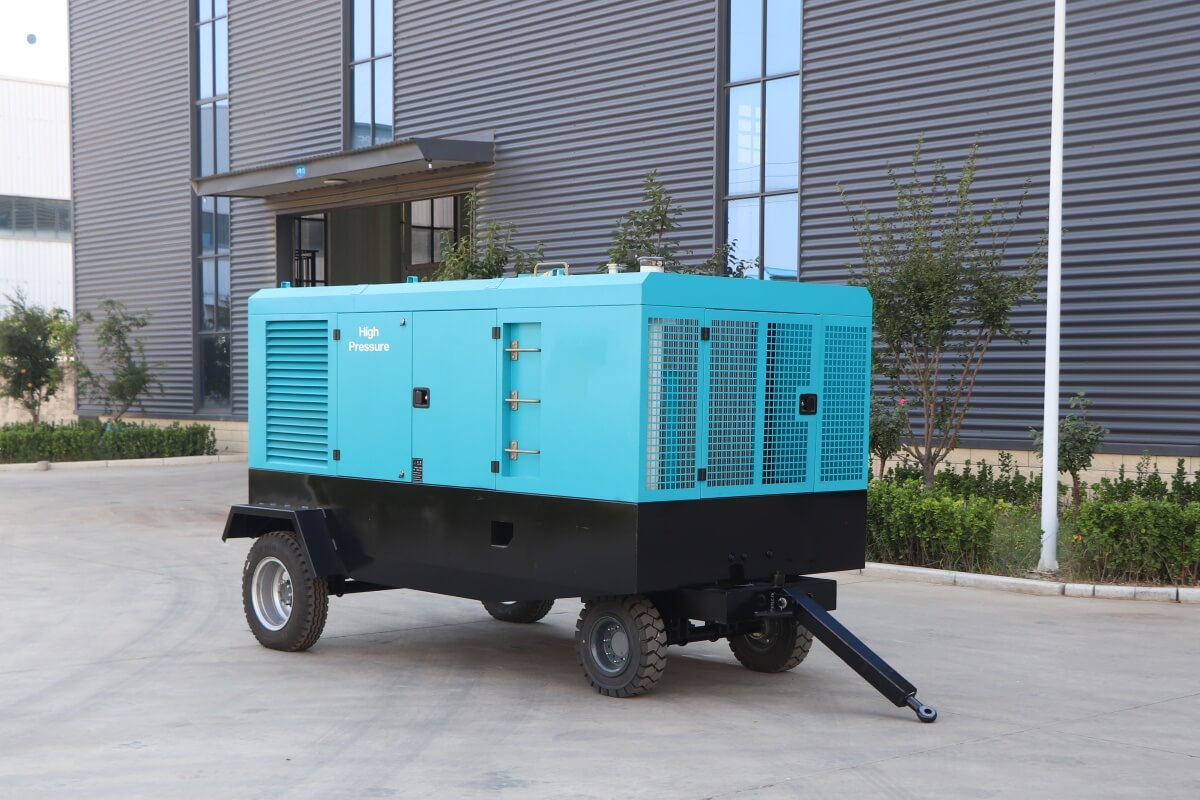

2. Cummins Diesel Drive: Supports operation at construction sites, quarries, and outdoor maintenance areas without relying on a mains electrical connection.

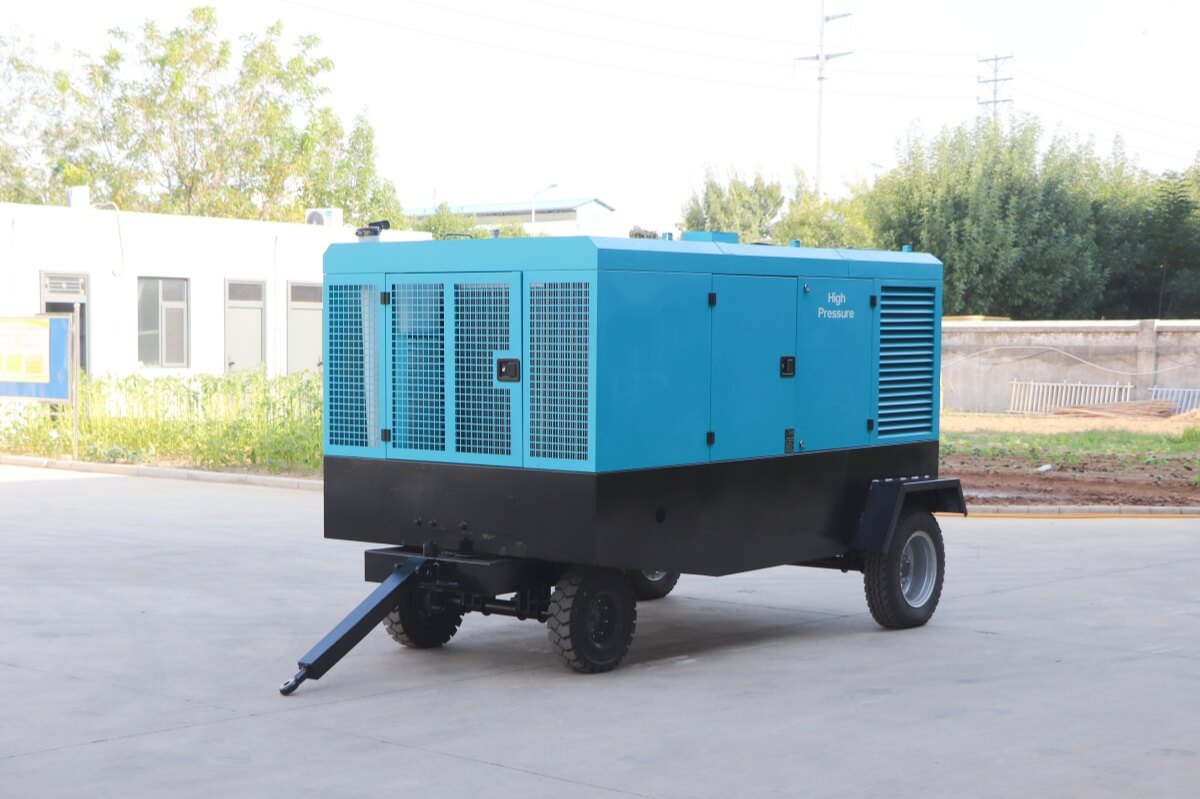

3. 22 m³/min Output Capacity: Provides approximately 777 CFM for demanding pneumatic applications or several compatible tools with a combined demand within the available output.

4. 10 Bar Operating Pressure: Offers a defined pressure rating for matching blasting, drilling, and construction equipment while accounting for losses in the air delivery system.

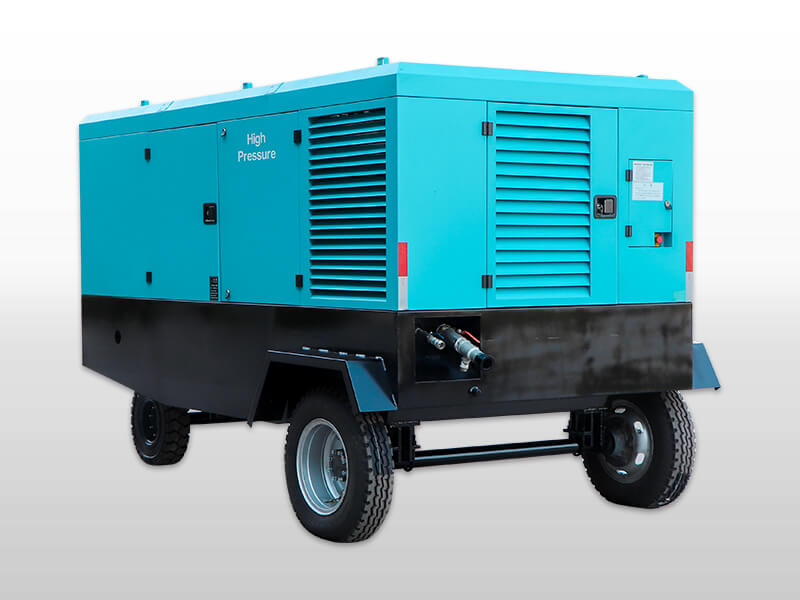

5. Integrated Equipment Package: Combines the diesel engine and compressor equipment within one enclosed unit, simplifying site placement and transport planning.

6. Side-Door Maintenance Access: Service doors allow technicians to reach internal components for inspection and scheduled maintenance.

7. Ventilated Outer Housing: Louvers provide airflow openings through the enclosure. Keeping these openings clear supports the cooling system during operation.

8. Flexible Project Use: Can supply different compatible pneumatic machines as project tasks change, from surface preparation to drilling and concrete repair.
