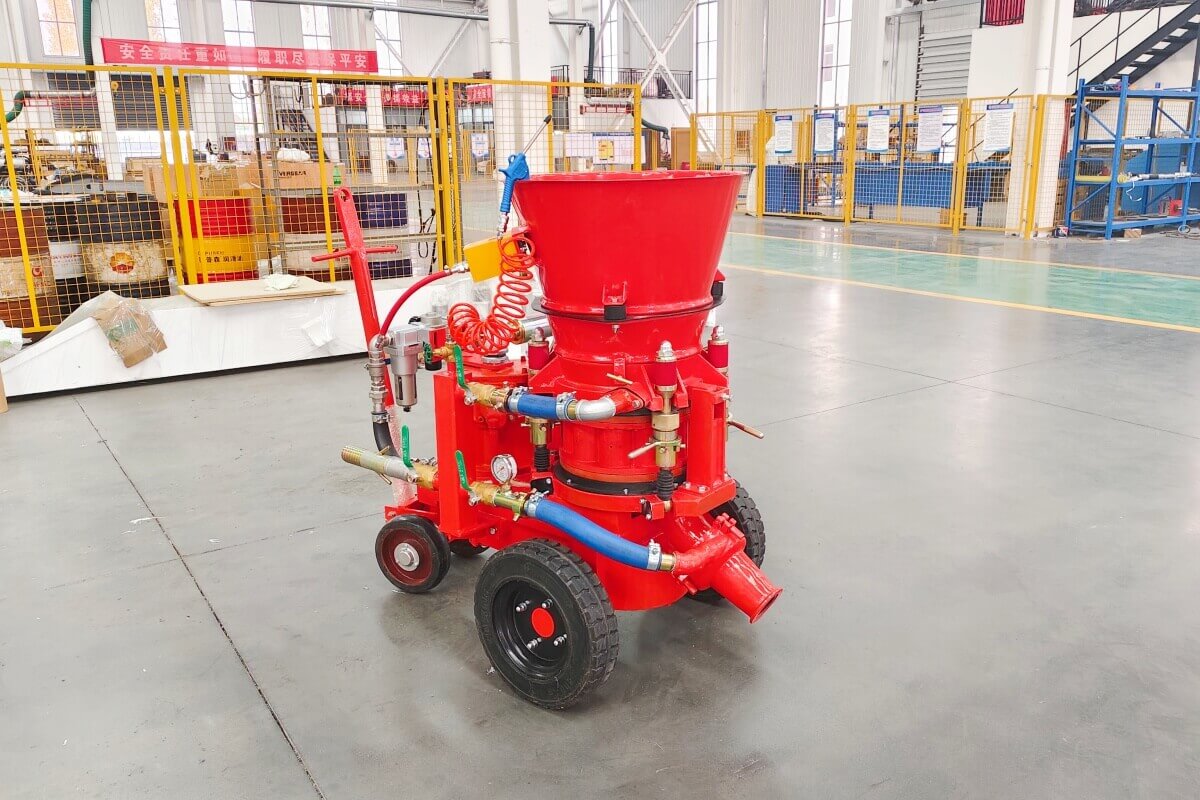

LZ-5AR Refractory gunning machine for cement industry

  • Rated Output: 1-5m3/h(2-10Ton/h)
  • Max. Aggregate Size: Φ15mm
  • Max. Horizontal Conveying Distance :100m
  • Conveying Hose Inner Diameter: 51mm
  • Operating Air Pressure: 0.2-0.4MPa(29-58PSI)
  • Air Consumption: 8~9m3/min(285-325CFM)

  • refractory gunning machine for cement industry
  • refractory spraying machine for cement industry
  • refractory gunning machine for cement factory
  • refractory gunite machine for cement industry
  • high pressure pump for refractory gunning machine
  • high pressure water pump for refractory gunning machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Soil Spraying Machine
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

Description:
We are engaged in the manufacture and export of refractory gunning machine for cement industry.
High efficiency refractory gunning machine are widely used for repairing of electric arc furnace AOD,
VOD in hot and cold conditions. Our refractory gunning machines are very useful in refractory
applications. We are committed to providing customers with a variety of quality refractory machines.
The refractory gunning machine is developed by using high-quality parts and advanced machinery.
The main advantages of this refractory gunning machine can be obtained when the furnace is
repaired at high temperatures. The time and heat loss of cooling and subsequent reheating of the
furnace results in many savings in power losses and significantly increased furnace availability.

refractory gunning machine for boiler chimney


The
refractory gunning machine for cement factory provided by us, have been termed as the best
available in the market because of its significant attributes such as rugged construction, low energy
consumption and unique design.

Our refractory gunning machine is also available in customized form to meet more specific needs of
our clients. Our gunite machine for refractory improved as per customer’s feedback and now air
motor drive is for your option.

LZ-5AR
is air motor full pneumatic straight chamber rotor type refractory gunning machine. Air motor
gunning machine for refractory is specifically designed for refractory dry-mix shotcrete applications,
as well as for concrete shotcrete application. With this powerful, compact and reliable LZ-5AR
refractory gunite machine for cement industry, you can get low dust and high performance spraying
flow in nozzle.


We also supply electric motor drive gunite machine for steel furnace industry, output from
1-5m3/h(2-10Ton/h), you are also welcome to come up with your customized requirement for the
machine, then our professional staff will supply suitable design to you.


Application:
LZ-5AR R
efractory gunning machine for cement industryis specifically designed for refractory
spraying and shotcrete castable
refractories applications, as well as for concrete shotcrete application.

refractory gunning machine for boiler chimney


It is widely used for repairing of electric arc furnace in hot and cold conditions. It can be applied for
concrete layer in a boiler chimney, cement industry, steel furnace industry etc.

test of refractory gunite machine

Features:

LZ-5AR refractory spraying machine for cement industry is air motor full pneumatic straight chamber
rotor type refractory gunning machine.

1. 5 cylinders piston air motor, more powerful

5 cylinders piston air motor



2. Pneumatic transmission system, the pneumatic triple pieces is refers to the air filter, relief valve and oil mist

pneumatic transmission system



3. Collect dust bag



Collect dust bag



4. Clean dust gun






5. Heavy-duty solid wheels



Heavy-duty solid wheels



6. Coupling and clamp, the coupling and clamp are optional as below:



Coupling and clamp



7. Light weight nozzle, new pre-dampening nozzle!



New pre-dampening Nozzle



Light weight nozzle



Low rebound, low dust.

Reduce additive water amount.

Improve refractory compactness and strength.



8. Blast rubber hose



Blast rubber hose



9. High operational performance, high efficiency refractory gunite machine for boiler chimney



10. Low maintenance cost refractory spraying machine for boiler chimney



11. High pressure water pump, 6 bar pressure make sure to add water fully atomize, mix evenly





High pressure water pump

■Product Details
refractory spraying machine for boiler chimney

Refractory spraying machine for boiler chimney

refractory gunning machine for boiler chimney

Refractory gunning machine for boiler chimney

refractory gunite machine for boiler chimney

Refractory gunite machine for boiler chimney

light weight nozzle of refractory gunning machine

Light weight nozzle of refractory gunning machine

high pressure water pump for refractory machine

High pressure water pump for refractory machine

Refractory gunning machine pre-dampening nozzle

Refractory gunning machine pre-dampening nozzle

■Technical Parameters

Technical Data:

Rated Output

1-5m3/h(2-10Ton/h)

Max. Horizontal Conveying Distance

100m

Max. Aggregate Size

Φ15mm

Conveying Hose Inner Diameter

51mm

Operating Air Pressure

0.2-0.4MPa(29-58PSI)

Air Consumption

8~9m3/min(285-325CFM)

Air consumption for air motor 7.5m3/min

Drive Type

Air motor

Material Charging Height

1.2m

Rotor Speed

0-13.2r/min

Overall Dimension(L×W×H)

1.35×0.75×1.3m

Weight

500kg
