LHS0110PT 300 Gallon Hydro seeding system

  • Model: LHS0110PT
  • Volume: 1m³/1000liters
  • Material of a tank: Polyethylene
  • Engine speed: 0-3600r/min
  • Material of frame: Steel
  • Engine: 13 hp gasoline engine with electric start

  • 300 Gallon Hydro seeding machine
  • 300 Gallon Hydro seeding system
  • Hydro seeding system with Honda engine
  • Hydro seeding system
  • Hydro seeding system with poly tank
  • 300gallon and 500gallon Hydro seeding system
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description:
LHS0110PT small acpacity hydroseeding system is a skid-type, jet-agitated hydroseeder capable of seeding 350 square meters per load. It is powered by a 13 H.P. Honda gasoline engine with an electric start feature, directly linked to a high-volume centrifugal pump measuring 4" X 4". This hydroseeding unit includes a 60-meter DN32 discharge hose and three nozzles: one wide hydroseeding nozzle, one medium nozzle, and one straight nozzle. It can be easily mounted on a truck with adequate load capacity or operated from a trailer.

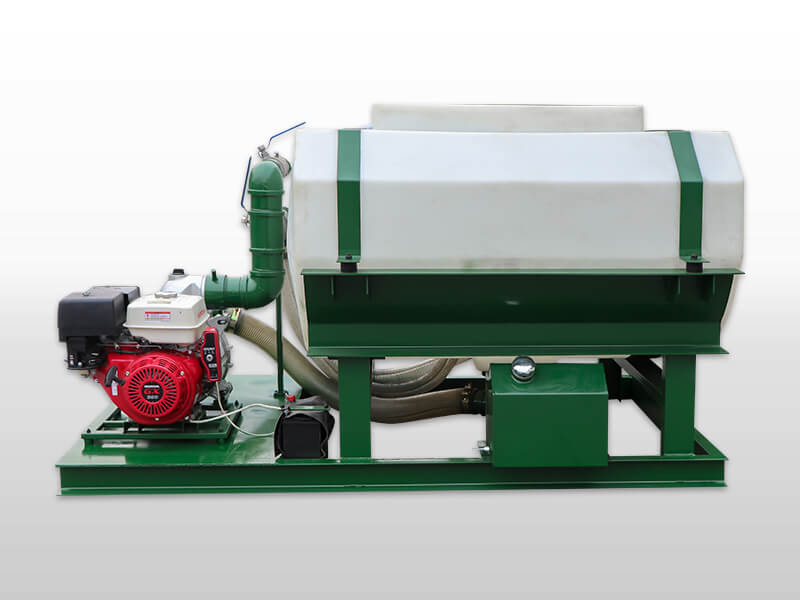

300 gallon Hydro Seeder


300 Gallon Skid type Hydro Seeder


LHS0110PT 300 gallon hydroseeding machine features an 80m³/h pump designed specifically for hydroseeding, measuring 4" X 4". The 2" I.D. jets are equipped with quick couplers for easy servicing in case of an unlikely problem, a quick disconnect for the discharge hose, and a bale tray for convenient loading.

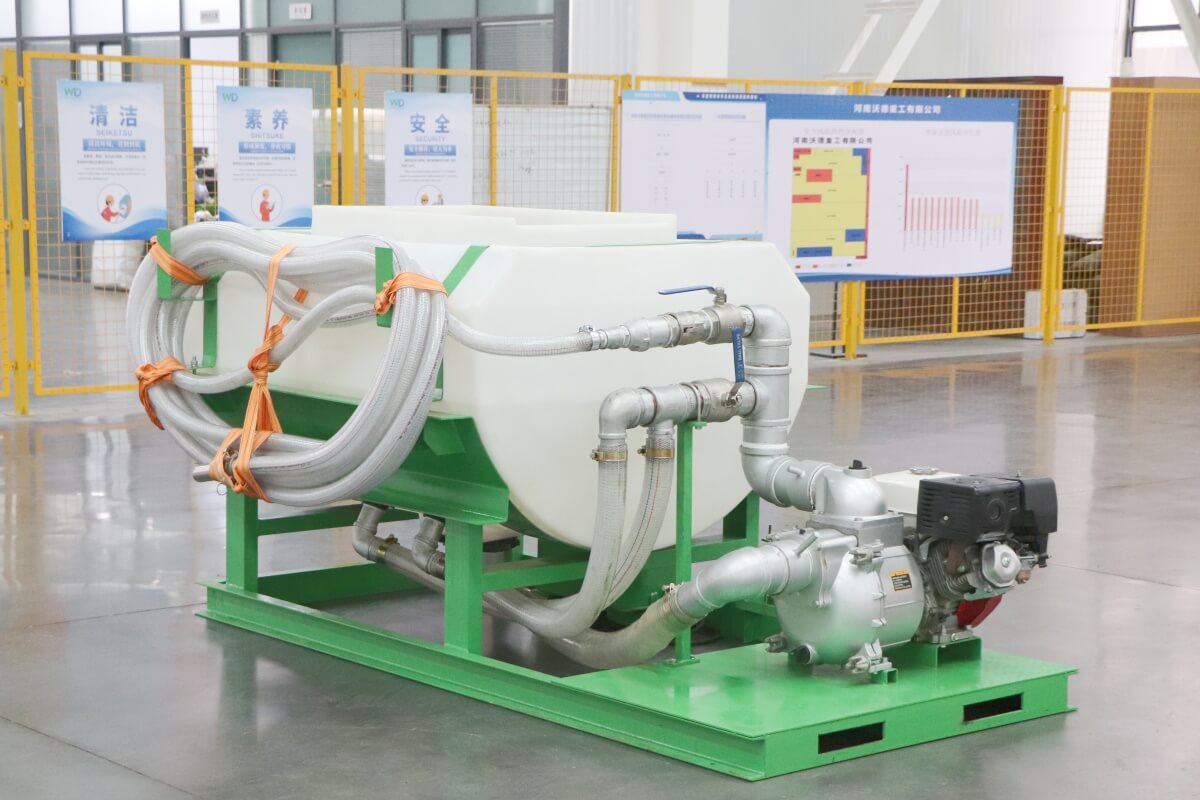

Jet Hydroseeding Unit

LHS0110PT 300 gallon jet agitated hydroseeder is equipped with a long-life poly tank that will never rust. It offers the capability to mix partial loads, boasting a simple yet powerful design with minimal moving parts, ensuring continuous agitation. Operators can easily control the flow at the gun without having to make adjustments at the unit. This hydroseeder is equipped with larger jets compared to most competing units, enabling faster mixing. Operators have complete control over the flow, resulting in quicker mixing, enhanced precision during trimming, and extended reach on hillsides.

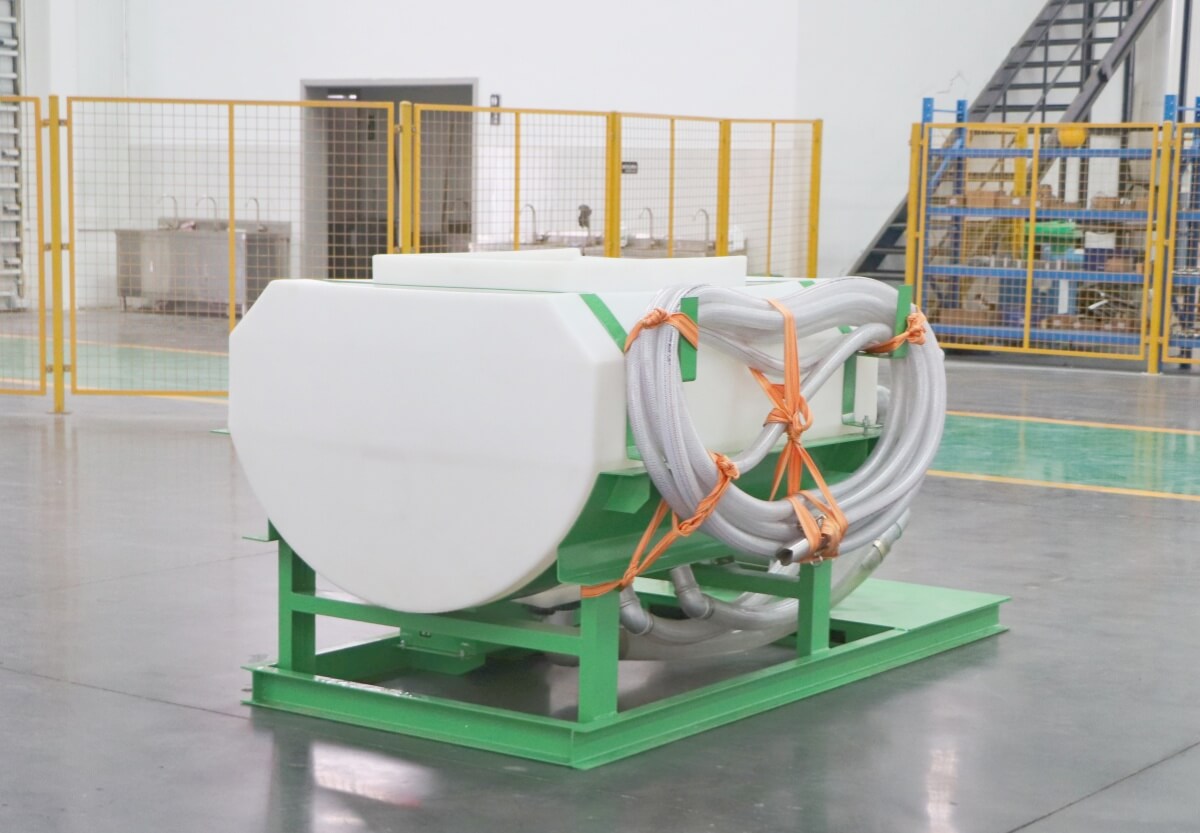

264 gallon capacity hydroseeder

 Application:
LHS0110PT 300 Gallon Hydro seeding system is well-suited for landscapers engaged in both residential and commercial seeding projects, typically covering areas ranging from 185 m2 to 4000 m2. While the most efficient mixing occurs when the tank is completely filled, the process of mixing smaller loads is both quick and straightforward. It takes approximately 15 minutes to spray an entire tank, and the mixing time varies from 1 to 20 minutes depending on the material being used. This unit is supplied with a 60 meter discharge hose and can easily accommodate an additional 60 meters of hose if required. When equipped with the straight nozzle, it can achieve a spraying distance of approximately 28 meters.

300 Gallon Hydro seeding system cases


LHS0110PT hydro seeding system is in high demand among various clientele, including golf courses involved in remodeling projects, pipeline companies, schools, construction firms, parks departments, and anyone with areas in need of seeding.

 Features:
1. Poly tank
Only as a carrier for fluid, fast clean up, never rust.
2. Mixing system( reliable and more uniform)
Use a 4″ X 4″ centrifugal pump which was designed specifically for hydroseeding.
Using a large jet means faster mixing and no clogs ever.
No need to break the seeder up.

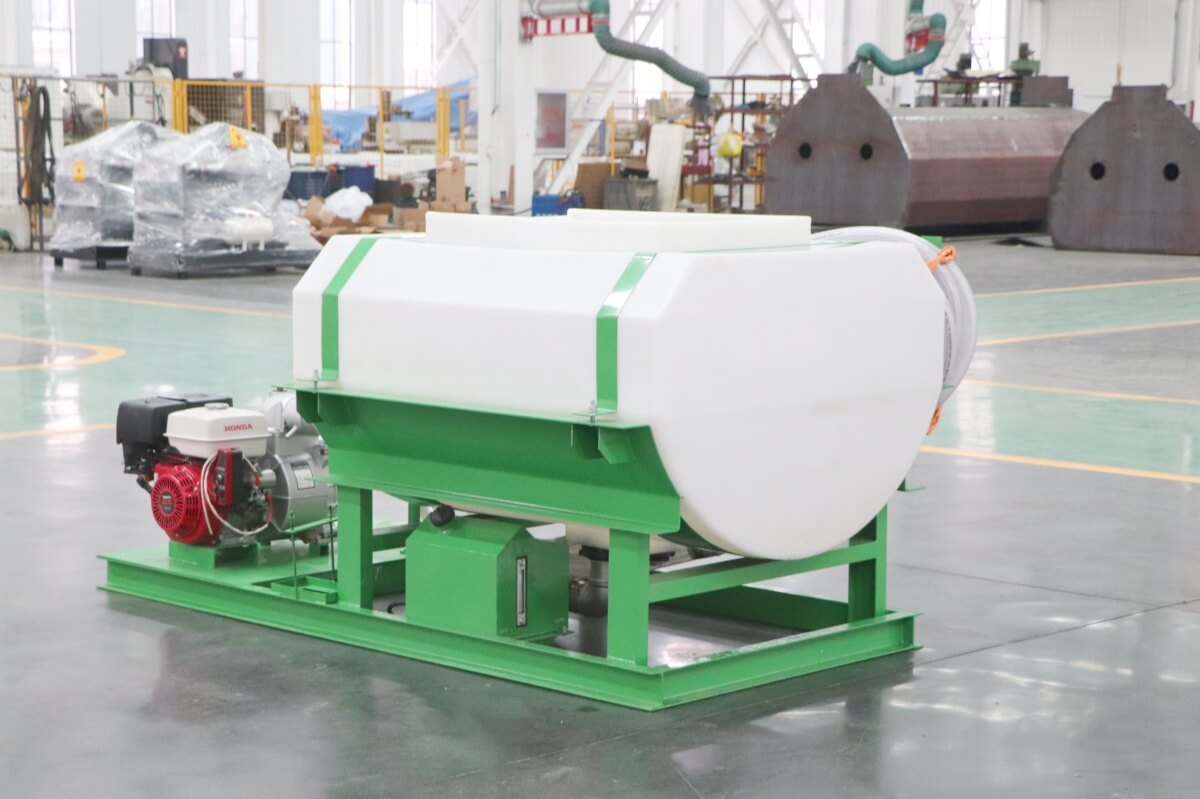

264 gallon hydroseeder with poly tank


3. Control system (safe, and easy to operate)
4. Power unit
Honda 13 hp with electric start.
The ability to fully control the pressure lets you mix faster, trim with precision and spry further.
5. Hose discharge
Hose is light weight and easy to handle.
2″ I.D. jets equipped with a quick coupler for easy service in the unlikely event of a problem.
A quick disconnect for the discharge hose, and a bale tray for easy loading.
■Product Details
Poly Tank

Poly tank

Mixing Pipe

Mixing pipe

Gasoline Engine

Gasoline engine

Fuel Tank

Fuel tank

Discharge Hose

Discharge hose

4″ X 4″ high volume centrifugal pump

4″ X 4″ high volume centrifugal pump

■Technical Parameters

LHS0110PT 300 Gallon Hydro seeding system specification:

1. Poly tank means fast cleaning up, never deal with tank rust.
2. The ability to fully control the pressure lets you mix faster, trim with precision and spry further.

3. Using a large jet means faster mixing and no clogs ever. No need to break the seeder up.

4. 2″ I.D. jets equipped with a quick coupler for easy service in the unlikely event of a problem. A quick disconnect for the discharge hose, and a bale tray for easy loading.

5. The distance to spray a load from the hose is up to 28m.

6. Simple to operate.

Model

LHS0110PT Hydro seeding system

Volume

1m³

Material of a tank

Polyethylene

Engine speed

0-3600r/min

Material of frame

Steel

Engine

13 hp gasoline engine with electric start

Passage section of pump

4″ X 4″ centrifugal pump

Capacity of pump

80 m³/h

Coverage

370 m2/tank

Hose length

60m

Empty weight

400kg

Loaded weight

1480kg

Overall size

2300×1450×1250mm

Data:
1. All data are tested by water.
2. We can customize products according to your requirements.


300 Gallon Hydro seeding system made in China
