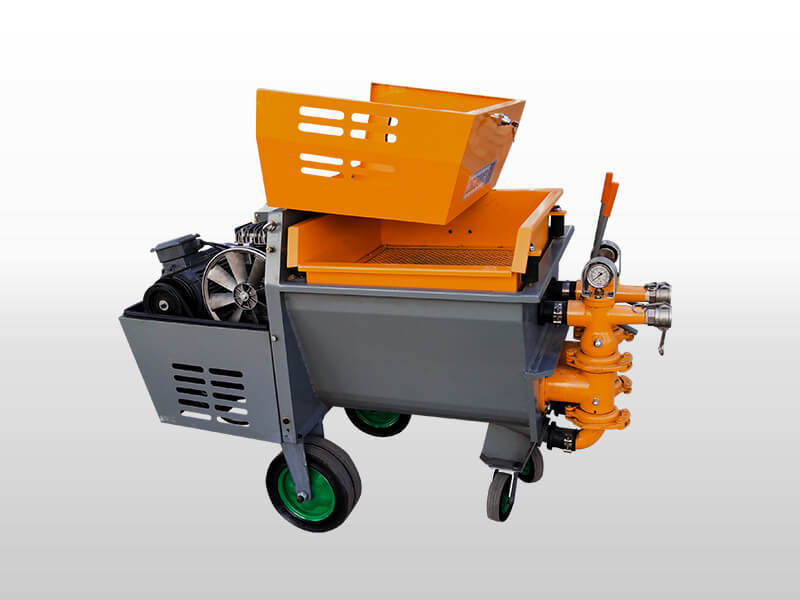

LMP70/30 Double piston mortar pump

  • Max. aggregate size: 5mm
  • Max. working pressure: 30bar
  • Electric motor: 4kw
  • Theorical output: 70L/min
  • Compressor: 200L/min
  • Hopper capacity: 0.28m3

  • Double piston plaster machine
  • mortar pump
  • piston pump
  • piston pump machine
  • mortar pump machine
Shotcrete Machine
Refractory Gunite/Mixer
Concrete Pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Foam Concrete Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LMP70/30 double piston mortar pump can handle aggregates with a particle size up to a maximum of
5mm, ensuring high efficiency, low maintenance costs and low energy consumption. Thanks to the
double piston plaster pump unique design inspiration is equipped with 2 pistons. LMP70/30 double
piston plaster machine guarantees uniform and continuous spray pattern. It can spray more than
1500m2 per day with an average thickness of 2cm with double piston.


 Application:

LMP70/30 double piston mortar pump with big volume is ideal for pumping, conveying, injecting and
spraying common, premixed and special mortars. LMP70/30 double piston mortar pump can be
applied to wall and ceiling painting work, road painting, highways and railways painting, tunnels
painting, etc.

And materials of LMP70/30 like putty powder, paint, latex paint, dry mortar, cement mortar, insulation
mortar, waterproof and fireproof materials, real stone paint, sound-absorbing materials, and others
which are water-soluble materials are suitable materials for a mortar spray machine.Therefore, buying
a set of LMP70/30 double piston mortar pump can bring you a lot of convenience.


 Features:

1. Double cylinder & double-acting, ball valve, quick clamp connection, operation and cleaning
conveniently. Paddles in hopper with Reciprocating movement, prevent hopper materials deposition;

2. The screen of our piston mortar pump adopts rubber spring with cone bolt installation, convenient
disassembly;

3. Double piston mortar pump is equipped with double special mortar nozzles, making spraying
operation more smoothly,
 continuously and reducing the rebound effectively;

4. This mortar pump machine is light, 1-2 person can easily move the machine;

5. Independent electric control box and remote control system, piston pump operation is safer;
6.
Double piston plaster pump is equipped with waterproof vibrator;

7. Quick installation and rubber piston long work life and low maintenance cost.

■Product Details
Double piston mortar pump

Safe & independent control system

mortar pump

Double Pistons

piston pump

Waterproof Vibrator

Double piston mortar pump machine

Double Piston Outlet

mortar pump machine

Long & Short Nozzle

Double piston mortar machine

Air Compressor Outlet

■Technical Parameters

Technical Data:

LMP70/30 Double piston mortar pump technical parameters:

Model LMP70/30
Electric motor 4kw
Theorical output 70L/min
Max. aggregate size 5mm
Max. working pressure 30bar
Compressor 200l/min
Hopper capacity 0.28m3
Delivery distance 90m
Delivery height 28m
Dimension 200x86x88cm
Weight 360kgs
