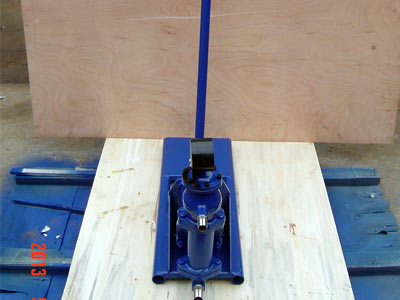

LHG-10 Grouting Cement Small Grout Pump

  • Rated Output:0-10(L/min)
  • Rated working pressure:10 bar
  • Cylinder diameter:110(mm)
  • Piston stroke:40(mm)
  • Inlet dia.:32(mm)
  • Outlet dia.:19(mm)

  • Small Grout Pump
  • Small Grout Pump
  • Grouting Cement Small Grout Pump
Shotcrete Machine
Refractory Gunning Machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Concrete Pump
Foam Concrete Machine
hydraulic pump station

TEL

86-371-63902781

skype:

shotcreter

Email

sales@leadcrete.com

FAX

86-371-63526675

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LHG-10 Grouting Cement Small Grout Pump is mainly used for grouting cement mortar or the similar mortar, specialized to grouting leakage-proof repair on the small area, on the bridge engineering and house construction.


 Application:

1. Tank stabilization;
2. Grouting metal door and windows;

3. General void filling;
4. Machine base grouting;

5. Waterproofing;

6. Soil stabilization;

7. Filling hollow concrete block;


 Features:

♦ Manual grout pump with simple structure.
♦ Hand grout pump is easy to use and maintain.
♦ Single cylinder working and ball vavle direct changing, repair and maintain easily.
♦ Small volume and light weight, convenient for moving.
♦ Manual grouting, flow controllable.

■Product Details

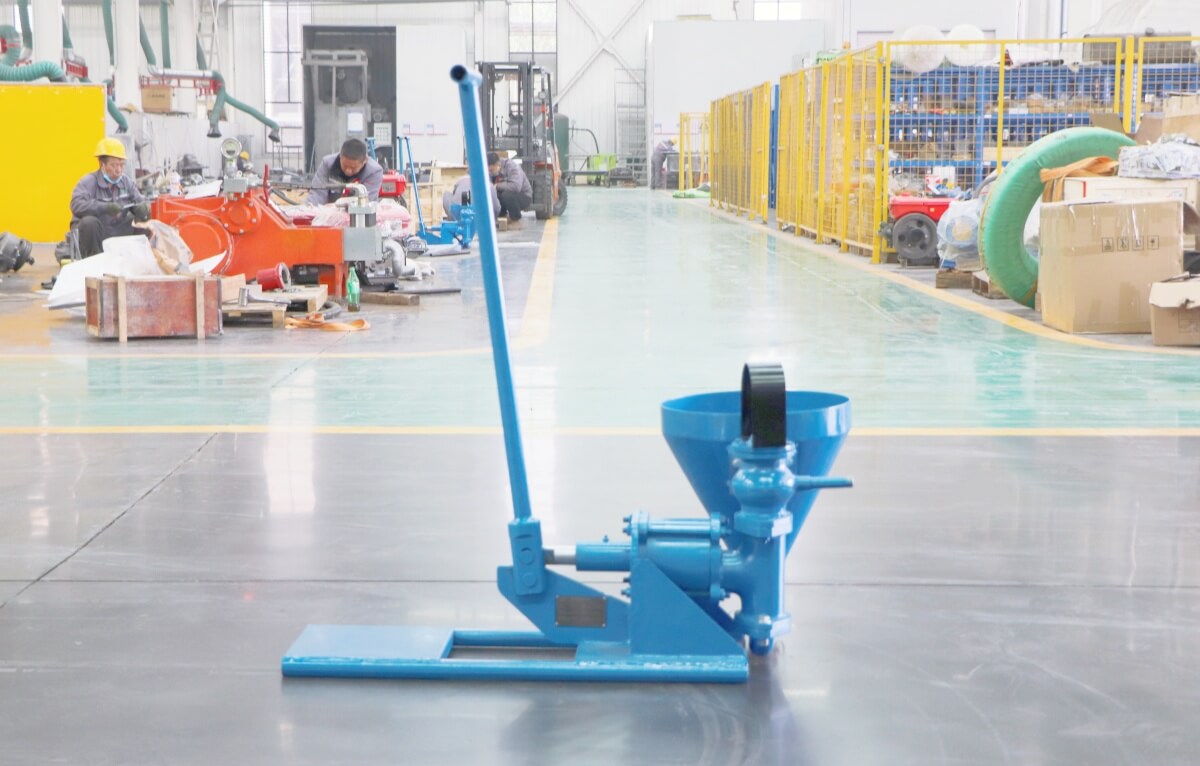

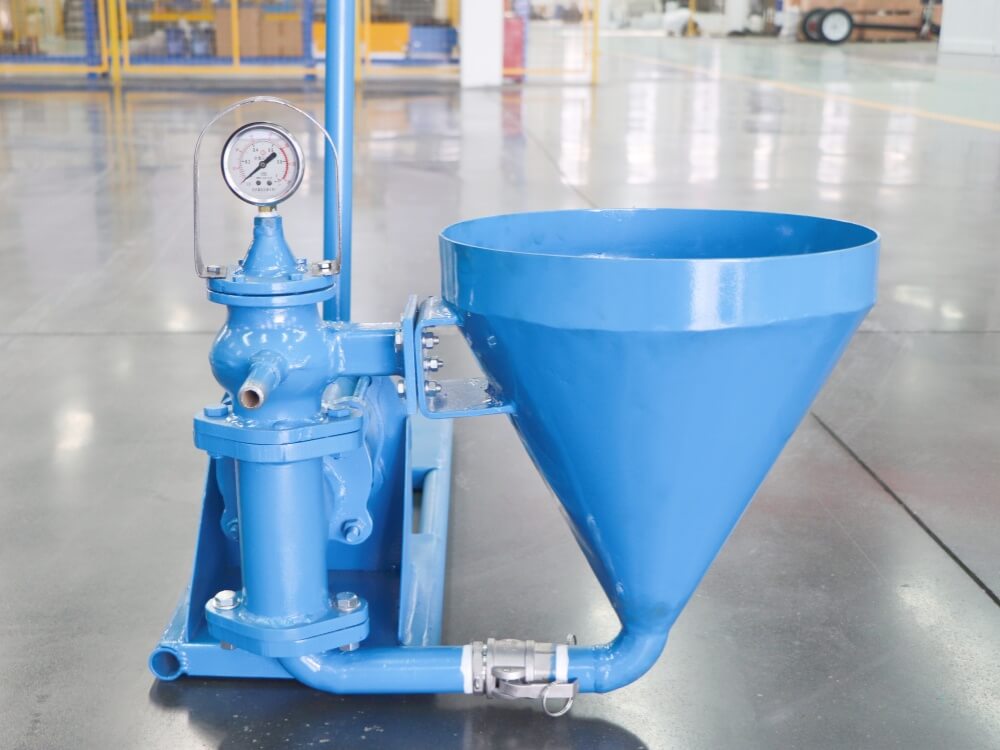

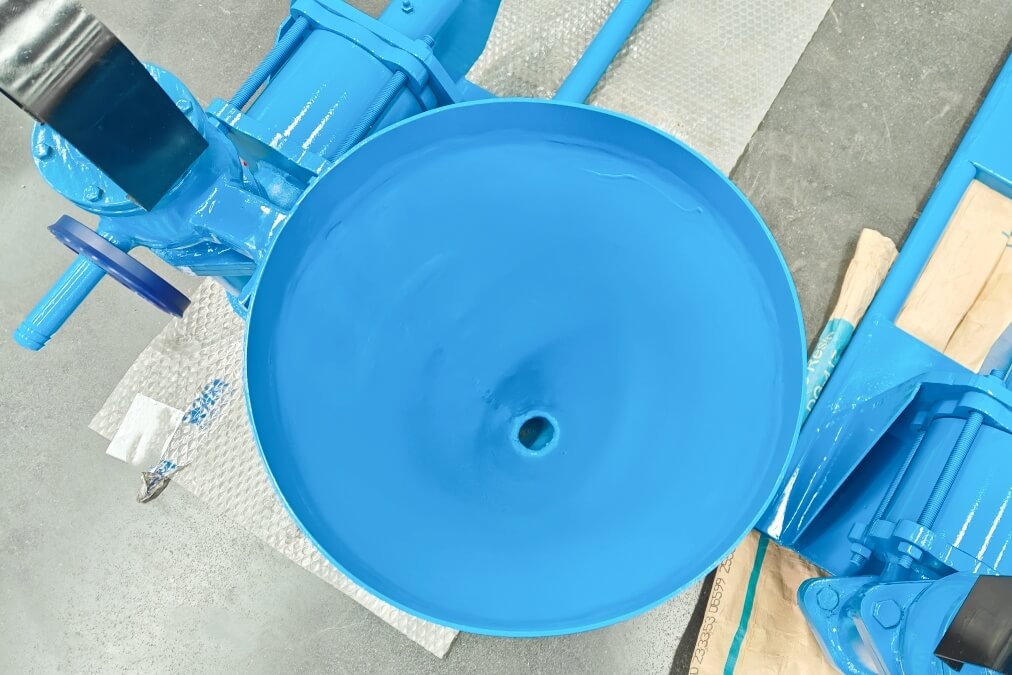

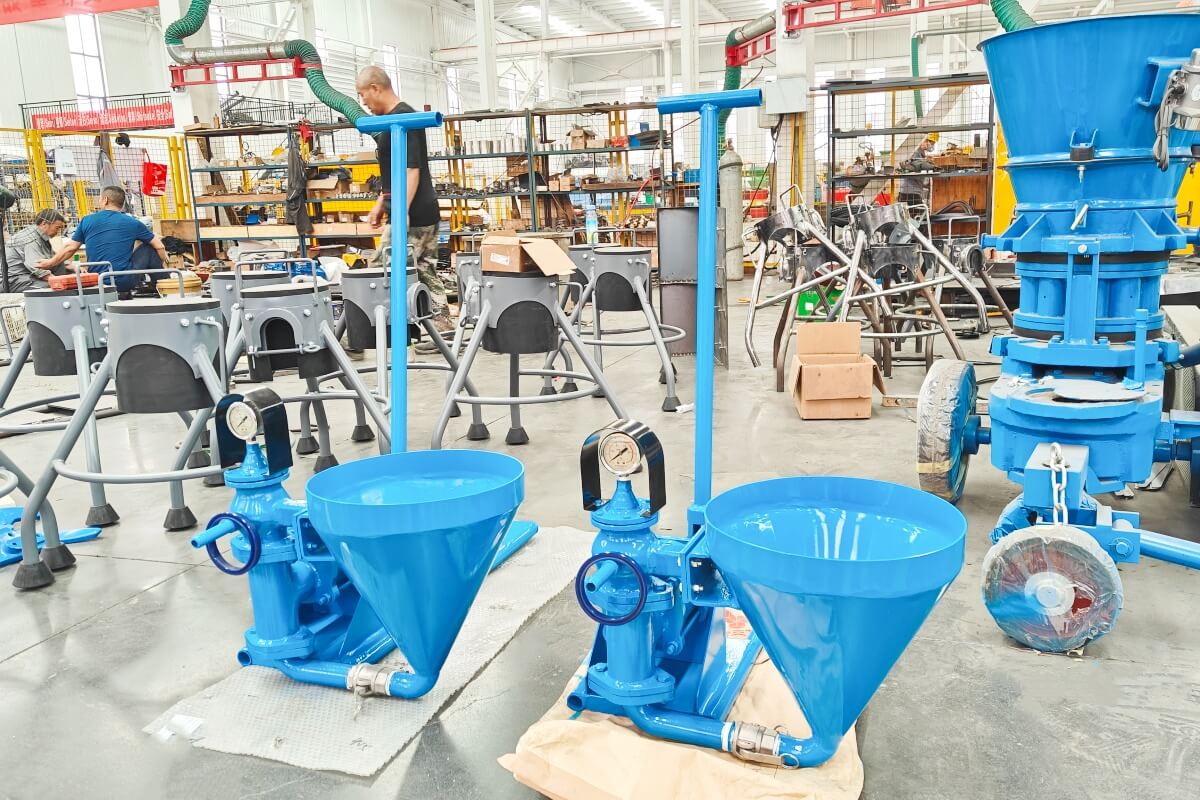

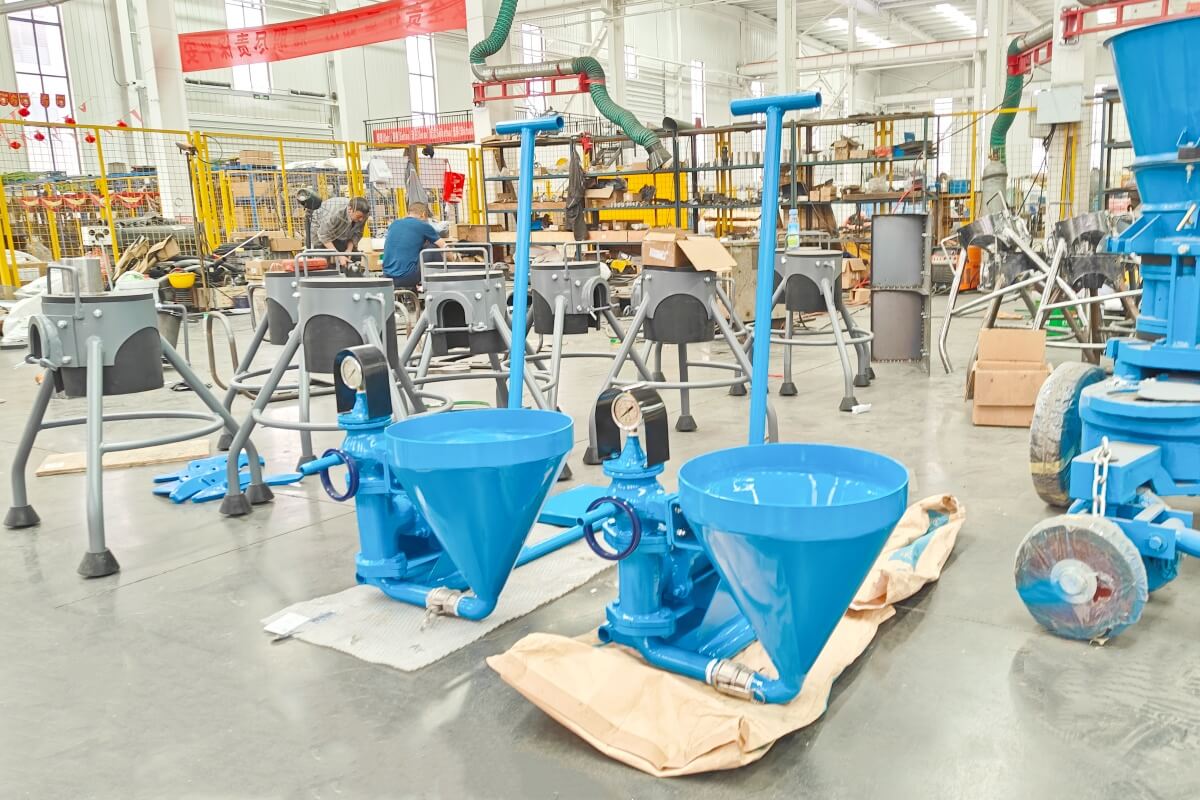

LHG-10 Grouting Cement Small Grout Pump

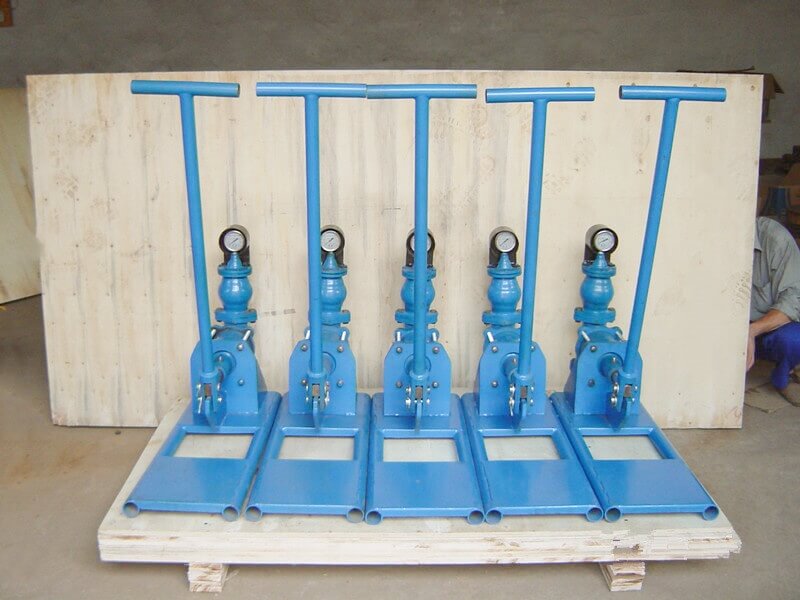

LHG Grouting Cement Small Grout Pump

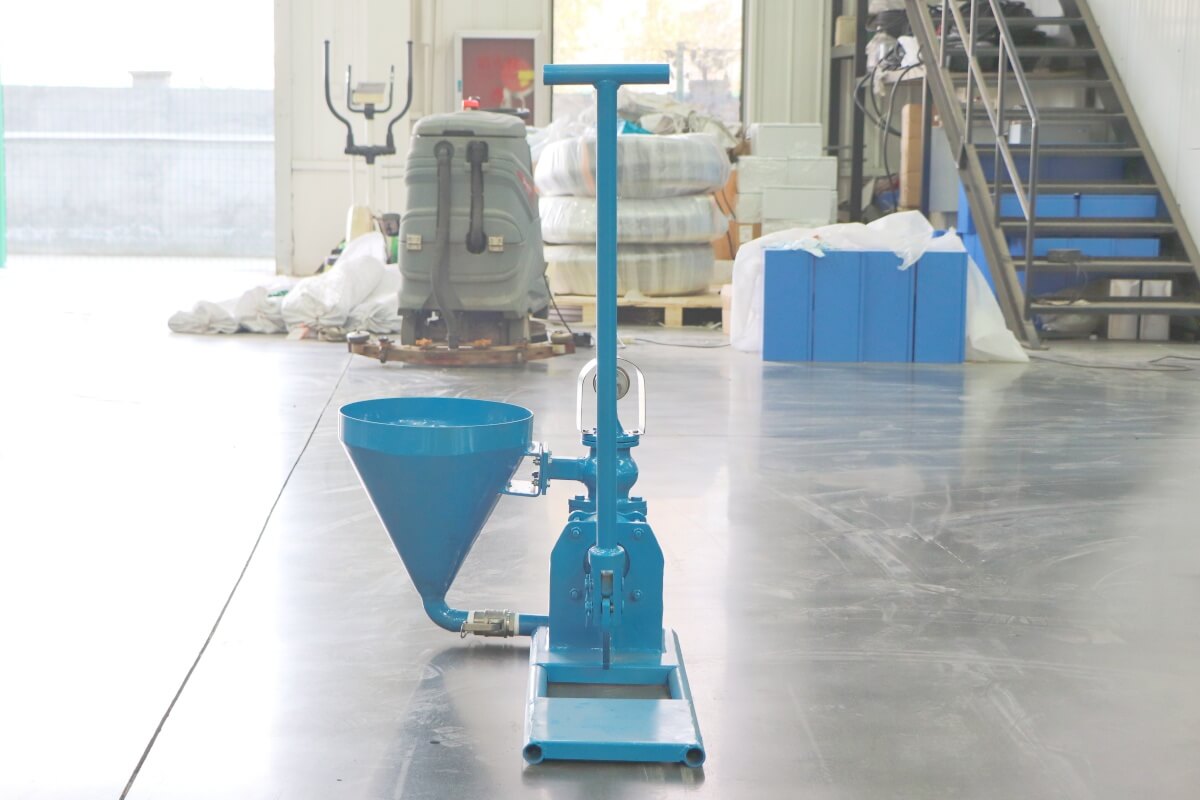

Small Grout Pump

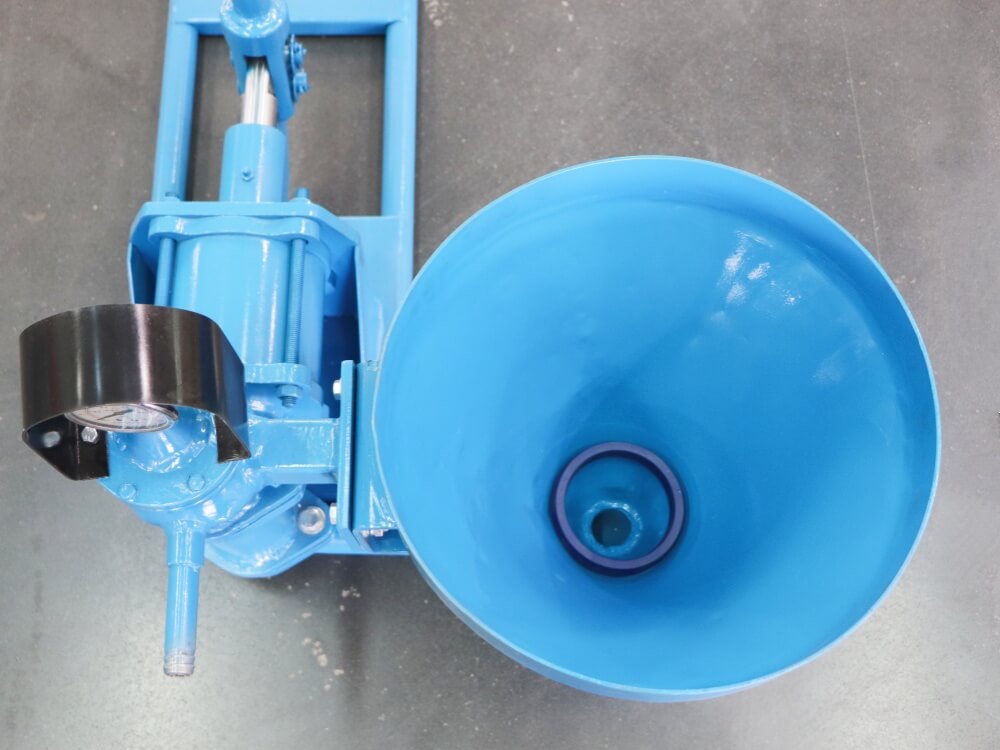

LHG Small Grout Pump

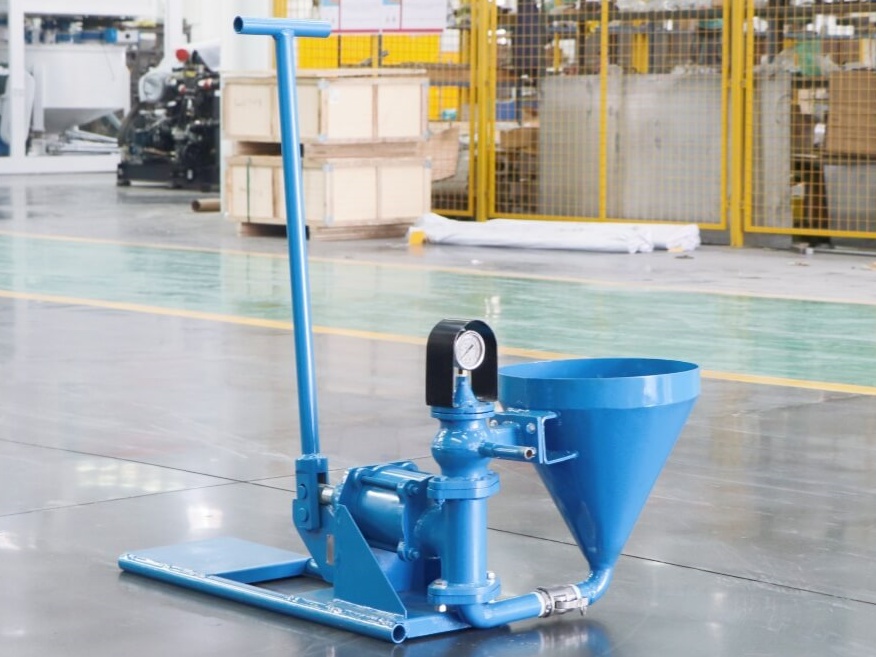

 Grout Pump

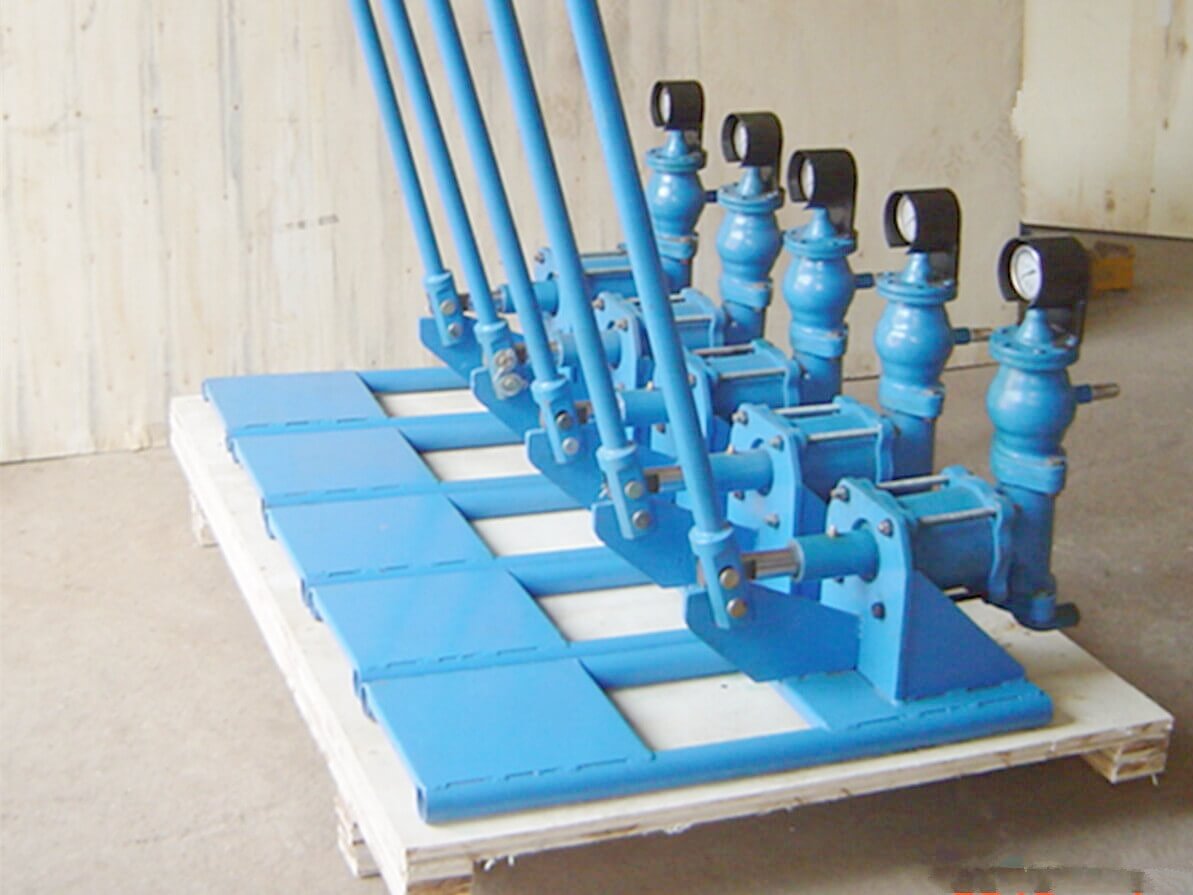

LHG-10 Small Grout Pump

■Technical Parameters

Technical Data:


Rated output 0-10L/min
Rated working pressure 10 bar
Cylinder diameter 110mm
Piston stroke 40mm
Inlet dia. 32mm
Outlet dia. 19mm
Dimension 980*290*590mm
Weight 40kg
Chassis Skid
