1. Construction Grouting

Preparation and delivery of compatible cement slurry for civil engineering filling tasks.

2. Tunnel Backfill and Void Filling

Supplying grout to selected gaps and cavities within the plant’s pressure and output capabilities.

3. Localized Cavity Filling

Mixing and pumping suitable slurry into accessible voids.

4. Low-Strength Backfill Projects

Handling compatible cementitious mixtures used in low-strength filling applications.

5. Onshore and Offshore Filling Operations

Supporting slurry preparation and delivery where suitable hydraulic power and site arrangements are available.

► Features:

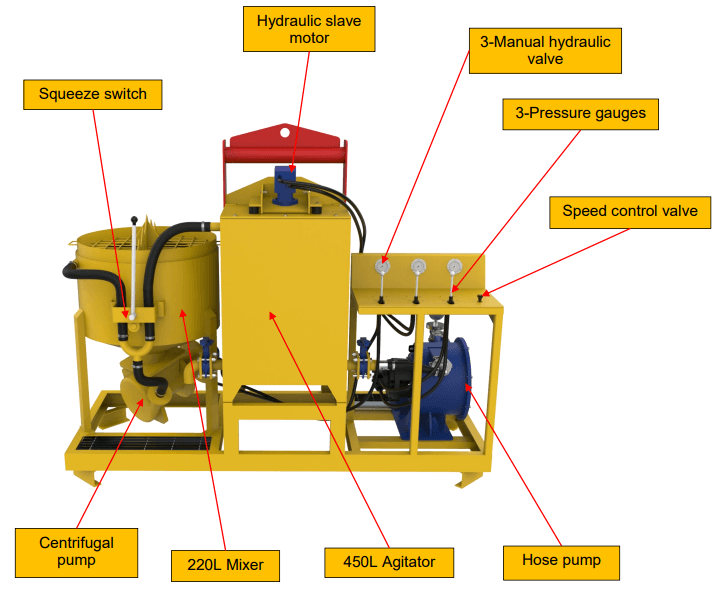

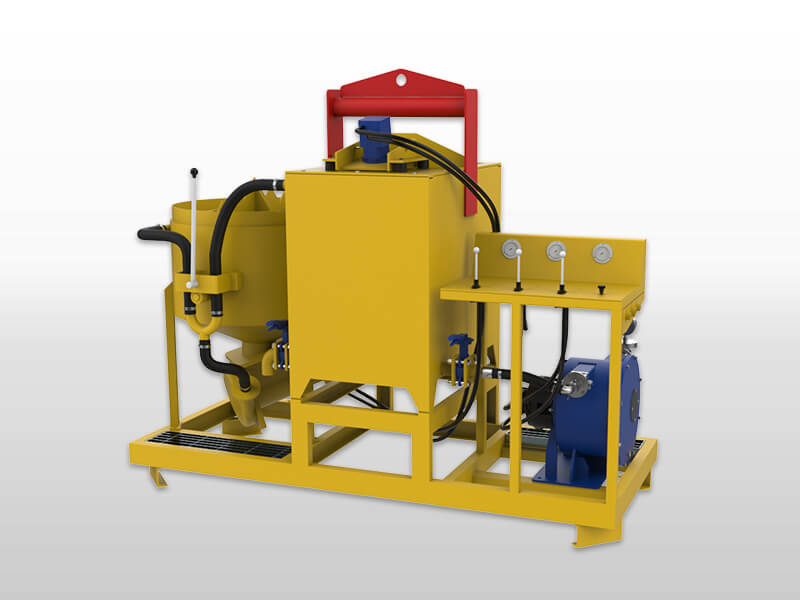

1. Three Functions in One Unit

Combines slurry mixing, holding agitation and pumping to simplify site equipment arrangement.

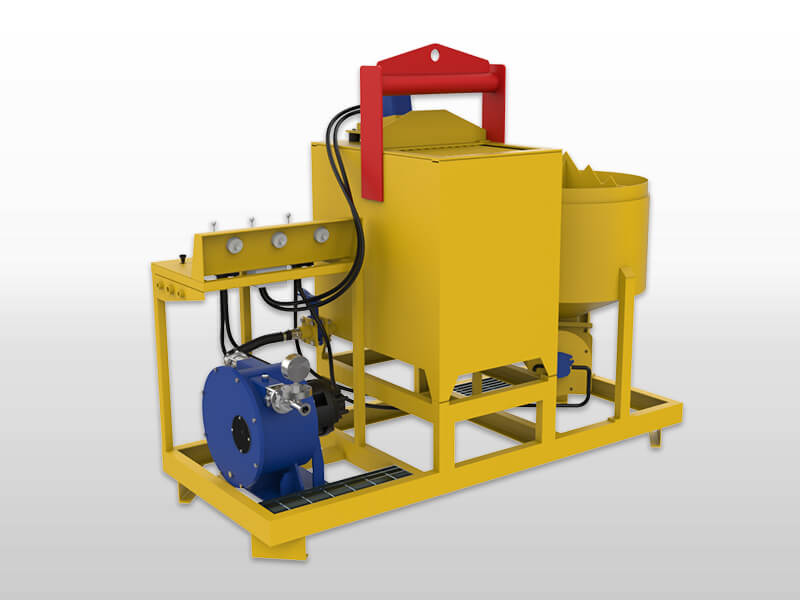

2. Hydraulic Drive System

Uses an external hydraulic power source, eliminating the need for an electrical connection to drive the plant.

3. 220 L Recirculation Mixer

Centrifugal-pump circulation blends water, cement and suitable additives before slurry transfer.

4. 450 L Agitator Capacity

Holds prepared slurry and maintains movement to help reduce settling before pumping.

5. Separate Batch Preparation and Delivery

Allows another batch to be mixed while previously prepared slurry is held in the agitator for pumping.

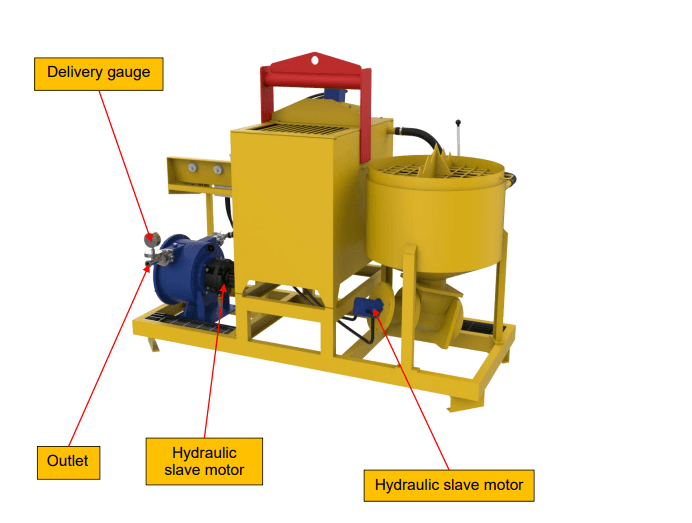

6. Integrated Hose Pump

Provides a specified output of 19–38 L/min and a pressure specification of 14 bar.

7. Accessible Operating Controls

Manual hydraulic valves, pressure gauges and a speed control valve support adjustment and monitoring.

8. Application-Based Customization

Equipment configuration can be reviewed to suit material properties and site requirements.
