LRM Pan mixer for refractory

  • Item: LRM250
  • Mixing capacity: 250kg
  • Rotating speed: 34rpm
  • Motor Power: 7.5kw
  • Feeding Height: 1200mm
  • Dimensions (mm): 1480x1380x1230

  • high quality refractory pan mixer
  • refractory pan mixer
  • pan mixer for refractory
  • refractory pan mixer for sale
  • 100kg refractory pan mixer
  • refractory pan mixer
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service









Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

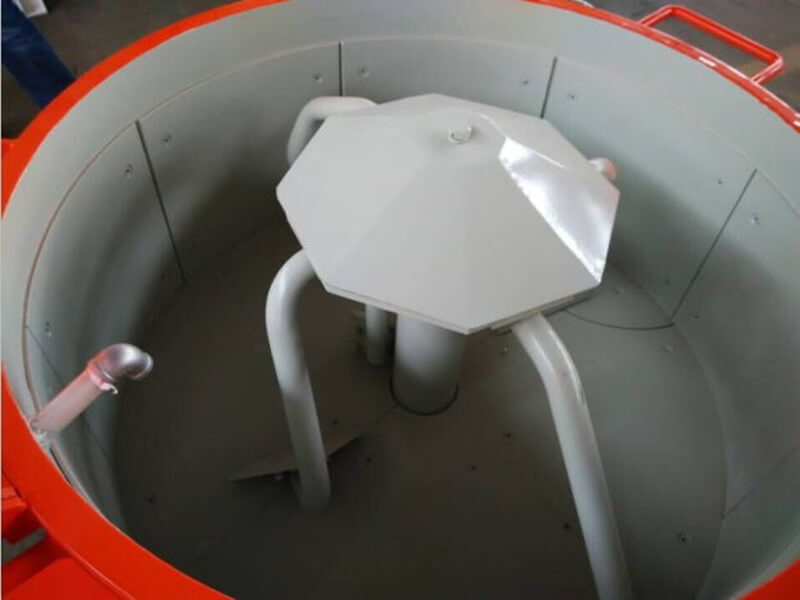

LRM High quality pan mixer for refractory is used to mix raw materials. Get material in a pan, blenasonable, beautiful appearance, simple operation and fully mixed, thus improve mixing. Using a novel rotor structure, the minimum gap between the rotor and housing can adjust close to zero, effectively reduce the residual material. Boiler plate lined with polypropylene or stainless steel, so it is not easy to stick materials, wear-resistant, using cycloid motor is compact, easy to operate, stirring, convenient unloading conveyor and so on. The overall structure is more reintenance.

LRM refractory pan mixer all the work body fixed on the rack. The frame is made of high quality carbon steel, channel steel welded together. And adopt strict product certification and the specific technical requirements to achieve the purpose of use.

300kg refractory pan mixer


high quality refractory pan mixer  manufacturer


LRM High quality refractory pan mixer is used for mixing refractory materials, friction materials, chemical matrials, precast concrete, mortar, aggregrate mixing and glass materials etc.

refractory pan mixer for mixing refractory materials


refractory pan mixer for refractory castble materials



1. Pan mixer;

2. High quality refractory pan mixer is fast mixing speed and homogenous;

3. Comfortable feeding height;

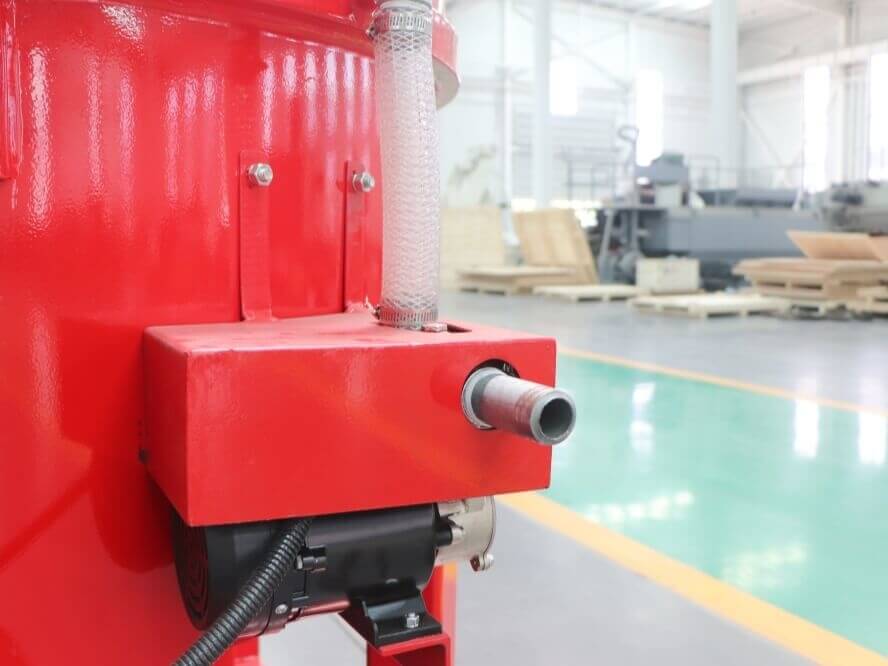

4. Water spray nozzles;

5. This refractory mixer is special designed for site operation;

6. Compact structure;

7. Easy to move;

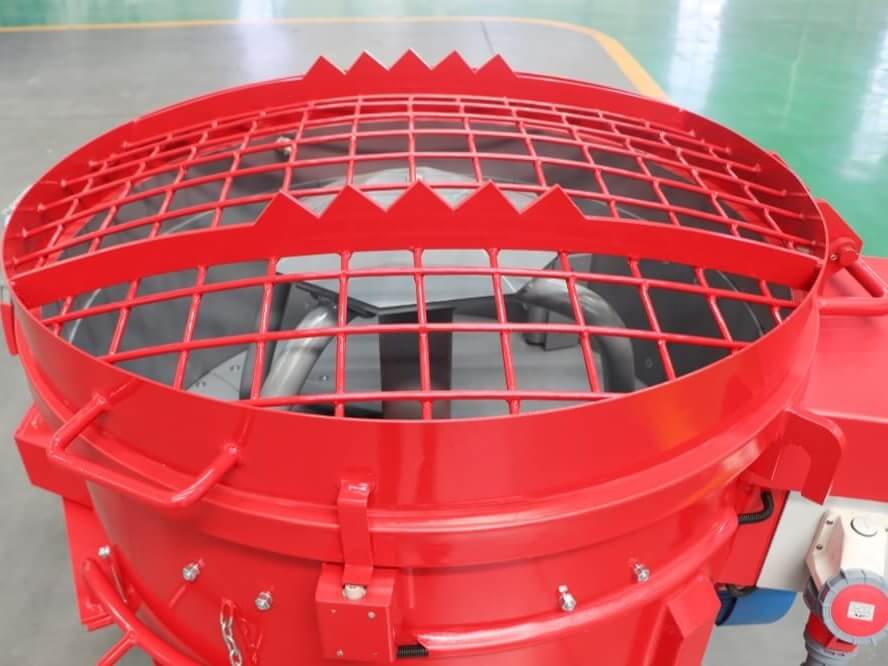

8. With bag breaker;

9. Refractory pan mixer is low maintenance cost.

Safety Feature:

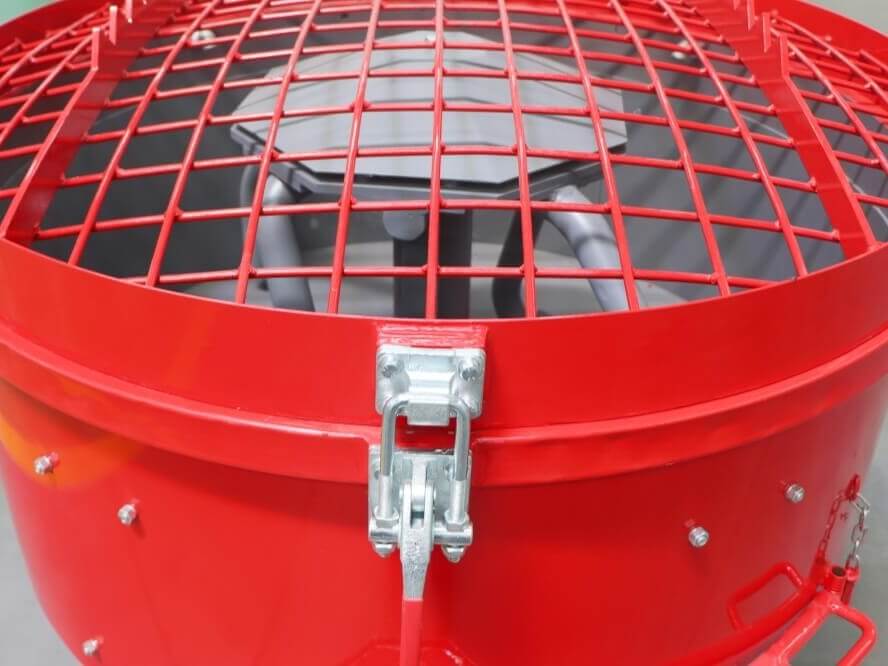

If the top lid door is opened in between the operation, machine can stop automatically. Because there is a relay between the top lid door and the hopper, once the top lid is opened, the power will cut off automatically and confirm the safety for operator.

■Product Details

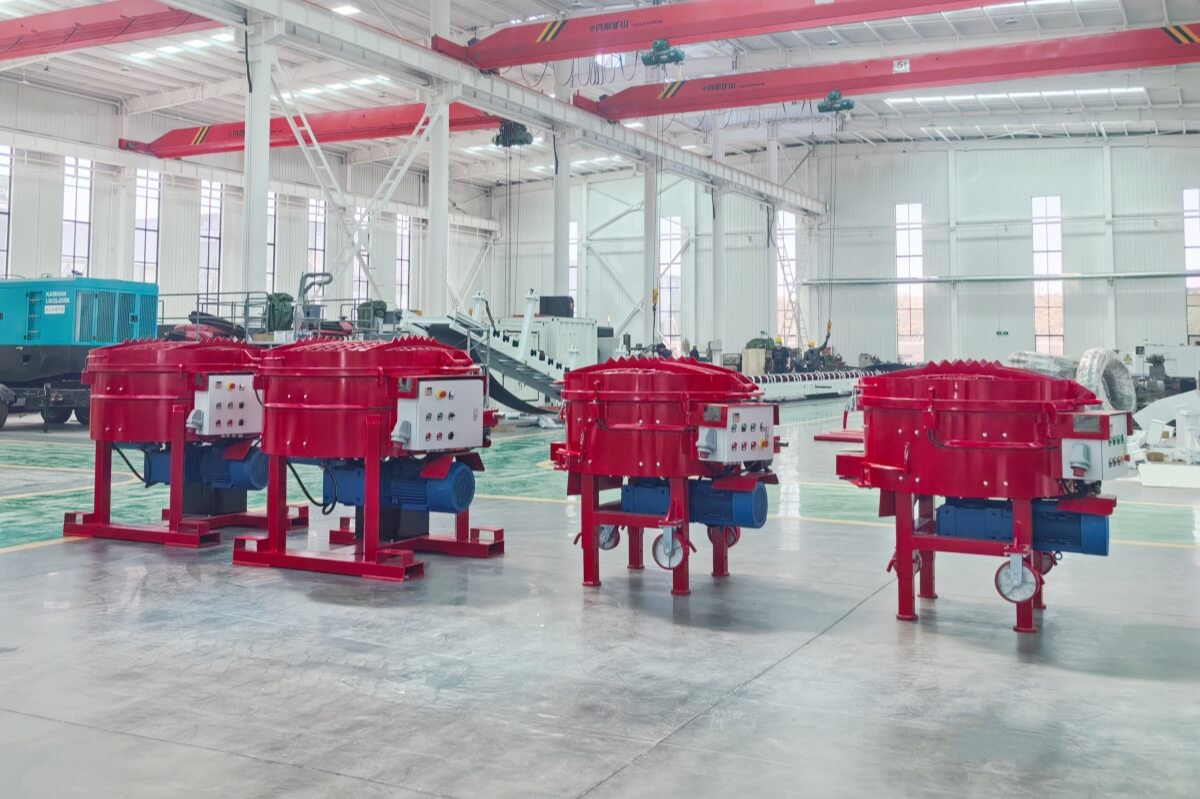

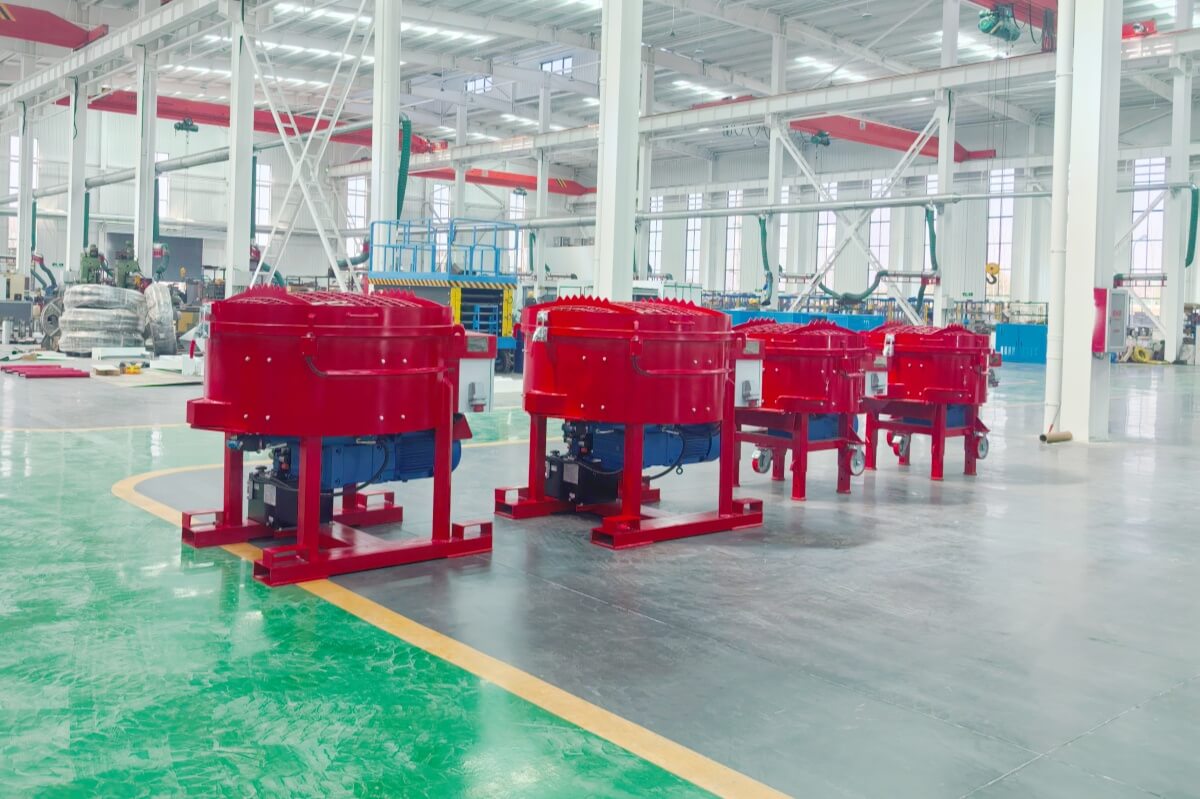

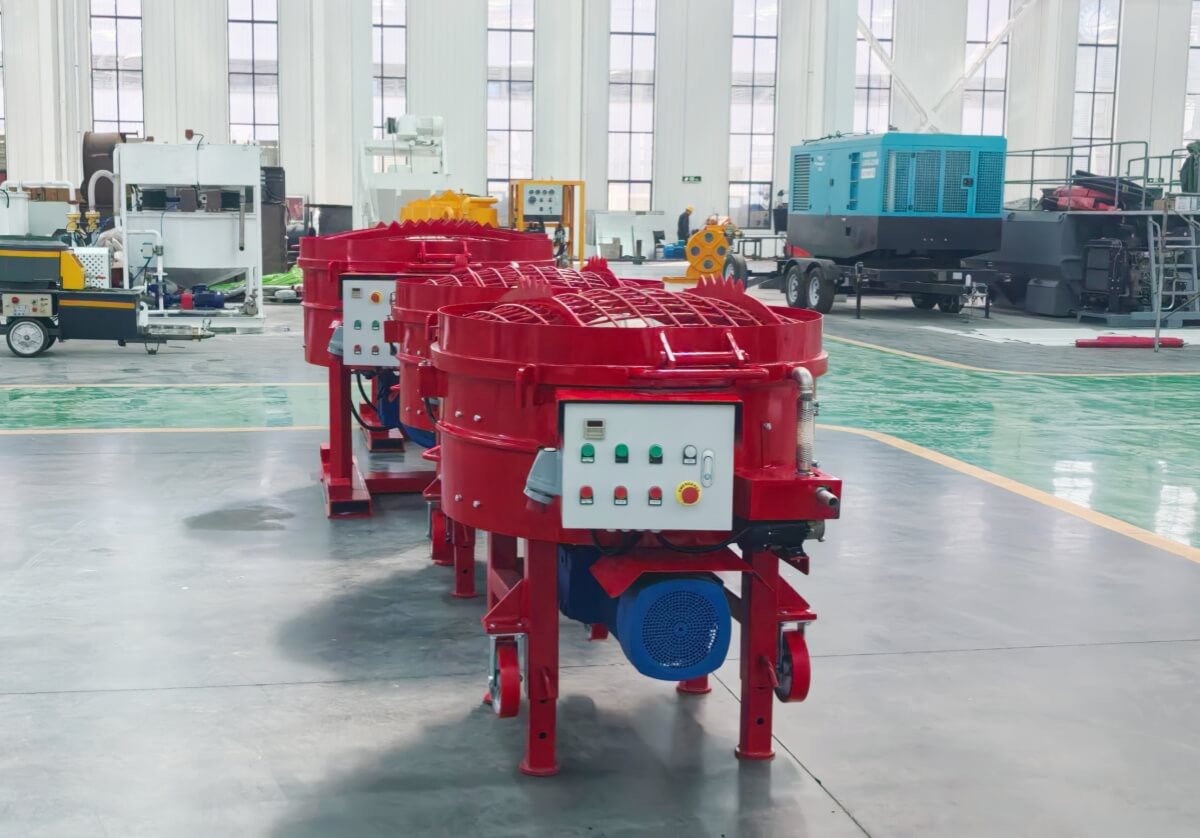

refractory pan mixer

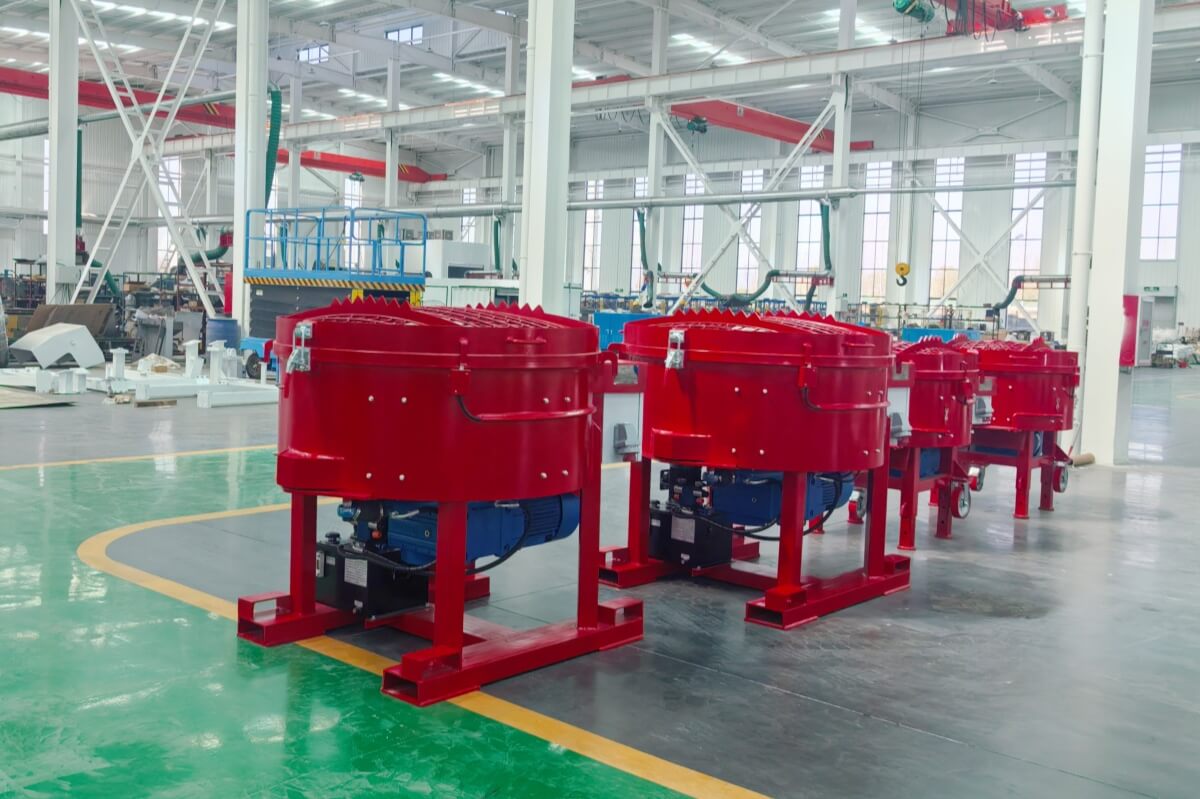

High quality refractory pan mixer

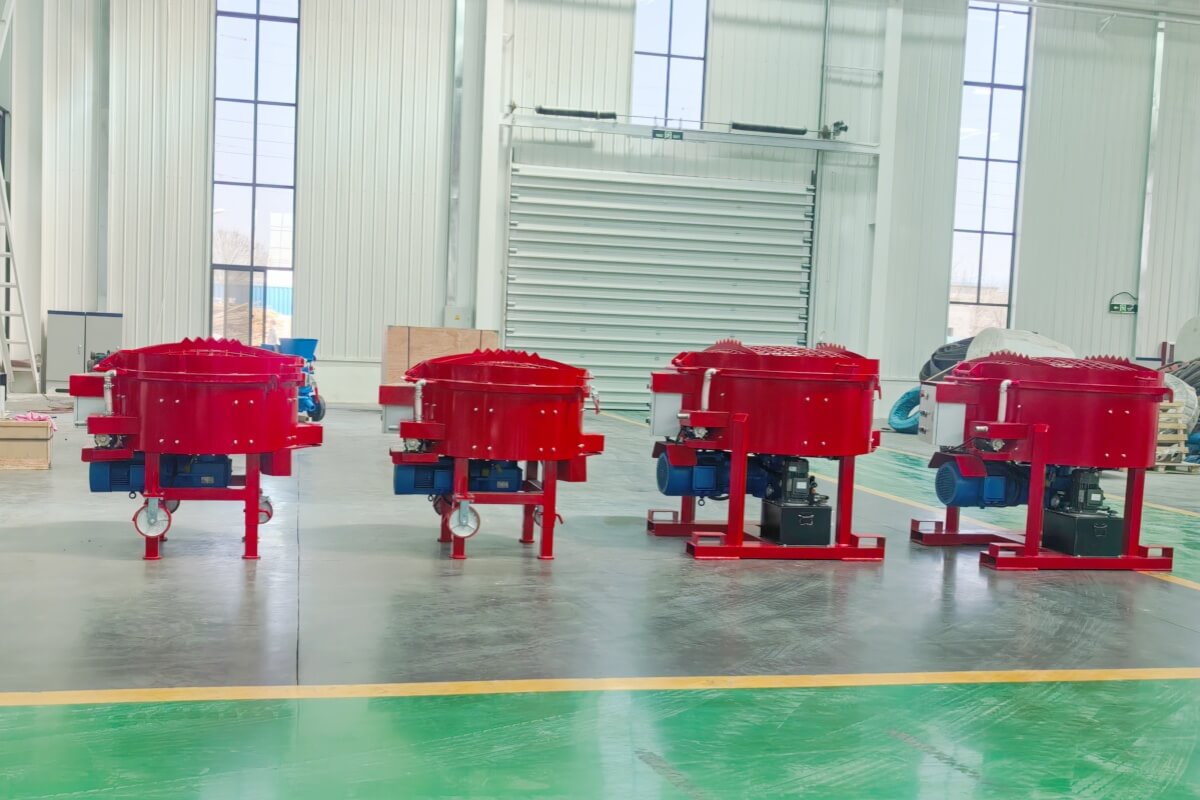

refractory pan mixer

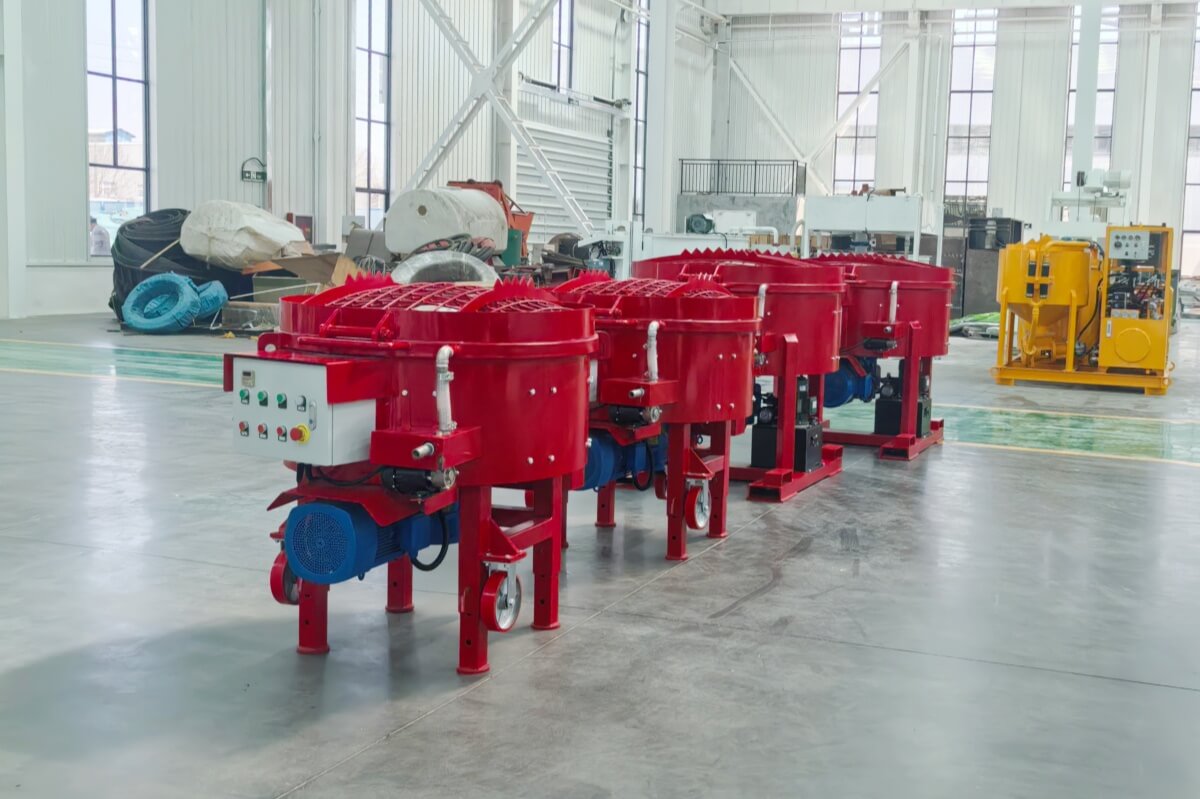

Refractory pan mixer

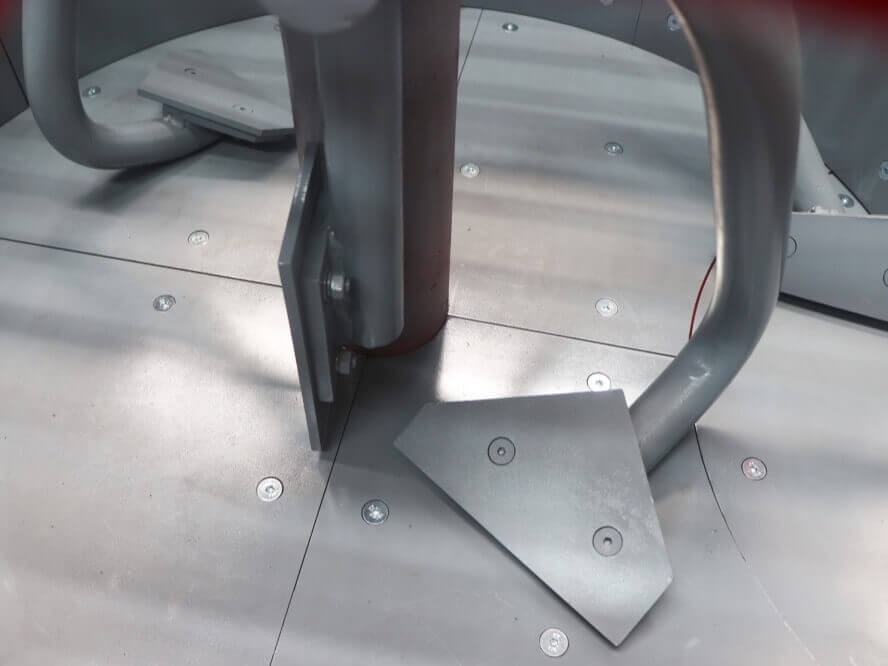

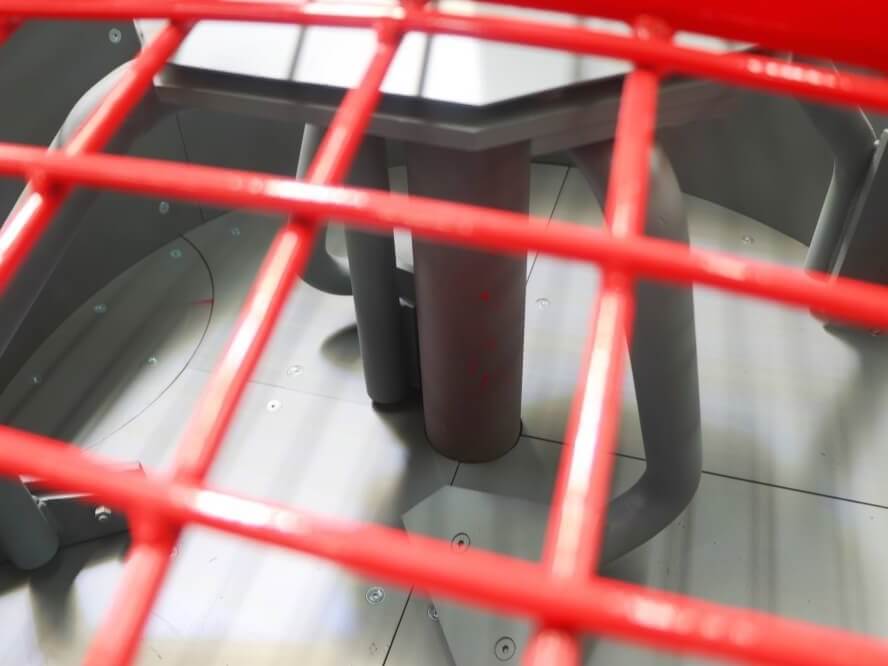

refractory pan mixer mixing blade

Refractory pan mixer mixing blade

■Technical Parameters
Item LRM100 LRM250 LRM500
Mixing capacity  100kg  250kg  500kg
Rotating speed  33rpm  34rpm  36rpm
 Motor Power  4kw  7.5kw  11kw
 Feeding Height  1100mm  1200mm  1300mm
 Dimensions (mm)  1400x1300x1100  1480x1380x1230   1700x1250x1350
 Weight  550kg  650kg  1010kg
 Note: Technical data may change due to technical progress, subject to modification without notice.
