LZ-5 Dry Mix Gunite Machine

  • Rated Output:5 (m3/h)
  • Motor Power:5.5(KW)
  • Max. Horizontal Conveying Distance:200(m)
  • Suitable Mix Ratio:≤ 1.3~5
  • Water Cement Ratio:< 0.4
  • Max. Aggregate Size:Φ15 (mm)

  • concrete shotcrete machine
  • gunite machine
  • dry mix shotcrete
  • diesel engine shotcrete machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LZ-5 dry mix gunite machine is medium-sized shotcrete machine for the processing of dry mix. And it is widely used by so many contractors. LZ-5 gunite machine is available in following versions:
• Air motor driver or diesel drive combined with skid or rail-wheel.
• Basic: Electric drive can be combined with tyre chassis.
• Extended (optional): Electric motor drive with variable speed gearbox, air motor drive or diesel drive combined with Skid or Rail-wheel.

 Application:

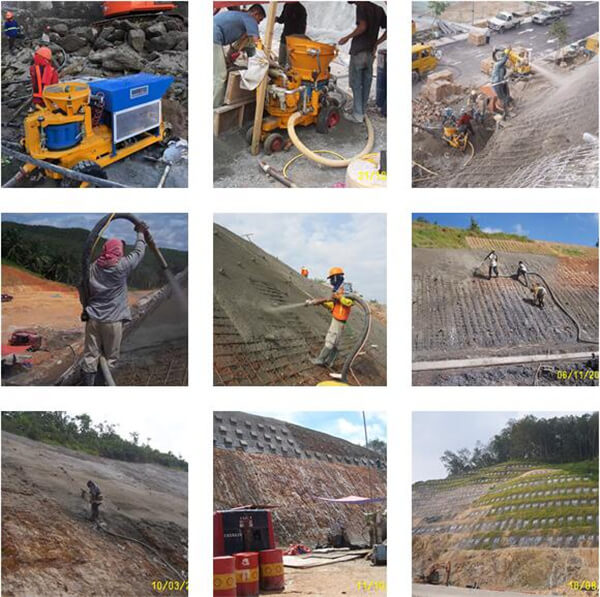

LZ-5 dry gunite machine can be used for tunneling, mining operations, hydropower projects and hillside protection, etc.

 Features:

♦ Non-adhesion going-through rotor with new material chamber, completely eliminate bonding and blocking during operation so as to reduce clearance and maintenance period.
♦ Thin flow conveying method with vortex flow, so the spraying flow is even, continuous and steady, to improve the shotcrete quality.

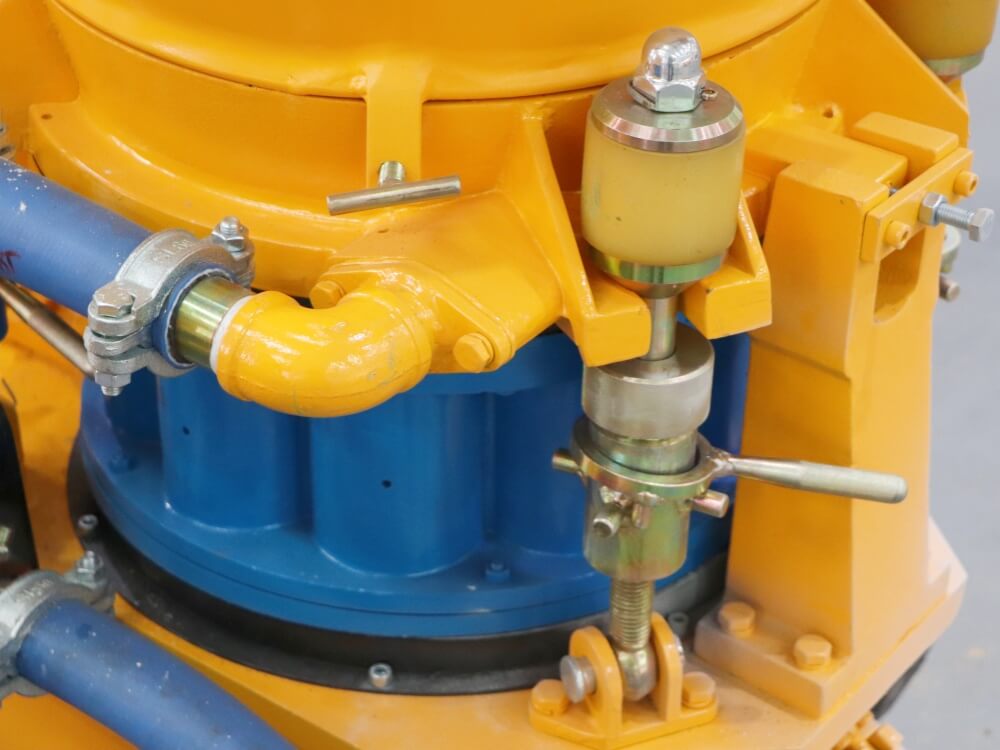

♦ Four-point clamping device make it easy to adjust the press between sealing plate and rotor disk so as to no air and dusk leak and prolong consumption parts life.
■Product Details

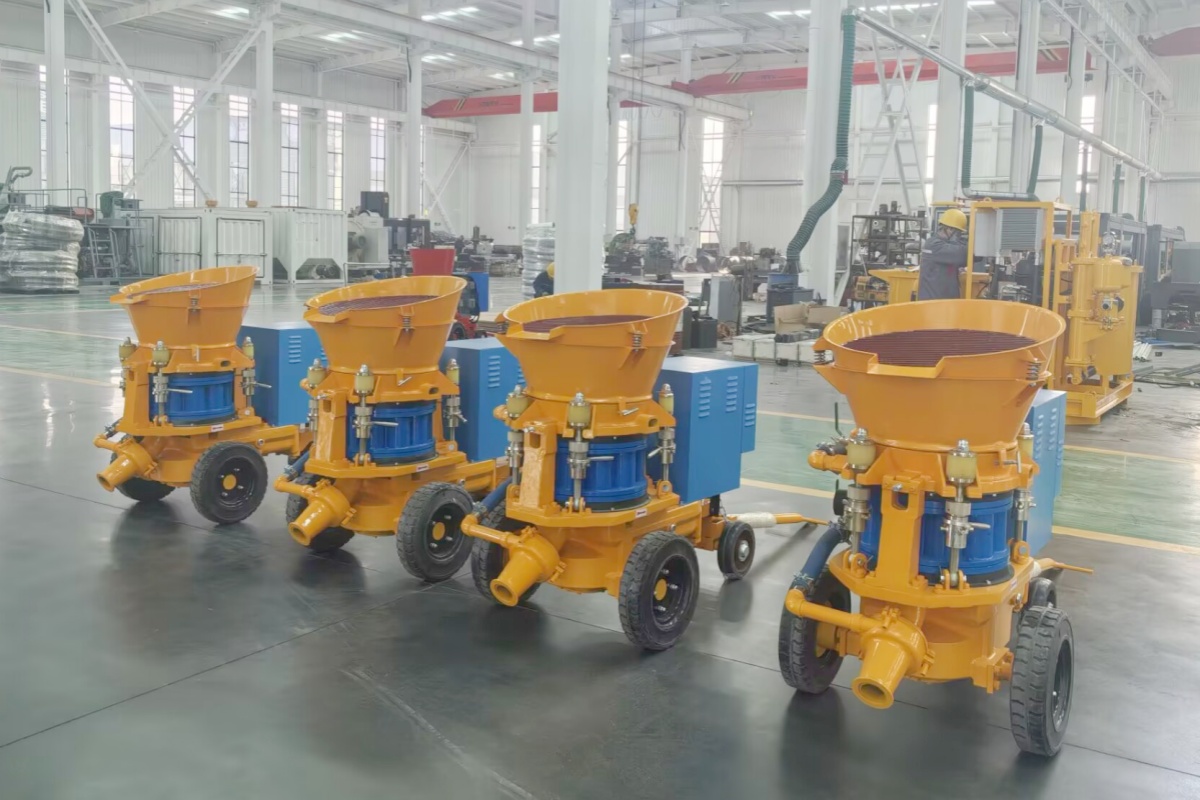

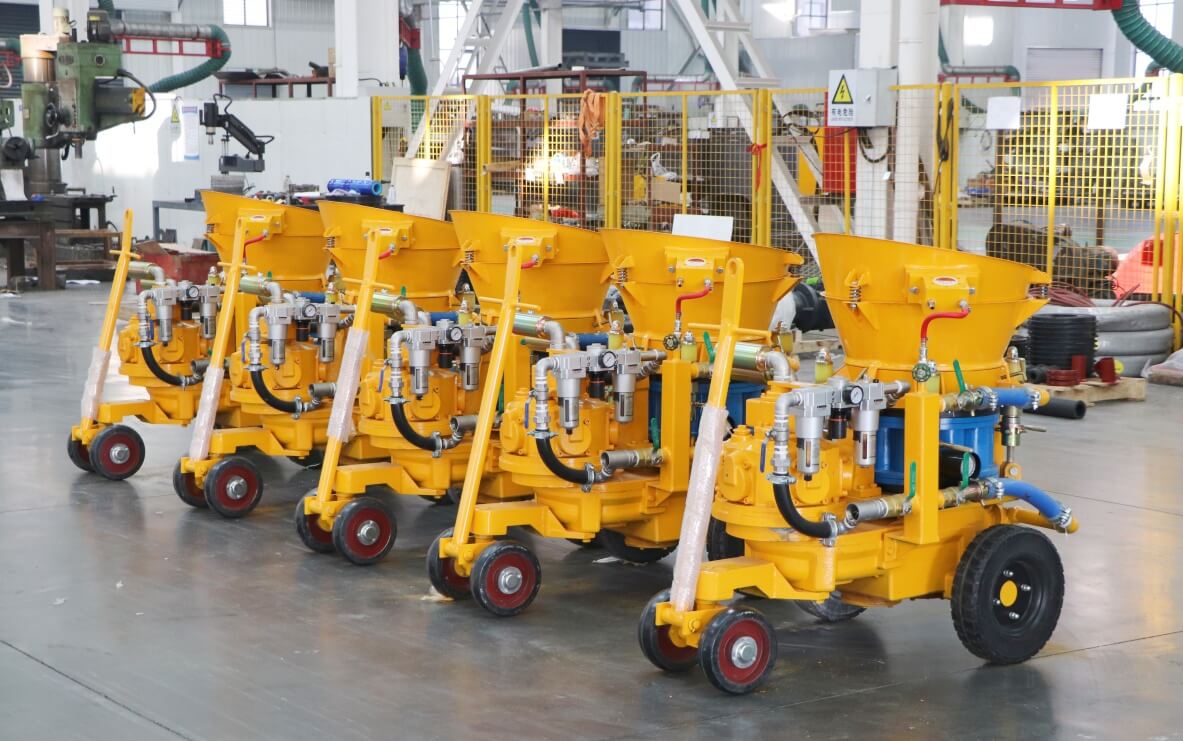

dry-mix-shotcrete-machine

Dry-Mix Shotcrete Machine

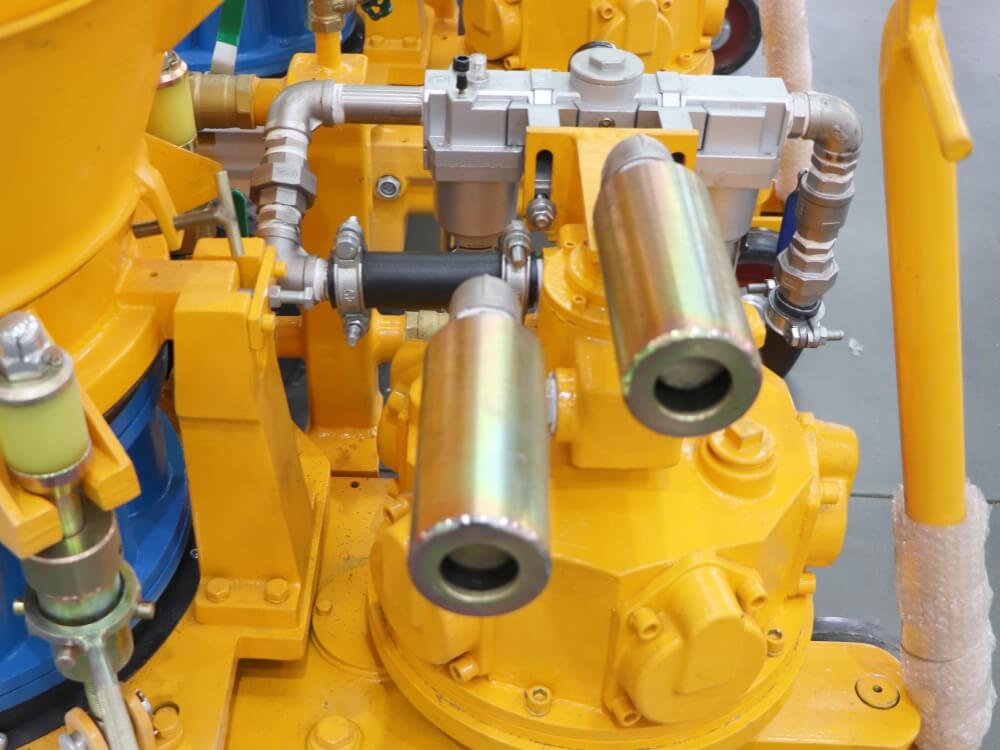

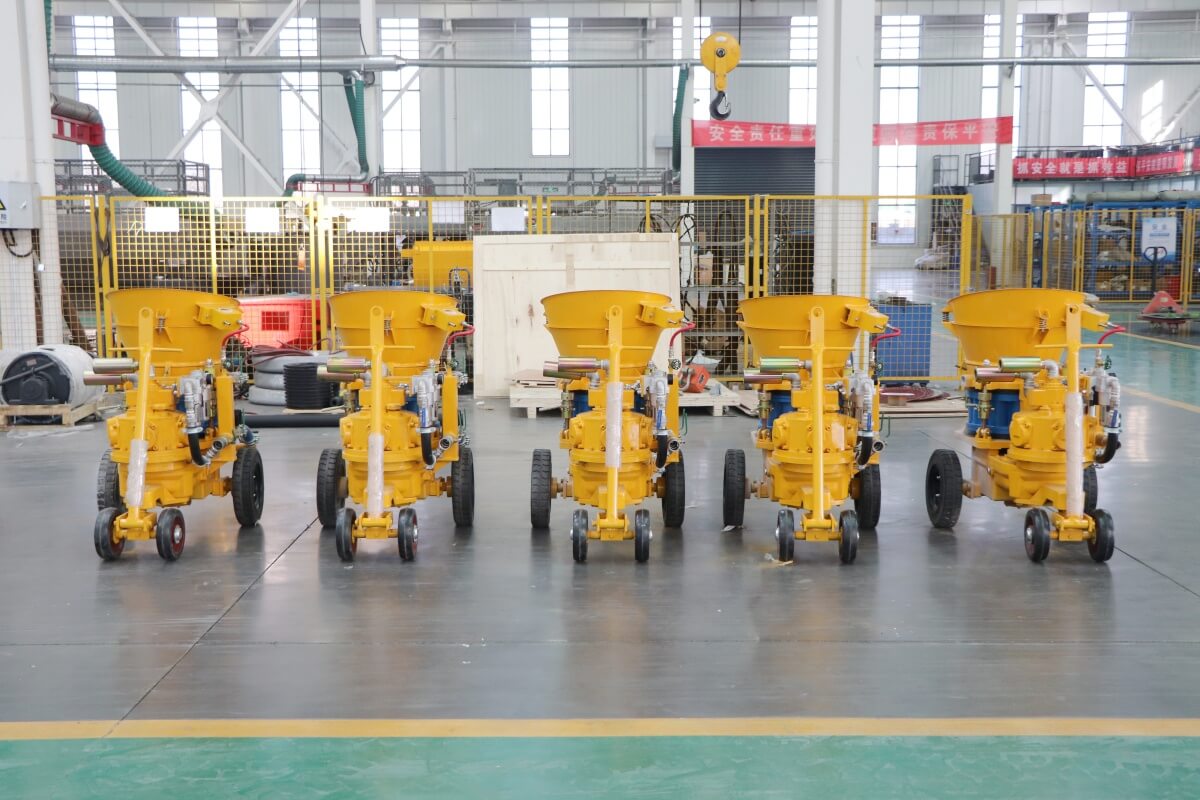

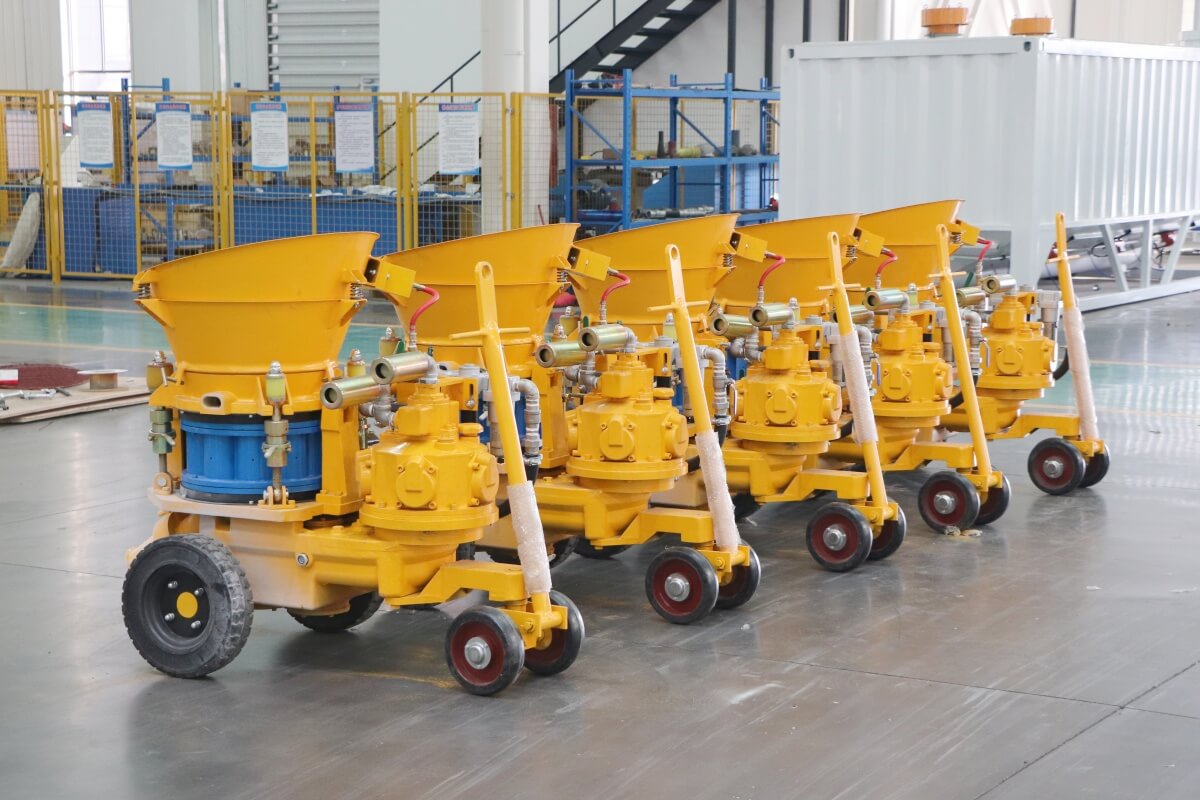

Air Motor

Air Motor

Diesel Engine

Diesel Engine

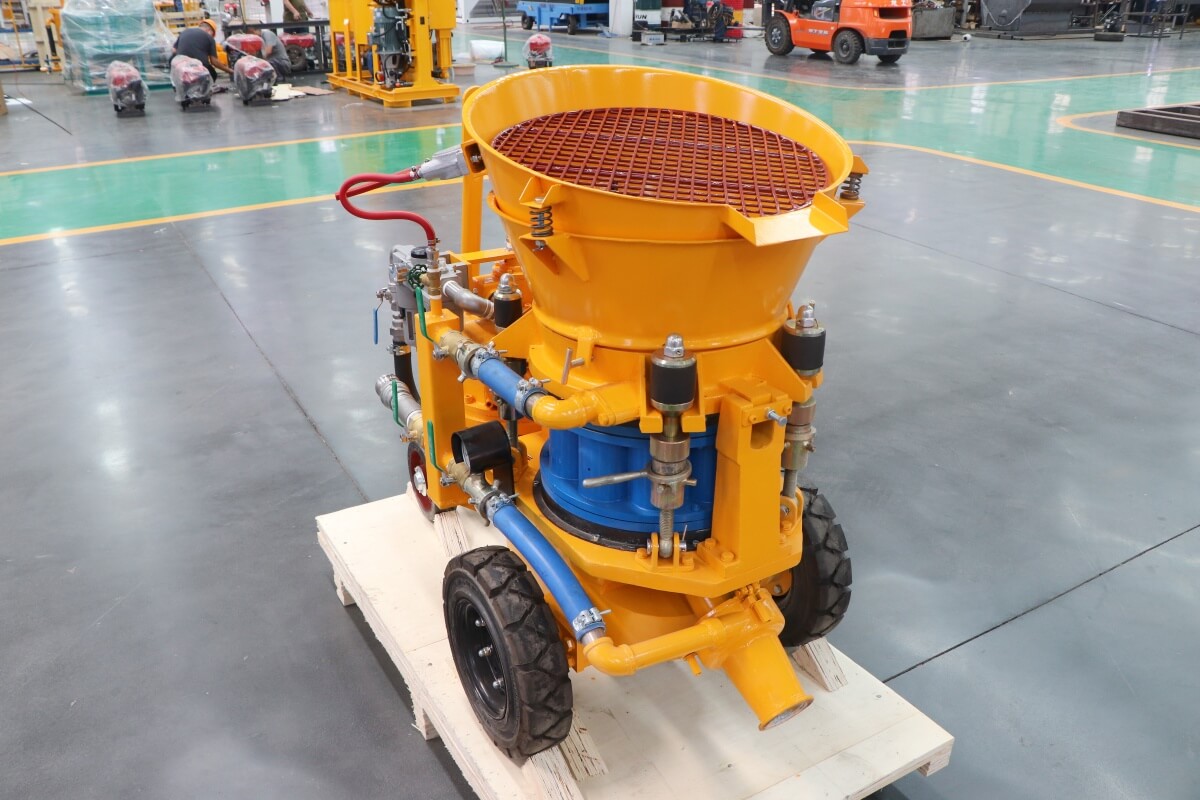

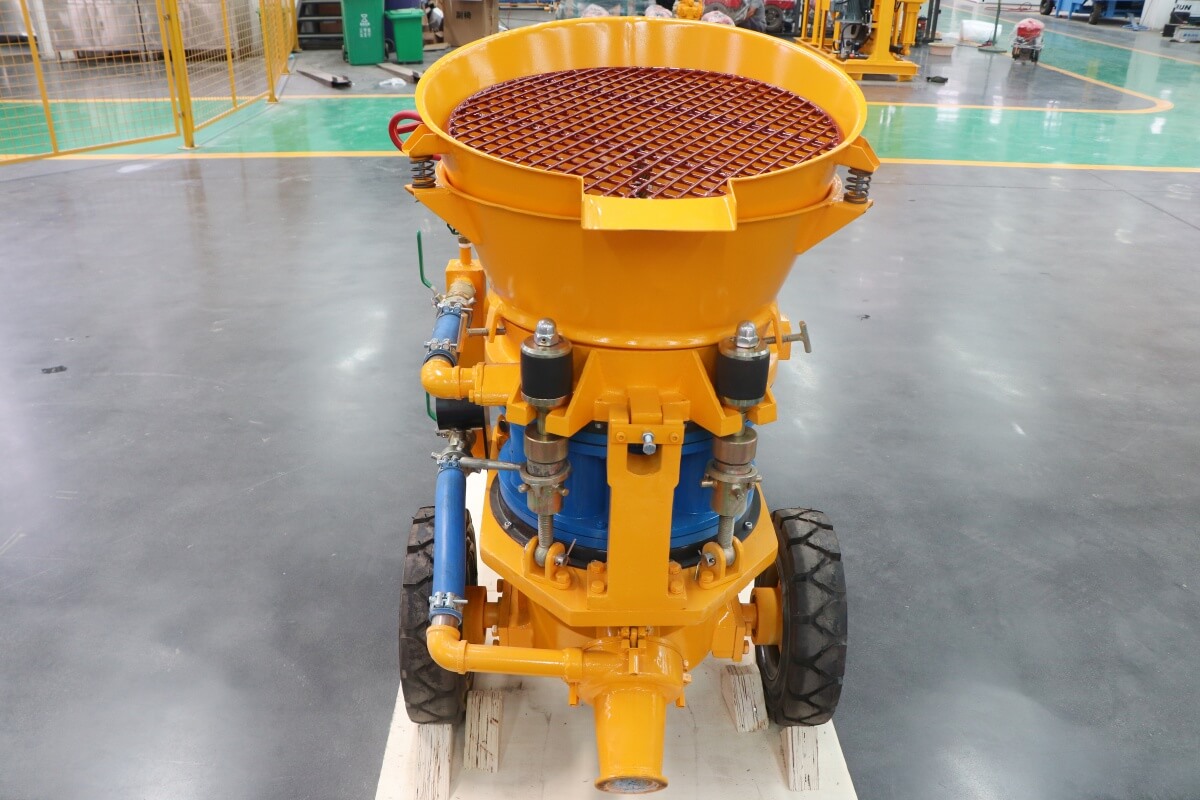

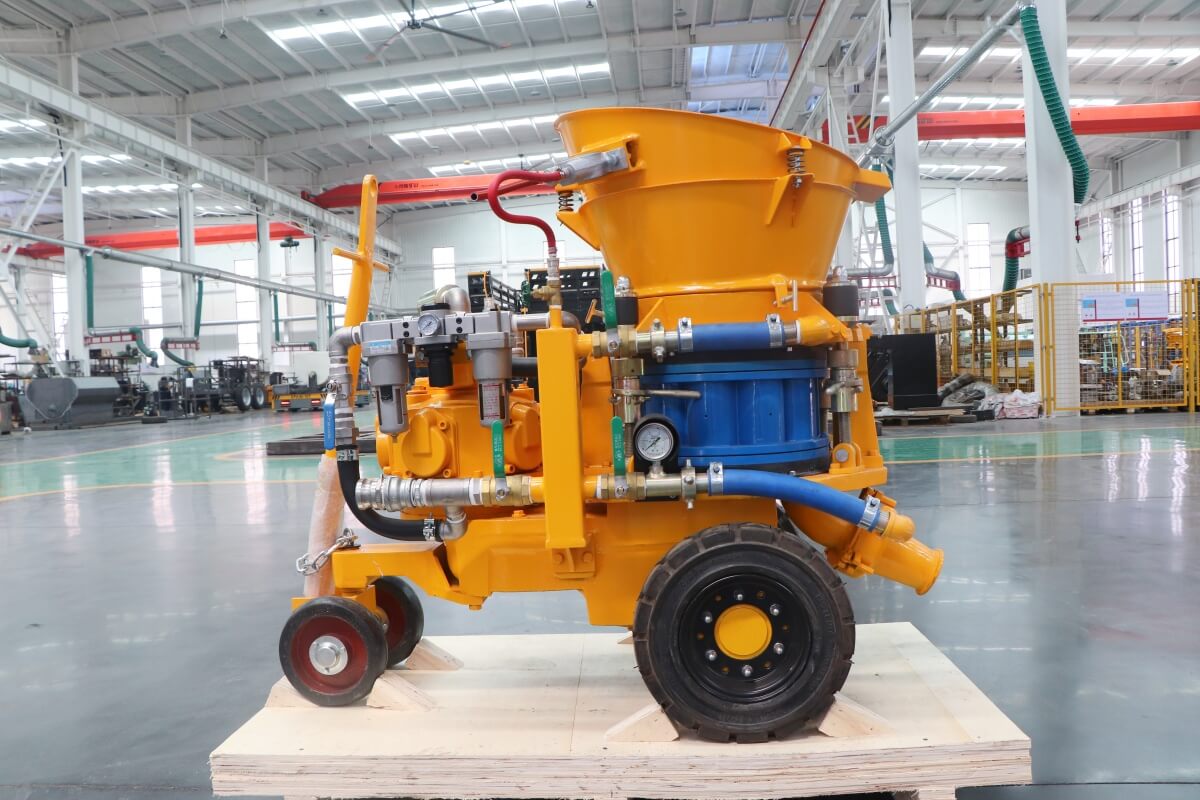

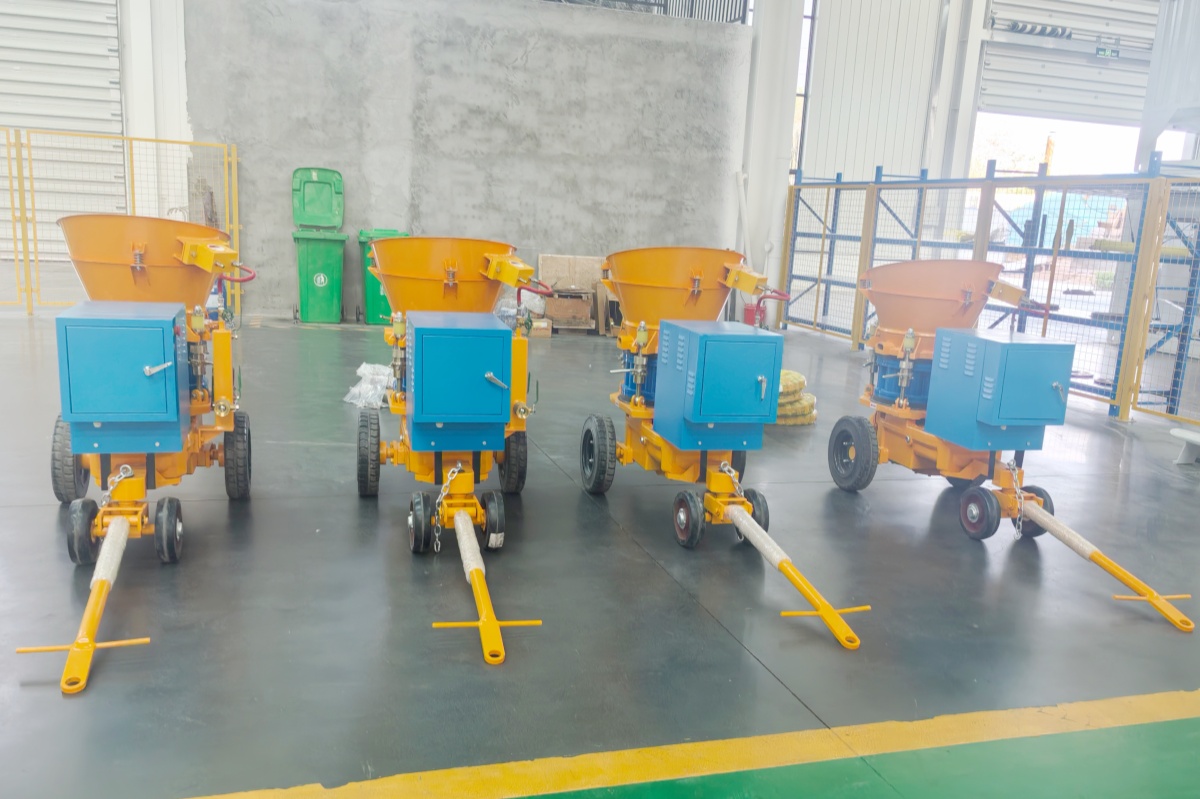

Dry-Mix Gunite Machine LZ-5

Dry-Mix Gunite Machine LZ-5

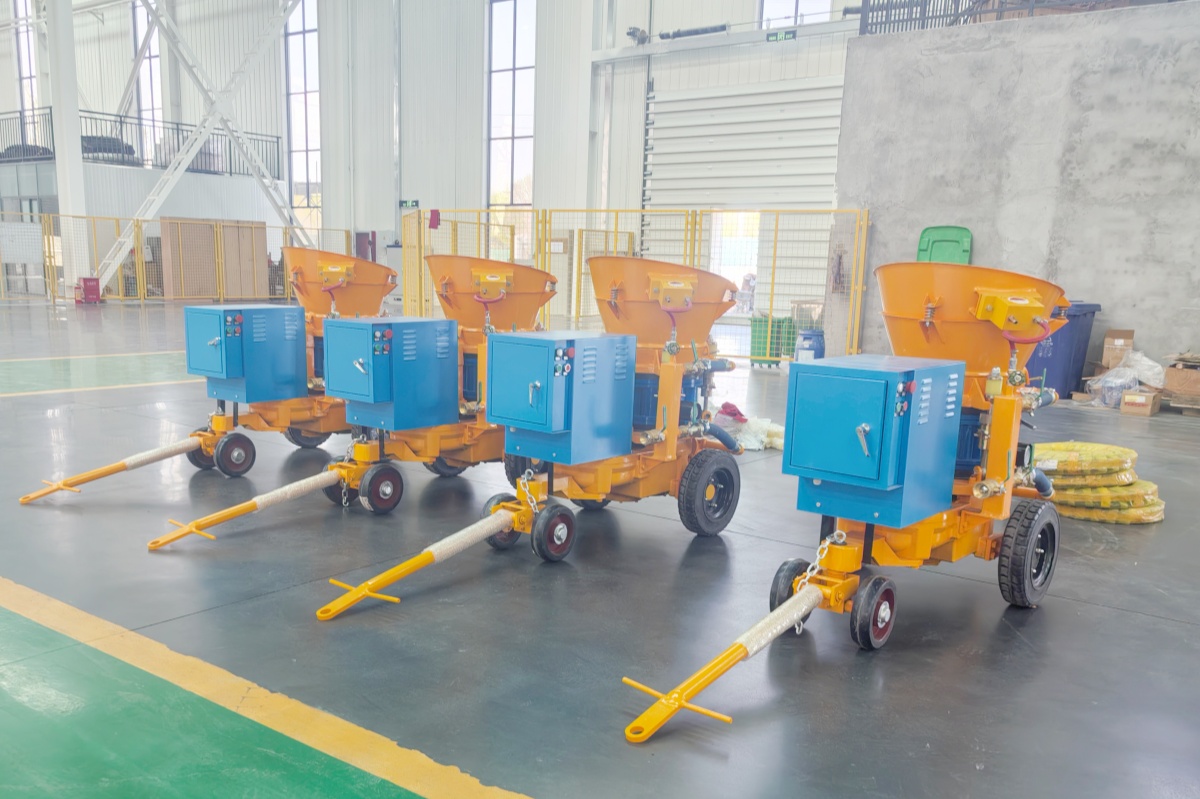

WEG Electric Motor

WEG Electric Motor

dry-mix-shotcrete-machine-spare parts

shotcrete-machine-spare parts

■Technical Parameters
iconElectric motor drive dry mix gunite machine:

Rated Output 5m3 /h
Max. Horizontal Conveying Distance 200m
Suitable Mix Ratio(Cement/Sand) ≤ 1.3~5
Water Cement Ratio < 0.4
Max. Aggregate Size Φ 15 mm
Conveying Hose Inner Diameter 51mm
Operating air Pressure 0.2-0.4MPa(29-58PSI)
Air Consumption 8~9m 3 /min(285-325CFM)
Motor Power 5.5kW(7.5hp)
Voltage 220V, 380V, 440V, 660V, 50Hz/60Hz
Material Charging Height 1.1m
Rotor Speed 11r/min
Overall Dimension(L× W× H) 1.35× 0.75× 1.2m
Net Weight 720kg


iconAir motor drive dry mix gunite machine:

Output Capacity 2.5-5.5m3/h
Max. Horizontal Conveying Distance 200m
Suitable Mix Ratio(Cement/Sand) ≤1:3~5
Max. Aggregate Size Φ15 mm
Conveying Hose Inner Diameter Φ51 mm
Conveying Pressure 0.2-0.4MPa
Air Consumption for conveying material 7~8m3/min
Air Motor Air Pressure 0.5MPa
Material Charging Height 1.1m
Rotor Speed 11rpm
Air Motor Type TMH6A
Air Motor Air Consumption 7.5m3/min
Overall Dimension(length×width×height) 1.35×0.75×1.2m
Net Weight 720kg


iconDiesel drive dry mix gunite machine:

Output Capacity 3-5.5m3/h
Max. Horizontal Conveying Distance 200m
Suitable Mix Ratio(Cement/Sand) ≤1:4~5
Water cement ratio <0.4
Max. Aggregate Size Dia.15 mm
Conveying Hose Inner Diameter Dia.51 mm
Operating air Pressure 0.2-0.4MPa(29-58PSI)
Air Consumption 9m3/min(325CFM)
Material Charging Height 1.1m
Rotor Speed 11r/min
Diesel Type CF1105M
Power 13kw/18hp
Overall Dimension(L× W× H) 2.2×0.96×1.2m
Net Weight 850kg
