LGP400/700/100PL-D Grout Station/Plant

  • Diesel engine:25kw/36HP
  • Rotating speed of engine:2200r/min
  • Dimensions:2900*1900*1750mm
  • Weight:1900kg

  • Grout Station
  • cement grout plant
  • full hydraulic grout pump
  • high pressure grout pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

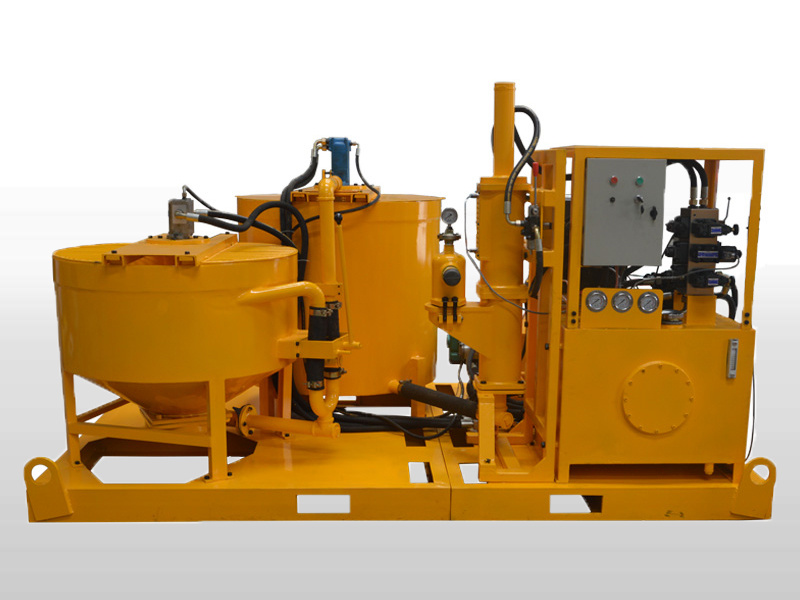

The LGP400/700/100PL-D grout station is combination of mixer, agitator and hydraulic plunger grout pump in one plant. Diesel grout pump plant mainly is suitable for mixing and pumping water, cement, sand, bentonite, filler, clay power, silicates and other additives.

 Application:
1. Civil Engineering - dam foundations, tunnels, mining, soil nails, tiebacks, earth anchors, cable and rock bolts
2. Structural – building and bridge restoration, foundation stabilization, foundation raising, soil compaction grouting; soil & rock grouting
3. Construction - pavement under sealing, slab jacking and slab raising

4. Marine - underwater foundations, piers, breakers, shoreline foundations
5. Mining - tunnel lining, contact grouting, shaft waterproofing

6. Utilities - encasements, waterproofing, slope line grouting

7. Geotechnical - deep well casing, monitor wells, well sealing and abandonment


 Features:

1. Compact size, It is combination of mixer, agitator and hydraulic plunger grout pump in one base frame;

2. Have low pressure and high pressure, stepless speed regulation;

3. Yuken relief valve and directional valve for hydraulic system of grout pump;

4. Butterfly valve of mixer and agitator;

5. Oil temperature gauge can automatically control cooler fan working in normal temperature range, if temperature is too high, the machine will stop work automatically;

6. Full hydraulic drive, diesel engine;

7. Operation and maintenance are simple;

8. With ISO, CE certificate.

■Product Details
■Technical Parameters
Type LGP400/700/100PL-D Grout Station
Diesel engine 25kw/36HP
Rotating speed of engine 2200r/min
Dimensions 2900*1900*1750mm
Mixer
Capacity 400L
W/C ratio 0.5-1
Rated Rev. 1500rpm
Agitator
Volume 700L
Rated Rev. 36rpm
Pump
Type Hydraulic Plunger pump

Pressure and Output

25 Bar (low pressure)   100L/min
50 Bar (high pressure)  40L/min
