LGP250/700/75PI-E Compact Colloidal Grout Plant

  • Mixer Capacity: 250L
  • Agitator Capacity: 700L
  • Pump Output/Pressure: Low pressure:0-75L/min, 0-50bar
  • Pump Output/Pressure: High Pressure:0-40L/min, 0-100bar
  • Pump Power: 7.5KW
  • Recycling Pump: 1100L/min

  • Colloidal Grout Plant
  • Compact Colloidal Grout Plant
  • Compact Grout Plant for sale
  • grout mixer and agitator
  • Compact Colloidal Grout unit
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
  Description:

LGP250/700/75PI-E compact colloidal grout plant is a combination of mixer, agitator and grout pump in one base frame. High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into homogeneous slurry. Then the mixed slurry was delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations. The grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Compact size and it is easy to operate. It also takes up a small space.


 Application:
LGP250/700/75PI-E colloidal grout plant is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction.


 Features:

1. One and two-oil gear pump to get large output and high pressure in one pump.

2. Single piston and two-acting.

3. Vertical type pump with compact size.

4. Hydraulic drive.

5. Safely releasing pressure when pumping block.

6. Ball valve.

7. Up to 5mm particle size.

8. Low flow pressure surge system.

9. Lower charging material height for mixer.

10. High-speed colloidal grout mixer.

■Product Details

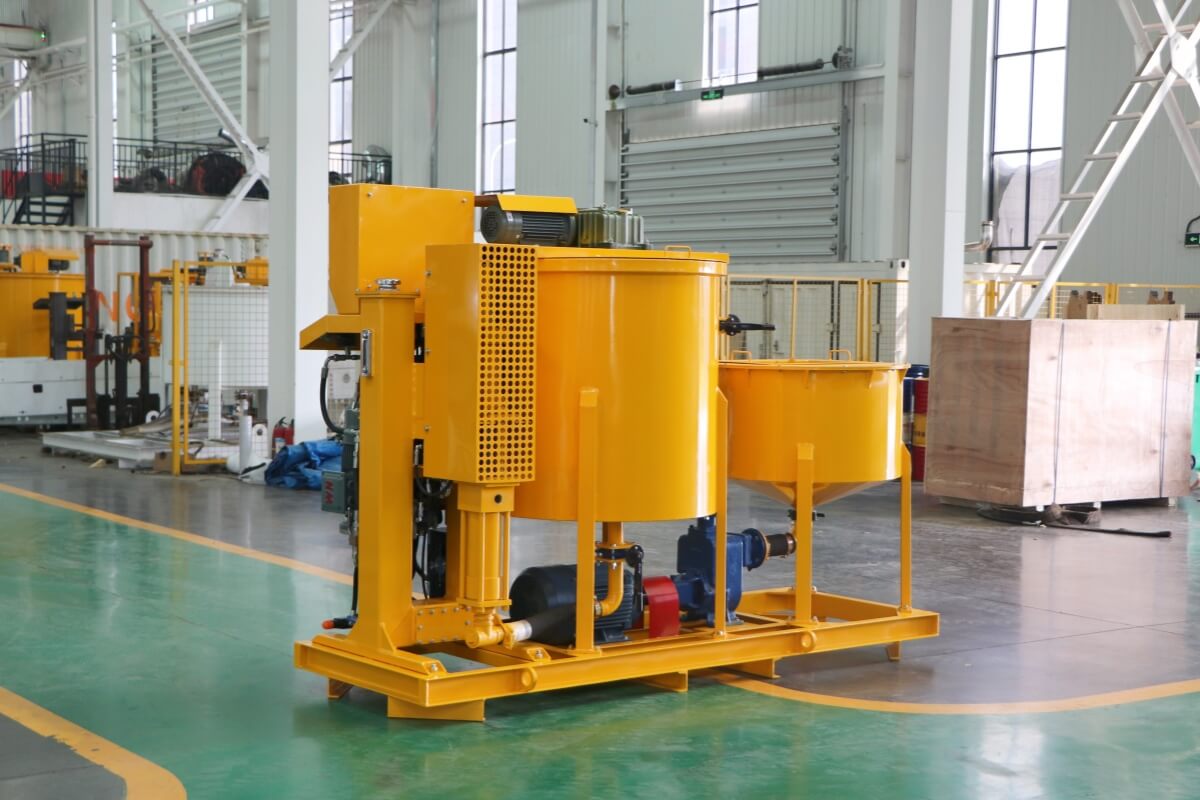

Colloidal Grout Plant

Colloidal Grout Plant

Recycling Pump Colloidal Grout Plant

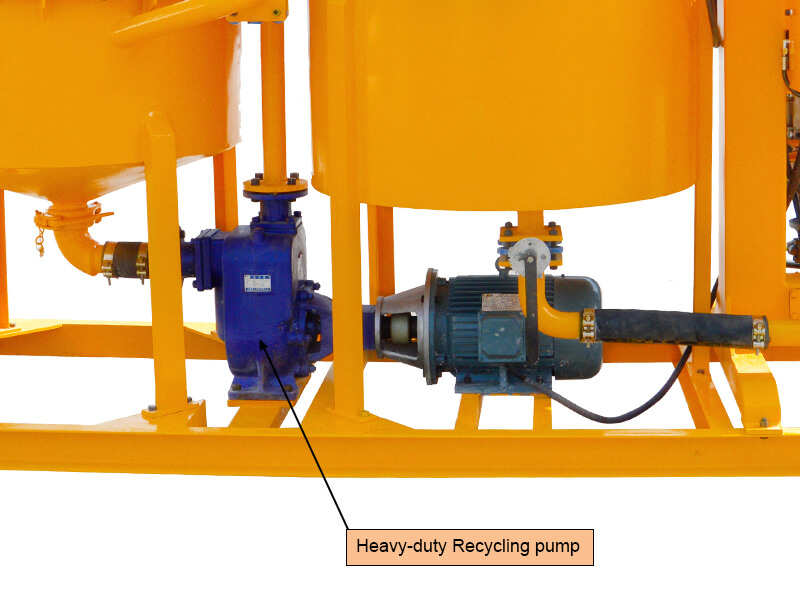

Heavy-Duty Recycling Pump

Compact Colloidal Grout Plant

Adjustable Pressure&Output

grout mixer and agitator

Low Pulse Flow Pump

■Technical Parameters
Description Data
Grout Station model LGP250/700/75PI-E Colloidal Grout Plant
Dimensions 2710*1100*1820mm
Weight 1060kg
Mixer
Capacity 250L
Recycling Pump 1100L/min
Suitable water/cement ratio ≥0.5:1
Motor Power 7.5Kw
Rated Rev. 1450rpm
Agitator
Capacity 700L
Motor model 1.5KW
Rated Rev. 36rpm
Pump(vertical compact hydraulic grout pump, two oil gearbox)
Output/Pressure

Low pressure:0-75L/min, 0-50bar
High Pressure:0-40L/min, 0-100bar

Power 7.5KW
