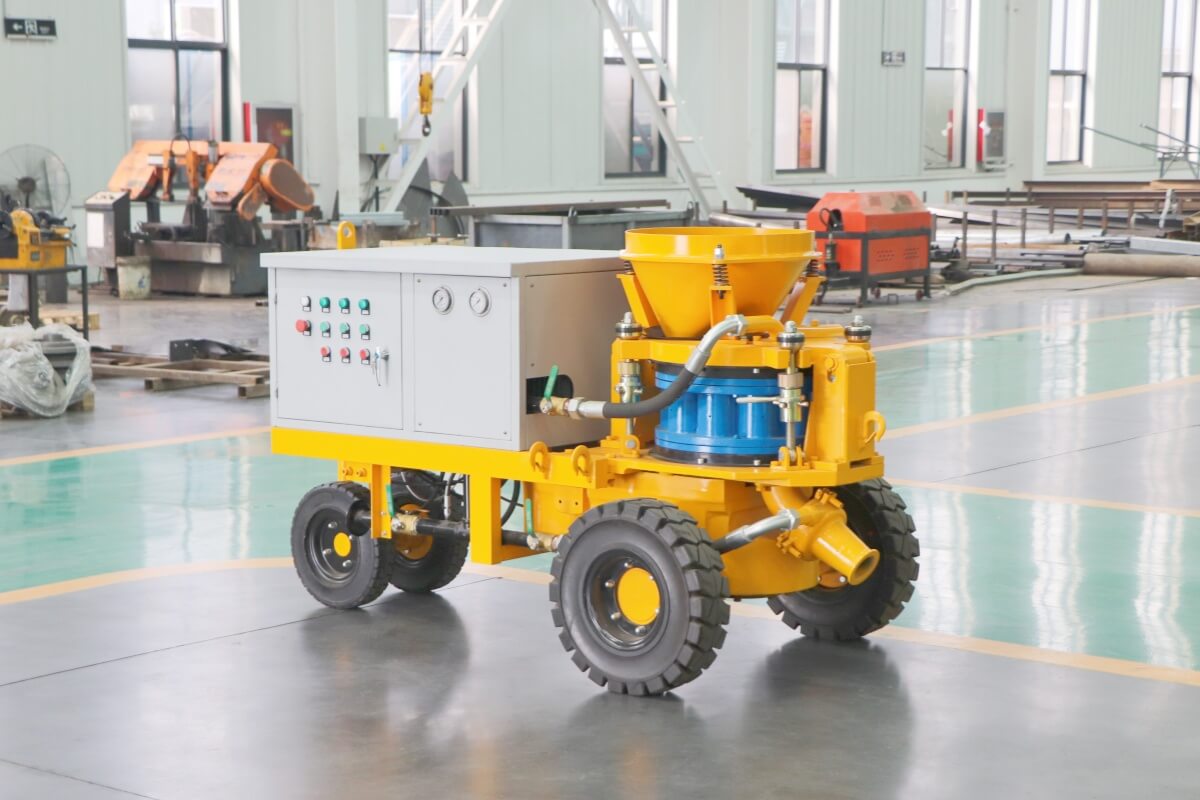

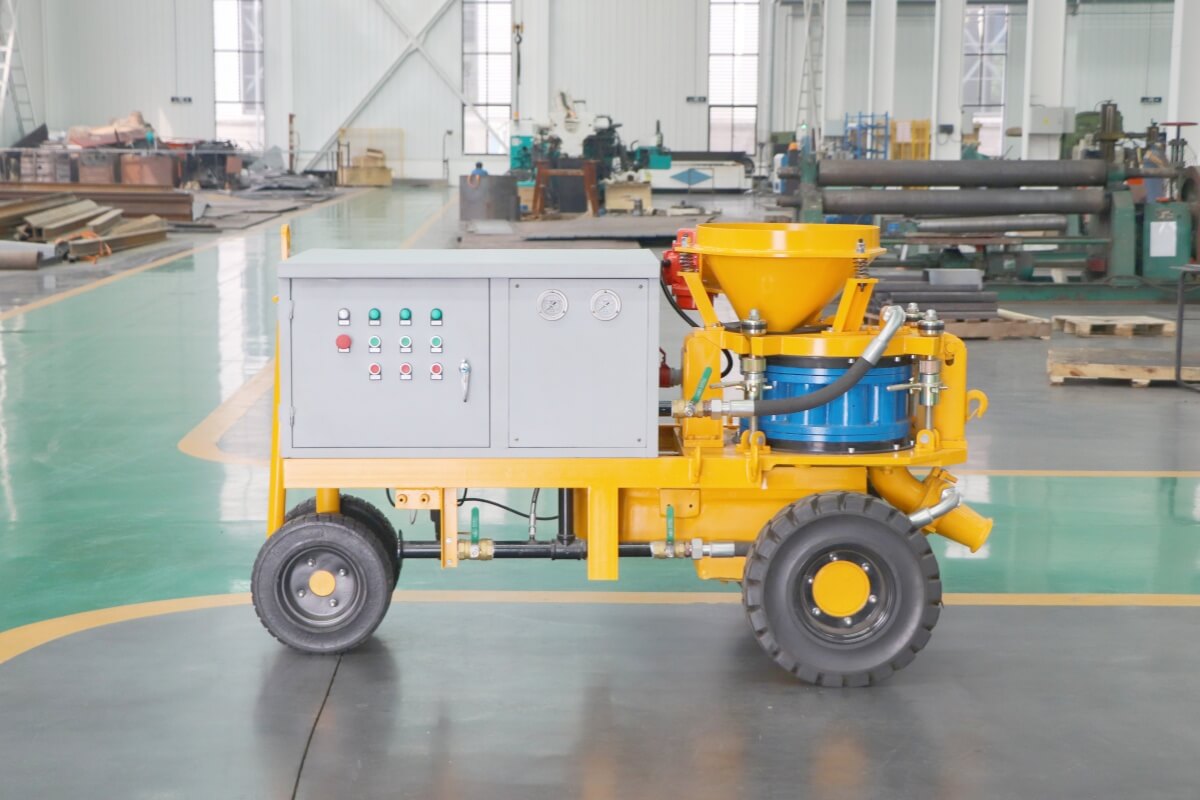

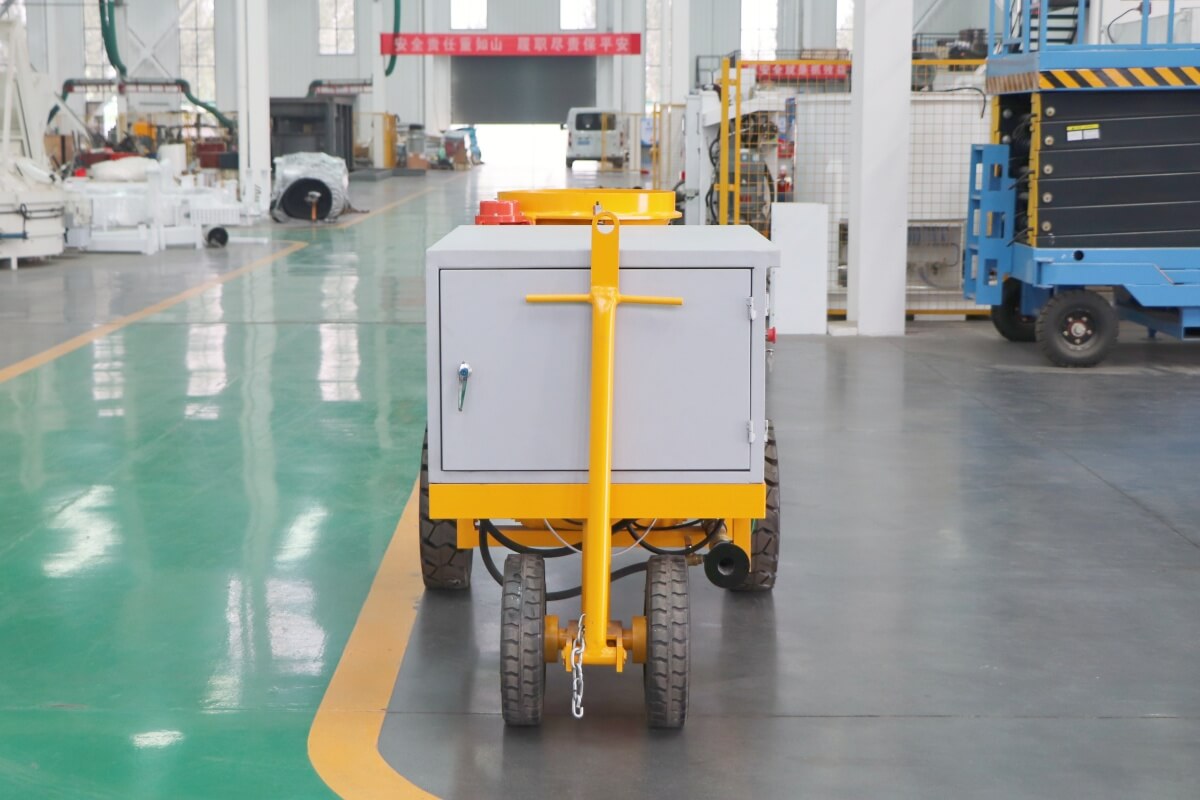

LSZ3000 Wet Shotcrete Machine

  • Rated Output:5(m3/h)
  • Main Motor Power:7.5(KW)
  • Max. Horizontal Conveying Distance:35m(wet)/200m(dry)
  • Max. Aggregate Size:15 (mm)
  • Concrete Slump:8~15(cm)
  • Conveying Hose Inner Diameter:51/ 64(mm)

  • wet-mix-shotcrete-machine for sale
  • wet-mix-shotcrete-machine supplier
  • wet mix shotcrete machine
  • wet shotcrete machine
  • spray concrete machines
Shotcrete Machine
Refractory Gunning Machine
Grouting Equipment
Grout Mixer and Agitator
Grout Pump
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Concrete Pump
Foam Concrete Machine
hydraulic pump station

TEL

86-371-63902781

skype:

shotcreter

Email

sales@leadcrete.com

FAX

86-371-63526675

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LSZ3000 shotcrete machine is a universal concrete spraying machine for the processing of wet or
dry mix. LSZ3000A due to its full pneumatic driven unit, for the required anti-explosion applications,
such as coal mining, tunnel and underground engineering, this unit is perfect and specific one.
• The machine is suitable either for manual spraying or by means of a robotic arm.
• Basic: Electric drive can be combined with tyre chassis.
• Extended (optional):Air motor drive or diesel drive combined with Skid or Rail-wheel.

 Application:

LSZ3000 is developed for the application of shotcrete in tunnel building, mines and slopes. This
machine has been designed especially for fibre spraying. And the dosing unit is combined with this machine.

 Features:

LSZ3000 shotcrete machine can both for dry and shotcrete concrete spraying.
■Product Details
Yanmar Diesel

Yanmar Diesel

Dosing Pump

Dosing Pump

Air Motor

Air Motor

■Technical Parameters

Technical Data:


iconElectric drive:

Rated Output 5m3 /h
Max. Horizontal Conveying Distance 35m(wet)/200m(dry)
Max. Aggregate Size 15mm
Concrete Slump 8 -15cm
Conveying Hose Inner Diameter 51/ 64mm
Operating air Pressure 0.3-0.6MPa (43-86PSI)
Air Consumption 10~ 12m3 /min(357-430CFM)
Main Motor Power 7.5kW(10hp)
Dosing Pump LH15
Dosing Pump Rated Pressure 0.8MPa(116PSI)
Dosing Pump Output 28-130L /h
Voltage 220V, 380V, 440V, 660V, 50Hz/60Hz

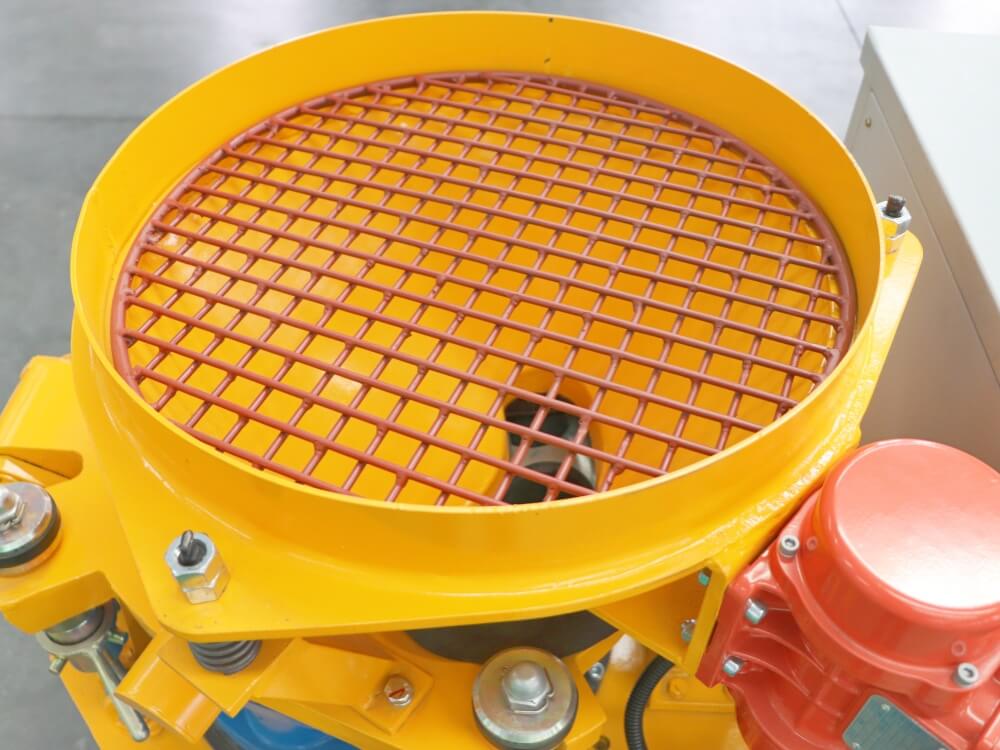

Material Charging Height 1.17m

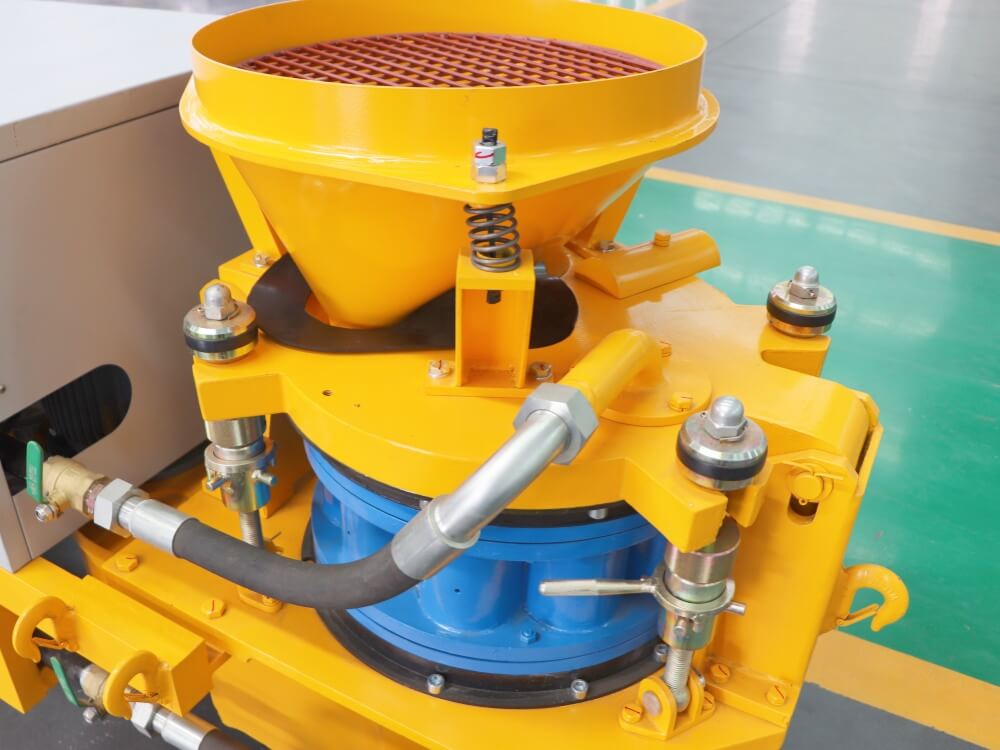

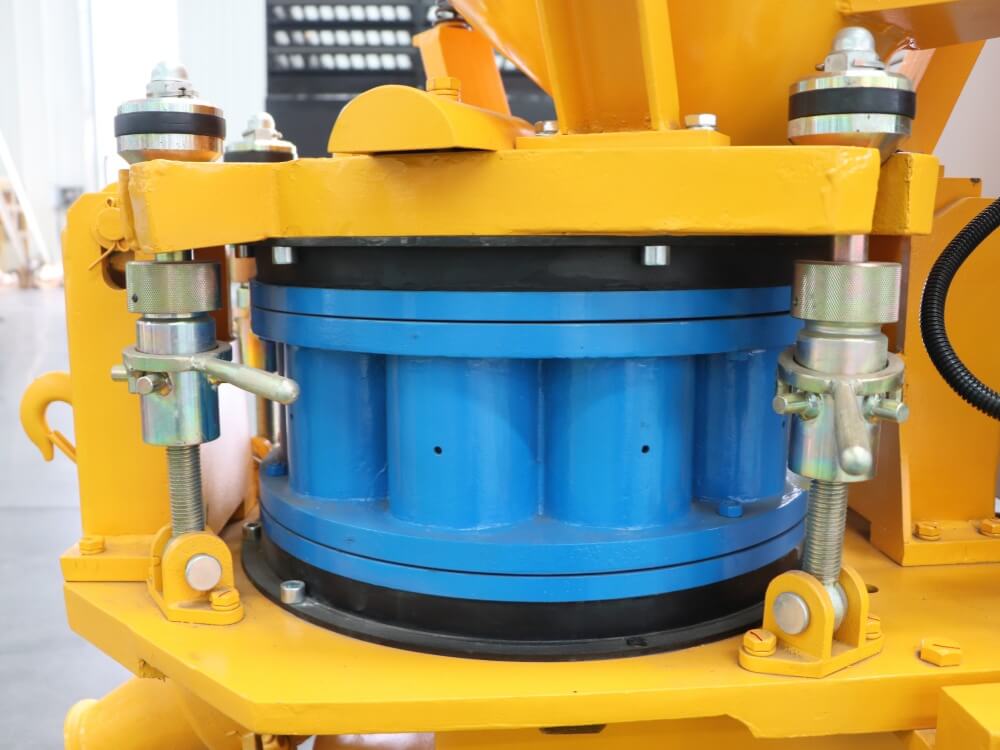

Rotor Speed 11r/min
Overall Dimension(L × W × H) 2.05× 0.95× 1.18m
Net Weight 1200kg


iconAir motor drive:

Rated output 5m3/h
Max. horizontal conveying distance 35m(wet)/200m(dry)
Max. aggregate size Dia.15mm
Concrete slump 8~15cm
Conveying hose Dia.50/65mm
Operating air pressure 0.2~0.6MPa
Air consumption 22m3/min (12+10)
Loading height 1.17m
Rotor Rev. 11r/min
Rebound ≤10 %
Air motor power 8kW
Dosing pump model BHA530 Dosing pump
Dosing pump rated pressure 0.5MPa
Dosing pump output 0~100L/h
Overall dimension(L×W×H) 1950×1050×1360mm 1950×1050×1360mm
Weight 1200Kg


iconDiesel drive:

Output Capacity 3-5m3 /h
Max. Horizontal Conveying Distance 35m(wet)/200m(dry)
Suitable Mix Ratio(Cement/Sand) ≤1:4~5
Max. Aggregate Size 15 mm
Conveying Hose Inner Diameter Dia.64 mm
Conveying Pressure 0.2-0.4MPa(29-58PSI)
Air Consumption 10~12m3/min(357-430CFM)
Material Charging Height 1.1m
Rotor Speed 7.5-11r/min
Diesel Engine 20hp,2200rpm, Yanmar diesel
Diesel Engine Starting Electric start
Clutch Type in Diesel Engine Automatic Clutch

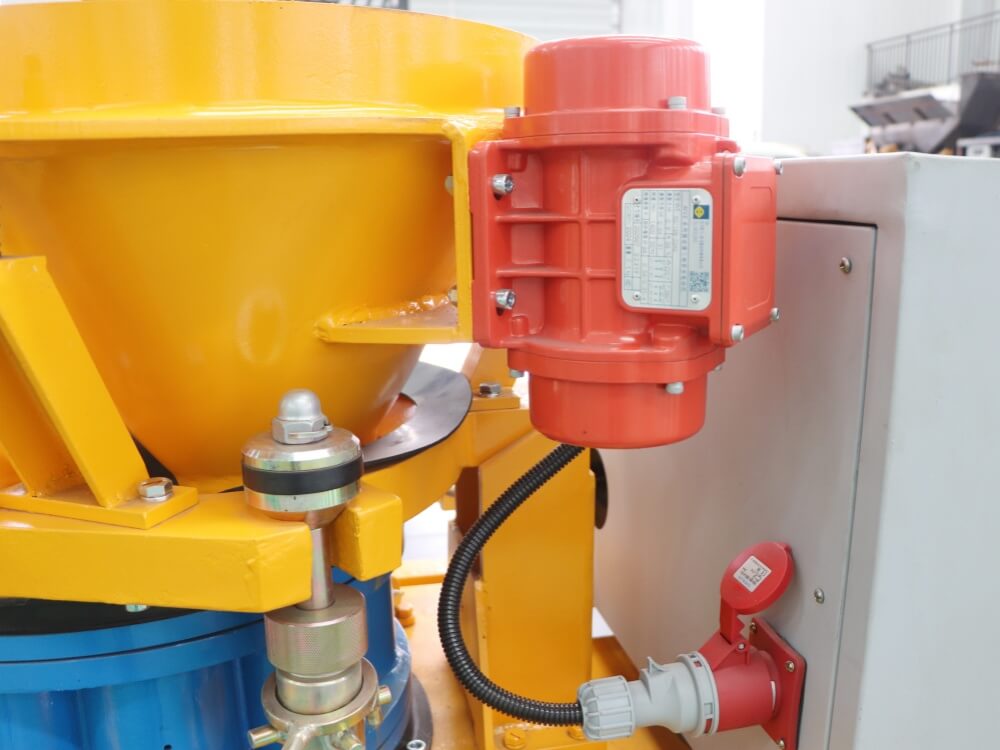

Air Vibrator OR100,Oli
Overall Dimension(length×width×height) 2.55×1.05×1.25m
Dosing pump model BHA530 Dosing tank
Net Weight 1300kg
