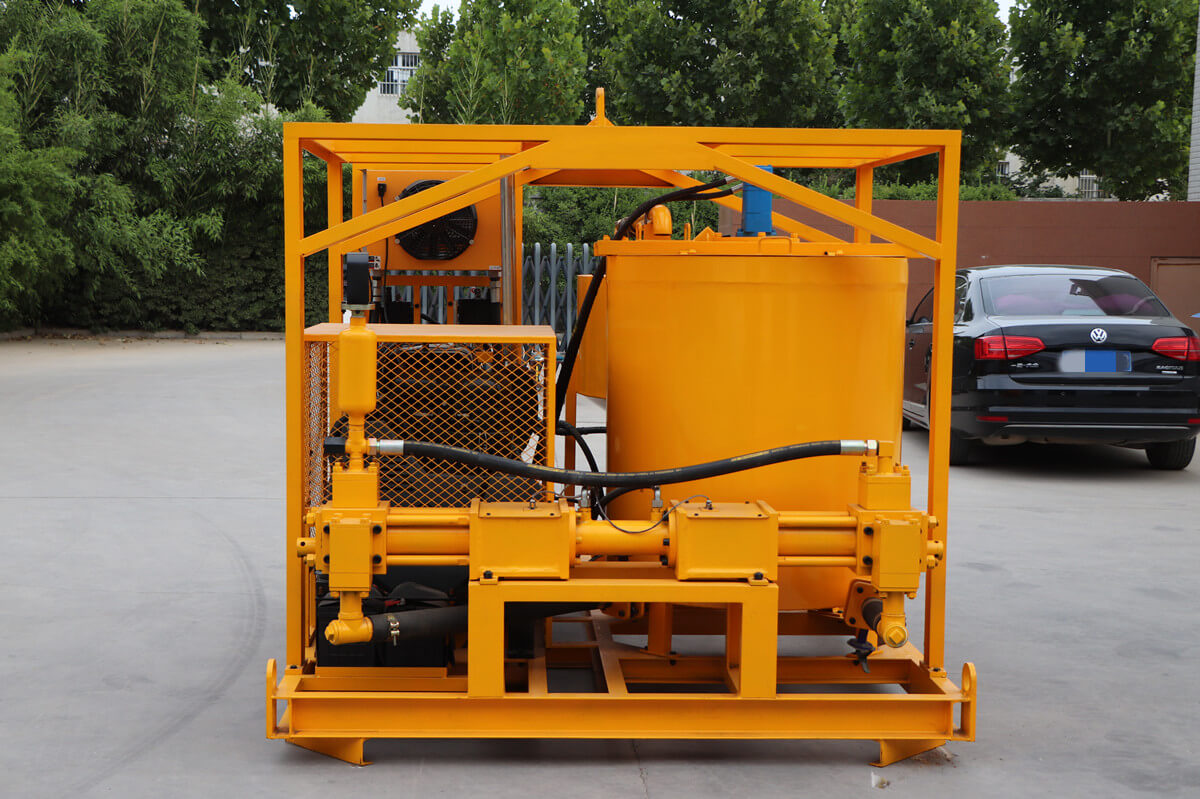

LGP400/700/80/100DPI-D Colloidal grout mixing plant

  • Type: LGP400/700/80/100DPI-D
  • Mixer Volume: 400L
  • Agitator Volume: 700L
  • Grouting Pump Pressure and Output: 40bar@80L/min; 100bar@40L/min
  • Dimension: 2480×1960×1995mm
  • Weight: 1965kg

  • colloidal grout mixing unit for sale
  • colloidal grout plant
  • colloidal grout mixing plant
  • colloidal grout mixing and pump plant
  • colloidal grout mixer and pump
  • colloidal grout mixing equipment
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description:

LGP400/700/80/100DPI-D colloidal grout mixing plant is a combination of mixer, agitator and grout pump in one base frame. It is with high shear high speed grout mixer, the mixer volume is 400L, agitator volume is 700L, grout pressure is 0-100Bar, grout flow is 0-80L/min, the grout mixer is one vortex mixer could make sure mix cement slurry evenly and more quickly. It is mainly used to be made bentonite slurry, cement slurry, etc., in the application highway, railway, hydropower, construction, mining and other ground and underground construction. The colloidal grout mixing equipment has compact size and it is easy to operate. It also takes up a small space. And the grouting plant is hydraulic drive with electric motor. Grouting pressure and displacement is adjustable. Low pressure: 0-80L/min, 0-40bar; High pressure: 0-40L/min, 0-100bar.

compact colloidal grout plant


Colloidal Mixing Grout Plants


High speed vortex mixer ensures mix quickly and evenly. Water, cement or bentonite is quickly mixed into a homogeneous slurry. Then the mixed slurry is delivered to the agitator. Grout pump injects from the mixing drum (storage tank). This ensures a continuous mixing and grouting operations.

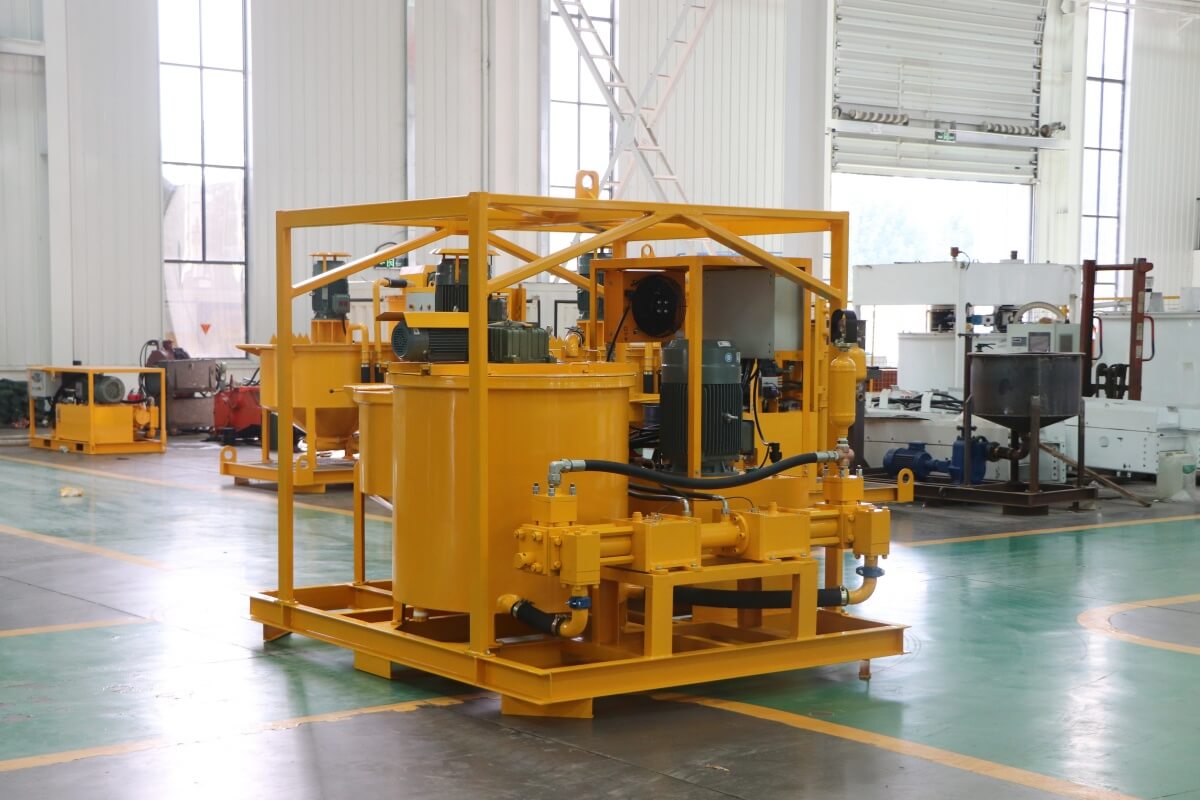

colloidal high pressure grouting pumping plant


Model Definition of LGP400/700/80/100DPI-D colloidal grout mixing plant:

Model definition of colloidal grout mixing plant


 Application:

Our colloidal grout mixing unit can be customized for virtually any application.
1. Colloidal grout plant used for civil engineering - dam, tunnel, subway, mine, soil nailing wall, curtain, anchor, cable trench and anchor grouting;
2. Colloidal grout mixing and pump plant used for mine application - roadway reinforcement, backfill, waterproof grouting;
3. Colloidal grout mixer and pump used for engineering - underwater foundation, offshore platform, coast foundation grouting reinforcement;
4. Colloidal grout plant used for building structure - building and bridge repair, foundation reinforcement, slope support, soil compaction, rock grouting.

Colloidal grout mixing plant application

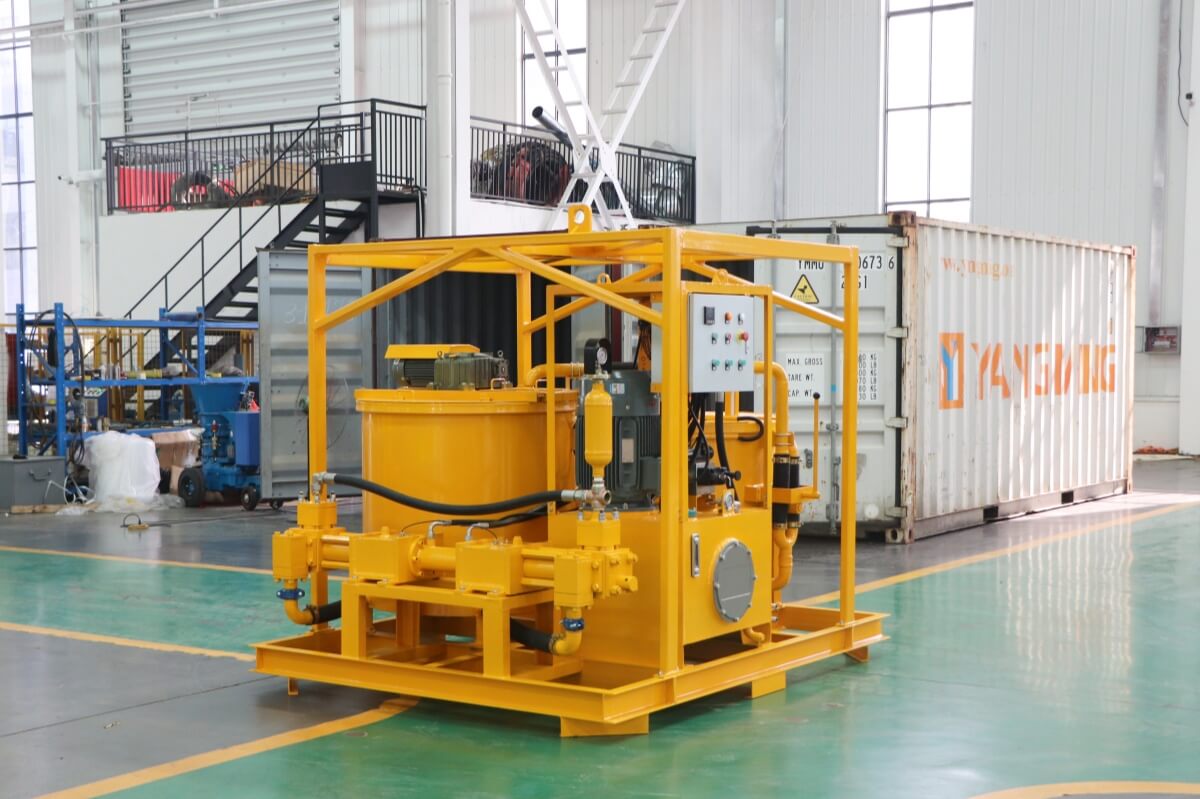

Colloidal Grouting Equipment

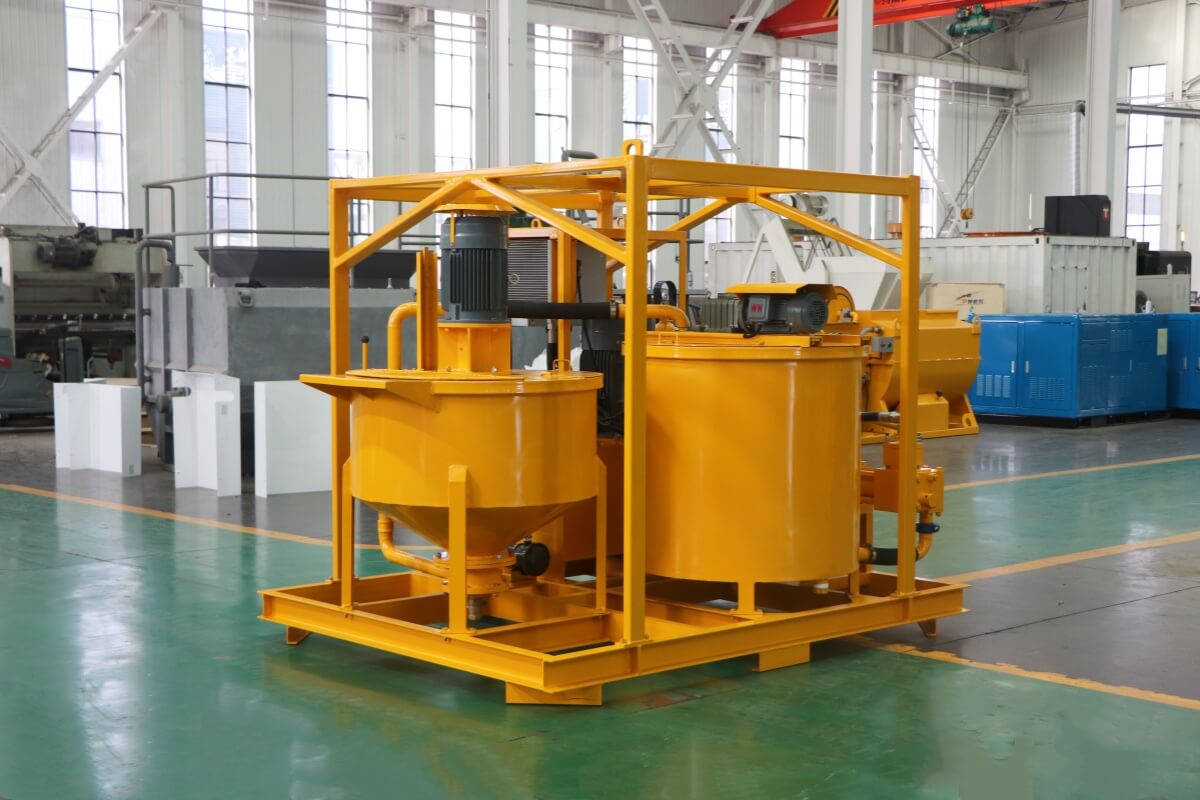

colloidal grout and mixing plant


 Features:

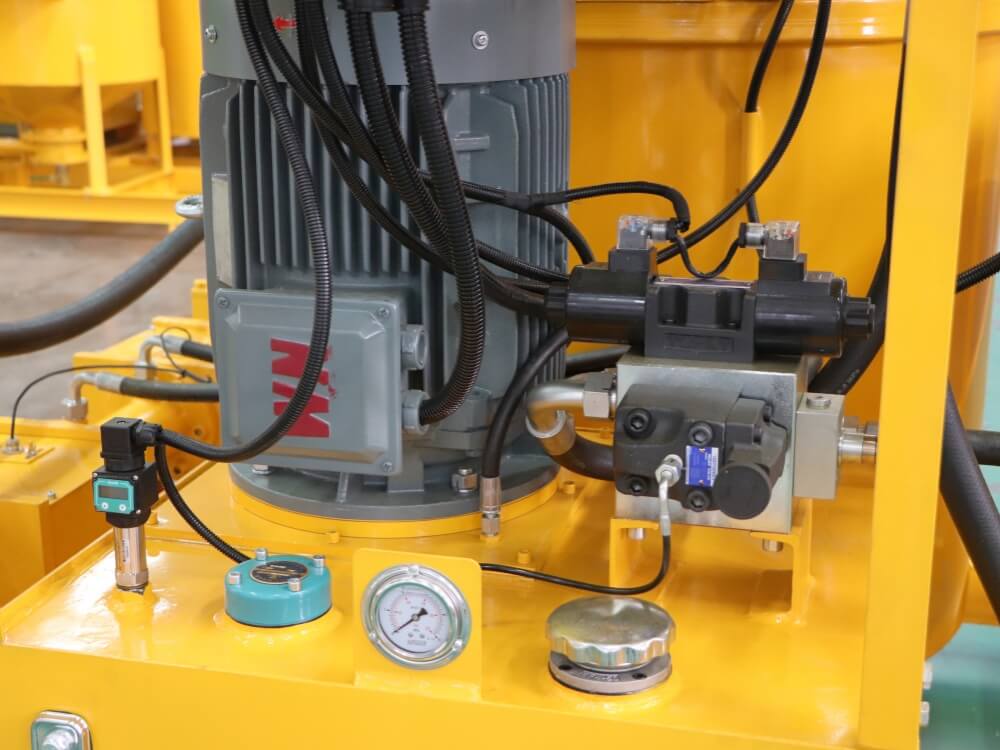

1. Grouting pressure and displacement is adjustable.
2. Air cooling and water cooling for the hydraulic.
3. Easy to operate and maintain.
4. Up to 5mm particle size.
5. The oil thermometer can automatically control the cooling fan to work within the normal temperature range. If the temperature is too high, the machine will automatically stop working.

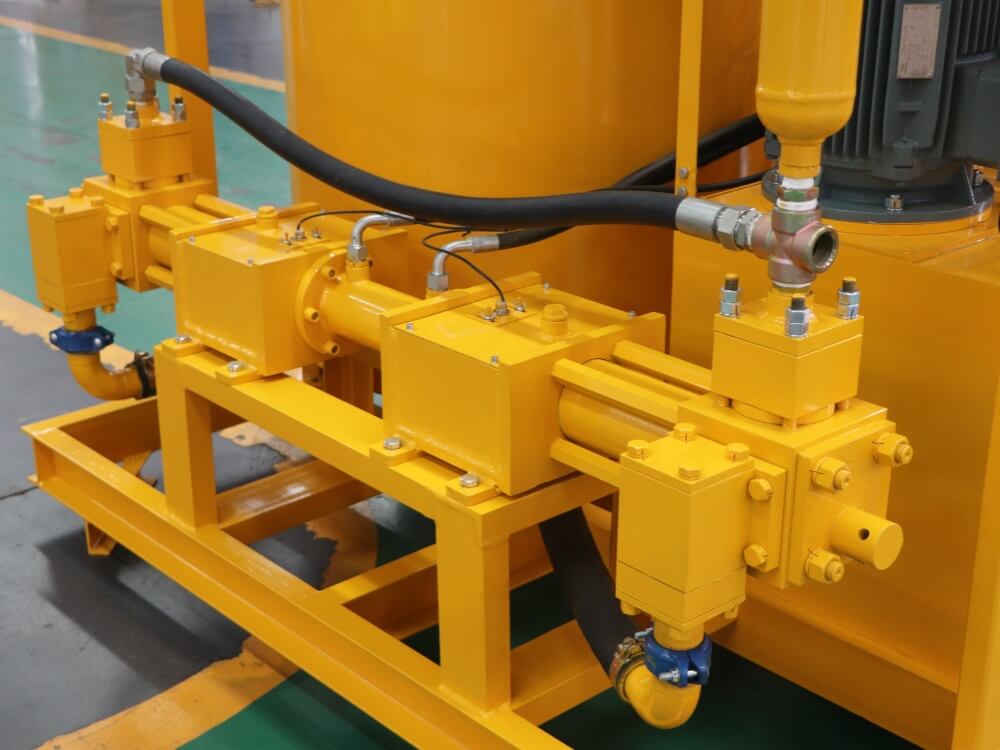

6. Double cylinders piston pump with single acting to ensure the continuous slurry flowing (small pulse) and not easily leaking compared with the double acting piston pump.
7. Colloidal grout mixing plant is full hydraulic drive, three cylinders air cooling diesel engine acted as universal grouting applications.
8. The function switch between mixer and pulping machine is realized by using squeeze switch.

colloidal cement grout plant


China colloidal grout plant


Main component of colloidal grout mixing unit:

main component of grout unit

 Package and delivery:

Colloidal Grout Mixer Pump Unit manufacturer



colloidal grout mixer pump unit



Colloidal grout mixer and pump



Colloidal grout mixing plant made in China



Colloidal grout mixing plant for sale



Colloidal grout mixing plant for export



Colloidal grout mixing plant delivery to UAE

■Product Details
colloidal grout mixing plant made in China

Colloidal grout mixing plant made in China

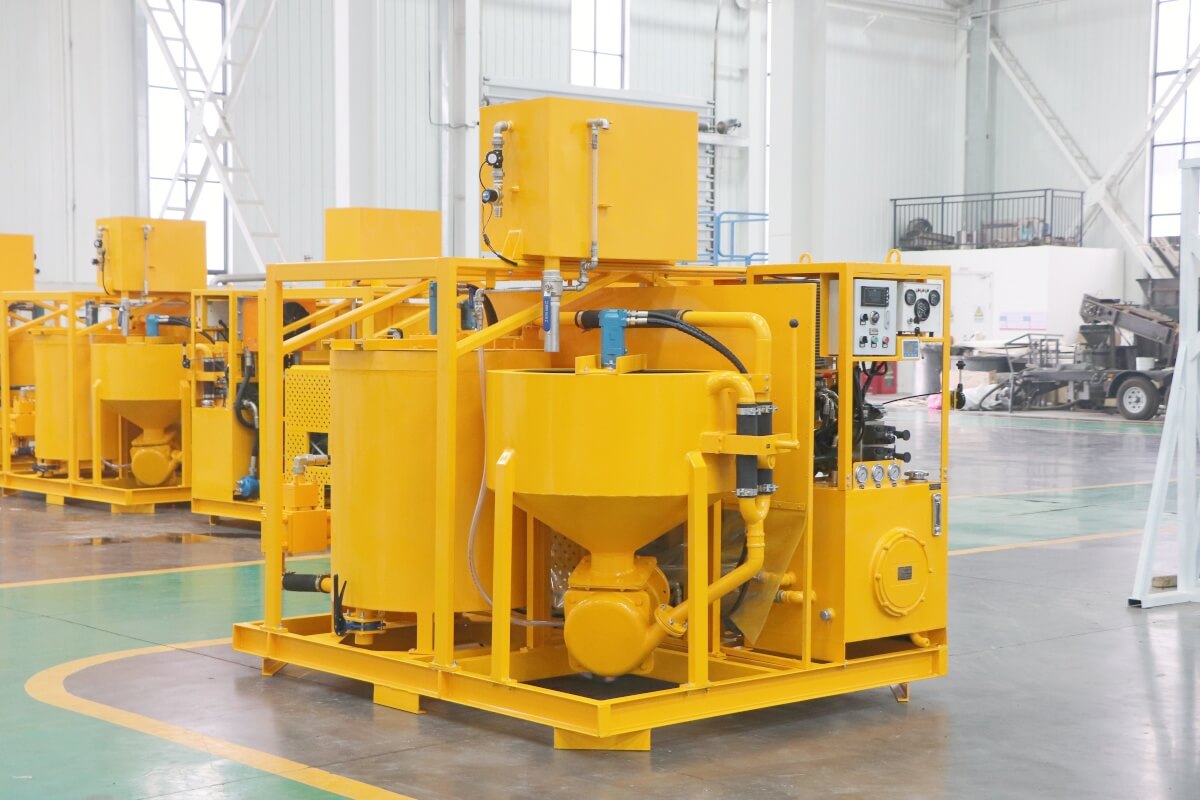

colloidal grout mixing plant factory

Colloidal grout mixing plant factory

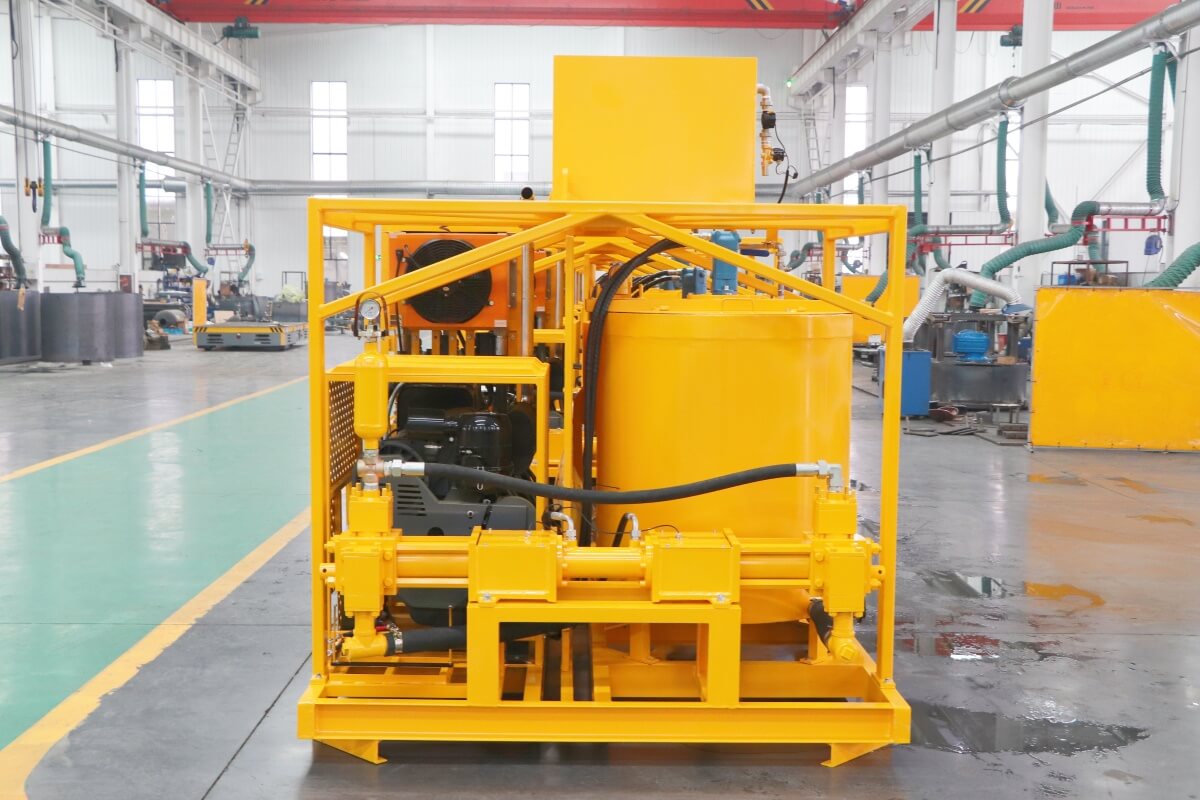

compact colloidal grout mixing plant

Compact colloidal grout mixing plant

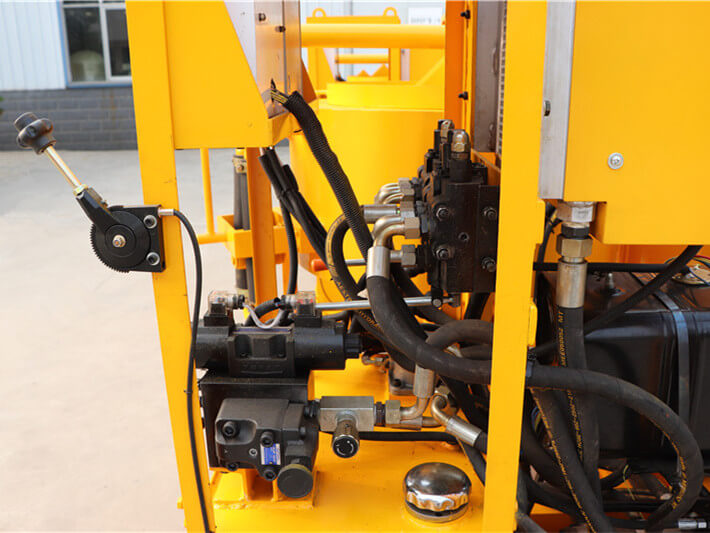

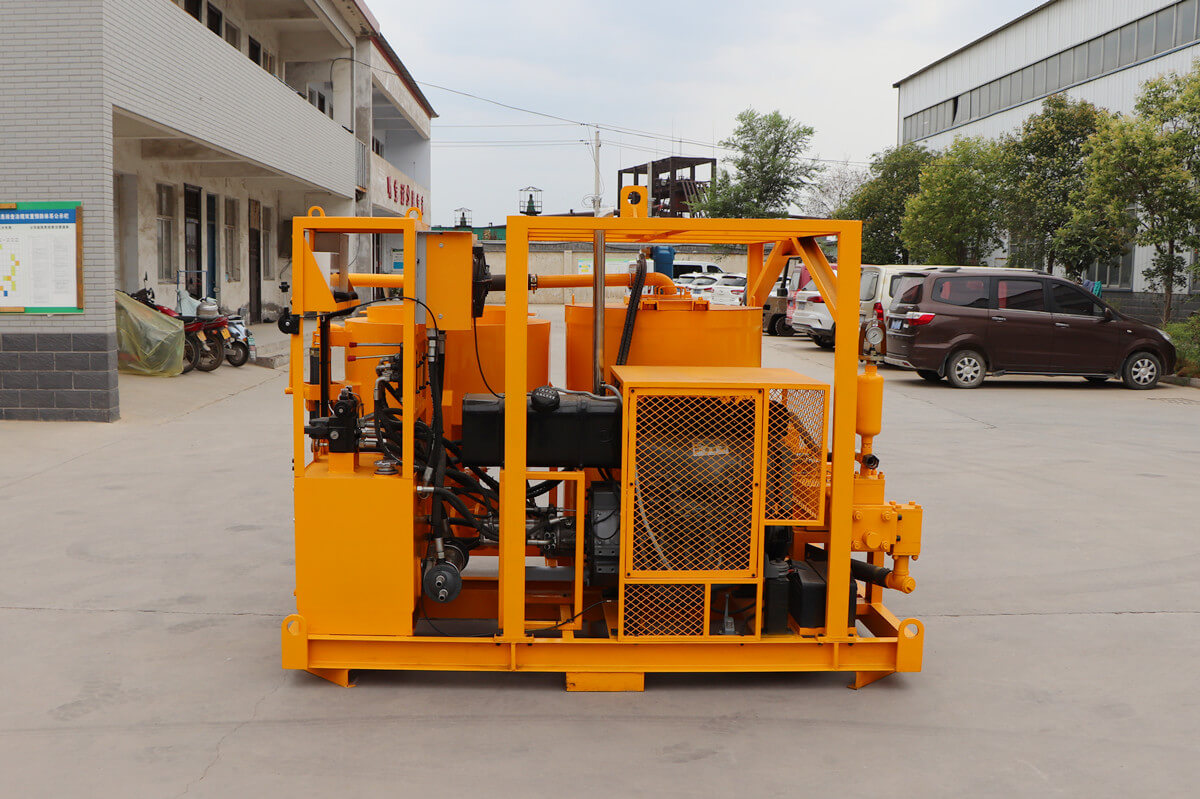

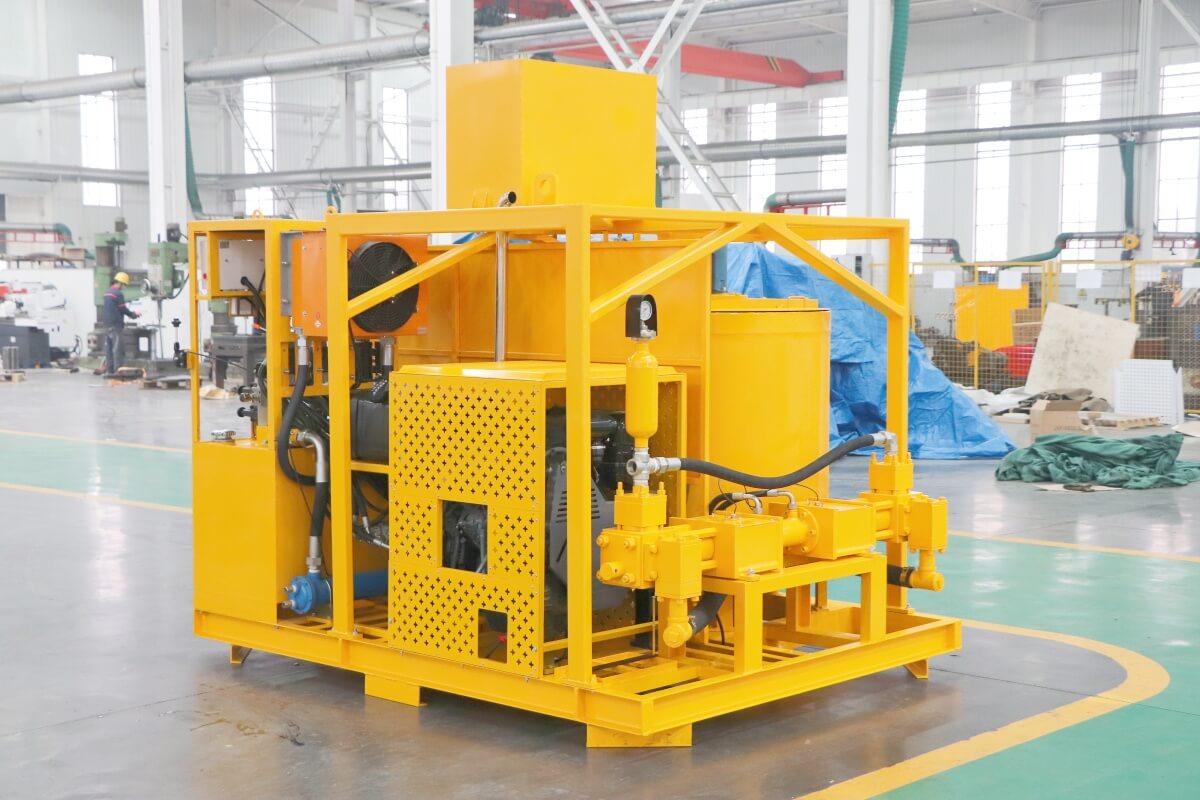

diesel colloidal grout mixing plant

Diesel colloidal grout mixing plant

diesel colloidal grout mixing plant

Diesel colloidal grout mixing plant

colloidal grout mixing plant details

Colloidal grout mixing plant details

■Technical Parameters

Name

Data

Type

LGP400/700/80/100DPI-D Colloidal grout mixing plant

Mixer

Volume

400L

Speed

1500rpm

Agitator

Volume

700L

Speed

36rpm

Grouting pump

Pump pressure and output

40bar@80L/min

100bar@40L/min

Dimension

Dimension

2480×1960×1995mm

Weight

1965kg
