Rotary Jet Grouting Pump application scenarios: Soft soil foundation treatment: Enhance the bearing capacity of the foundation and reduce settlement. Water-proof curtain: Prevent groundwater from penetrating into the construction site, often used in foundation pit support projects. Foundation reinforcement of existing buildings: Improve the original foundation conditions and improve the stability of the building through rotary jet grouting technology. Ground reinforcement around tunnel entrances and subway stations: Ensure safety during excavation.

Rotary jet grouting injection pump is one of the core equipment in high-pressure rotary jet grouting technology. It is mainly used to transport cement slurry under high pressure to the nozzle at the end of the drill pipe, and cooperate with the rotation and lifting of the drill pipe to form a uniform reinforcement column in the formation.

Rotary Jet Cement Grout Pump is a professional equipment used for high-pressure rotary jet grouting construction. It combines rotary drilling and high-pressure jet grouting technology and is widely used in engineering fields such as foundation reinforcement, anti-seepage curtain, and soft soil foundation treatment. In the high-pressure rotary jet grouting process, the rotary jet cement grouting pump delivers cement slurry to the nozzle at the end of the drill pipe through high pressure. At the same time, the drill pipe rotates and lifts at the same time, and the slurry sprayed from the nozzle at high speed cuts and mixes the surrounding soil to form a columnar or wall-shaped reinforcement body.

Plunger jet grouting pump working principle: Plunger reciprocating motion: The plunger reciprocates in the pump cylinder, changing the sealed volume to achieve the suction and discharge of slurry. High-pressure injection: The slurry is pressurized to more than 20MPa through a high-pressure pump and ejected at high speed through a nozzle, impacting and destroying the soil and forming a consolidated body.

Jet Pump Grout Systems pressurizes the grout to more than 20MPa and ejects it at high speed through the nozzle. The high-speed jet impacts and destroys the soil, and the grout mixes with the soil particles. After the mixture solidifies, it forms a cylindrical, plate-shaped or wall-shaped consolidation body to improve the foundation strength or achieve anti-seepage.

Different projects have different requirements for grouting pressure, flow rate, and shape of the solidified body, and appropriate equipment should be selected according to the specific project conditions. For example, for projects that need to form a solidified body with a larger diameter, equipment with higher injection pressure and larger injection flow rate can be selected; for projects that need to form a solidified body with a specific shape, a Jet Grouting Pump that can control the direction of the jet flow can be selected.

Jet grouting equipment for drilling grouting application:
Foundation reinforcement: improve the strength of building foundation, protect adjacent buildings during foundation pit excavation, protect bridge pier foundation, strengthen the back seat of shield method and jacking method, stabilize the excavation surface of mines, subways, tunnels and pipeline trenches, prevent soil landslides, protect docks and embankments, correct deviations, etc.
Seepage prevention and leakage control: prevention and control of foundation leakage of embankments, dams, gates, bridges, etc., seepage prevention and control of various foundation pits and underground structures, prevention and control of sand liquefaction, reduction of foundation vibration, treatment of roadbed slurry, remediation of underground anti-seepage walls, prevention of sandblasting and water gushing, etc.

The high pressure triplex pump consists of three parallel plungers or pistons, which are driven by a crankshaft to achieve reciprocating motion. The three-cylinder design can significantly reduce pressure pulsation, make fluid delivery more stable, and improve grouting efficiency. The triplex grout pump can generate pressures of up to 450 bar, which is suitable for deep grouting or high-viscosity grout delivery. By adjusting the pump speed or plunger stroke, the grouting flow rate can be flexibly controlled to meet the needs of different working conditions.

Grout injection pump for jet grouting is an ideal choice for high-performance cement jet grouting pumps at home and abroad. It is widely used in projects such as roads, bridges, municipal construction, tunnels, ports, dams, subways, underground buildings, etc. It has the characteristics of high pressure, high efficiency, compact structure, reliable performance, safe and convenient operation, etc.

For high-pressure rotary jet grouting (High-Pressure Jet Grouting, commonly referred to as high rotary jet grouting), the cement grout pump is a critical piece of equipment that must meet specific performance requirements due to the high pressures involved. This method involves injecting cement slurry at very high pressure through a nozzle in a rotating drill rod to erode and mix with the soil, forming a column of improved ground.

An Injection Unit for Cementitious Grout is a specialized system designed to mix and inject cement-based grouts into soil, rock formations, concrete structures, or behind tunnel linings. These units are widely used in geotechnical engineering, tunneling, foundation repair, and structural reinforcement projects.

An injection pump and mixer system is a critical setup used in various engineering applications such as tunneling, mining, construction, geotechnical works, and oil & gas operations. It is designed to mix grout or chemical solutions and then pump them under pressure into soil, rock formations, concrete structures, or behind tunnel linings for purposes like:
Soil stabilization, Crack sealing, Water cutoff, Void filling, Reinforcement of foundations.

A Grout Station Plant is a specialized system designed for the preparation, storage, and delivery of grout, primarily used in tunneling, underground construction, foundation works, and structural repair projects. It is often part of larger operations such as TBM (Tunnel Boring Machine) tunneling, pipe jacking, or ground improvement projects.

A grout plant for tunnel projects is a specialized system used in underground construction, especially in Tunnel Boring Machine (TBM) or shielded TBM operations. Its primary function is to prepare and supply grout mixtures used to fill the annular space between the tunnel lining (segments) and the surrounding ground.

The colloidal mixer agitator with pump is compact, occupies a small area and is easy to operate. Colloidal grout plant adopts an integrated design that integrates stirring, mixing and pumping functions to improve work efficiency.

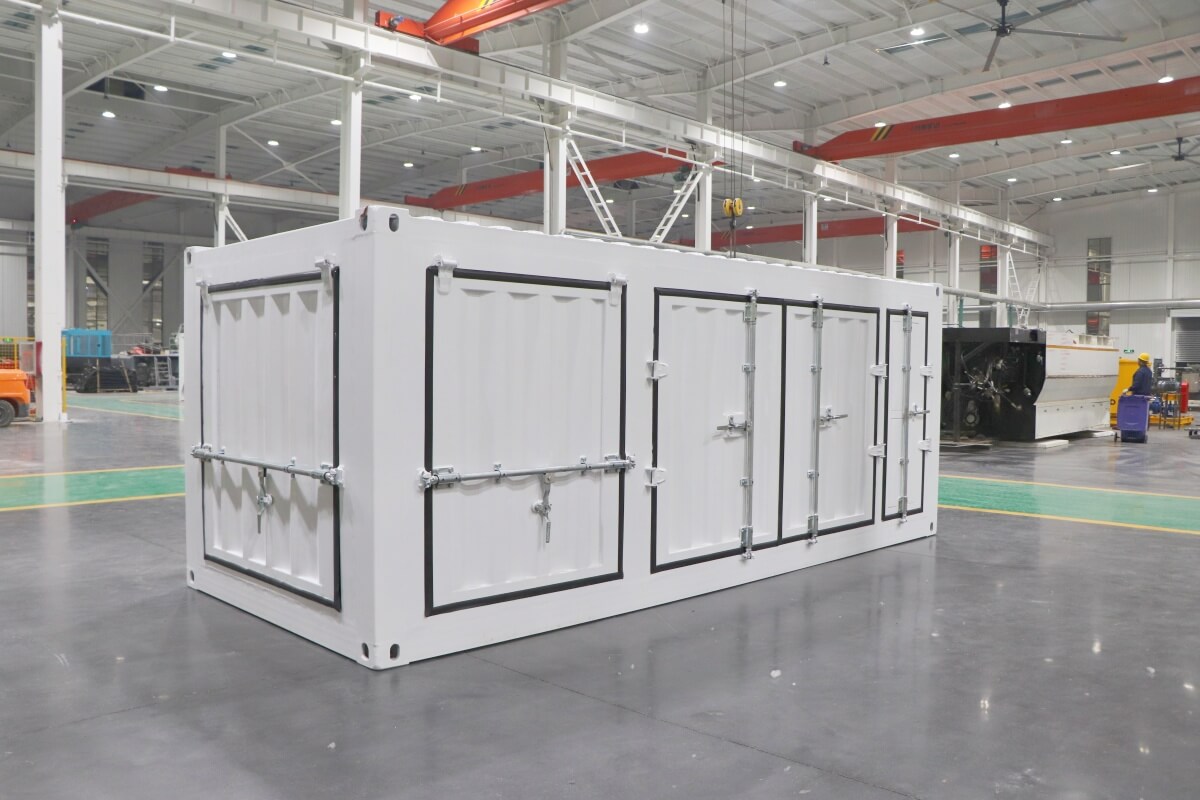

Grout pumping unit in 20ft container applications: Tunnel Waterproofing: Seal leaks in underground tunnels or subways. Mining Reinforcement: Stabilize mine shafts or stopes with resin injections. Foundation Repair: Fill voids under buildings or bridges. Environmental Projects: Contain pollutants via underground barrier walls.Emergency Repairs: Rapid response to sewer leaks or dam cracks.

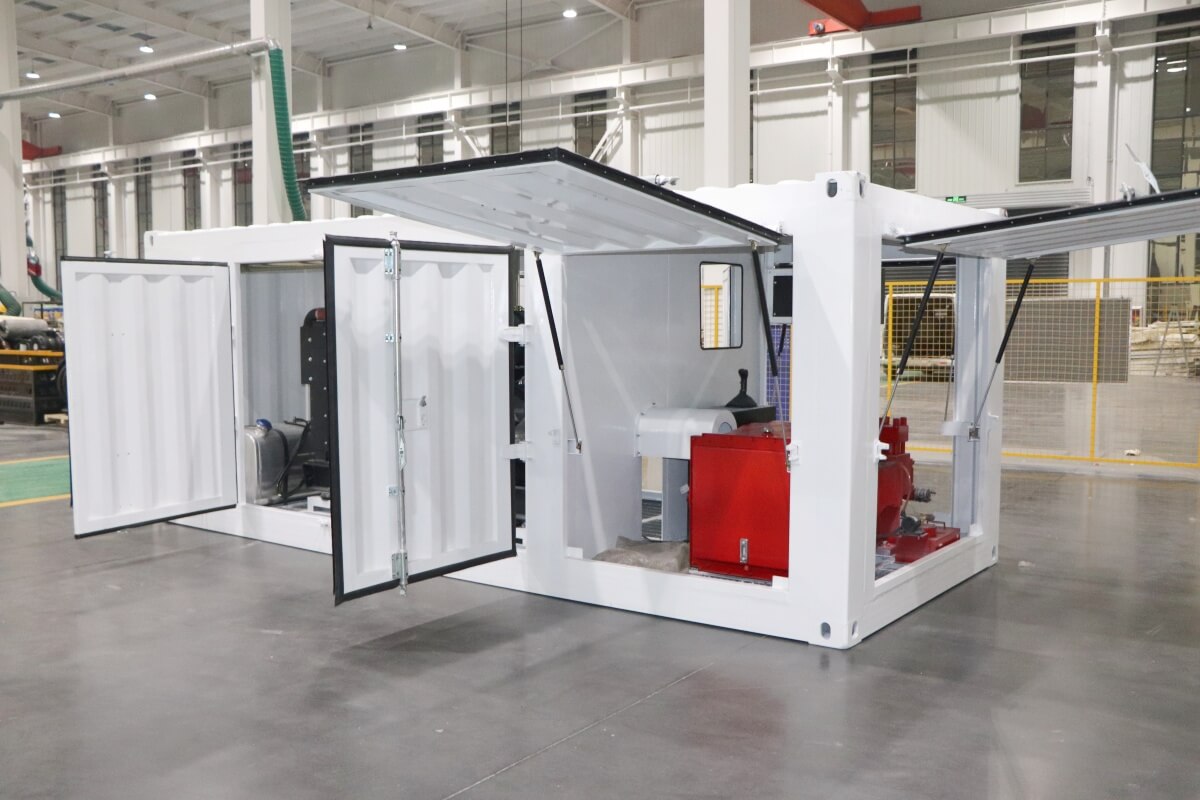

Jet grouting triplex pump is a high-pressure equipment used in jet grouting projects. Its core function is to inject slurry into the soil under high pressure to form a consolidated soil column or curtain. It is often used in scenes such as foundation reinforcement, waterproofing treatment and tunnel engineering.

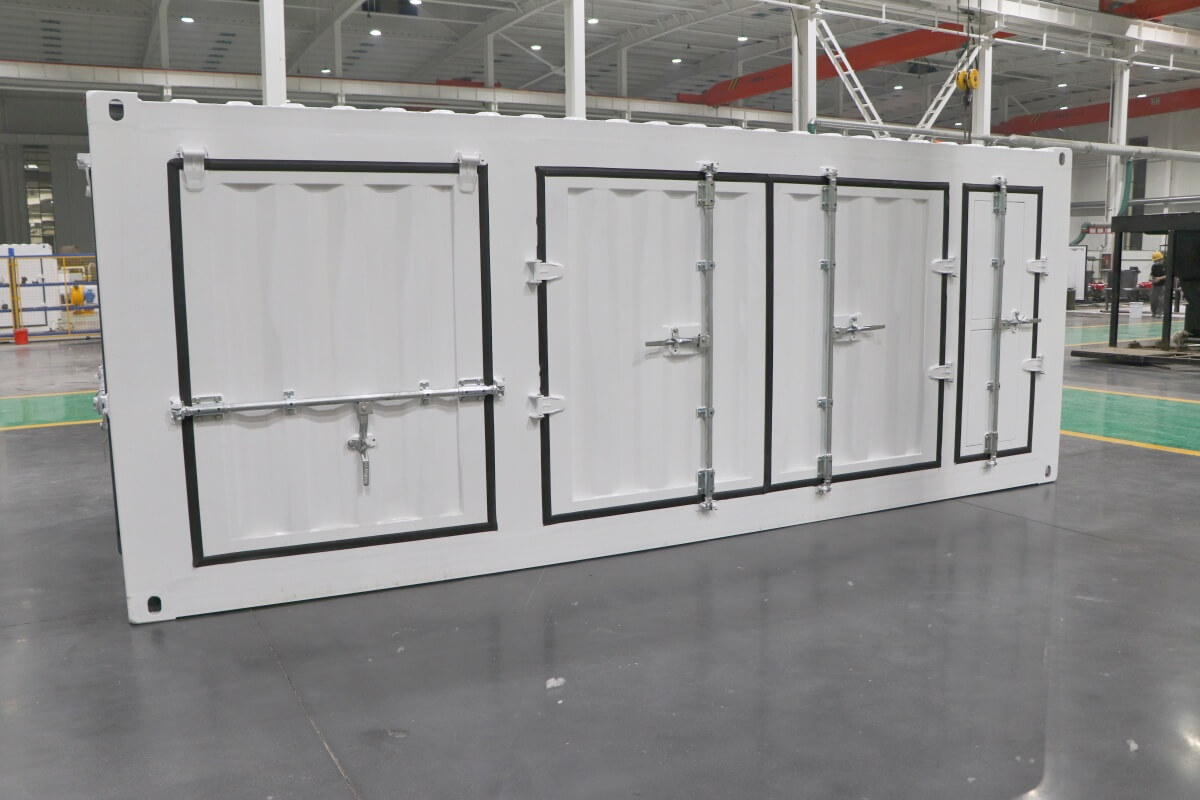

An Injection Grout Pump for Underground is a high-performance machine used to inject grout materials into the ground under pressure. These pumps are essential in underground construction, mining, tunneling, and infrastructure projects where ground stabilization, waterproofing, or structural reinforcement is required.

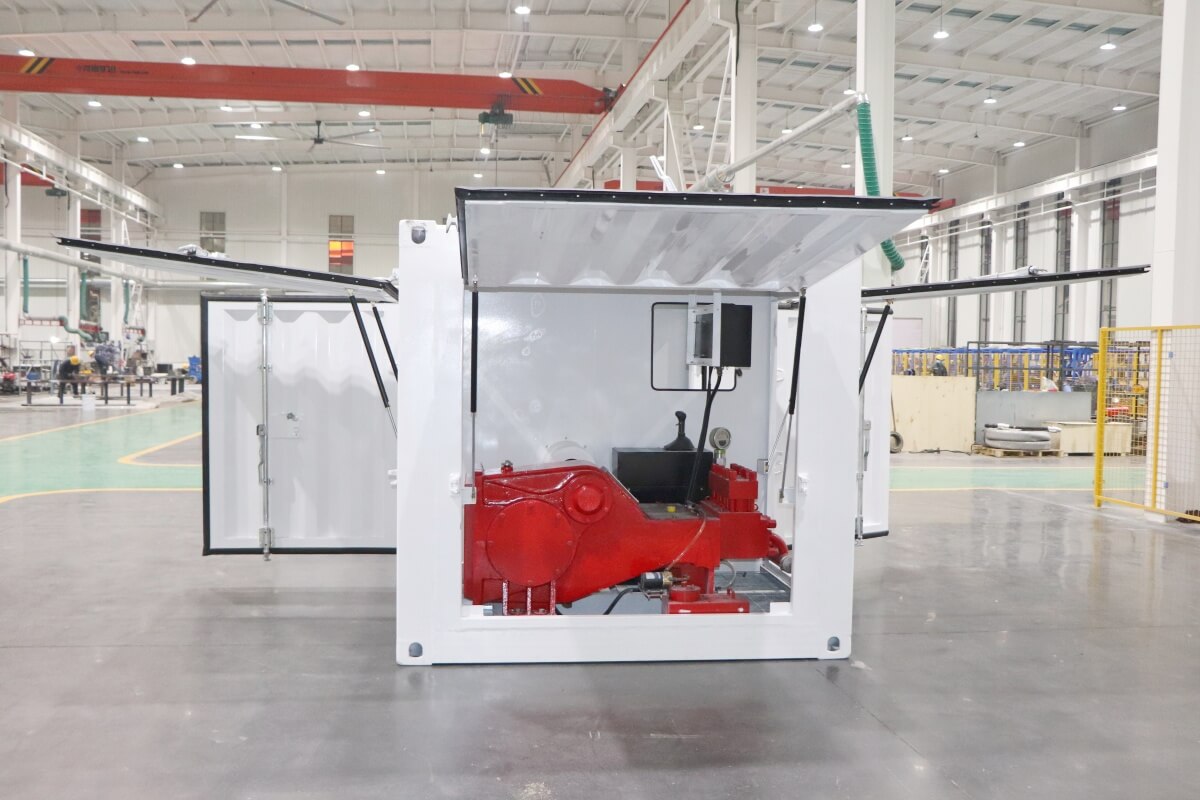

High pressure triplex plunger grout pump application scenarios: Foundation reinforcement: used for grouting reinforcement of soft soil foundation to improve foundation bearing capacity and reduce settlement. Waterproof curtain: in tunnels, basements and other projects, a waterproof curtain is formed to prevent groundwater infiltration. Mining and tunnel engineering: used for advance support in tunnel excavation, mine surrounding rock reinforcement, etc. Soil improvement: improve soil properties through grouting to improve soil stability and impermeability.

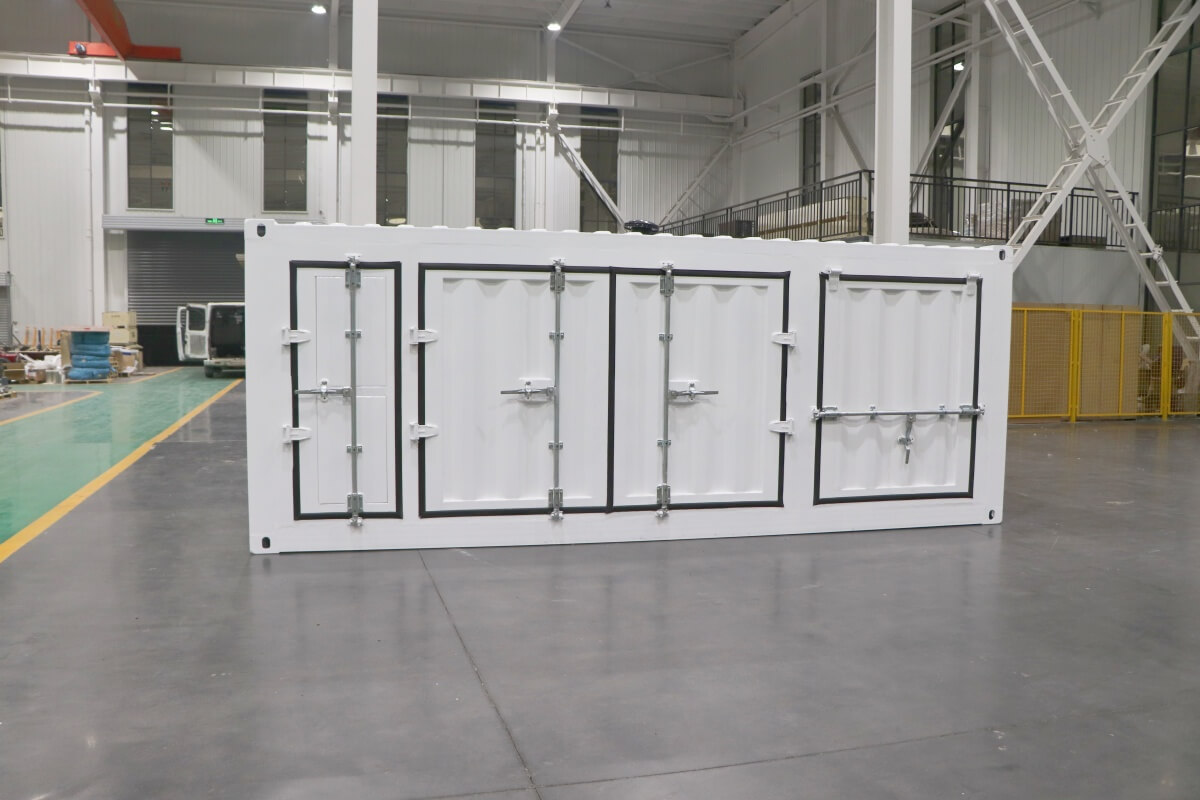

Fully automatic jet grouting equipment is an advanced system designed for ground improvement and foundation engineering, combining high-pressure grout injection with automated control systems.

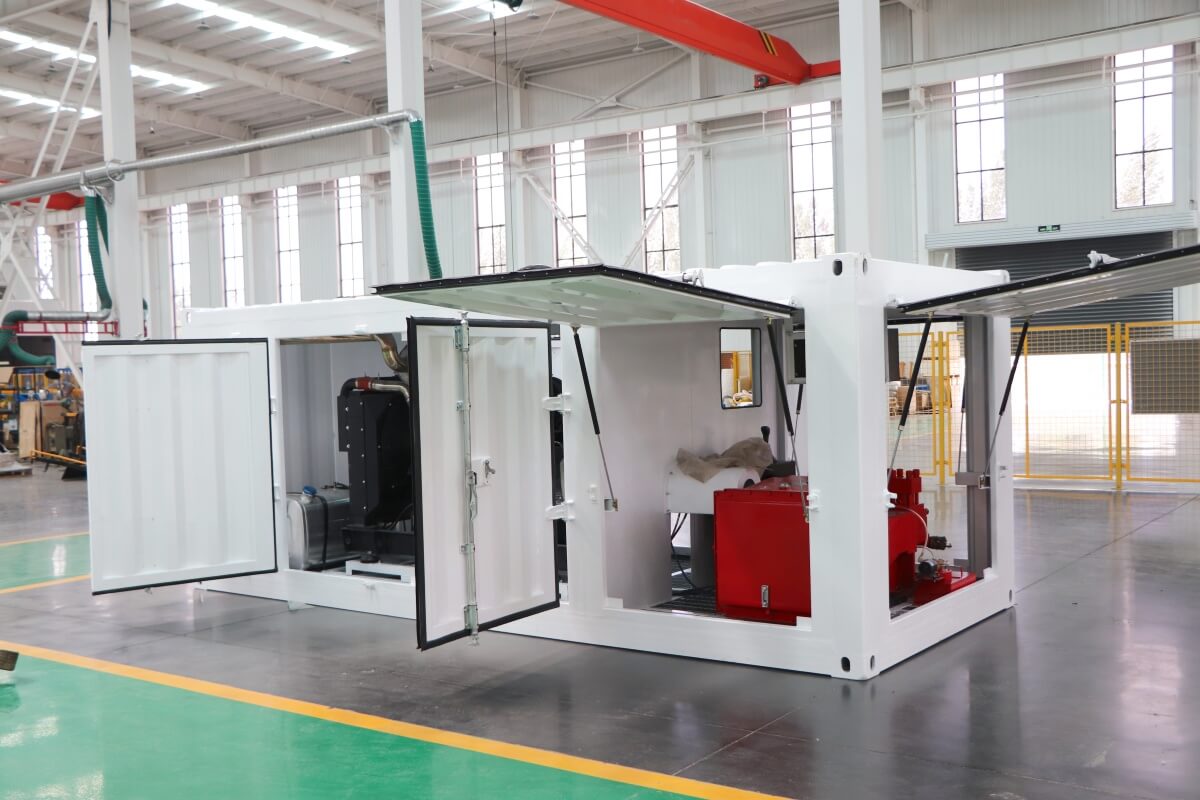

A drilling mud jet grout pump is a specialized high-pressure pumping system designed for dual applications in geotechnical and drilling operations: circulating drilling mud during drilling and injecting grout for soil stabilization or jet grouting. This hybrid system combines the functionalities of traditional drilling mud pumps and jet grouting equipment, making it ideal for scenarios where borehole stabilization and ground improvement are required simultaneously.

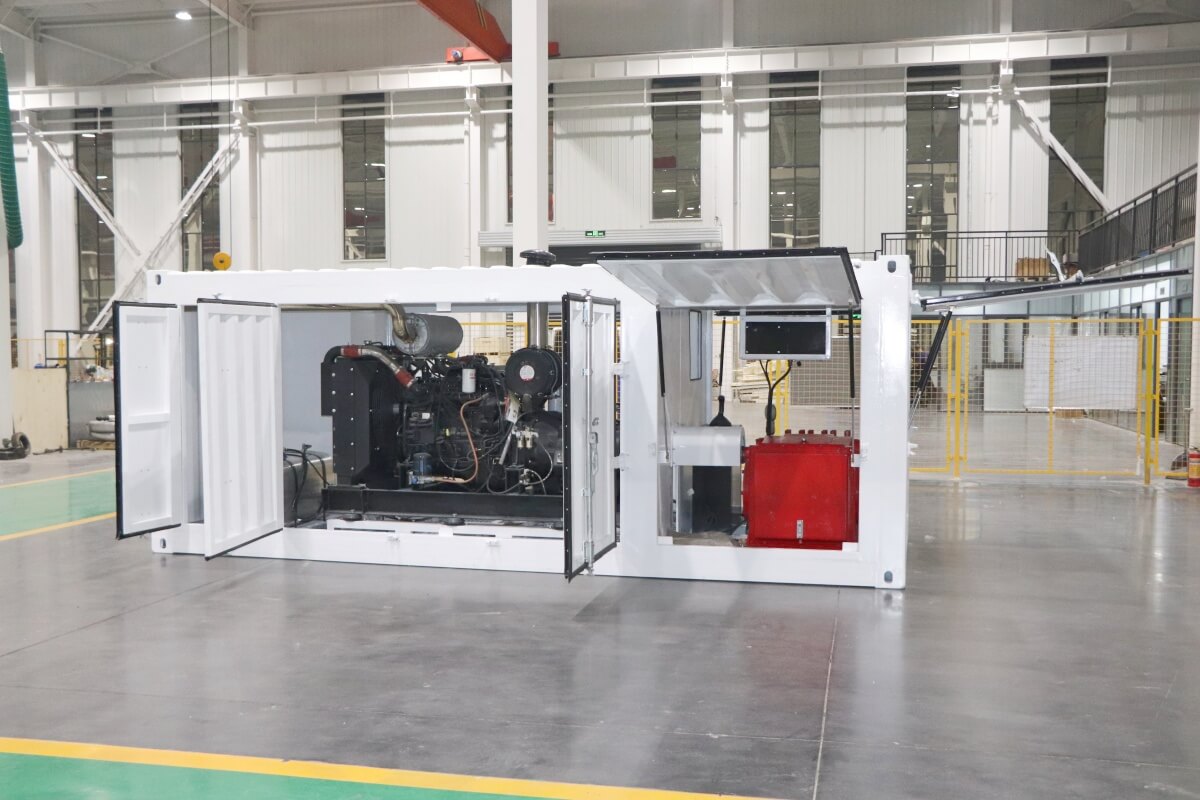

A container-type high-pressure injection pump is a modular, portable system designed for high-pressure fluid injection applications, housed within a standardized shipping container. This configuration ensures ease of transport, rapid deployment, and protection in harsh environments.

Injection grout plant (grouting plant/grouting equipment system) is an integrated equipment system for grout preparation and injection in geotechnical engineering, construction and geological disaster management. Its core functions, technical features and application scenarios are as follows:
Core functions and equipment composition
Grout preparation system
Double-shaft mixer: adopts variable frequency speed regulation technology to achieve accurate proportioning of raw materials such as cement, water glass, bentonite, etc. (proportioning accuracy ±1%) to ensure slurry uniformity.
High-speed pulping machine: through the action of centrifugal force (speed ≥1450r/min), the powder is quickly dissolved, and the preparation efficiency is increased by 40% compared with traditional equipment, which is suitable for ultra-fine cement-based slurry.
Automatic batching system: integrated with screw conveyor, electronic scale and PLC controller to realize automatic metering and transportation of raw materials and reduce manual intervention.
High-pressure injection system
Piston pump group: adopts three-cylinder single-acting reciprocating pump (such as SGB6-10 type), with an output pressure of more than 10MPa and a flow rate of 6-10L/s, supporting single-liquid slurry and double-liquid slurry (cement-water glass) injection.
Intelligent control system: real-time monitoring of grouting pressure, flow and cumulative grouting volume, automatic generation of construction records (in compliance with GB/T 50448-2015 specifications), and support for cloud data storage and traceability.
Explosion-proof design: For high-risk environments such as coal mines, the equipment is equipped with explosion-proof motors, intrinsically safe circuits and pressure relief valves to ensure construction safety.

Jet Grout Mixer Plant is an important equipment specially used in jet grouting process. Jet grouting is an advanced foundation treatment and soil improvement technology, which uses high-pressure water flow to cut the soil and simultaneously injects cement slurry or other chemical slurry to fully mix with the in-situ soil to form a columnar consolidation body, thereby achieving the purpose of enhancing foundation strength, reducing settlement, stopping water and preventing seepage, etc.

Injecting cement mortar plant advantages: Versatility: Can be adapted for different grout mixes and injection pressures. Precision: Allows controlled delivery of grout to specific locations. Efficiency: Reduces labor and material waste compared to manual methods. Durability: Enhances the longevity and strength of structures. Cost-Effectiveness: Prevents future repairs by addressing underlying issues early.

High pressure grout mixer plant is a kind of equipment specially designed for efficient preparation and delivery of high-quality grouting materials, suitable for application scenarios that require high-pressure injection. This type of equipment usually integrates an efficient mixing system and a high-pressure pumping system to ensure that the grouting material is evenly mixed and stably and accurately injected into the target area under high pressure conditions.

A compact cement grouting injection plant is a specialized system designed for efficiently mixing and injecting cement-based grout into soil, rock, or concrete structures for purposes such as ground stabilization, foundation reinforcement, and waterproofing.

A bentonite slurry grout plant is designed to produce, store, and supply bentonite slurry for use in grouting applications, particularly in civil engineering, construction, and foundation projects. Bentonite slurry is a mixture of water and bentonite clay, known for its high viscosity, thixotropic properties, and ability to form a stable, impermeable barrier when hydrated.

A refractory gunning machine is an indispensable tool for maintaining the performance and safety of large steel casting ladles. By selecting the right machine and refractory materials, steelmakers can minimize downtime, reduce maintenance costs, and extend the service life of their ladles.

A refractory gunning machine for repairing the furnace lining of an AOD (Argon Oxygen Decarburization) furnace is a specialized piece of equipment designed to apply refractory materials to the inner walls and components of the AOD furnace for maintenance and repair purposes. These machines are crucial for ensuring the longevity and efficient operation of AOD furnaces, which are widely used in stainless steel production.
