LGP200/300/100PI-E Grout Plant

  • Grout Plant Type: LGP200/300/100PI-E
  • Mixer Volume: 200(L)
  • Mixer Production: 4 (m3/h)
  • Circulation Capacity: 1100(l/min)
  • Suitable W/C Ratio: 0.5~ 1
  • Grout Plant Weight: 1320kgs

  • electric grout mixer pump station
  • grout pump plant
  • grout plant supplier
  • grout mixer pump station
  • grout plant price
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

Our LGP200/300/100PI-E Grout Plant is combination of a high shear mixer, agitator and hydraulic
grout pump in one base frame. It is compact size, simple structure, light weight, easy to operate
and maintenance. Grout mixer capacity is 200L, grout agitator capacity is 300L, max.output grout
pump is 100L/min. With fast mix water, cement and additive, water, cement or bentonite is quickly
mixed into homogeneous slurry. Leadcrete is a best
grout plant supplier and grout plant
manufacturer in China, w
e could also customize grout plant according to your demands.

grout plant supplier in China

grout plant  manufacturer in China


 Application:

LGP200/300/100PI-E electric grout plant is specially design for continuous cement mixing and
grouting. It is suitable for all grouting applications with cement and ultra fine cement. Also the electric
grout mixer pump station is used for bentonite suspensions for microtunnelling, pipe jacking and
directional drilling.

 Features:
♦ Grout pump plant is combination of mixer, agitator and hydraulic grout pump in one base frame.
♦ Electric grout plant is ergonomic, space saving.
♦ Siemens electric motor(WEG electric motor is optional).
♦ Schneider component for electric control box.
♦ Yuken reversing valve for hydraulic system of grout pump.
♦ Butterfly valve of mixer and agitator.
♦ Linked switch between mixer and agitator.
♦ Oil temperature gauge can automatically control cooler fan working in normal temperature range,
if temperature is too high, the machine will stop work automatically.
■Product Details
electric grout plant

Electric grout plant

electric grout mixer pump station

Details of electric grout mixer pump station

grout pump plant

Grout pump plant for sale

grout plant supplier

Hydraulic valve of grout mixing plant

grout plant manufacturer

Bag breaker and hopper of grout plant

grout plant price

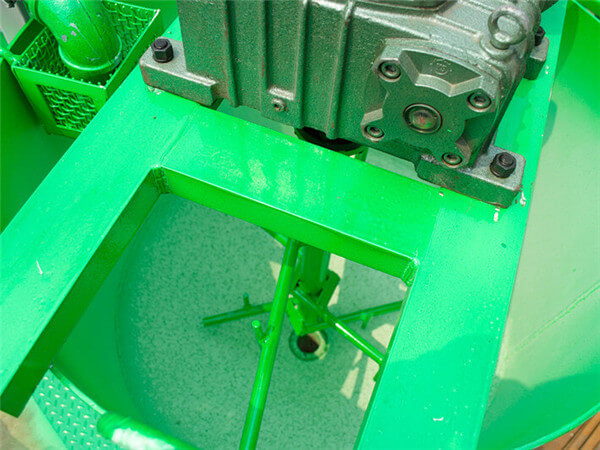

Open impeller type grout plant

■Technical Parameters

Technical Data:


Description Data
Electric grout mixer pump station type LGP200/300/100PI-E
Mixer Volume 200L
Mixer production(w/c ratio=1) 4m3/h
Circulation capacity 1100l/min
Suitable W/C Ratio 0.5 to 1
Mixer electric motor power 7.5kw, 1450rpm
Agitator Volume 300L
Agitator Speed 36rpm
Agitator electric motor power 1.5kw, 1450rpm
Water tank 60L
Grout Pump Type LGH90
Grout pump output(Max.) 100L/min
Grout pump work pressure 10MPa
Grout pump electric motor power 11kw, 1450rpm
Grout Station Overall dimension 2400x2300x1620mm
Grout Plant Weight 1320kgs
