■Introduction

► Description:
LCG-40 coke oven repair wet shotcrete machine has not running parts and engine, and driven by compressed air. Thus, it is easy to operate and maintain, and save maintenance cost.

► Application:
LCG-40 coke oven repair wet shotcrete machine is specifically designed for coke oven guniting applications.

■Product Details

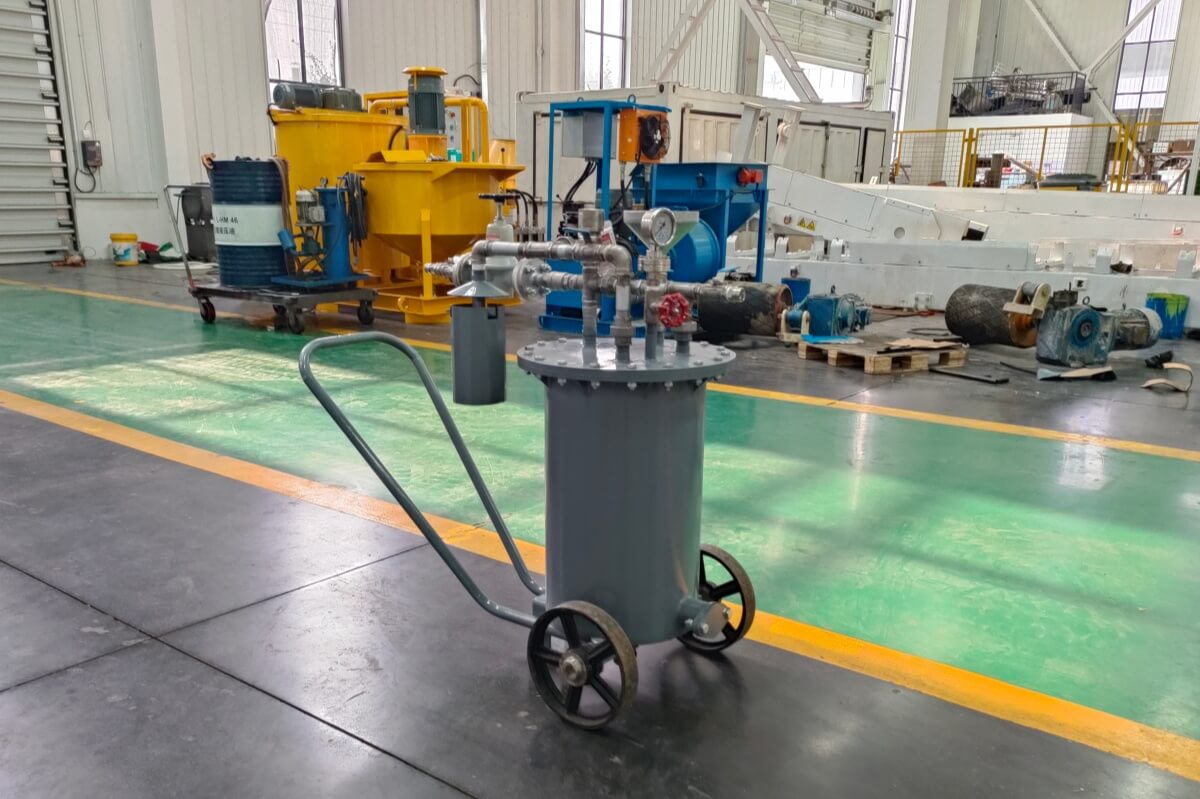

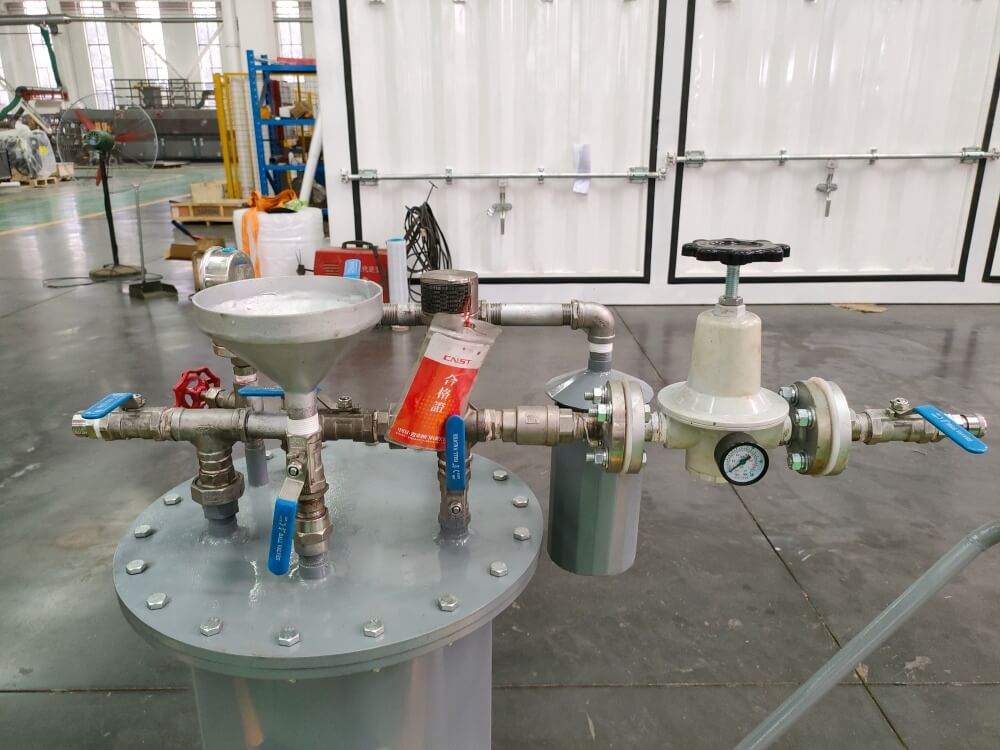

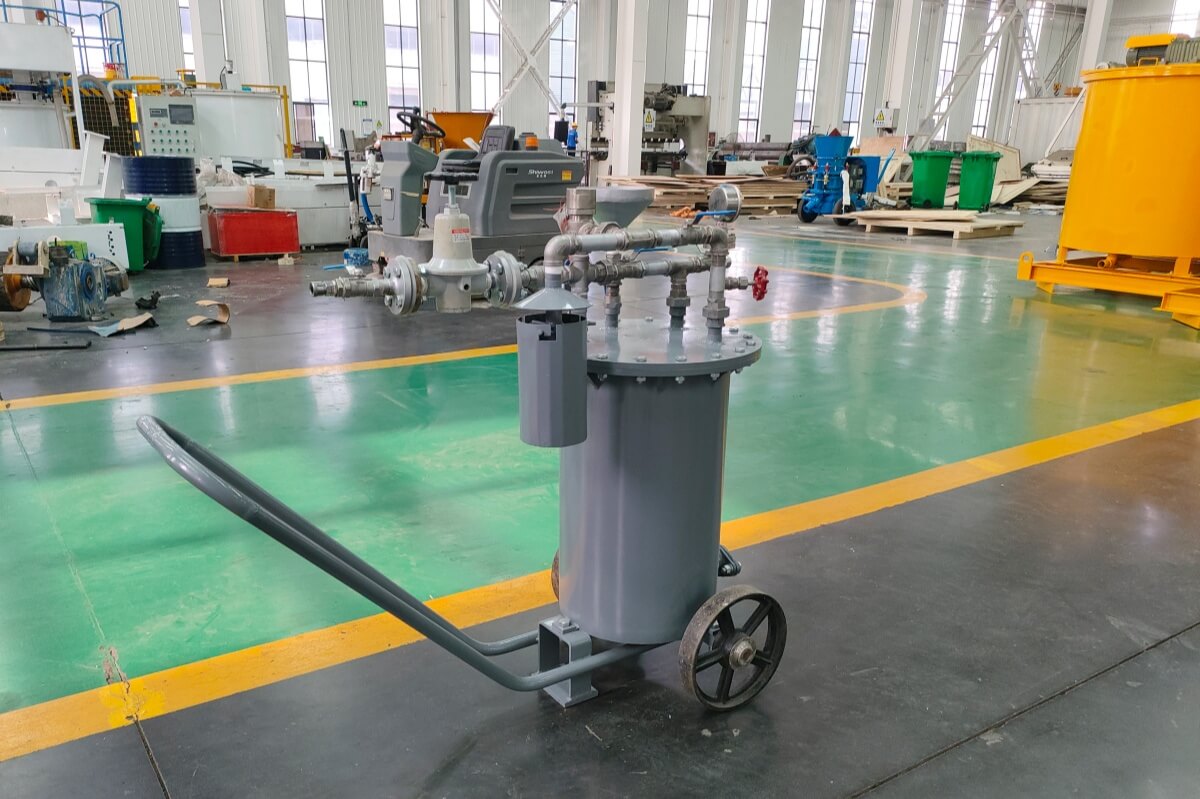

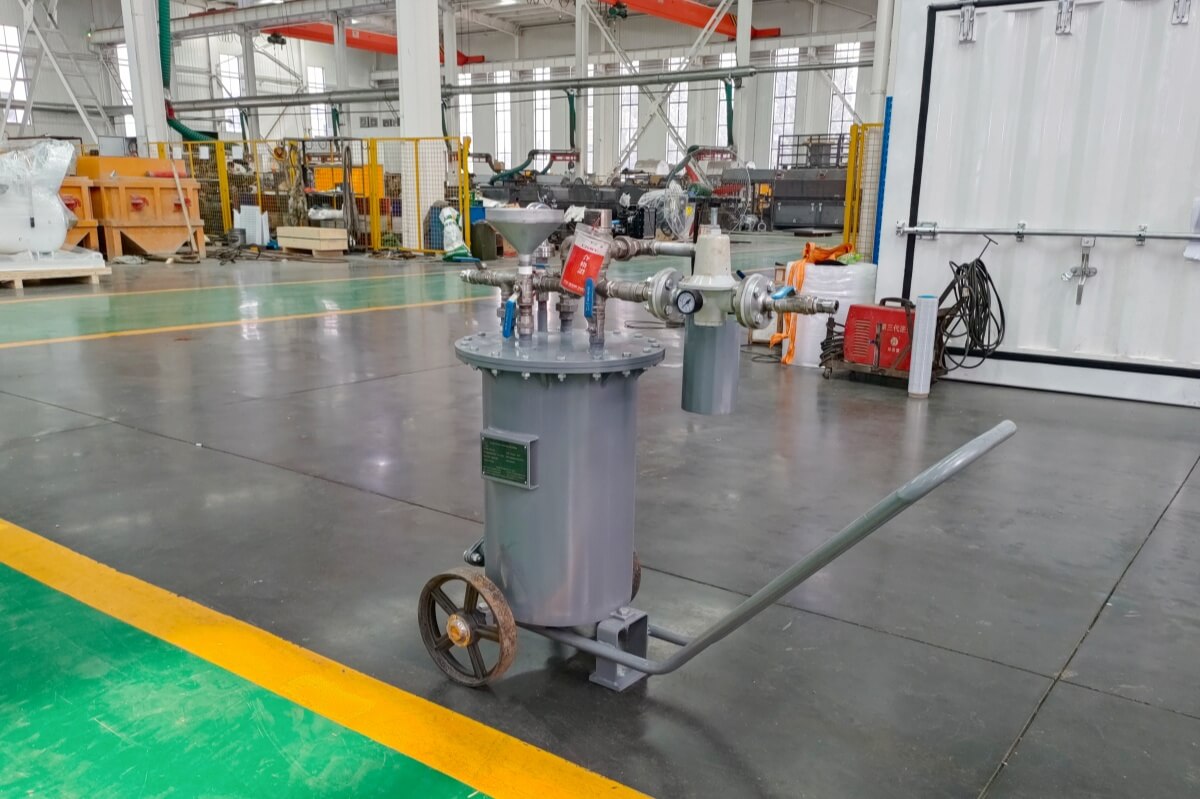

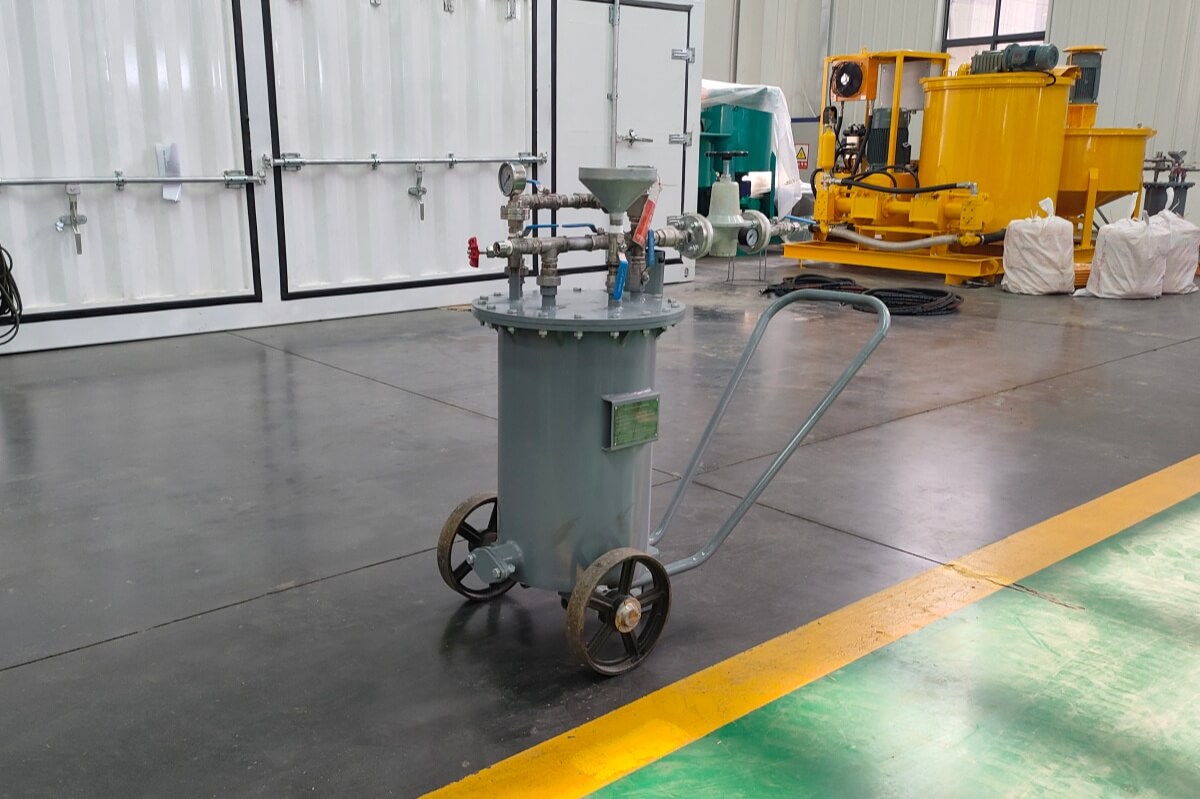

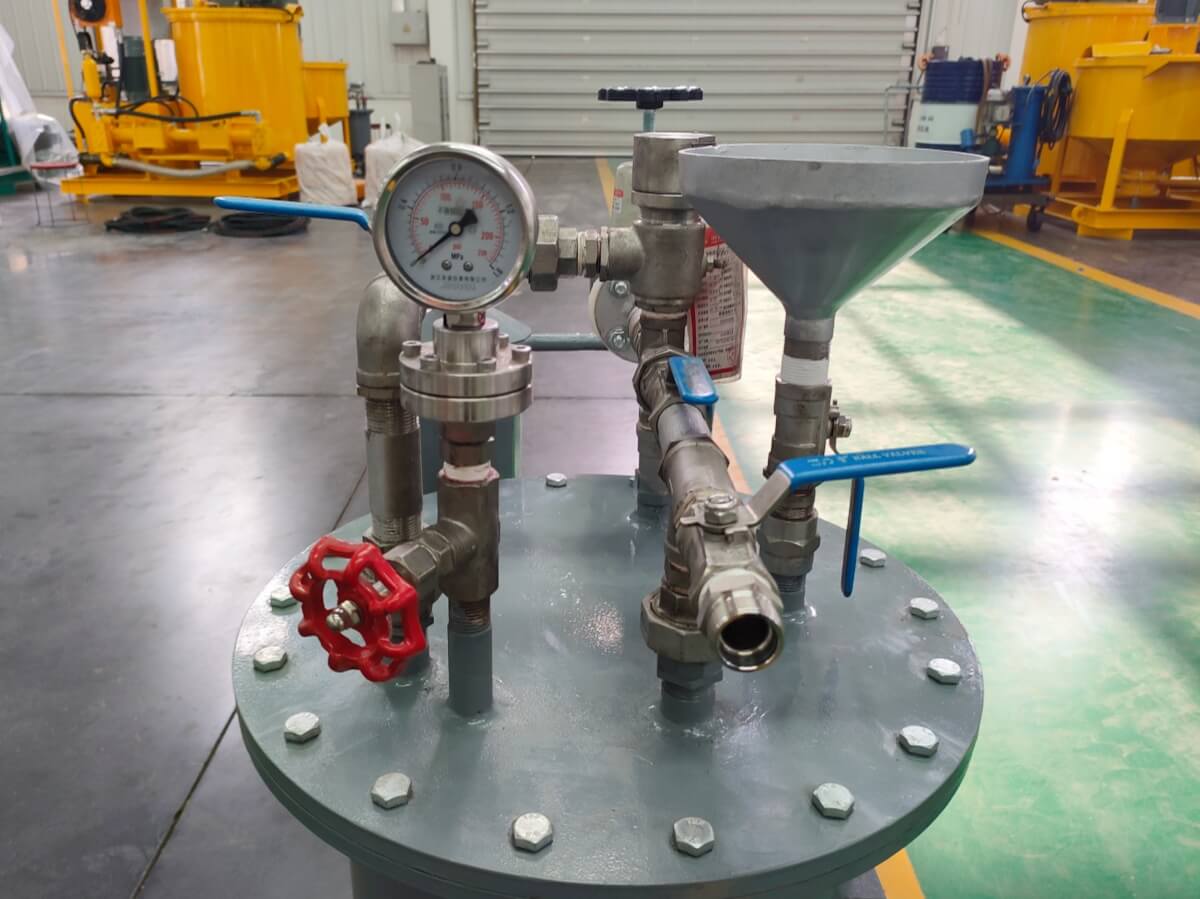

wet shotcrete machine for coke oven repair detailed

coke oven repair wet shotcrete machine detailed

shotcrete machine for coke oven repair detailed

■Technical Parameters

Item	Description
Work pressure	1.2-1.6Bar
Tank volume	40L
Max. aggregate	3mm
Work temperature	50℃
Conveying distance	30m
Conveying hose ID	25mm
Conveying pipe	6.5m
Overall dimension	1390x450x1160mm
Weight	145kgs
