LM500E colloidal mixer

  • Rated capacity:500liter
  • Acceptable W/C ratio:≥0.5:1
  • Mixing time:3min
  • Power:7.5kW
  • Weight:420kgs
  • Overall Dimension:1730*1630*1970mm

  • compact colloidal grout mixer
  • colloidal grout mixer
  • compact colloidal mixer
Shotcrete Machine
Refractory Gunite/Mixer
Concrete Pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Foam Concrete Machine
hydraulic pump station

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

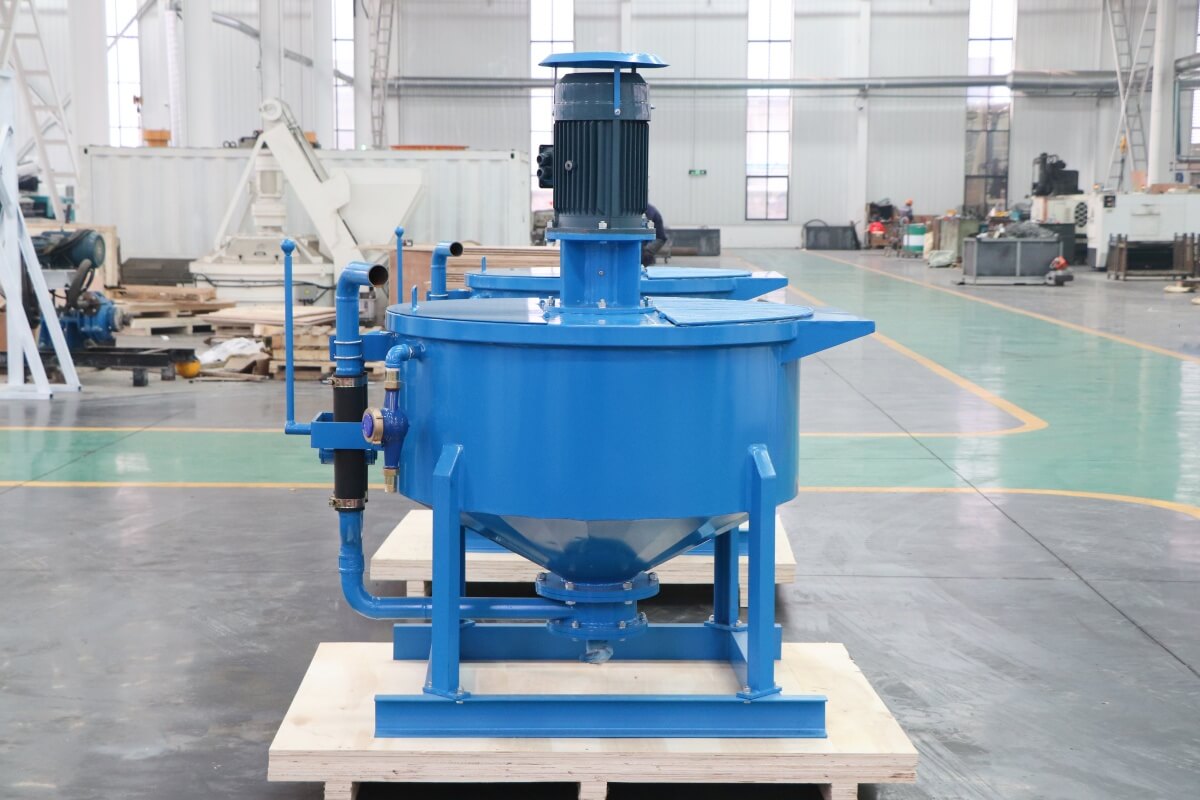

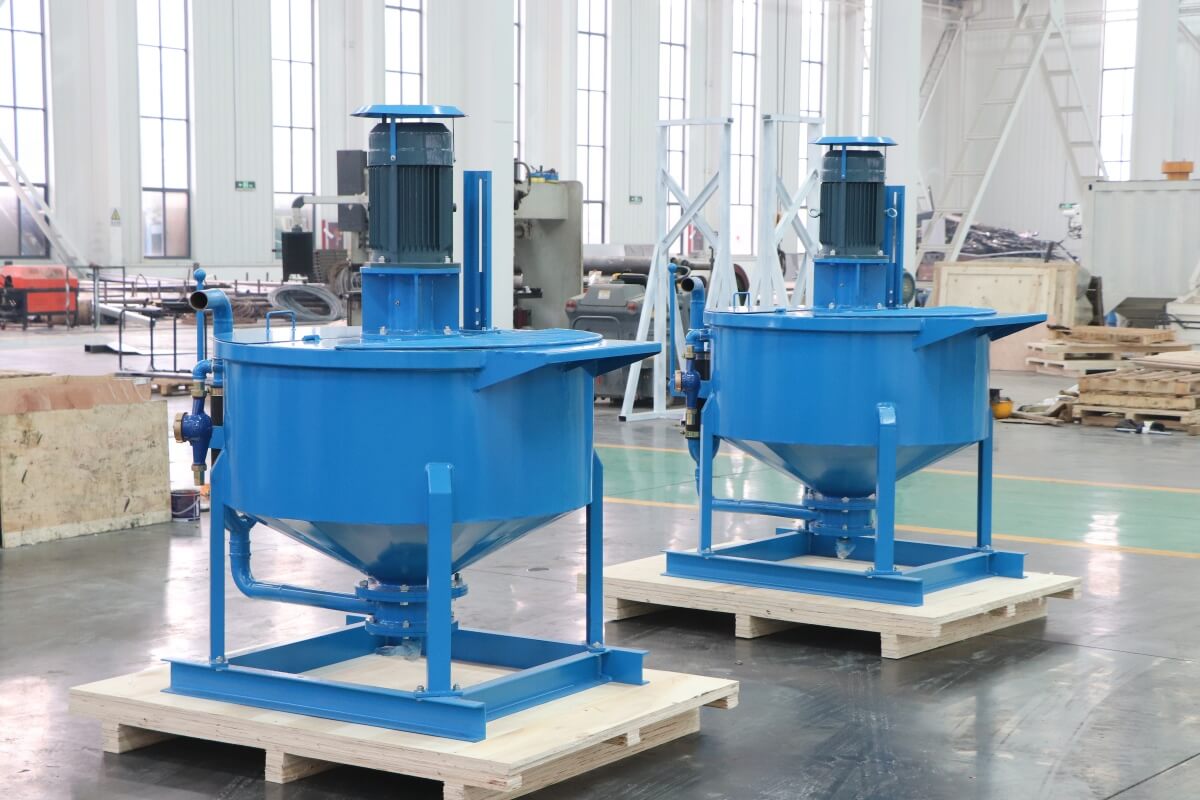

LM500E colloidal mixer is a high speed grout mixer. LM500E colloidal grout mixer has been designed
for use either in conjunction with a conventional paddle mixer and pump or by virtue of its own built
in impeller pump, as a stand-alone mix and place machine.

The colloidal unit will rapidly and efficiently mix various types of grout which can include cement,
bentonite and sand. It is specially design for cement mixing and grouting in ground and underground
engineering. We also can design the mixer with agitator, to make the mixing work can continuously
be done.


 Application:
LM500E colloidal mixer is specially designed for cement mixing and grouting in ground/underground
engineering. We also can design the mixer with agitator separately, to make the mixing work continuously.


 Features:

1. No wearing parts.
2. High speed mixing.
3. High-efficiency(3min).
4. Simple structure, lightweight, easy maintenance.
5. High speed mixer and agitator with diesel engine drive.

■Product Details
liquid level gauge of colloidal mixer

Liquid level gauge

impeller

Impeller

inside of impeller

Inside of impeller

squeeze hose handle

Squeeze hose handle

■Technical Parameters

Technical Data:


Item Technical data
Tank Capacity 500L
W/C Ratio ≥0.5:1
Mixing time 3min
Impeller speed 1500rpm
Power 7.5kW
Dimension 1730*1630*1970mm
Weight 420kg
