LZ-6AR/RD Air motor refractory gunning machine

  • Model: LZ-6AR/RD
  • Maximum output: 6m³/hr
  • Max. aggregate size: 10mm
  • Feed bowl pocket number: 16
  • Hose ID: 38mm
  • Air motor power: 5HP

  • air motor refractory gunite machine
  • air motor refractory gunning machine
  • air motor refractory shotcrete machine
  • small air motor refractory gunning machine
  • small reed refractory gunning machine
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description:
LZ-6AR/RD Air motor refractory gunning machine provides a steady flow of material, which allows uniform hydration and very smooth spraying. It is easy to operate and maintain.

air motor refractory gunning machine structure

LZ-6AR/RD uses an air motor to rotate the machine’s material feed bowl. An air compressor is required to convey material from the feed bowl to the nozzle (sold separately). Lightweight and easy to move. The maximum output of LZ-6AR/RD is 6m³/h.  The adjustable output of the material may be increased without sacrificing the quality of the application.

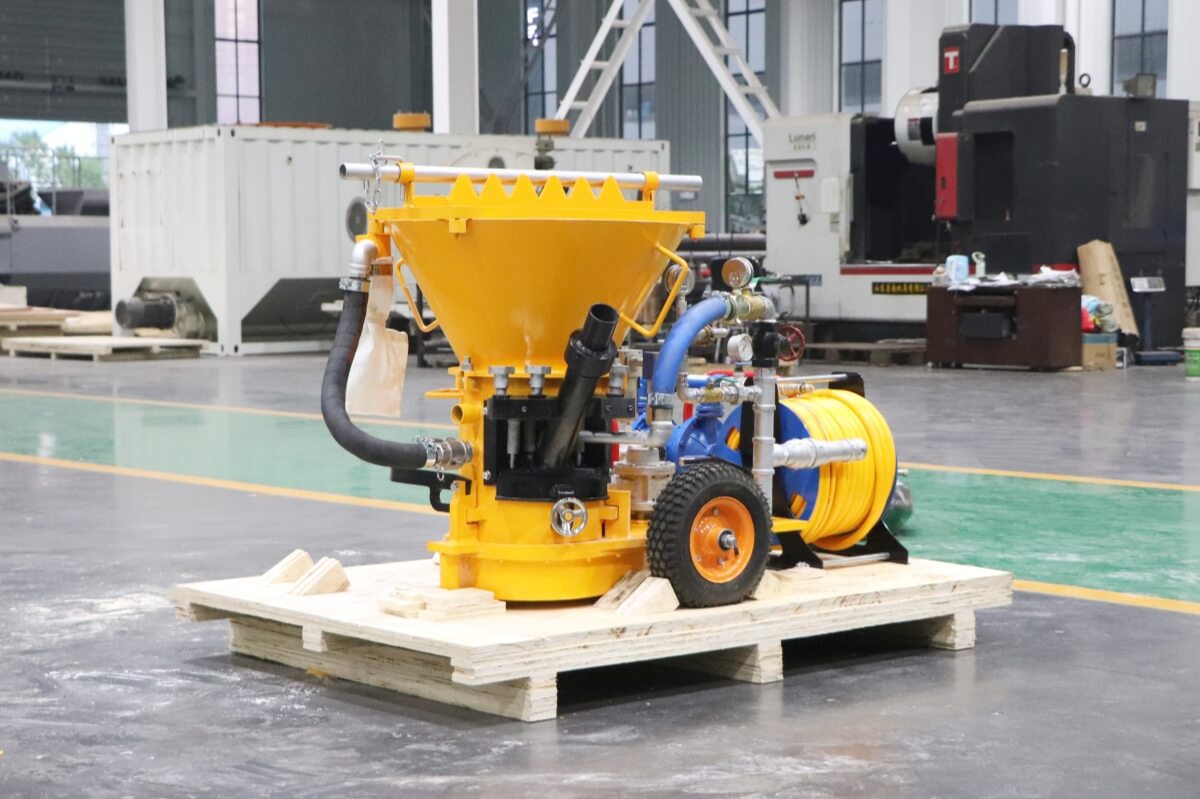

air motor refractory gunite machine for sale

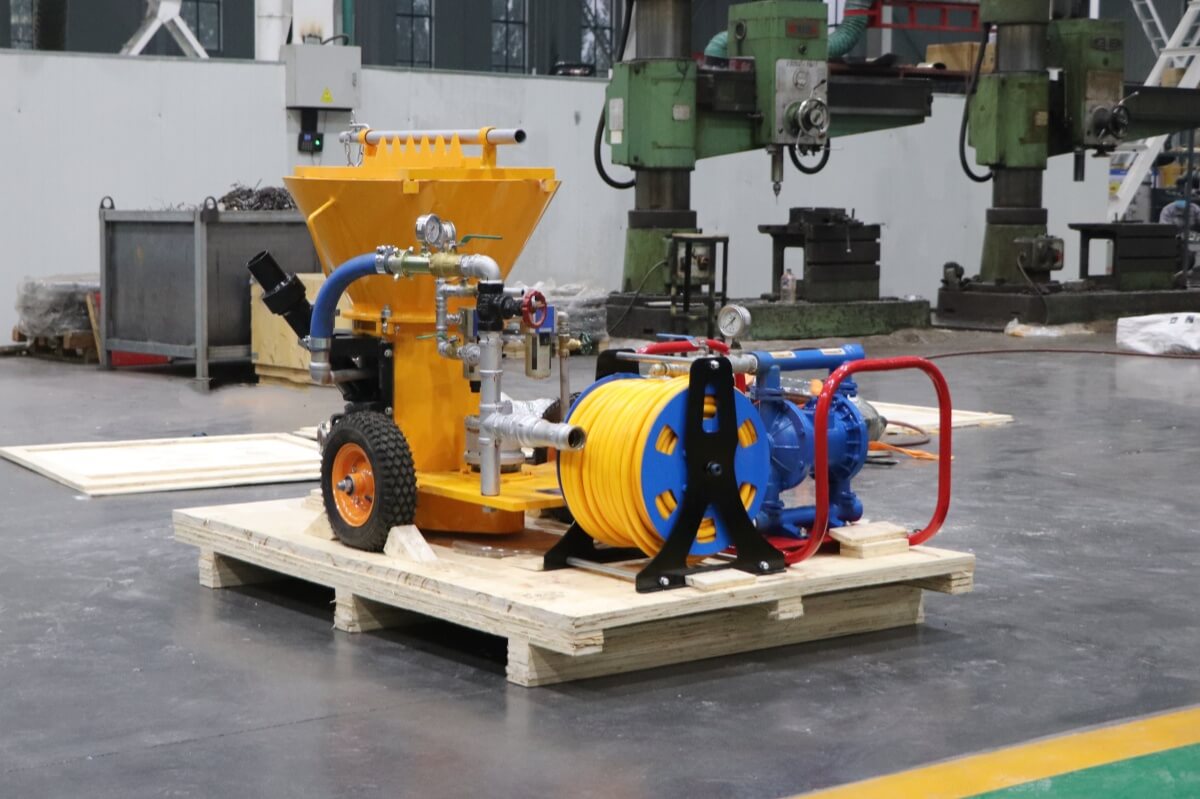

air motor refractory gunning machine for sale


air motor refractory shotcrete machine for sale


LZ-6AR/RD Air motor refractory gunning machine is with a p
re-dampening Nozzle Assy.

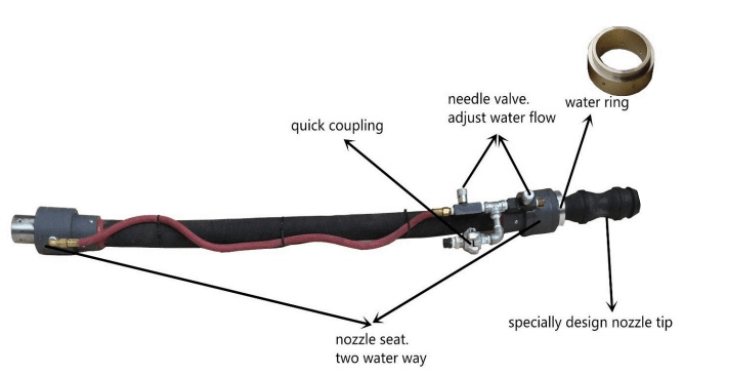

Pre-dampening Nozzle Assy of gunning machine

1. Low rebound, low dust;
2. Reduce additive water amount;
3. It can improve refractory compactness and strength;

 Application:
LZ-6AR/RD Air motor refractory gunning machine is capable of spraying through 38mm inner diameter conveying hoses. It is widely used in refractory spraying and installing projects. For some working site is remote, inconvenient to get electric power, air motor drive refractory gunite machine will be a good choice for customers.


  refractory gunning machine for refractory spraying and installing project

 Features:

1. Direct drive 5HP air motor;
2. Continuous feed hopper;
3. Bag cutter included;
4. Double-blade materials agitator;
5. Pressure gauges, pressure visible;
6. Rubber plates can be quickly replaced.

 Operating Principle:

Operating Principle of Small Gunning Machine

① The dry material is fed through the hopper down into the pockets of the rotary feed wheel below.
② The rotary feed wheel, driven by a heavy-duty oil bath gear drive, rotates the mix under the conveying air inlet and material outlet.
③ With the introduction of compressed air, the mix is evacuated from the feed wheel pockets, then travels through the outlet and into the hoses.
④ The dry mix material is then conveyed in suspension through hoses to the nozzle, where water is added and the water and dry material mix.


mini refractory gunning machine for sale


small refractory gunning machine for sale

■Product Details
Air motor

Air motor

Bag breaker

Bag breaker

Discharge pipe

Discharge pipe

Pneumatic tyre

Pneumatic tyre

Pressure gauges

Pressure gauges

Rubber plate

Rubber plate

■Technical Parameters
Model LZ-6AR/RD Air motor refractory gunning machine
Maximum output 6m³/hr
Max. aggregate size 10mm
Feed bowl pocket number 16
Hose ID 38mm
Air motor power 5HP
Air consumption 9-11m³/min
Dimension 1100×790×920mm
Weight 230Kg

Air motor refractory gunning machine design drawing


Maximum theoretical performance is shown above. Actual performance will vary depending on a slump, mix design, and delivery line diameter. Specifications are subject to change without prior notice.
