PB Series Soil Spraying Machine

  • Model:PB4083

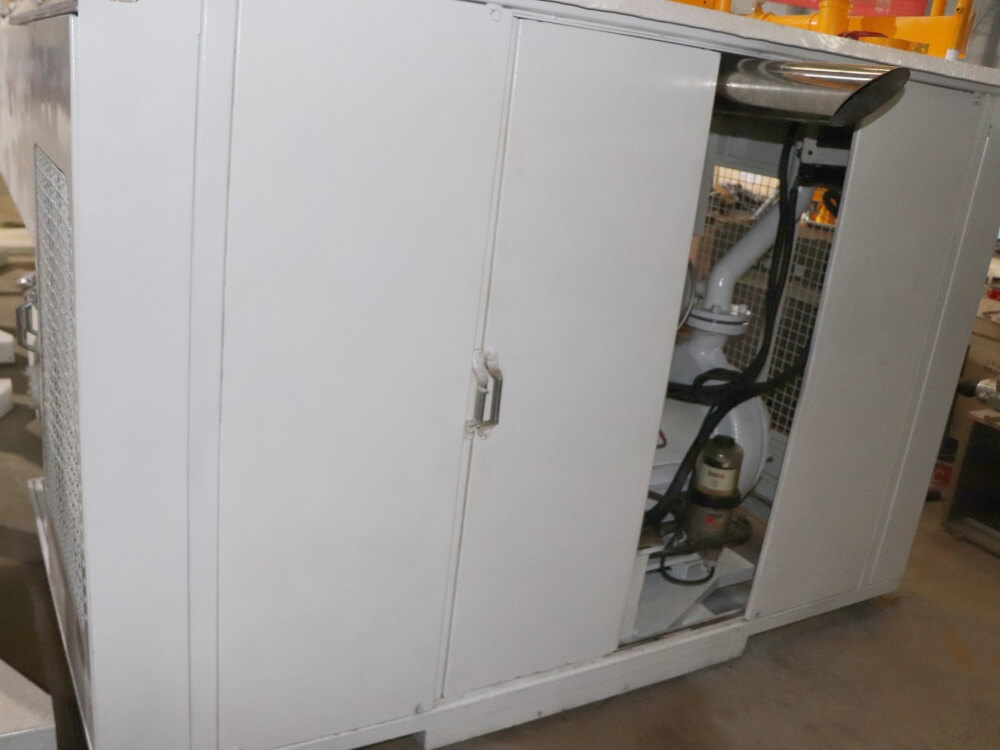

  • Diesel engine:LRC4108T
  • Power:63kw
  • Tank effective capacity:4m³
  • Output:1350L/min
  • Maximum Solid Content:volume ratio 30%, weight ratio 60%

  • grass seeds planting machine
  • Soil Spraying Machine supplier
  • Soil Spraying Machine for sale
  • Soil Spraying Machine factory
Shotcrete Machine
Refractory Gunning Machine
Grouting Equipment
Grout Mixer and Agitator
Grout Pump
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Concrete Pump
Foam Concrete Machine
hydraulic pump station

TEL

86-371-63902781

skype:

shotcreter

Email

sales@leadcrete.com

FAX

86-371-63526675

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

Remarks:
• Spray seeding is more and more applied in road greening.
• PB series artificial soil spraying machine involves in planting permanent vegetation, spraying slurry,
slope protection, grassing and erosion prevention.

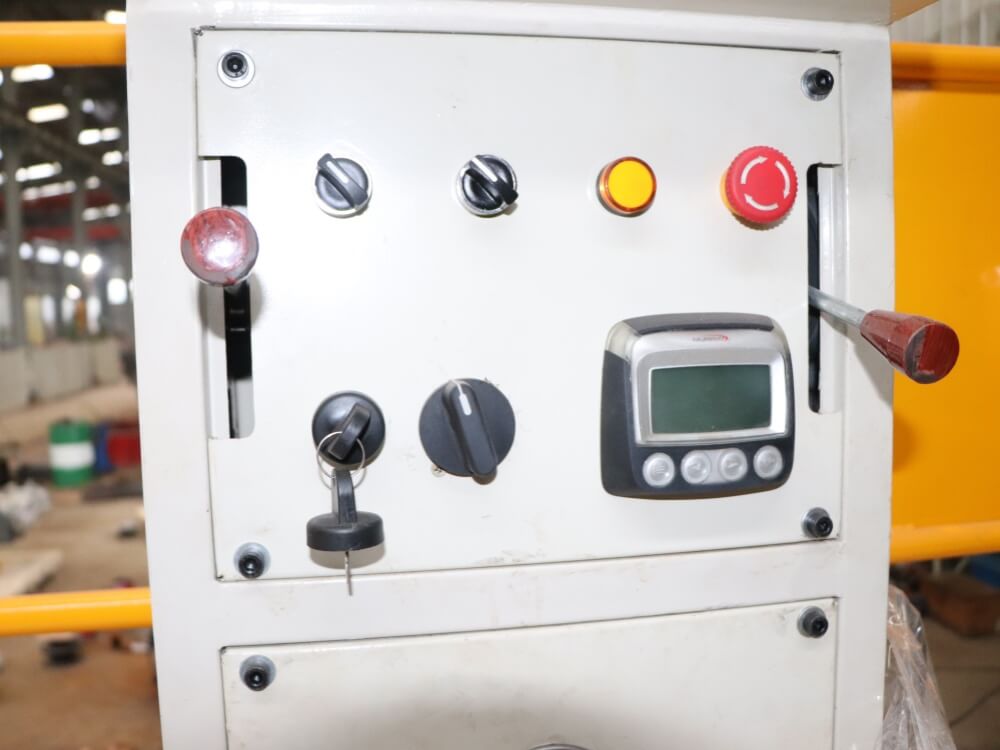

• Soil spraying machine driven by single diesel, electronic control, easy operation, especially suitable
for outdoor conditions, applicable to all kinds of rock slope, hard soil, poor soil, acidic soil, arid zones,
clay soil and coastal dam, etc.


 Application:
The application of seeding machine : spraying technology in vegetation restoration and slope protection project.


 Features:
♦ The material of main structure is made of high quality structural steel. No matter how worse the
conditions are, it ensures seeder sturdy and solid. And it has reasonable, generous appearance.
Painted with imported painting to guarantee of three-year no fading.

♦ Advanced technology, it even works for mud materials which have poor mobility, no blocking, and
no stopping, well adaptation of various materials, big output pressure.

♦ Two mixing models, blades mixing and circular spray, are powerful enough to ensure the spraying
mixture in the planting process is in fully suspended and fully mixed stated, evenly emitting the
mixture of raw materials at one time.

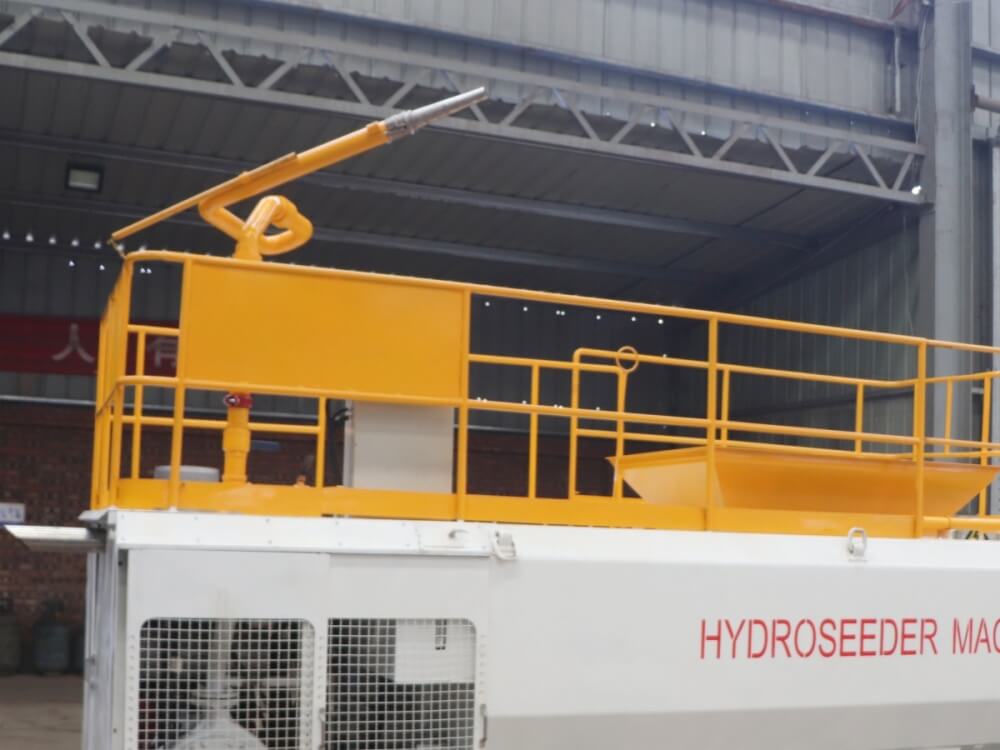

♦ It has strong power, the maximum head can be above 60m, and be equipped with many types of
spraying guns, which extend the maximum operation scope from 200m to 300m; fan-shaped spray
nozzle or mist spraying is more suitable for close-distance planting to meet various requirements.

♦ This machine has wide usage, not only can be applied in spraying planting for rice, grass, tress,
flowers, seeds, and other crops, but also in irrigation, fertilize, pesticide spraying and other daily
care, soil improvement work. This machine can also mix different materials like seeds, fertilizer,
soil conditioner, seed adhesives, moisturizer, straw, fiber covering materials,
yellow soil, red soil, sandy soil and clay, evenly emitting slurry materials with big proportion, high
and super concentration.

♦ Our soil spraying machine can also use as a hydroseeder.
■Product Details

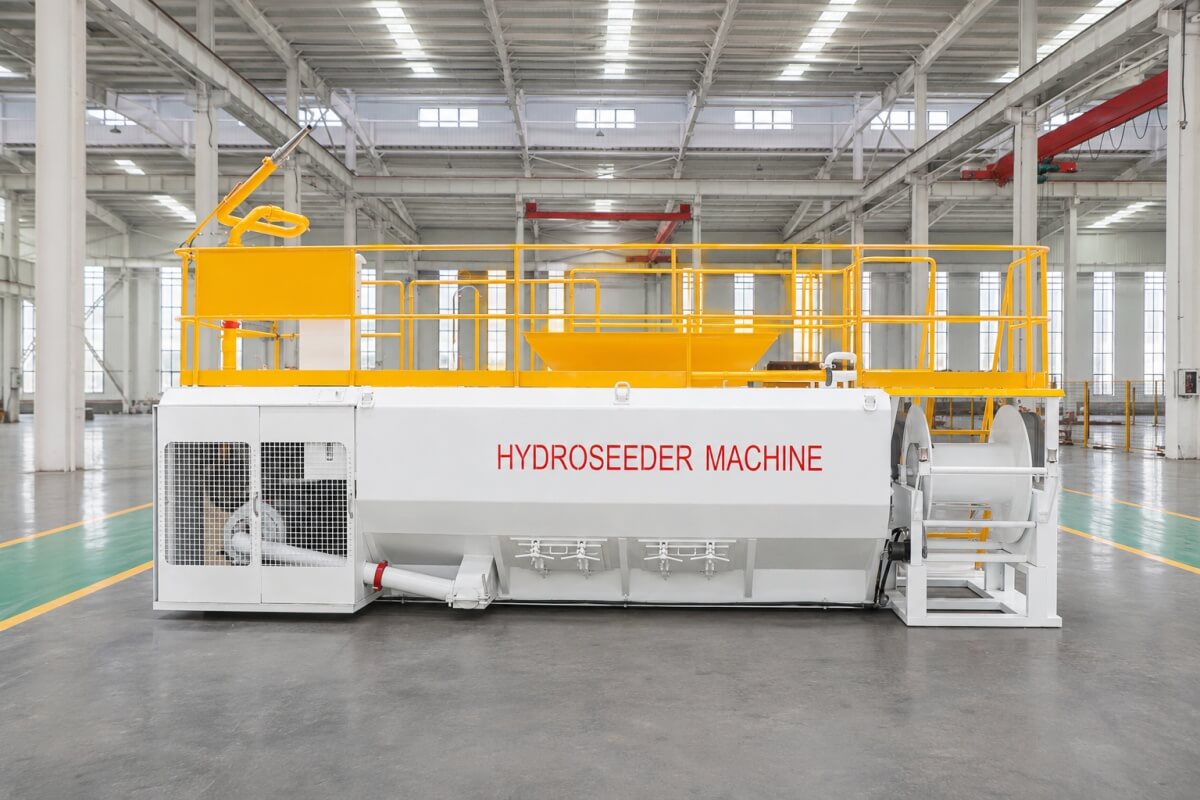

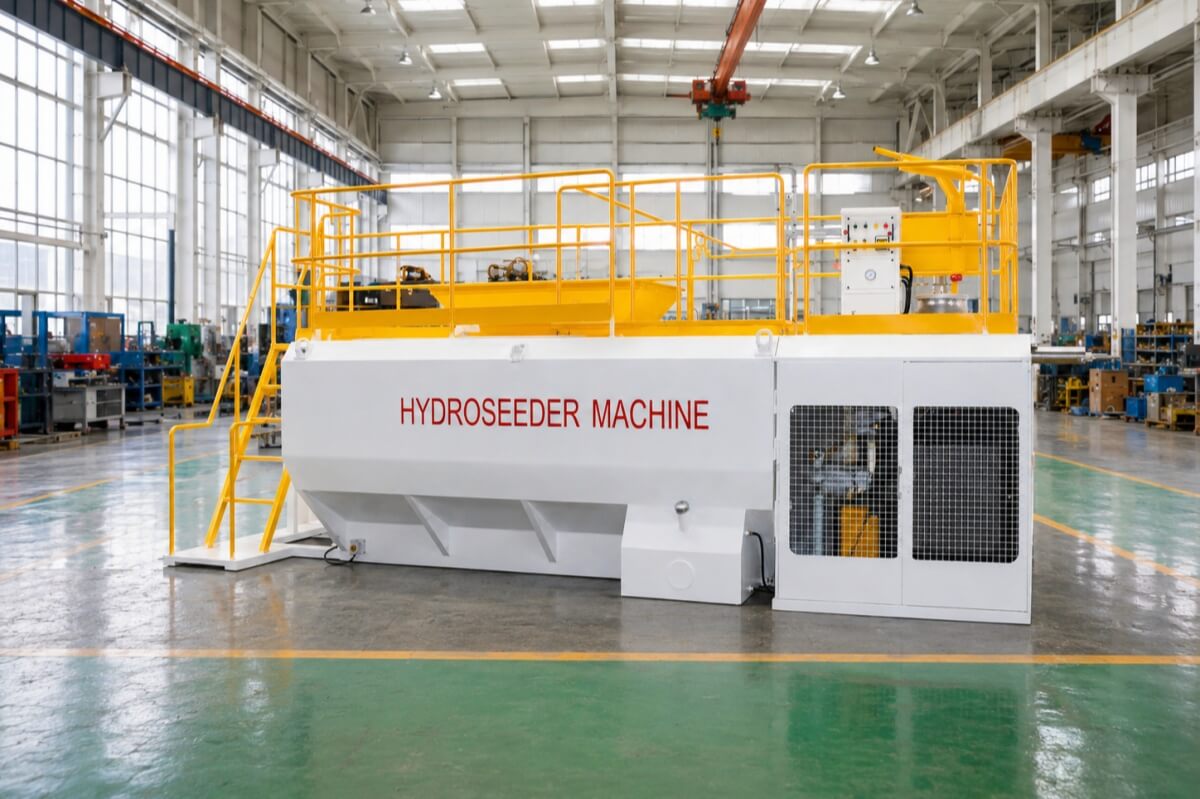

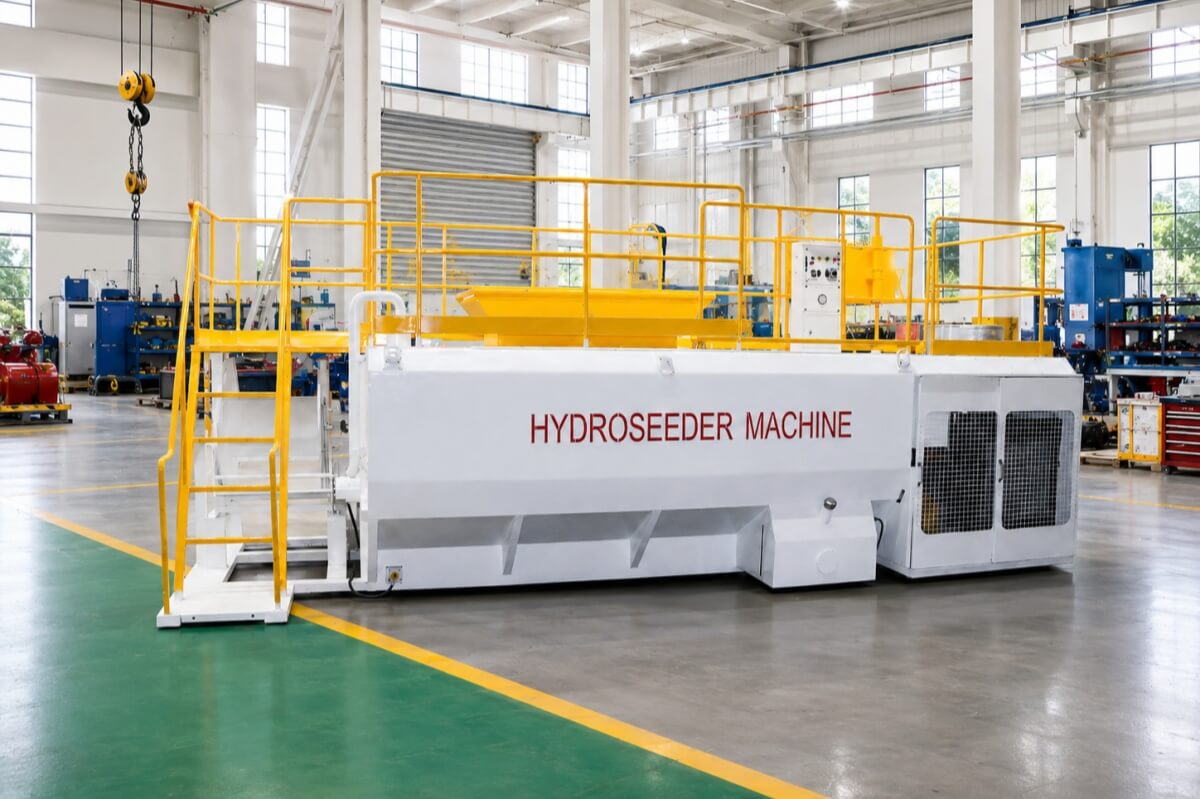

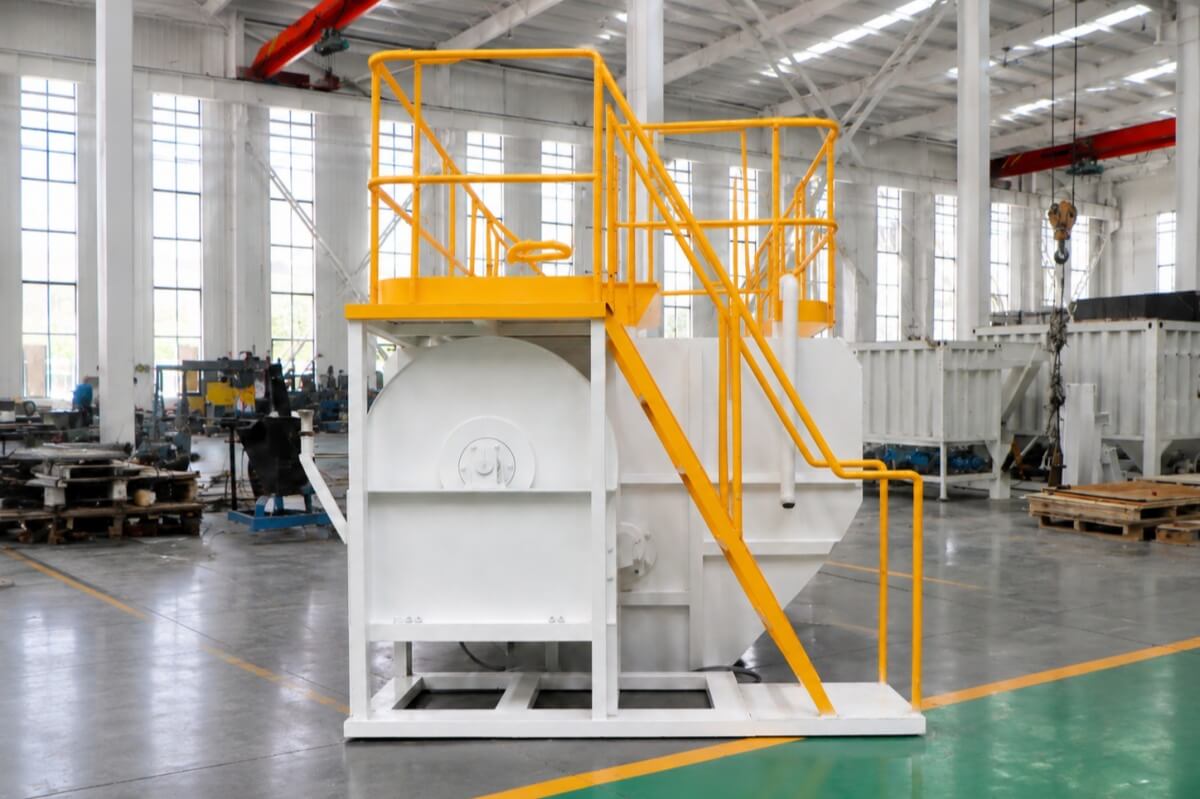

hydroseeder

PB Series Soil Spraying Machine

Soil Spraying Machine

PB Series Soil Spraying Machine

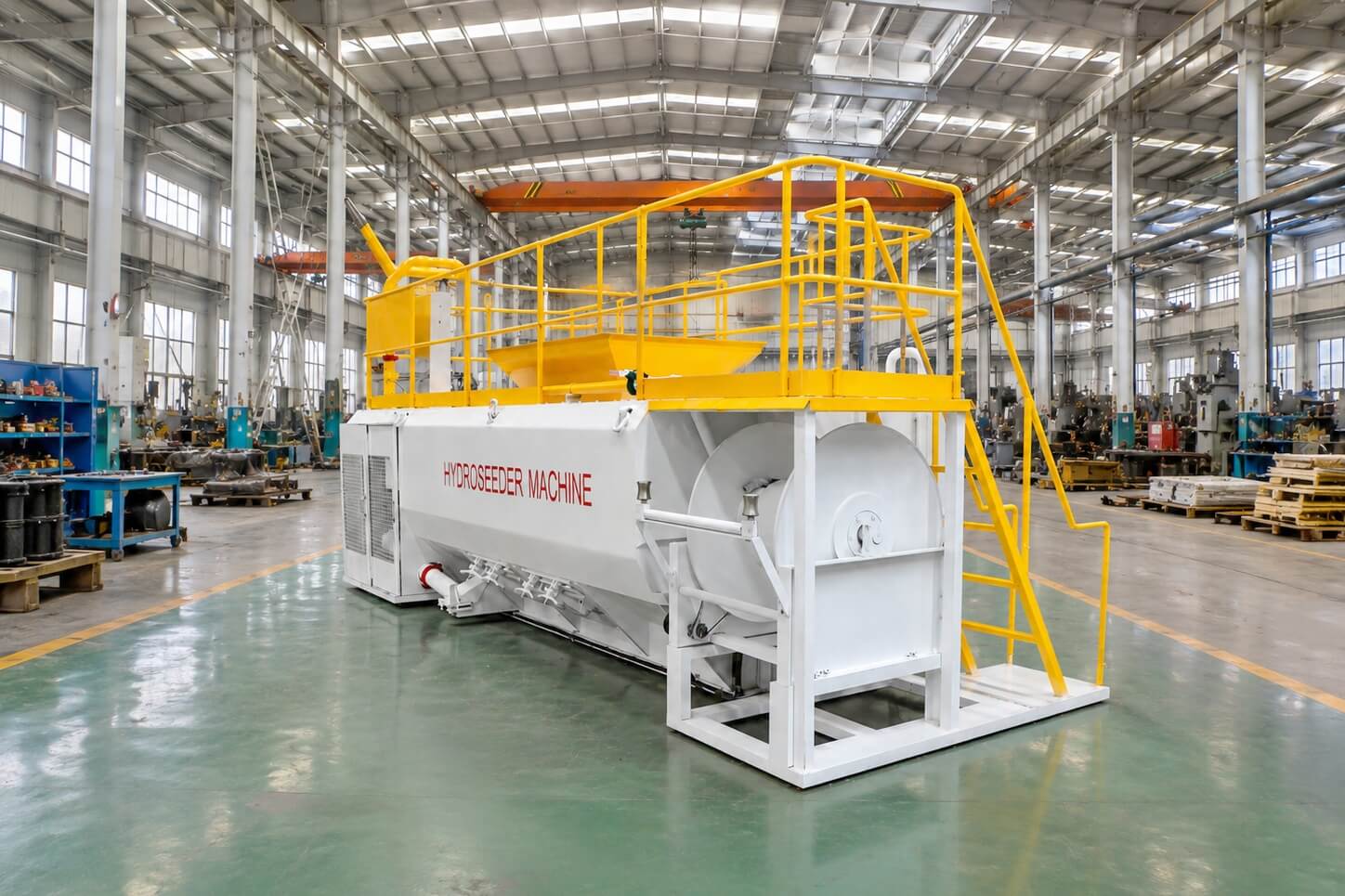

hydroseeding machine

PB Series Soil Spraying Machine

■Technical Parameters
Technical Data:

Model
PB4083 PB6083 PB8083
Diesel engine(Dong Fang Hong) LRC4108T LR4A3Z LR4A3Z
Power 63kw 83kw 83kw
Tank effective capacity 4m³ 6m³ 8m³
Output 1350L/min 1350L/min 1350L/min
Output pressure 8kgf/cm² 8kgf/cm² 8kgf/cm²
Maximum Solid Content volume ratio 30%, weight ratio 60%
Maximum aggregate 20mm
Mixing mode Hydraulic infinitely variable, blades mixing and circular jet mixing
rotating speed of mixer shaft 0-110rpm
Maximum horizontal conveying distance 38-45m with gun; 100-120m with hose
Maximum vertical conveying distance 40m with gun; 80m with hose
spraying guns type fixed standing gun and pipe gun
Height of fence 800mm
Net weight 2650kg 3200kg
Dimension 4600*2200*2400mm 5500*2200*2500mm
