LH89-610C Squeeze Hose Pump for TBM

  • Max. output: 240L/min
  • Rotation: 45RPM
  • Squeeze hose ID: 89mm
  • Max. pressure: 1.0Mpa
  • Voltage: 3 phase, 380V, 50HZ
  • Power: 22KW

  • hose pump
  • industrial hose pump for TBM
  • peristaltic pump for sale
  • Squeeze Pump for TBM
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Soil Spraying Machine
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description:

LH89-610C industrial hose pump (squeeze pump) for TBM consists mainly of pump house, rotor, roller,
idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor
drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its
elasticity.
Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet
under roller’s push, finally forms pressure conveying of slurries.


 Application:
● Squeeze hose pump for TBM can work as a benonite pump or foam, slurry pump in Tunnel Boring machine(TBM).

● Textiles – fibres, dyes and additives.

● Printing and packaging – varnishes, inks, coatings and adhesives.
● Pint and pigments – dispersion mill feed, pigment and latex transfer.

● Peristaltic hose pump mining and mineral separation – tailing.

● Ceramics and glass – fine China.
● Industrial peristaltic pump for conveying slurries, sludges and reagents.
● Hose pump for pumping water and wastewater treatment – lime, kalic, sodium hypochlorite, ferric
chloride and sludges.
● Chemical – corrosive acids, and bases.
● Industrial hose pump for construction – pumping the cement slurry, mortar or light-weight concrete or
foam concrete, etc.


LEC industrial peristaltic hose pumps can be used in following field: Construction, pharmacy, textile mill,
dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground
engineering, etc. It’s perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids,
high density fluids, large solids, metering(±1%), high pressure(3Mpa).

 Features:

       ♦ No seals
♦ No valves
♦ Self -priming
♦ Only tube to replace
♦ Dry –running without damage
♦ Reversible
♦ No contact between product and mechanical parts
♦ Squeeze hose pump for TBM is able to pump products with solid parts inside
♦ Industrial peristaltic hose pump is easy maintenance, low-cost, short down time

■Product Details

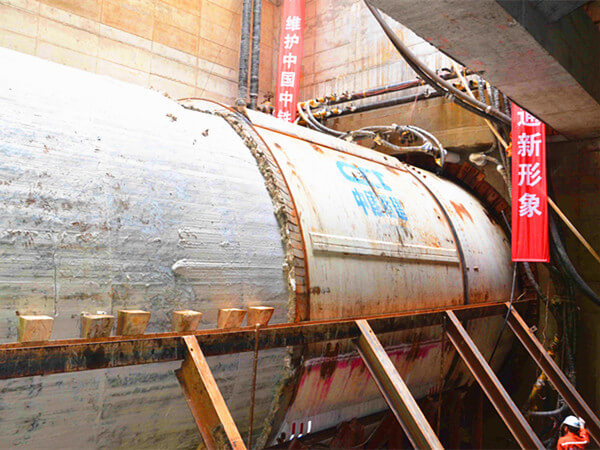

bentonite hose pump in TBM

Work as the bentonite hose pump in TBM

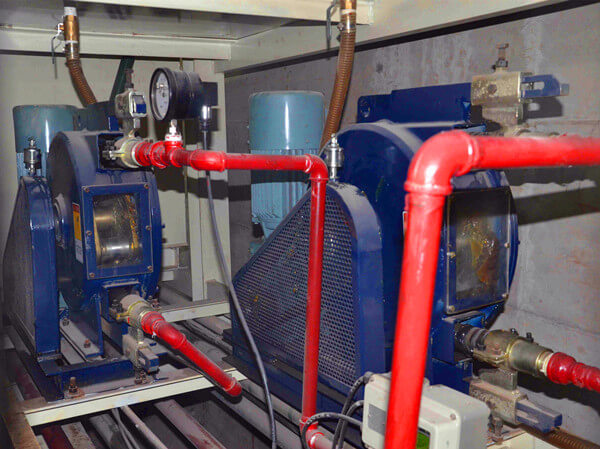

Squeeze Hose Pump for TBM

Squeeze hose pump for TBM

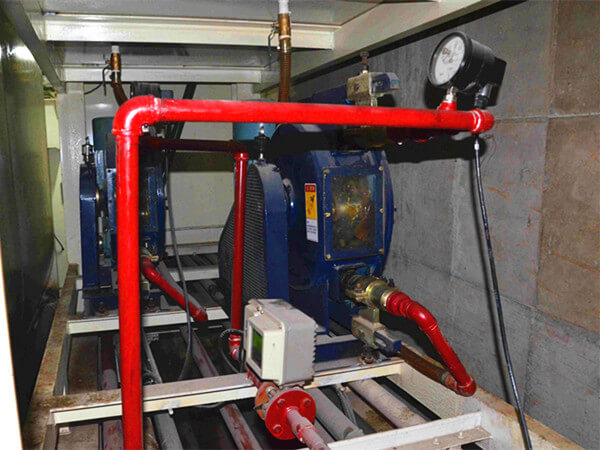

TBM hose pump

TBM hose pump

Peristaltic hose pump for TBM

Peristaltic hose pump for TBM

TBM Squeeze Hose Pump

TBM squeeze hose pump

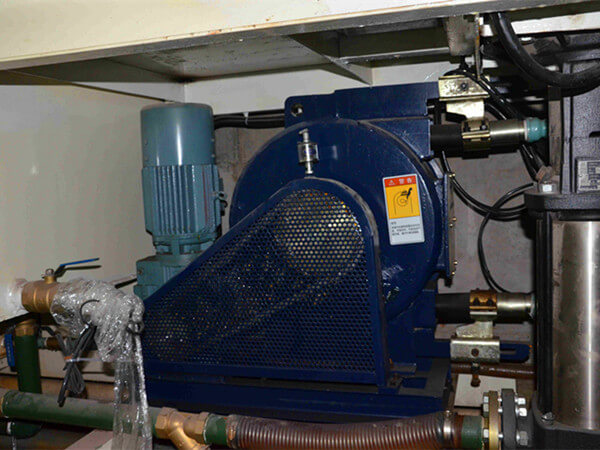

Peristaltic pump for TBM

Peristaltic pump for TBM

■Technical Parameters
Technical Data:

Type LH89-610C Squeeze Hose Pump for TBM
Max. output 240L/min
Rotation 45RPM
Squeeze hose ID 89mm
Max.  pressure 1.0Mpa
Voltage 3 phase, 380V, 50HZ
Power 22KW
