ADDRESS ■Introduction
► Description:
Post-mixing, the resultant blends are then transferred to the agitator tank via the same pump, where they undergo further slow-speed agitation thanks to the tank's mixing paddles. Upon fully evacuating the contents of the mixer tank, an ingeniously designed handle valve is shifted, facilitating the initiation of the subsequent mixing cycle for continuous and efficient operation.

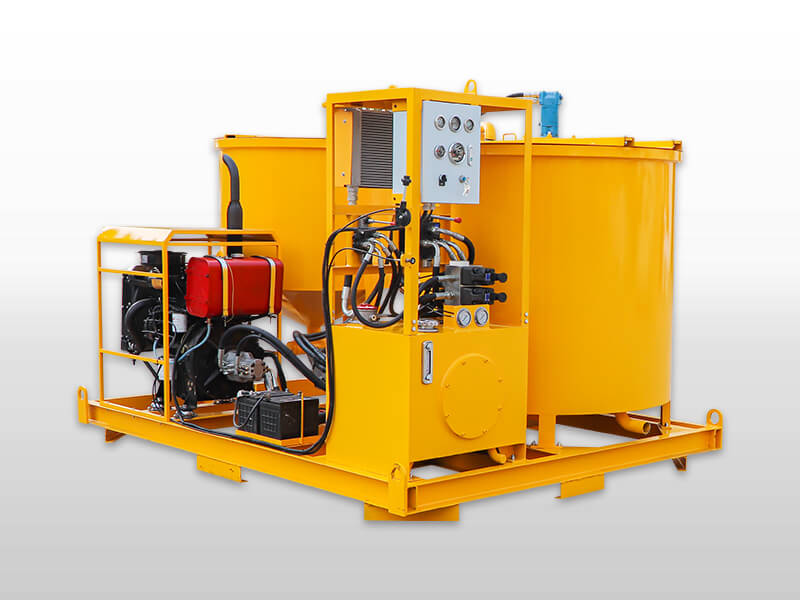

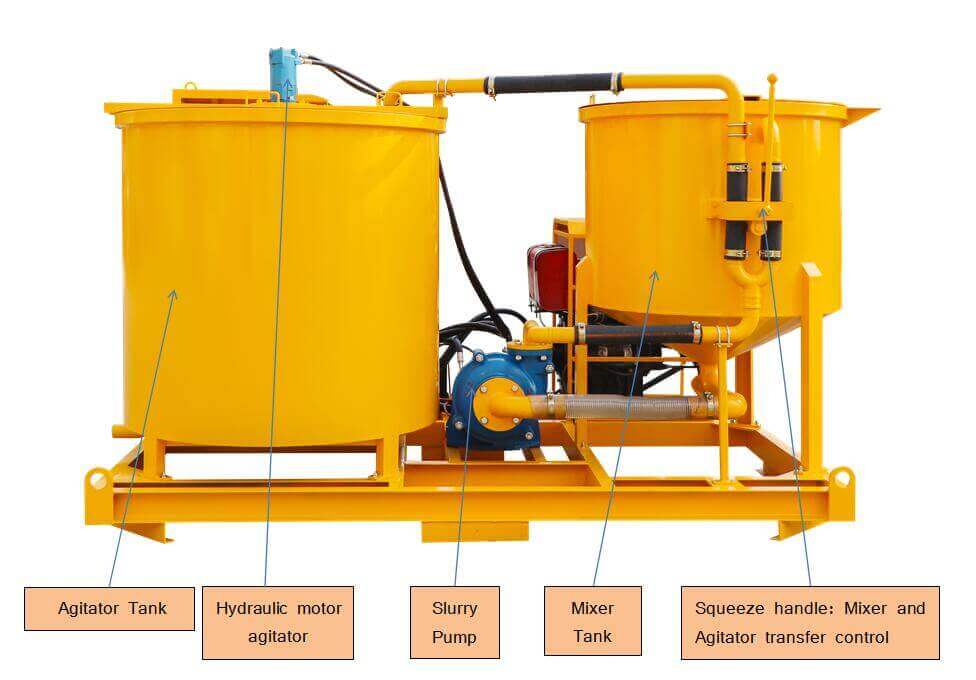

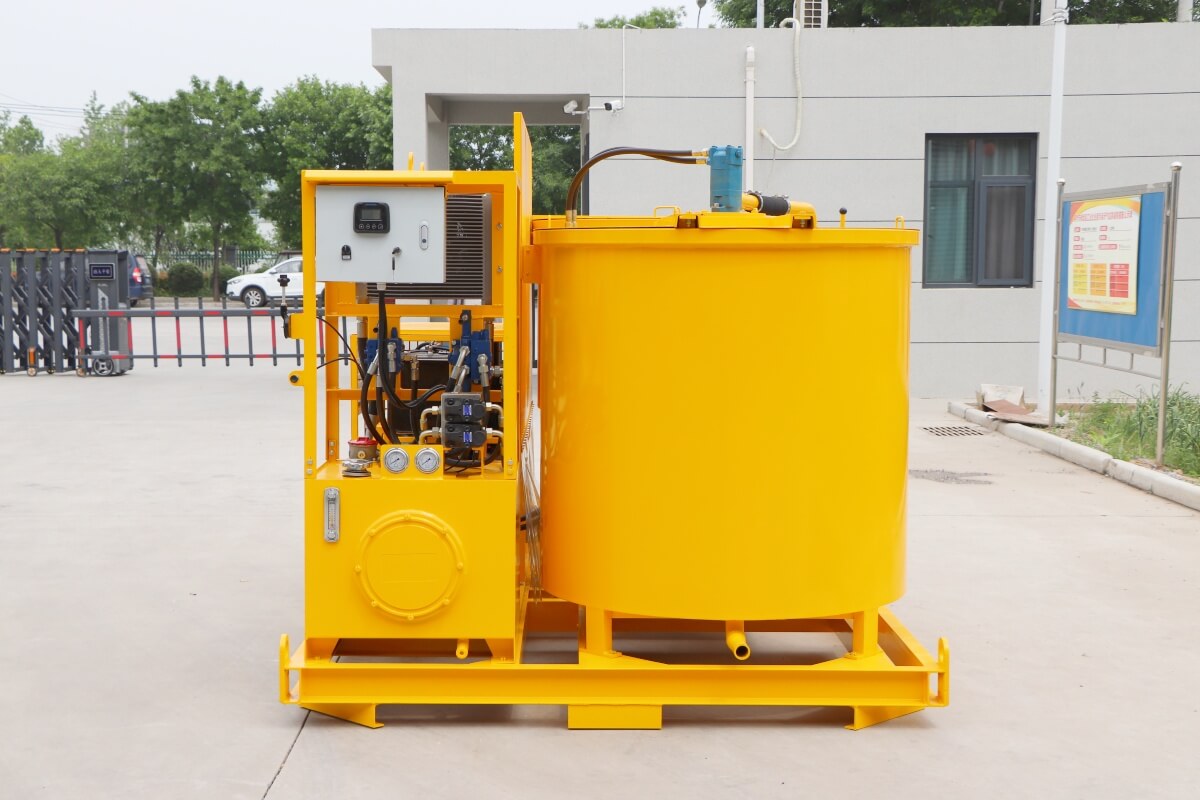

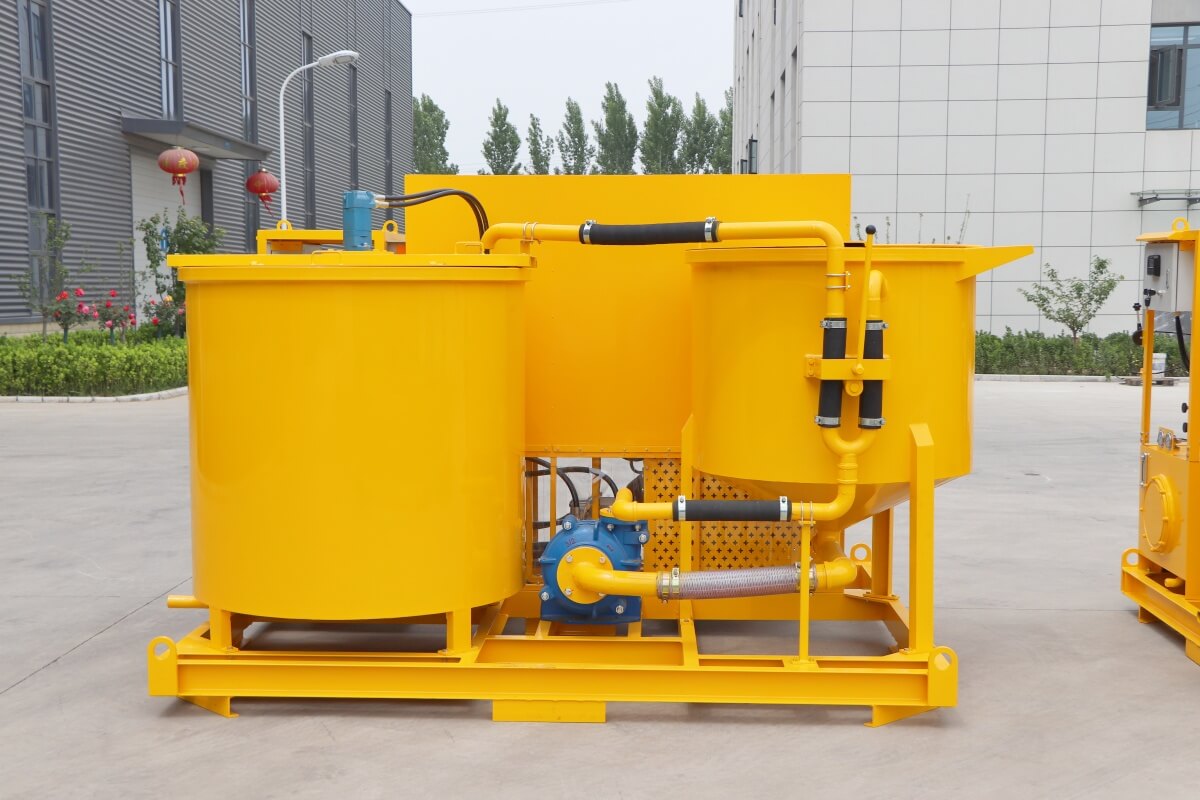

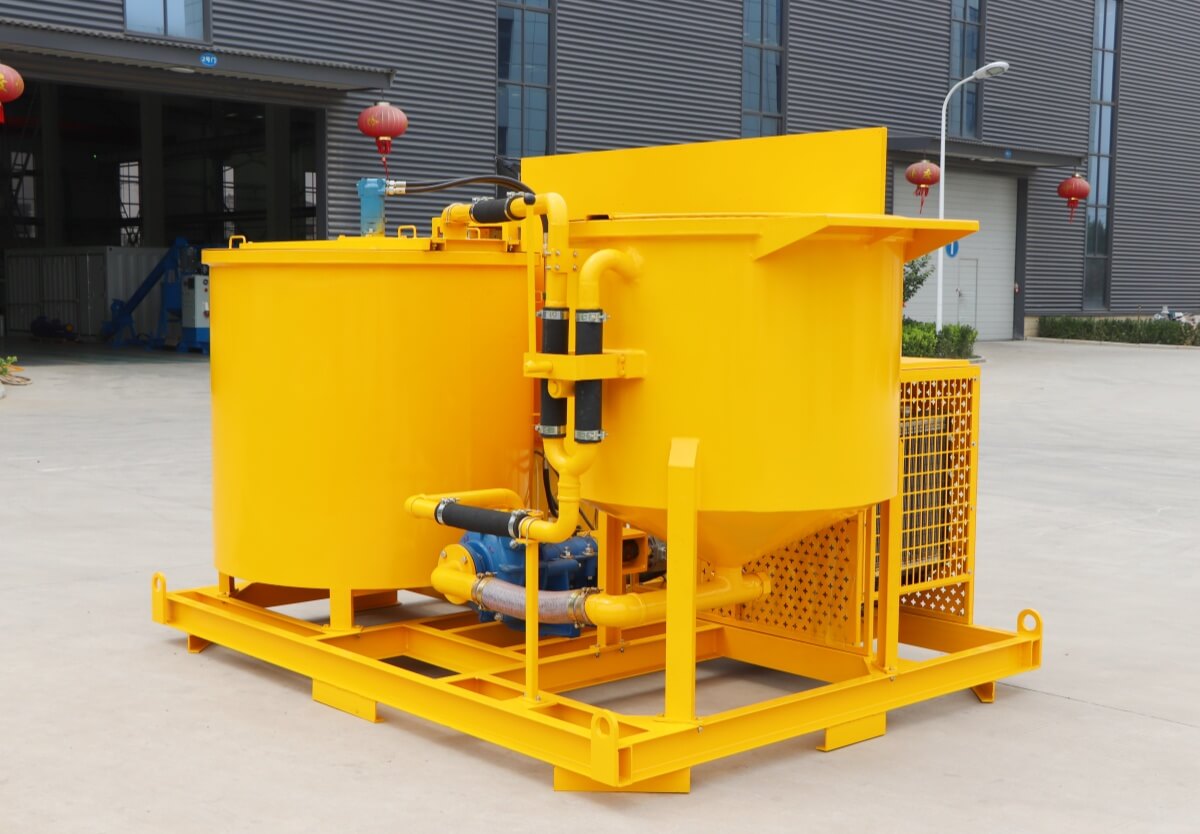

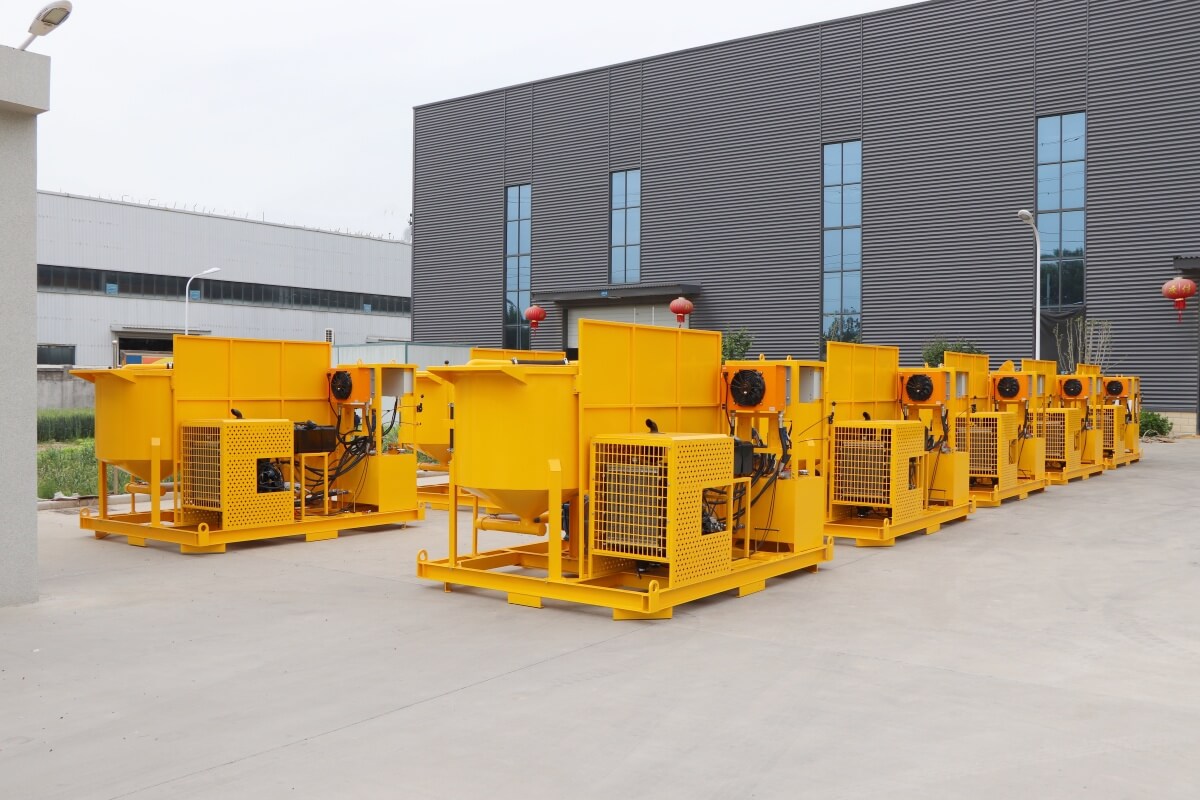

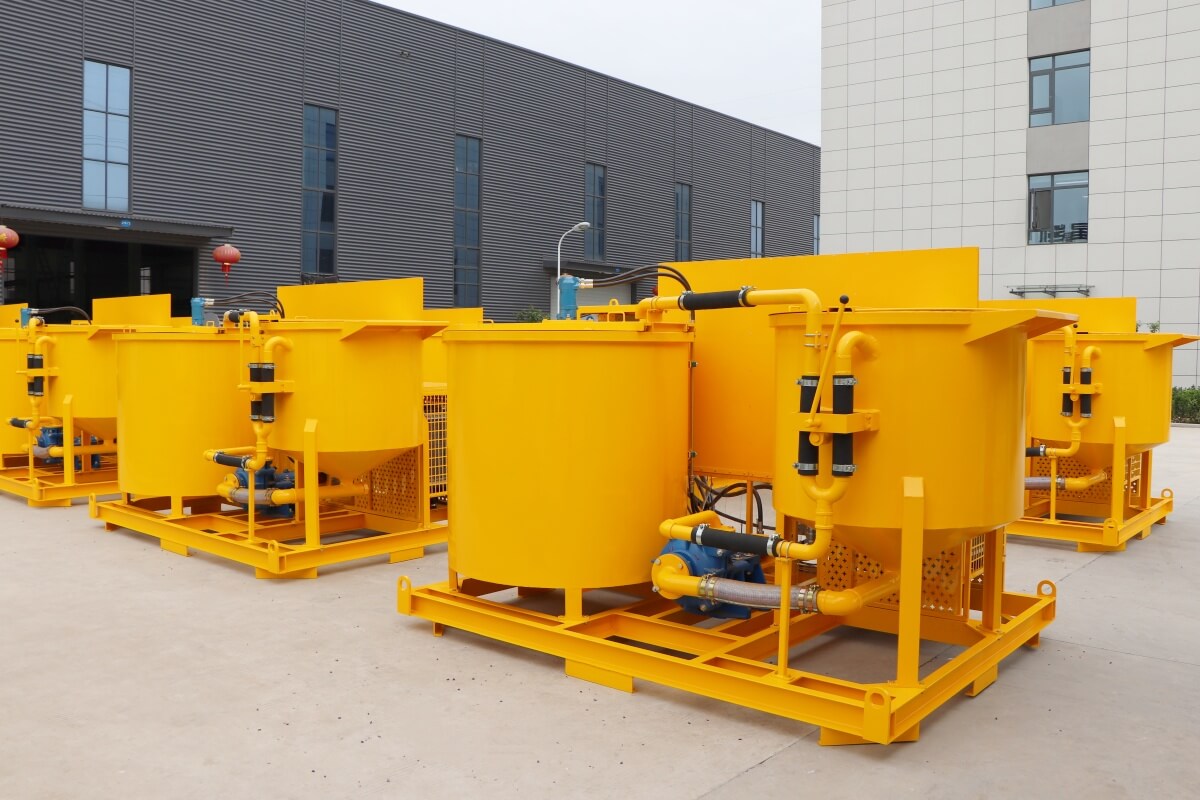

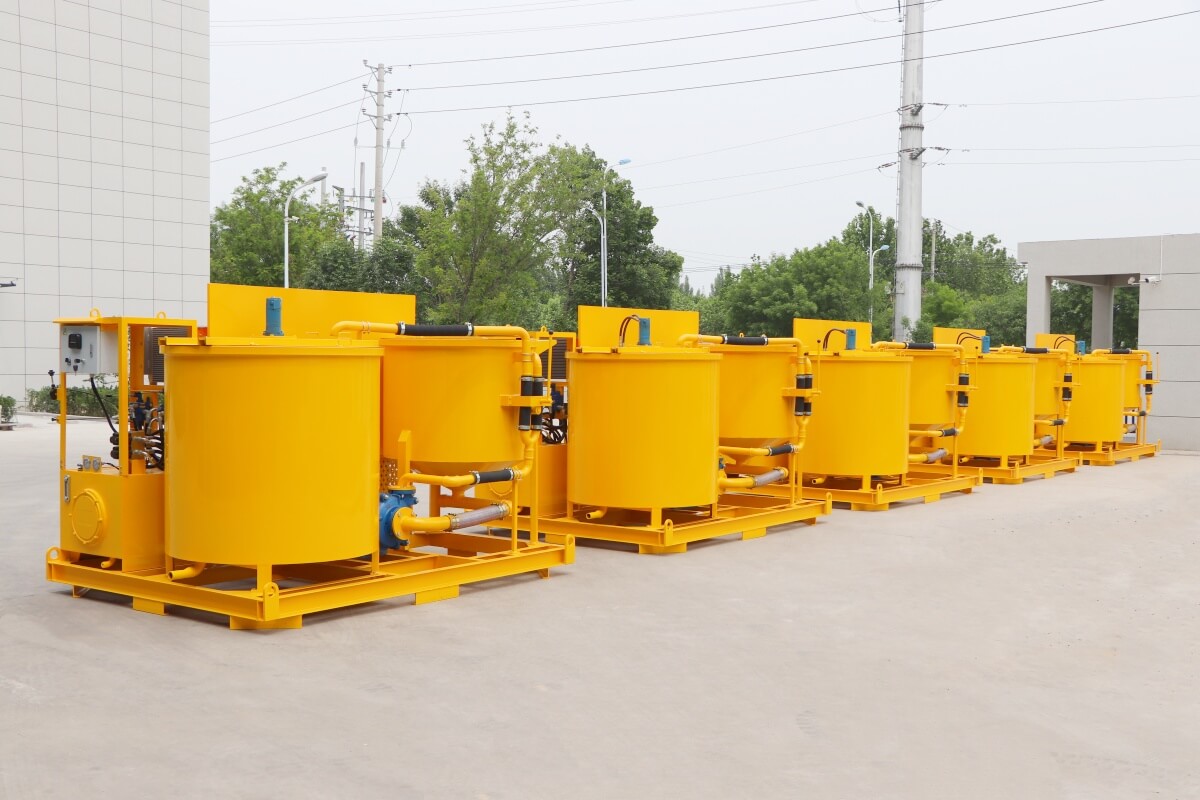

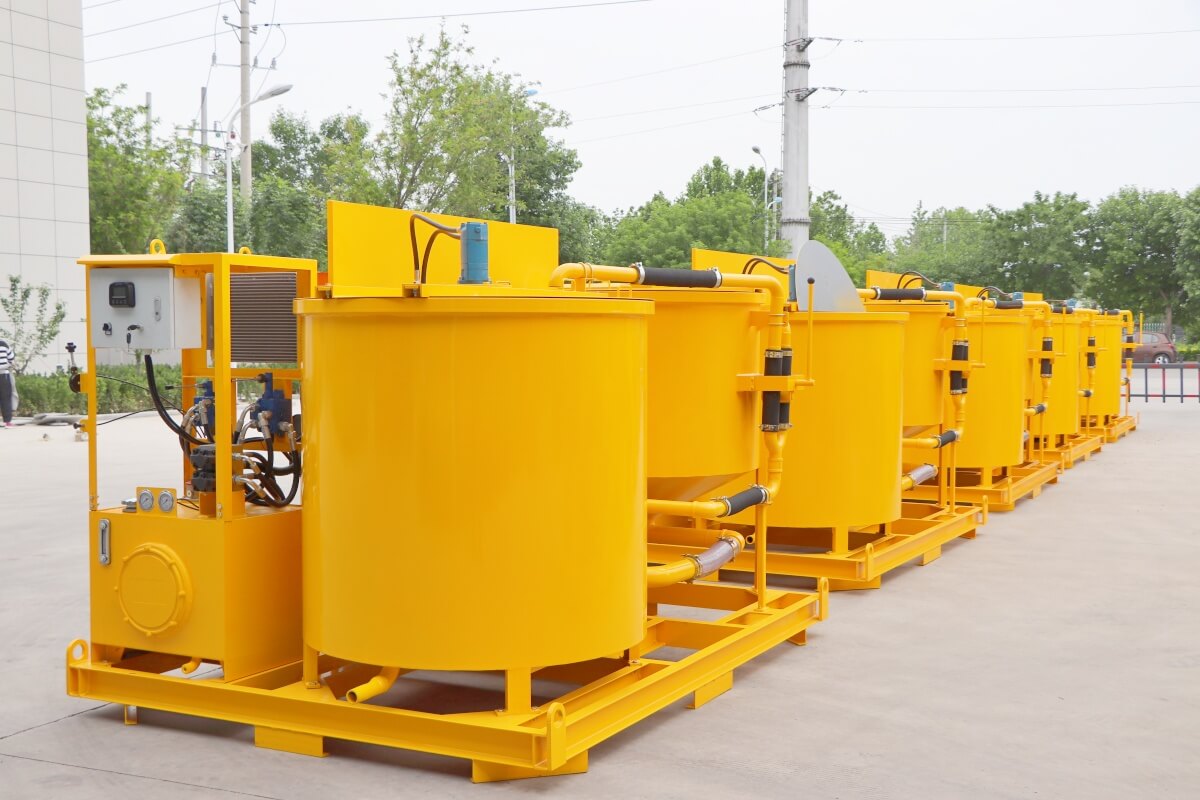

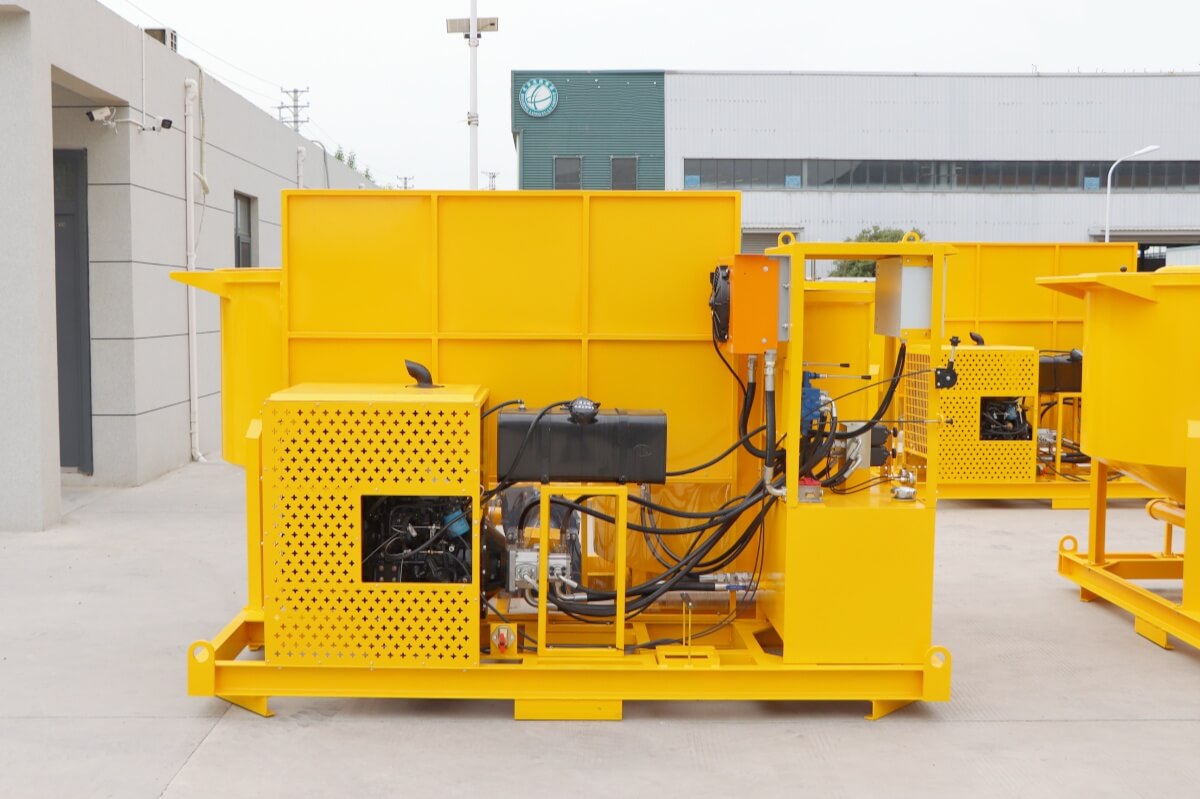

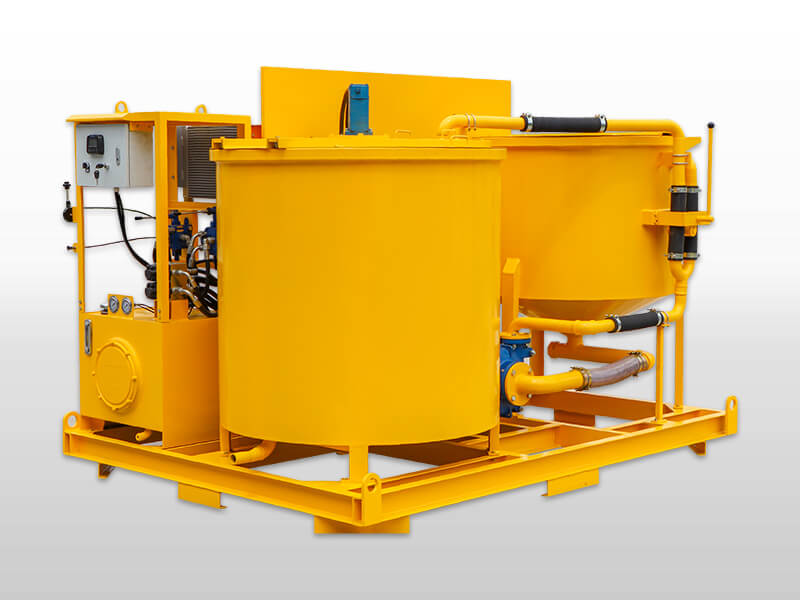

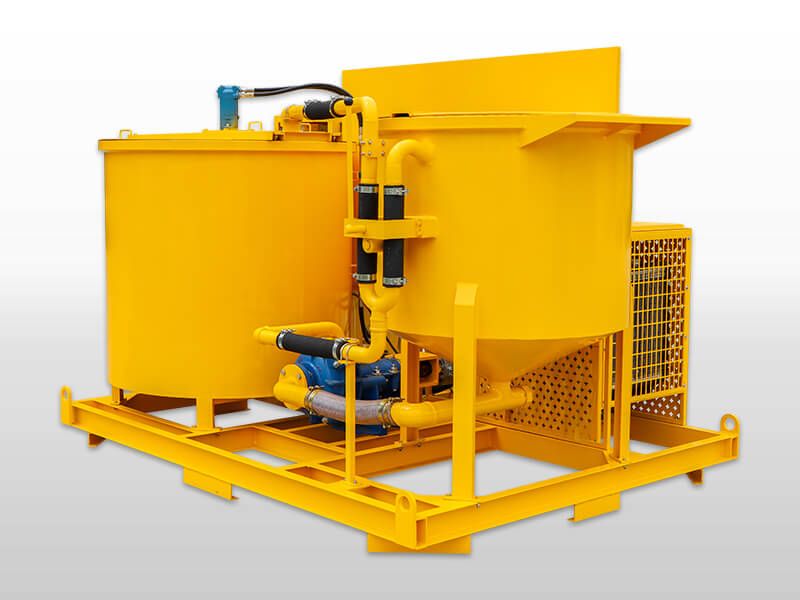

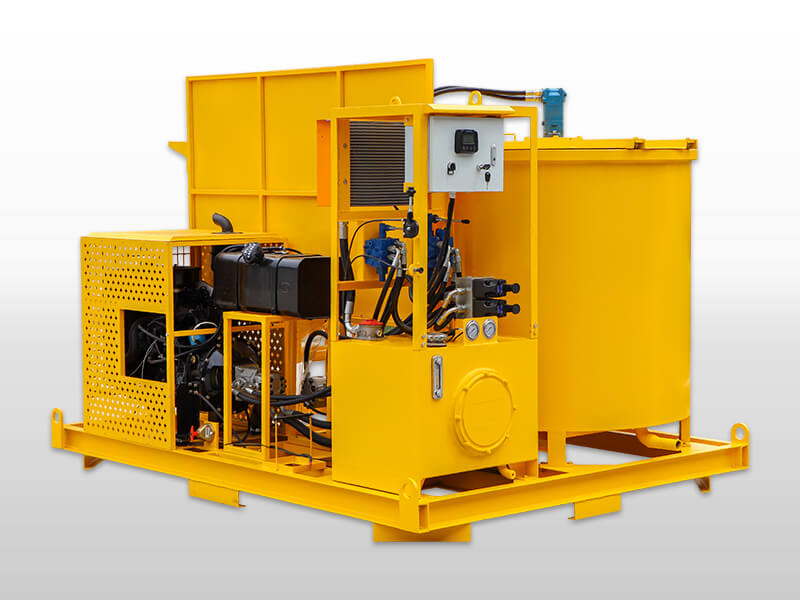

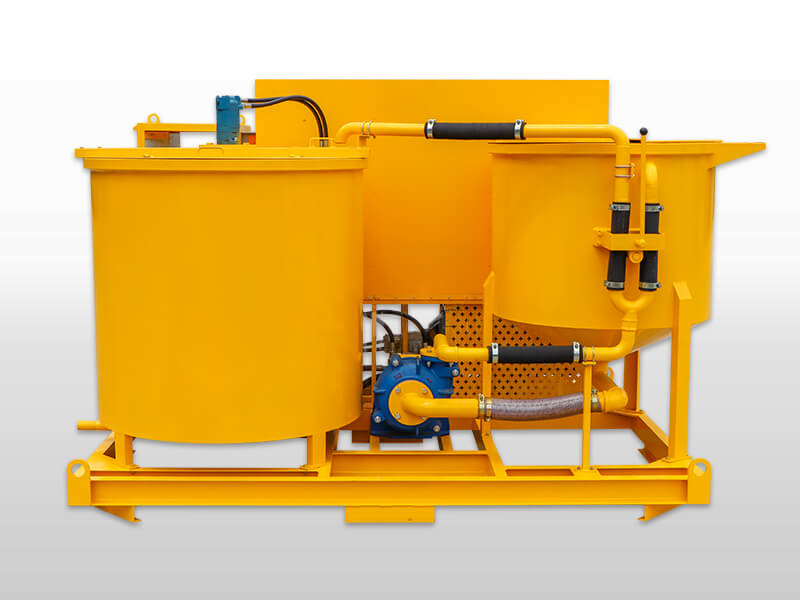

LMA850-1500D Colloidal cement bentonite slurry grout mixer with agitator is an integrated system featuring a robust, steel-sheet cylindrical mixer tank, a high-performance slurry pump, and an agitator tank, all mounted securely on a sturdy base frame.
It employs an advanced mixing mechanism where a specialized pump generates a high-speed vortex, drawing materials from the bottom of the mixer tank and recirculating them tangentially back into the tank. This design ensures maximum efficiency and yields homogeneous, colloidal mixtures of premium quality in a remarkably short span.
It employs an advanced mixing mechanism where a specialized pump generates a high-speed vortex, drawing materials from the bottom of the mixer tank and recirculating them tangentially back into the tank. This design ensures maximum efficiency and yields homogeneous, colloidal mixtures of premium quality in a remarkably short span.
Post-mixing, the resultant blends are then transferred to the agitator tank via the same pump, where they undergo further slow-speed agitation thanks to the tank's mixing paddles. Upon fully evacuating the contents of the mixer tank, an ingeniously designed handle valve is shifted, facilitating the initiation of the subsequent mixing cycle for continuous and efficient operation.
► Application:
The LMA850-1500D Colloidal cement bentonite slurry grout mixer is widely utilized in various sectors such as hydroelectric power, railway, highway construction, civil engineering, and mining industries. Its primary function is to effectively blend grouting materials or agents, cement, and water, ensuring homogeneous mixtures for enhanced application in construction projects.
► Features:
1. It has simple structure, easy assemble;
2. High-speed mixing and high efficiency to achieve continuous mixing;
2. High-speed mixing and high efficiency to achieve continuous mixing;
3. Grout mixer and grout agitator switch by using squeeze handle, great reliability and simple to operate;
4. The diesel engine of the LMA850-1500D has strong power, paired with a hydraulic system, and the usage scenarios of the equipment are more flexible and diverse.
4. The diesel engine of the LMA850-1500D has strong power, paired with a hydraulic system, and the usage scenarios of the equipment are more flexible and diverse.
■Product Details

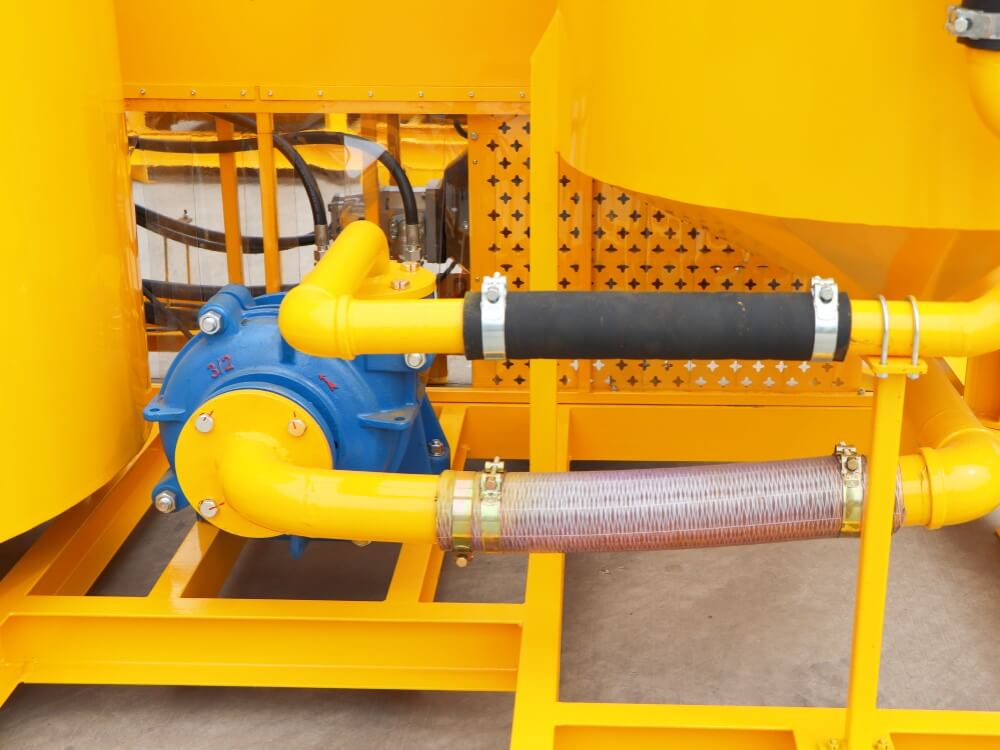

Heavy-duty slurry pump for recirculating and discharging

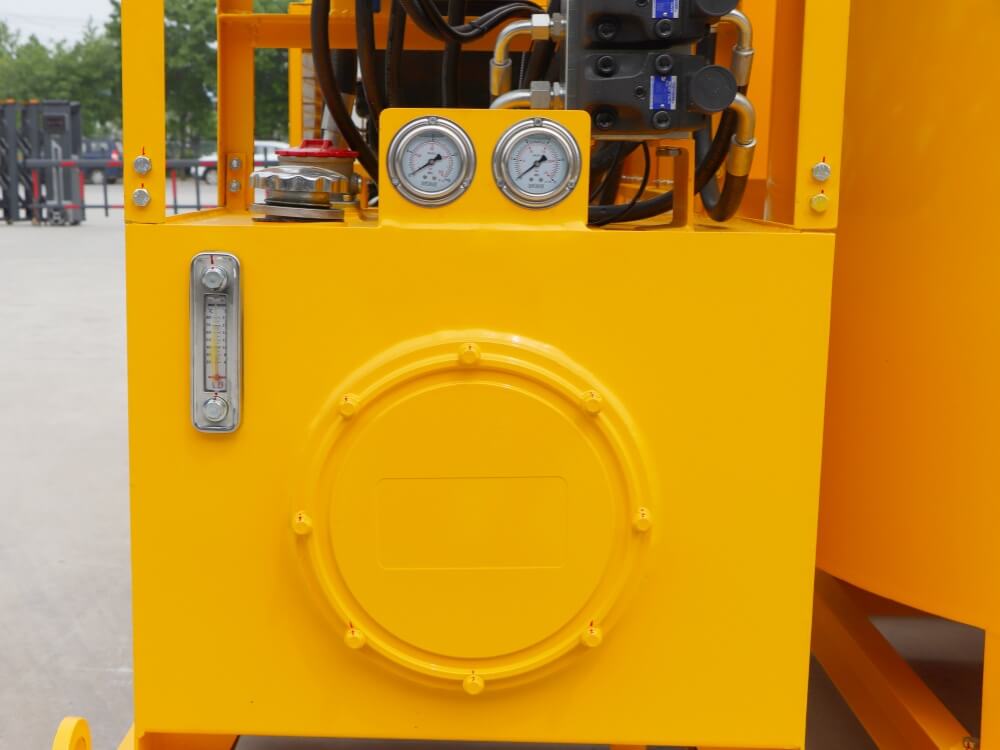

hydraulic oil box

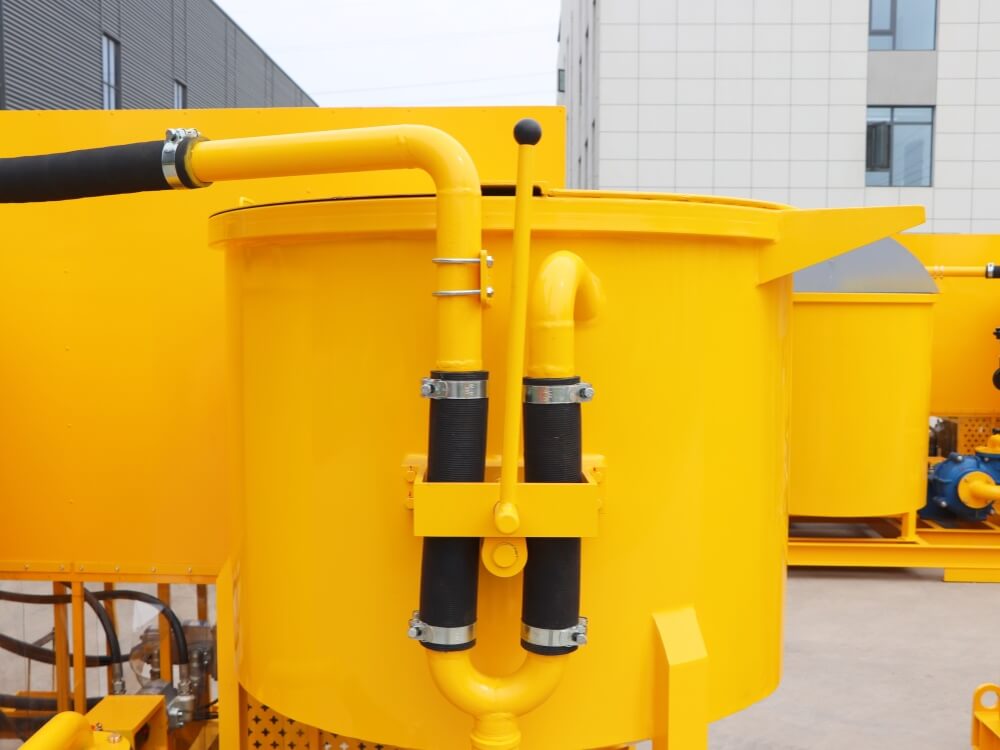

Squeeze hose valves

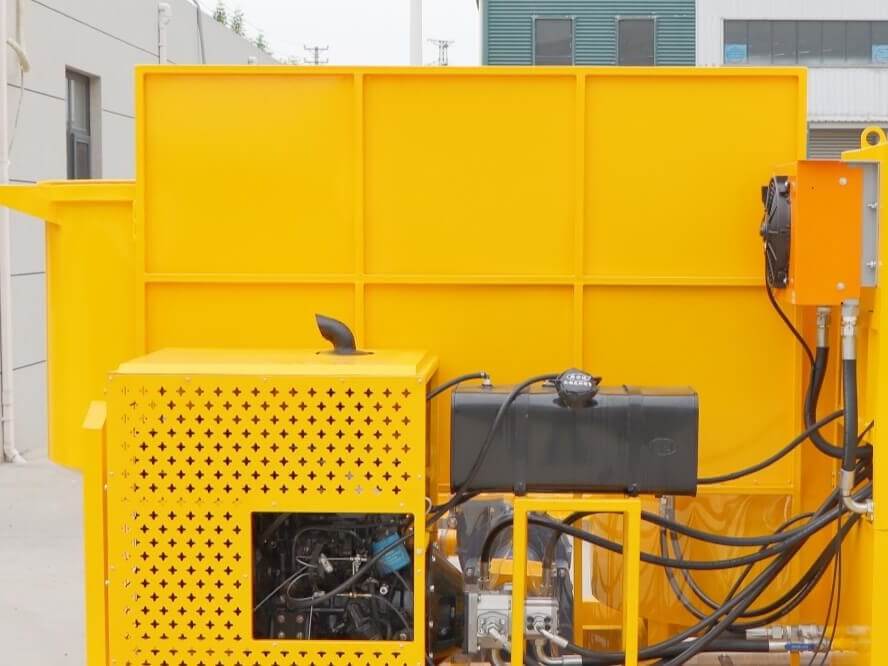

Mudguards

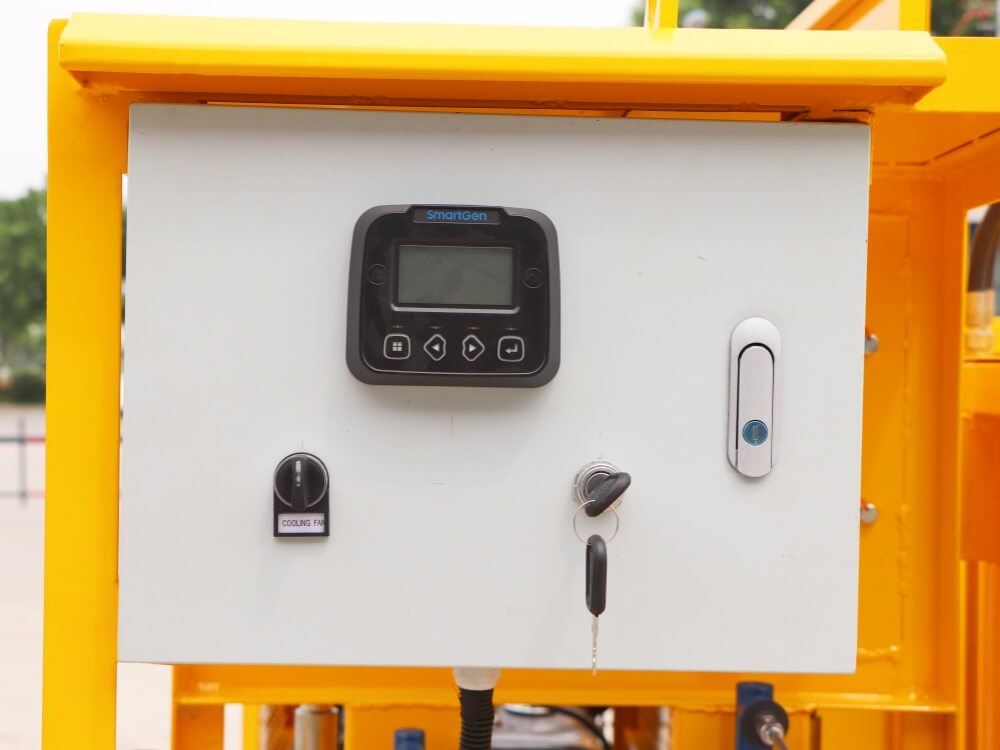

Clear instrument panel, simple and convenient control

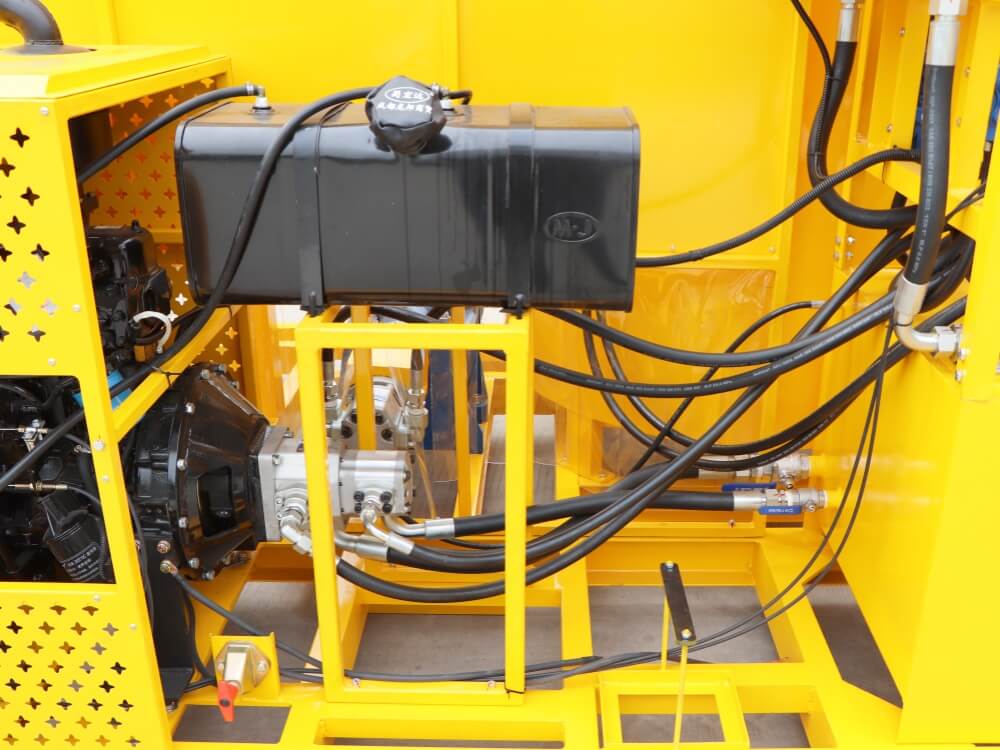

Diesel engine
■Technical Parameters
| Model | LMA850-1500D colloidal cement grout mixer |
| Output | 11~14m3/h |
| Mixer volume | 850L |
| Mixer rate speed | 1800rpm |
| Agitator volume | 1500L |
| Agitator rate speed | 60rpm |
| Pump delivery output | 700L/min |
| Diesel engine power | 26 Kw |
| Cooling | Water |
| Overall dimension | 3300x2150x2200mm |
| Weight | 1785KG |
| We reserve the right to change technical specifications without prior notice. | |
