► Description:
LCP15H-E/D hose type concrete pump was designed based on the squeeze hose pump, the concrete
pump uses high pressure, wear resisting extruded tubes. Hose type concrete pump is more widely used
for pumping foam concrete, lightweight form concrete, mortar and refractory materials.
► Application:
LCP15H-E/D hose concrete pump is used for pumping foam concrete, lightweight form concrete,
mortar and refractory materials. The concrete pump also could be used for spraying concrete or refractory
materials.
► Features:
1. Compact size, hopper, extrusion pumps, power sources combined in a base frame.
2. Installation of frequency control, stepless output.
3. Adopting squeeze type pumping, the squeeze hose is the only wearing parts.
4. Imported special concrete squeeze tubes, pressure, wear, long life.
5. Reversible work, facilitate the removal of plugging failure.
6. Clean on the line, sample, convenient.

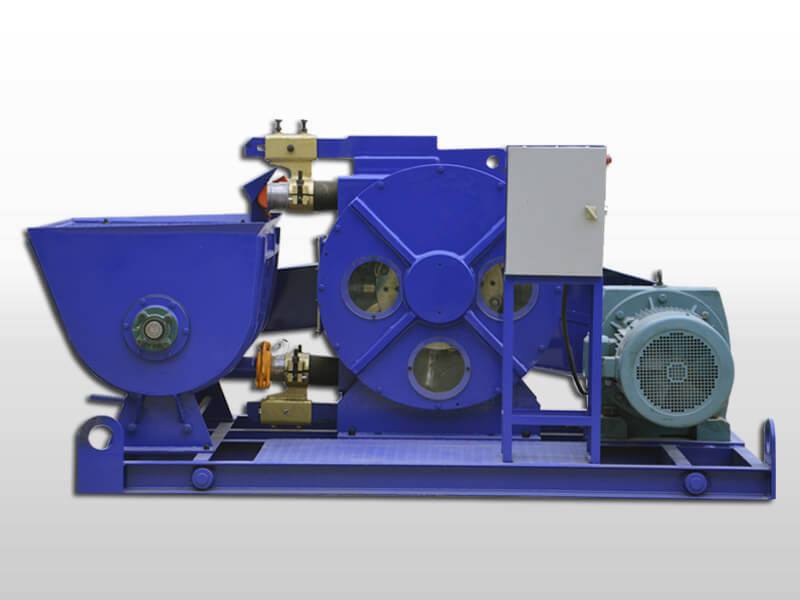

LCP15H-E Hose Type Concrete Pump
Description |
parameter |
Squeeze Pump | LH76-610 |
Hose ID | 75mm |
Speed | 37rpm |
Output | 15m3/h |
Pressure | 2.5Mpa |
Max. Aggregate size | <15mm |
Concrete Slump | 15-23cm |
Hopper Capacity | 350L |
Stirring speed | 37rpm |
Reducer Model | NR137 |
Voltage | 22KW 50HZ IP55 3~380V |
Overall Dimension | 2400x1300x1200mm |
Weight | 1560kg |
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar |
LCP15H-D Hose Type Concrete Pump
Description |
parameter |
Squeeze Pump | LH76-610 |
Hose ID | 75mm |
Rotate Speed | 37rpm |
Output | 15m3/h |
Pressure | 2.5Mpa |
Max. Aggregate size | <15mm |
Concrete Slump | 15-23cm |
Hopper Capacity | 350L |
Stirring speed | 37rpm |
Diesel engine power | 40hp |
Overall Dimension | 2400x2100x1800mm |
Weight | 2300kg |
Used for spraying, recommend air compressor: the output is 6m3/h, the pressure≥0.5bar |
