LGP120/30PI-E Grout Pump for Foundation Grout

  • Type: LGP120/30PI-E
  • Piston pump cylinder diameter: 110mm
  • Piston stroke: 160mm
  • Piston pump displacement @ pressure: 120L/min @ 3MPa
  • Motor power: 15kW
  • Motor voltage: 3 phase, 380V/ 415V/ 440V, 50Hz

  • cement grout pump for foundation grout
  • grout pump for foundation grout price
  • grout pump supplier for foundation grout
  • piston cement grout pump for foundation grout
  • piston grout pump for foundation grout
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Soil Spraying Machine
Concrete Pump
Concrete Mixer
Plaster Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
Description:

LGP120/30PI-E grout pump for foundation grout is driven by electric motor, which is the power for
hydraulic system. The symmetrically designed piston pump realizes the continuity of suction and
discharge through reciprocating movement of hydraulic cylinder. At the same time, the closed
cavity can generate high pres sure, so that the mud can be injected with a certain pressure to
complete the shotcrete action.


Application:

LGP120/30PI-E grout pump for foundation grout is mainly used for ground/ underground construction,
such as highways, railways, water and electricity, construction, mining etc.

Features:

1. Double cylinders piston pump to ensure the continuous slurry flowing (small pulse) and not easily
leaking compared with the double acting piston pump.

2. Hydraulic system is equipped with oil temperature protection system.

3. Both hydraulic air and water cooler.

4. Grouting pressure and displace ment can be adjusted steplessly.

5. PLC and HMI control.

6. Solid state relay.

grout pump for foundat grout



grout pump for foundat grout



grout pump for foundat grout

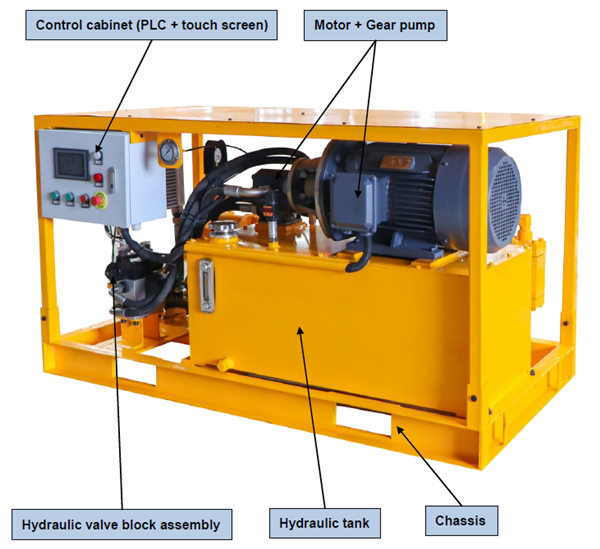

■Product Details

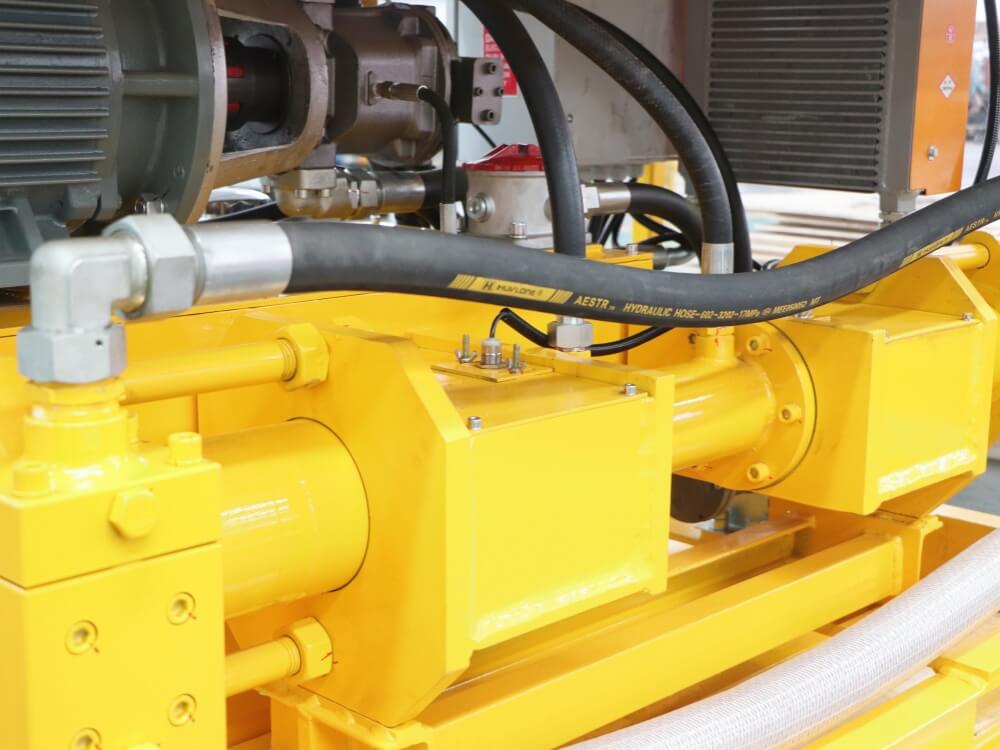

piston pump of grout pump for foundation grout

Piston pump

Control cabinet (PLC touch screen) of grout pump for foundation grout

Control cabinet (PLC touch screen)

hydraulic tank of grout pump for foundation grout

Hydraulic tank

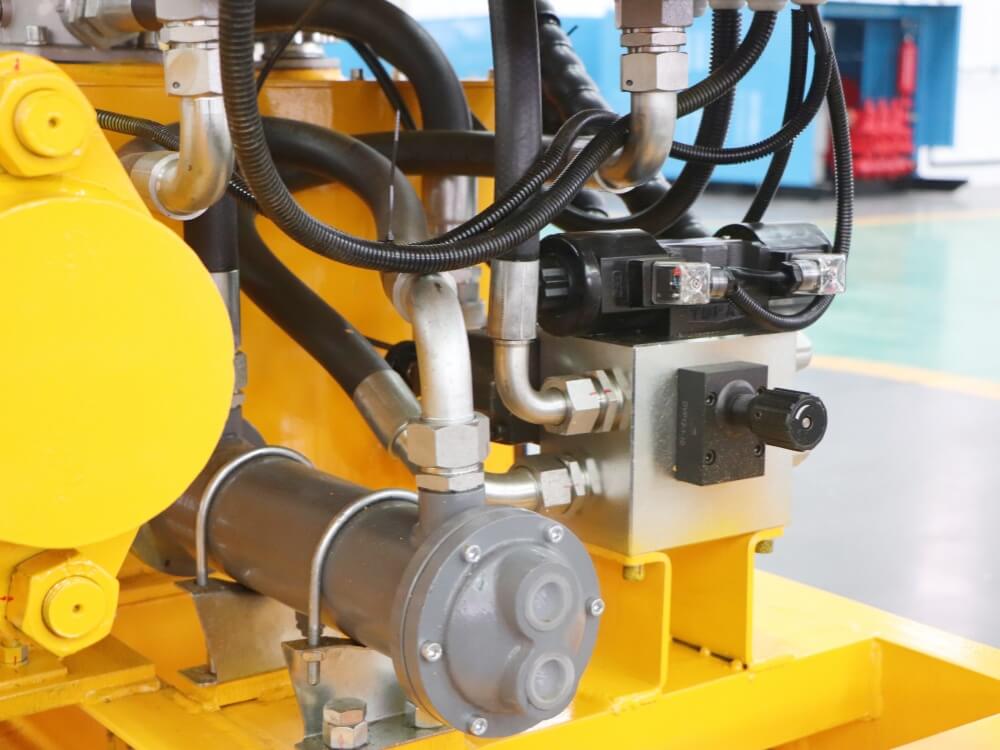

water cooler of grout pump for foundation grout

water cooler

air cooler of grout pump for foundation grout

Air cooler

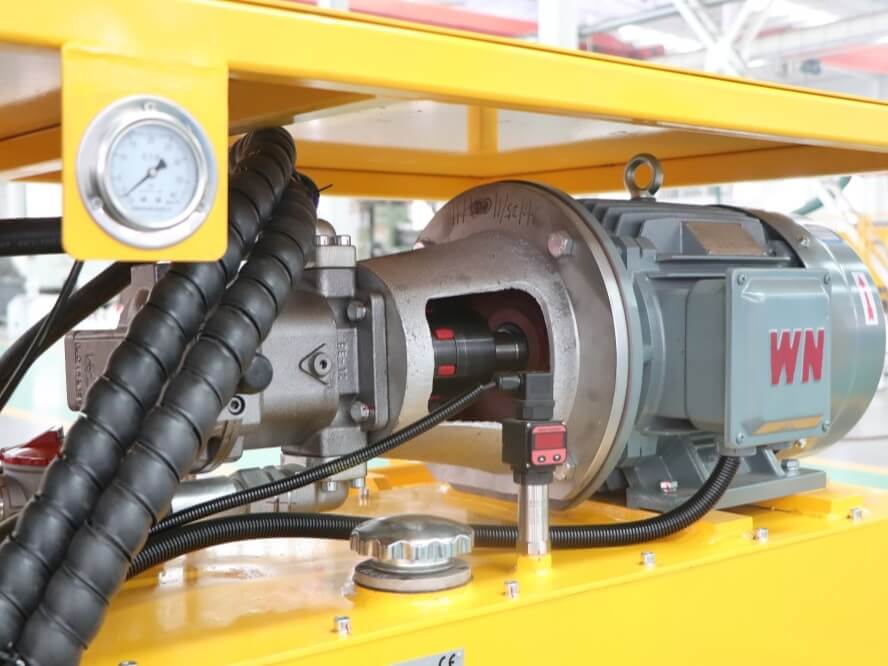

Motor + Gear pump of grout pump for foundation grout

Motor + Gear pump

■Technical Parameters

Technical Data:


Specification (with electric motor drive):
Driven way Electricity
Hydraulic system Working pressure 10MPa
Number of reciprocation 42 times
Piston pump Cylinder diameter 110mm
Piston stroke 160mm
Displacement @ pressure 120L/min @ 3MPa
Motor Power 15kW
Voltage 3 phase, 380V/ 415V/ 440V, 50Hz
Overall Dimension(L×W×H) 1700×945×920mm
Weight 740kg
