LH100-915B Peristaltic Pump for Pumping Foam Concrete

  • Max. output: 40m3/h
  • Rotation: 40rpm
  • Squeeze hose ID: 100mm
  • Working pressure: 8bar
  • Voltage: 3 phase, 380V, 50HZ
  • Power: 22Kw

  • Industrial Peristaltic Pump for Pumping Foam Concrete
  • foam concrete hose pump
  • squeeze pump for foam concrete
  • foam concrete pump
  • hose pump for pumping foam concrete
Grouting Plant
Grout Mixer and Agitator
Grout Pump
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
Plaster Machine
hydraulic pump station
Customized Service

Phone/Viber/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

skype:

machine.machine6

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction
 Description

LH100-915B industrial hose pump (squeeze pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller’s push, finally forms pressure conveying of slurries.


 Application
♦ LH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
♦ LEC industrial peristaltic pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It’s perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).LH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.

 Features
♦ No seals
♦ No valves
♦ Self -priming
♦ Only tube to replace
♦ Dry –running without damage
♦ Reversible
♦ No contact between product and mechanical parts
♦ Able to pump products with solid parts inside
♦ Easy maintenance, low-cost, short down time

■Product Details

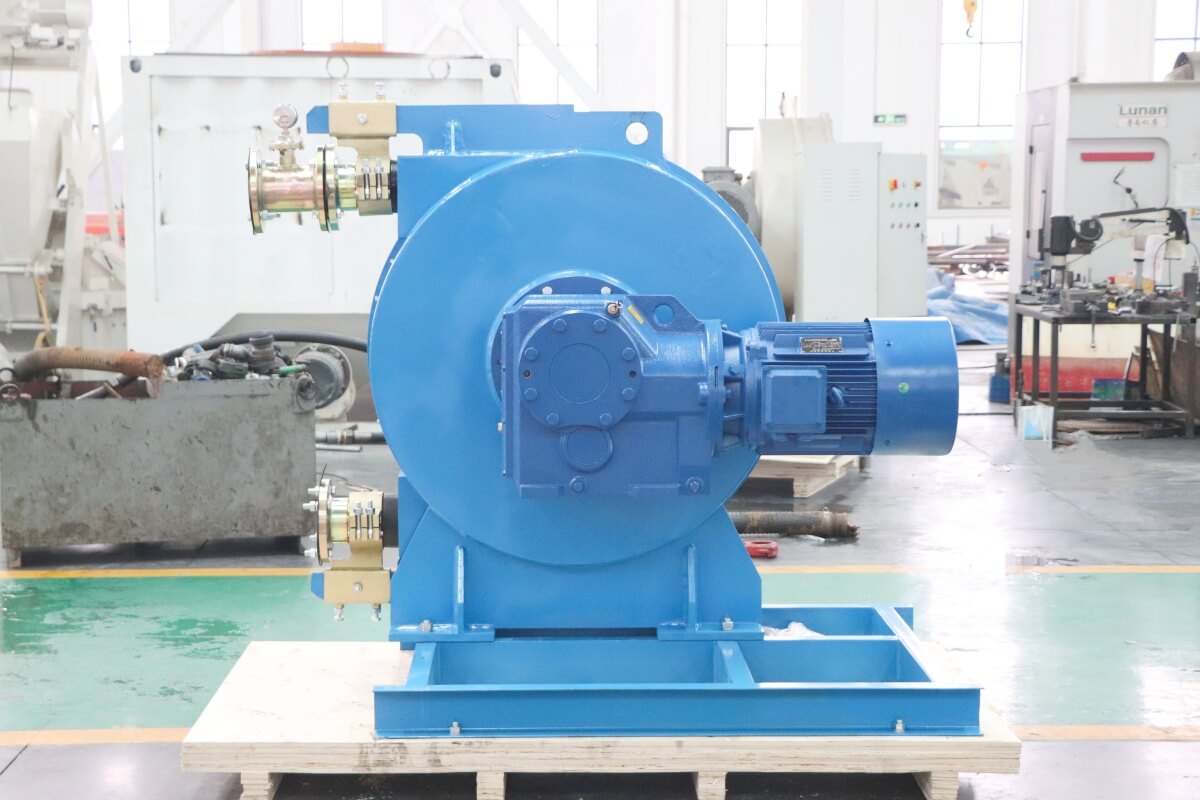

 Peristaltic Pump

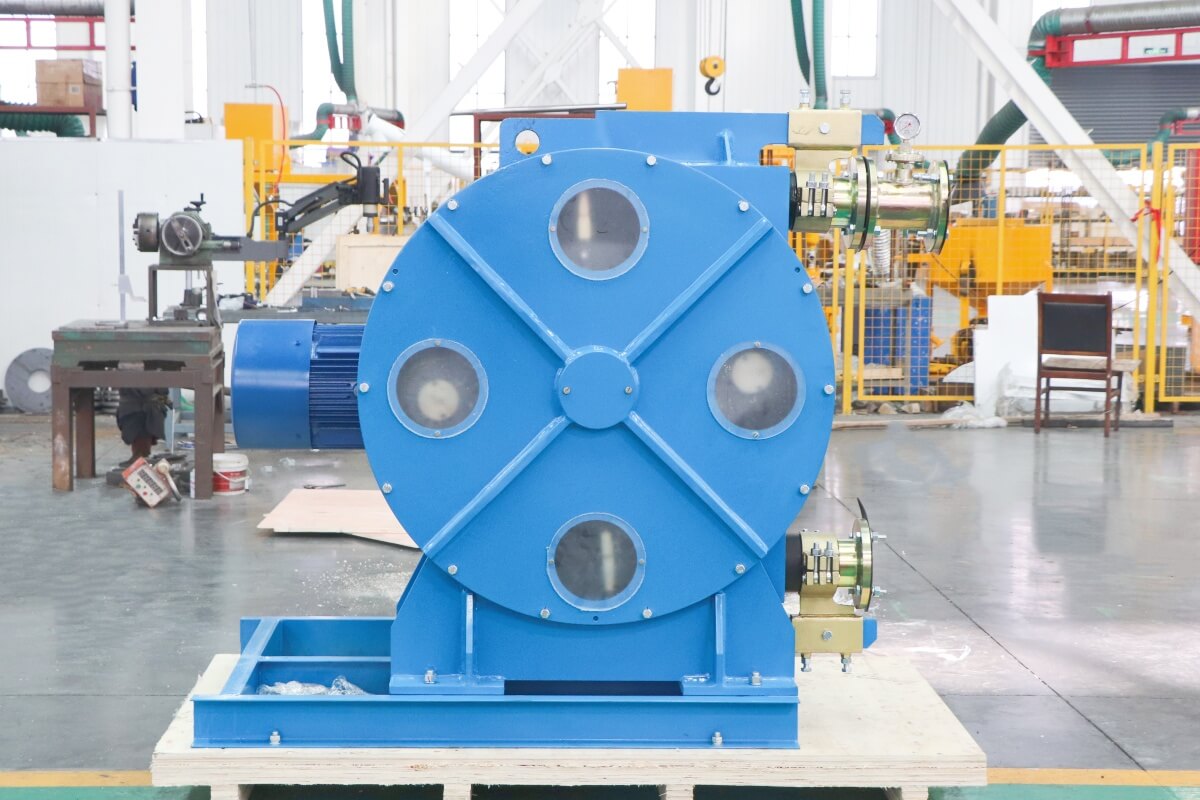

Peristaltic Pump For Pumping Foam Concrete

hose pump

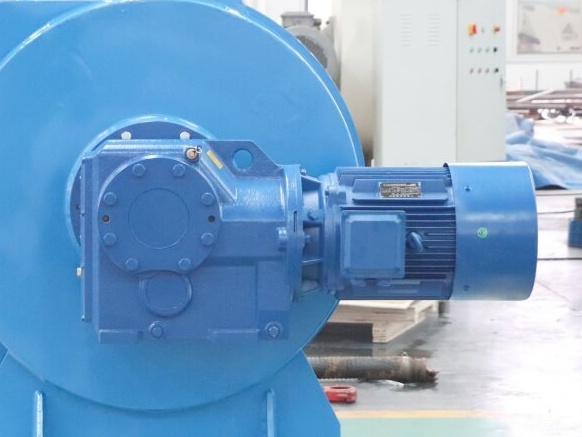

Peristaltic Pump For Pumping Foam Concrete Details

■Technical Parameters

Type

LH100-915B

Max. output

40m3/h

Rotation

40rpm

Squeeze hose ID

100mm

Working pressure

8bar

Voltage

3 phase, 380V, 50HZ

Power

 22Kw
