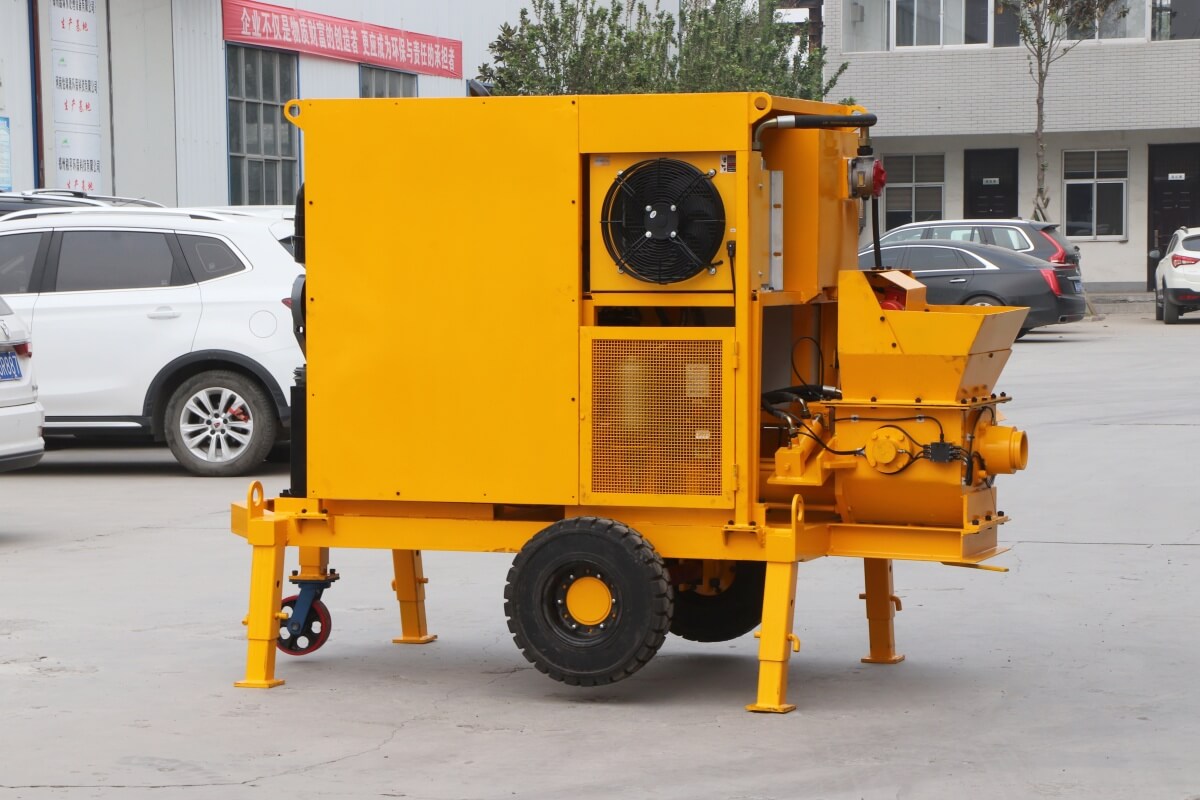

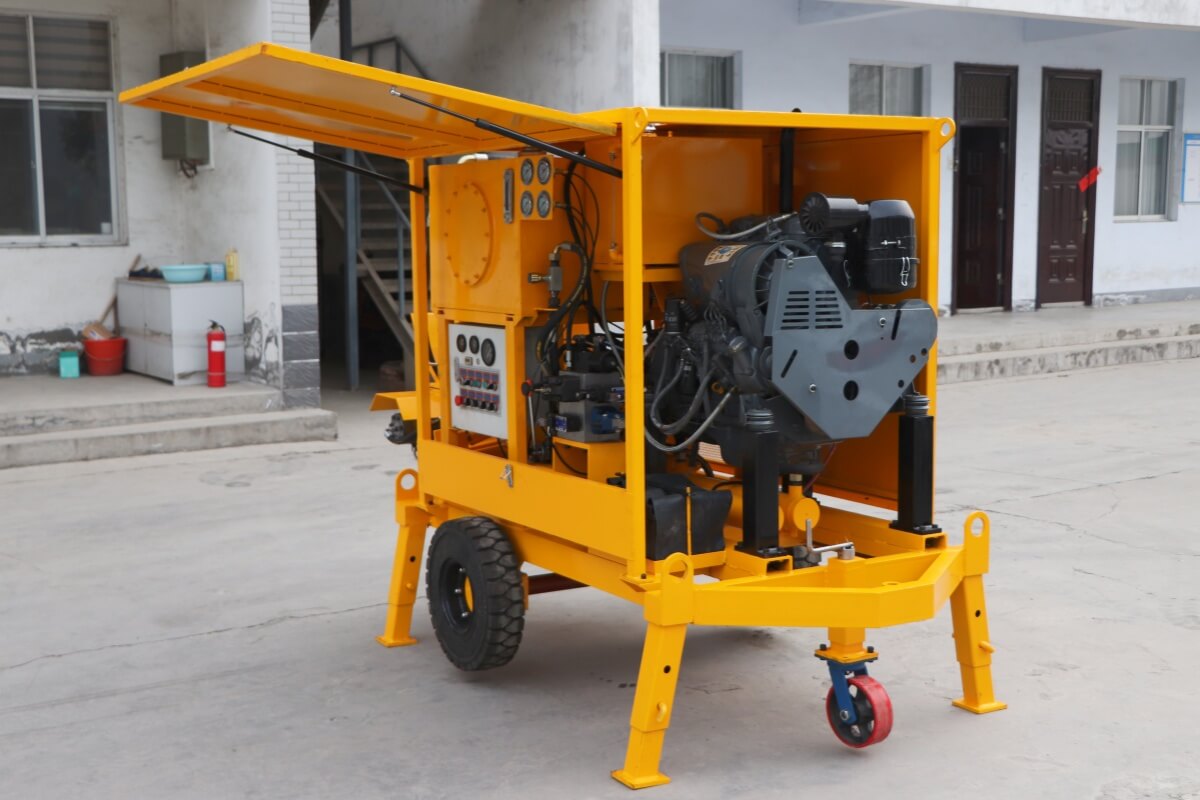

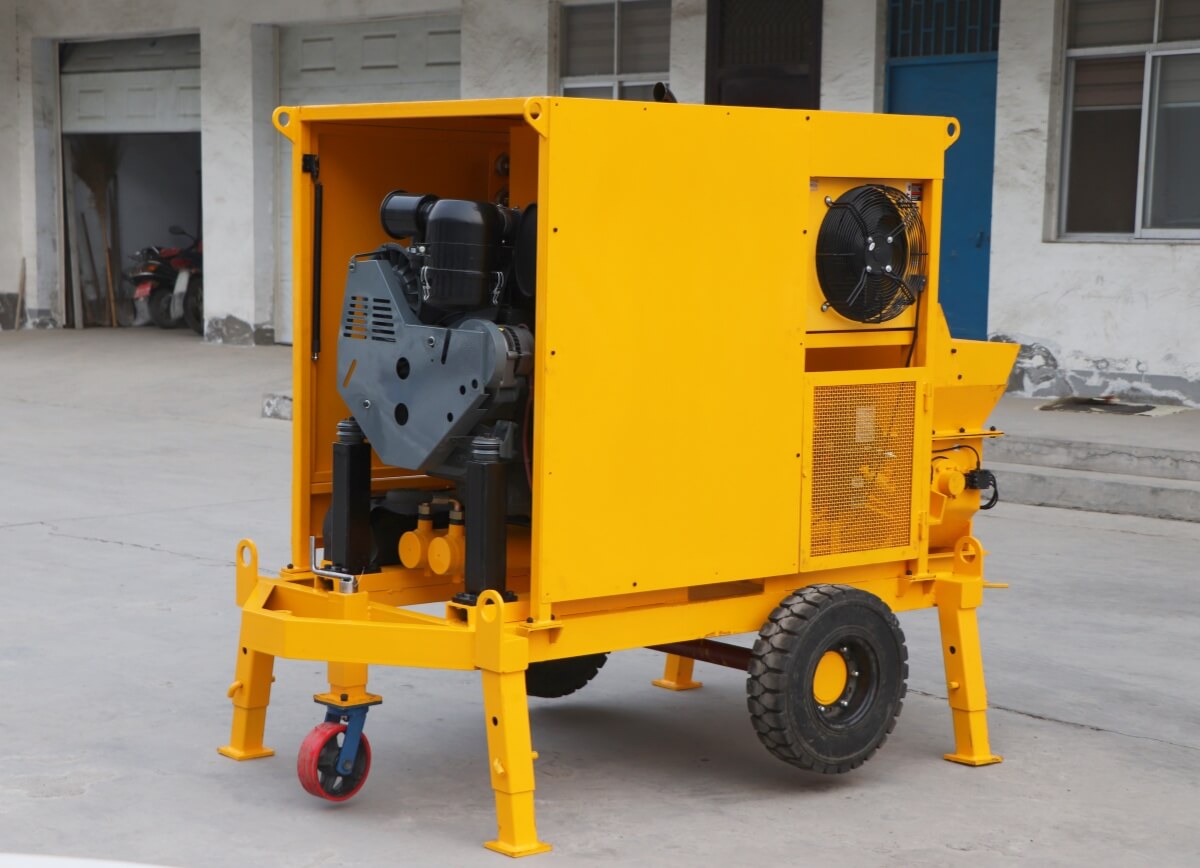

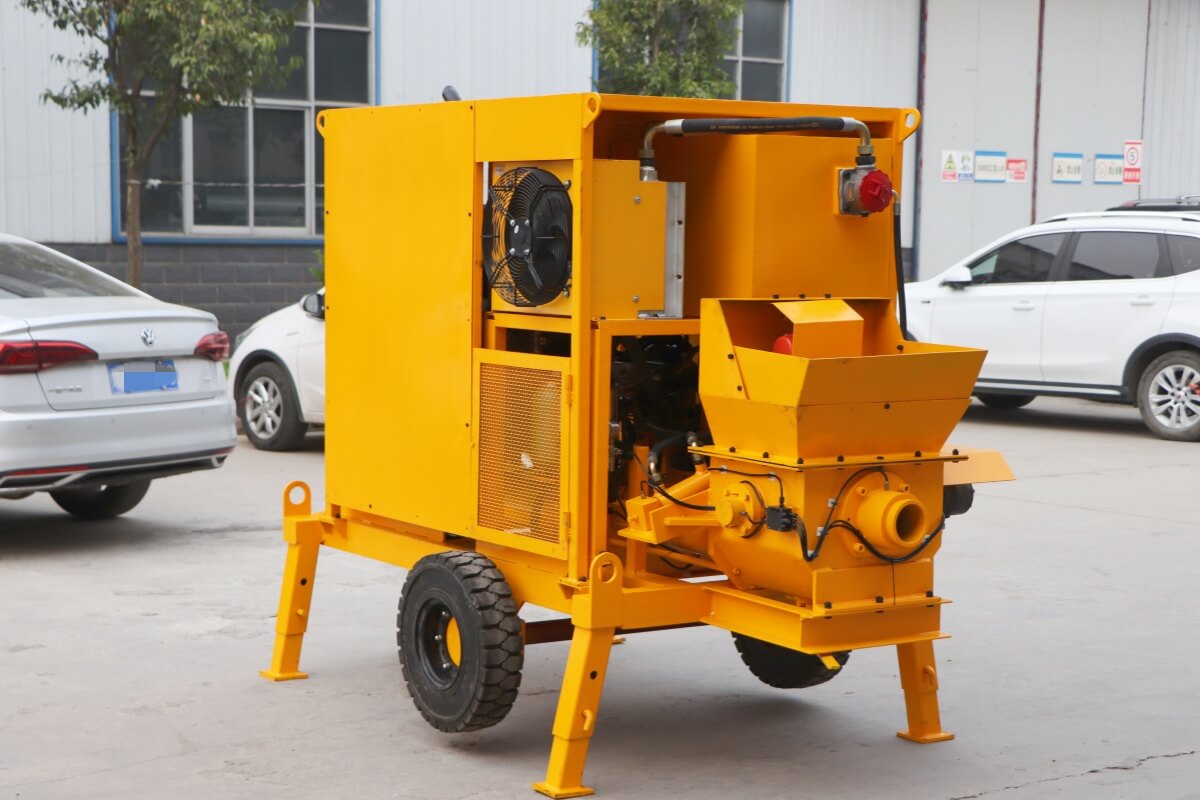

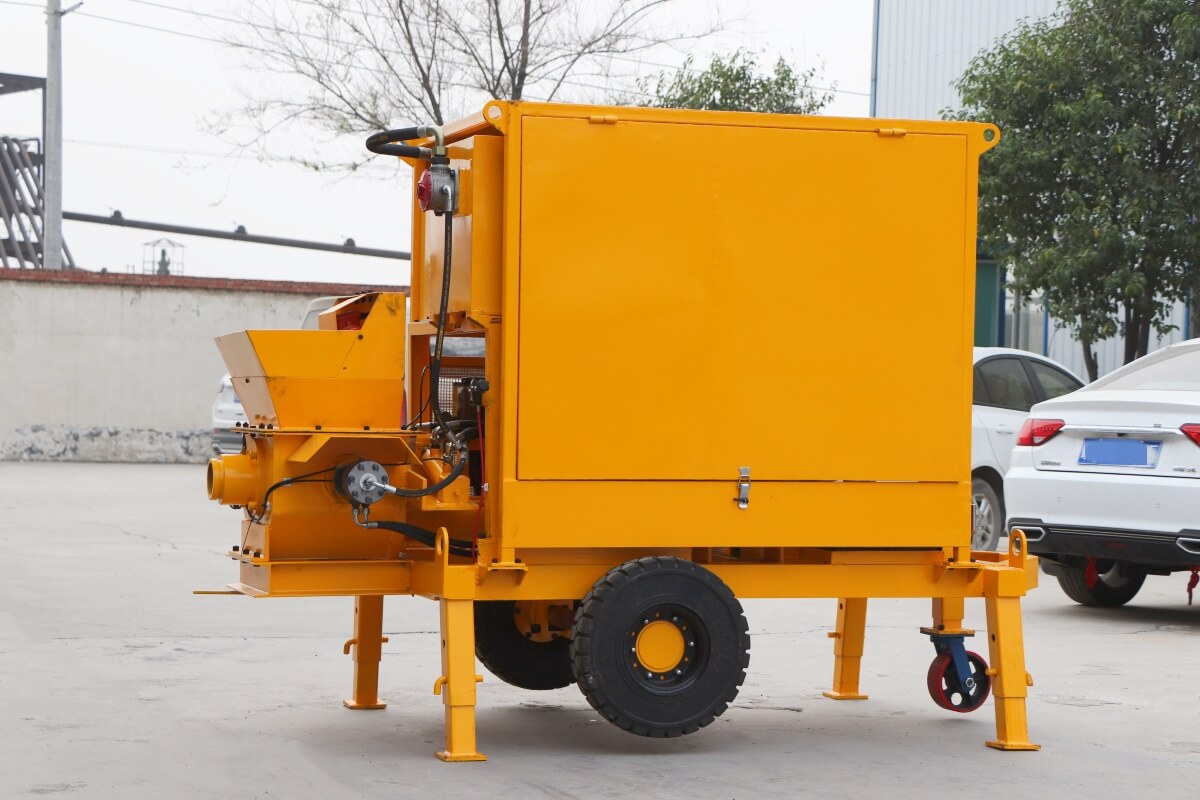

LCP8/80-30D concrete pump with diesel engine

  • Rated Output:3-8m3/h (LS)
  • Pump work pressure:80Bar
  • Acceptable Max. Aggregate Size:20mm
  • Cylinder diameter:Ø100mm
  • Cylinder Stroke:550mm
  • Pump Valve:S Valve

  • concrete pump with diesel engine
  • diesel concrete pump
  • diesel motor concrete pump
  • concrete pump with diesel motor
  • concrete pump diesel engine
Shotcrete Machine
Refractory Gunite/Mixer
Concrete Pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Industrial Peristaltic Pump
Plaster Machine
Soil Spraying Machine
Foam Concrete Machine
hydraulic pump station
Customized Service

TEL

86-371-63902781

skype:

machine.machine6

Email

sales@leadcrete.com

FAX

86-371-63526676

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

 Description:

LCP8/80-30D concrete pump with diesel engine is a multi-purpose heavy-duty Swing-Valve concrete
pump with air cooling diesel engine, hopper mixer, hopper vibrator, automatic lubrication and LS
variable output. D
iesel engine concrete pump With concrete convey, Swing valve and hopper mixer
are respectively driven by three hydraulic pump, among them, the concrete convey hydraulic pump is
LS piston high pressure pump.


 Application:
Concrete pump with diesel motor application:
1. Masonry block filling;
2. Concrete wall grouting;
3. Refractory castable&shotcrete;
4. Concrete shotcrete;
5. Tunneling construction;
6. Concrete wall construction;
7. Mining support (sprayed concrete walls and ceilings);
8. Excavation-protection;
9. Concrete sidewalk;
10. Swimming pool (sprayed concrete shells);

 Features:
1. Mixer in receiving hopper;
2. Diesel motor concrete pump with variable output(LS);
3. Diesel concrete pump with vibrator in hopper;

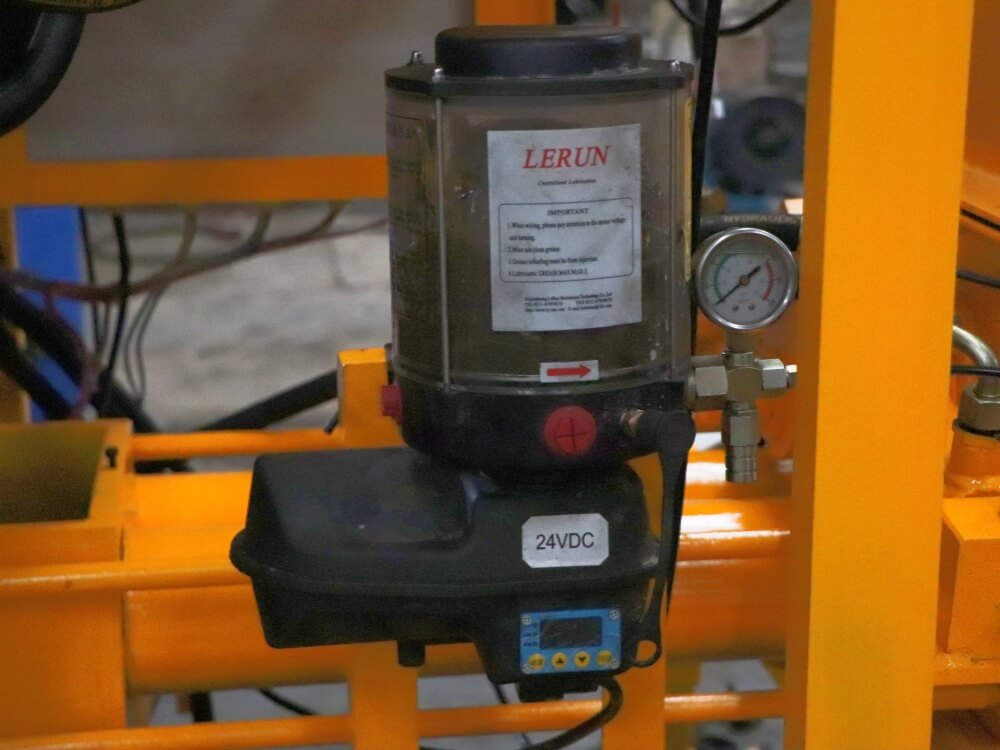

4. Concrete pump diesel engine with automatic lubrication;
■Product Details

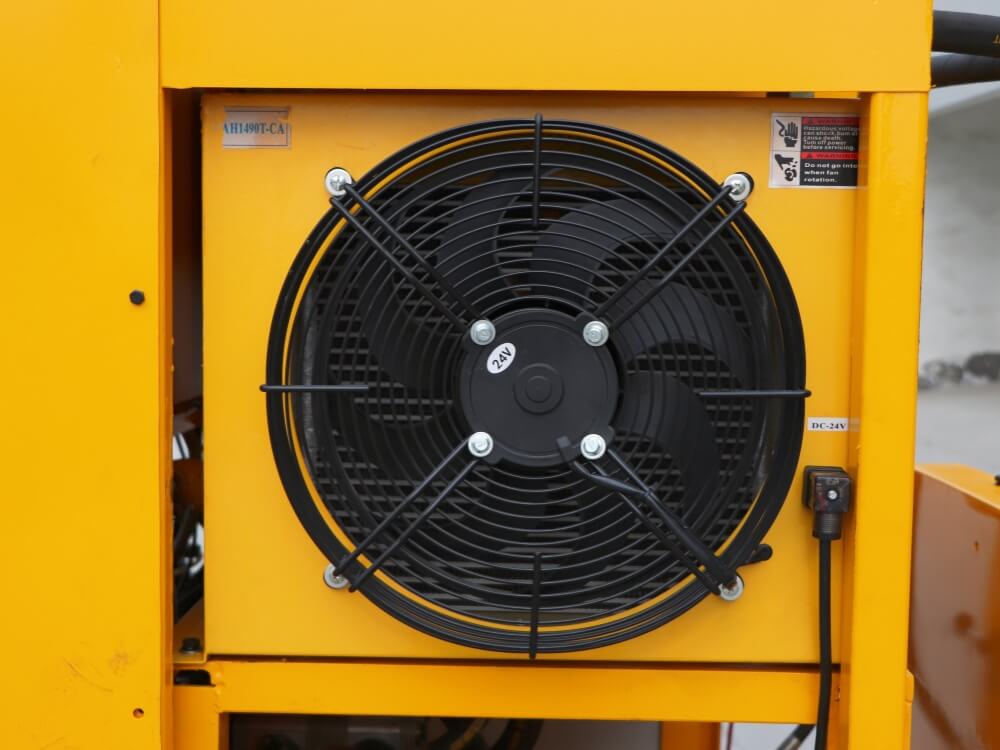

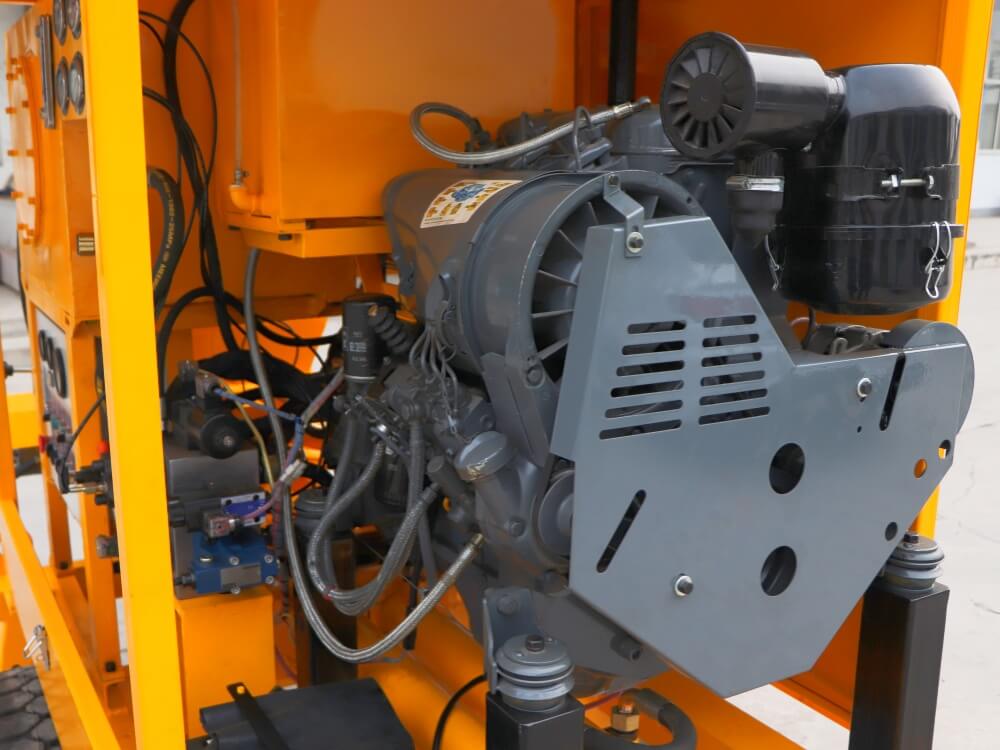

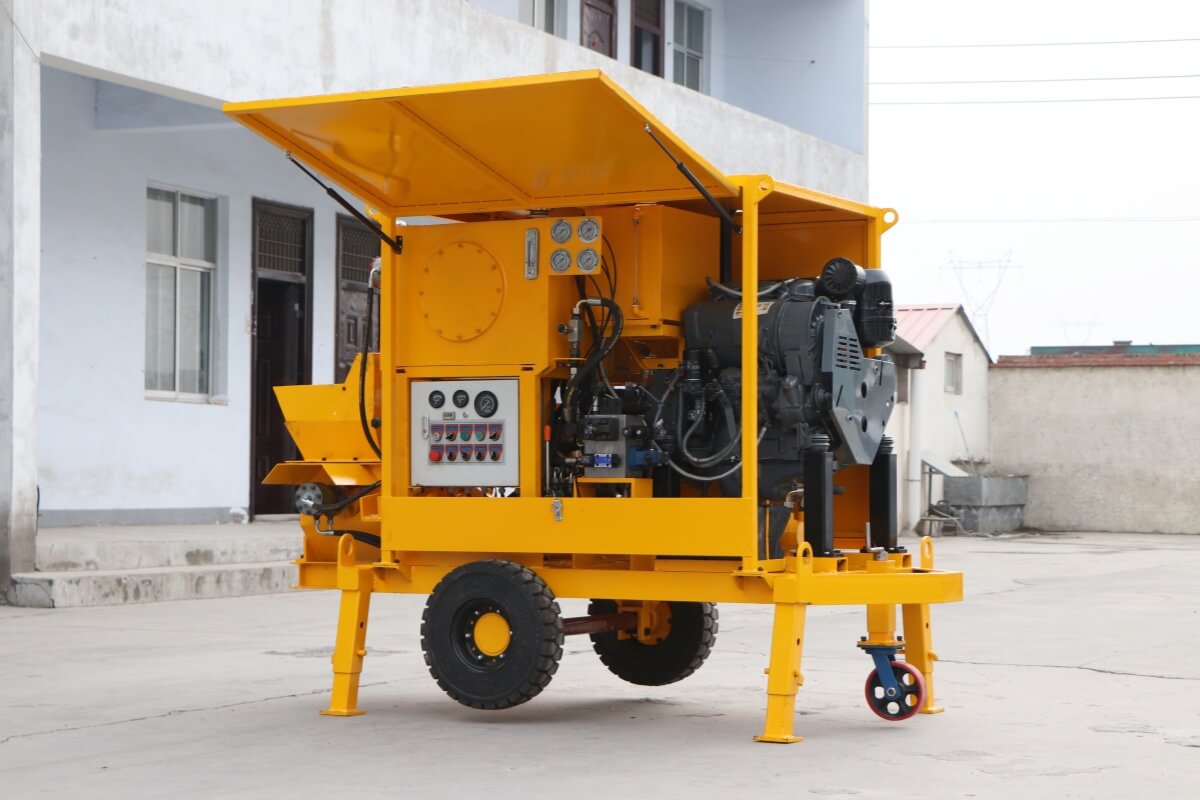

4-cylinder air cooling diesel engine

4-cylinder air cooling diesel engine

Cemented Carbide Wear Plate Ring

Cemented carbide wear plate ring

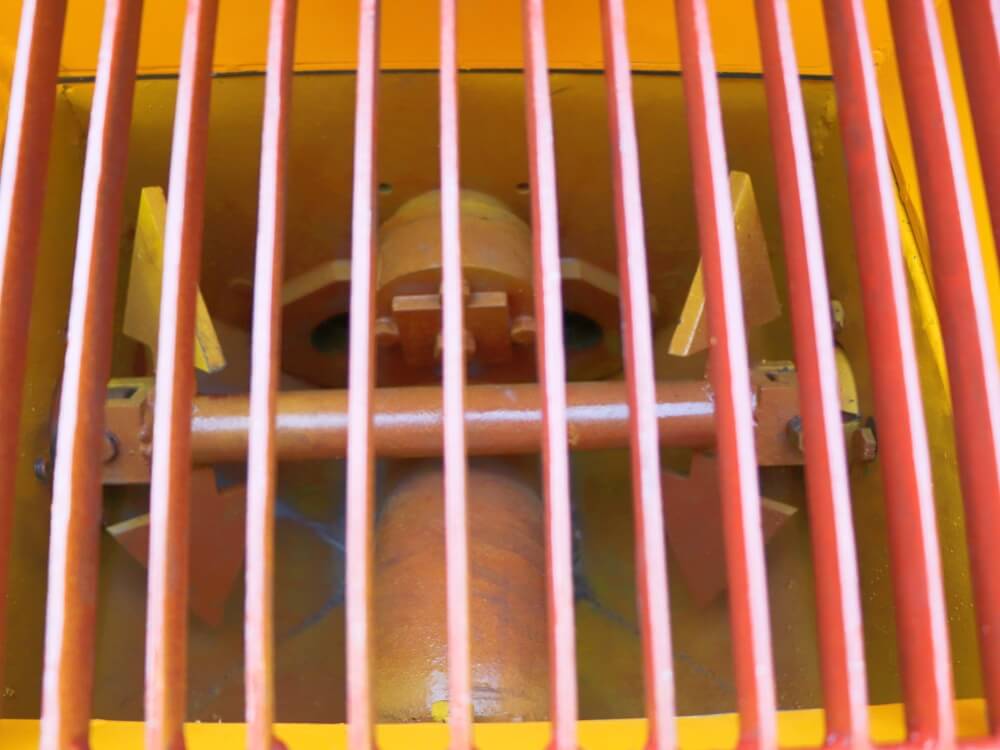

Mixer in receiving hopper

Mixer in receiving hopper

Three hydraulic pumps respectively for concrete convey

Three hydraulic pumps respectively for concrete convey

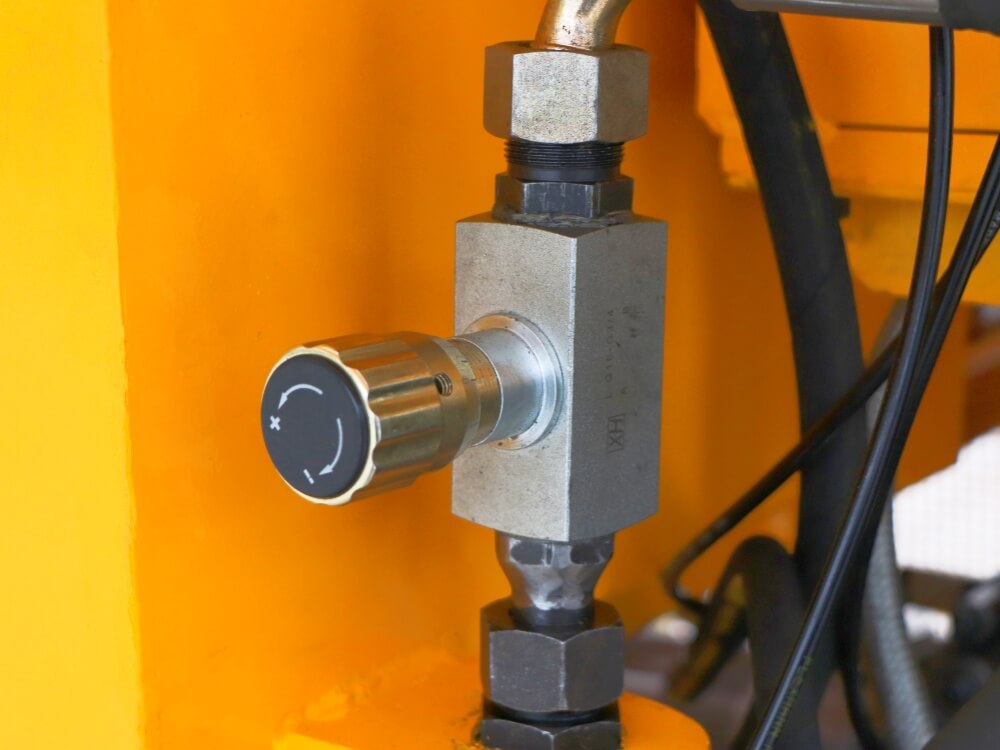

Variable output(LS)

Variable output(LS)

Specially design spraying nozzle

Specially design spraying nozzle

■Technical Parameters

Technical Data:


Rated Output  3-8m3 /h (LS)
Pump Work Pressure 80Bar
Acceptable Max. Aggregate Size

20mm

Cylinder Diameter

Ø100mm

Cylinder Stroke 550mm
Pump Valve S Valve
Max. Horizontal Conveying Distance 200m
Max. Vertical Conveying Distance 100m
Concrete Slump 7-15cm
Conveying Pipe Inner Diameter 100/80/50mm
Diesel 30kw@1800rpm 3-cylinder, air cooling
Dimension(L×W×H) 3000*1600*1900mm
Weight 1650kg
