ADDRESS ■Introduction
►Description:
LMA750-1500E bentonite cement slurry turbo mixer with agitator is a combination consist of a steel
sheet cylindrical mixer tank heavy-duty slurry pump and agitator tank, set-up on a strong base frame.
The slurry is mixed through a high speed vortex produced by a special pump which, after sucking the
material from the bottom of the mixer tank, sends it back tangentially into the same tank in order to get
highest possible efficiency. By this process it is possible to obtain homogeneous colloidal and high
quality mixtures within a very short period of time.
►Application:
LMA750-1500E bentonite turbo mixer with agitator is specially design for continuous cement mixing and
grouting in ground/underground engineering.
►Features:
★ This bentonite turbo mixer with agitator with simple structure, easy assemble;
★ Mixer and agitator switch by using squeeze handle, great reliability and simple to operate;
★ The bentonite turbo grout mixer is less spare parts, low maintenance;
★ High speed mixing and high efficiency to achieve continuous mixing.
LMA750-1500E bentonite cement slurry turbo mixer with agitator is a combination consist of a steel
sheet cylindrical mixer tank heavy-duty slurry pump and agitator tank, set-up on a strong base frame.
The slurry is mixed through a high speed vortex produced by a special pump which, after sucking the
material from the bottom of the mixer tank, sends it back tangentially into the same tank in order to get
highest possible efficiency. By this process it is possible to obtain homogeneous colloidal and high
quality mixtures within a very short period of time.
After mixing, this mixtures are pumped into the agitator tank with slow speed mixing paddles by the
above same pump.
When the mixtures in mixer tank are completely pumped out, to shift the specially design handle valve
to continue to mix the next cycle slurry.
►Application:
LMA750-1500E bentonite turbo mixer with agitator is specially design for continuous cement mixing and
grouting in ground/underground engineering.
►Features:
★ This bentonite turbo mixer with agitator with simple structure, easy assemble;
★ Mixer and agitator switch by using squeeze handle, great reliability and simple to operate;
★ The bentonite turbo grout mixer is less spare parts, low maintenance;
★ High speed mixing and high efficiency to achieve continuous mixing.
■Product Details

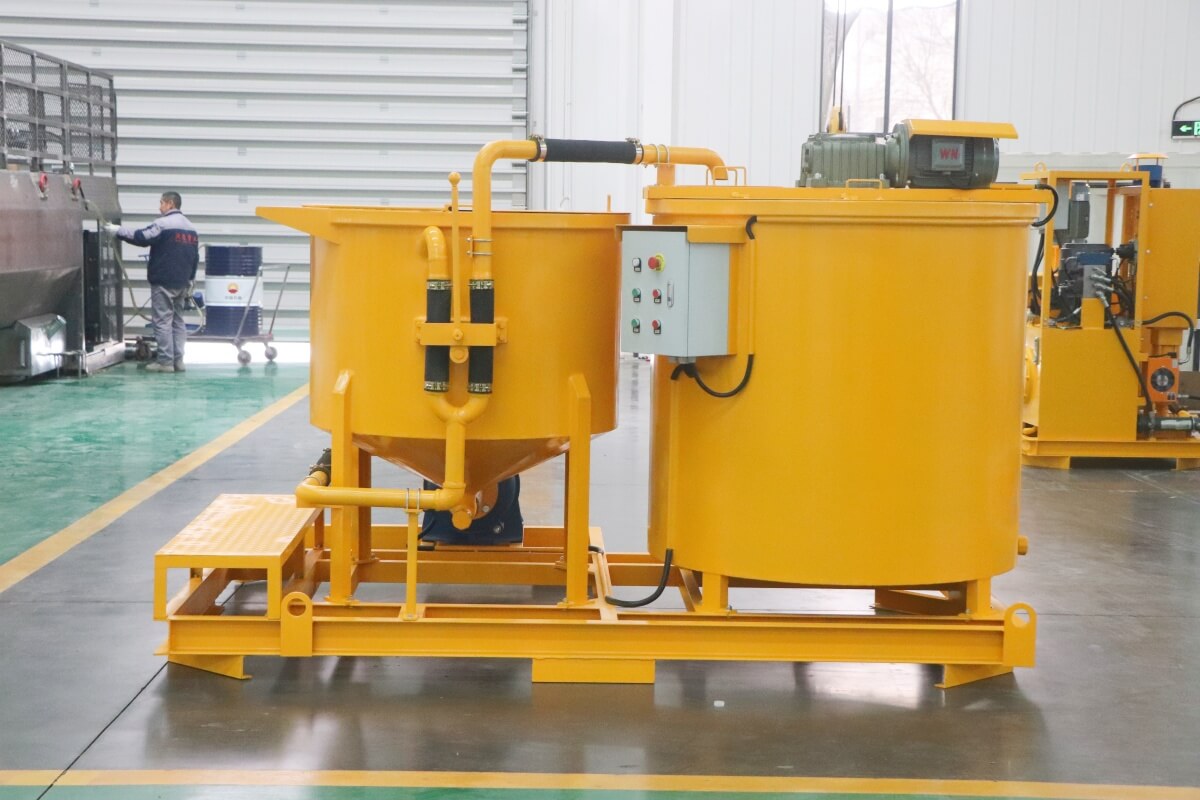

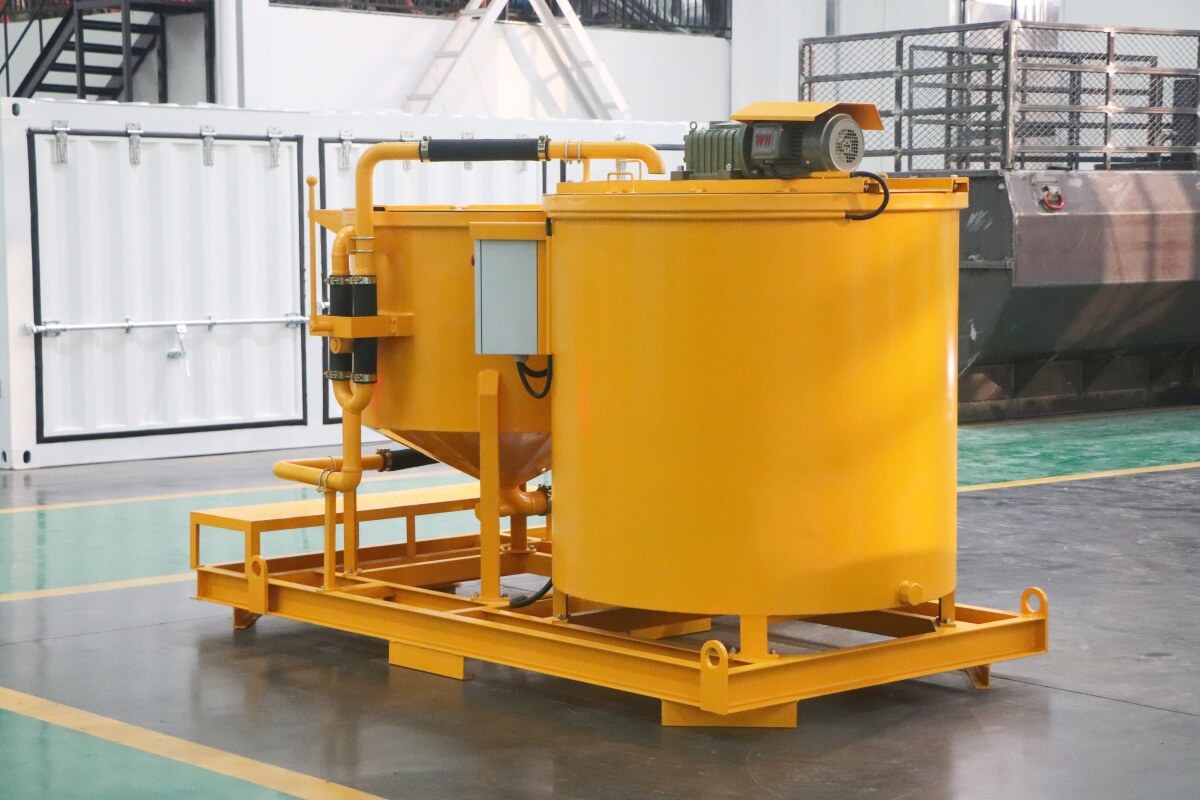

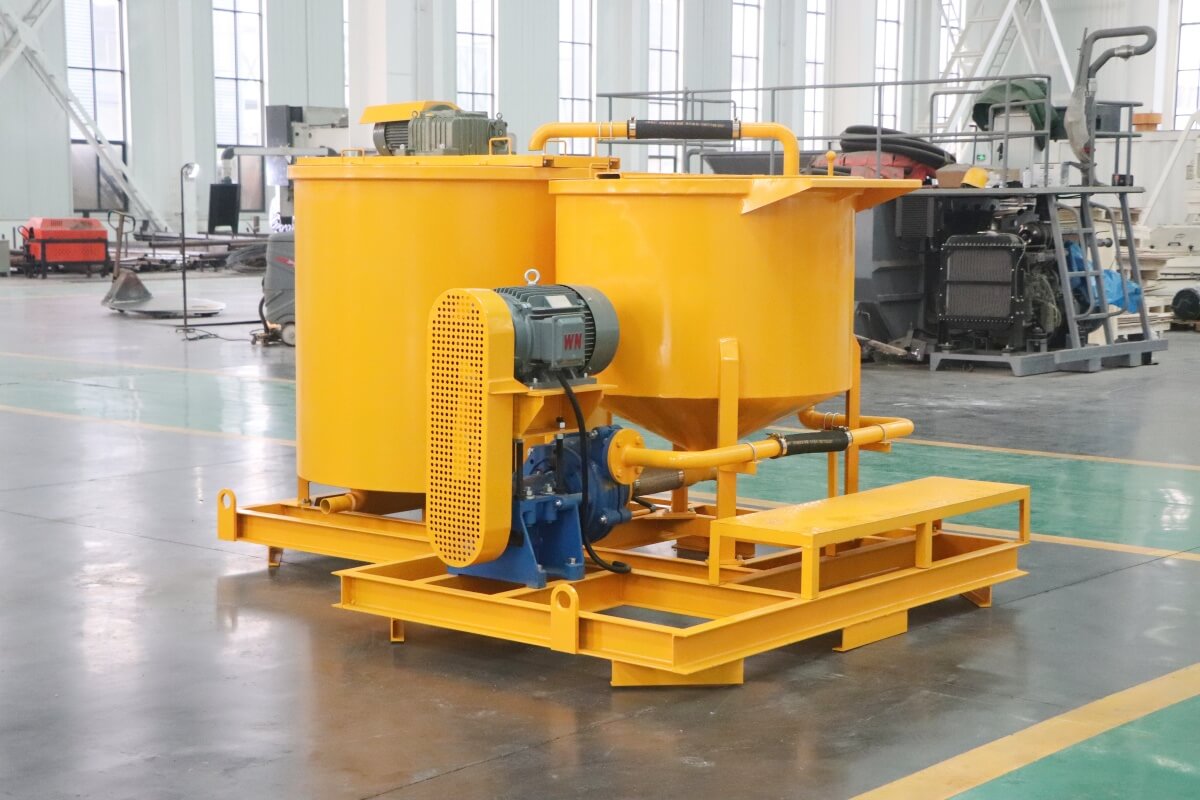

LMA750/1500E Bentonite turbo mixer/agitator

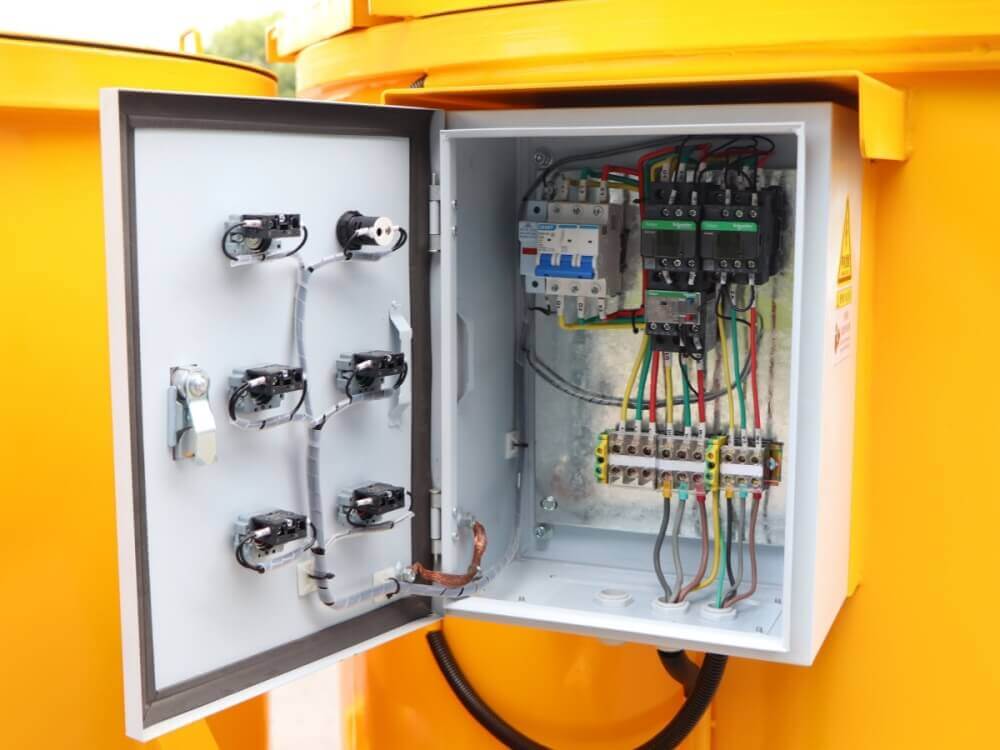

Waterproof button with stainless steel frame electric box

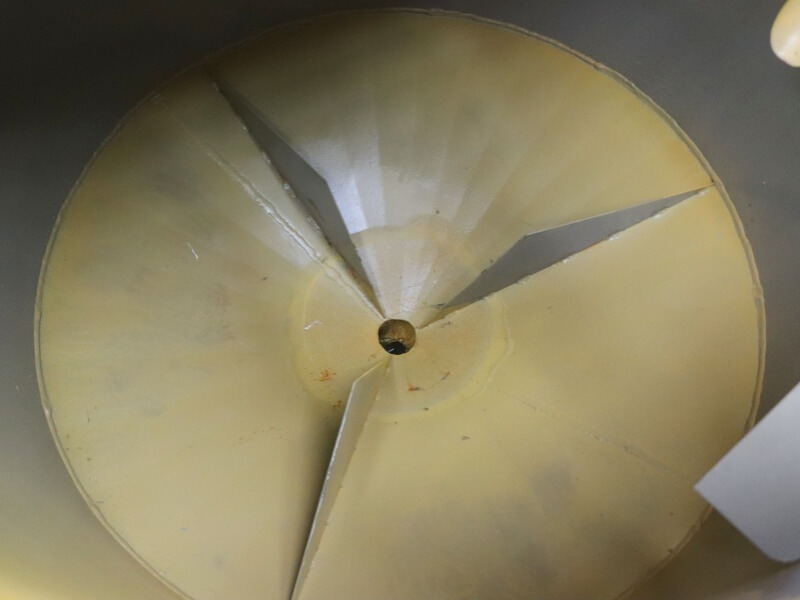

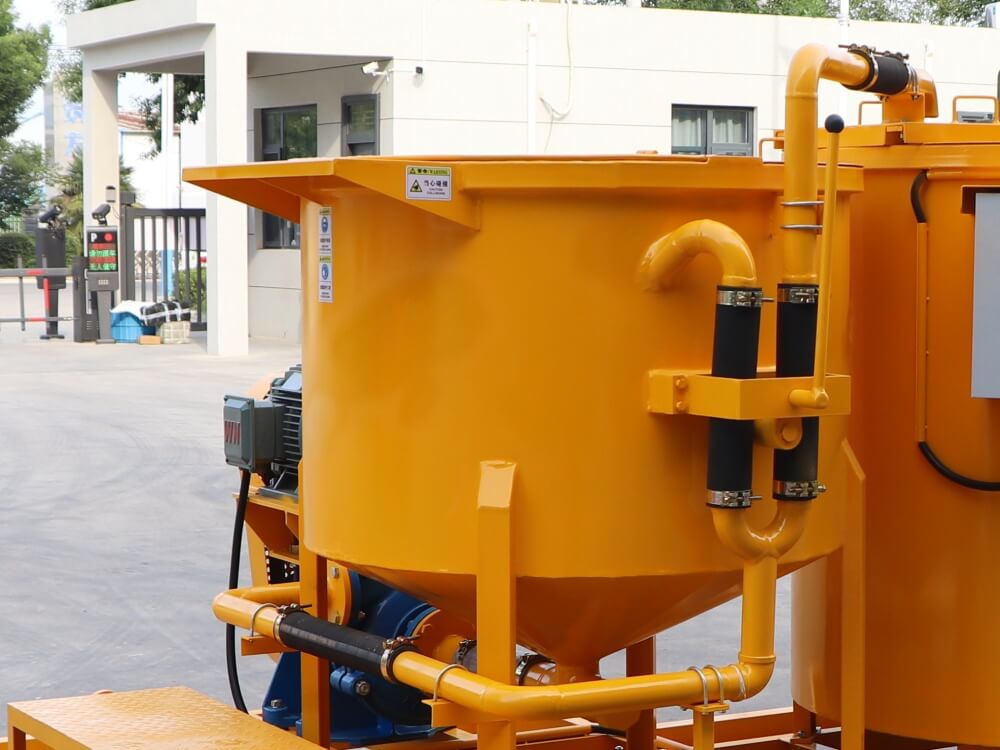

Bentonite cement slurry mixer

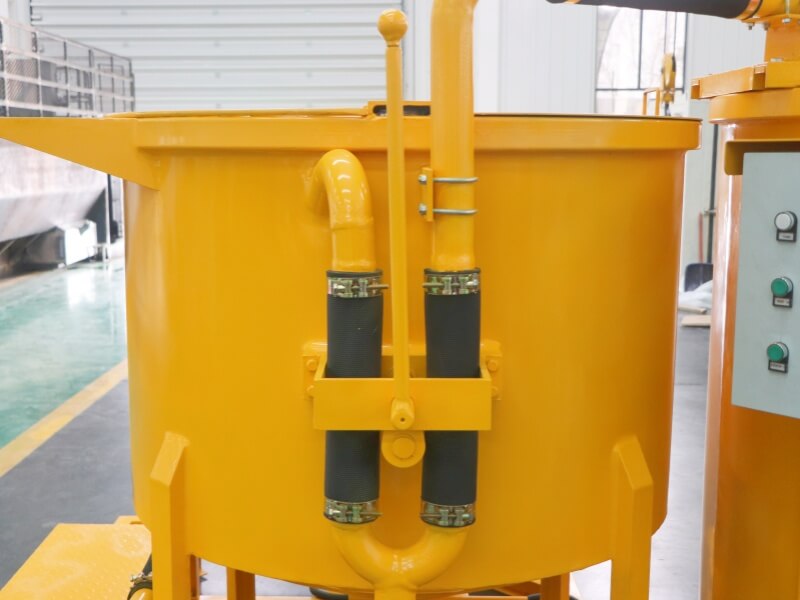

Special design and machining squeeze hose valves with million times squeezing work life

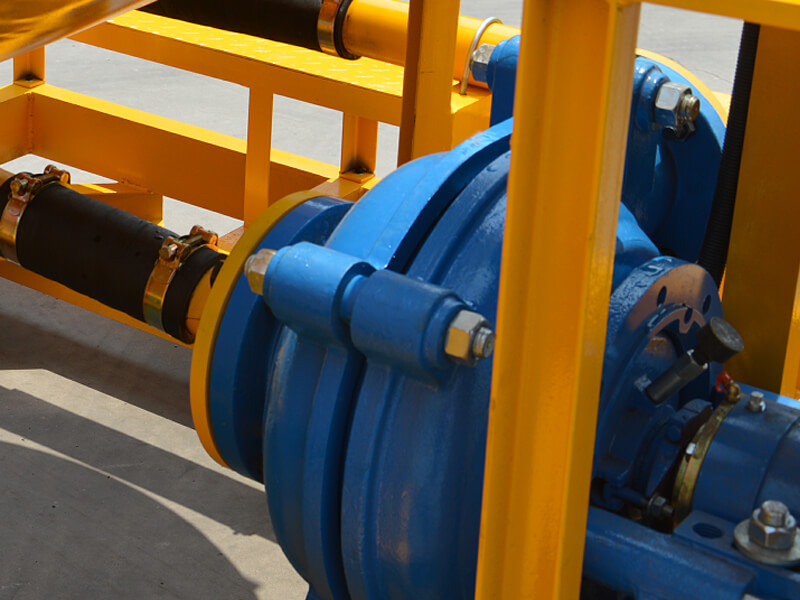

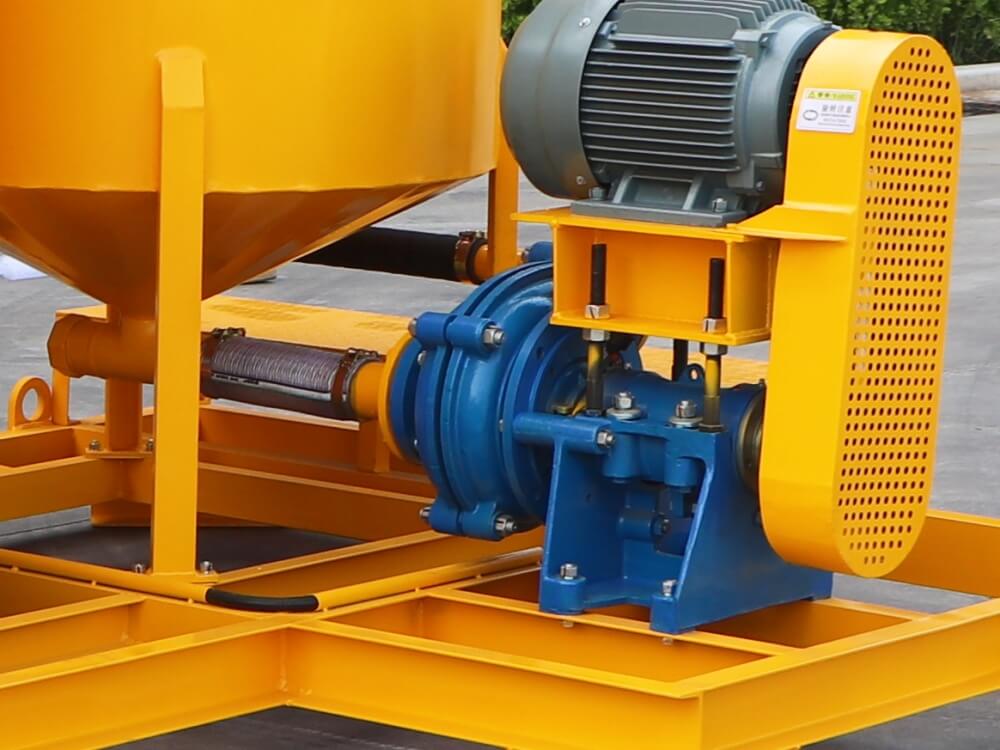

Heavy-duty slurry pump for recirculating and discharging

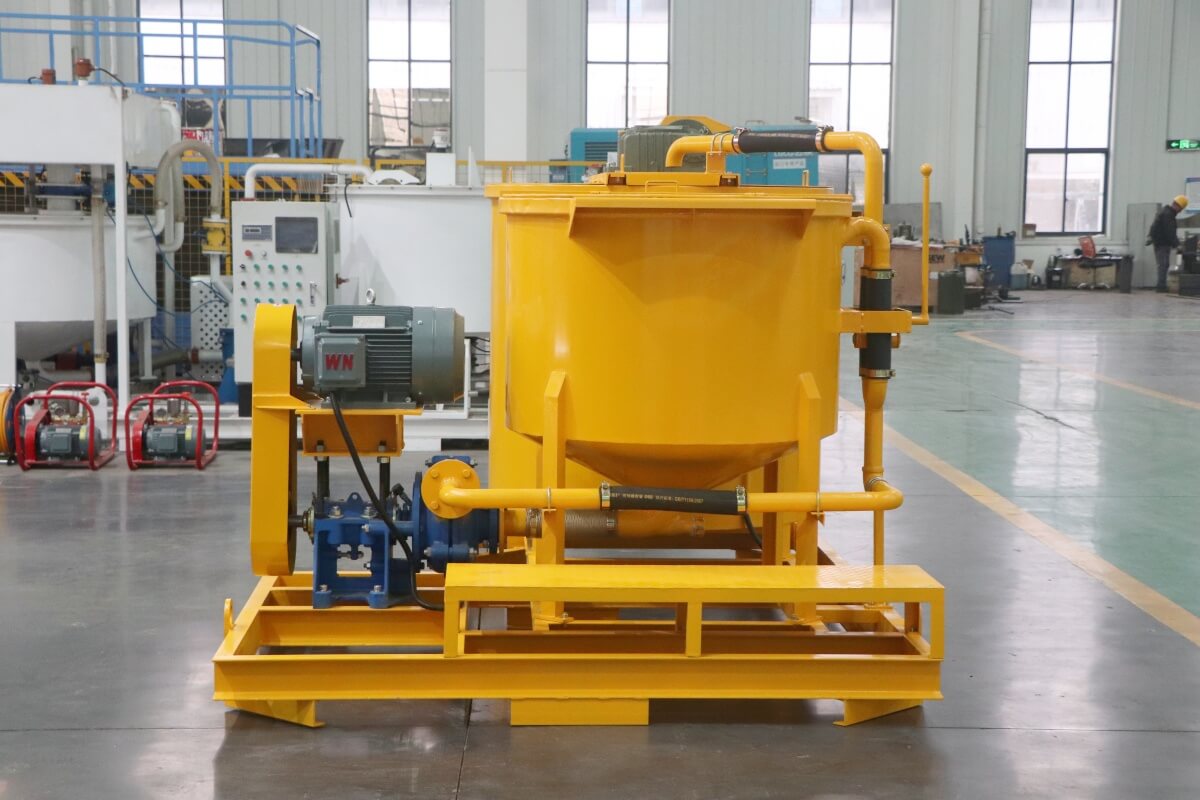

Cement slurry grout mixer
■Technical Parameters
►Technical Data:
| Model | LMA750-1500E Bentonite turbo mixer |
| Output | 11~14m3/h |
| Mixer Volume | 750L |
| Agitator Volume | 1500L |
| Pump delivery output | 700L/min |
| Motor Power | 11+3 Kw |
| Overall dimension | 2850*2150*1970mm |
| Weight | 1800Kg |
We reserve the right to change technical specifications of LMA750-1500E bentonite turbo mixer without prior notice. We could also customize bentonite turbo mixer according to your project demands.
Customized LMA750-1500E Bentonite turbo mixer with agitator for our Australia costumer:
|
|
|
|
|
|
