LPXT200-D/A Semi-dry mortar floor screed conveyor

  • Model: LPXT200-D/A
  • Diesel Engine: 60KW
  • Vessel Capacity: Gross 260L / Net 200L
  • Output Capacity: 5m³/h
  • Transfer Range: Horizontal 220m, Vertical 50 Floors
  • Operating Pressure: 4-8 bar

  • pneumatic semi-dry mortar conveyor for floor screed

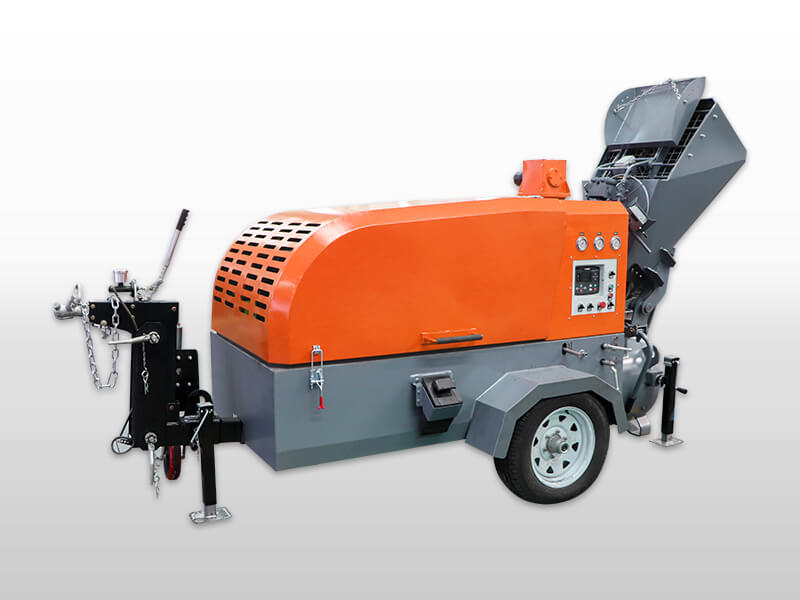

  • pneumatic semi-dry mortar mixer pump

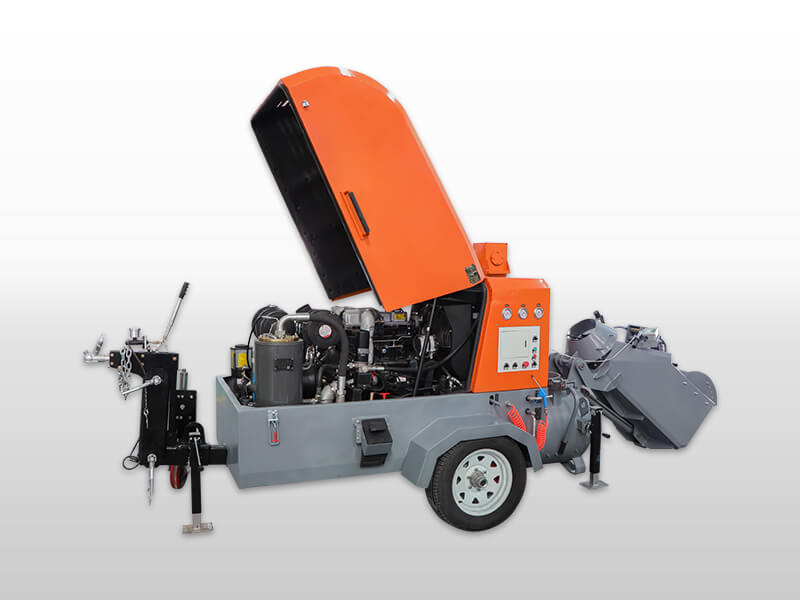

  • Semi-dry Floor Screed Conveyor
  • Semi-dry mortar floor screed conveyor
  • Semi-Dry Mortar Floor Screed Pump
Grouting Plant
Grout Mixer and Agitator
Grout Pump
Plaster Machine
HydroSeeders
Refractory Gunite/Mixer
Shotcrete Machine
Industrial Peristaltic Pump
Foam Concrete Machine
Concrete Mixer
Concrete Pump
hydraulic pump station
Customized Service

Phone/Wechat

+86-18538591025

Whatsapp

+86-18538591025

Email

sales@leadcrete.com

ADDRESS

Xisihuan Ring-Road East, Tielu, Xiliu Lake sub-district, Zhongyuan District, Zhengzhou, Henan China

■Introduction

  Description:

LPXT200-D/A Semi-dry mortar floor screed conveyor offers a steady, reliable power supply for the seamless processing of construction materials.

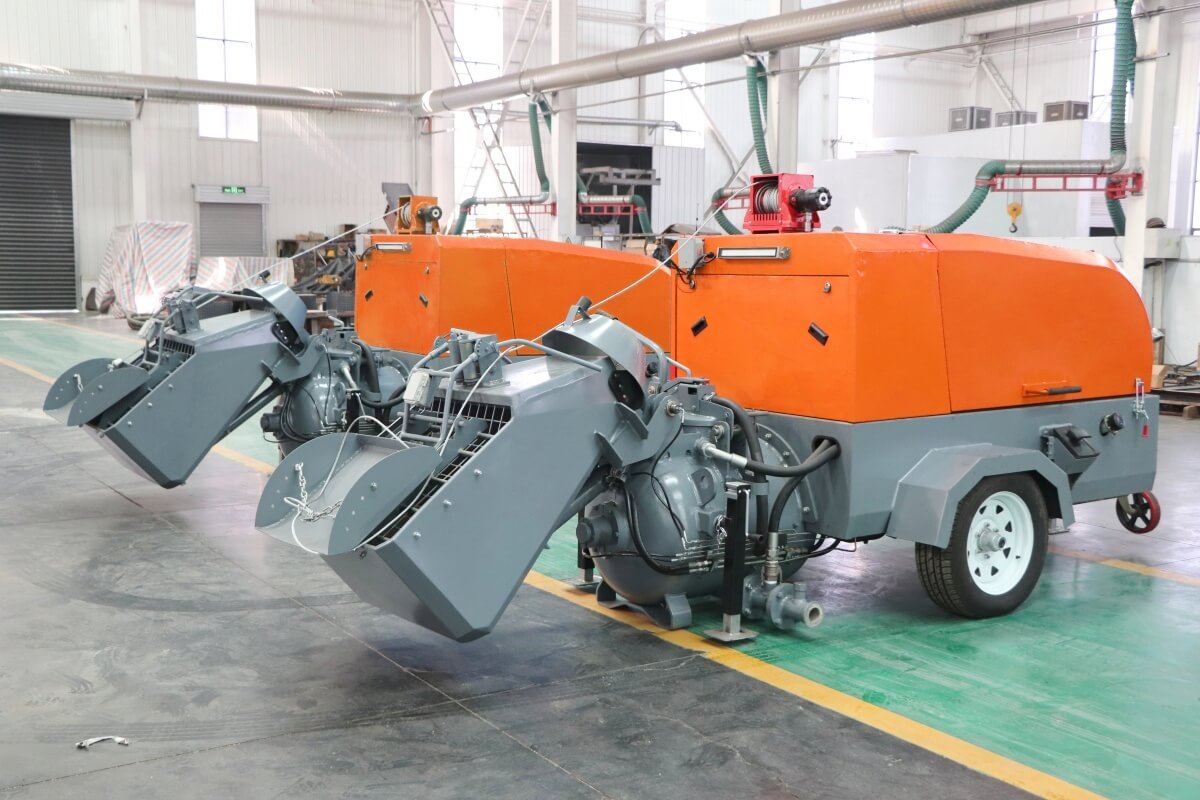

Pneumatic Semi-dry mortar conveyor for floor screed


This machine is fitted with a 4-cylinder engine that comes with a state-of-the-art digital control panel, enabling operators to easily keep track of essential operational metrics. Its modular construction design streamlines maintenance tasks, making it a user-friendly and efficient choice for screed-related operations. This cutting-edge equipment brings about significant improvements in screed application efficiency, providing both straightforward operation and practical performance enhancements.

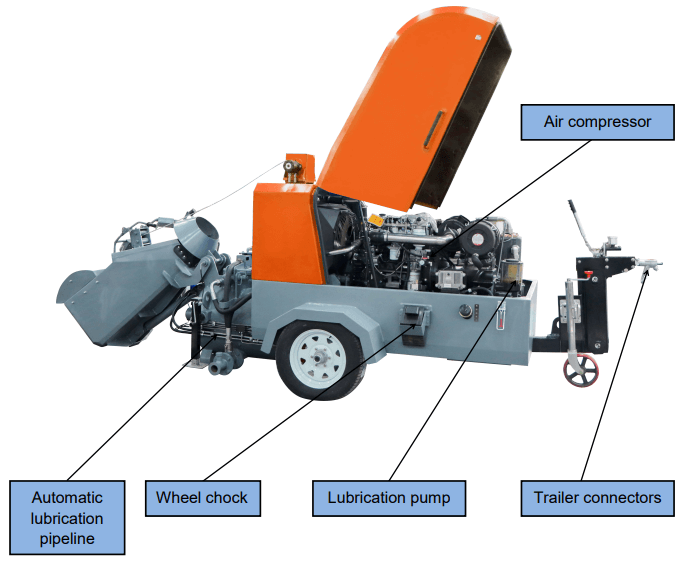

dry mortar screeding machine

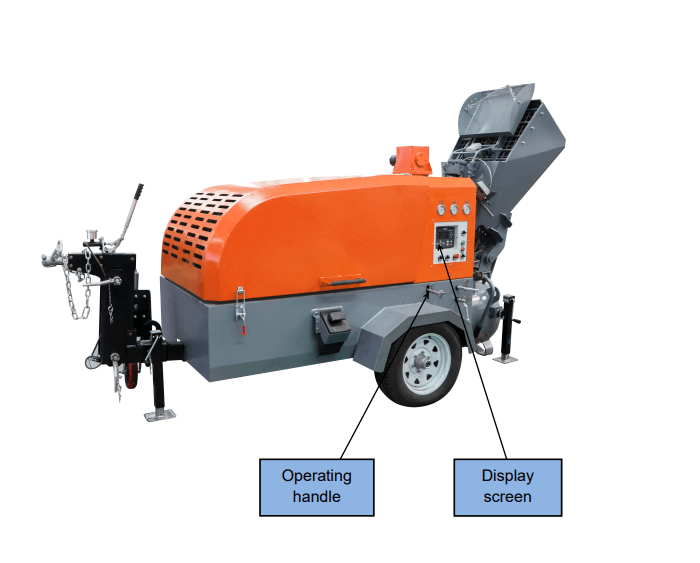

floor screed conveyors

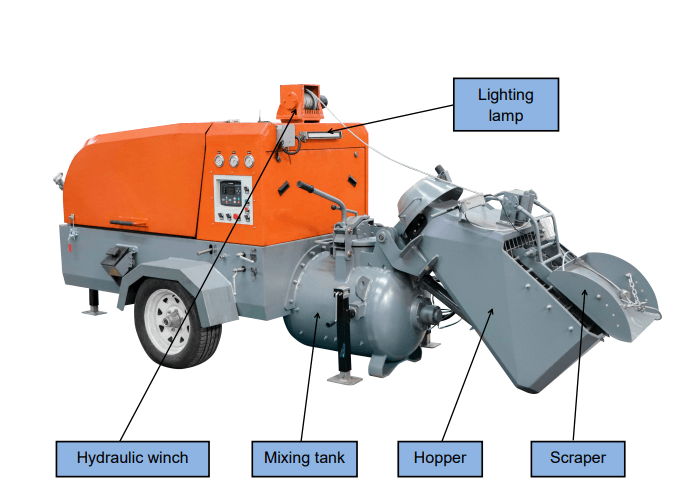

Screed Conveyors

The enhanced version of the semi-dry mortar mixing and conveying equipment stands out for its exceptional ability to transfer materials in multiple directions, integrating both horizontal and vertical conveying functions with a powerful built-in air compressor.

Putzmeister diesel screeding mixer pump


This compressor delivers strong pressure and airflow, guaranteeing a smooth and uninterrupted material flow throughout the entire operational area. By utilizing this optimized machinery, construction professionals can attain superior floor leveling outcomes, cutting down on labor hours and speeding up project completion times when compared to traditional methods.


 Application:

LPXT200-D/A Semi-dry mortar floor screed conveyor is expertly engineered for the efficient mixing and seamless transportation of screed materials.

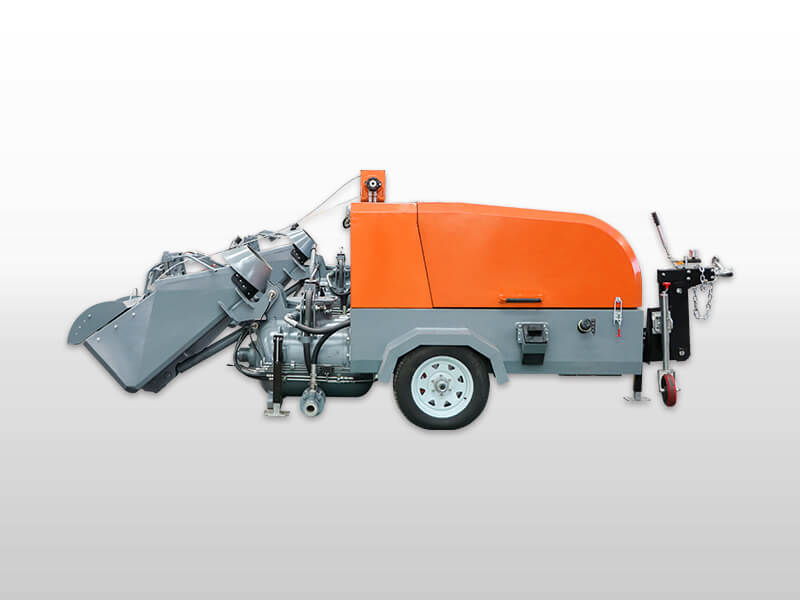

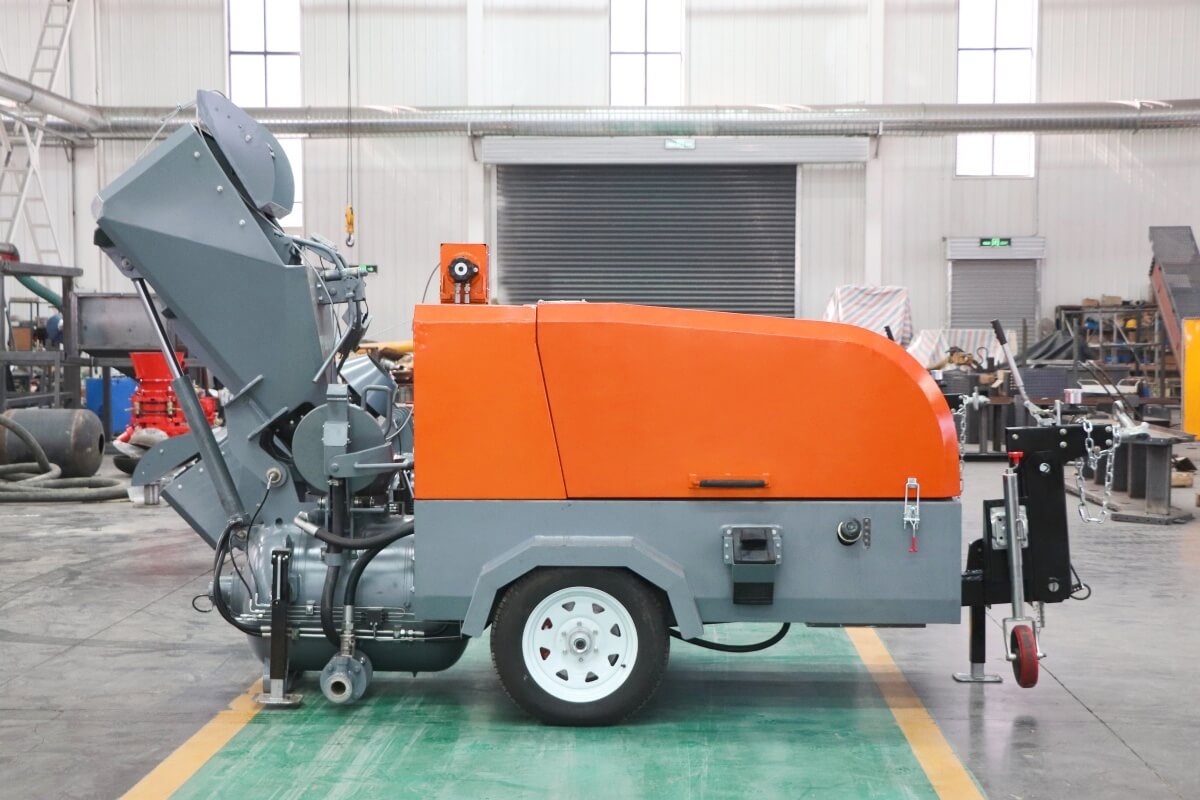

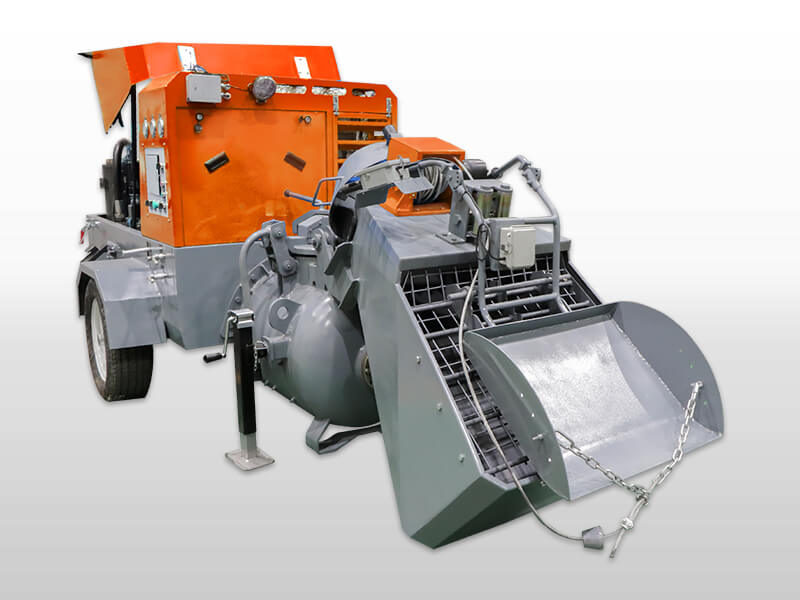

Semi-Dry Mortar Floor Screed Pump


This versatile machine is perfectly suited for a wide range of screed applications, whether dealing with dry, semi-dry, or wet screed types. It can effectively handle various materials, including traditional mortar and sand, as well as lighter substances like clay, making it a highly adaptable and valuable tool for construction projects.

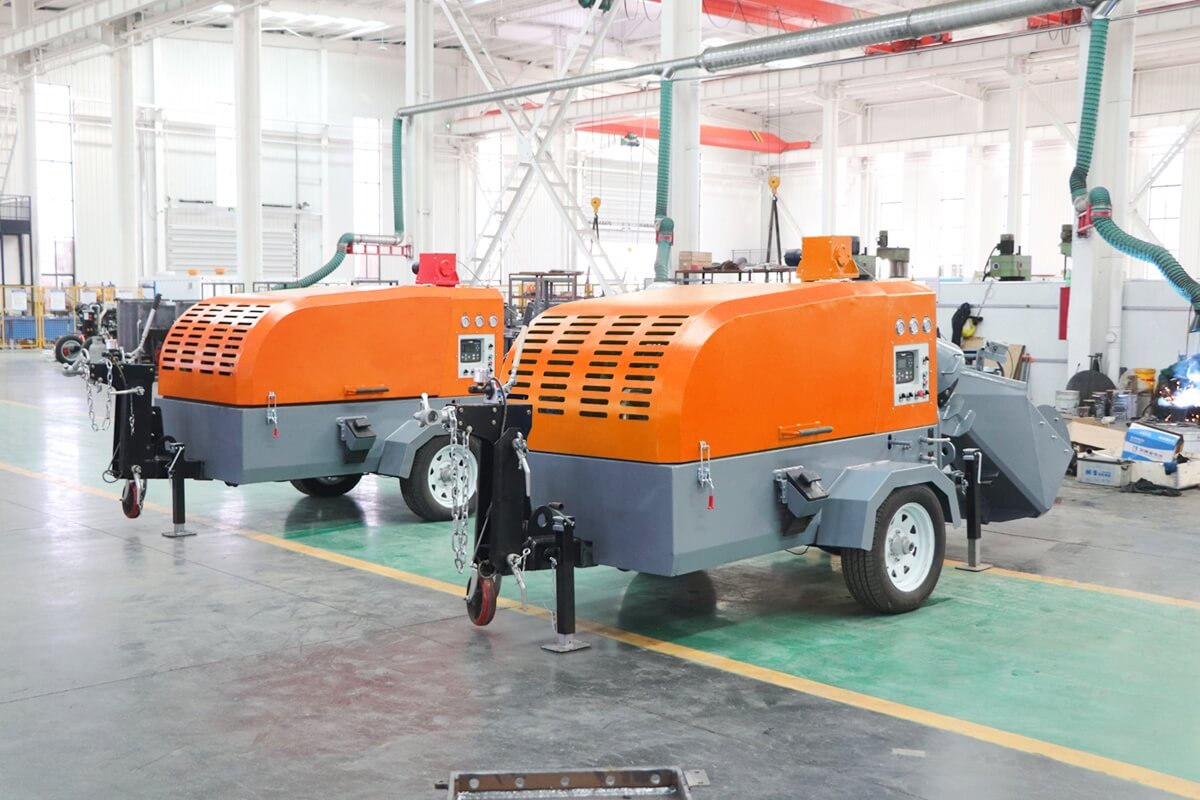

Diesel driven screed conveyor

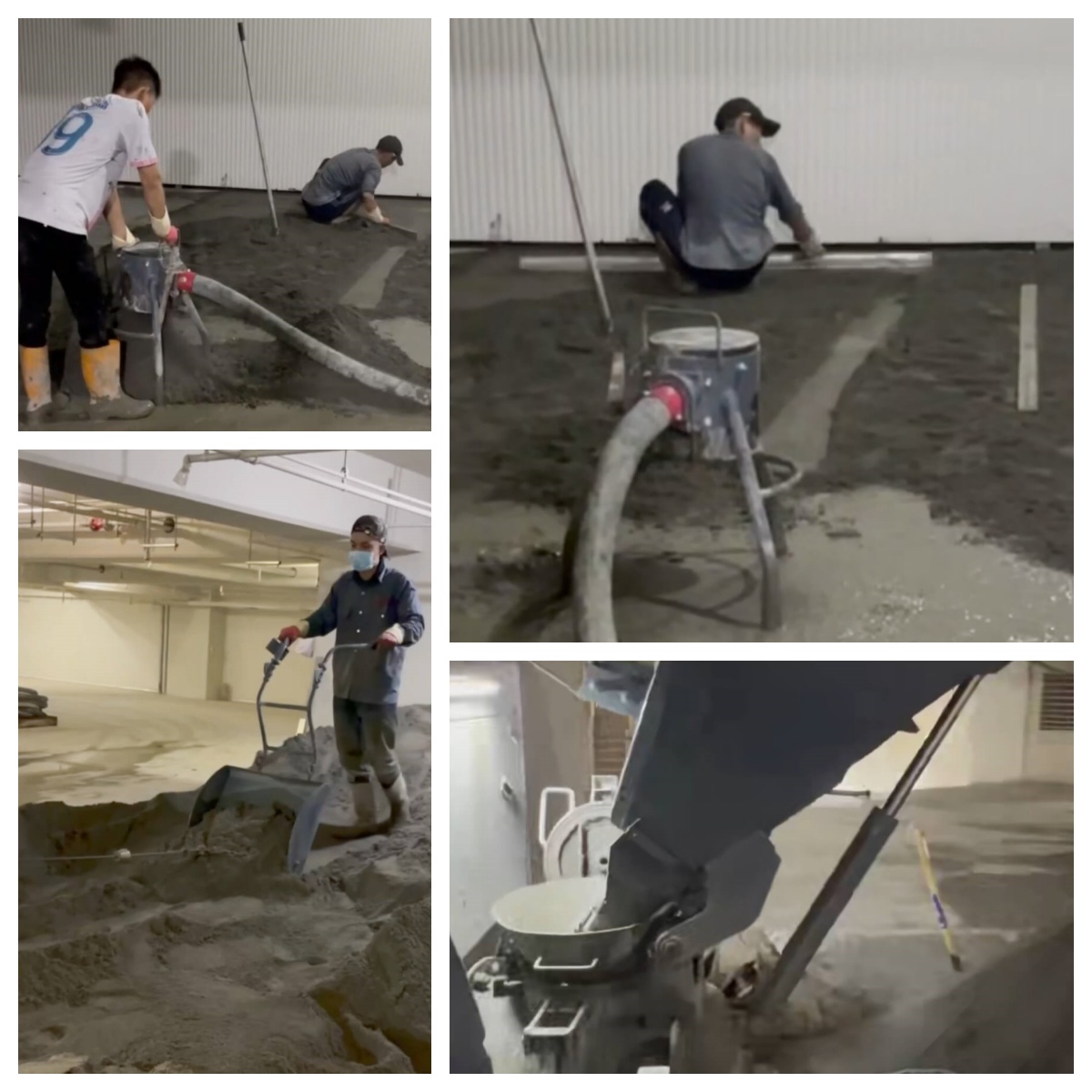

floor screed conveyor application


 Features:

1. Integrated Air Compressor & Mixer: Combines high-pressure air delivery with efficient material mixing for seamless screed application.
2. Powerful 60KW Diesel Engine: Delivers robust performance to handle demanding construction environments, ensuring reliability and productivity.
3. Intuitive Visual Operation Panel: Features a clear, user-friendly display screen for real-time monitoring of critical parameters like pressure, speed, and mixing ratios.
4. Adjustable Trailer Connectors: Enables flexible coupling to various transport vehicles, enhancing mobility and adaptability across job sites.
5. 4 Durable Mixing Blades: Engineered with wear-resistant materials for consistent, high-quality screed preparation and extended service life.
6. Replaceable Wear-Resistant Lining Plate: Minimizes downtime and maintenance costs by allowing quick replacement of worn components.
7. Hydraulic-Driven Feeding System: Simplifies material loading with smooth, automated operation, reducing manual effort and improving efficiency.

diesel driven screed mortar pump


This design prioritizes durability, ease of use, and versatility, making it ideal for professional screed applications in diverse construction projects.

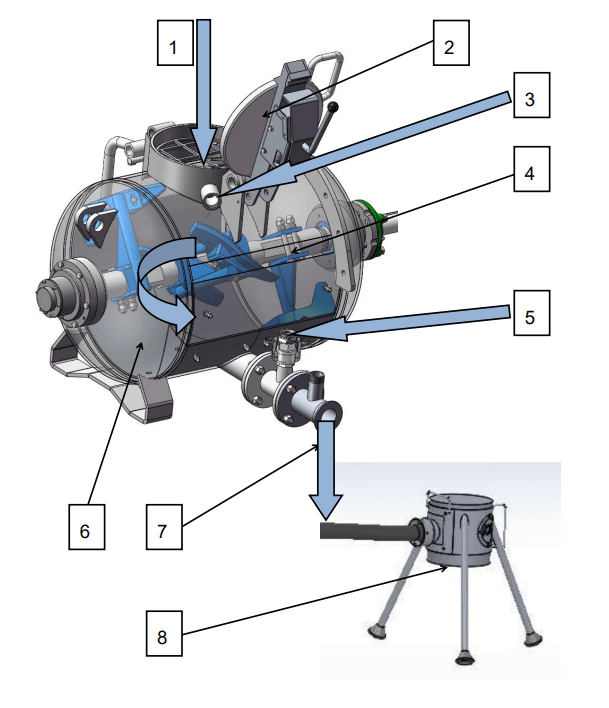

  Operating Principle:

① Add material 1 to mixing tank 6.

② Put on the sealing cover 2 and press it down firmly.

③ The materials are fully stirred in the mixing tank 6.

④The air compressor starts to generate compressed air with sufficient

pressure, which enters the mixing tank 6 and the upper pipeline 3. When the pressure inside the tank reaches a certain level, the material begins to be transported.

⑤The material is discharged from discharge port 7, passes through the conveying hose, reaches the discharge point, and is discharged at discharge port 8.

⑥If you want to transport long-distance or high-rise materials, you need to open the lower intake pipe 5.

Operating Principle

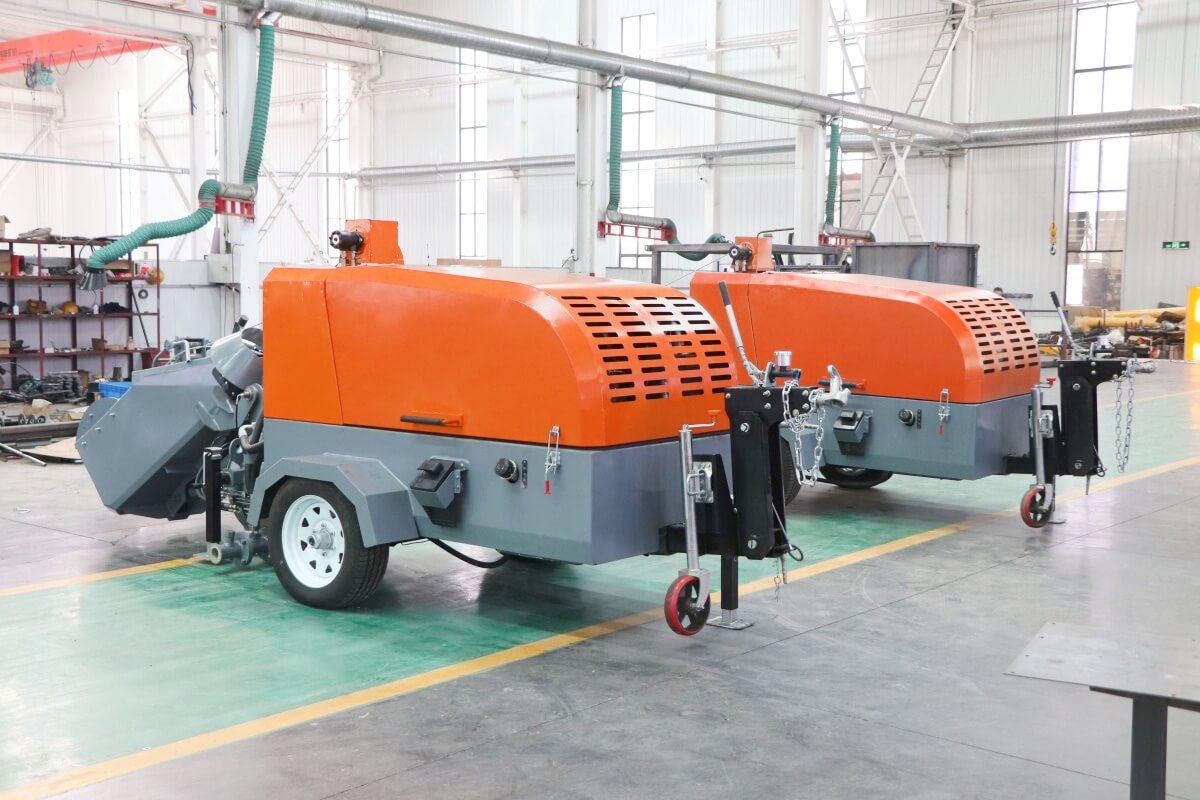

Dry floor-screed conveying machines

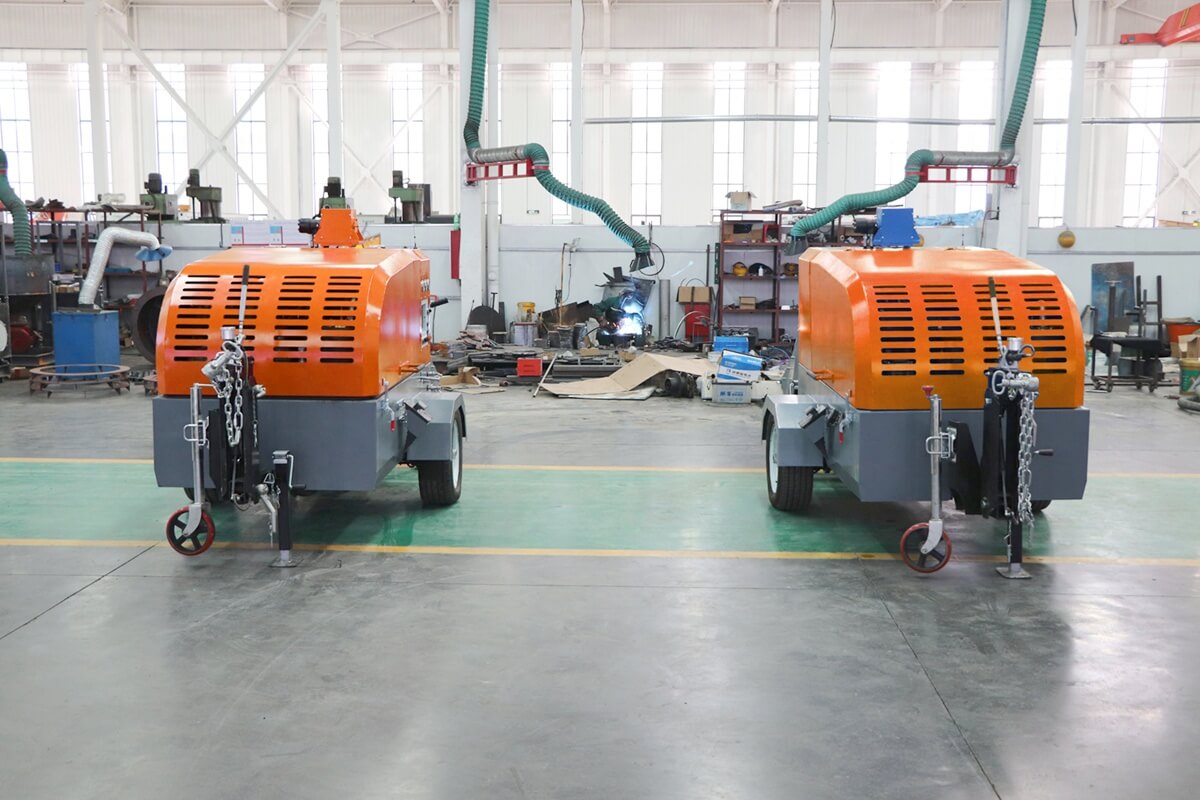

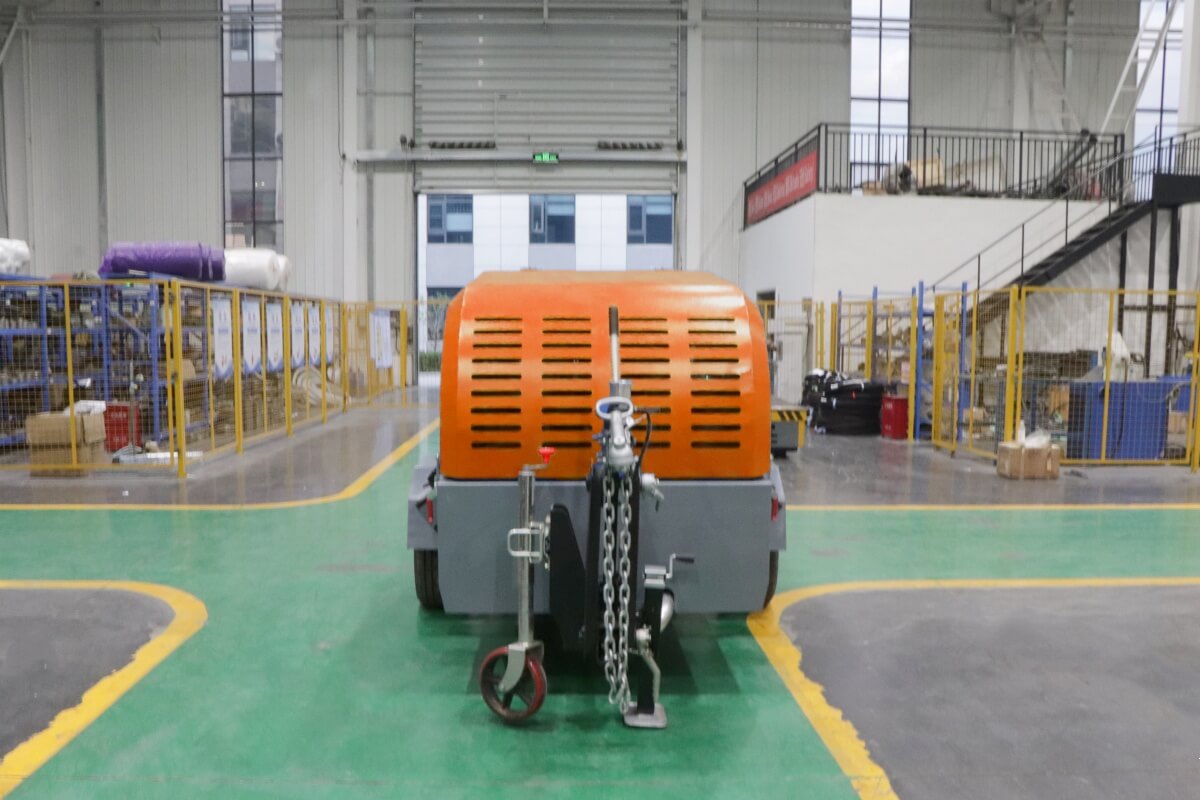

Pneumatic Conveyor

■Product Details

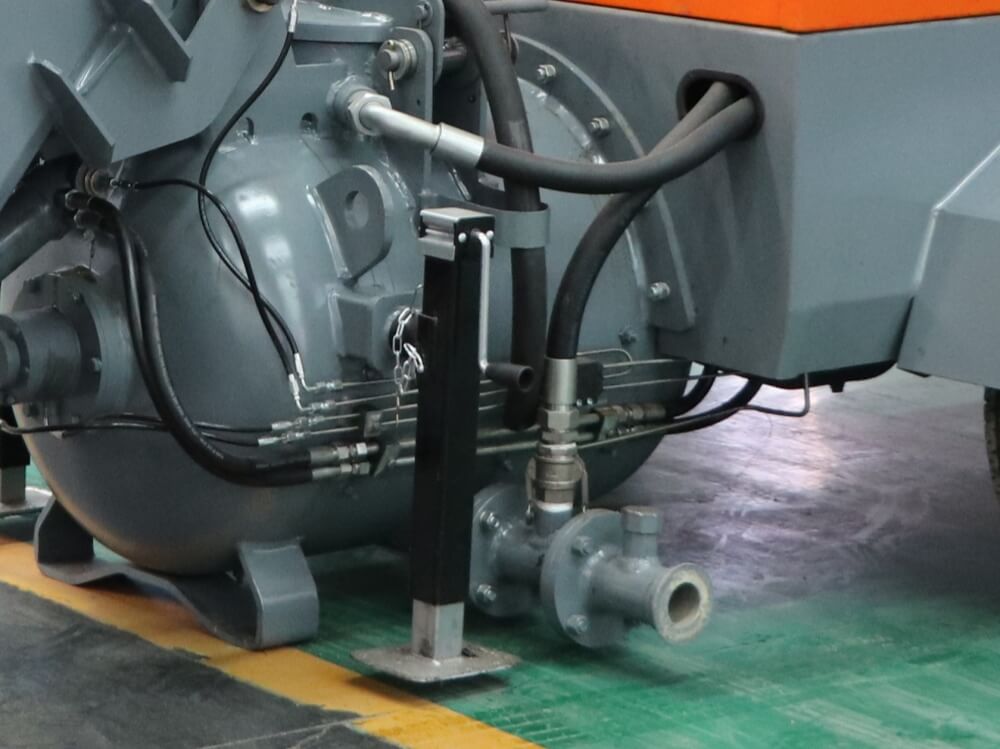

Automatic lubrication pipeline

Automatic lubrication pipeline

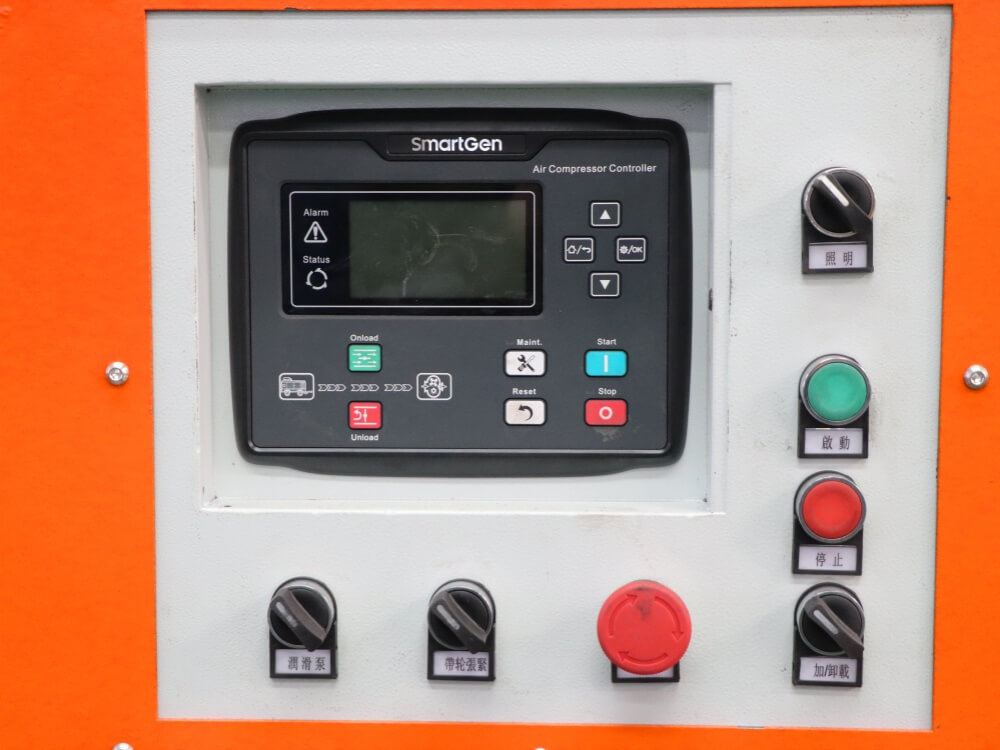

Display screen

Display screen

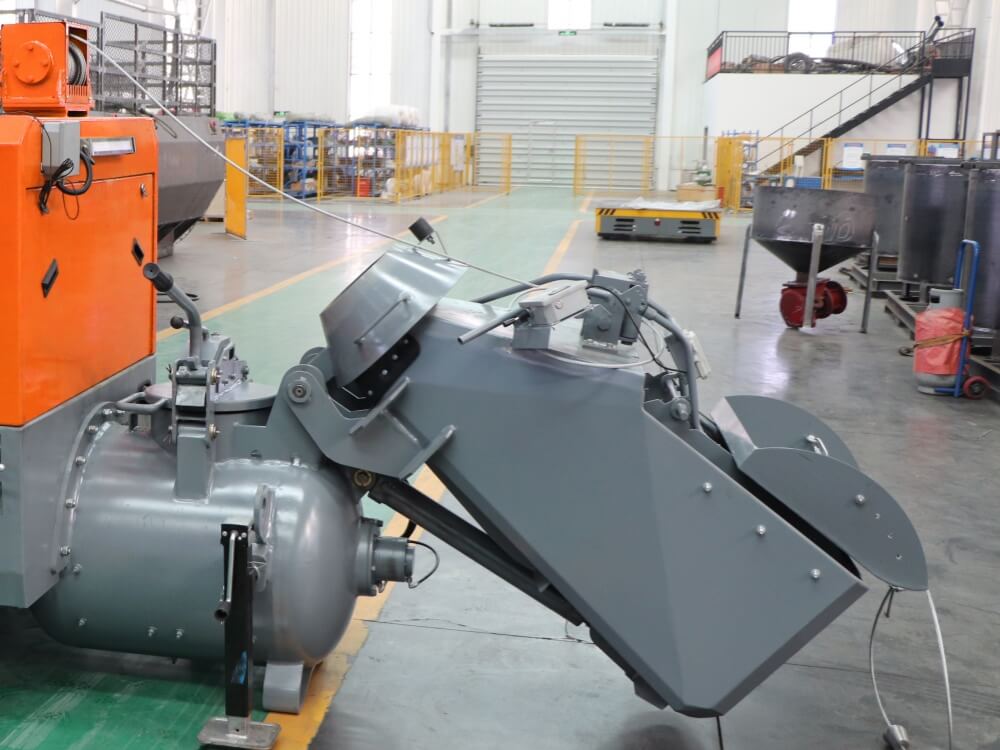

Hopper and Scraper

Hopper and Scraper

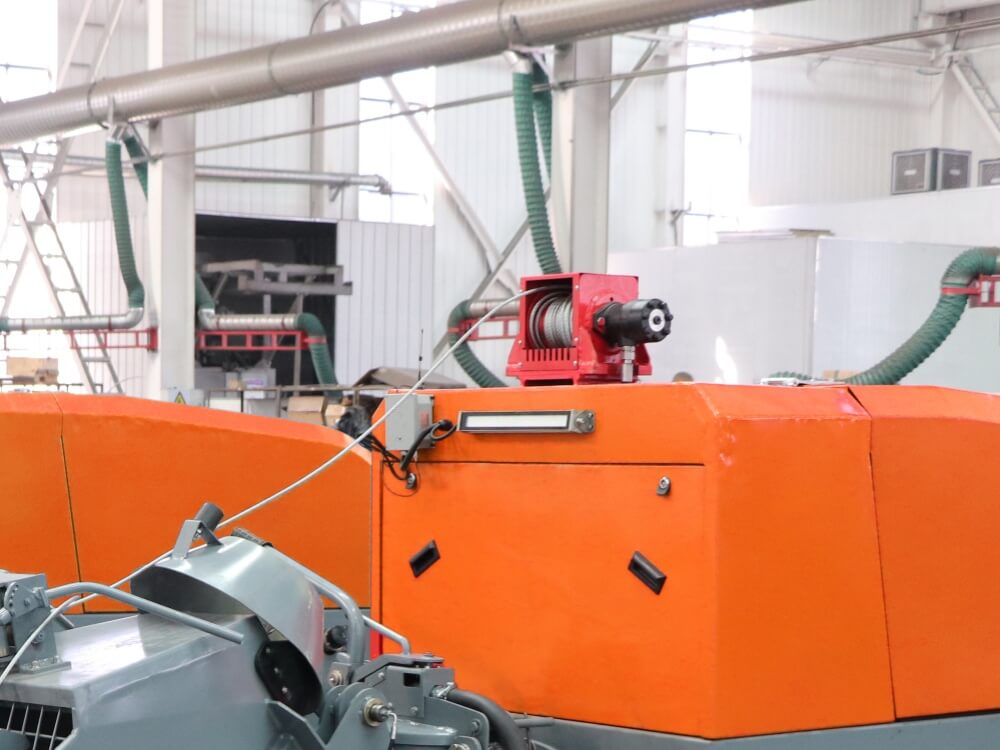

Hydraulic winch

Hydraulic winch

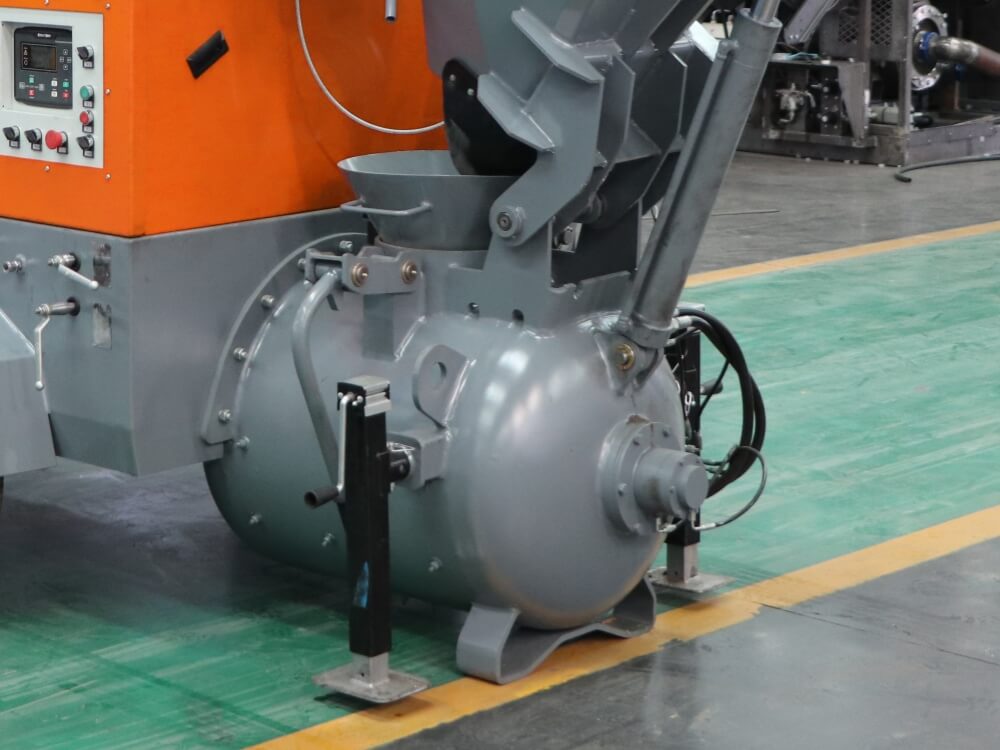

Mixing tank

Mixing tank

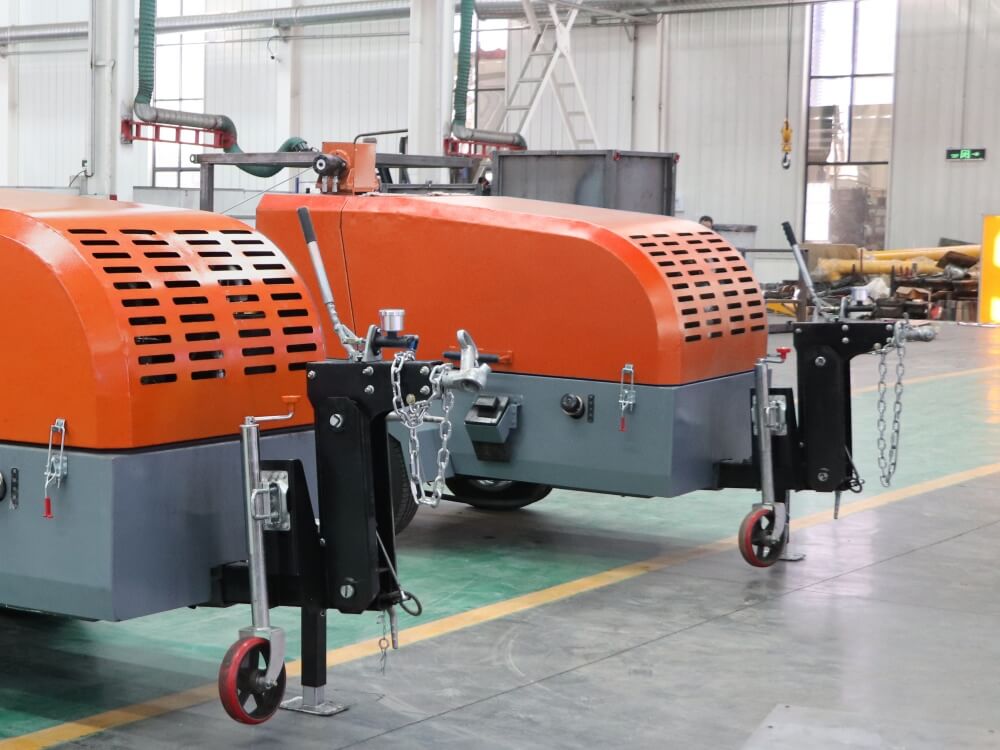

Trailer connectors

Trailer connectors

■Technical Parameters

Model

LPXT200-D/A Semi-dry mortar floor screed conveyor

Diesel Engine

60KW

Vessel Capacity

Gross 260L / Net 200L

Output Capacity

5m³/h

Transfer Range

Horizontal 220m, Vertical 50 Floors

Operating Pressure

4-8 bar

Max. Pressure

10bar

Compressor Flow Rate

6m³/min

Lubrication System

Central Automatic

Aggregate Size

16mm

Chassis Tow Connection

Ball Coupling

Fuel Tank

50L

Dimension L×W×H

5320×1700×2000mm

Weight

2415kg
