■Introduction

►Description:

LGM80/50PLD-E Double-Plunger Hydraulic Grout Pump is designed with two low-wear plunger pump. With the features of double acting, ball valves, low pressure surge, variable pressure and flow.

►Application:

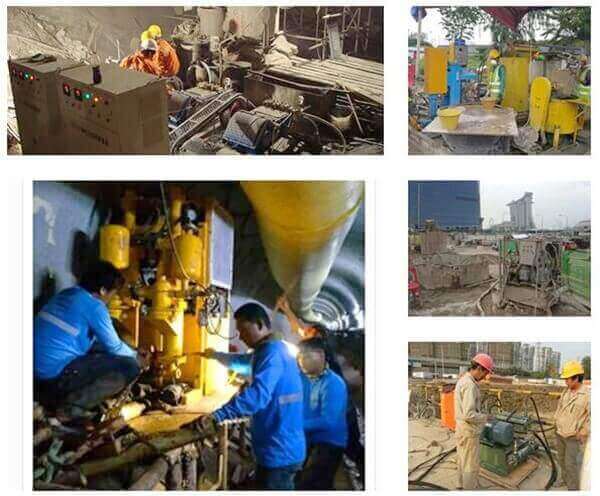

LGM80/50PLD-E medium pressure hydraulic grouting pump is suitable for all grouting work, up to 8mm particle size , such as, for the pumping of backfill mortar behind tunnel liners, grouting in soil, earth foundation stabilization, waterproofing, tunnel lining, underwater foundations, bridge decks, deep well casing, slope line grouting, etc.

►Features:
★ Ball valve;
★ Hydraulic drive
Safely releasing pressure when pumping block;
★ Double plungers and acting

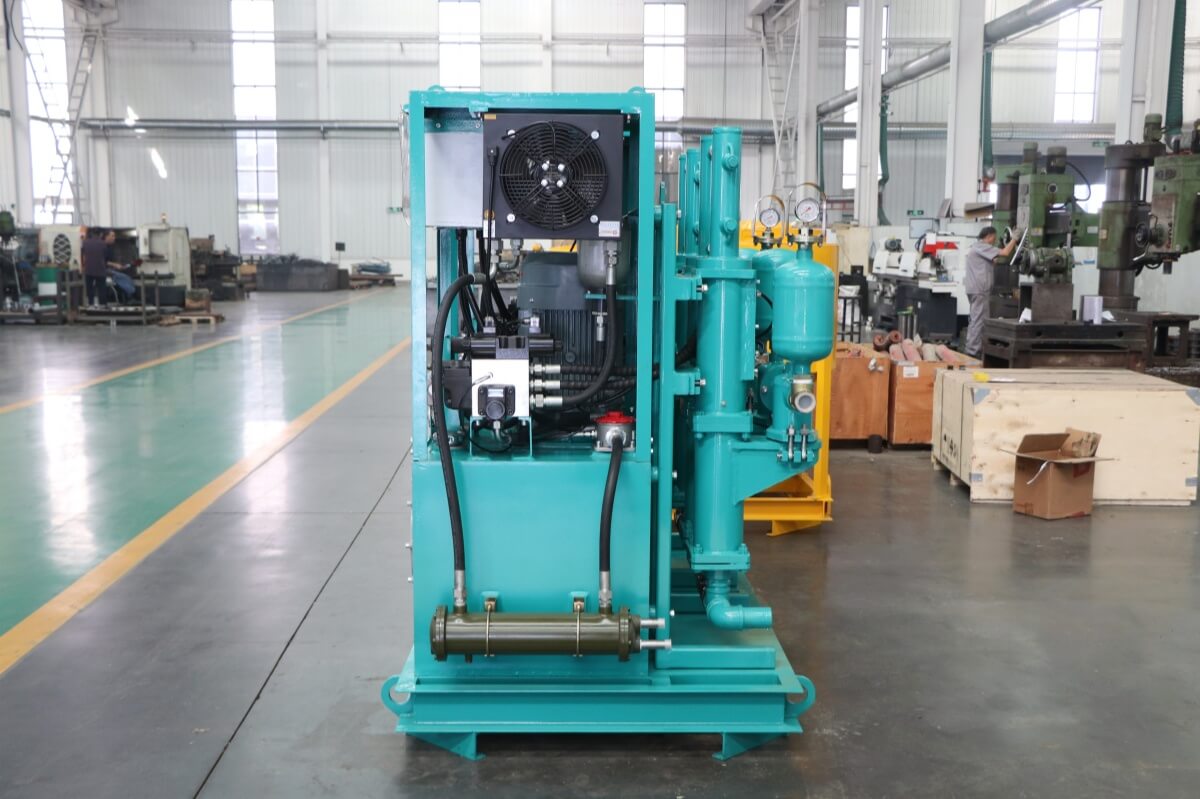

★ Vertical type pump with compact size;
★ Up to 8mm particle size
★ Low wear plunger system

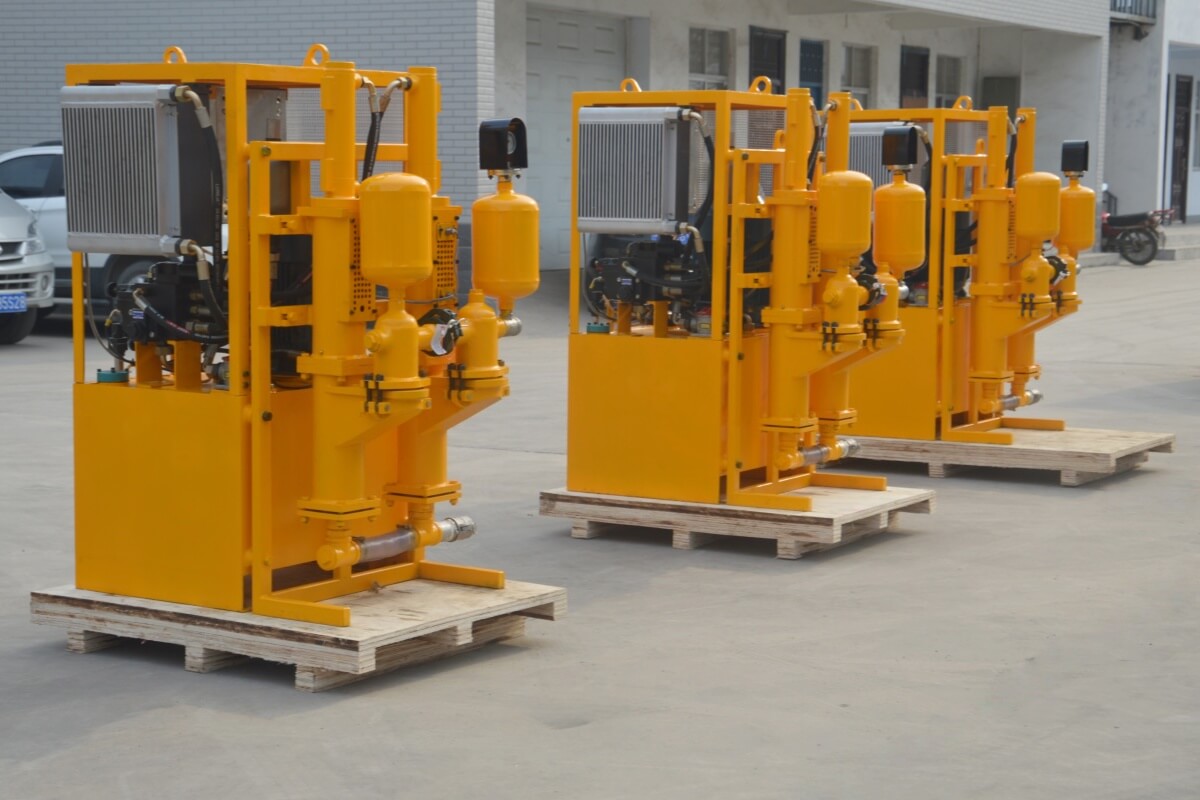

Double-Plunger plus two pulsation damper

Double-Plunger plus two pulsation damper

★ Low flow pressure surge system;
★ The plunger pump system
Comparing with the piston pump system, the plunger system does not require any close tolerance parts such as cylinders or precise piston seals, etc. The plunger is sealed by a simple maintenance-free seal.

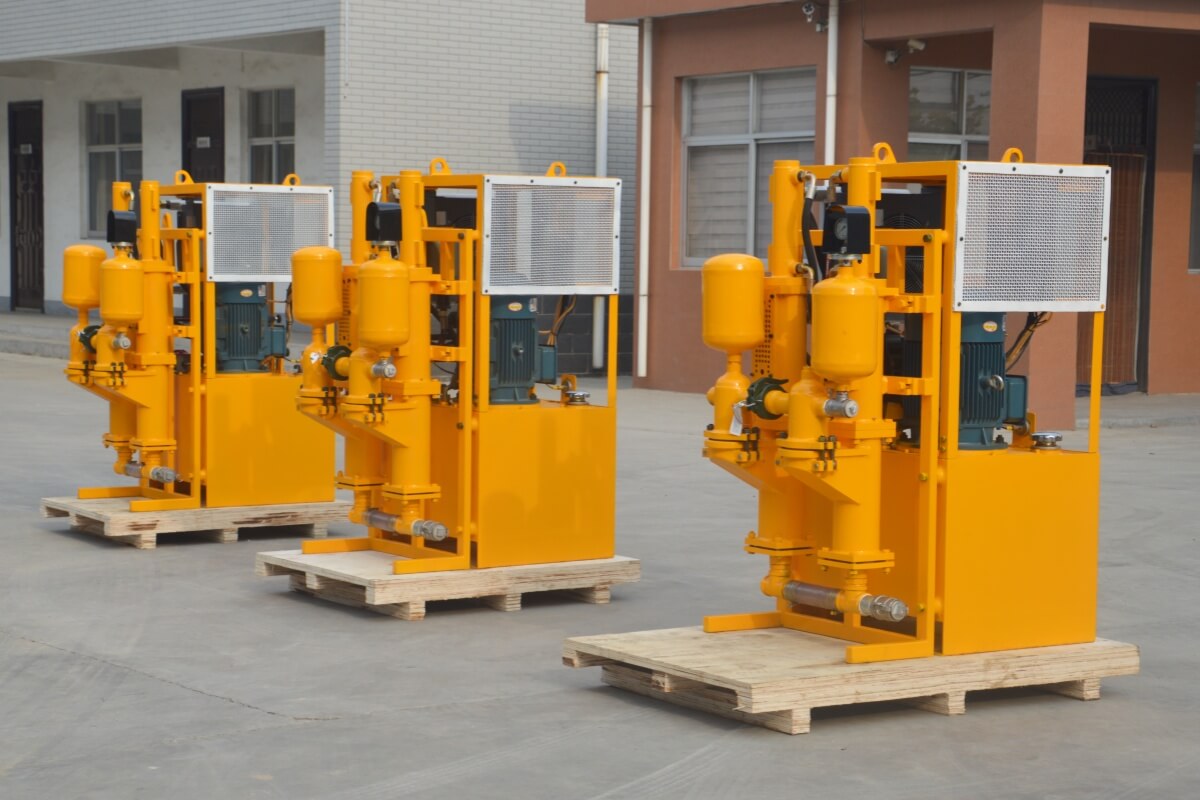

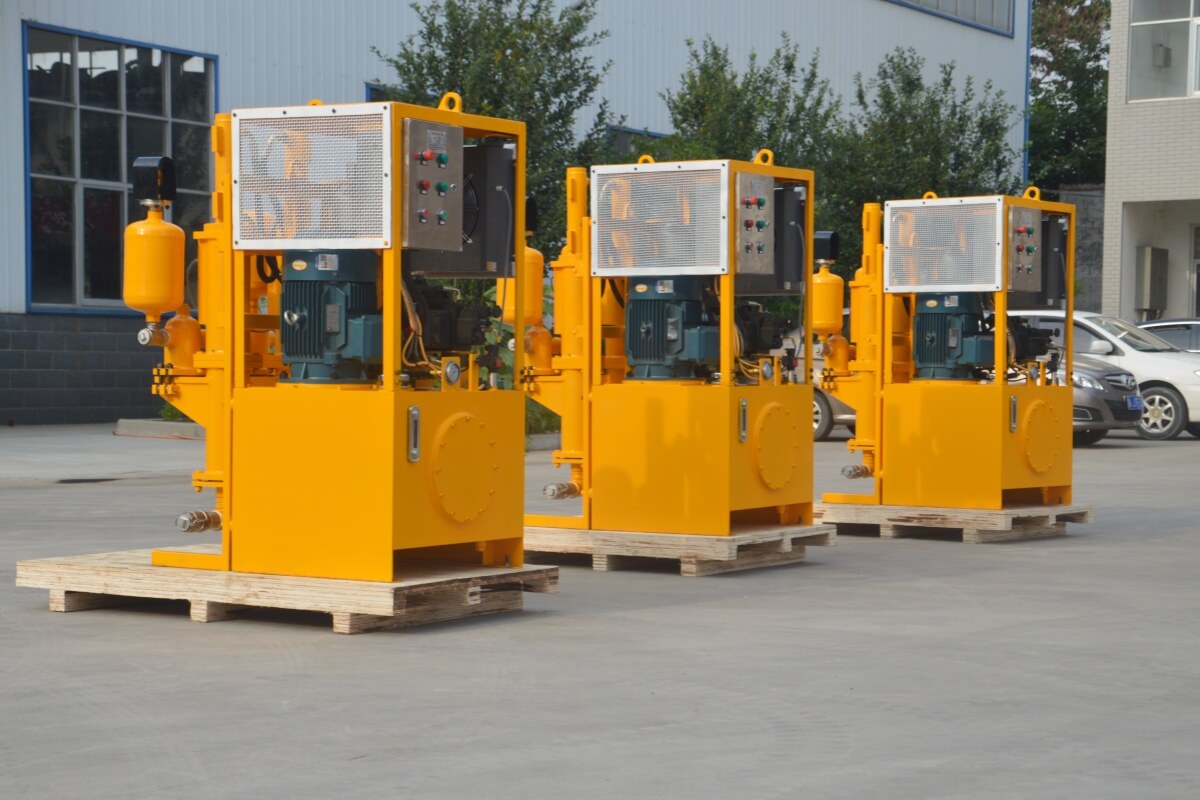

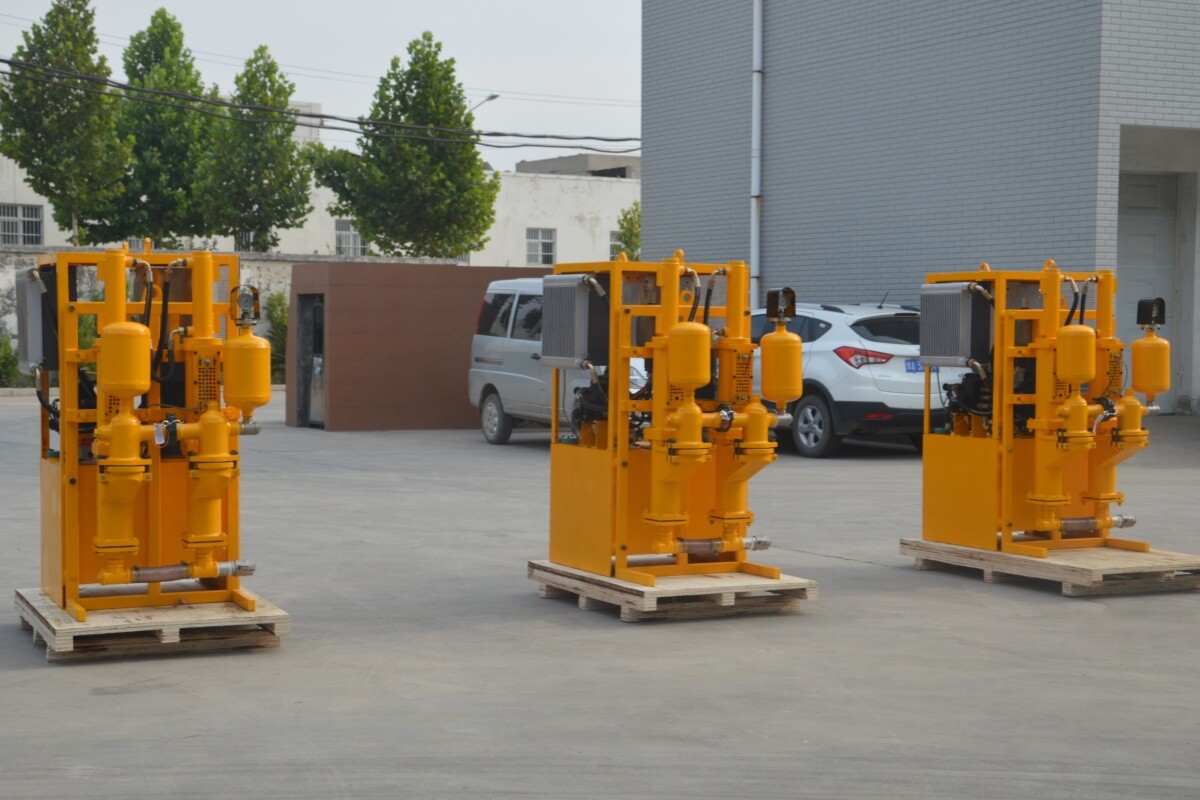

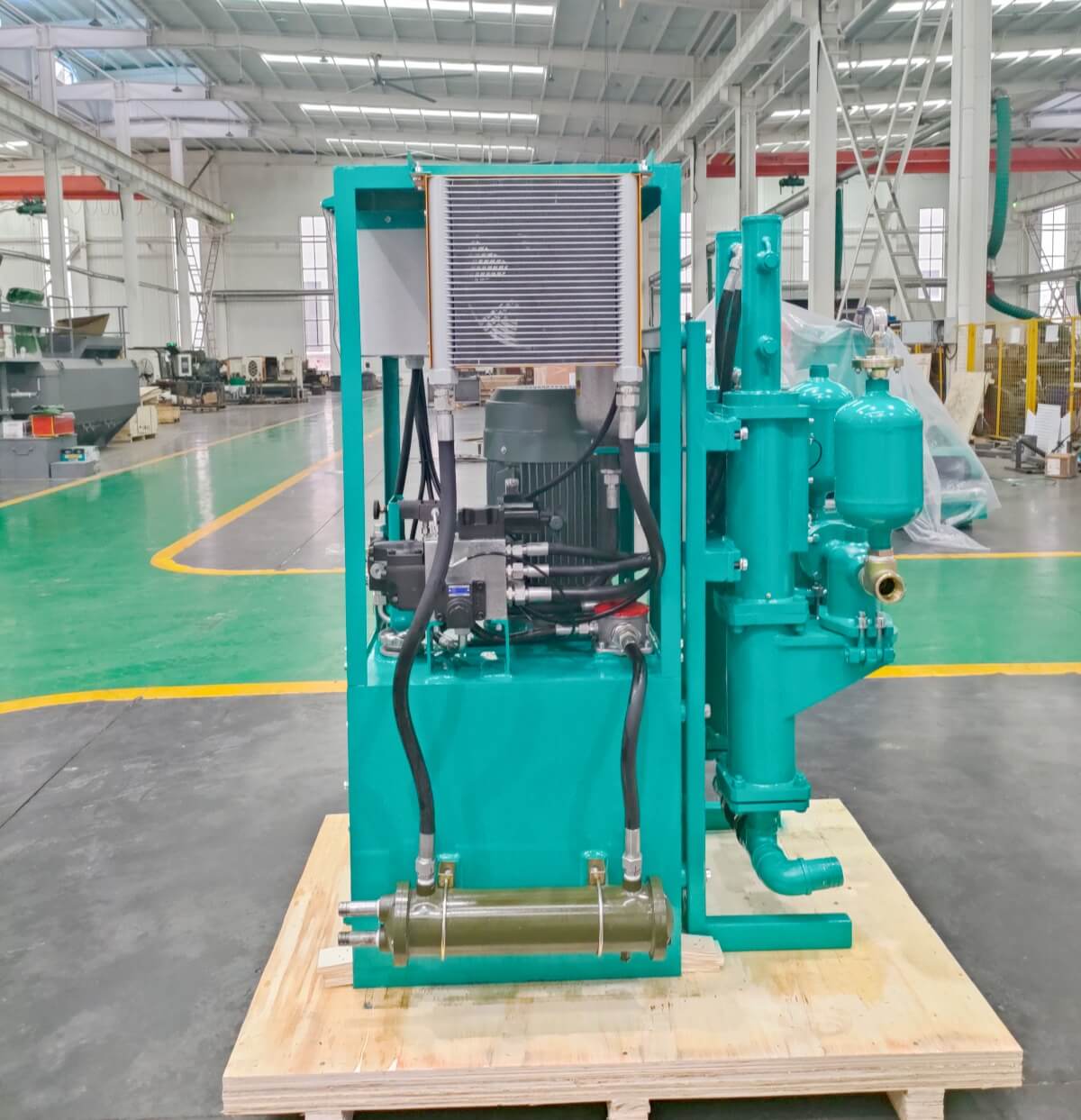

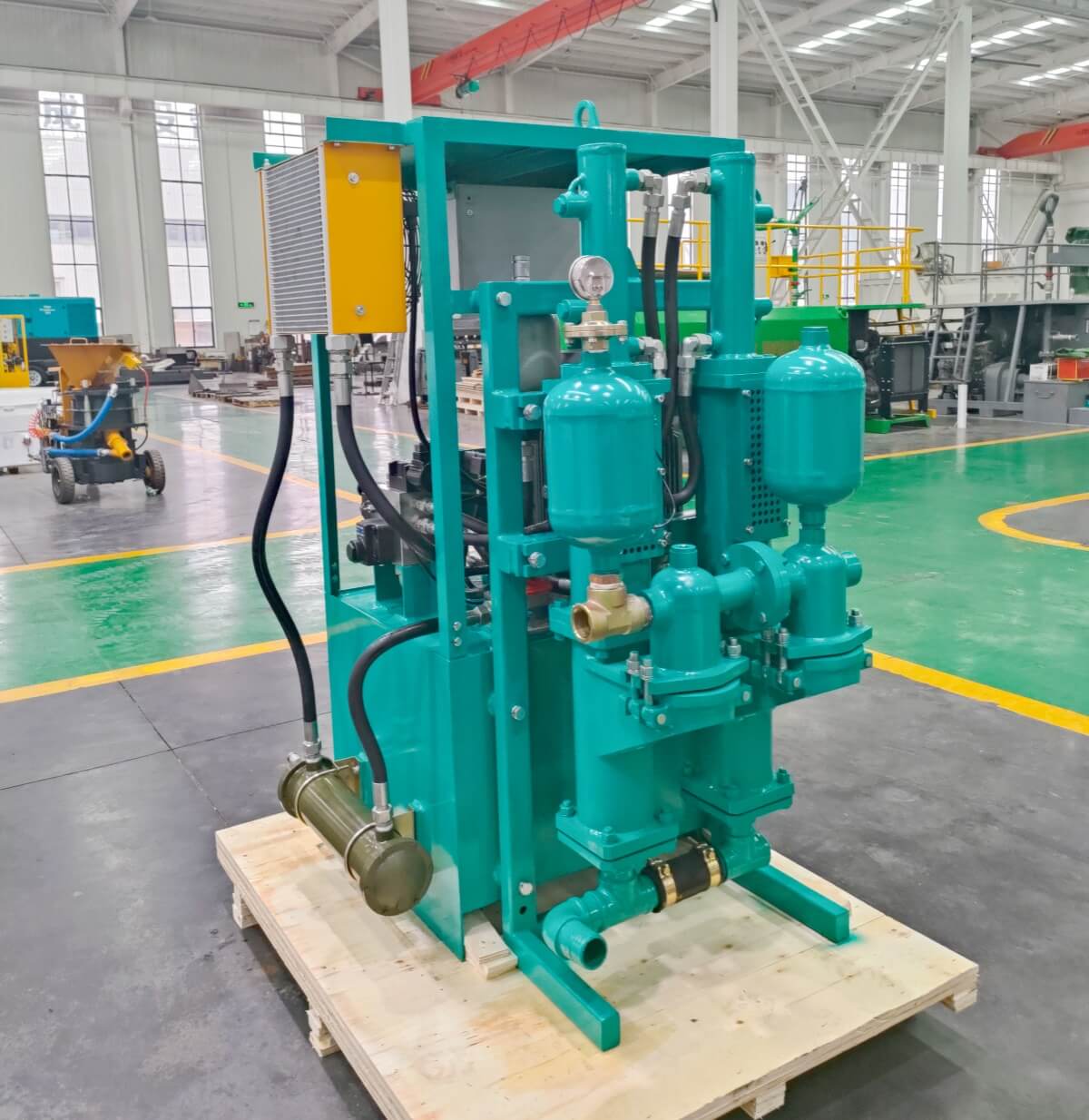

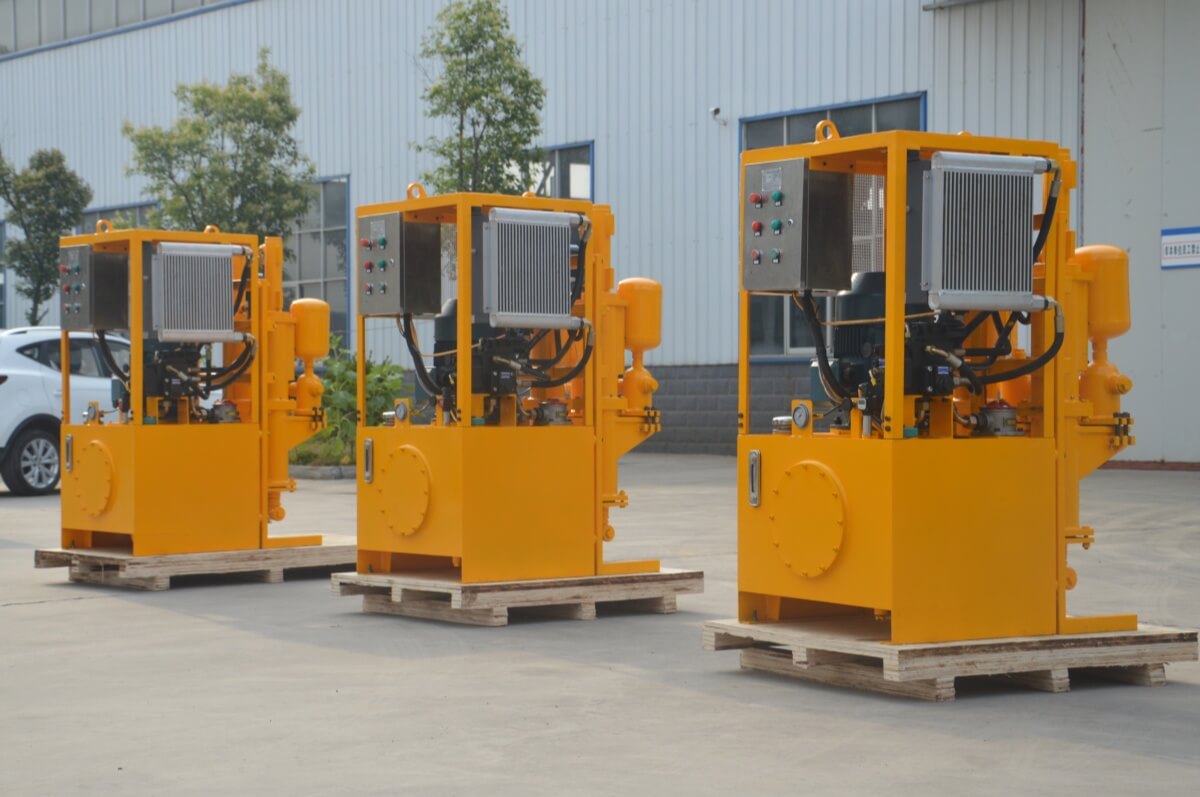

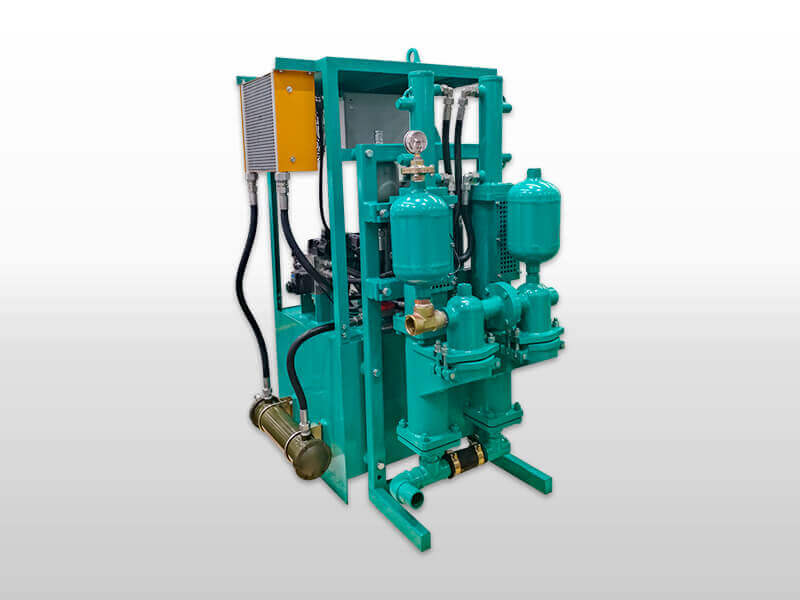

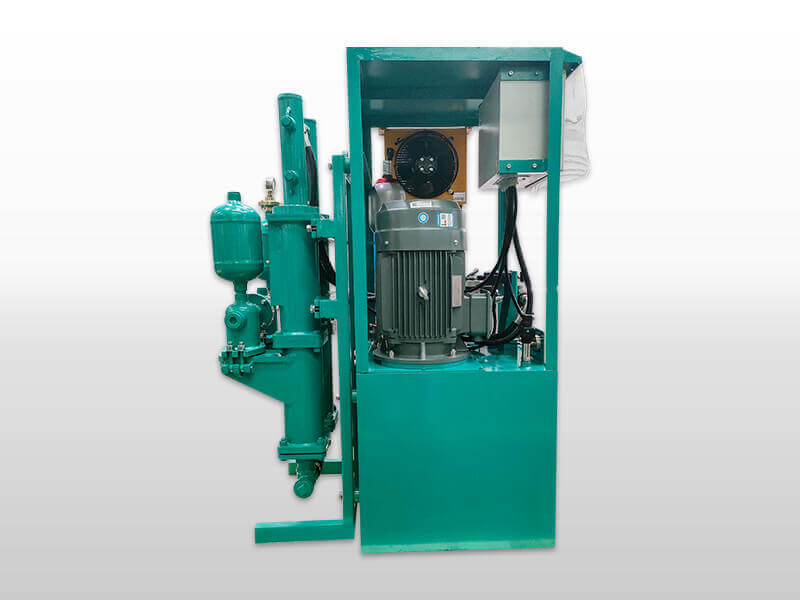

Double-plunger hydraulic grout pump

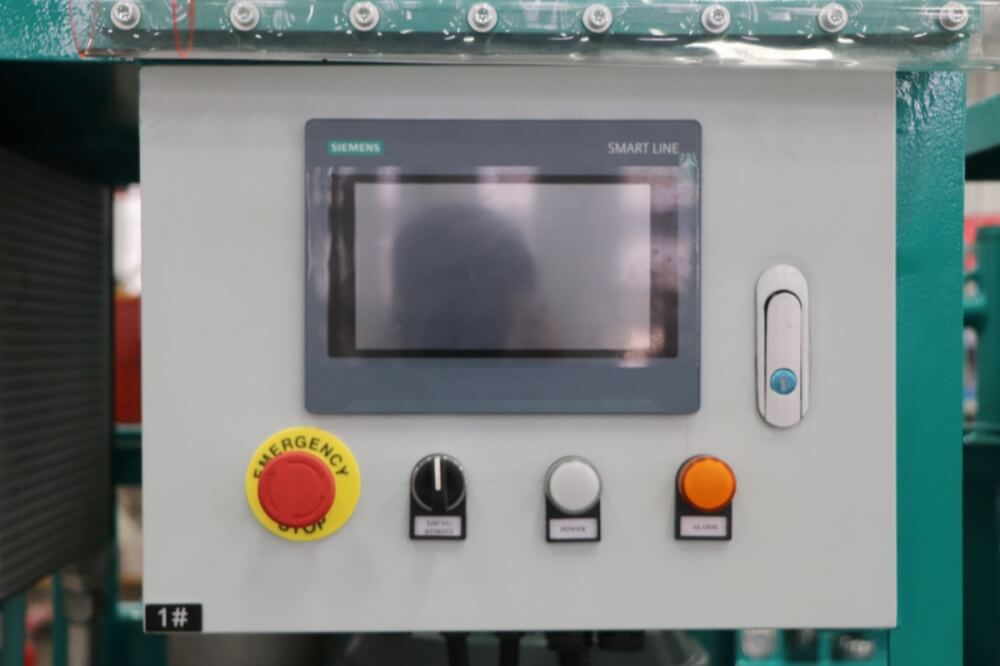

Stainless steel frame electric box with water proof button

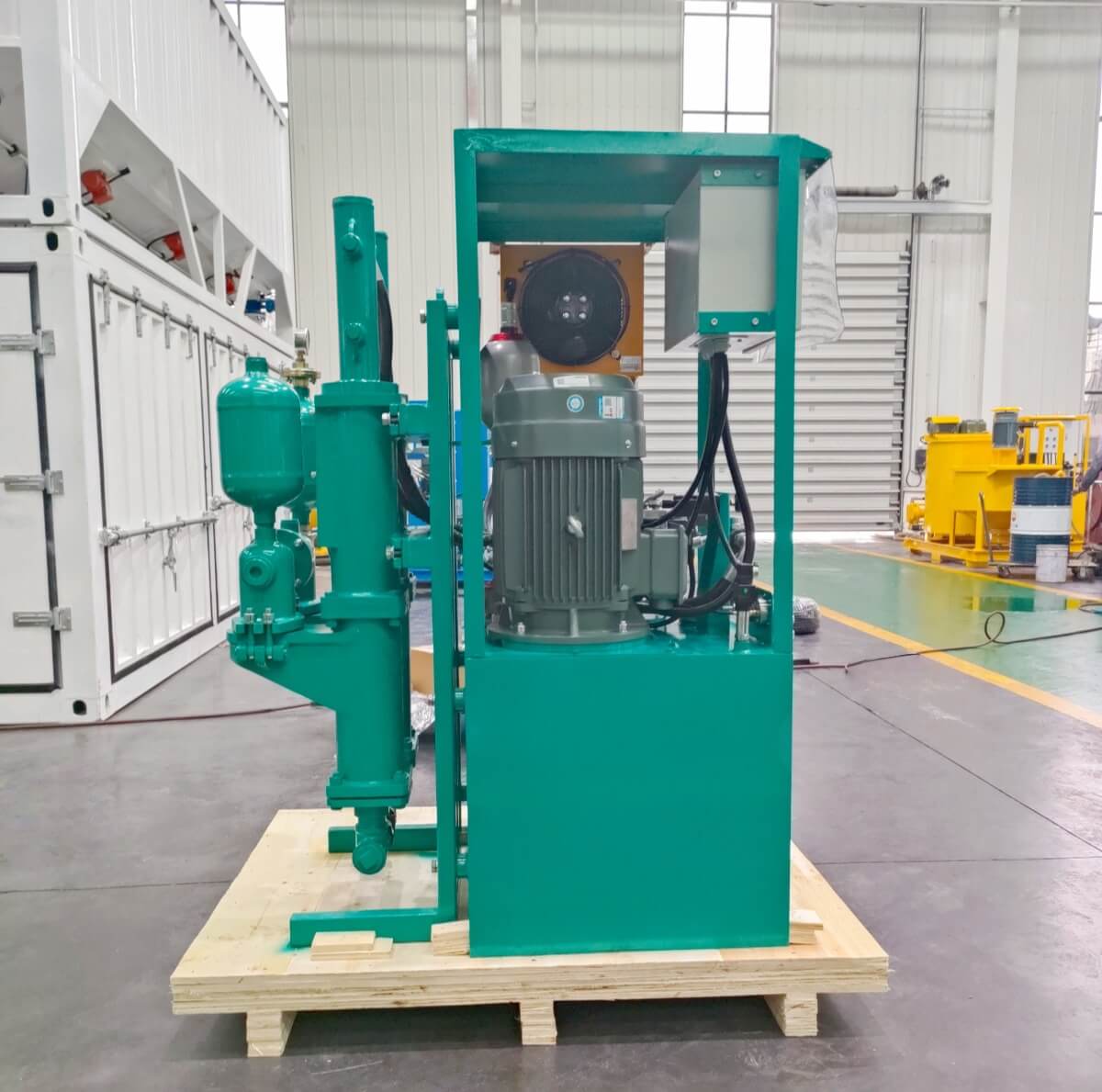

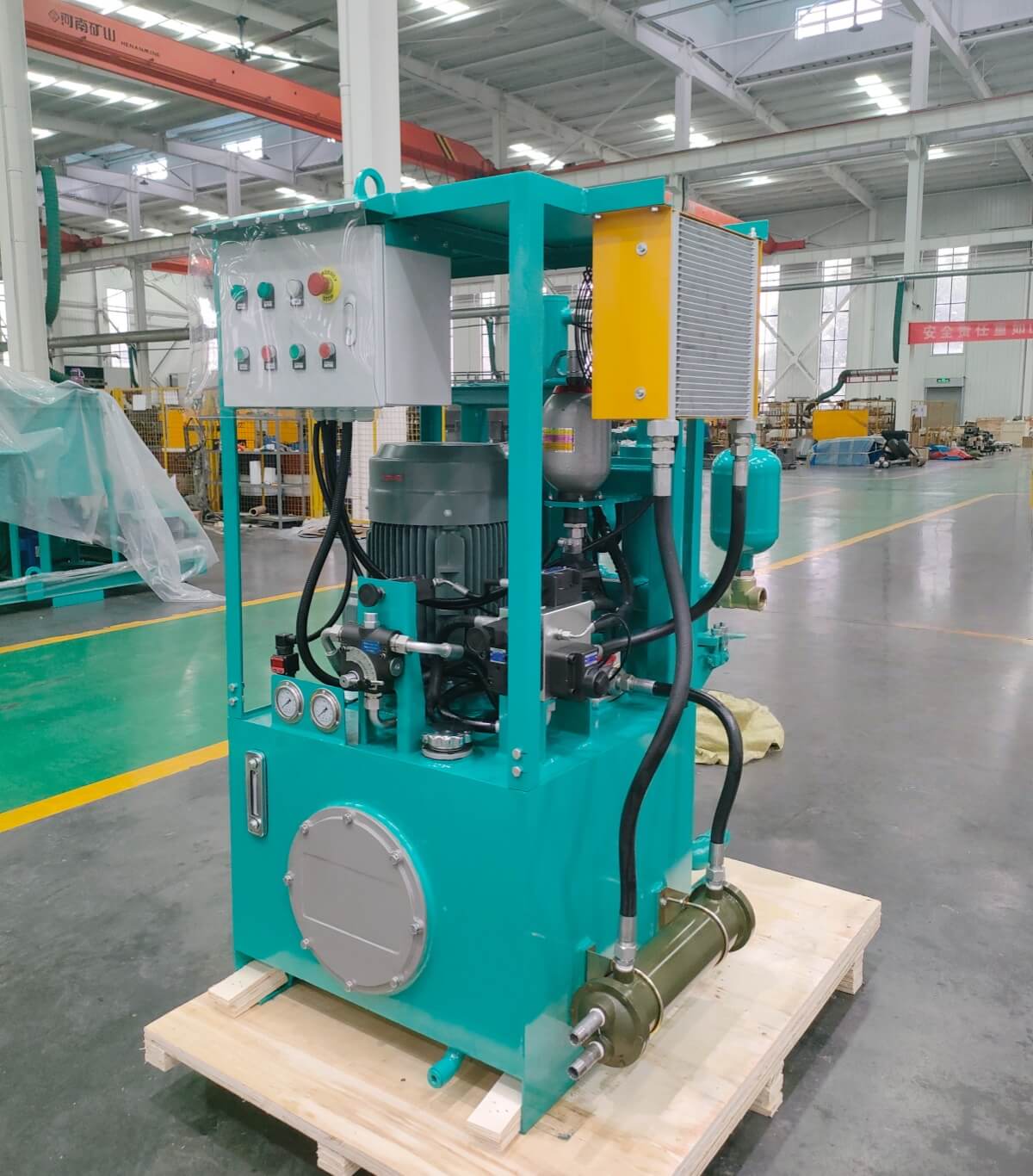

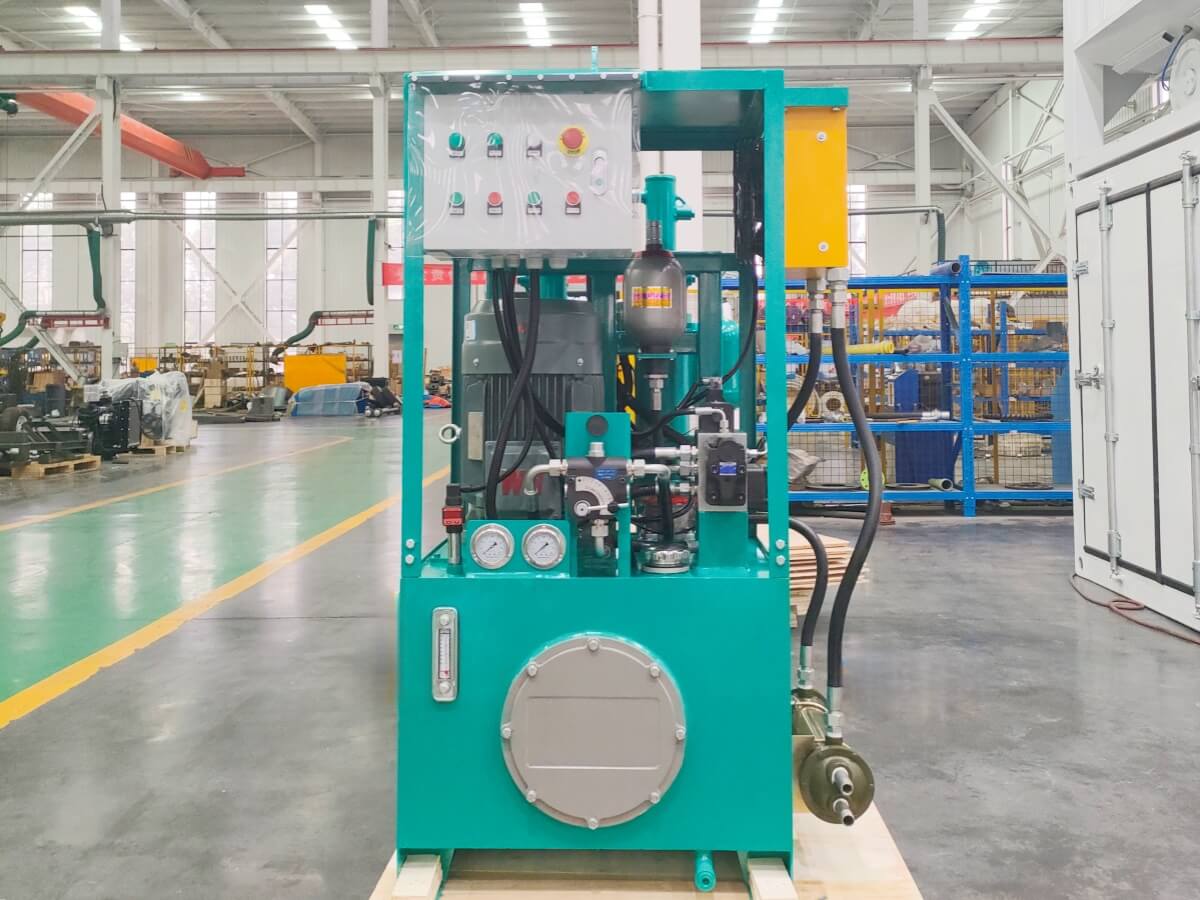

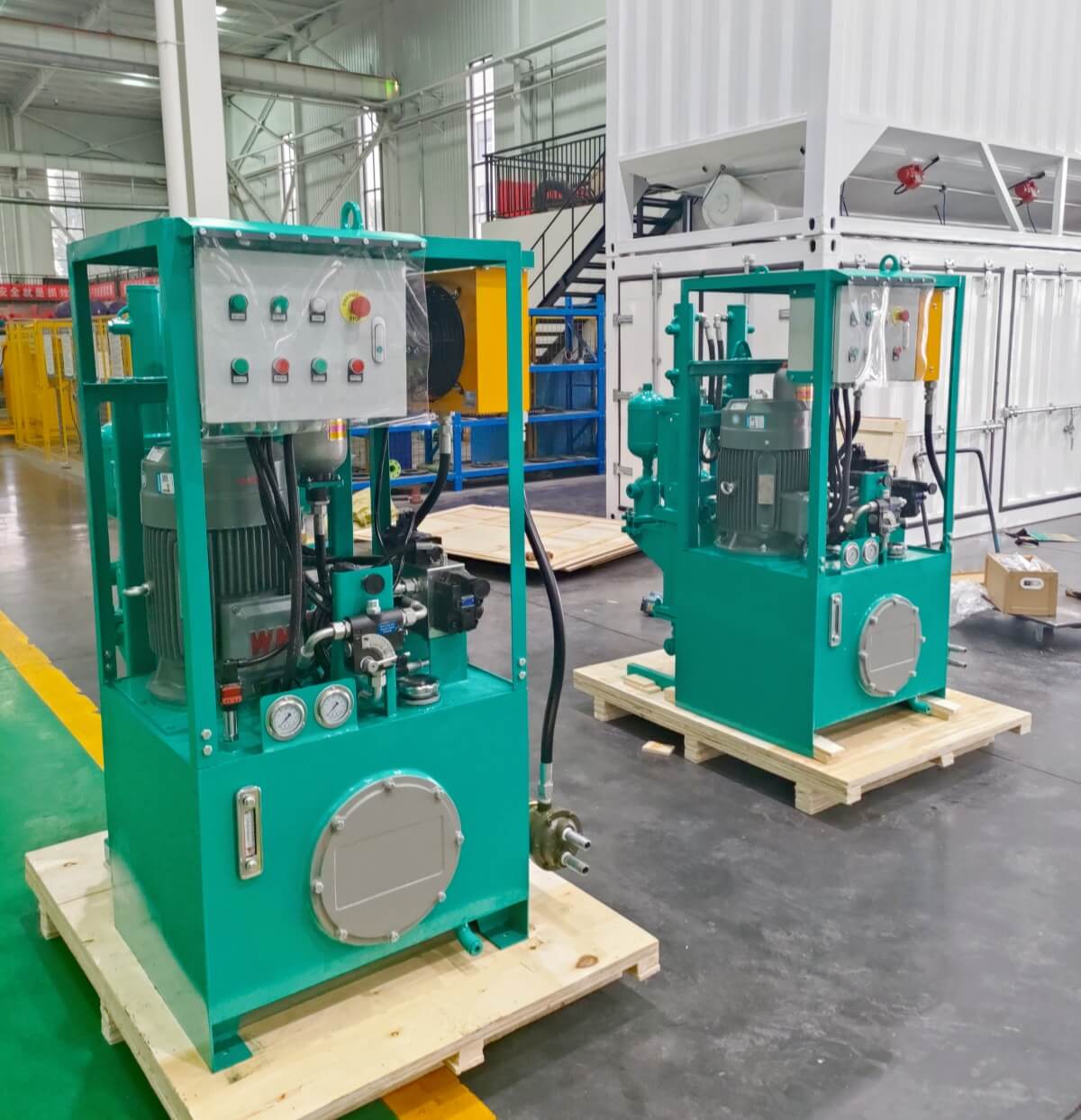

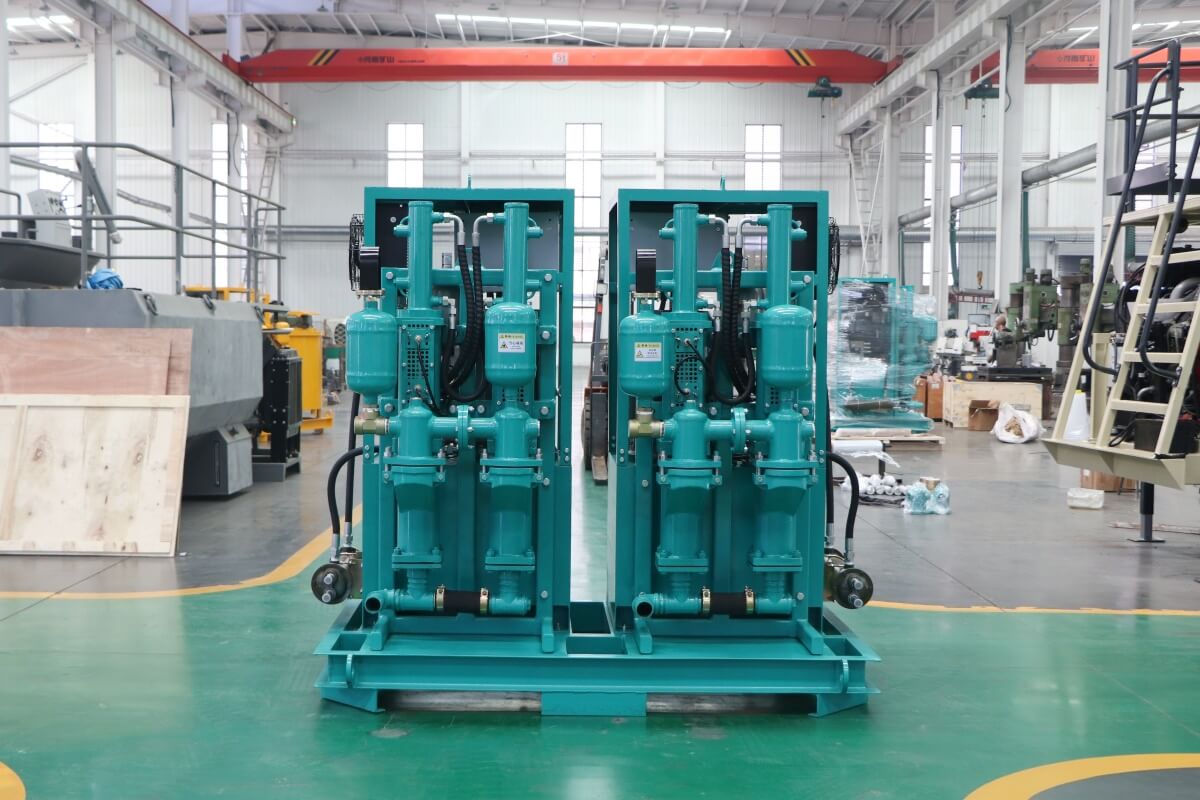

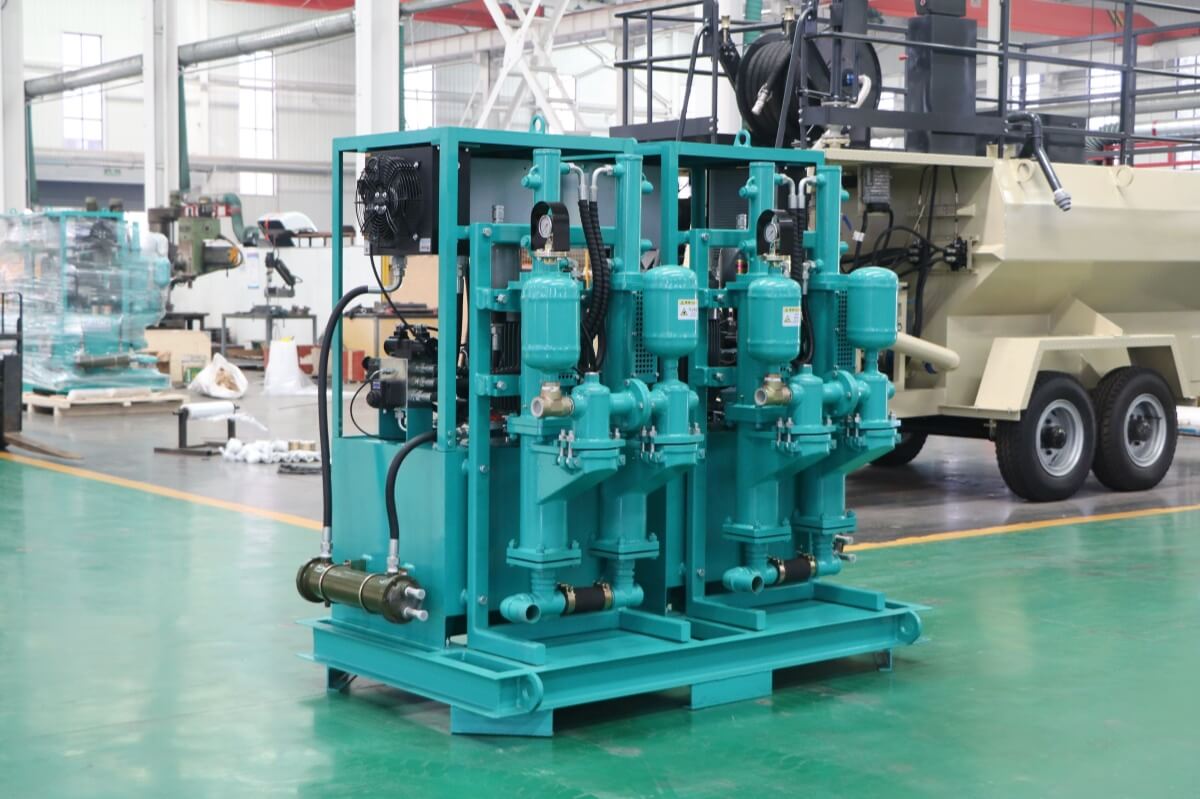

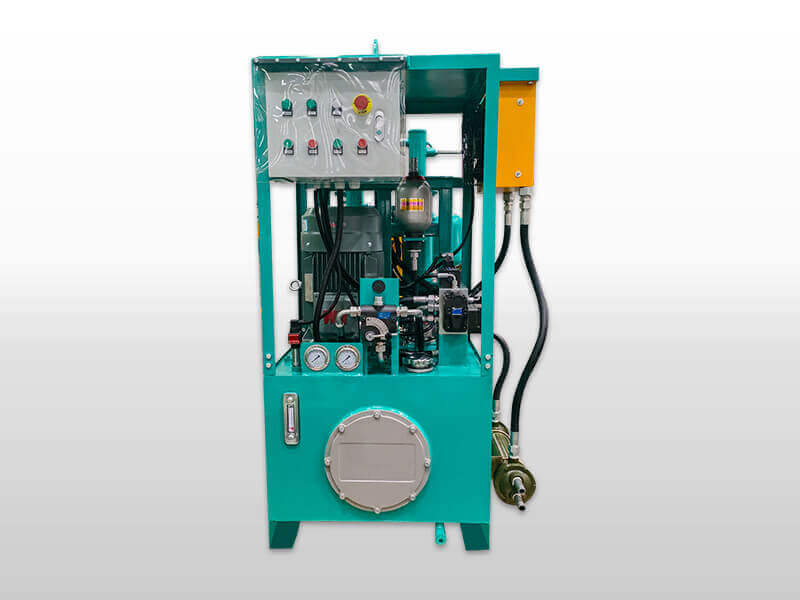

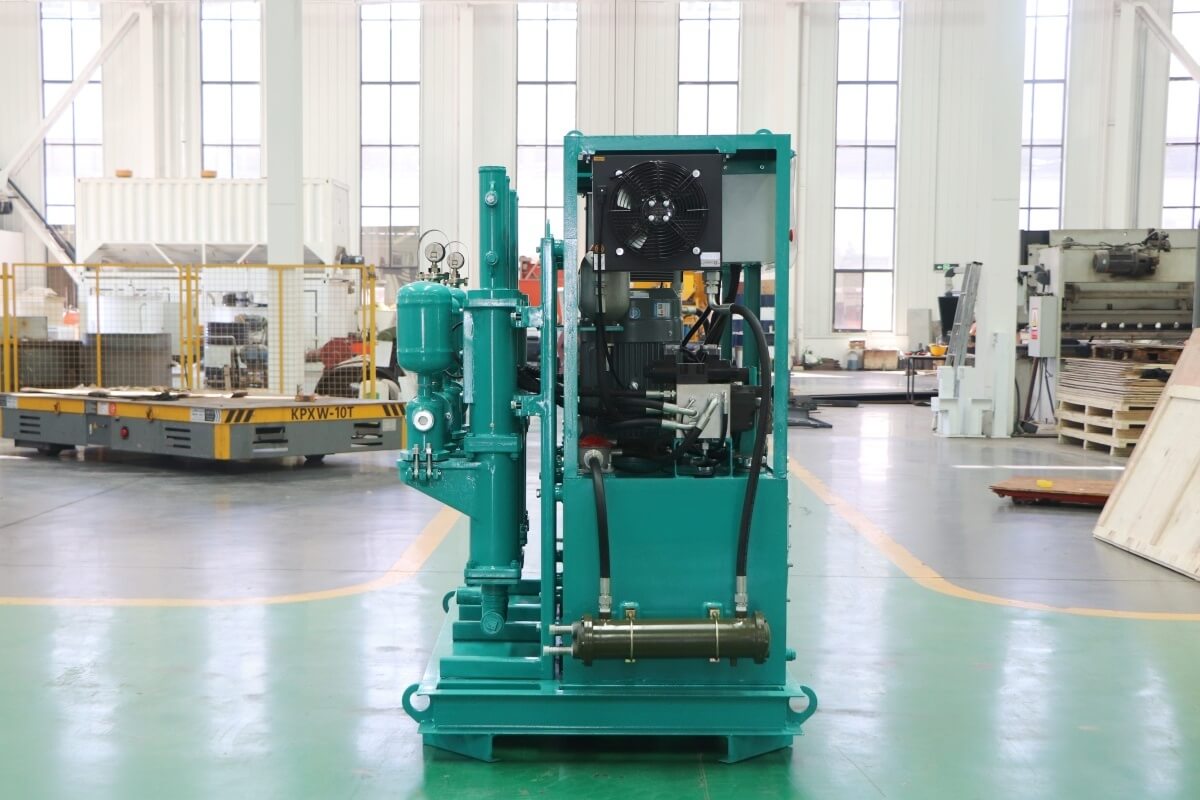

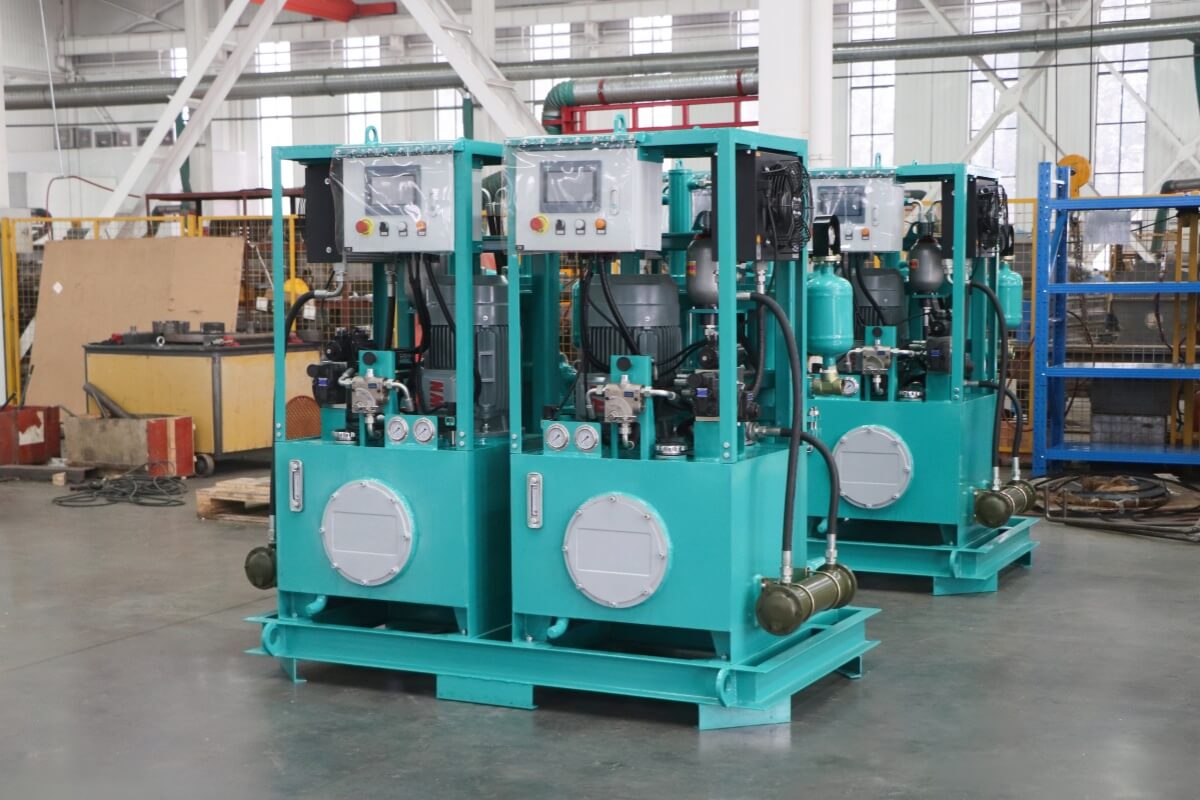

►Upgraded LGM90/100PLD-E Hydraulic Grout Pump Display Pictures:

■Product Details

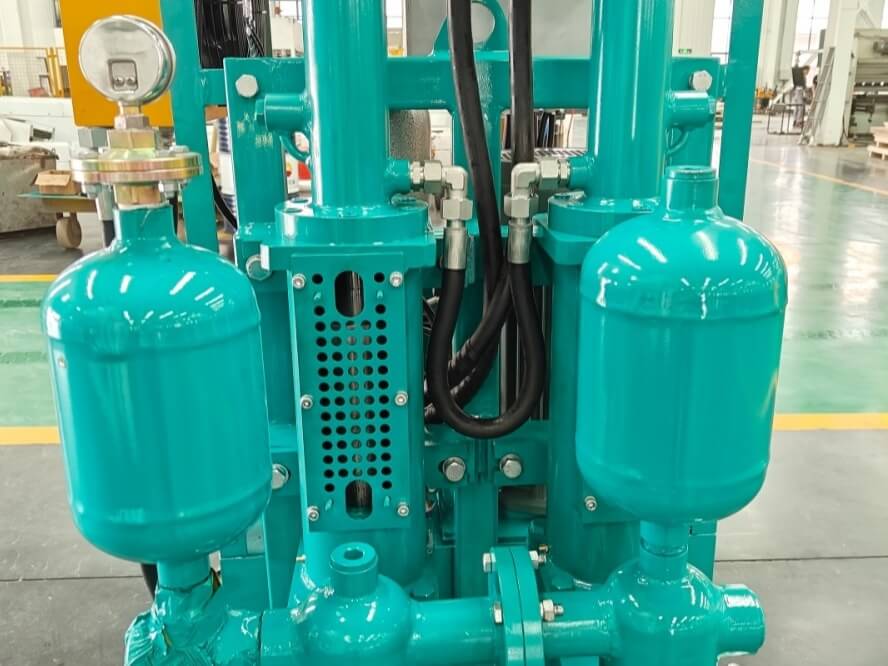

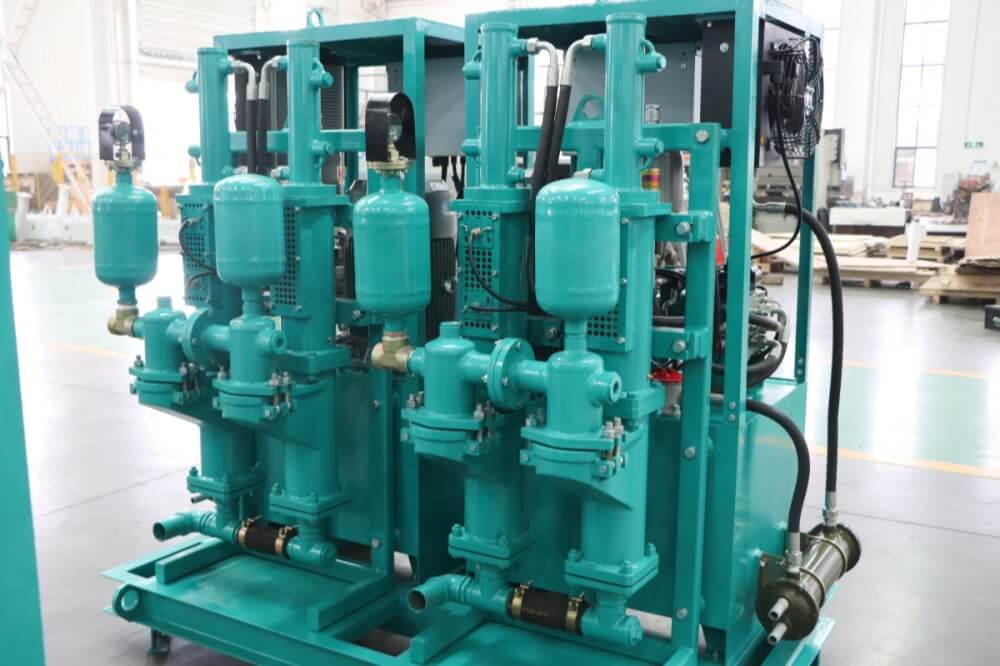

Double plunger plus two pulsation dampers

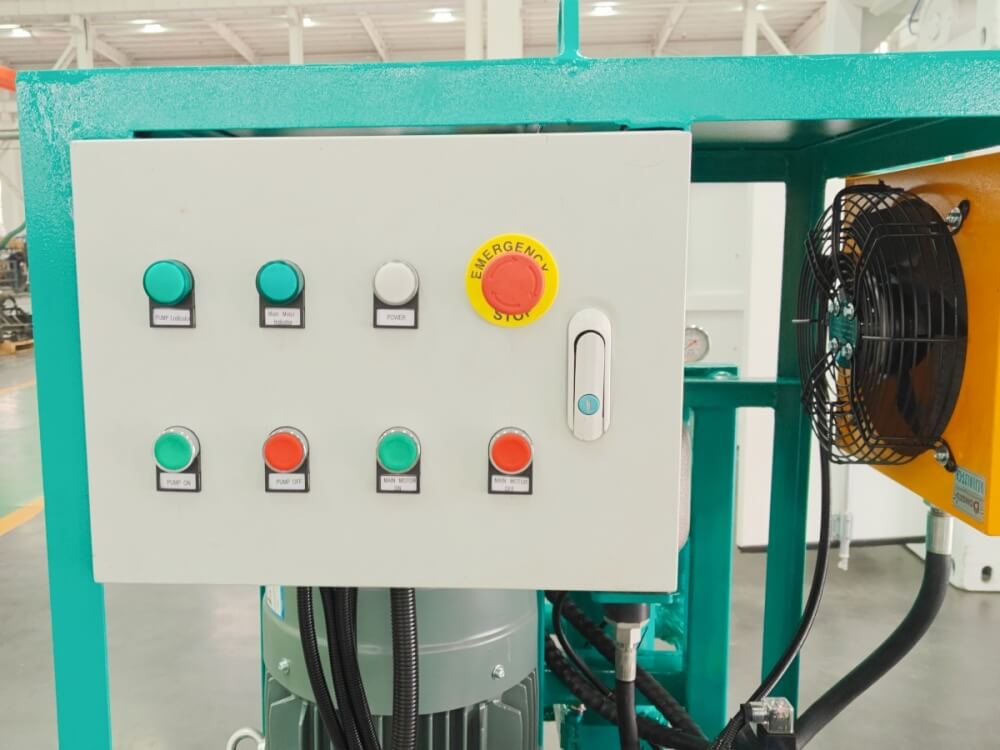

Electric control box

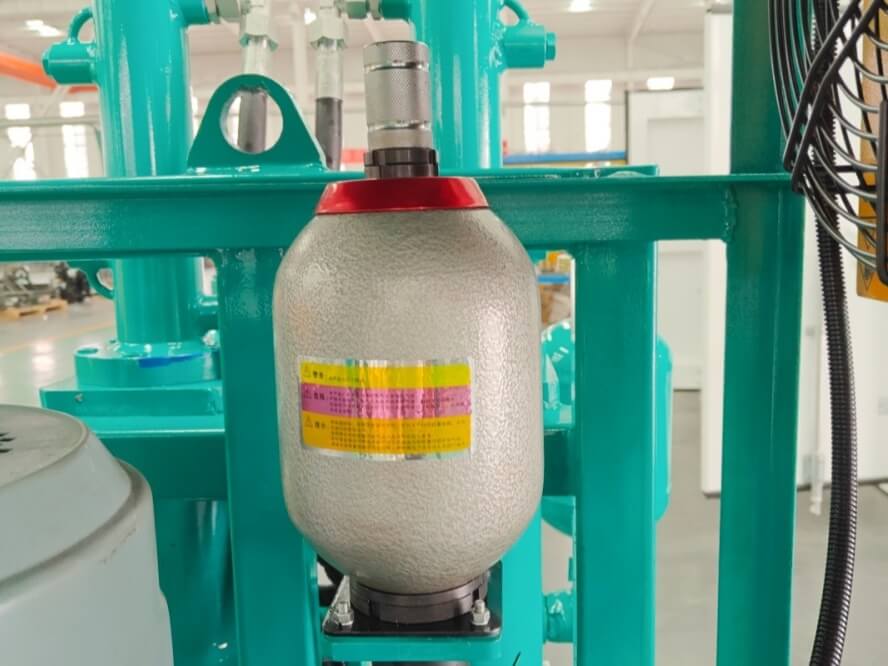

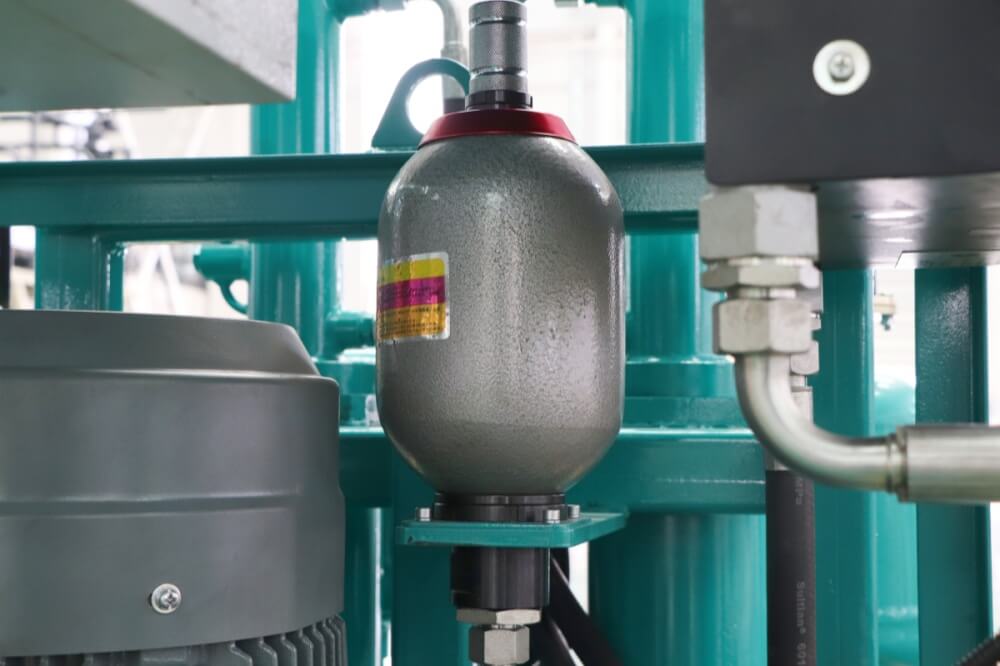

Hydraulic accumulator

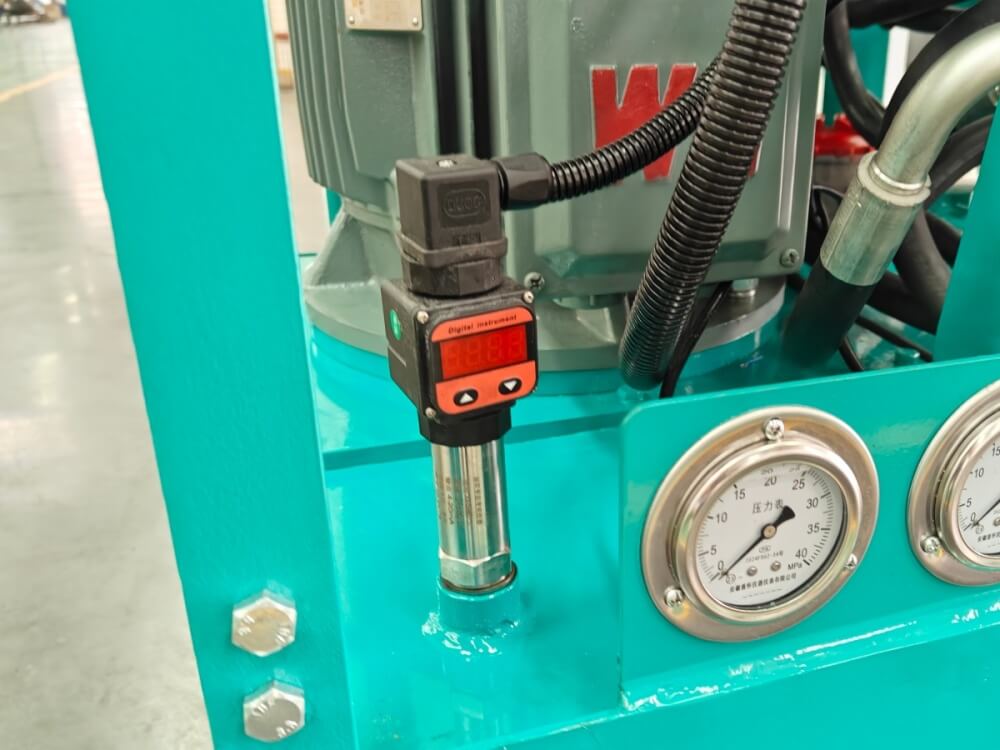

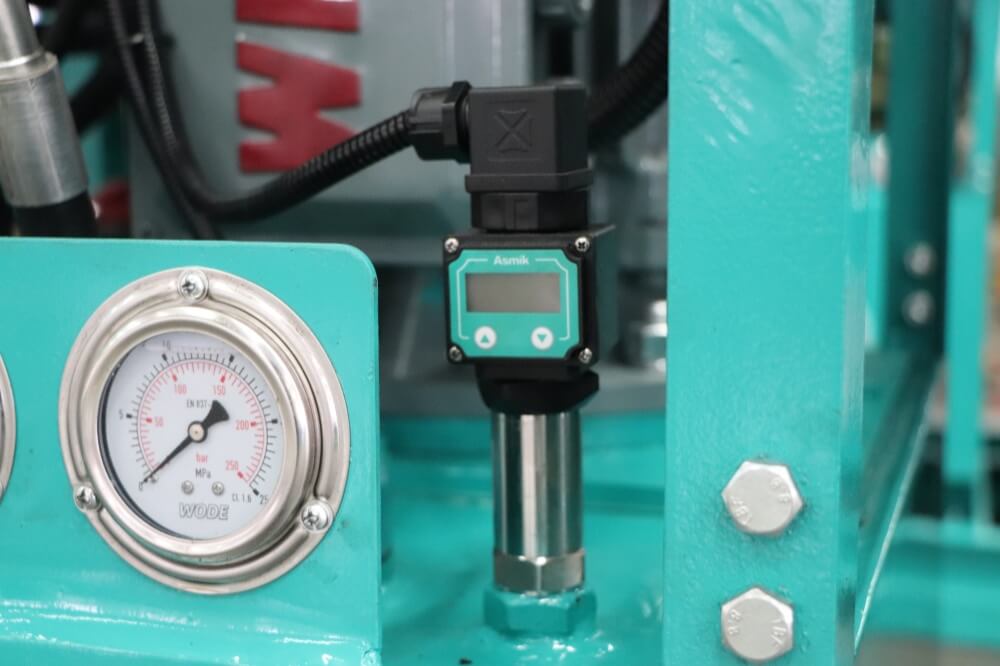

Hydraulic oil temperature sensor

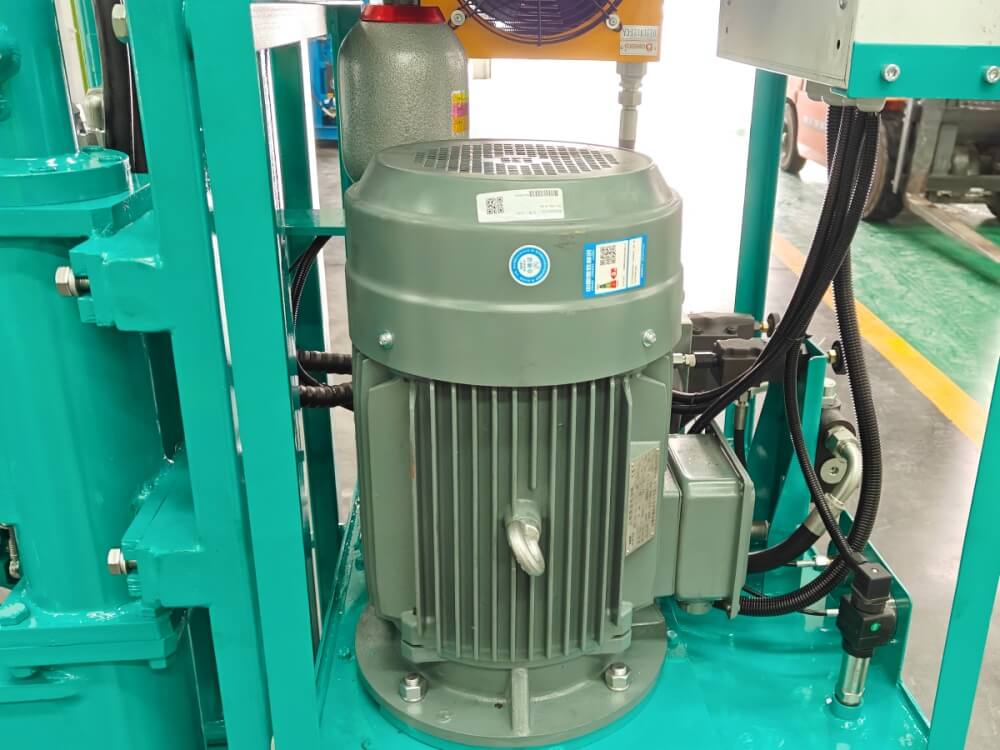

Motor

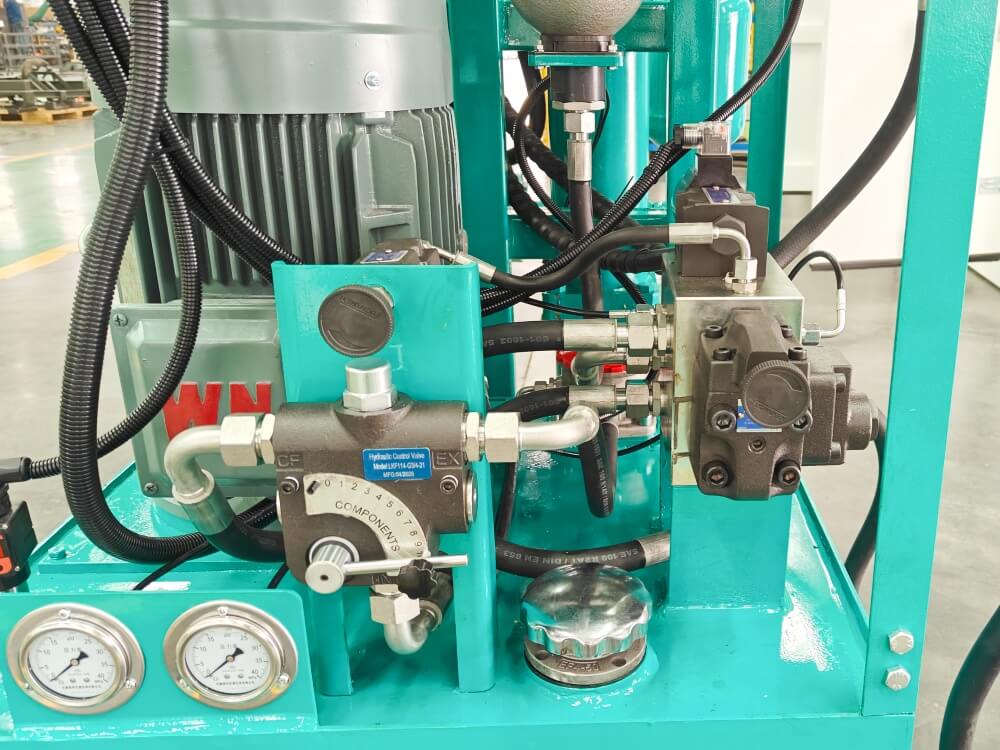

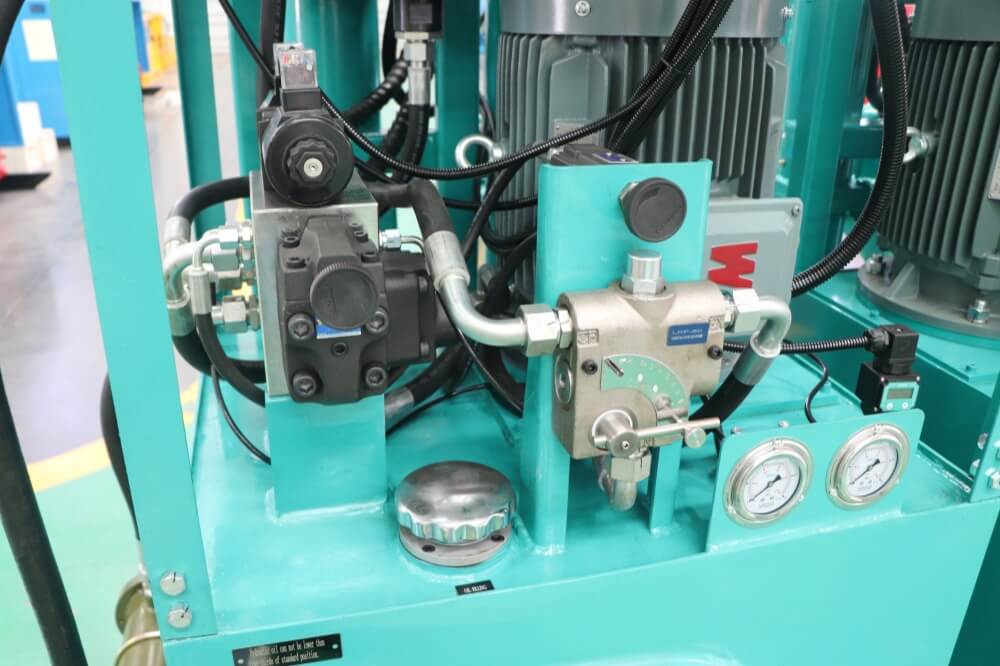

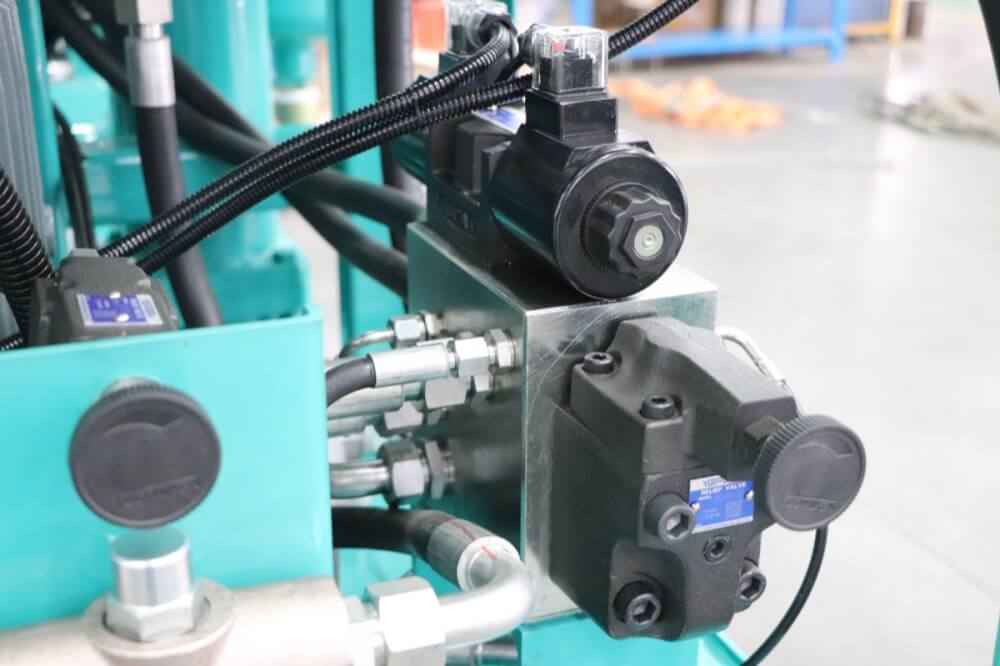

Variable flow & pressure valve

■Technical Parameters

►LGM80/50PLD-E Double-Plunger Hydraulic Grout Pump Specification:

Item	LGM80/50PLD-E
Rated Output	0-80L/Min
Rated Pressure	0-50Bar
W/C ratio	≥0.5:1
Plunger Dia.	85mm
Stroke	190mm
Inlet Dia.	2’’
Outlet Dia.	BSP1.5’’
Power Unit	11kW
Transmission	Hydraulic drive
Max. particle size	8mm
Chassis	Skid
Note: double cylinders double plunger vertical type pump Pressure and flow could be adjustable step-less

►Upgraded LGM90/100PLD-E High Pressure Hydraulic Grout Pump Specification:

Item	LGM90/100PLD-E
Rated Output	0-90L/Min
Rated Pressure	0-100Bar
W/C ratio	≥0.5:1
Plunger Dia.	85mm
Stroke	190mm
Inlet Dia.	2’’
Outlet Dia.	BSP1.5’’
Power Unit	15kW
Transmission	Hydraulic drive
Max. particle size	8mm
Dimension	1300X960X1750mm
Weight	770Kg
Chassis	Skid
Note: Double cylinders double plunger vertical type pump Pressure and flow could be adjustable step-less
